Introduction
Provide a high-performance link between fiber network devices

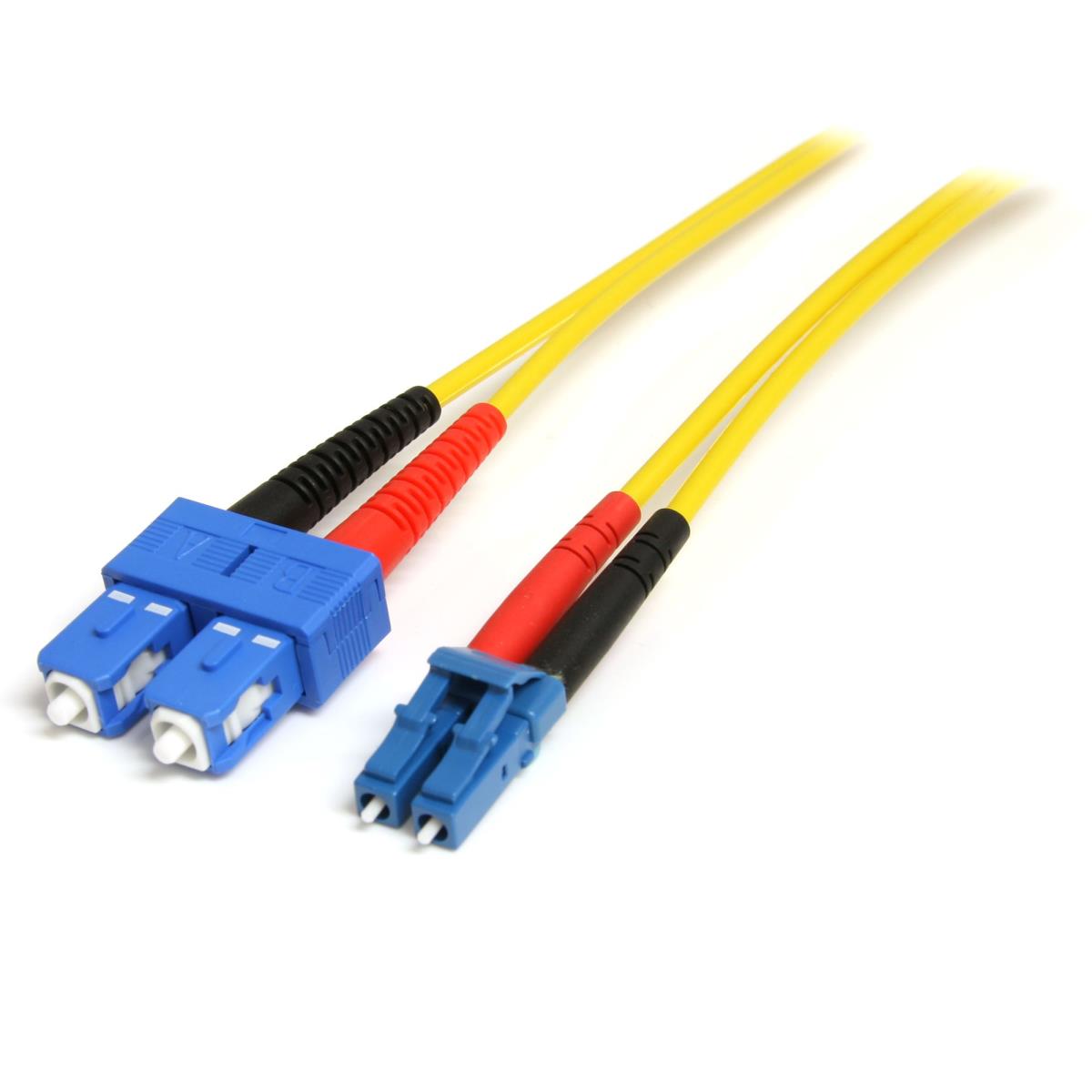

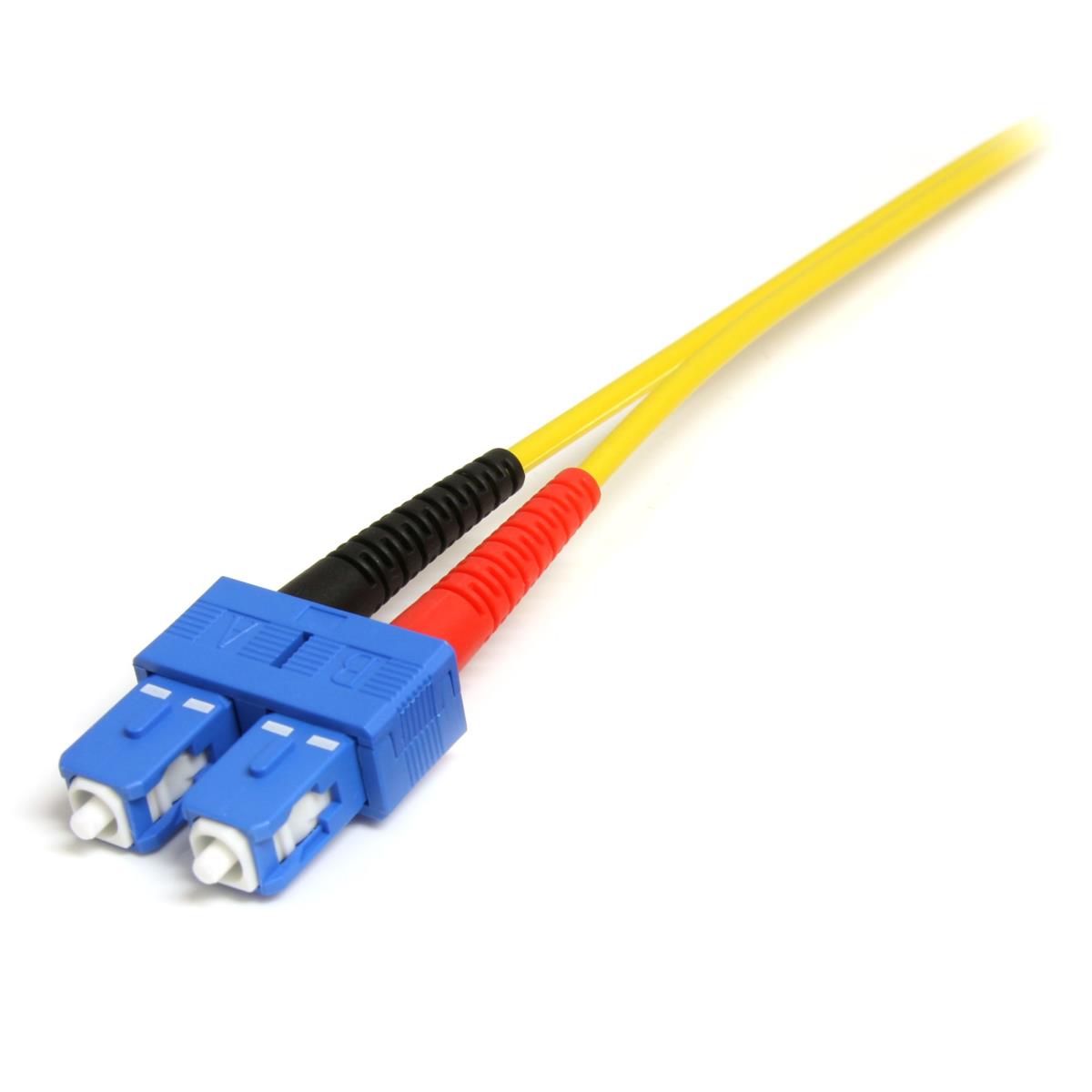

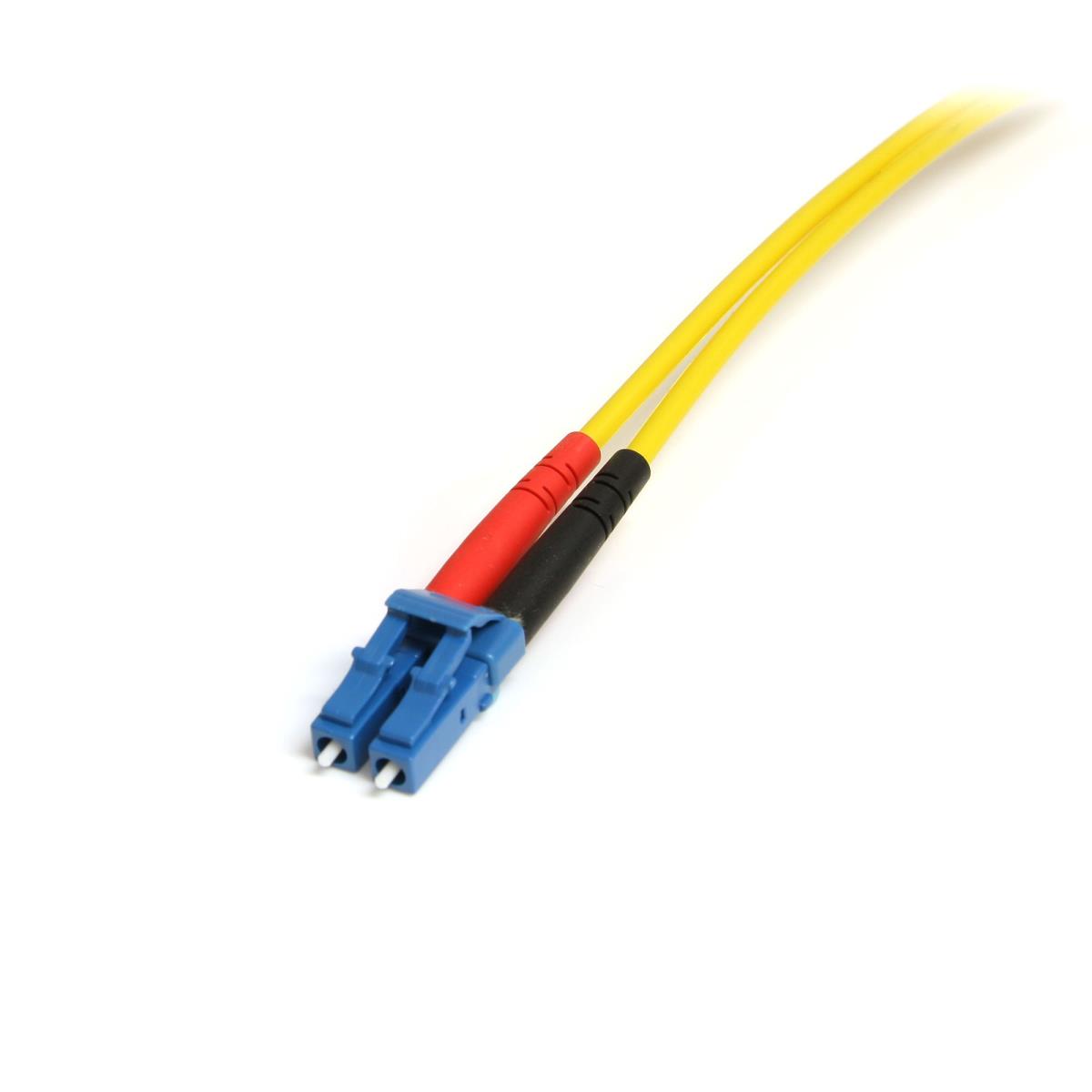

The SMFIBLCSC1 1-meter (3.3ft) Single Mode Duplex Fiber Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
Each Single Mode Duplex Fiber Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage
- Fiber Optic cables provide a higher quality signal over a greater distance
- Fiber Optic cables are an ultimate solution for high-speed data transmission
- Backed by StarTech.com lifetime warranty
Features
Fibre optic type
OS1
Core diameter
9 µm
Cladding diameter
125 µm
Data transfer rate
100 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)
Harmonized System (HS) code
85447000
Cable length
1 m
Connector 1
LC
Connector 2
SC
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Yellow
Full duplex
Y
Fiber mode structure
Multi-mode
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Weight
18 g
Packaging data
Quantity per pack
1 pc(s)
Package width
5.8 mm
Package depth
199 mm
Package height
211 mm
Package weight
30 g
Logistics data
Master (outer) case width
335 mm
Master (outer) case length
235 mm
Master (outer) case height
108 mm
Products per master (outer) case
320 pc(s)
Technical details
Compliance certificates
CE, RoHS
Sustainability certificates
RoHS
Information
| Part Number: | SMFIBLCSC1 |
