STARTECH.COM Hdmi Over CAT6 Extender Kit 4k 60hz - 50m

£111.61

Part Number: ST121HD20V
Delivery: 1 - 2 days

Product Details

Introduction

HDMI Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.

Long-Distance Transmission

Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

Compatible with HDCP 2.2 Devices

Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Crystal-clear picture quality with support for resolutions up to 4K 60Hz
- Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
- Hassle-free setup with long-distance transmission over a reliable connection

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Logistics data

Harmonized System (HS) code 85176200
Master (outer) case width 375 mm
Master (outer) case length 457 mm
Master (outer) case height 282 mm
Products per master (outer) case 20 pc(s)

Features

Type AV transmitter & receiver
Maximum resolution 3840 x 2160 pixels
Cable types supported Cat6
Maximum transfer distance 50 m
Maximum refresh rate 60 Hz
Audio output channels 7.1 channels
Supported graphics resolutions 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160
HDCP Y
HDCP version 2.2
Product colour Black
Certification CE, FCC, REACH

Ports & interfaces

Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 1
Number of HDMI outputs 2
HDMI version 2.0

Power

AC input voltage 100 - 240 V
Input current 0.3 A
Operating voltage (transmitter) 12 V
Output current 1 A
Operating voltage (receiver) 12 V
Power plug type Type M

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%

Weight & dimensions

Width 70 mm
Depth 97 mm
Height 13 mm
Weight 156 g

Packaging data

Package width 130 mm
Package depth 220 mm
Package height 70 mm
Package weight 777 g

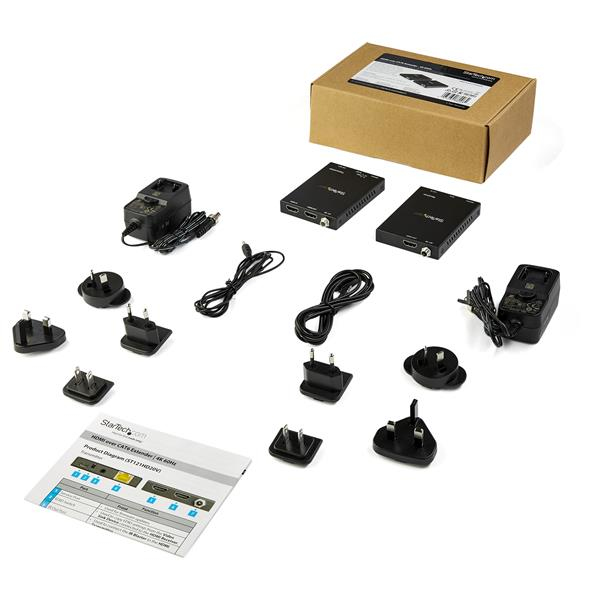

Packaging content

Included power plug types ANZ, EU, JP, NA, UK
Quick start guide Y
IR blaster included Y
IR receiver included Y

Information

Part Number: ST121HD20V
