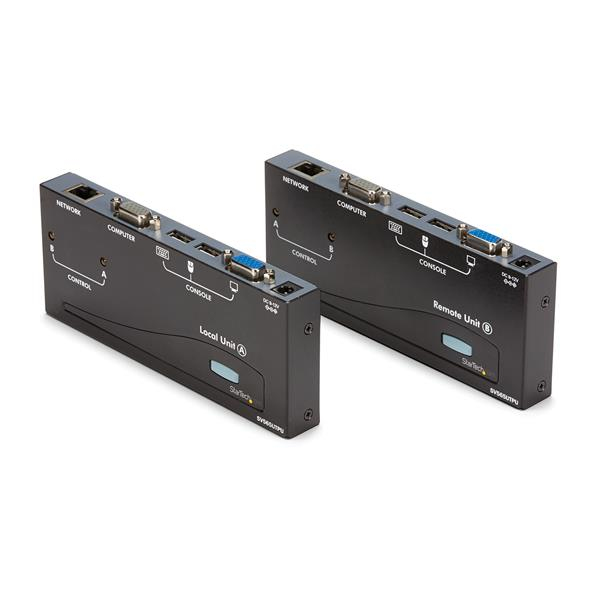

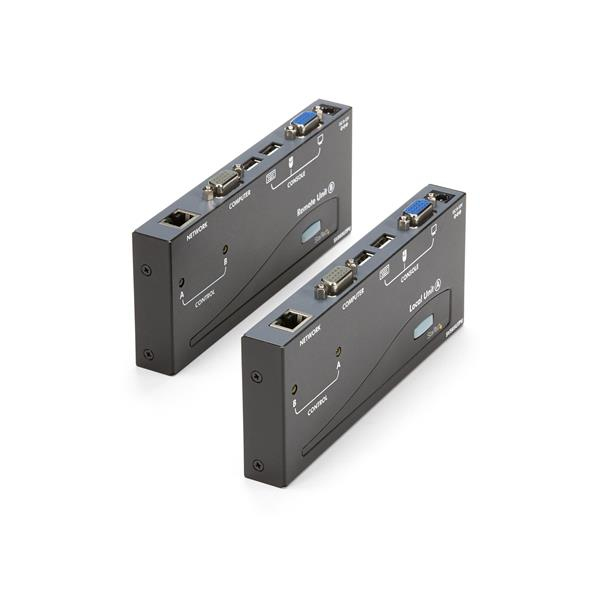

STARTECH.COM USB Vga Console Extender Over Cat5 Utp 150m

£184.80

Part Number: SV565UTPUGB
Delivery: 1 - 2 days

Product Details

Introduction

Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you
The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware's capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

Logistics data

Master (outer) case width 510 mm
Master (outer) case length 320 mm
Master (outer) case height 295 mm
Products per master (outer) case 6 pc(s)

Technical details

Harmonized System (HS) code 84733080
Maximum resolution 1280 x 1024 pixels
Power requirements 230 AC
Weight 299 g

Features

Type Transmitter & receiver
Connectivity technology Wired
Maximum transfer distance 150 m
Rack mounting N
Product colour Black
Plug and Play Y
USB 2.0 ports quantity 4
Certification CE, FCC, RoSH

Transmitter

Transmitter video port type VGA
Transmitter local video port Y
Transmitter local video port type VGA

Power

Power plug type Type M
AC input voltage 100 - 240 V
Input current 0.2 A
AC adapter output voltage 9 V
AC adapter output current 0.6 A
Power consumption (transmitter) (max) 5.4 W
Power consumption (receiver) (max) 5.4 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%

Weight & dimensions

Transmitter width 15.5 cm
Transmitter depth 7.5 cm
Transmitter height 2 cm
Transmitter weight 299 g
Receiver width 15.5 cm
Receiver depth 7.5 cm
Receiver height 2 cm
Receiver weight 299 g

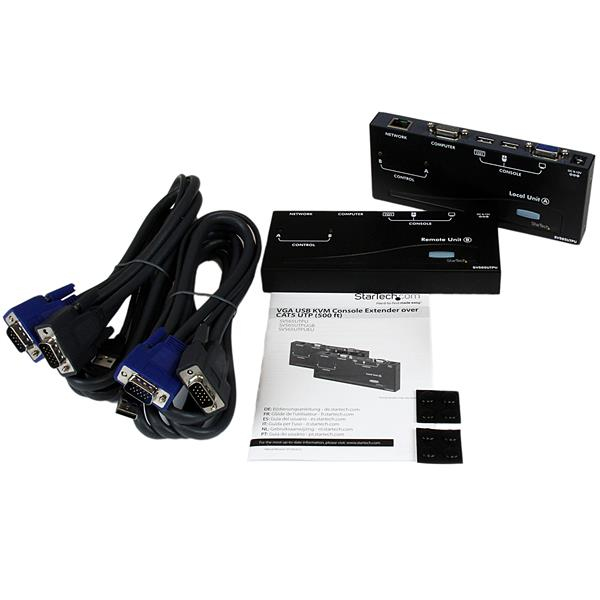

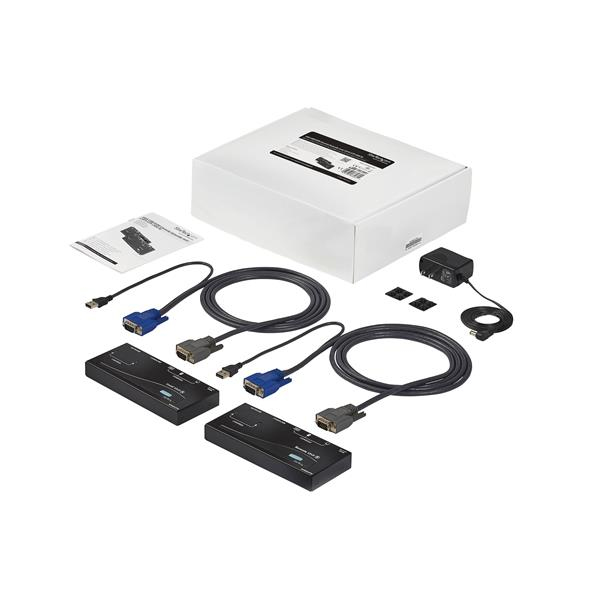

Packaging content

AC adapter included Y
Cables included KVM
Manual Y

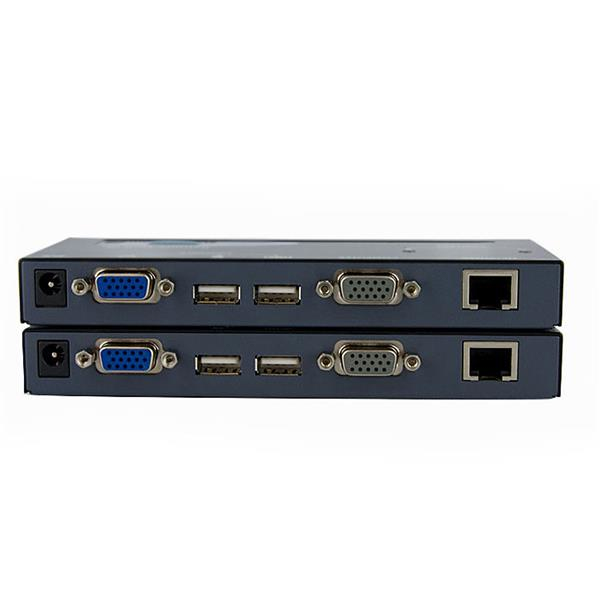

Ports & interfaces

USB port type USB Type-A
RJ-45 ports quantity 2

Packaging data

Package width 85 mm
Package depth 294 mm
Package height 243 mm
Package weight 1.7 kg

Information

Part Number: SV565UTPUGB
