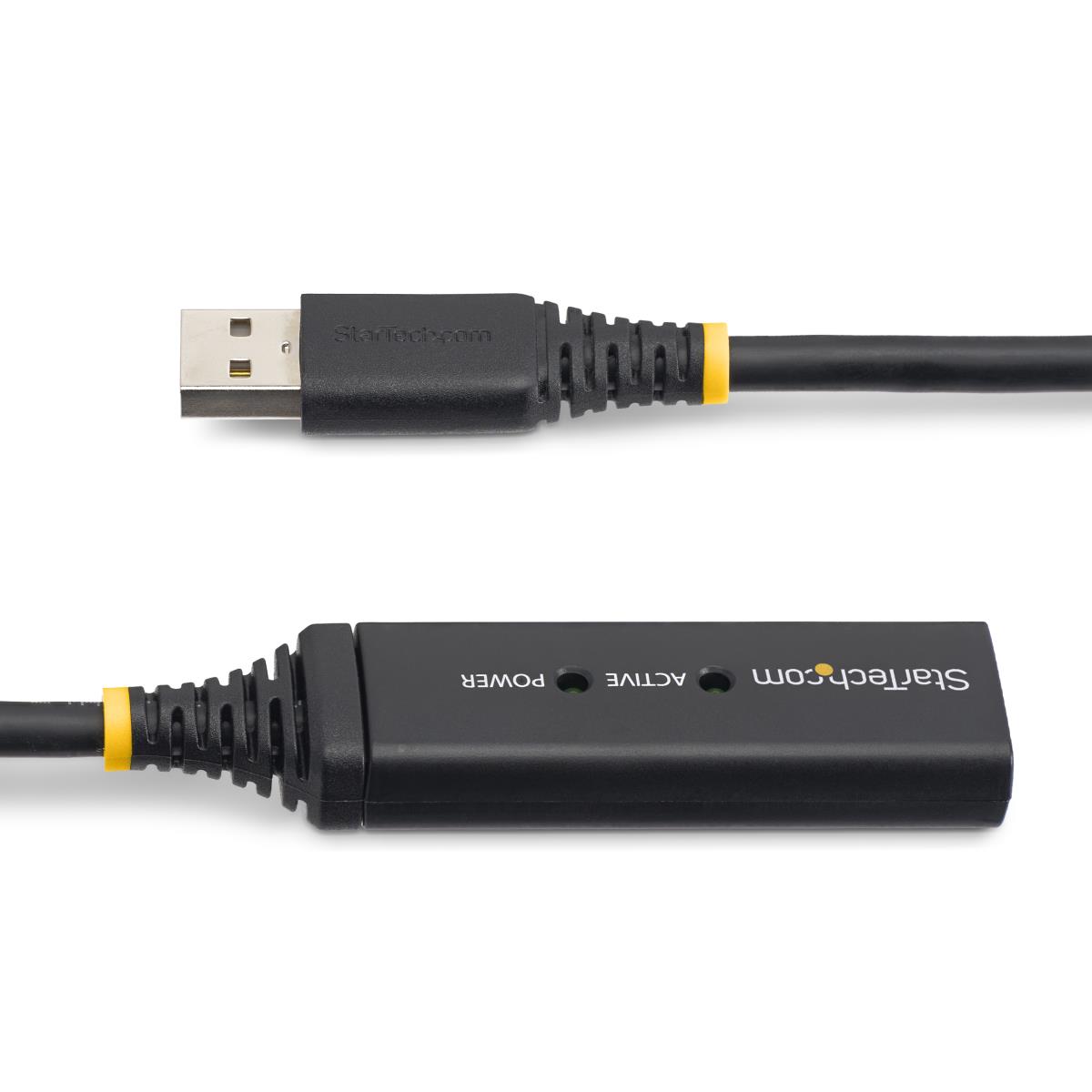

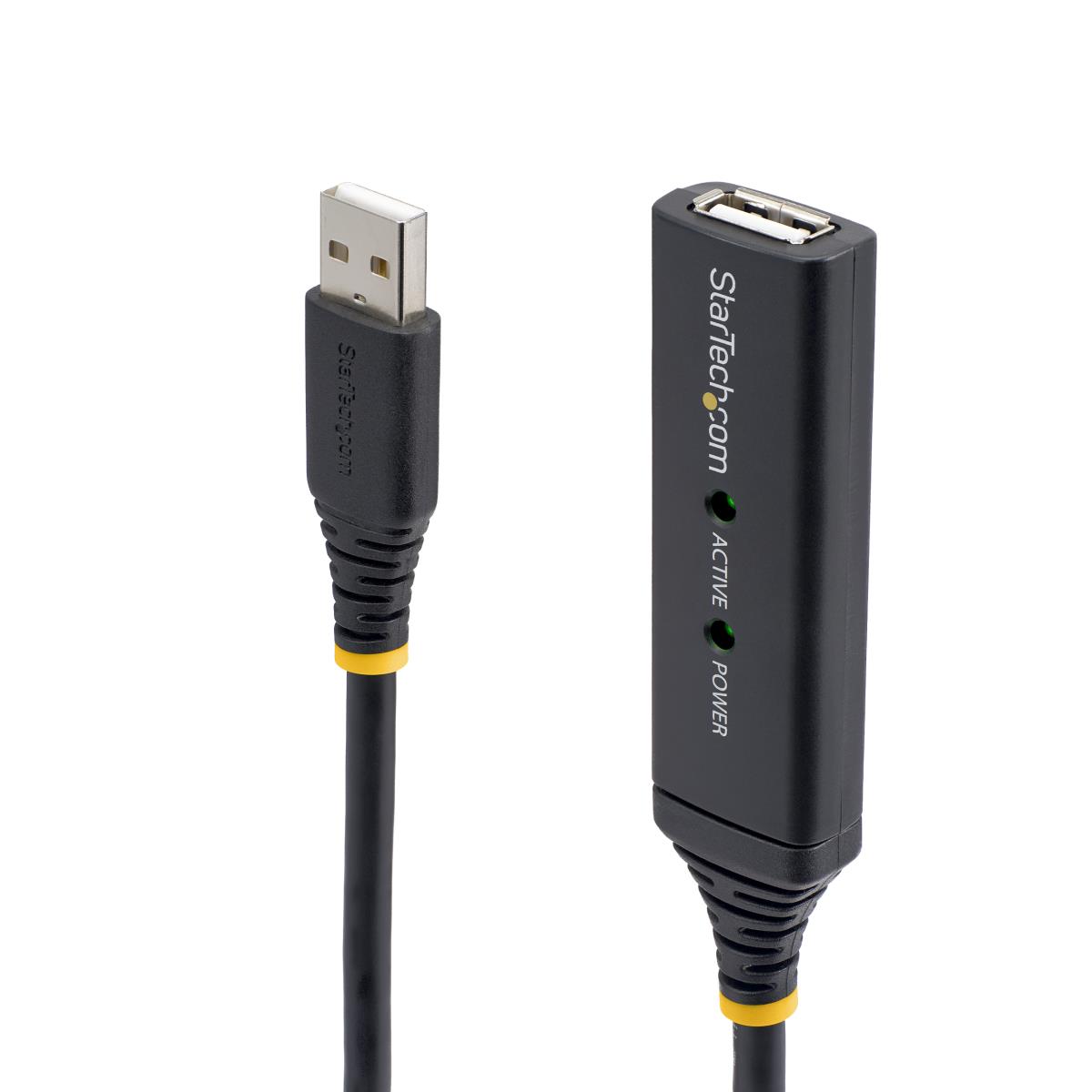

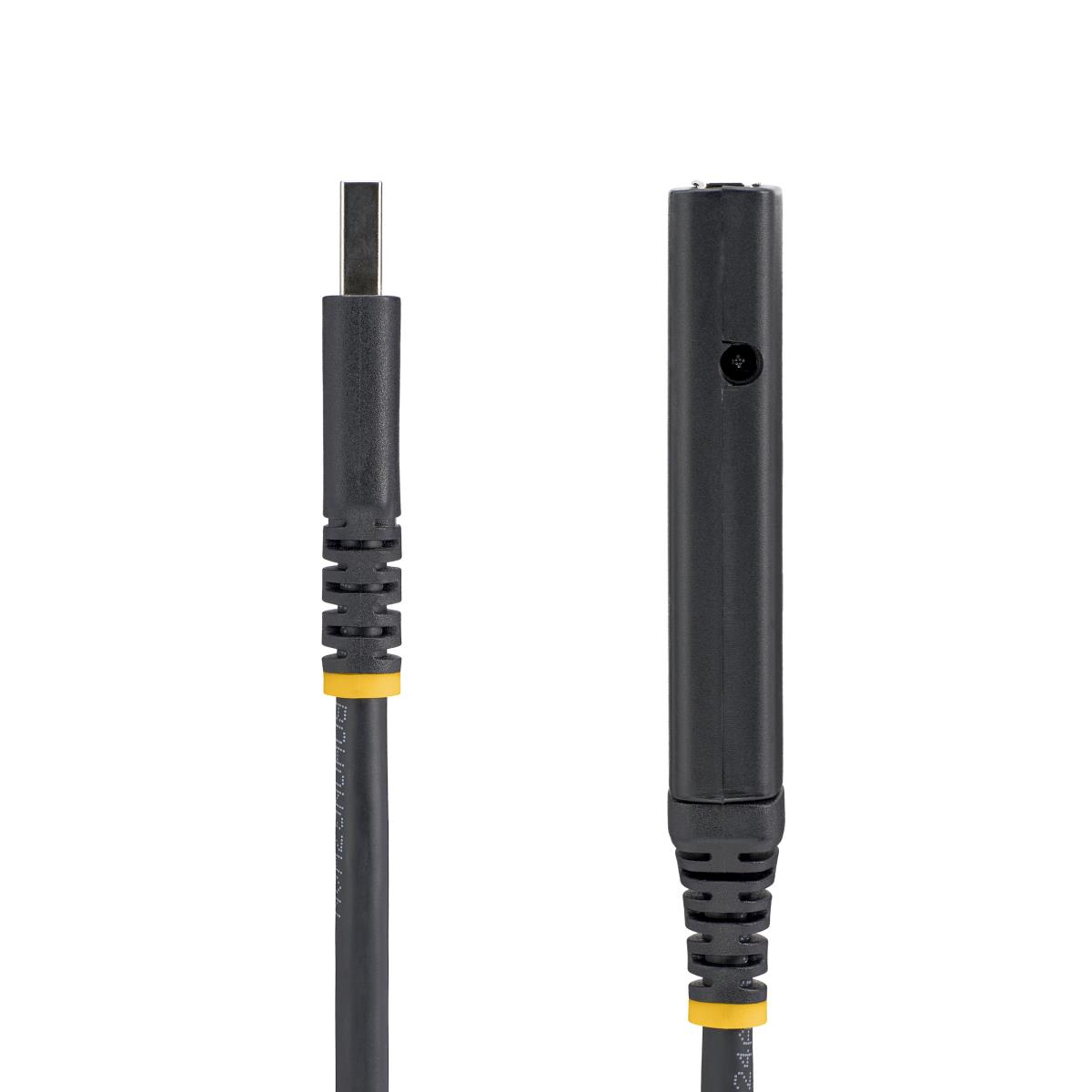

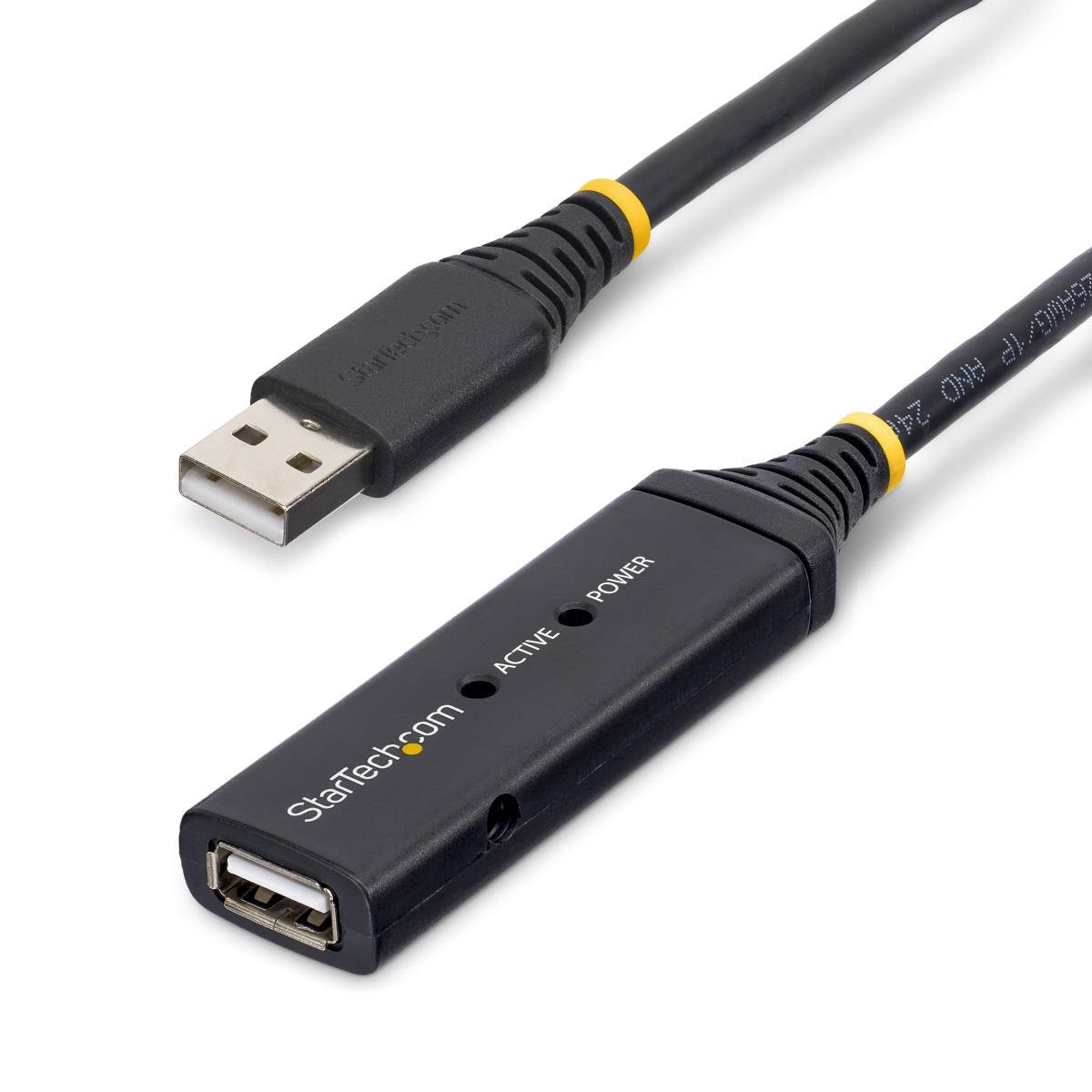

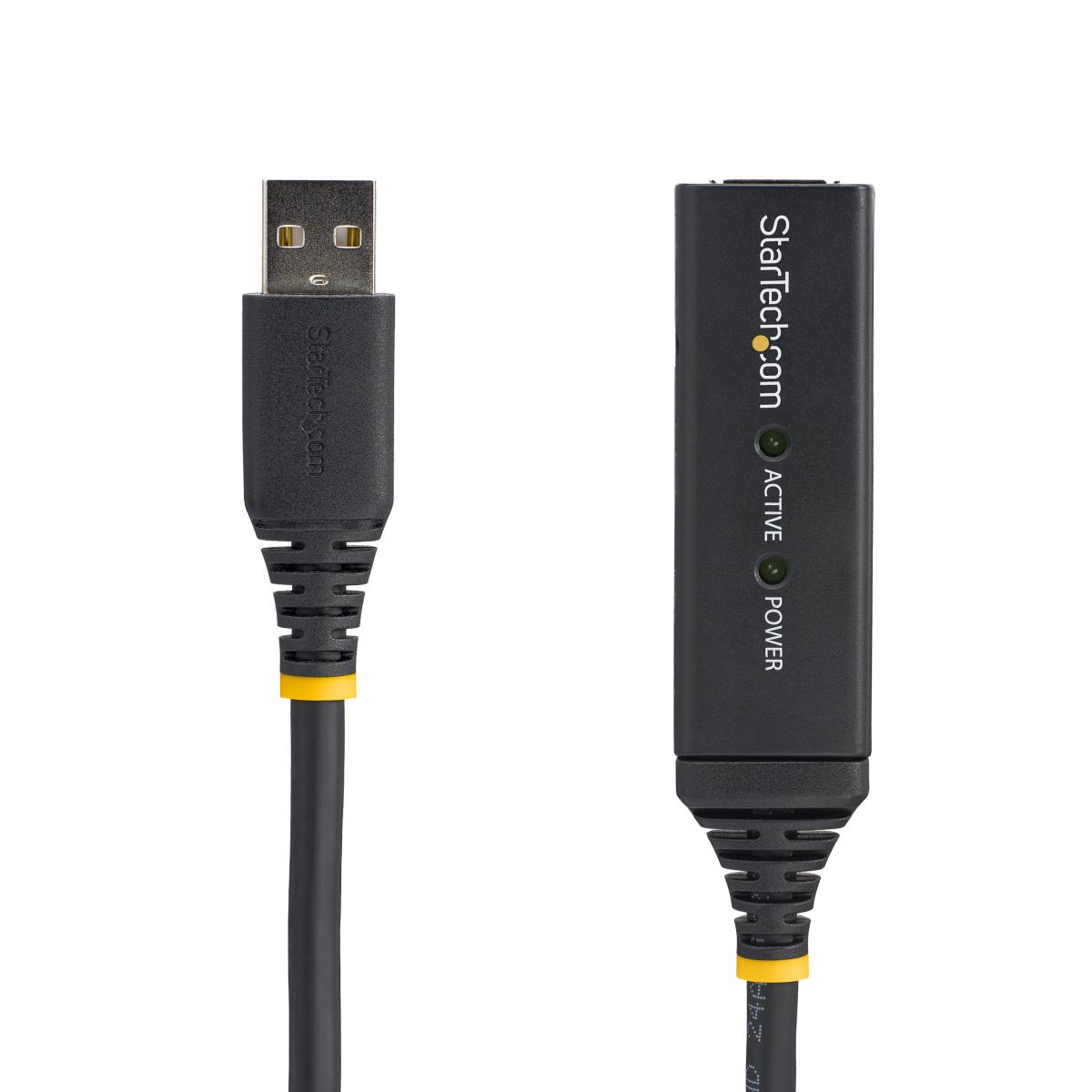

STARTECH.COM Active Extension Cable USB 2.0 - M/f 5m

£33.92

Part Number: USB2AAEXT5M
Delivery: 1 - 2 days

Product Details

Introduction

The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).

An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.

If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable - this will allow you to use USB bus-powered devices that may require extra power.

The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

The StarTech.com Advantage
- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices

Logistics data

Products per master (outer) case 16 pc(s)
Master (outer) case width 442 mm
Master (outer) case length 353 mm
Master (outer) case height 253 mm

Features

Maximum data transfer rate 0.48 Gbit/s
Cable length 5 m
USB version USB 2.0
Connector 1 USB A
Connector 2 USB A
Connector gender Male/Female
Connector 1 gender Male
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 24
Connector contacts plating Nickel
Reversible connectors N
Cable jacket material Polyvinyl chloride (PVC)
Cable shielding Aluminum mylar foil
Maximum data transfer rate 480 Mbit/s
Product colour Black
Plug and Play Y
Certification CE, FCC

Technical details

Compliance certificates RoHS
Harmonized System (HS) code 84733080
Sustainability certificates RoHS

Power

Output voltage 5 V
Output current (max) 1 A

Weight & dimensions

Weight 286 g

Packaging data

Quantity per pack 1 pc(s)
Package width 226 mm
Package depth 215 mm
Package height 58 mm
Package weight 472 g
