Introduction

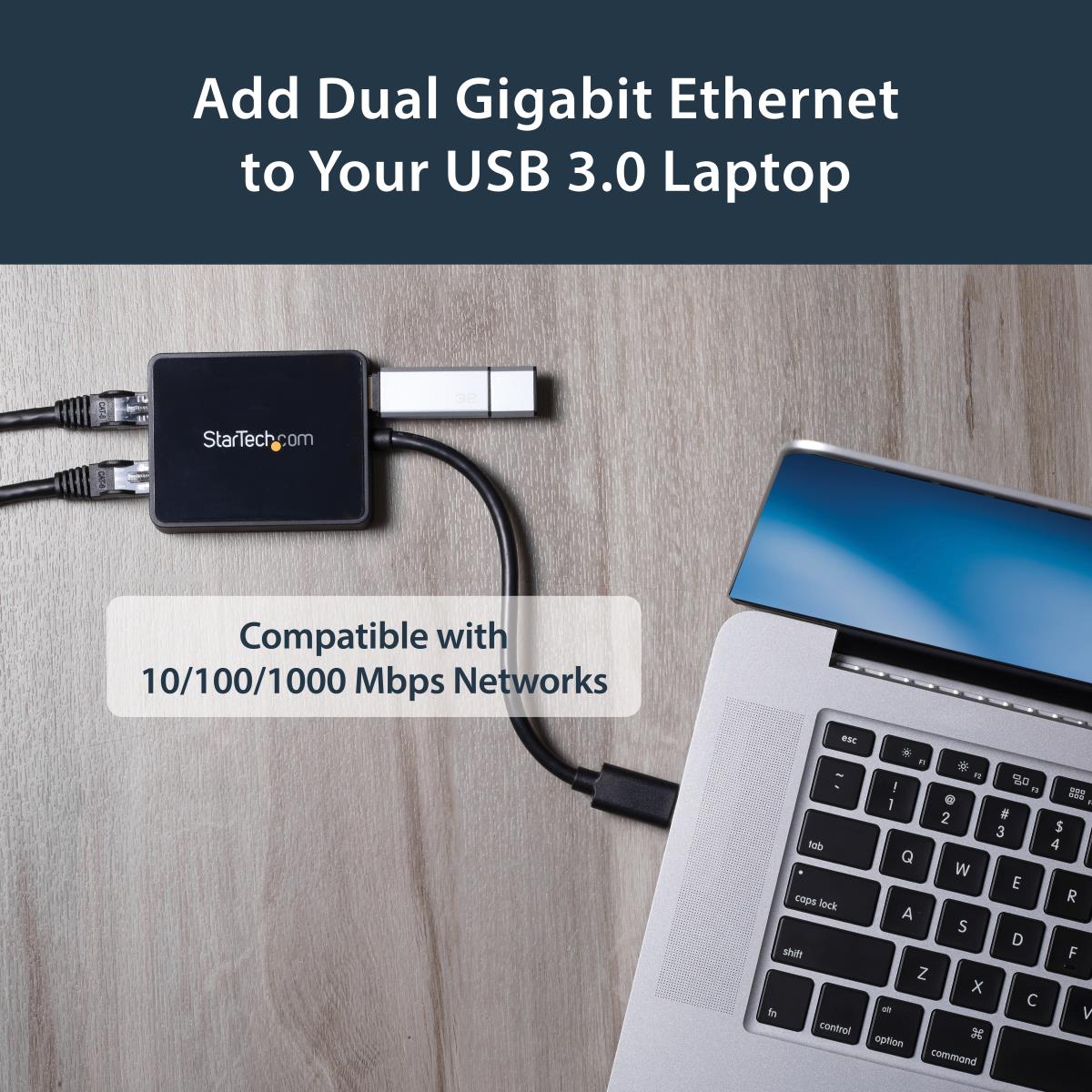

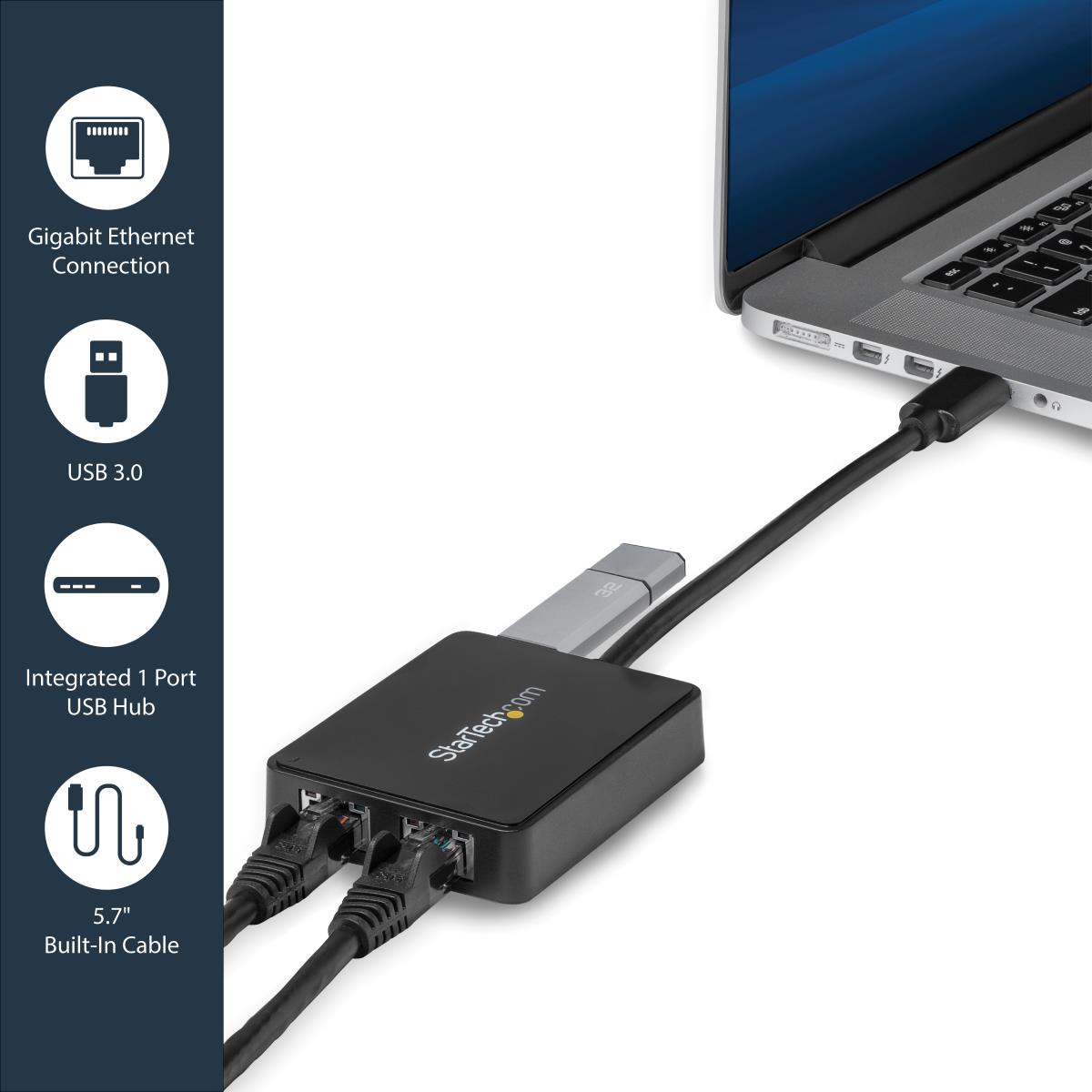

Add two Gigabit Ethernet ports and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port

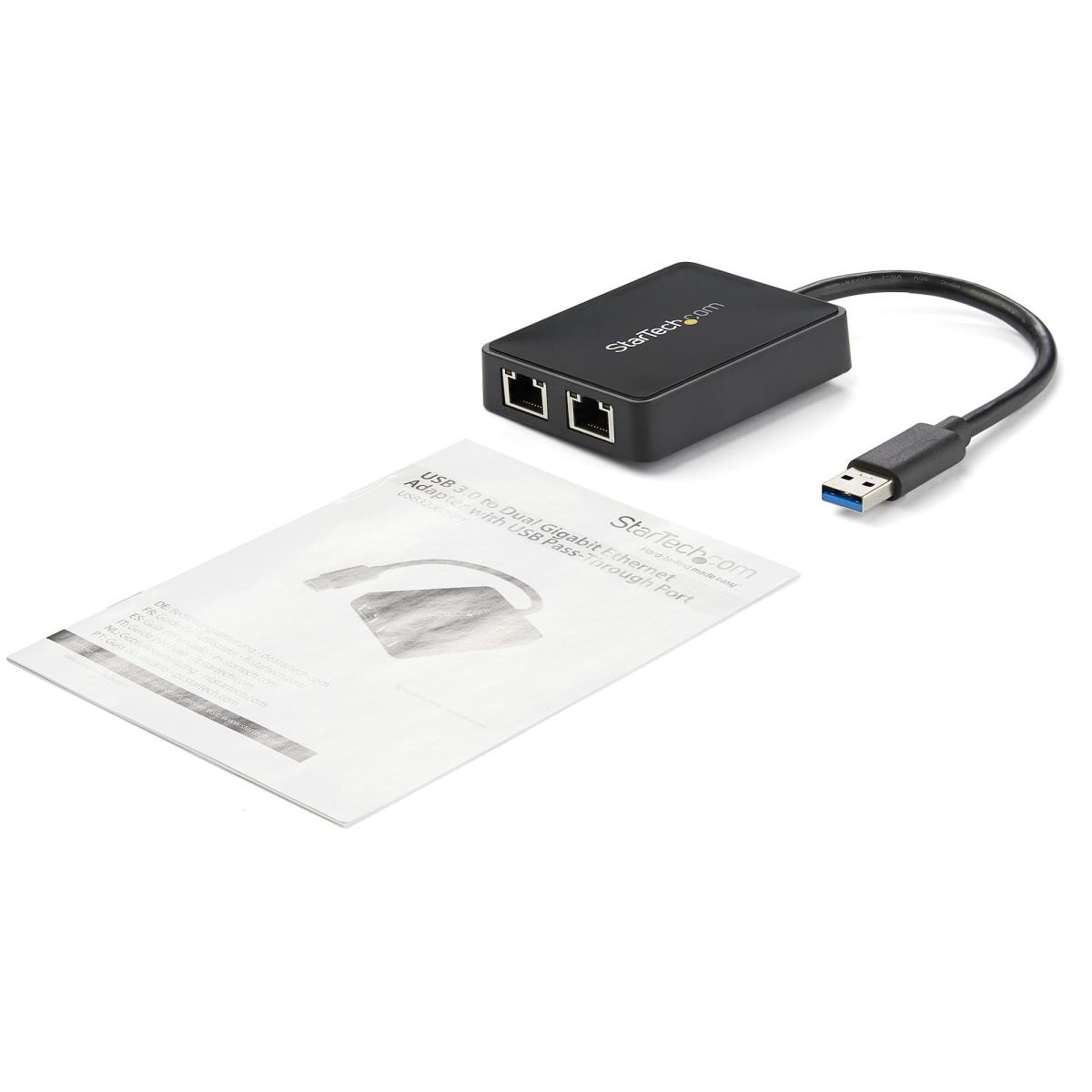

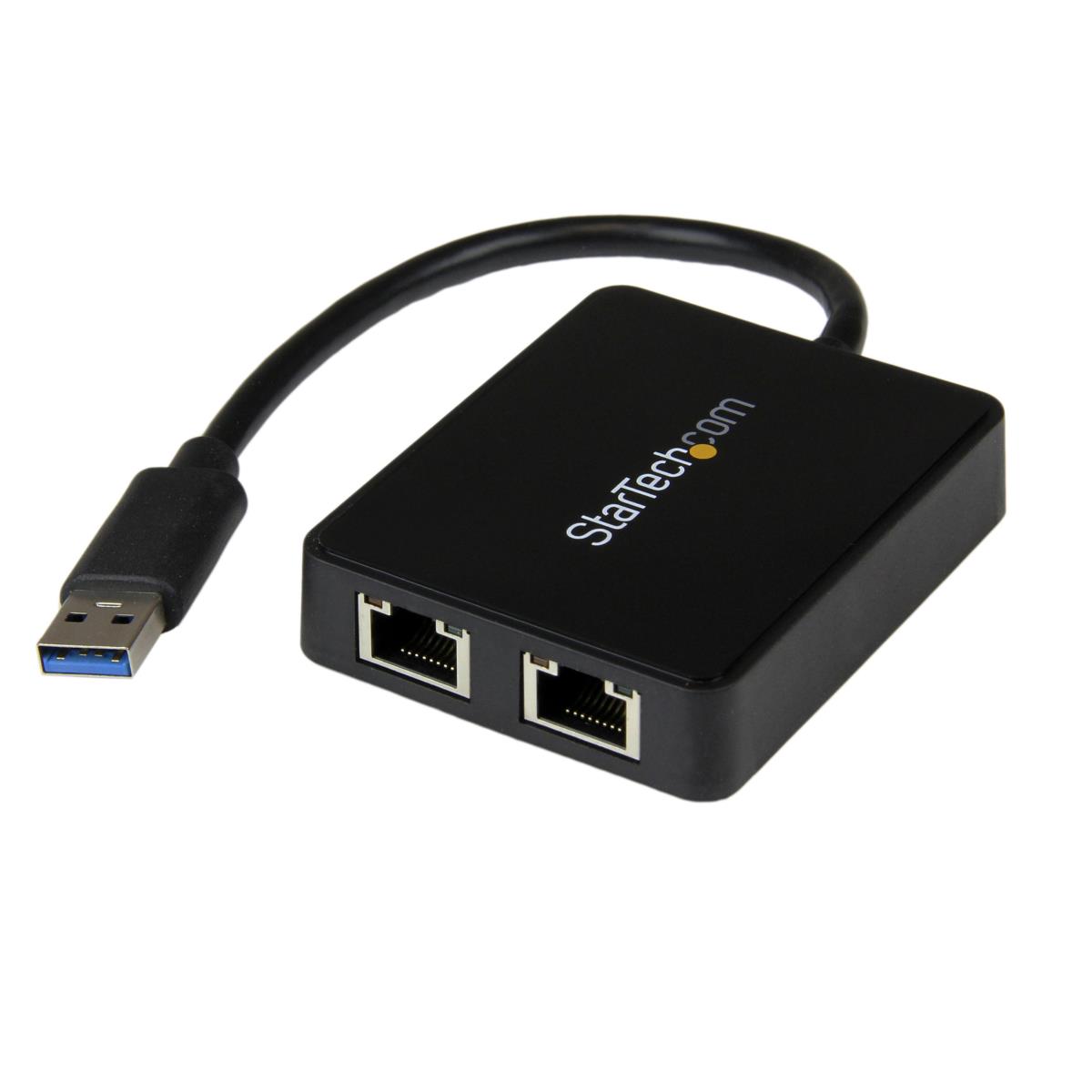

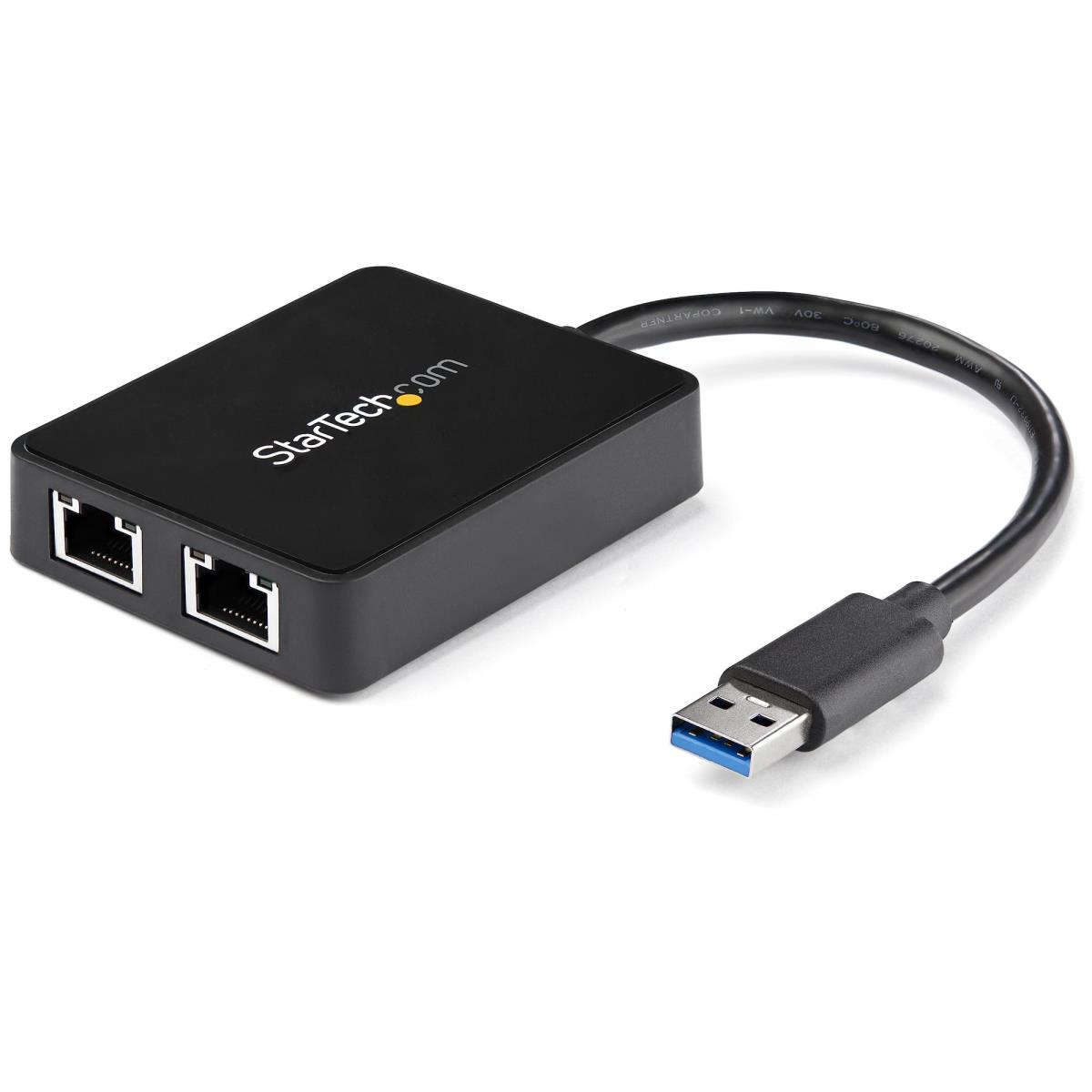

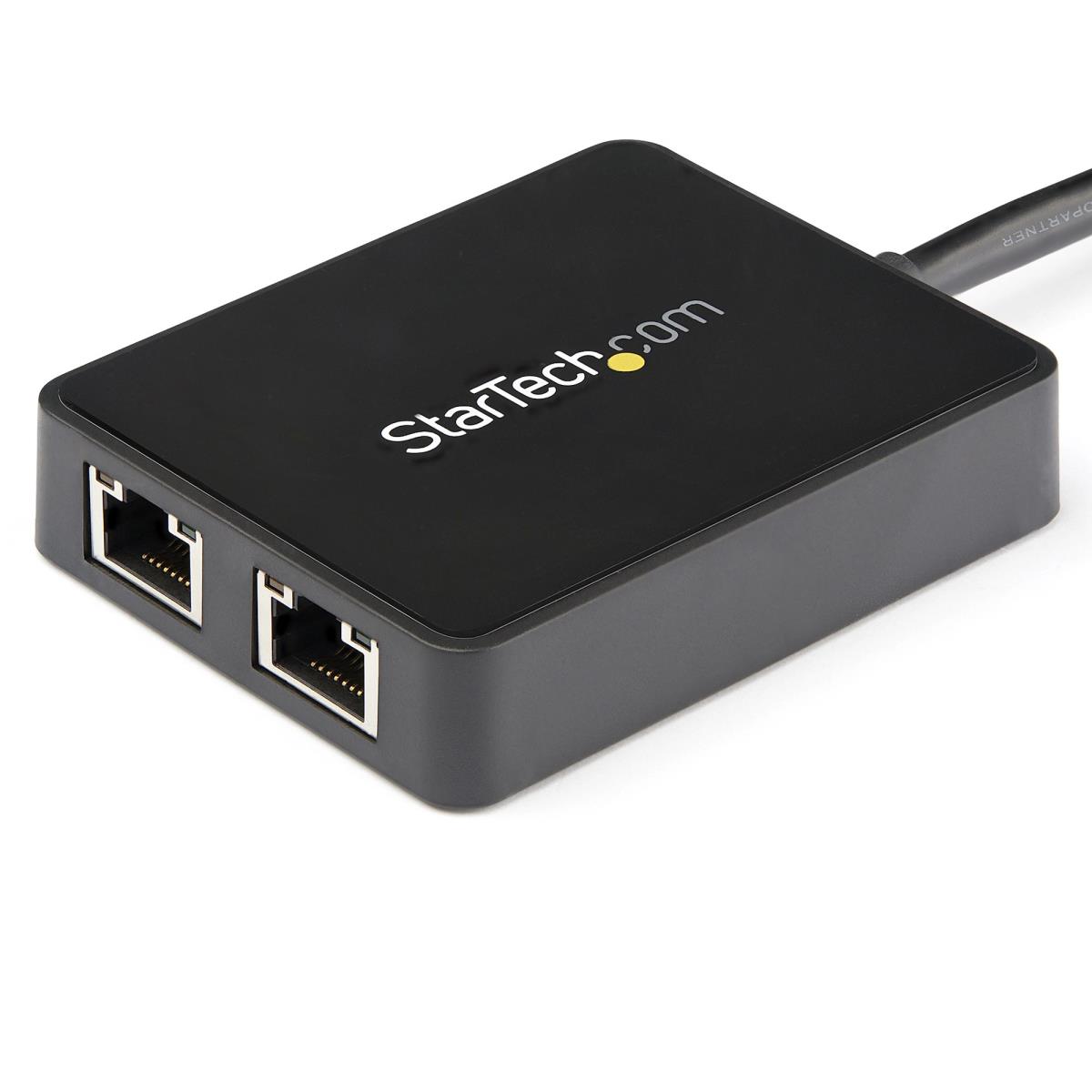

The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.
The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect to two different networks simultaneously, through a single USB 3.0 port

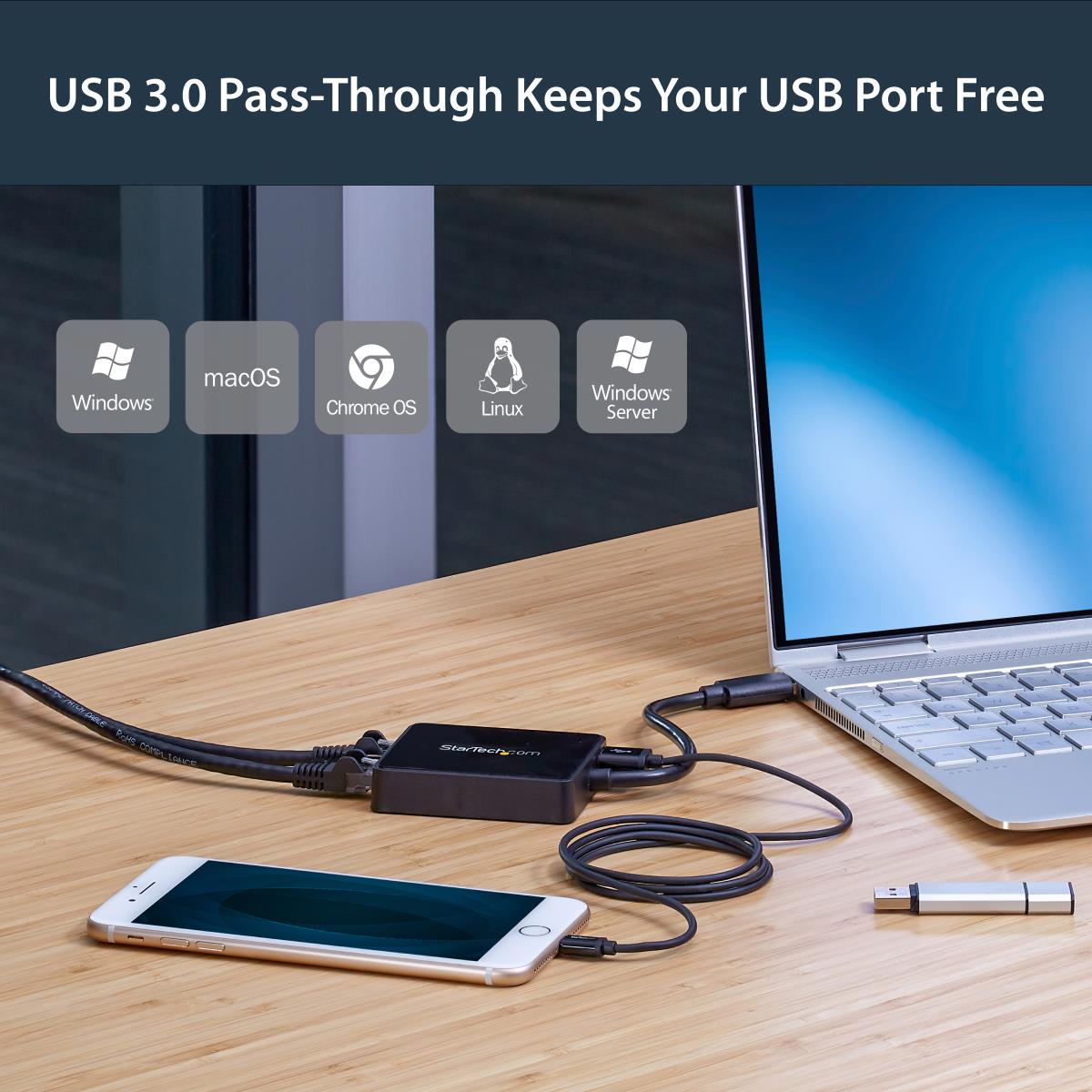

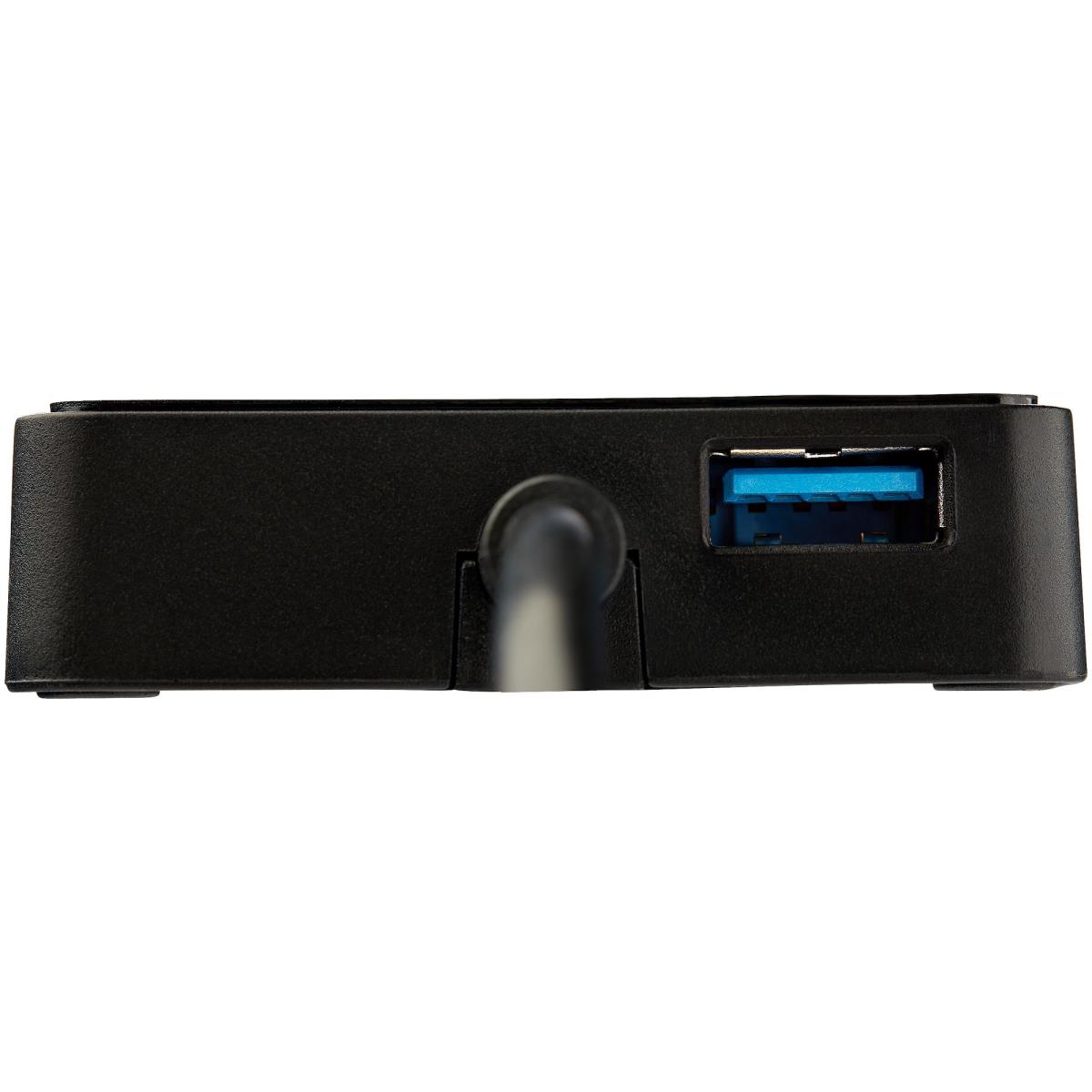

- Conserve available USB 3.0 ports with USB pass-through
Technical details
Compliance certificates
CE, RoHS
Design
Certification
RoHS, CE, FC
Component for
PC/notebook
Product colour
Black
Internal
N
Chipset
ASIX - AX88179, VIA/VLI - VL811
LED indicators
Y
Certification
RoHS, CE, FC
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
361 mm
Master (outer) case length
592 mm
Master (outer) case height
300 mm
Products per master (outer) case
80 pc(s)
Ports & interfaces
Connectivity technology
Wired

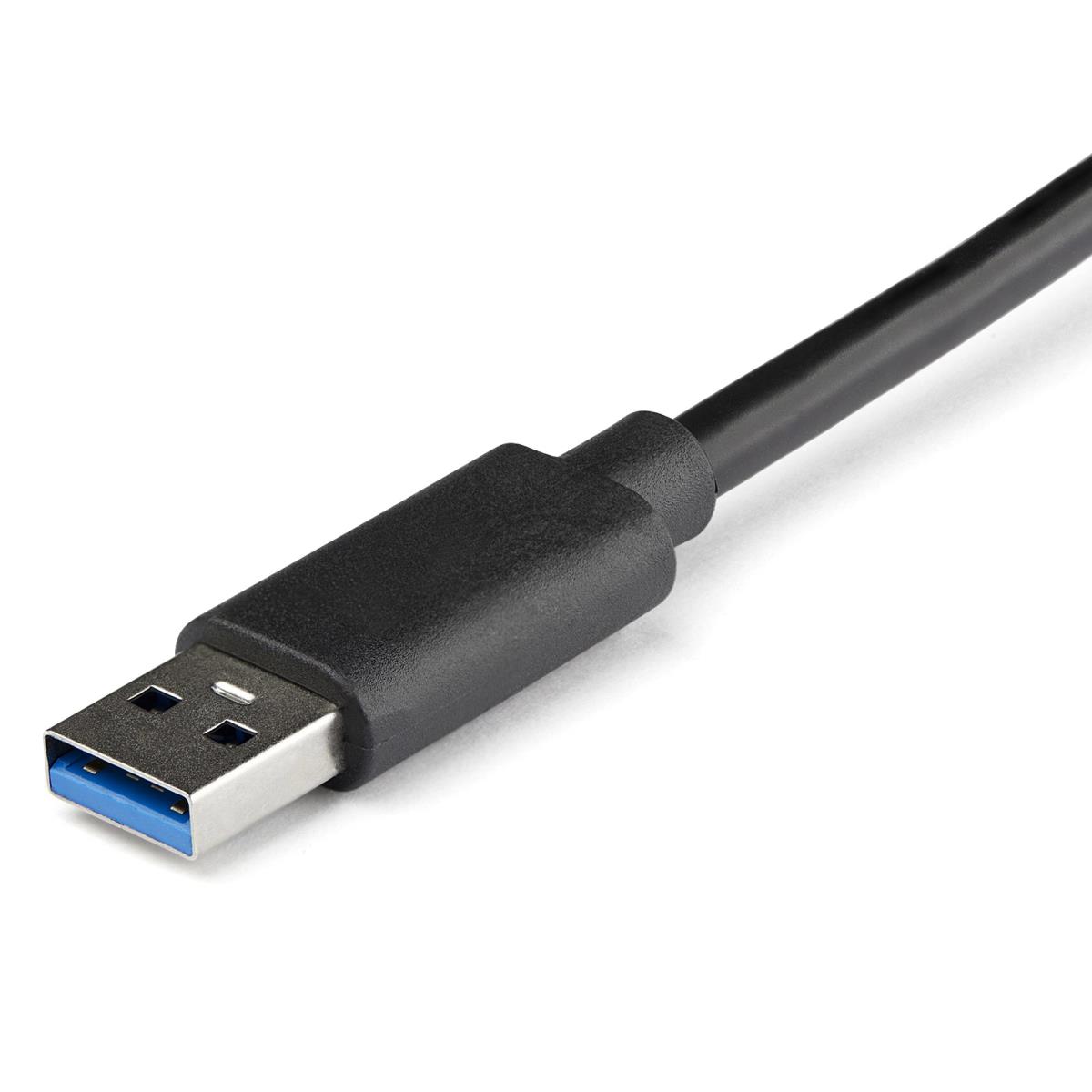

Host interface
USB
Interface
Ethernet

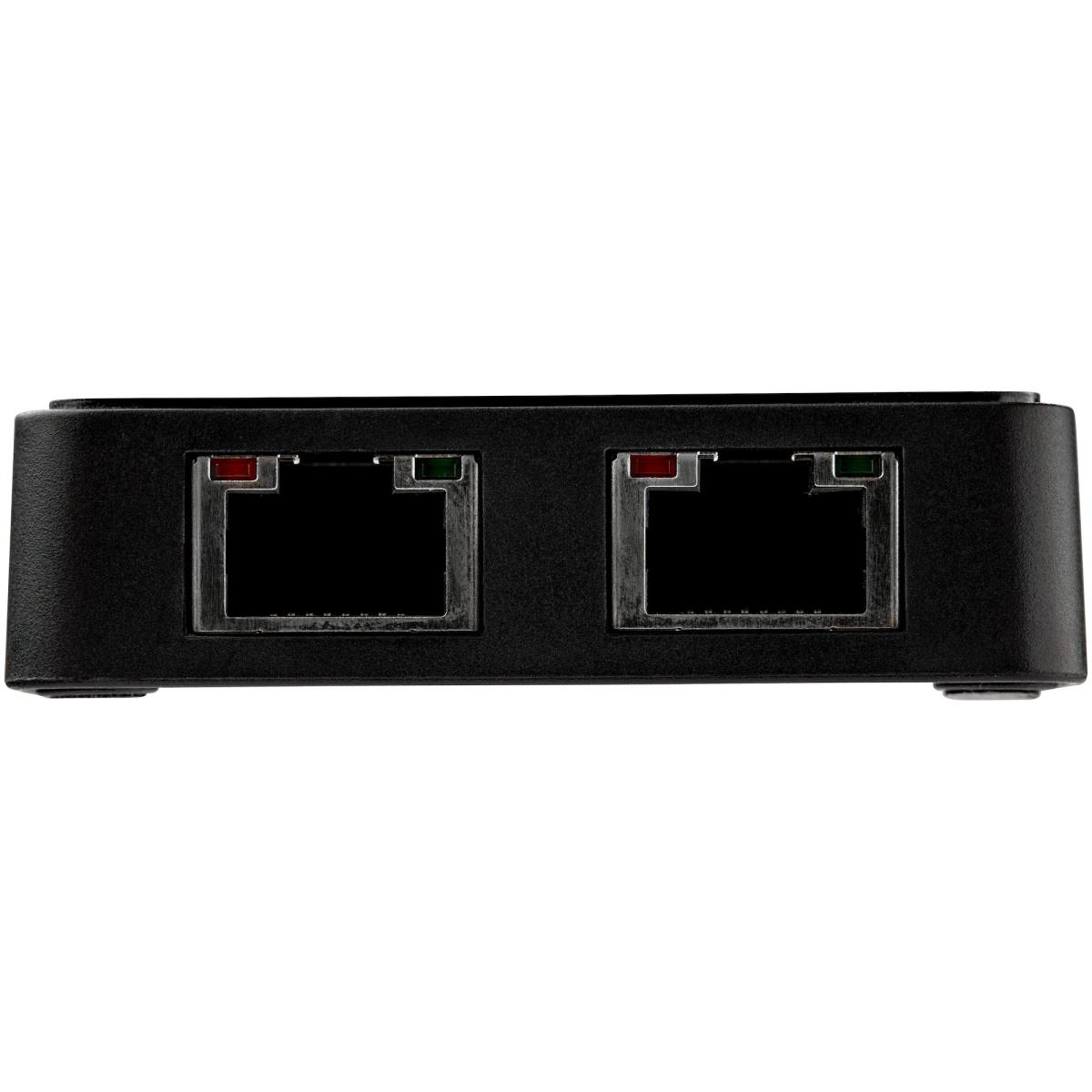

Ethernet LAN (RJ-45) ports
2
USB ports quantity
1
USB version
3.2 Gen 1 (3.1 Gen 1)
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Cable length
0.203 m
Status LED indicator
Y
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Auto MDIX IEEE
Y
Jumbo frames support
Y
Jumbo frames
4000
VLAN tagging
Y
Maximum operating distance
100 m
Power
System requirements
Compatible operating systems
- Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)
- Windows Server 2008 R2, 2003(32/64)
- Mac OS 10.6 - 10.8
- Linux Kernel 2.6.14 - 3.5.0
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions

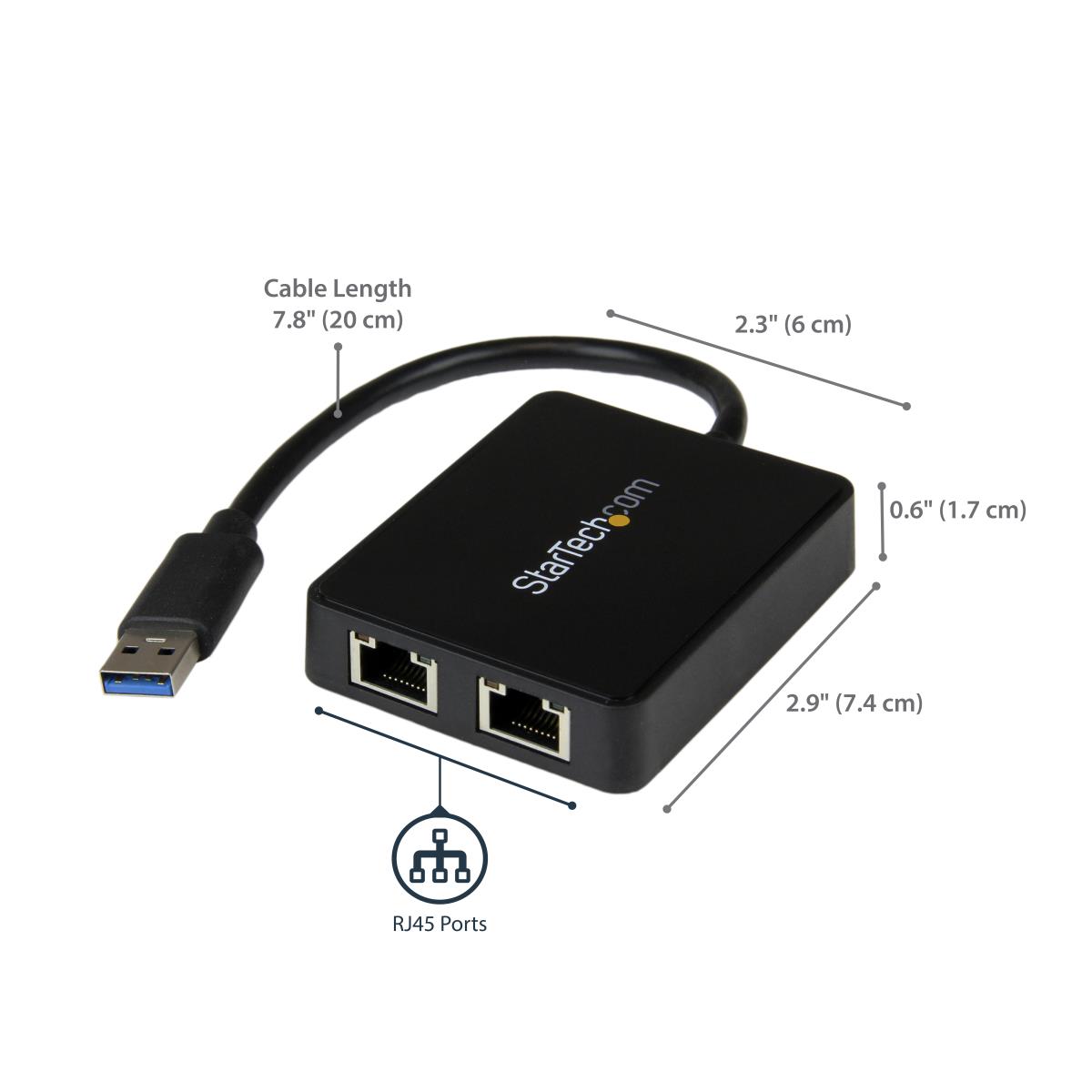

Width
60 mm
Depth
75 mm
Height
16 mm
Weight
59 g
Packaging data
Drivers included
Y
Package width
171 mm
Package depth
141 mm
Package height
31 mm
Package weight
154 g

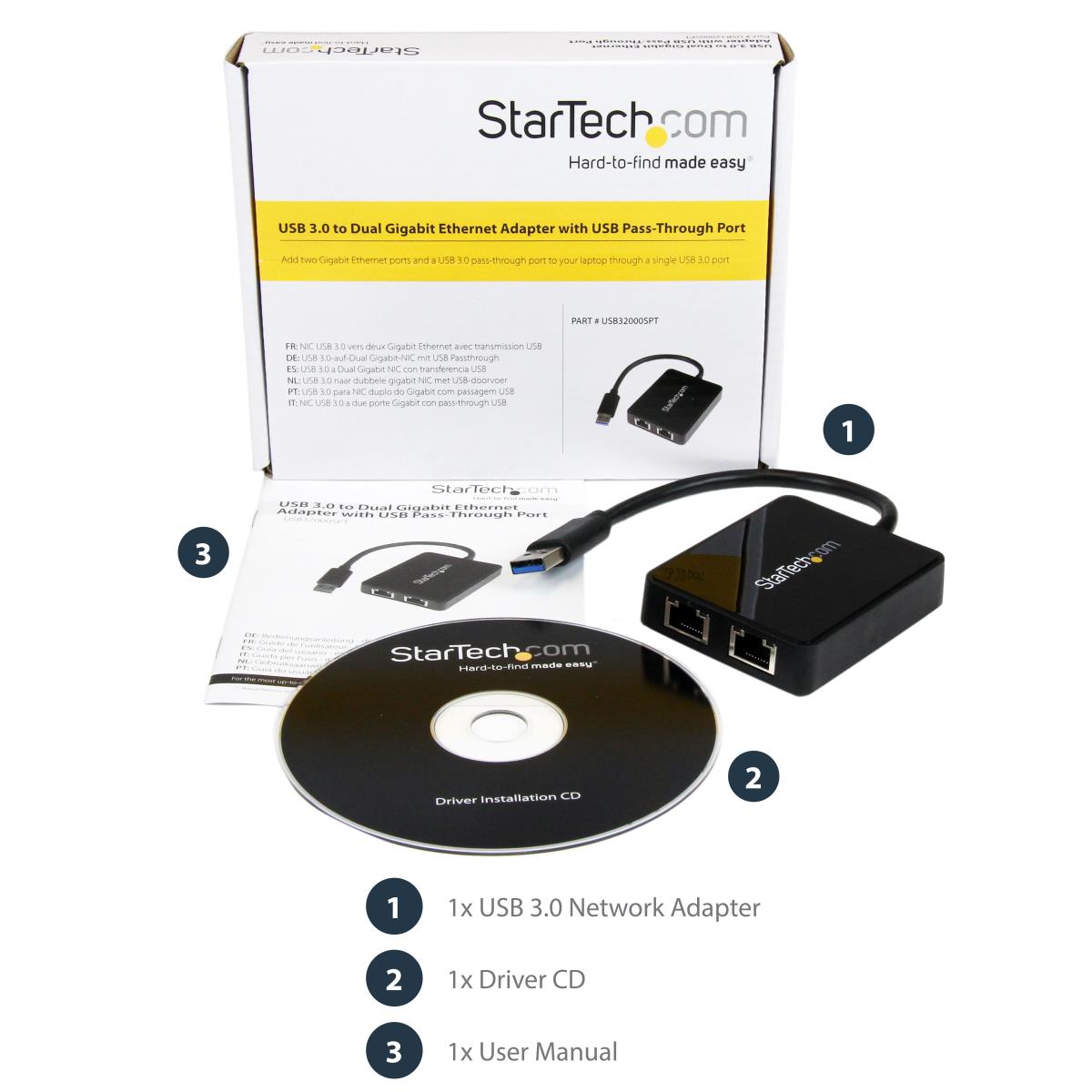

Packaging content
