Product Details
Introduction

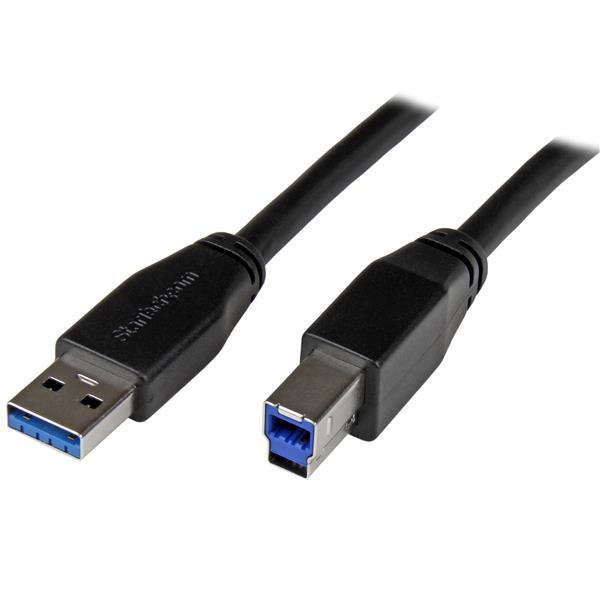

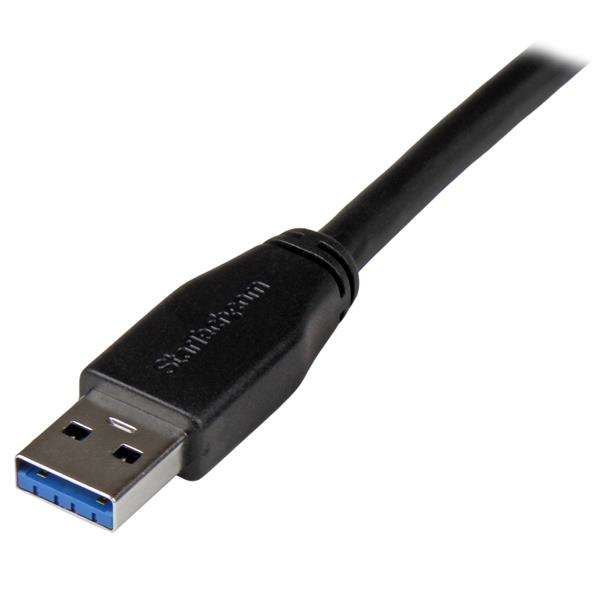

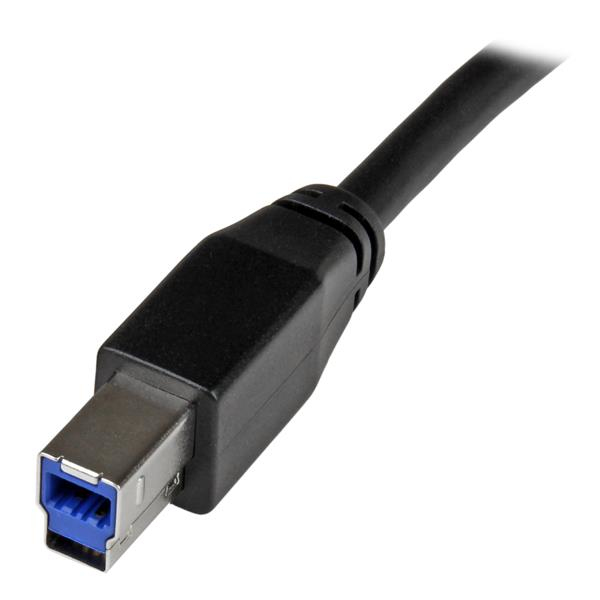

You don't need to be limited by a standard-sized USB cable. This active USB 3.1 Gen 1 (5 Gbps) cable, better known as a USB 3.0 cable, lets you position your USB Type-B peripherals where you need them, up to 10 meters away from your computer.
Now, you can locate USB devices such as portable hard drives and external video capture devices to make better use of your workspace. This 10-meter (30-foot) cable has a built-in equalizing chip that delivers a reliable connection, with no signal loss, beyond the 3-meter limit of standard USB 3.0 cables .
The USB3SAB10M is backed by StarTech.com's 2-year warranty for guaranteed reliability.
Logistics data
Products per master (outer) case
15 pc(s)
Master (outer) case width
684 mm
Master (outer) case length
286 mm
Master (outer) case height
218 mm
Features
Maximum data transfer rate
5 Gbit/s
Cable length
10 m
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB B
Connector gender
Male/Male
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/24
Connector contacts plating
Nickel
Cable jacket material
Polyvinyl chloride (PVC)
Cable shielding
Aluminum mylar foil
Maximum data transfer rate
5000 Mbit/s
Product colour
Black
Plug and Play
Y
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Sustainability certificates
RoHS
Weight & dimensions
Weight
512 g
Packaging data
Quantity per pack
1 pc(s)
Package width
213 mm
Package depth
225 mm
Package height
60 mm
Package weight
650 g
Information
| Part Number: | USB3SAB10M |
