Product Details
Introduction

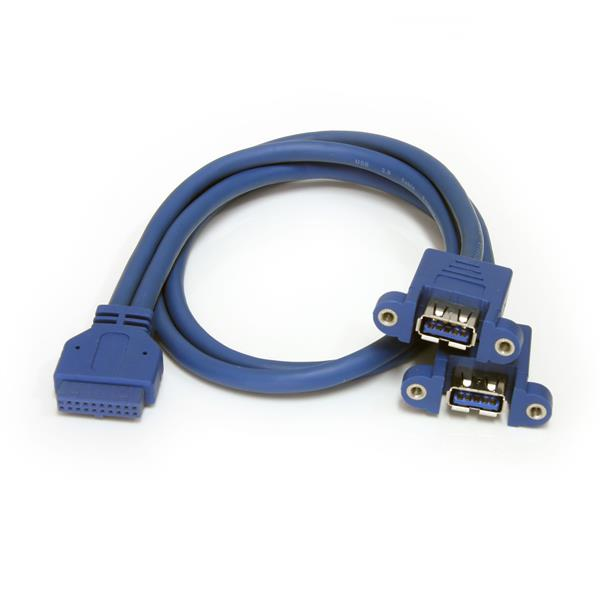

The USB3SPNLAFHD 2-Port USB 3.0 to Panel mount USB cable features a 20-pin USB 3.0 motherboard header connection on one end, breaking off into two separate USB 3.0-A (female) ports on the other end of the cable.
The USB 3.0 panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB 3.0 connection.
The USB 20-pin motherboard header to panel mount USB 3.0 cable is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
- Enables you to extend your USB interface and provide a panel mount connector for your USB 3.0 devices
- Easy to use and install
- Backed by StarTech.com lifetime warranty
Logistics data
Products per master (outer) case
200 pc(s)
Master (outer) case width
386 mm
Master (outer) case length
434 mm
Master (outer) case height
342 mm
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connector 1
2 x USB A
Connector 2
IDC
Cable length
0.5 m
Performance
Product colour
Blue
Housing material
Polyvinyl chloride (PVC)
Cable jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Certification
CE, REACH
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
36.5 mm
Depth
500 mm
Height
12 mm
Weight
69 g
Packaging data
Package width
125 mm
Package depth
225 mm
Package height
25 mm
Package weight
74 g
Information
| Part Number: | USB3SPNLAFHD |
