Product Details
Introduction
For customized USB device solutions; allows the USB connection to be mounted on a secure easily accessible panel

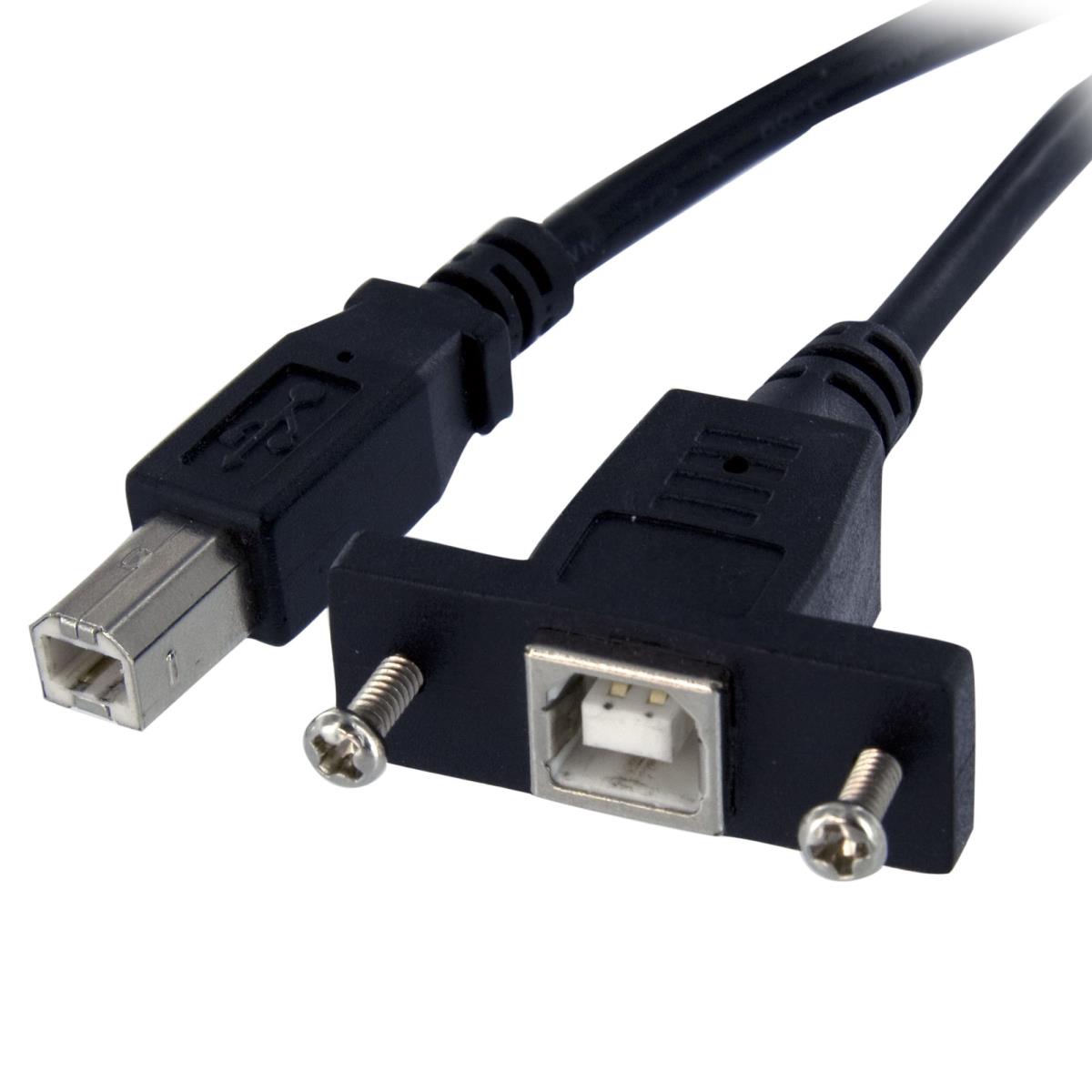

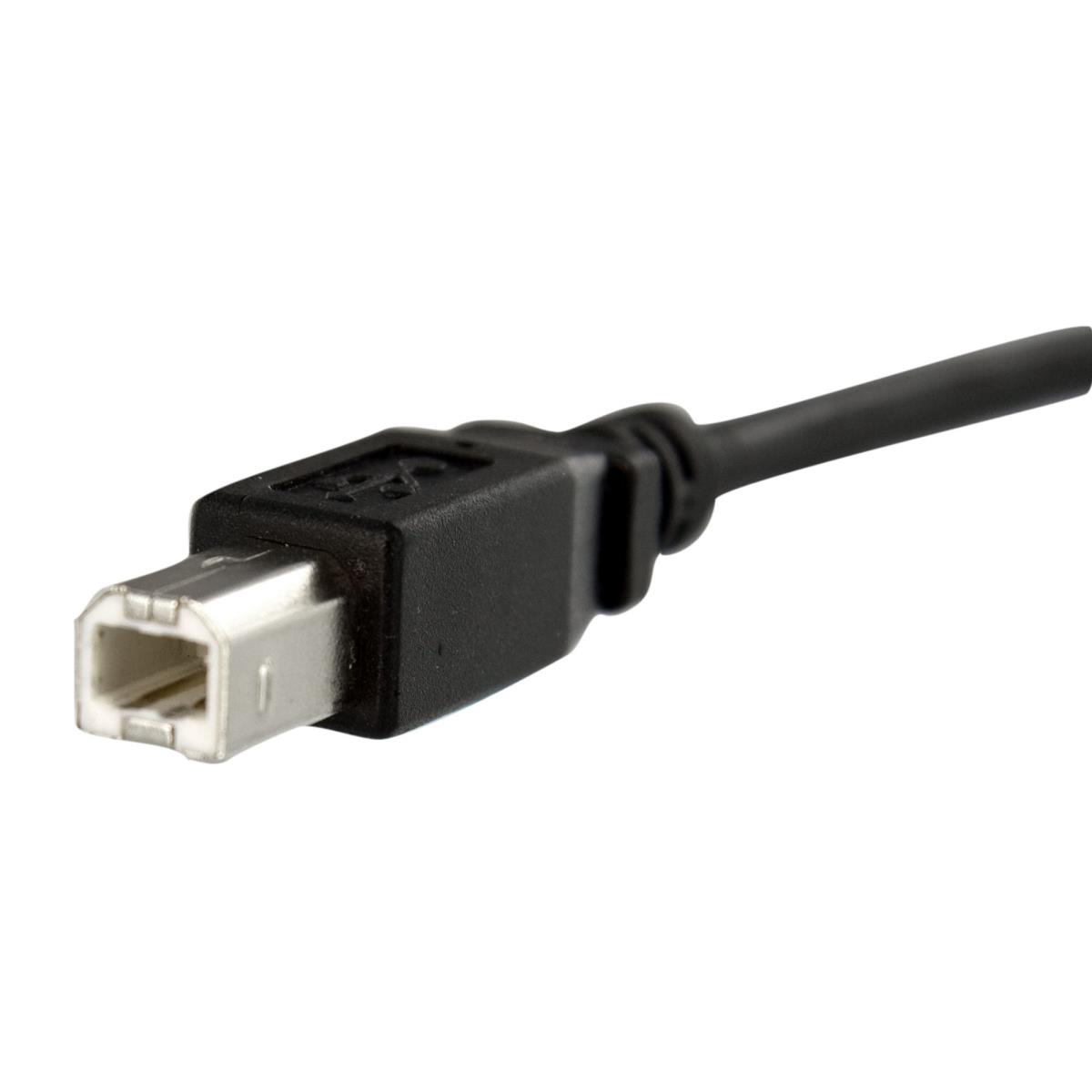

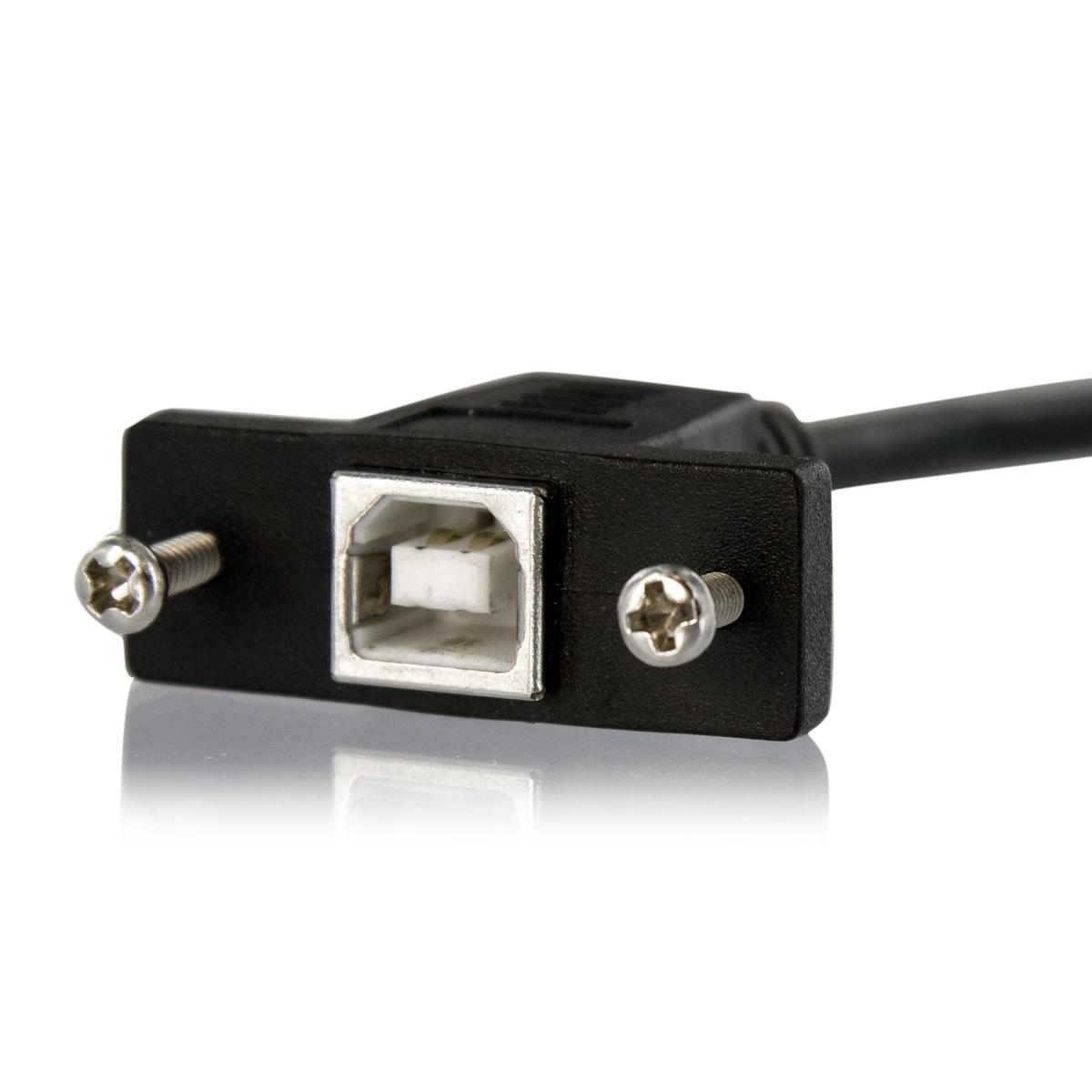

The USBPNLBFBM1 USB B to USB Panel mount cable features a USB type B male connector on one end, and a USB panel mount B (female) molded connector on the other, providing a convenient solution for custom enclosures (e.g. internally mounted hard drives).
The USB panel mount cable (B-B) is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
- Provides a USB B Female mount port for your custom enclosures
- Easy to use and install
- Backed by StarTech.com's lifetime warranty
Packaging data
Package height
20 mm
Quantity per pack
1 pc(s)
Package width
125 mm
Package depth
225 mm
Package weight
34.5 g
Logistics data
Master (outer) case width
397 mm
Master (outer) case length
353 mm
Master (outer) case height
324 mm
Products per master (outer) case
300 pc(s)
Features
Maximum data transfer rate
0.48 Gbit/s
Cable length
0.3 m
USB version
USB 2.0
Connector 1
USB B
Connector 2
USB B
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable jacket material
Polyvinyl chloride (PVC)
Maximum data transfer rate
480 Mbit/s
Product colour
Black
Plug and Play
Y
Technical details
Harmonized System (HS) code
84733080
Weight & dimensions
Weight
29 g
Information
| Part Number: | USBPNLBFBM1 |
