Product Details
Introduction
Panel-mount a USB-B port, for easy access

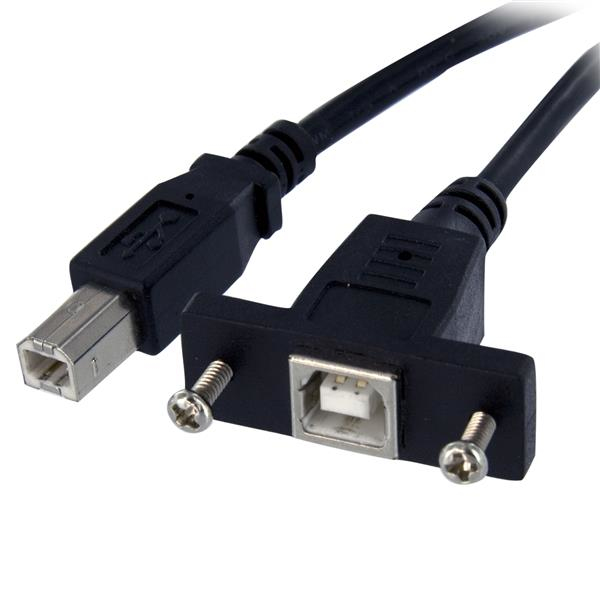

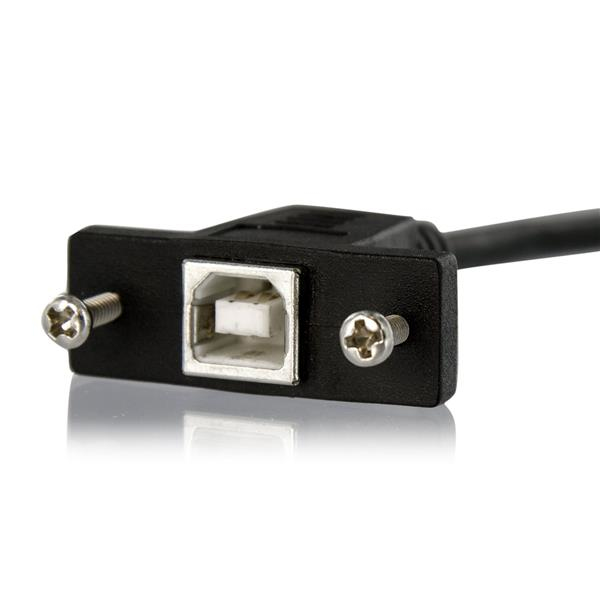

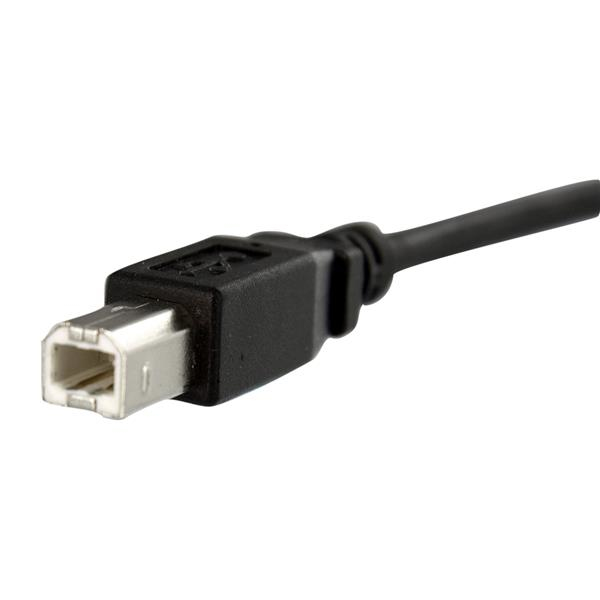

The USBPNLBFBM3 3ft Panel Mount USB Cable features one USB-B male connector on one end and a USB-B panel mount female port on the other, providing a convenient solution for custom enclosures (e.g. internally mounted hard drives).
Offering 3ft in cable length, the adapter allows you to extend the connection as needed within the system case.
The USBPNLBFBM3 is backed by StarTech.com's lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
- Customize your solutions by mounting a USB-B port to your custom enclosures
- Configure your systems as needed, extend your USB-B connection by 3ft
- Guaranteed reliability
Logistics data
Products per master (outer) case
250 pc(s)
Master (outer) case width
350 mm
Master (outer) case length
400 mm
Master (outer) case height
308 mm
Features
Maximum data transfer rate
0.48 Gbit/s
Cable length
0.91 m
USB version
USB 2.0
Connector 1
USB B
Connector 2
USB B
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
24/28
Connector contacts plating
Nickel
Cable jacket material
Polyvinyl chloride (PVC)
Cable shielding
Aluminum mylar foil
Maximum data transfer rate
480 Mbit/s
Product colour
Black
Plug and Play
Y
Certification
CE, UL, REACH
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Sustainability certificates
RoHS
Weight & dimensions
Weight
45 g
Packaging data
Quantity per pack
1 pc(s)
Package width
125 mm
Package depth
225 mm
Package height
21 mm
Package weight
100 g
Information
| Part Number: | USBPNLBFBM3 |
