Product Details
Introduction

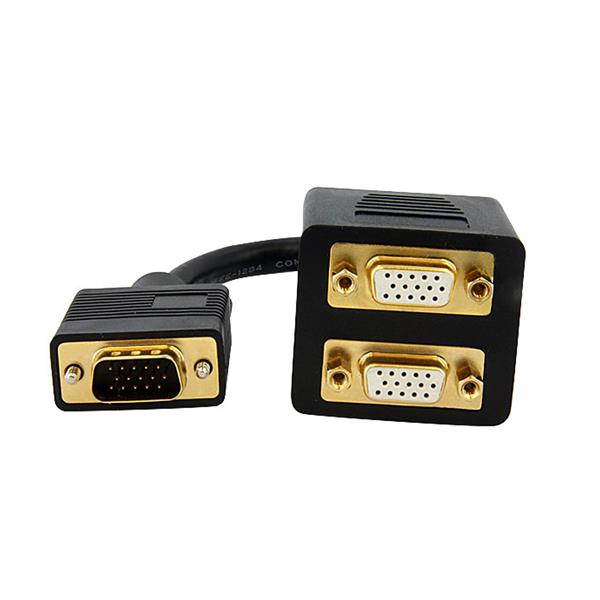

This VGASPL1VV 1-foot VGA video splitter cable lets you connect two VGA displays to a single VGA video source.
A cost-effective solution for dual VGA monitor configurations, this high-quality splitter cable is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
- Split your VGA signal to two monitors without a separate splitter box
- Backed by StarTech.com lifetime warranty
Logistics data
Master (outer) case width
370 mm
Master (outer) case length
422 mm
Master (outer) case height
272 mm
Products per master (outer) case
100 pc(s)
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Sustainability certificates
RoHS
Features
Cable length
0.3 m
Connector 1
VGA (D-Sub)
Connector 2
2 x VGA (D-Sub)
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
Black
Supported graphics resolutions
2048 x 1536 (QXGA)
Cable shielding
Aluminum mylar foil
AWG wire size
28
Connector contacts plating
Gold
Cable jacket material
Polyvinyl chloride (PVC)
Cable rating
CMG (CM)
Number of conductors
15
Plug and Play
Y
Certification
CE, REACH
Quantity per pack
1 pc(s)
Weight & dimensions
Cable diameter
9 mm
Weight
159 g
Package width
125 mm
Package depth
225 mm
Package height
38 mm
Package weight
164 g
Information
| Part Number: | VGASPL1VV |
