Introduction

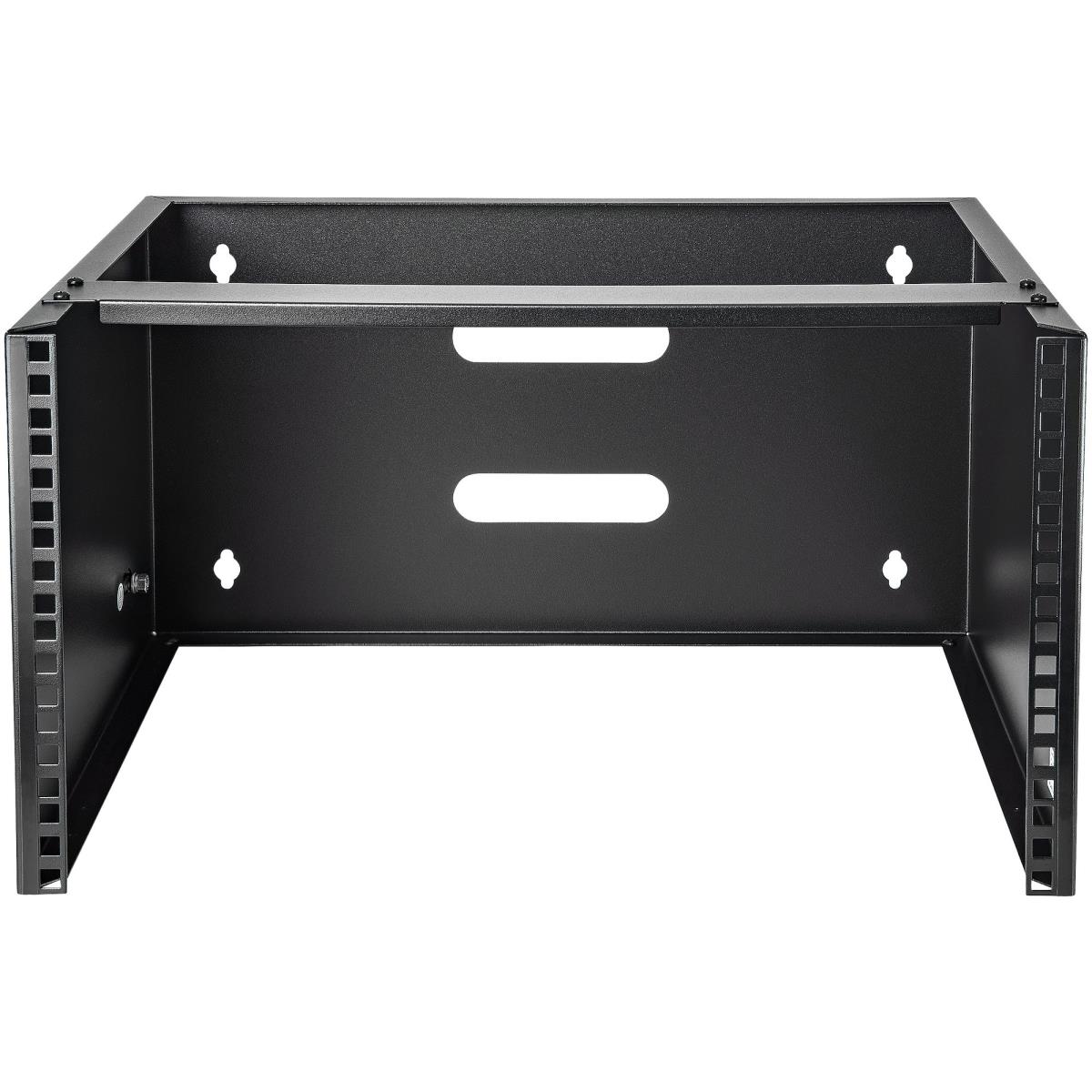

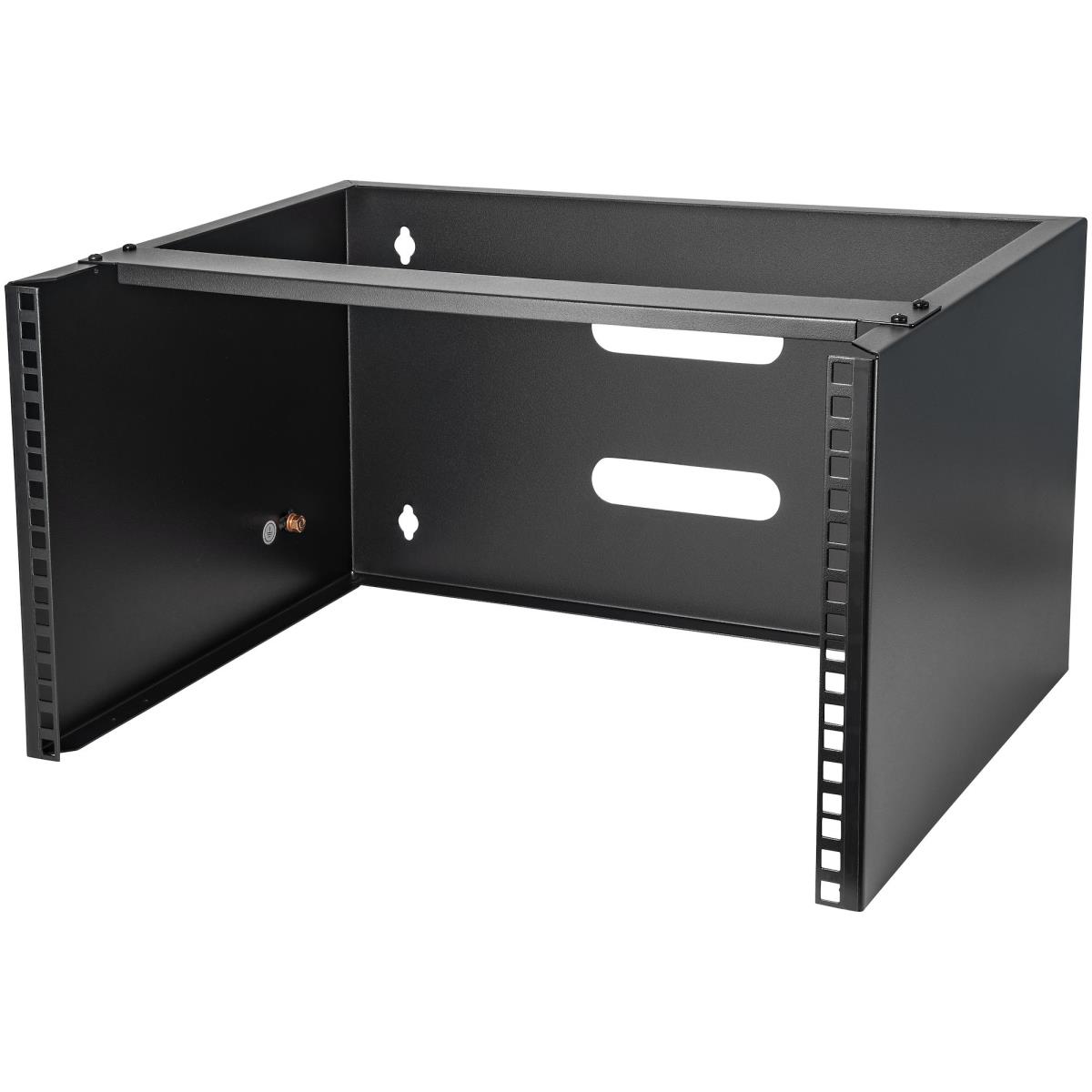

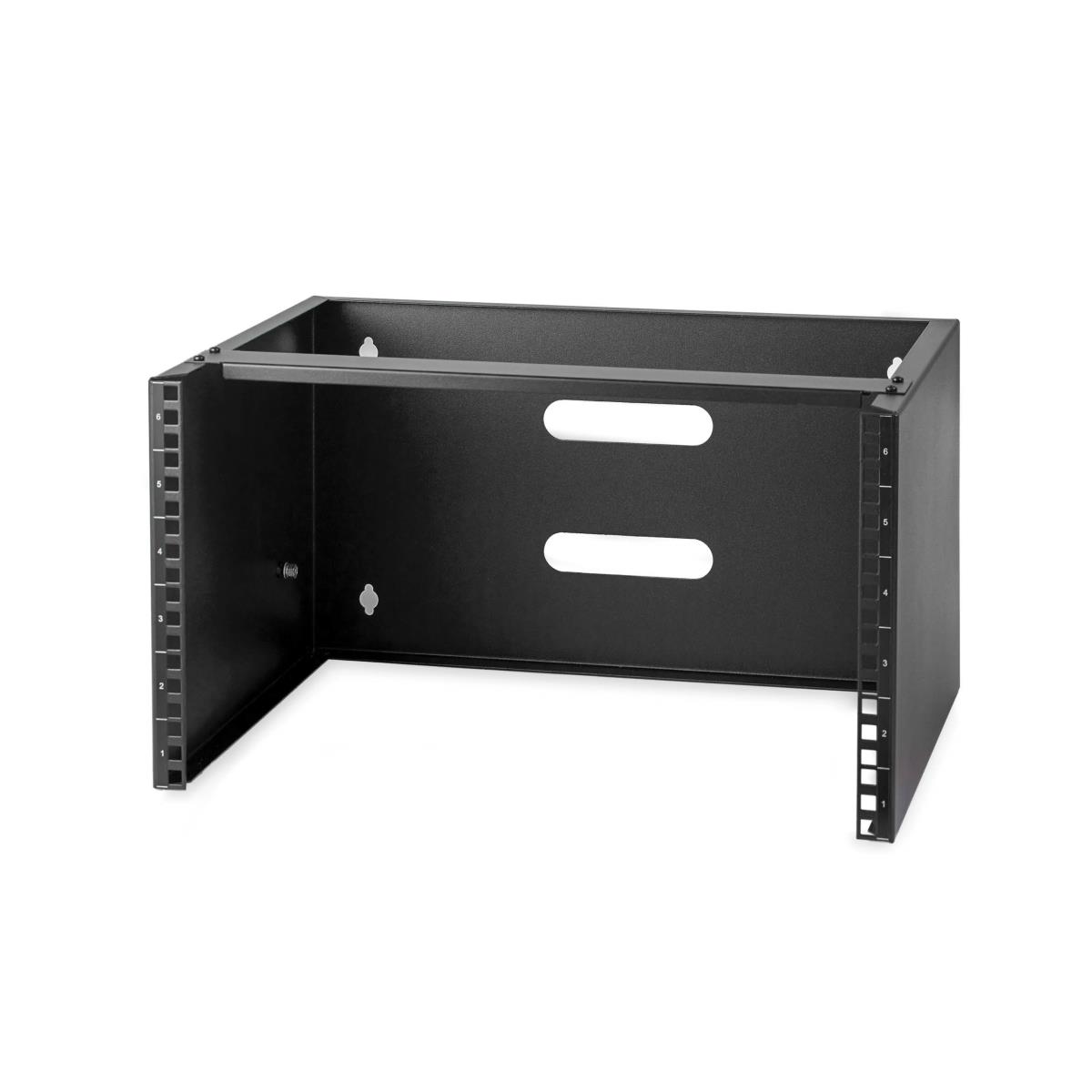

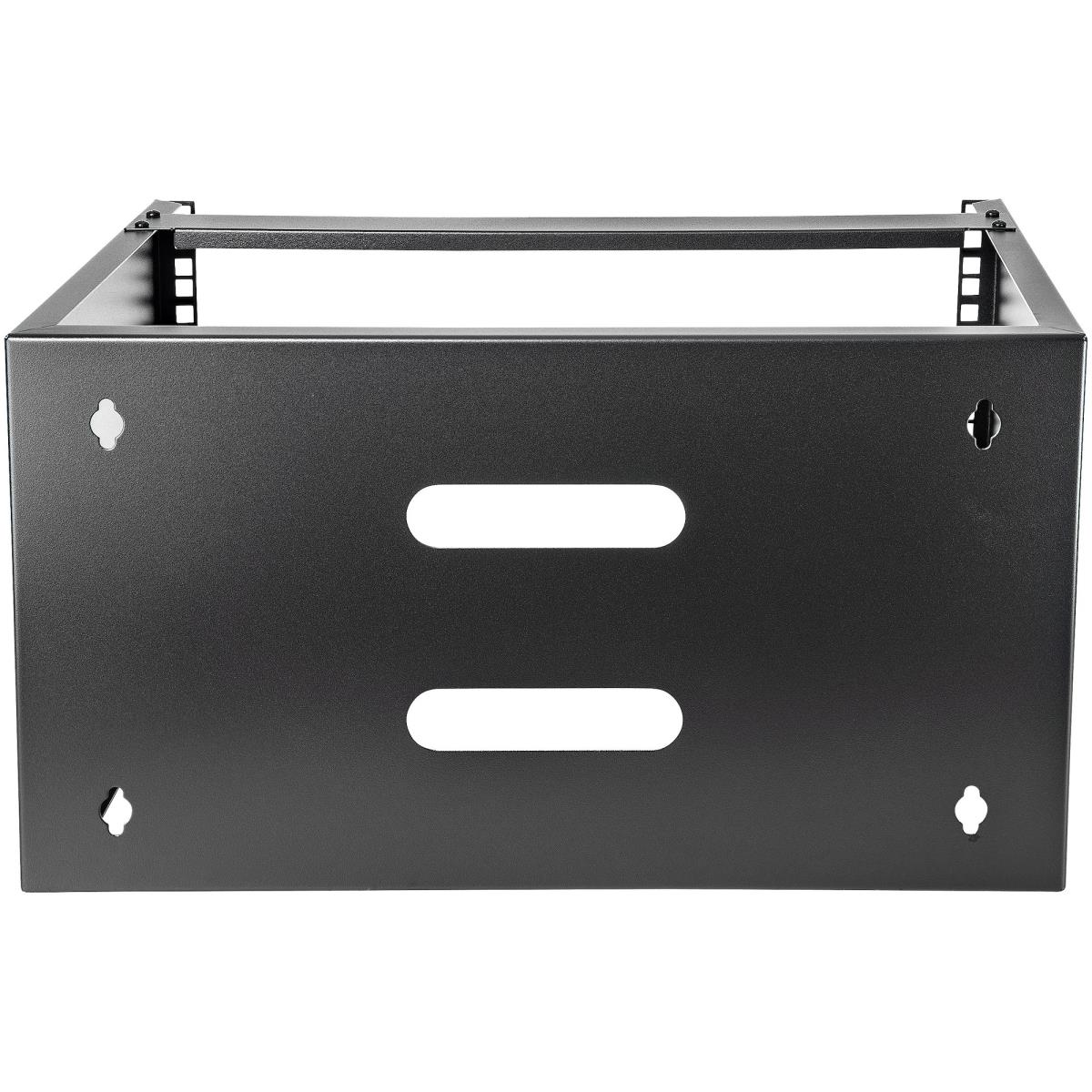

Mount networking equipment and shallow rackmount devices with this 6U wall-mountable rack
The WALLMOUNT6 6U 13.75 in. Deep Wall Mounting Bracket for Patch Panel delivers a sturdy and dependable equipment storage option, allowing you to wallmount equipment for a more efficient and accessible operating environment.

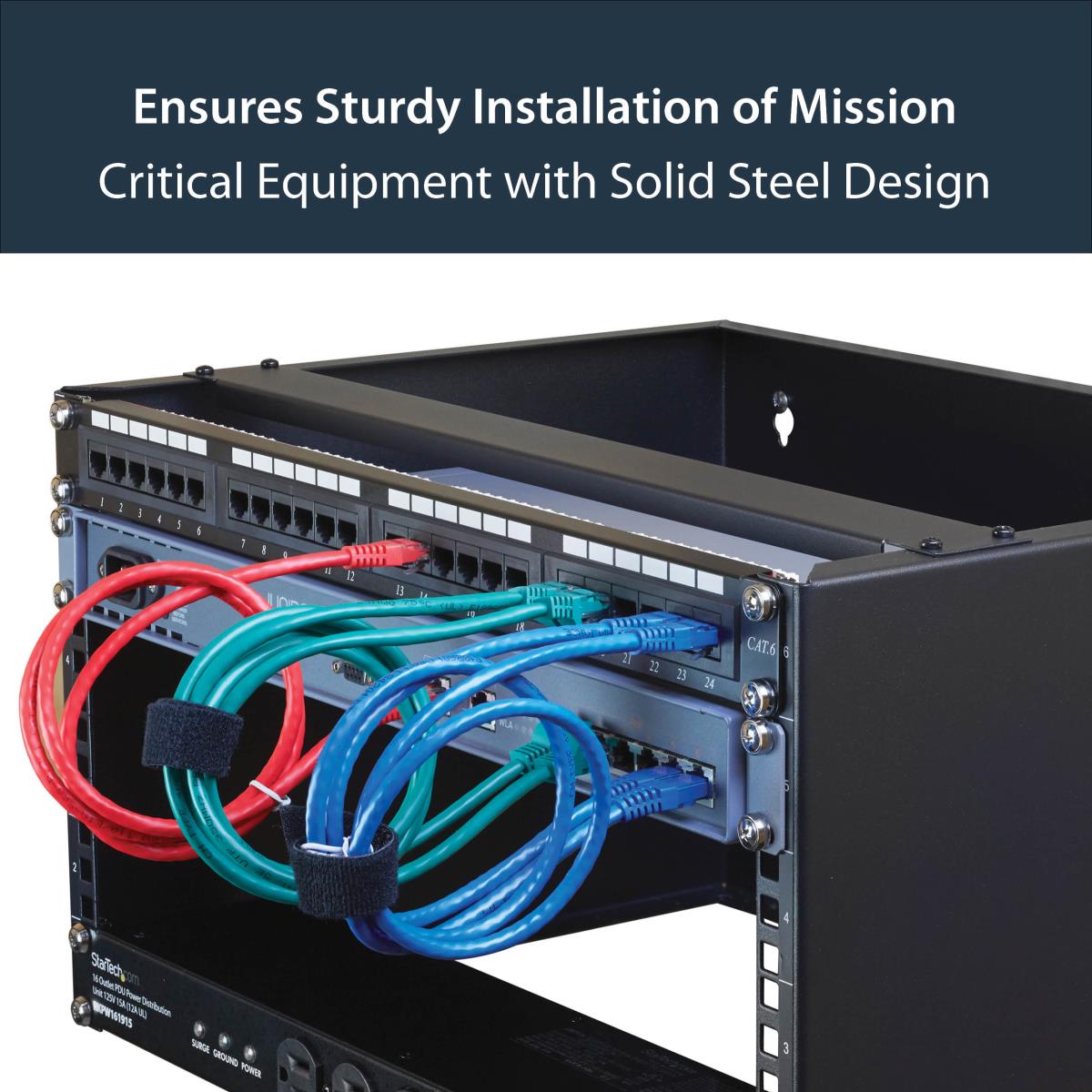

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall.
Backed by a StarTech.com Lifetime warranty.
The StarTech.com Advantage
- Sturdy steel construction for durability in harsh environments
- Wall mounting equipment organizes your setup in areas where space is at a premium
Features
Number of fans
0 fan(s)
Rack capacity
6U
Type
Wall mounted rack
Maximum weight capacity
20 kg
Product colour
Black
Material
Steel
Frame type
Open
Product design
2-post
Adjustable mounting rails
N
Cable management
N

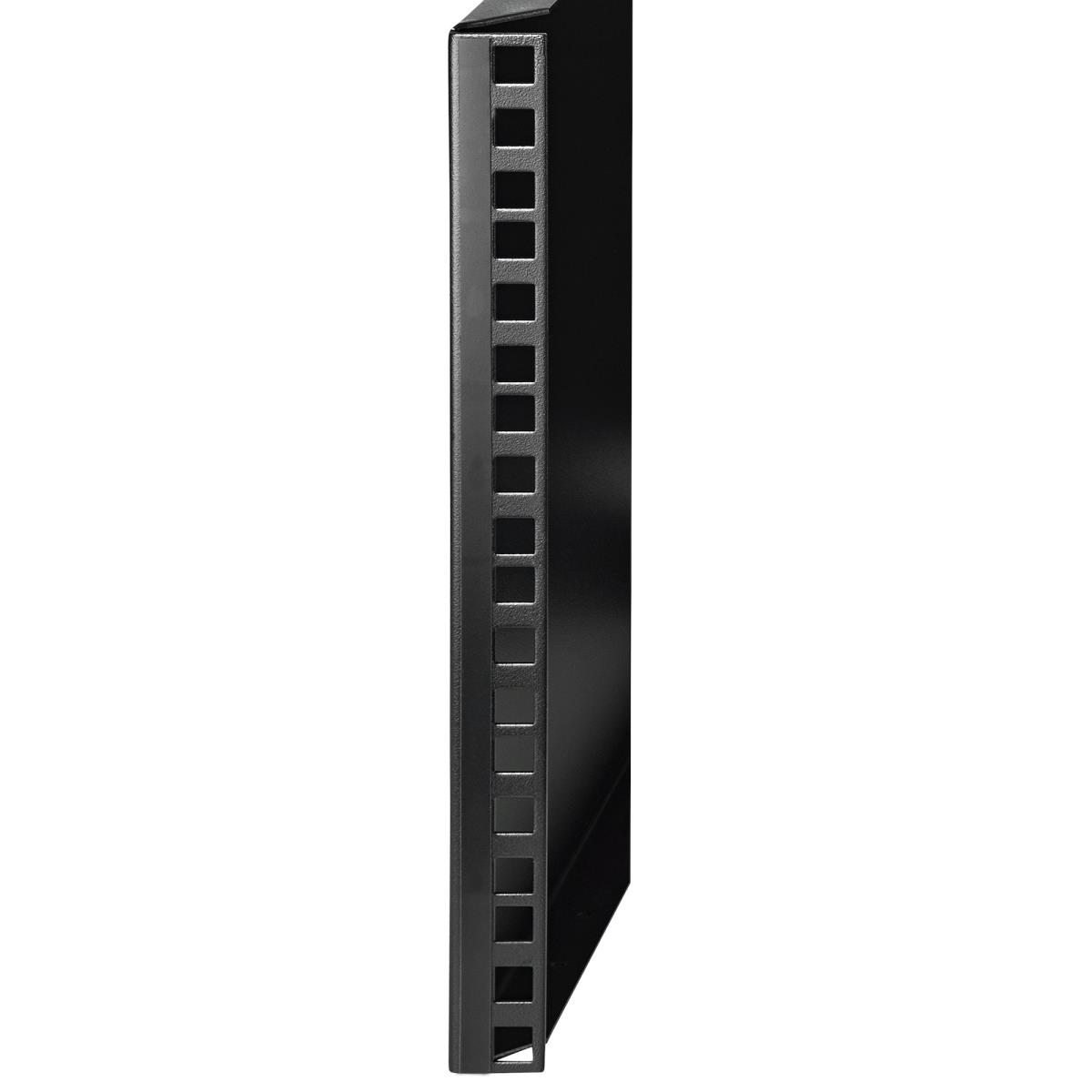

Mounting hole shape
Square
Castor wheels
N
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
85381000
Sustainability certificates
RoHS

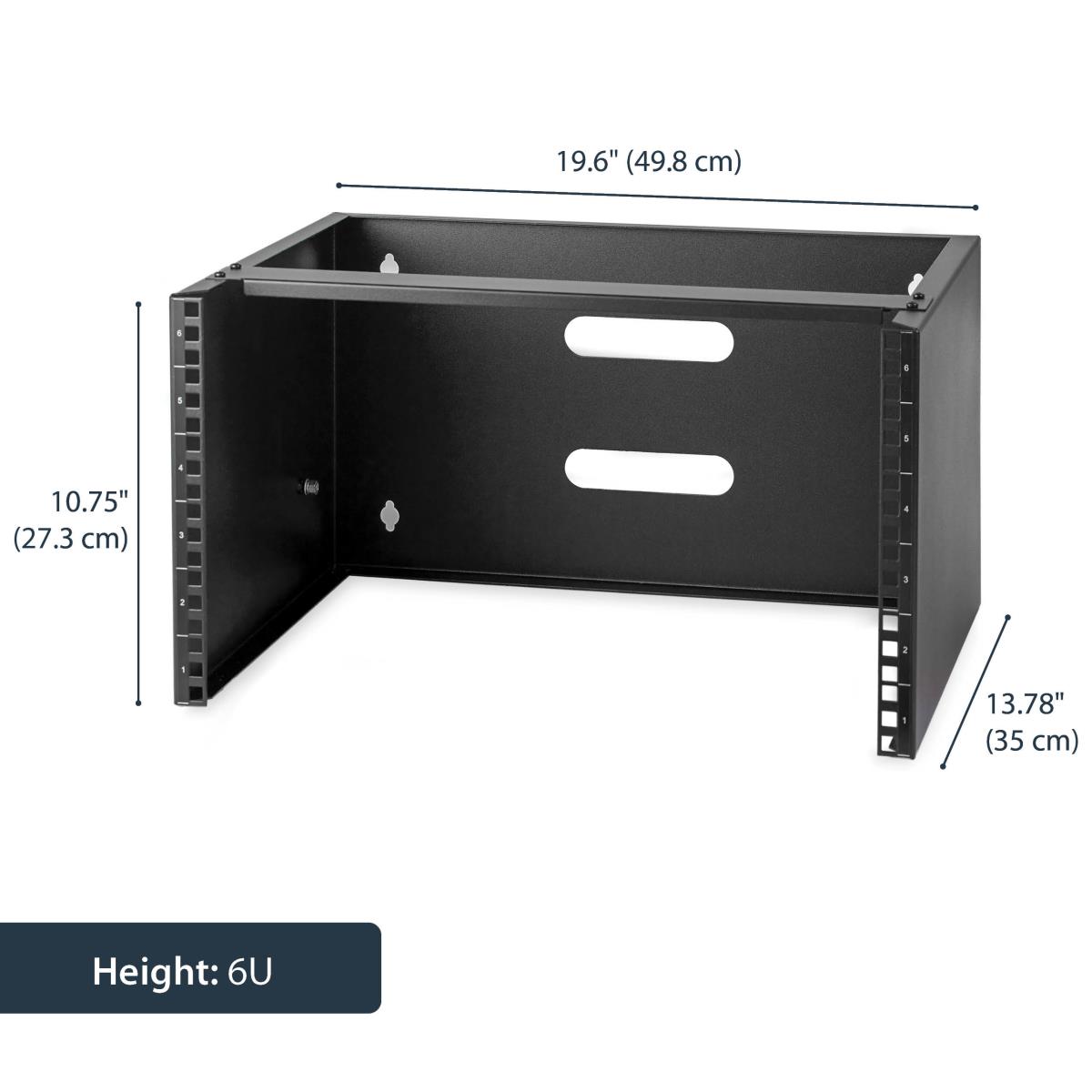

Weight & dimensions
Width
498 mm
Depth
350 mm
Height
273 mm
Weight
4.5 kg
Mounting depth (max)
35 cm

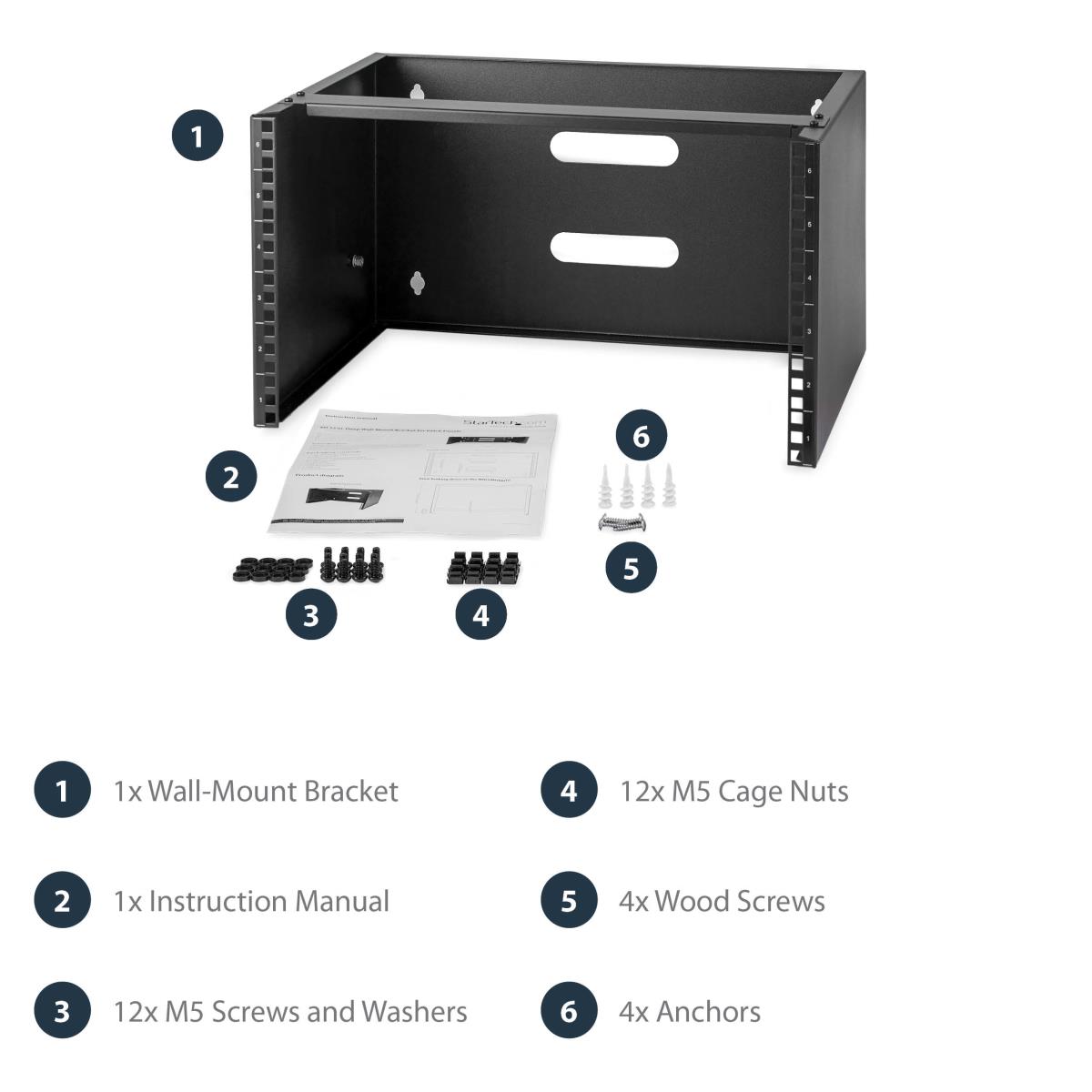

Packaging data

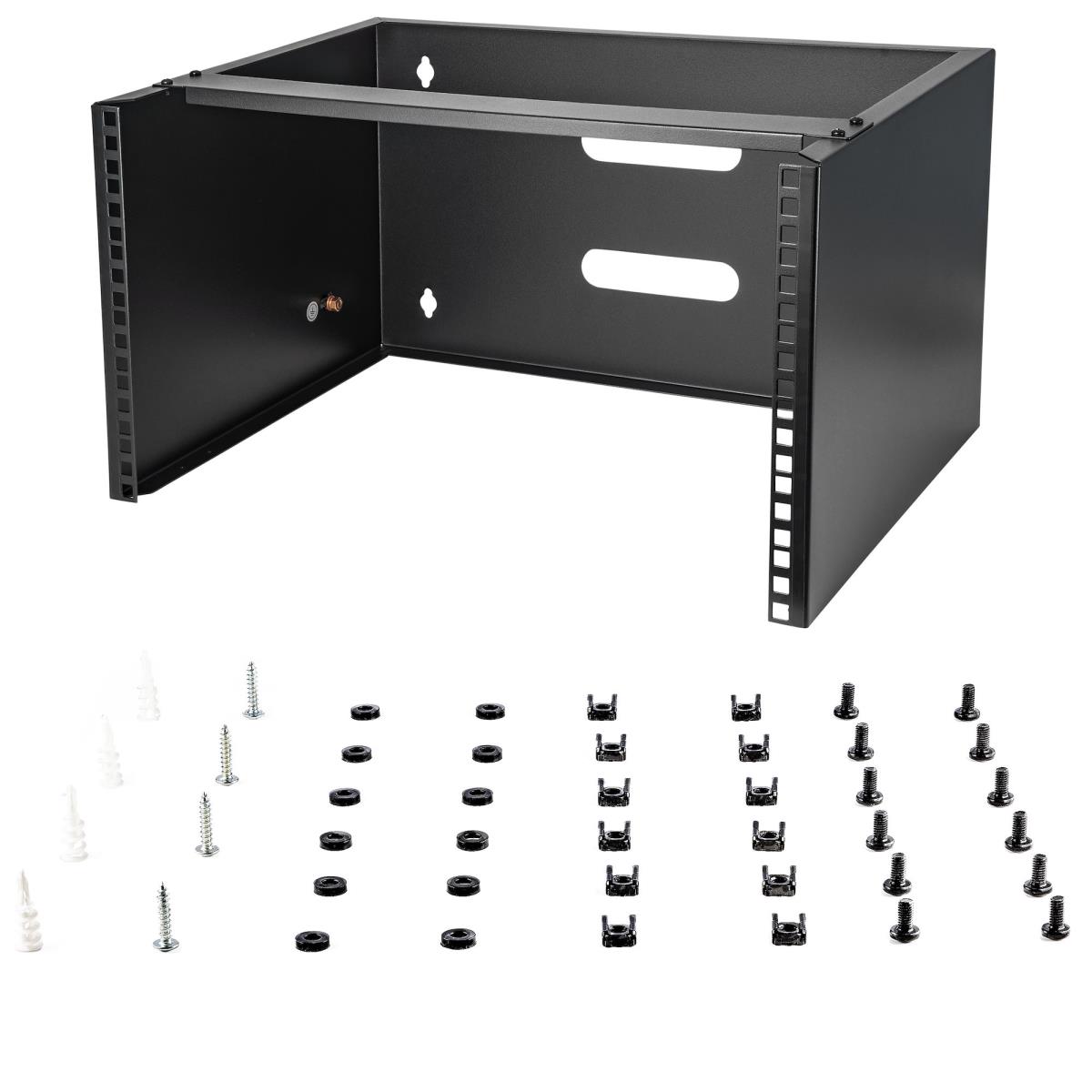

Nuts included
Y
Number of nuts
12
Screws included
Y
Number of screws
12
Manual
Y
Package width
380 mm
Package depth
524 mm
Package height
300 mm
Package weight
6.3 kg
Logistics data
Master (outer) case width
550 mm
Master (outer) case length
535 mm
Master (outer) case height
410 mm
Products per master (outer) case
4 pc(s)
Other features
Compliance industry standards
EIA/ECA-310-E
Information
| Part Number: | WALLMOUNT6 |
