STARTECH.COM Through Patch Panel 1u Feed 110 Punch Down/CAT6a Stp

Introduction

Set up 24 Cat6A connections using this shielded 110 punch down Ethernet patch panel

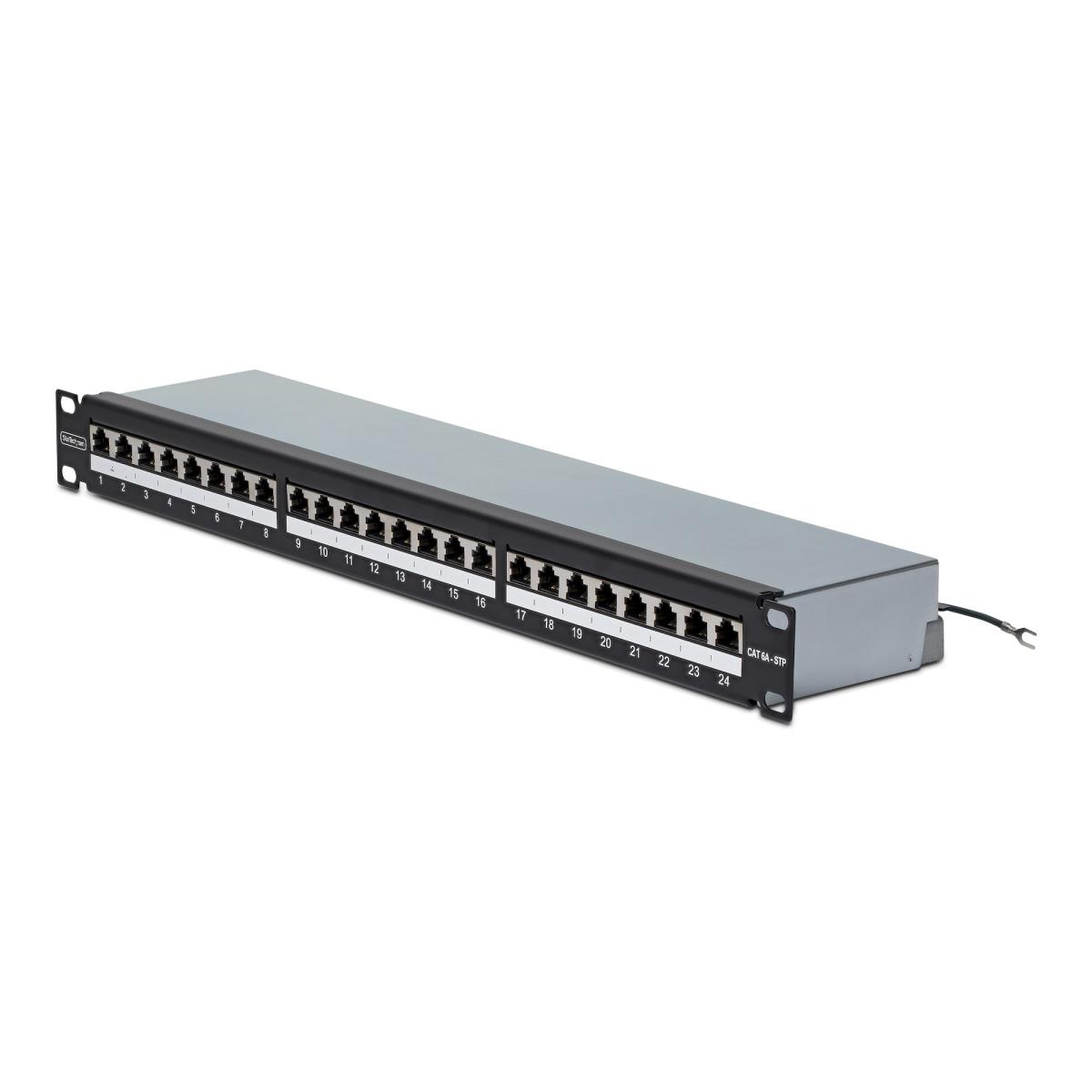

Streamline rack-mounted network setups with this 24-Port 1U Shielded Cat6A Patch Panel with 110 punch-down termination. The shielded patch panel provides a secure, professional solution for terminating Cat6A cabling in standard 19-inch racks.

Secure and Reliable Termination

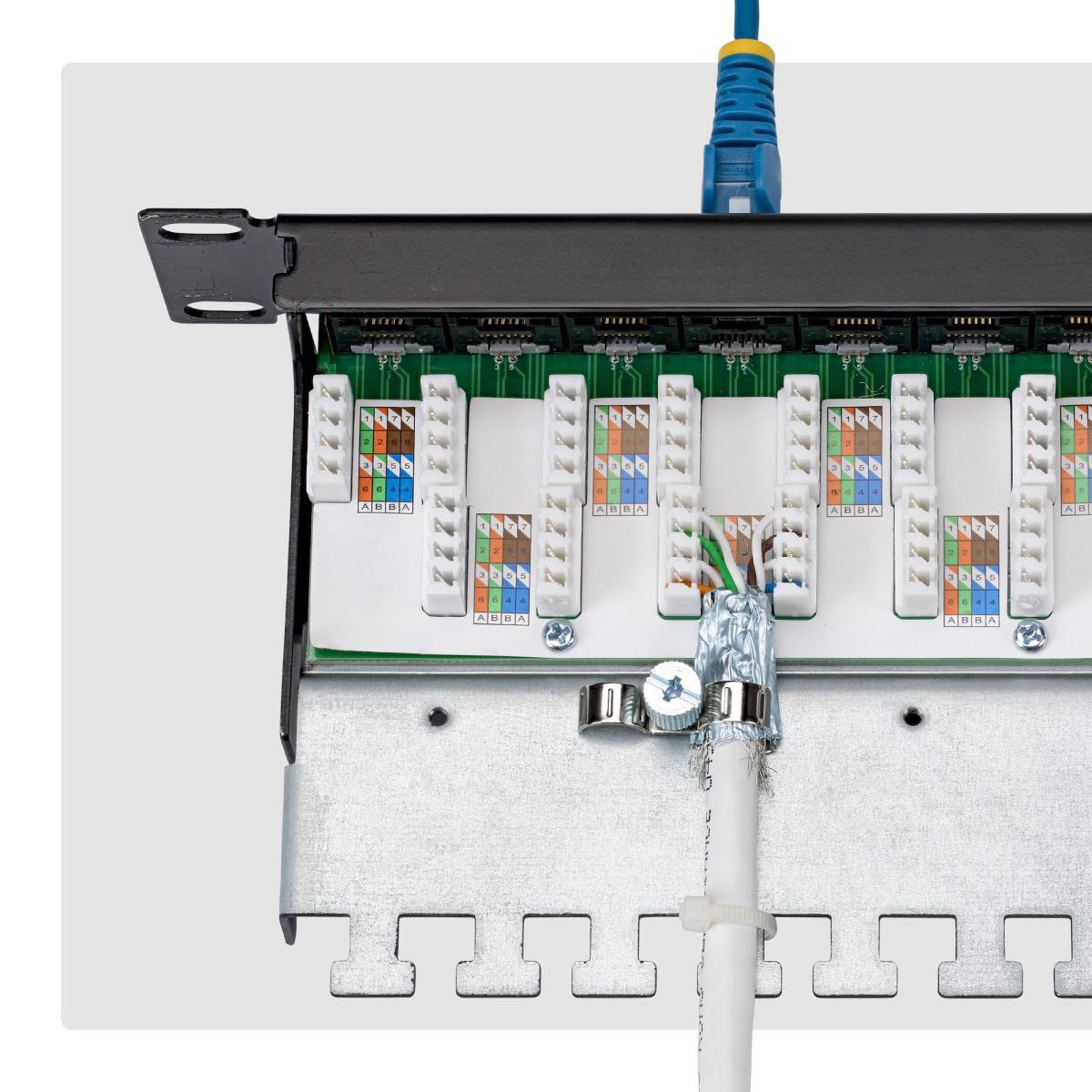

The shielded 110 patch panel is ideal for permanent network installations and incorporates Krone/110 IDC contacts for clean vertical termination of 23-26 AWG STP solid wire Cat6A cabling. Phosphor bronze contacts plated with 50 micro-inches of hard gold maintain consistent signal integrity. Dual T568A/B wiring labels support accurate termination and reduce wiring errors. The patch panel is UL listed for electrical safety in enterprise network environments.

Durable Construction

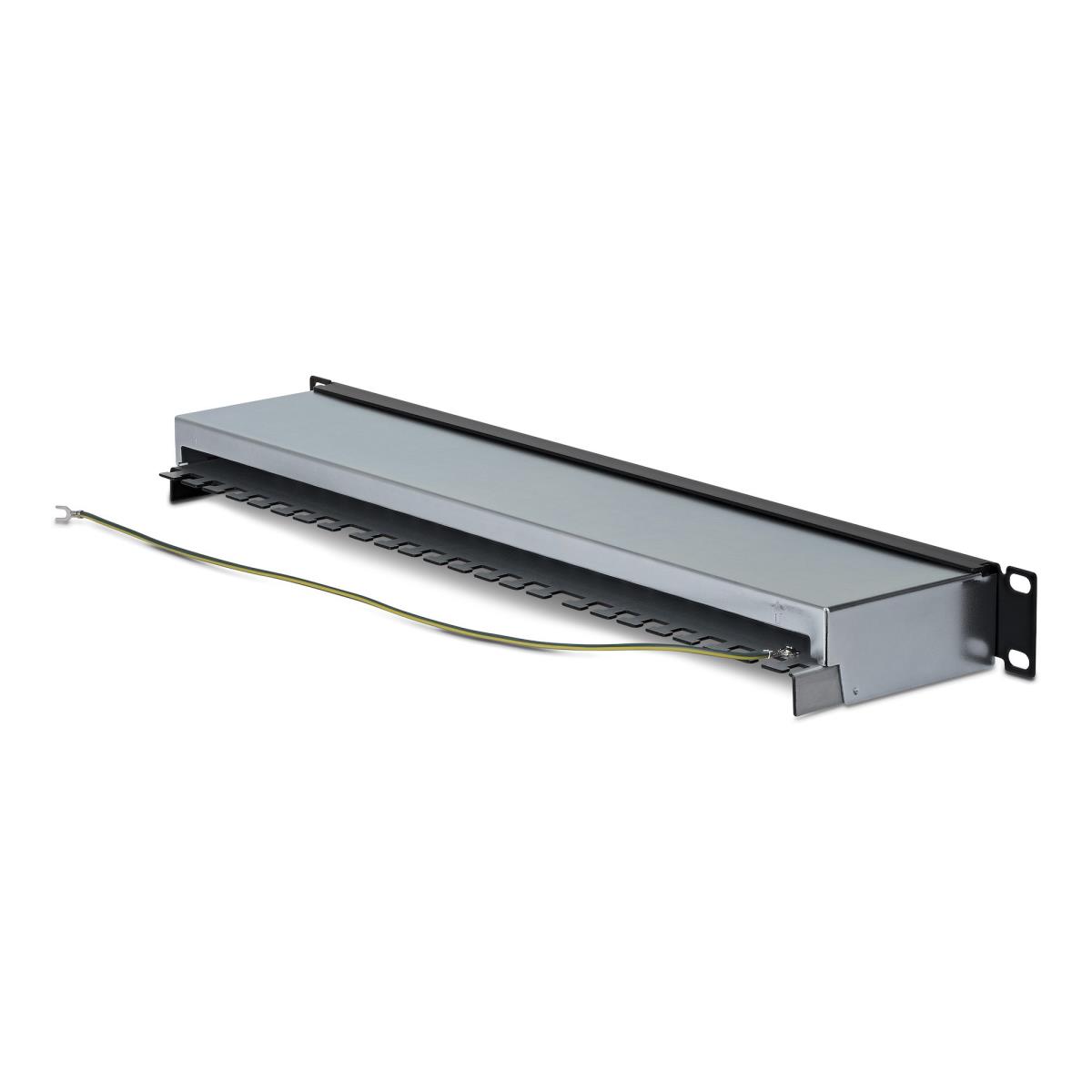

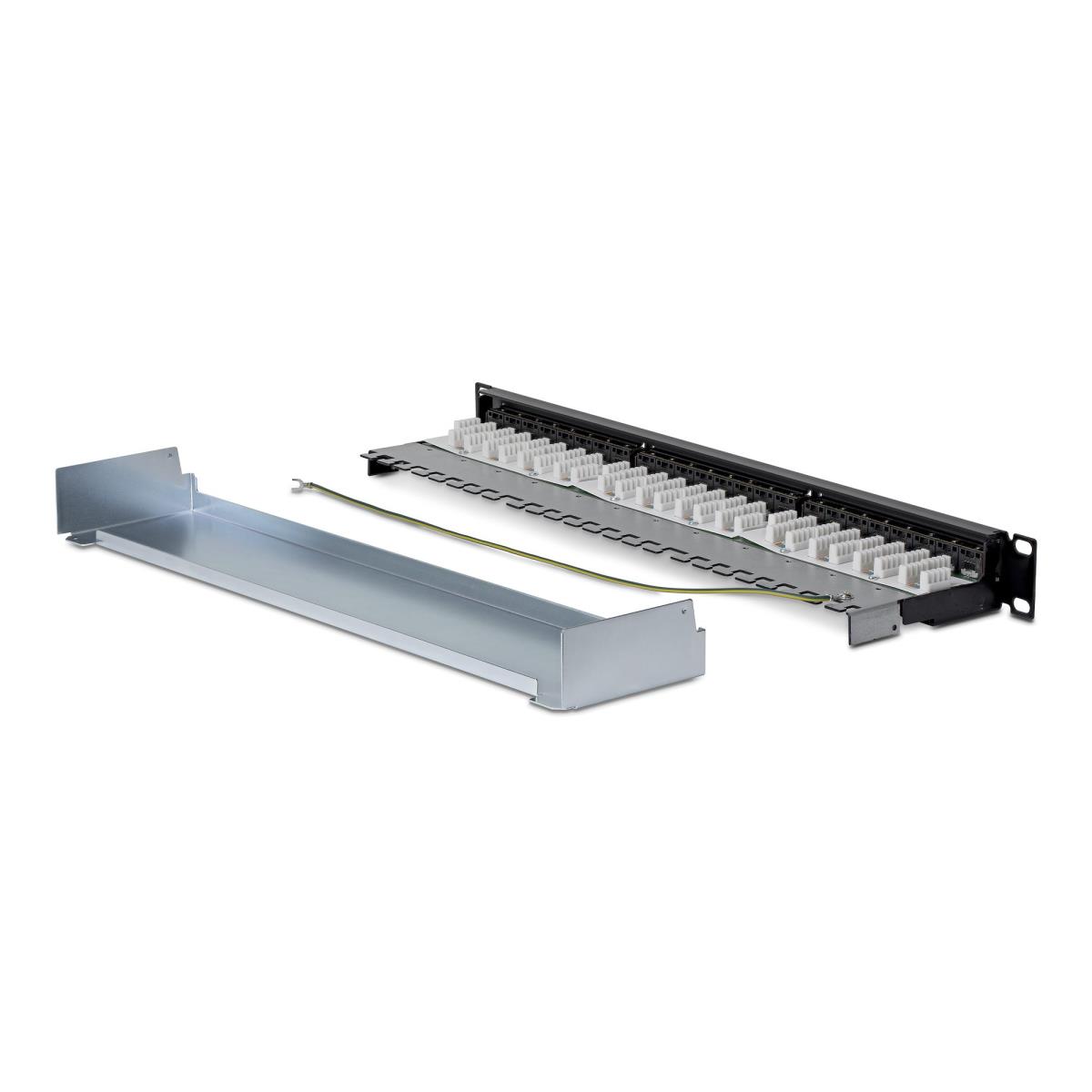

The 1U patch panel assembly features a protective metal housing cover and grounding wire for optimal EMI protection and helps maintain signal integrity in high-density installations. It is fully compliant with ANSI/TIA/EIA-568-B.2-1, ISO/IEC 11801 (2nd Edition: 2002), EN 50173-1: 2002, and ANSI/TIA/EIA-310-D standards, ensuring compatibility with network cabling infrastructure and 19-inch server racks.
