Introduction

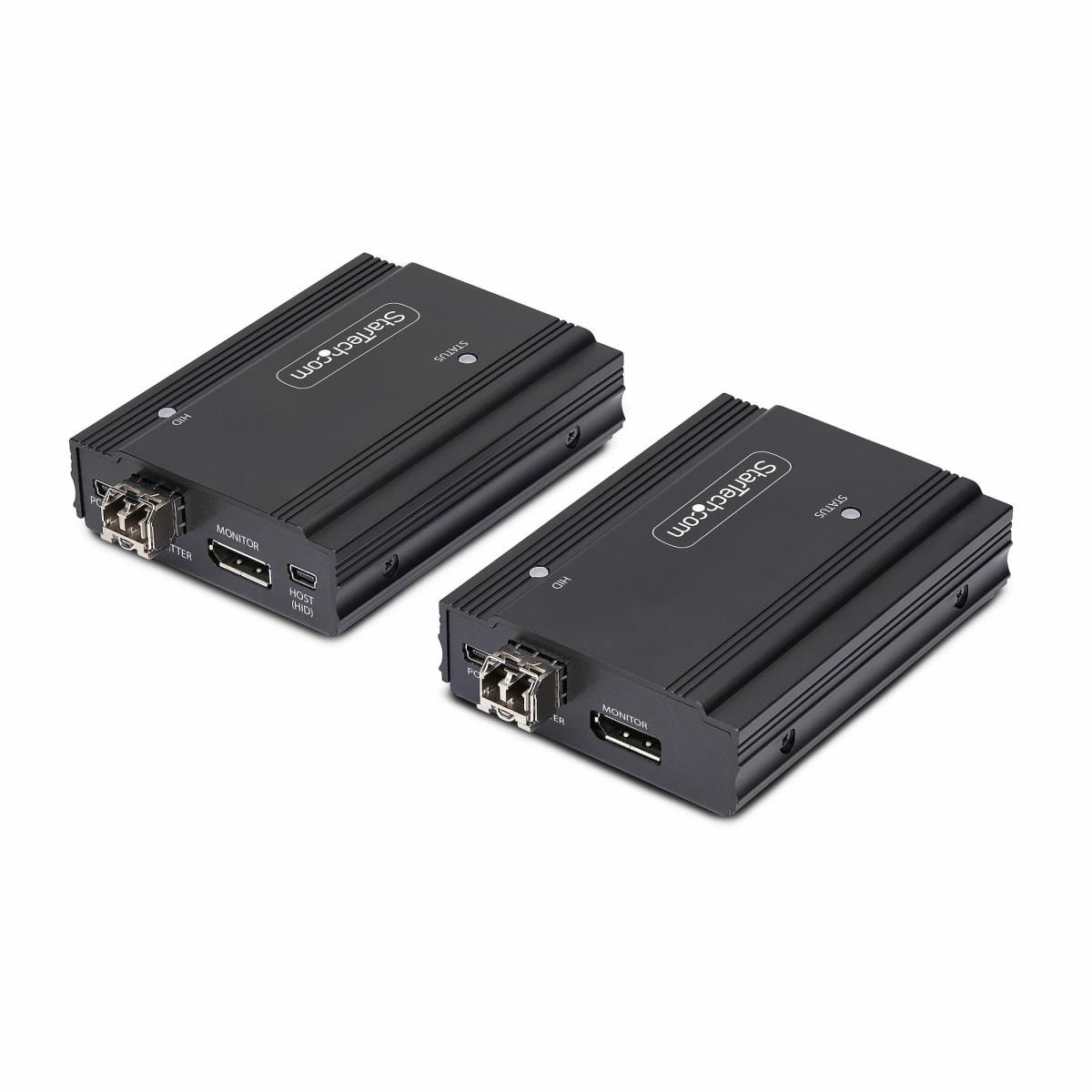

Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cableThe Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).4K 60Hz DisplayPort VideoThe transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.Universal CompatibilityThe KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.Built-In USB HubThree USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.Durable DesignThe extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.The StarTech.com Advantage
Features
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
300 m
Maximum digital resolution
4096 x 2160 pixels
Maximum refresh rate
60 Hz
Supported resolutions
4096 x 2160 @ 60hz
3840 x 2160 @ 60hz
3440 x 1440 @ 60hz
3200 x 1800 @ 60hz
3072 x 1728 @ 60hz
2560 x 1440 @ 60hz
2048 x 1536 @ 60hz
1920 x 1200 @ 60hz
3840 x 1080 @ 60hz
1920 x 1080 @ 60hz
1760 x 990 @ 60hz
1680 x 1050 @ 60hz
1600 x 1200 @ 60hz
1600 x 900 @ 60hz
1440 x 900 @ 60hz
1366 x 768 @ 60hz
1280 x 1024 @ 60hz
1280 x 720 @ 60hz
1128 x 634 @ 60hz
1024 x 768 @ 60hz
800 x 600 @ 60hz
Extended display identification data (EDID)
Yes
On Screen Display (OSD)
No
Product colour
Black
USB 1.1 ports quantity
3
LED indicators
Yes
Mean time between failures (MTBF)
156000 h
Transmitter
Transmitter local video port
Yes
Transmitter local video port type
DisplayPort
Number of displays supported
1
Transmitter Micro-USB ports quantity
1
Receiver
Receiver local video port type
DisplayPort
Receiver Micro-USB ports quantity
2
Power
AC input voltage
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
10 W
Power consumption (receiver) (max)
10 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Transmitter width
7.4 cm
Transmitter depth
10 cm
Transmitter height
2.8 cm
Transmitter weight
235 g
Receiver width
7.4 cm
Receiver depth
10 cm
Receiver height
2.8 cm
Receiver weight
235 g
Packaging data
Package width
306 mm
Package depth
175 mm
Package height
70 mm
Technical details
Sustainability compliance
Yes
Sustainability certificates
RoHS, Trade Agreements Act (TAA)
Compliance certificates
RoHS, Trade Agreements Act (TAA)

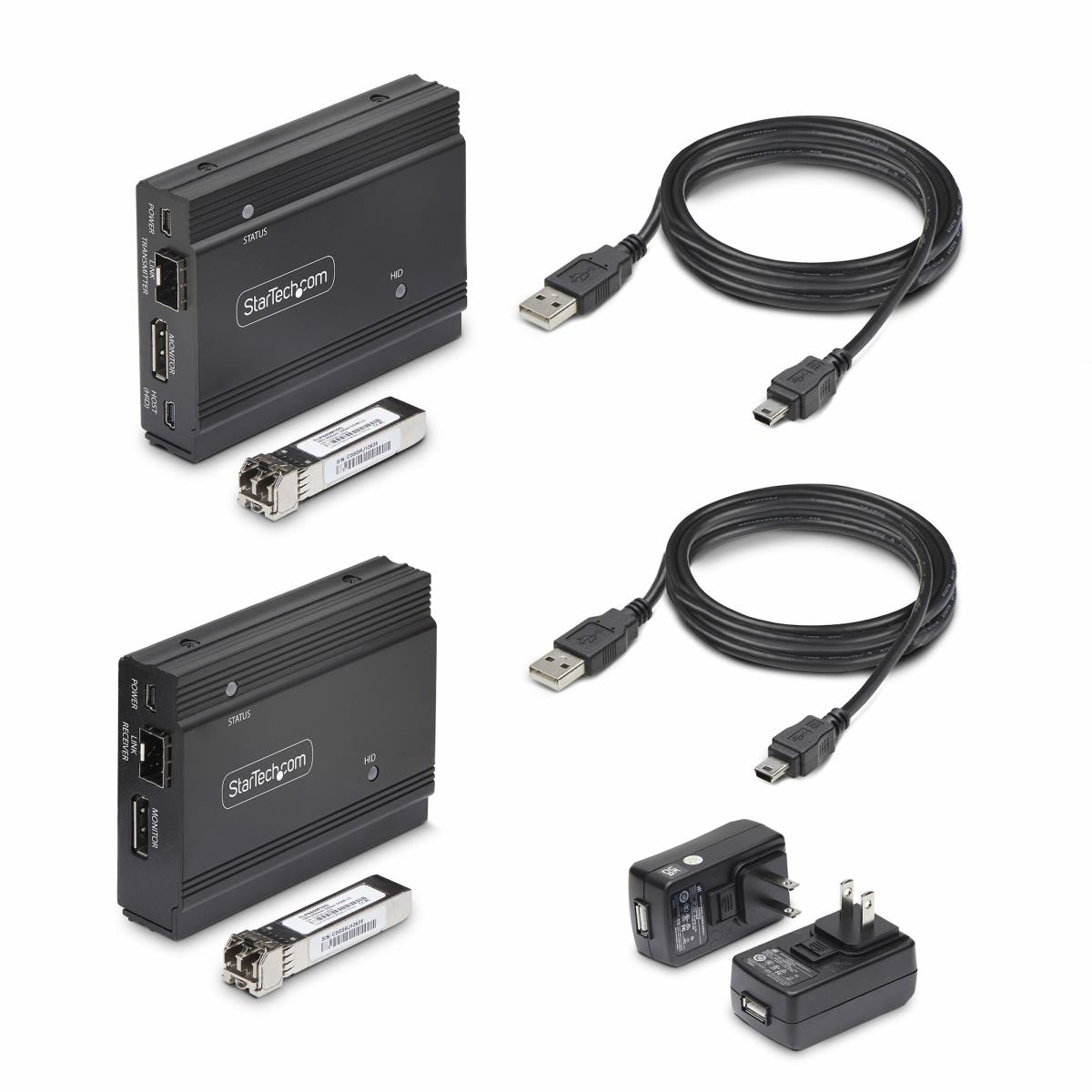

Packaging content
Cables included
Mini-USB
Quick installation guide
Yes
Included power plug types
ANZ, EU, NA, UK
Ports & interfaces

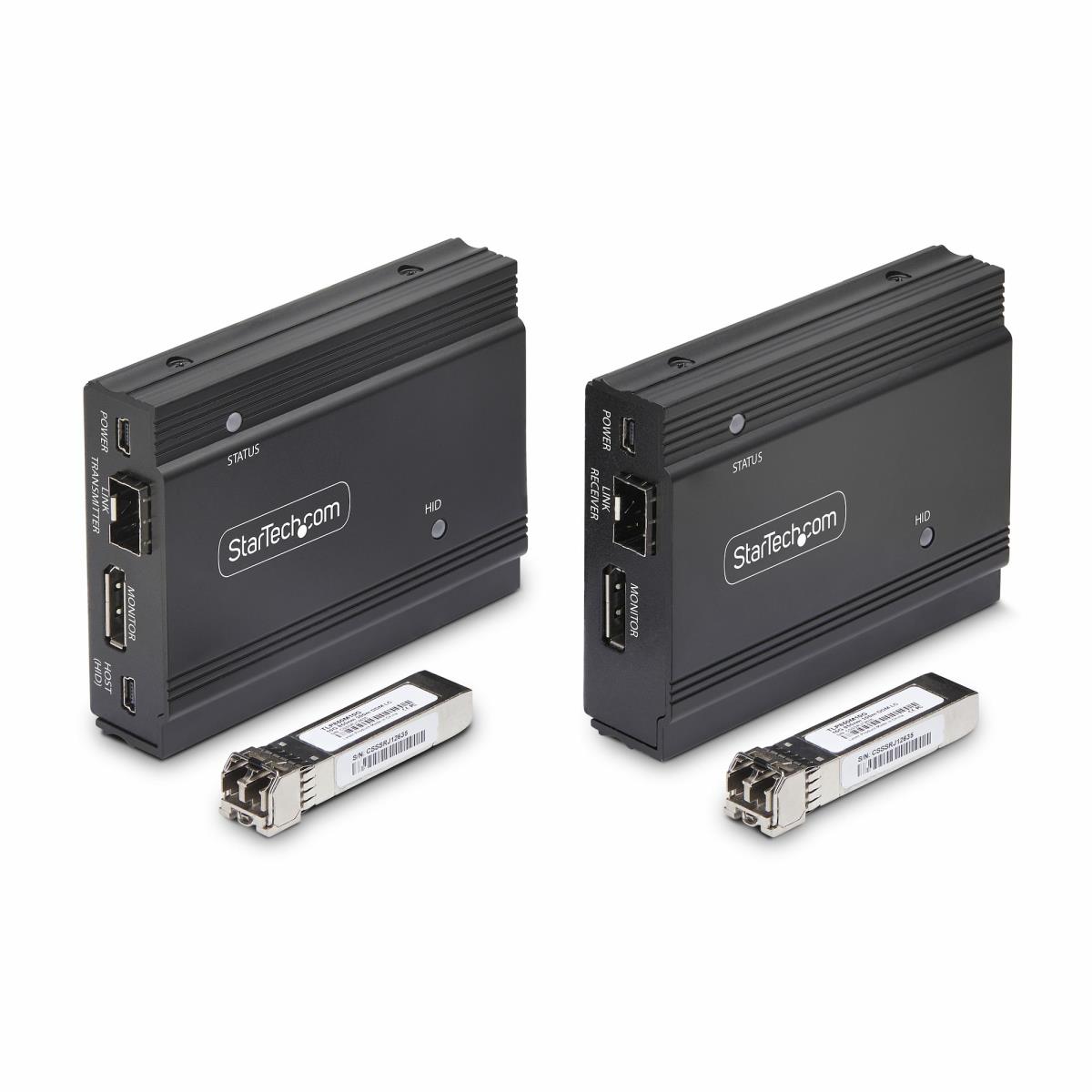

Installed SFP+ modules quantity
2
Logistics data
Master (outer) case width
410 mm
Master (outer) case length
323 mm
Master (outer) case height
275 mm
Products per master (outer) case
6 pc(s)
