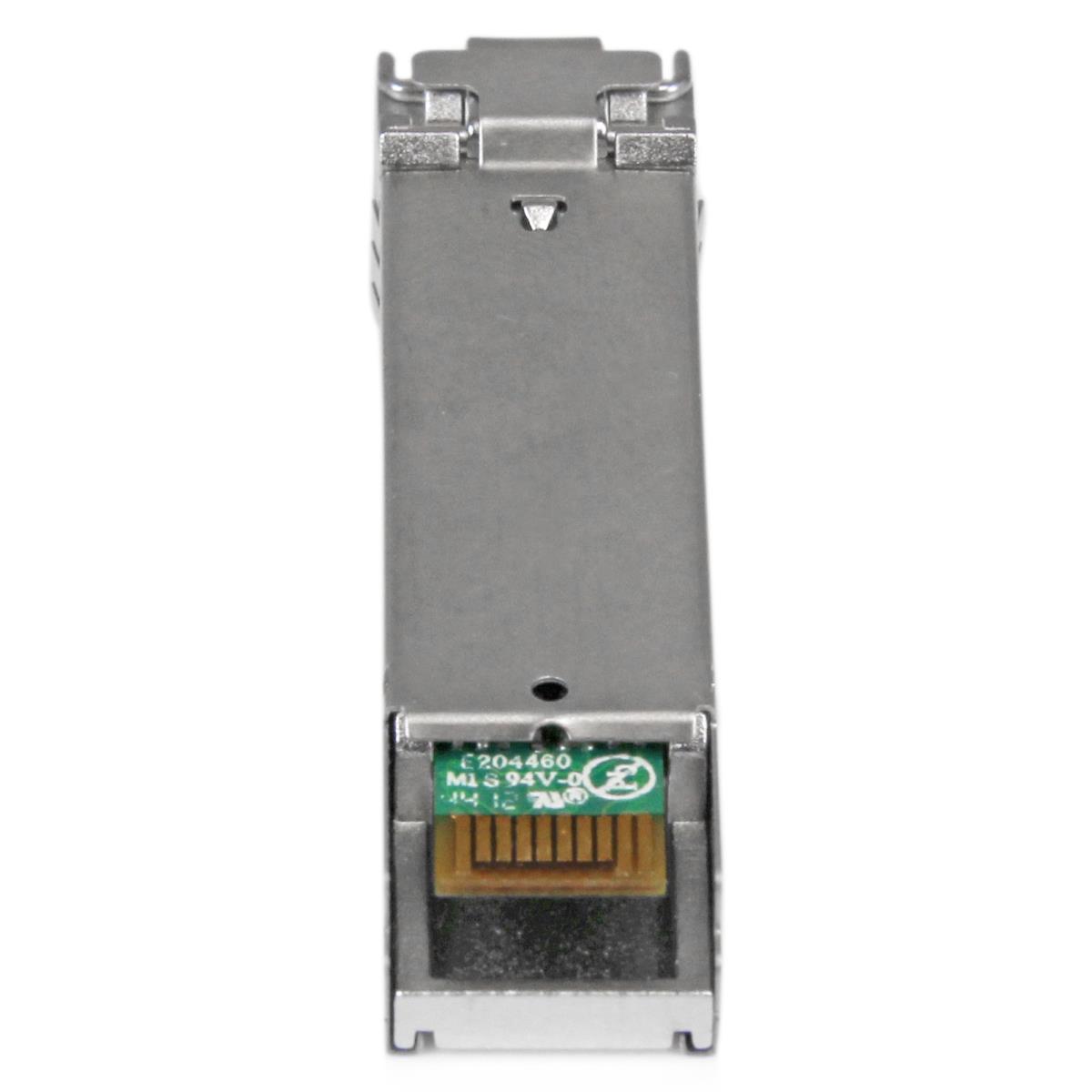

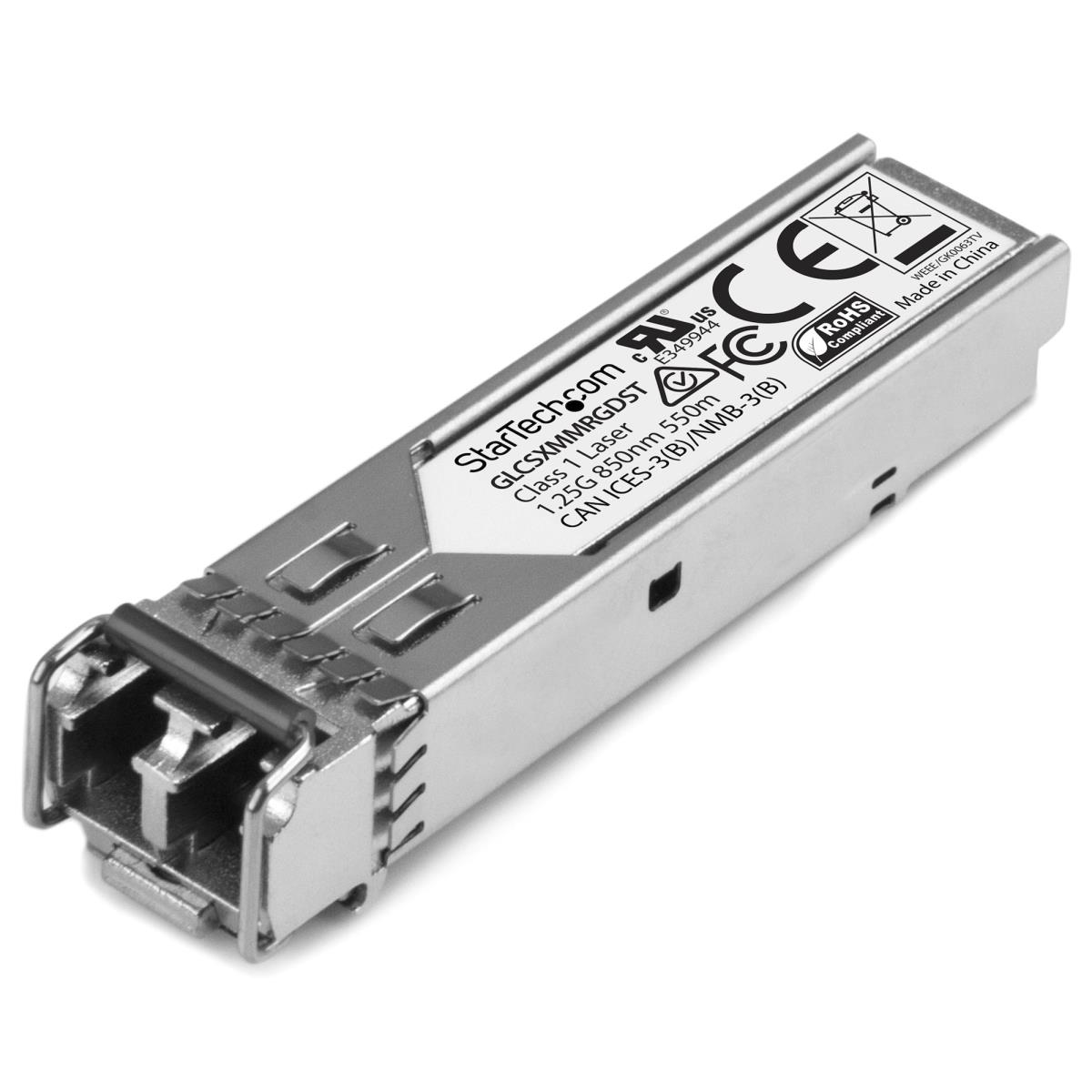

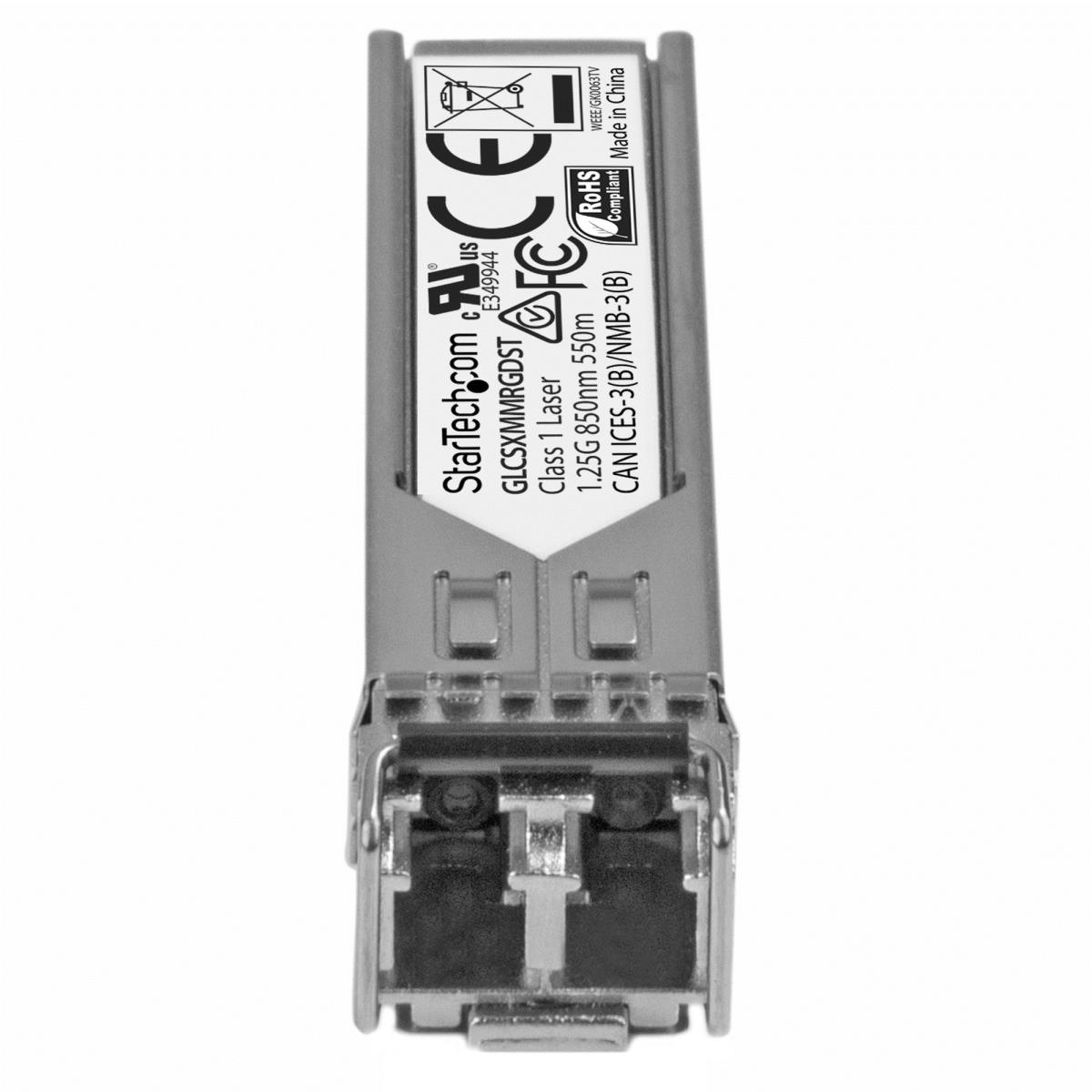

STARTECH.COM Transceiver Module Gigabit Fiber 1000base-sx Sfp - Cisco Glc-sx-mm-rgd Compatible - Mm Lc - 550 M

Introduction

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The GLCSXMMRGDST is a Cisco GLC-SX-MM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

Wavelength: 850 nm

Maximum Data Transfer Rate: 1.25 Gbps

Type: Multi Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 550 m (1804 ft)

MTBF: 3,381,761 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): No

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% compatibility with Cisco GLC-SX-MM-RGD guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
