STARTECH.COM Hdmi KVM Extender Over Ip Network 4k 60hz Driverless Hdmi And USB Over Ethernet/CAT6 Avoip Tra

£285.57

Part Number: IH2006-KVM-EXTENDER
Delivery: 1 - 2 days

Product Details

Introduction

Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

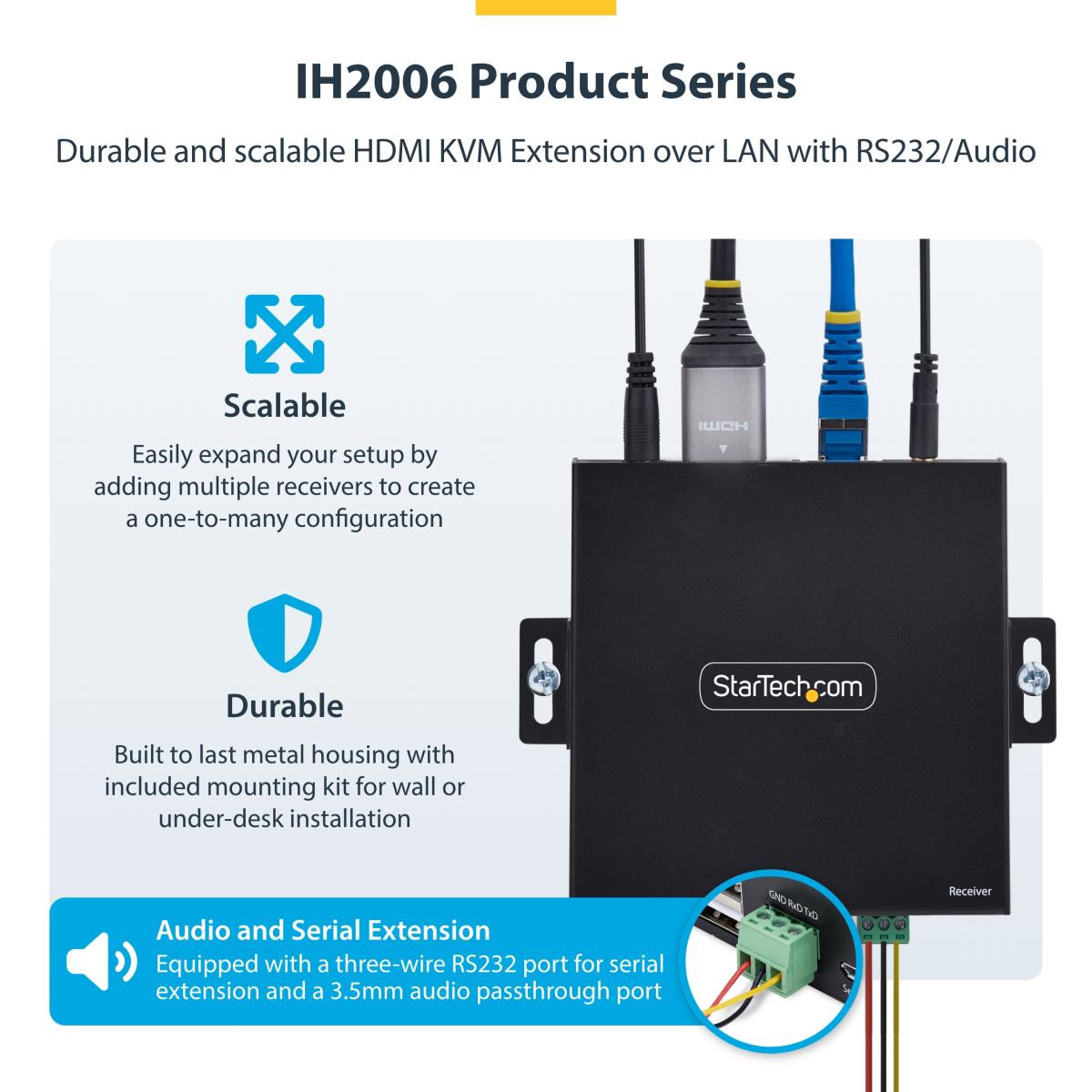

Scalable, Flexible, and Future-Proof

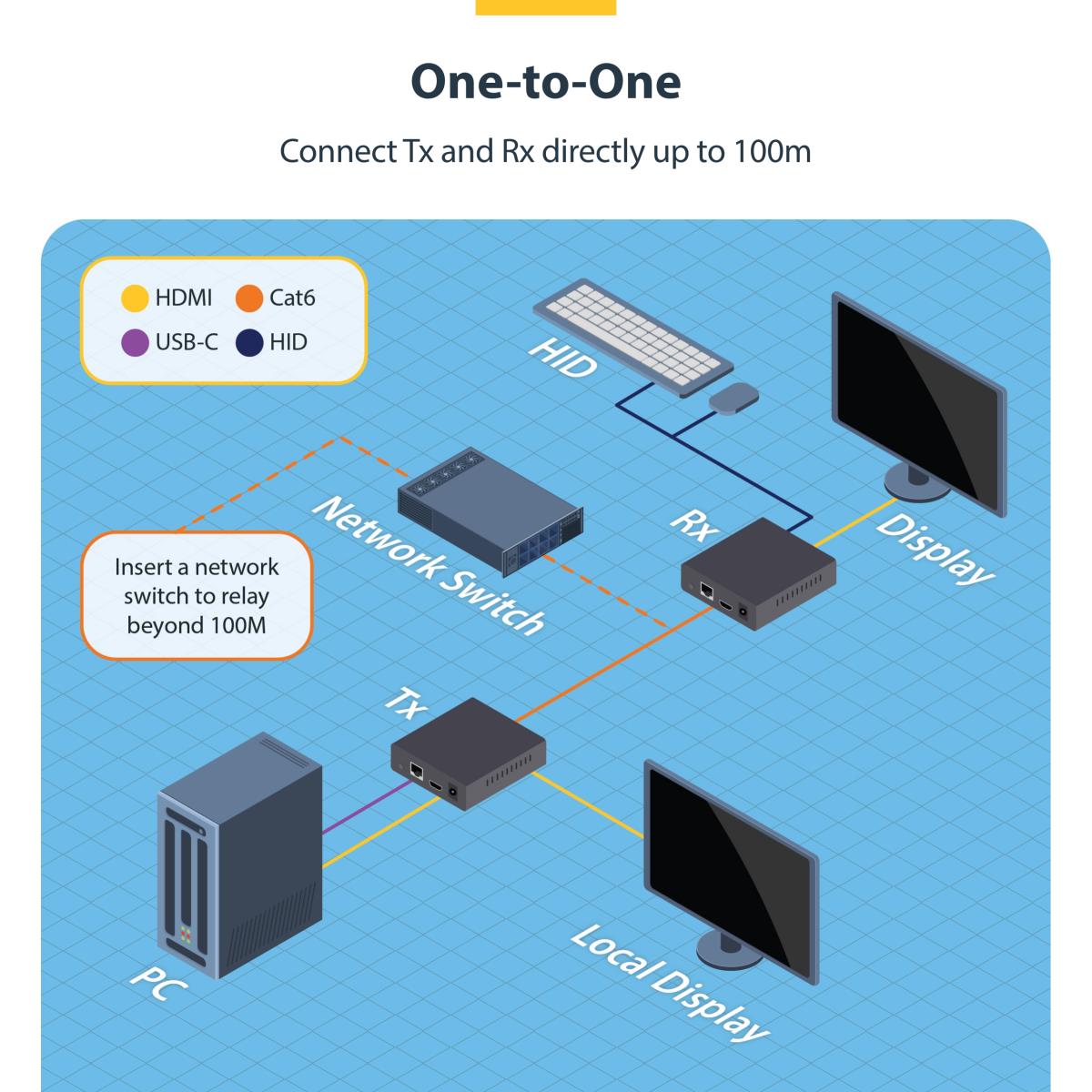

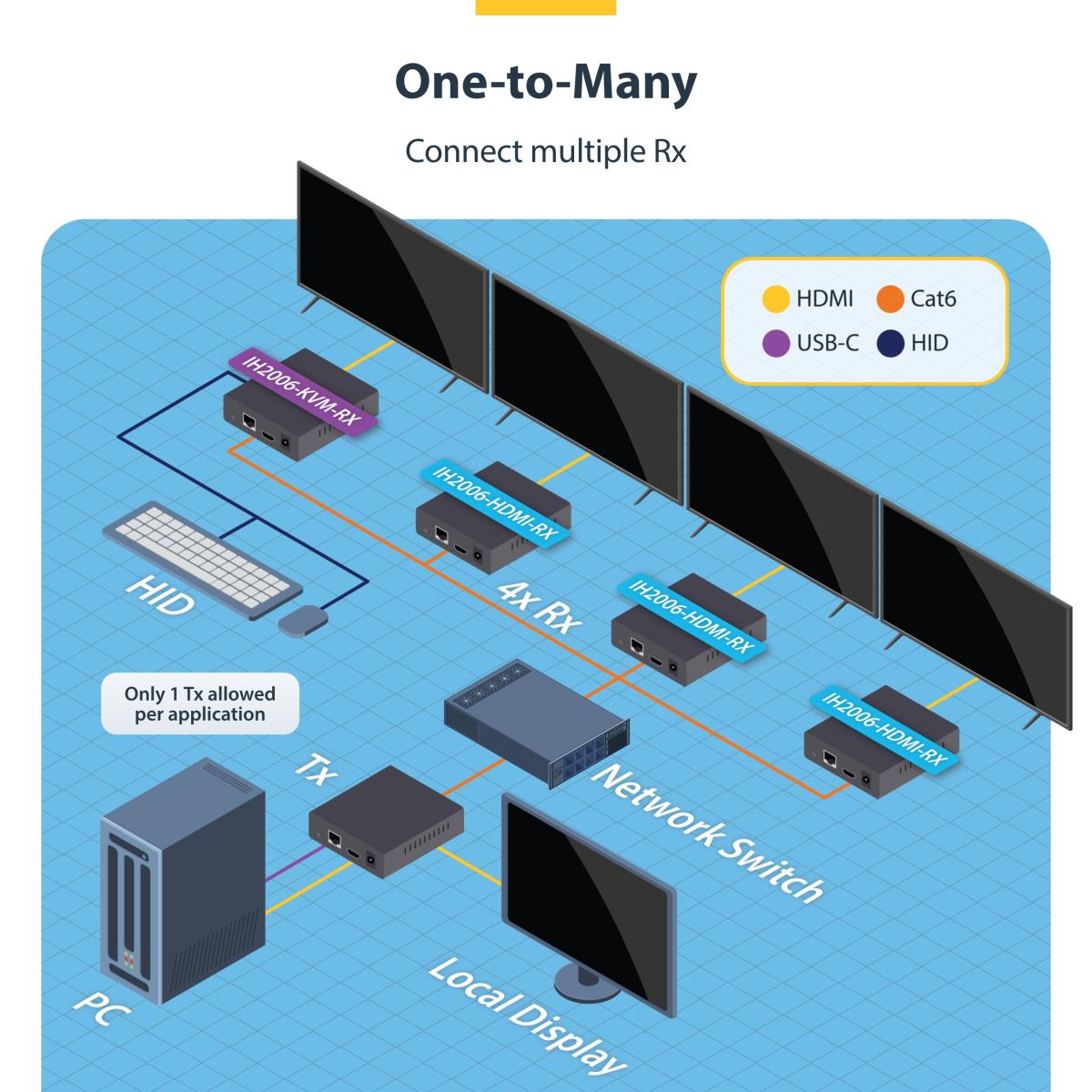

Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.

Professional-Grade Design

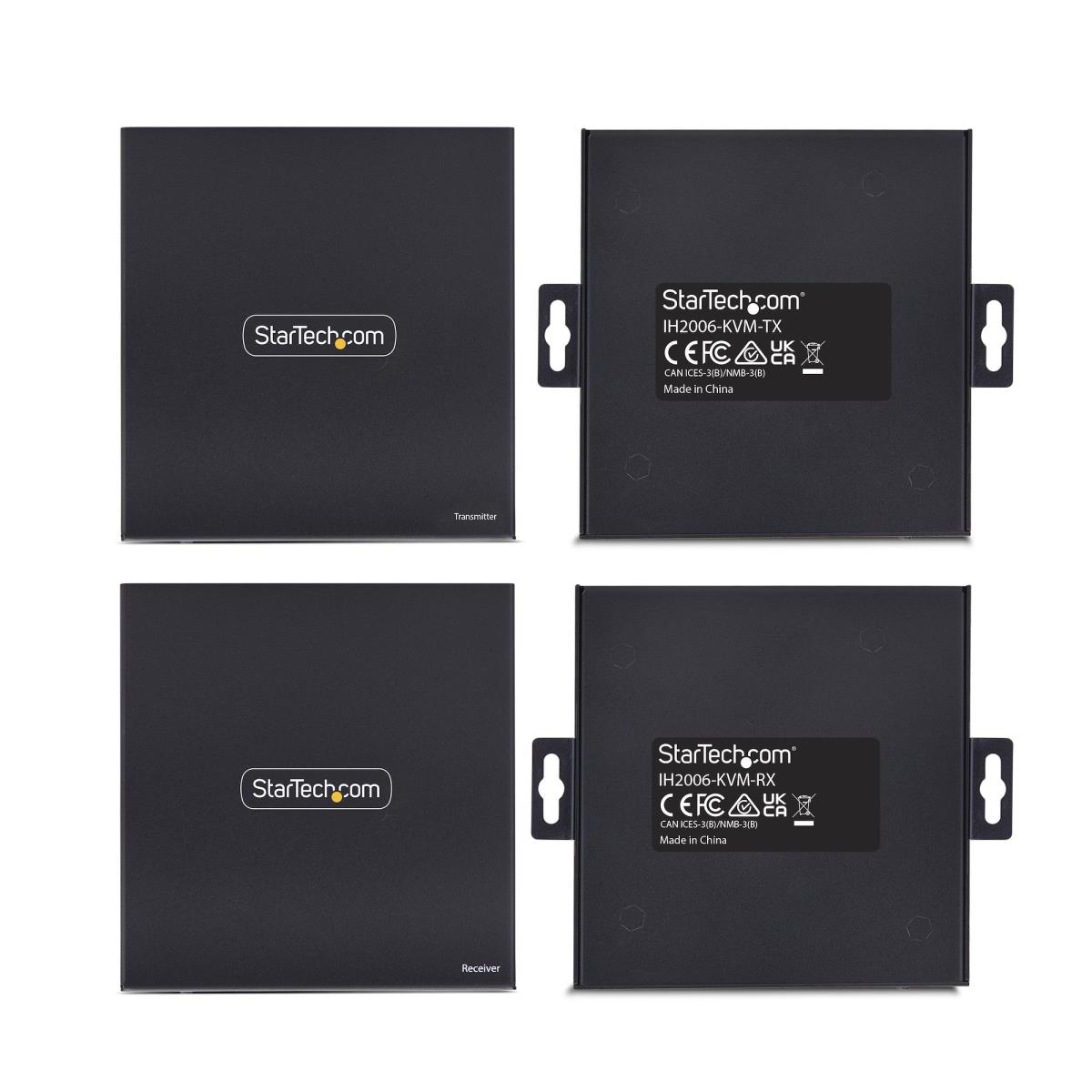

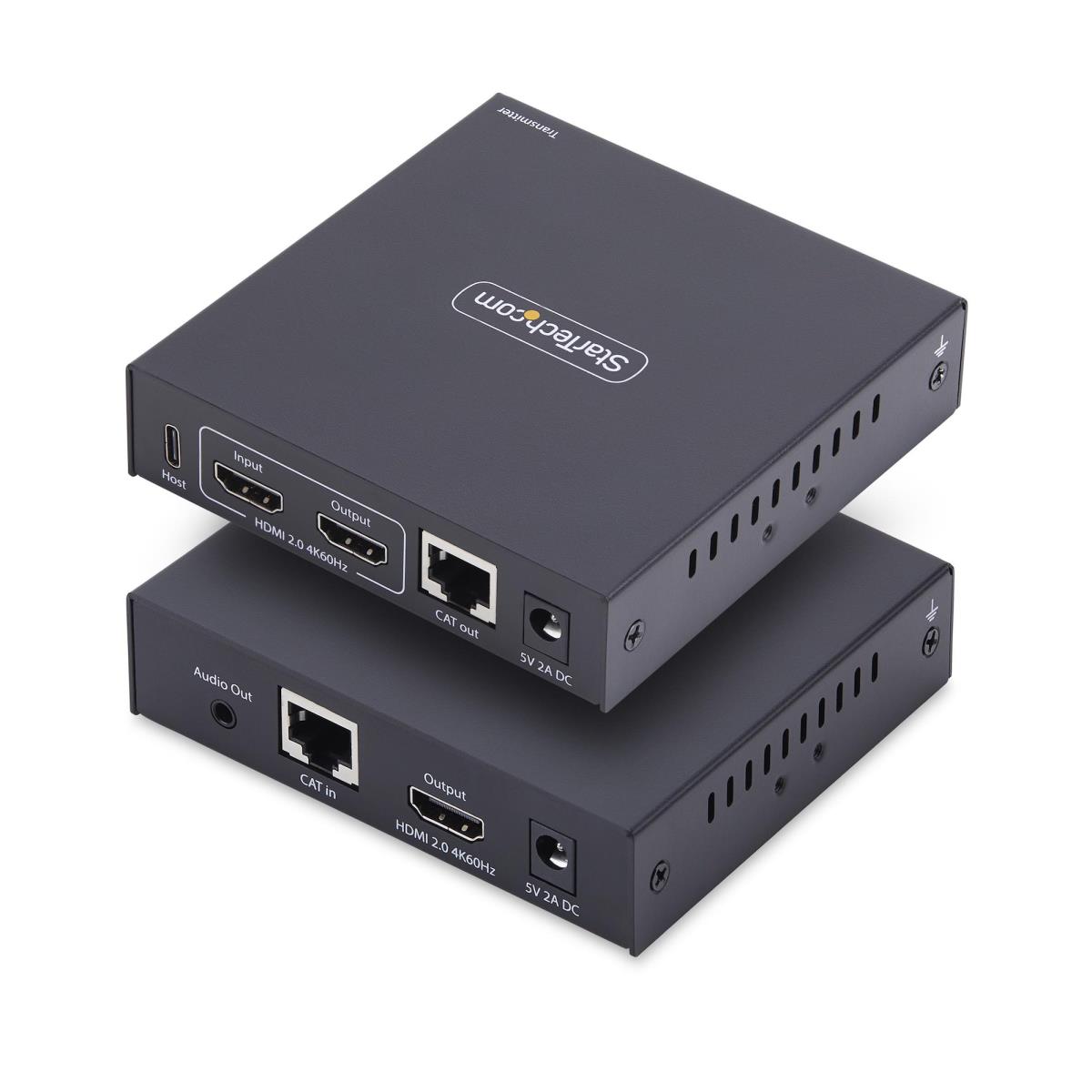

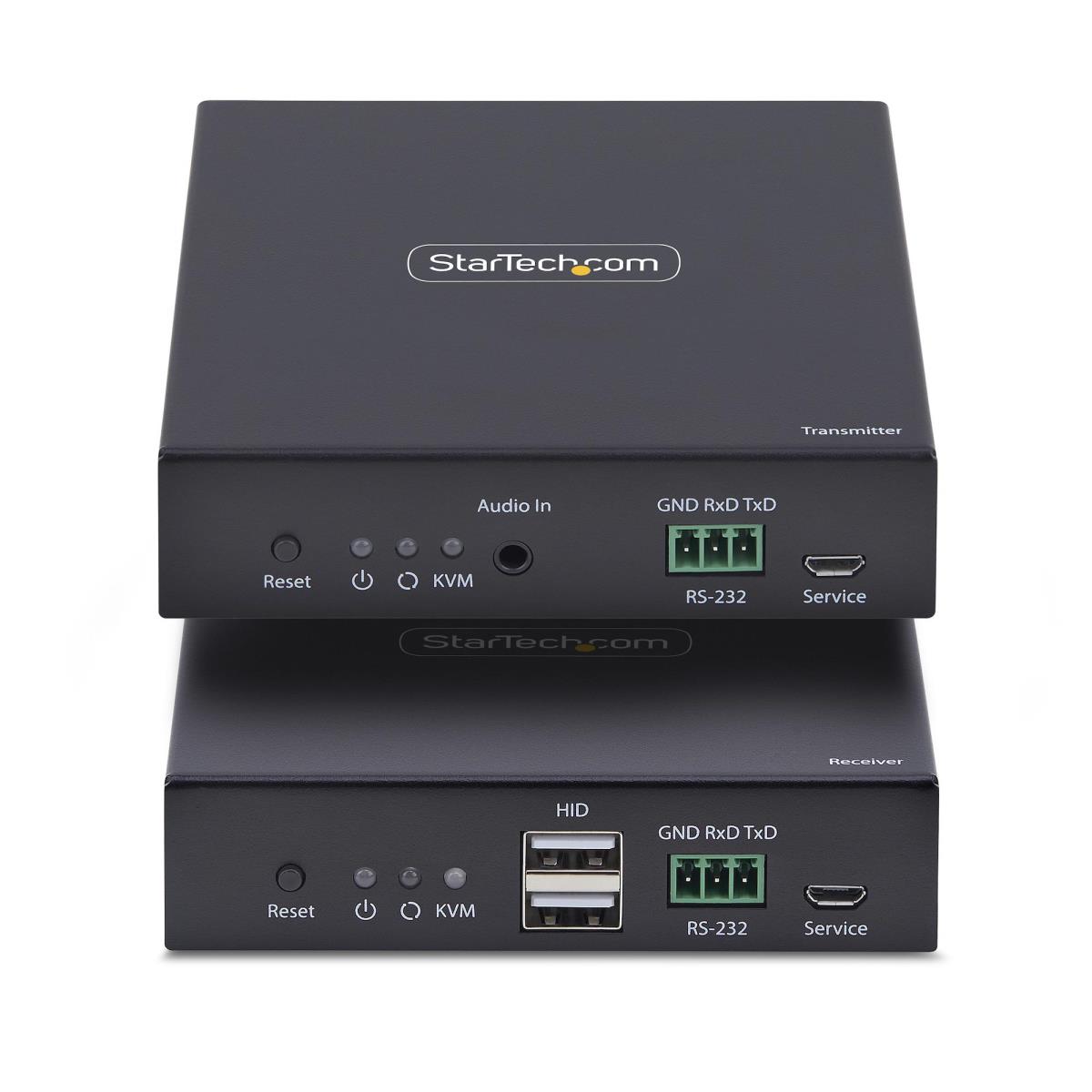

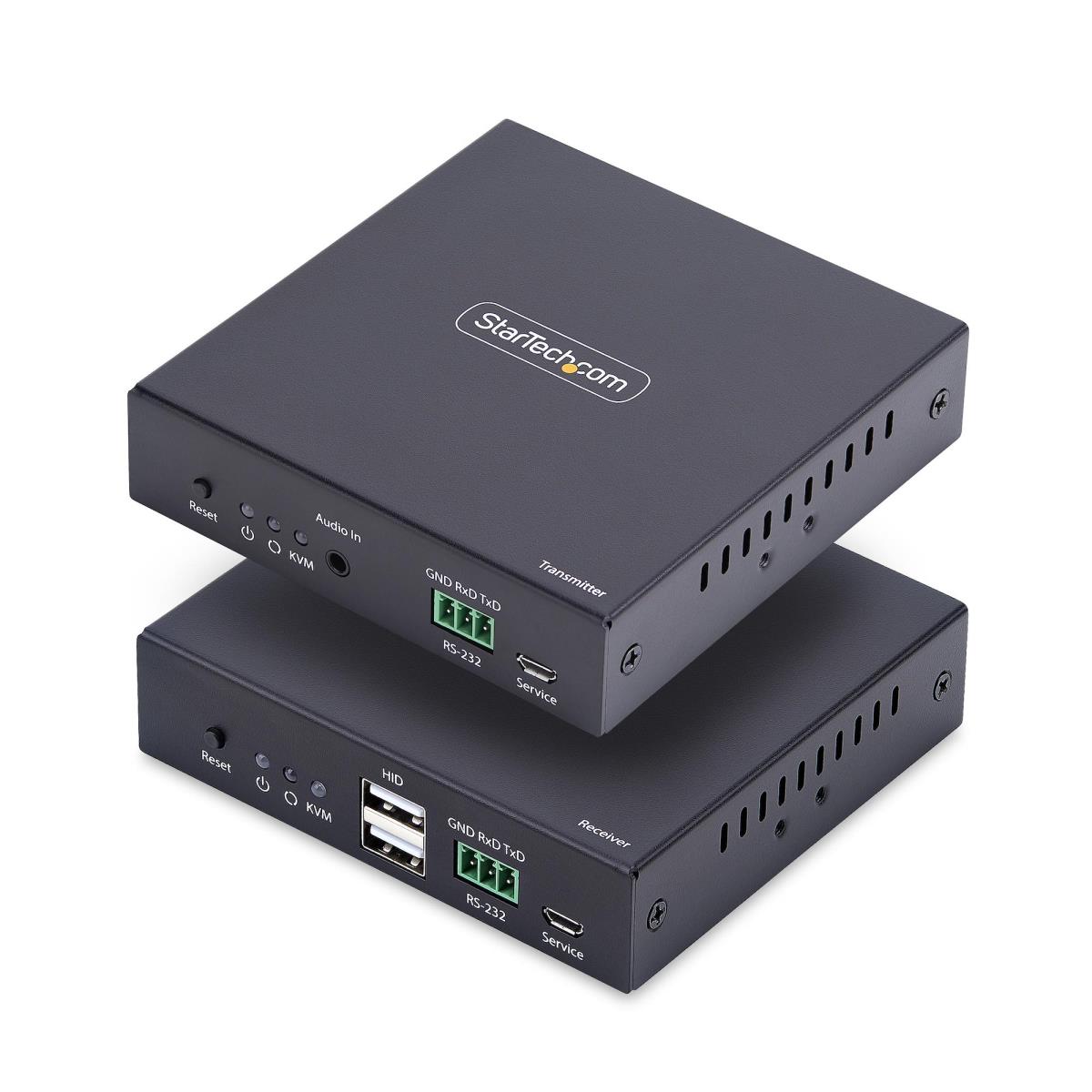

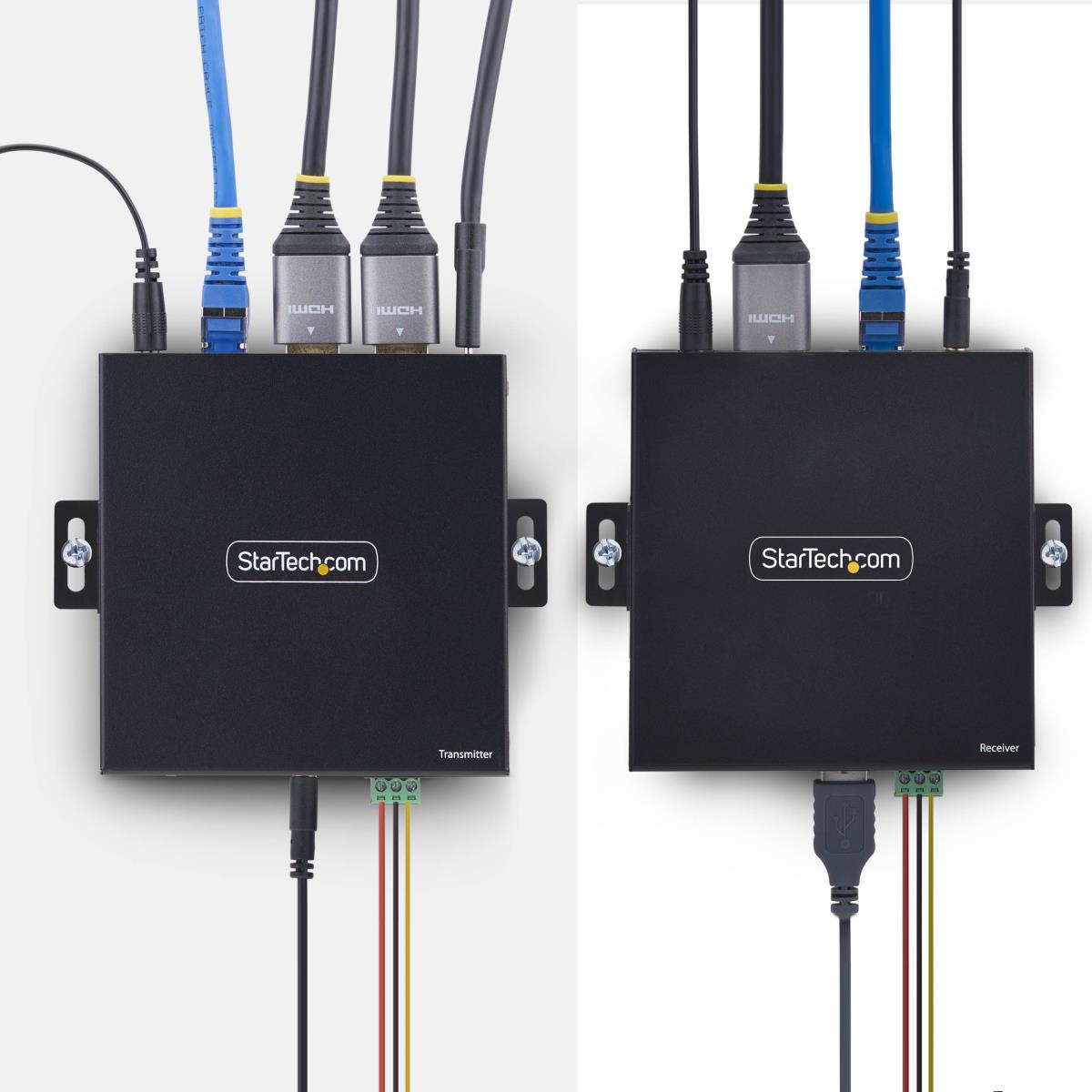

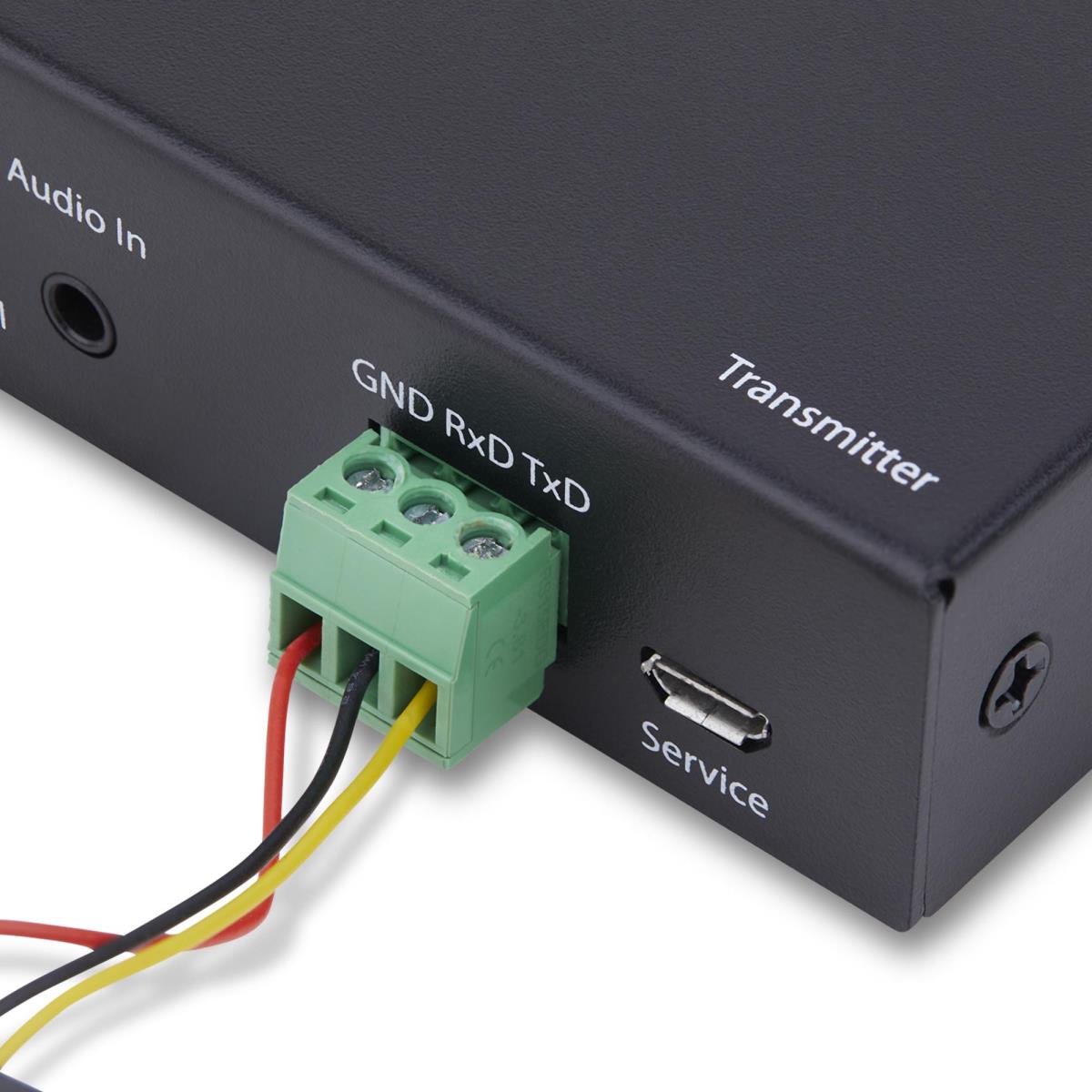

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech.com Advantage

Features

Type Transmitter & receiver
Connectivity technology Wired
Cable types supported Cat6
Rack mounting No
Maximum digital resolution 3840 x 2160 pixels
Maximum refresh rate 60 Hz
On Screen Display (OSD) No
Product colour Black
LED indicators Yes

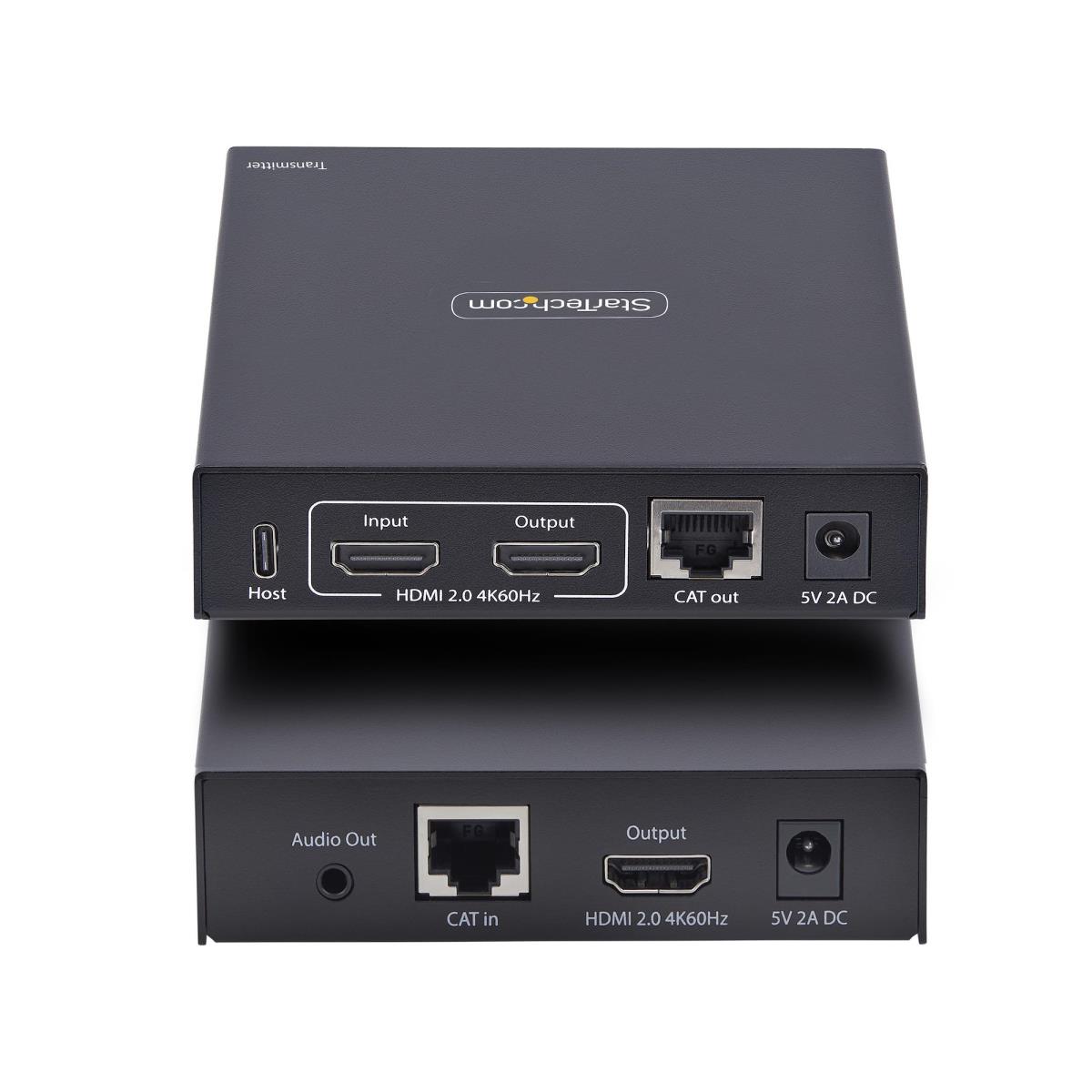

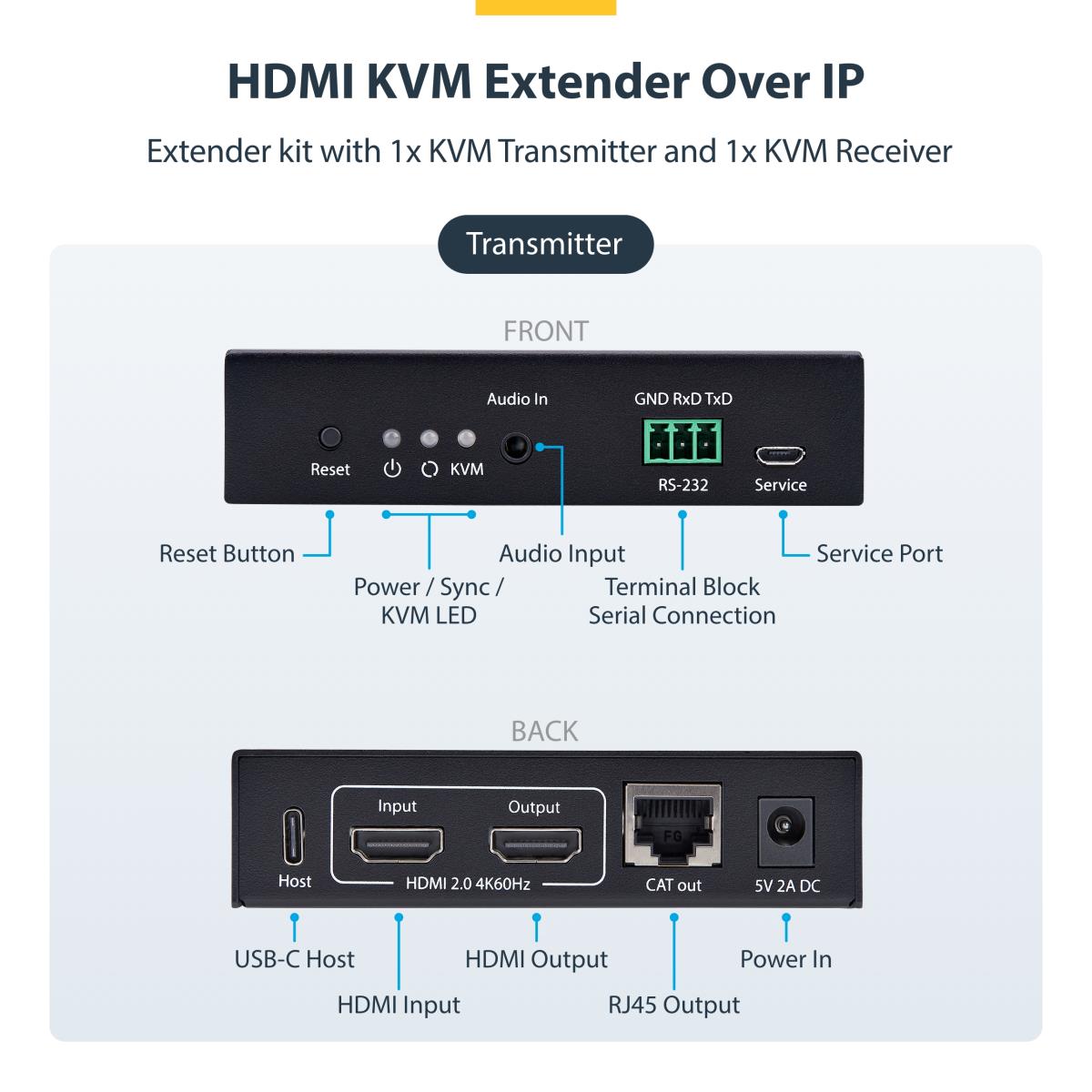

Transmitter

Transmitter video port type HDMI
Transmitter local video port Yes
Transmitter local video port type HDMI
RJ-45 ports quantity (transmitter) 1
Transmitter Micro-USB ports quantity 1

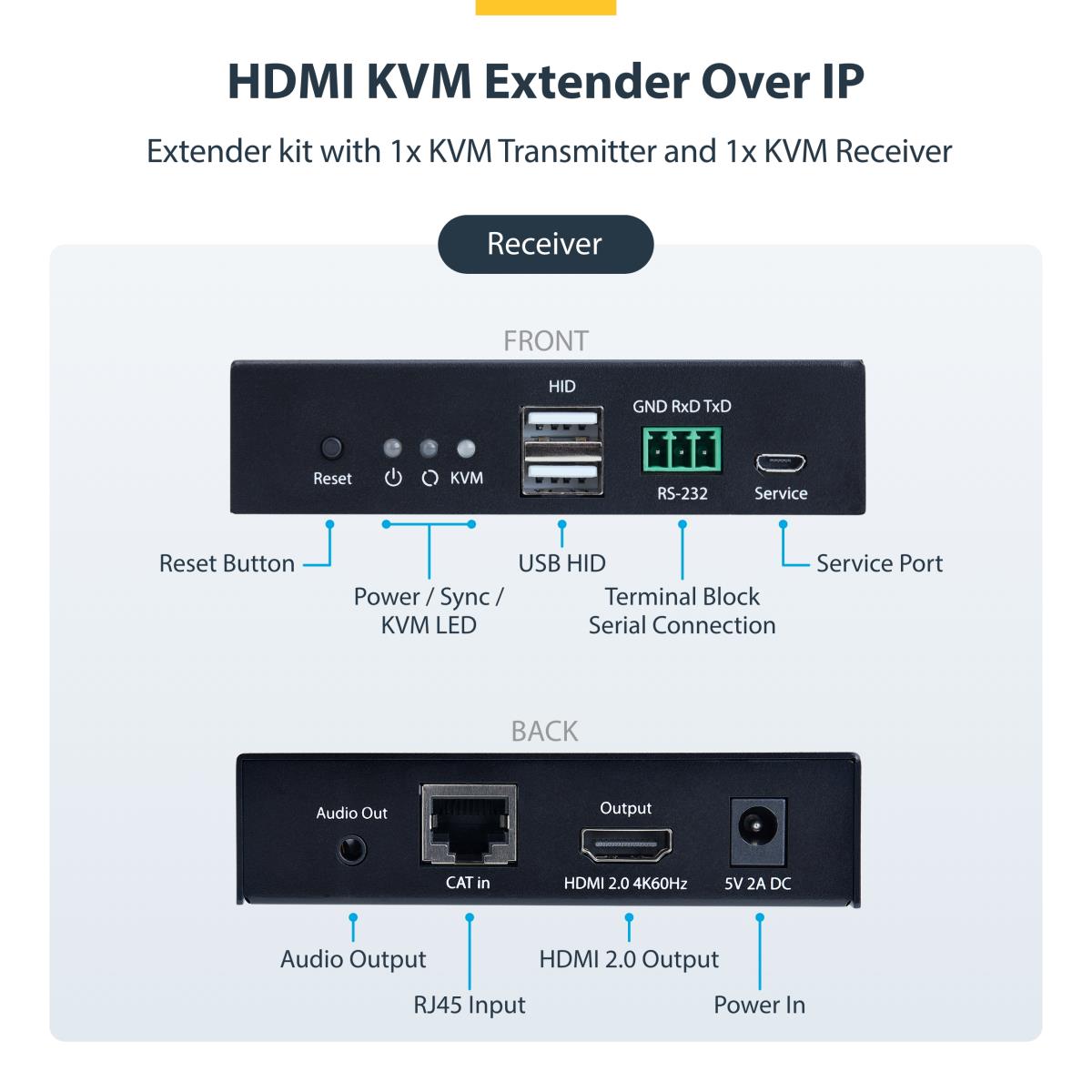

Receiver

Receiver local video port type HDMI
RJ-45 ports quantity (receiver) 1
Receiver Micro-USB ports quantity 1
Receiver USB Type-A ports quantity 2

Ports & interfaces

USB port type USB Type-C
USB 2.0 ports quantity 1
HDMI version 2.0
RS-232 ports 2
PC Audio in Yes
PC Audio out Yes

Power

Power plug type Type M
AC input voltage 100 - 240 V
Input current 0.3 A
AC adapter output voltage 5 V
AC adapter output current 2 A
Power consumption (transmitter) (max) 10 W
Power consumption (receiver) (max) 10 W
DC-in jack Yes

Packaging data

Package width 240 mm
Package depth 176 mm
Package height 80 mm
Package weight 1.1 kg

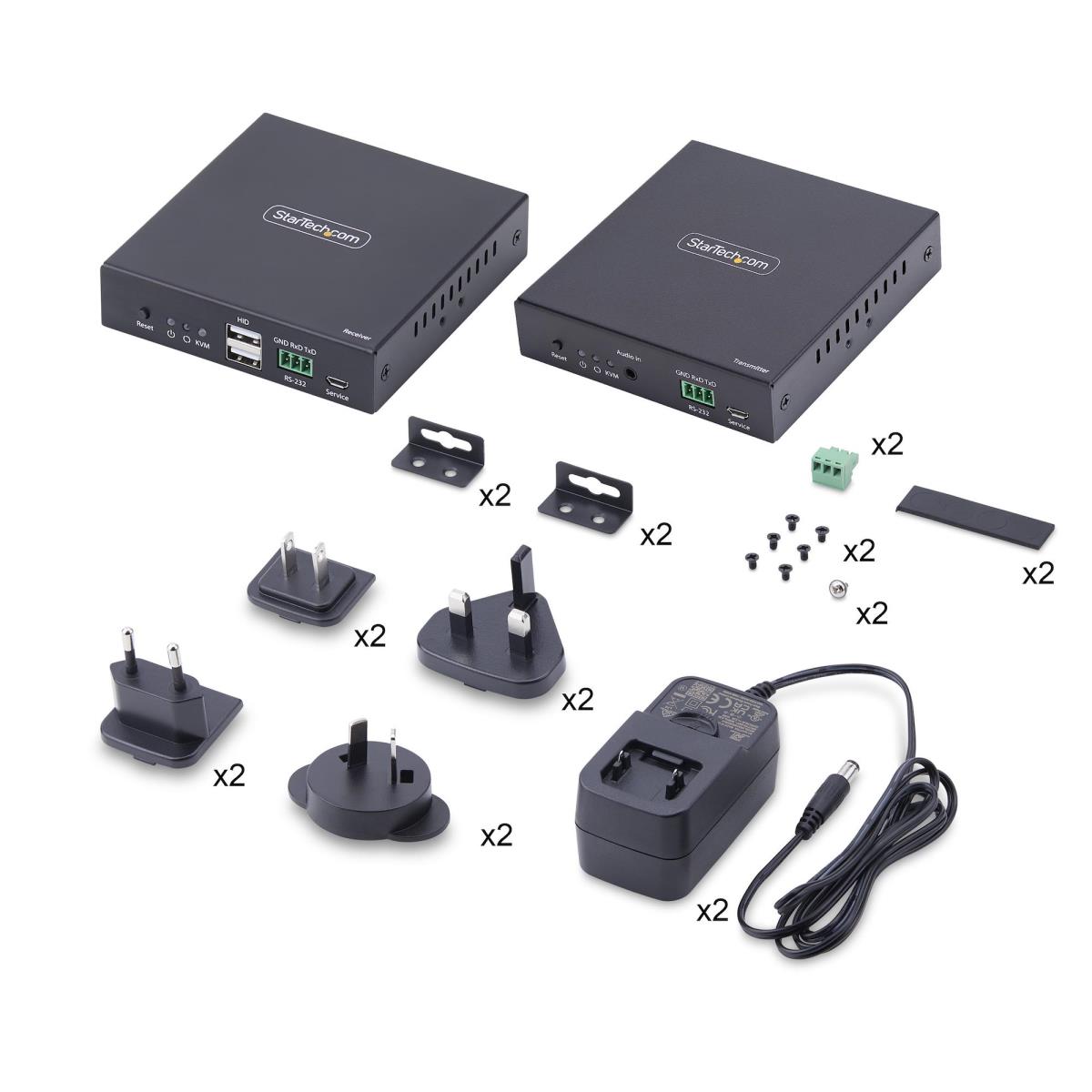

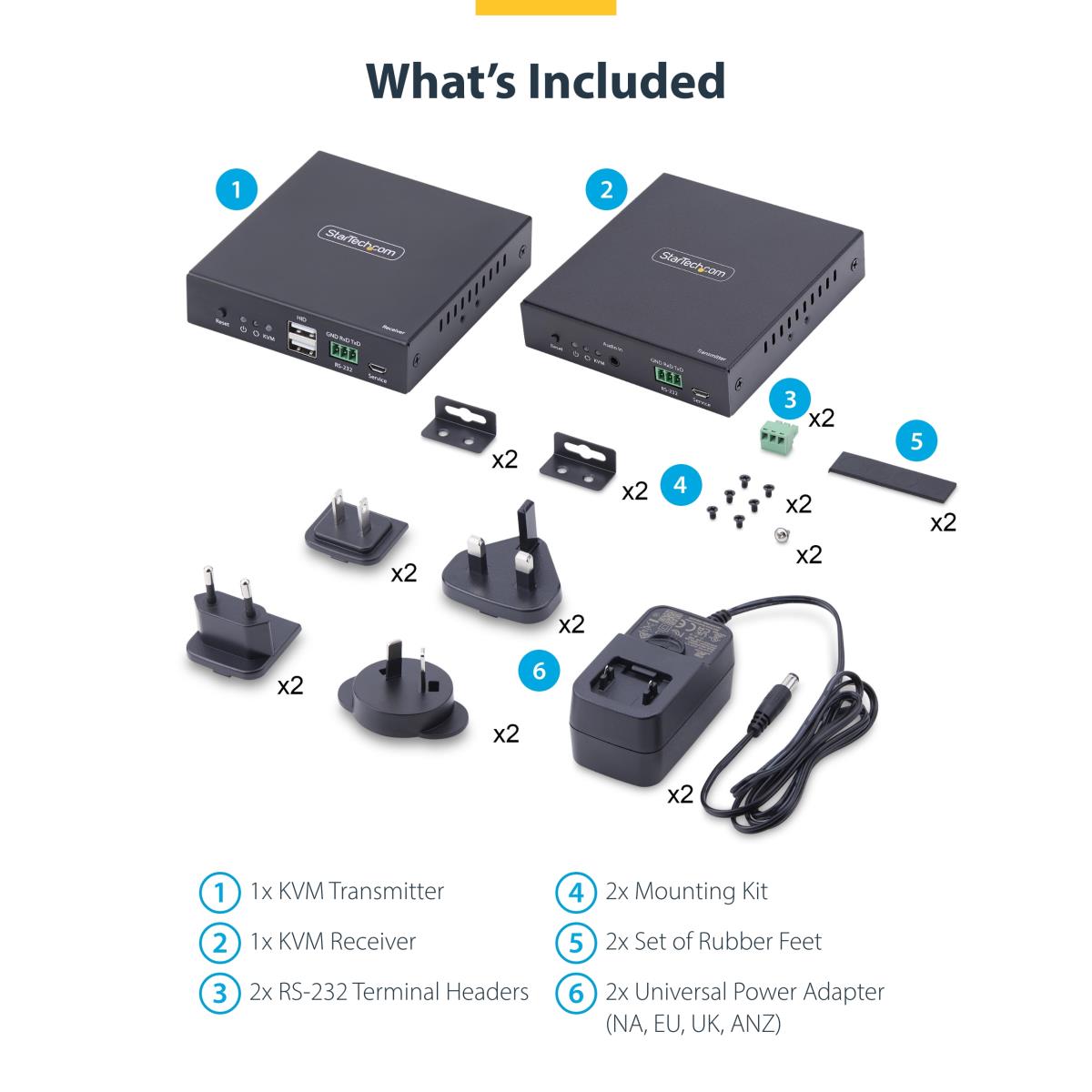

Packaging content

AC adapter included Yes
Mounting bracket(s) included Yes
Included power plug types ANZ, EU, NA, UK

Operational conditions

Operating temperature (T-T) -20 - 60 °C
Storage temperature (T-T) -30 - 70 °C
Operating relative humidity (H-H) 0 - 90%

Other features

Mean time between failures (MTBF) 10000 h
Compliance certificates Federal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case width 380 mm
Master (outer) case length 270 mm
Master (outer) case height 420 mm
Products per master (outer) case 10 pc(s)
