Product Details

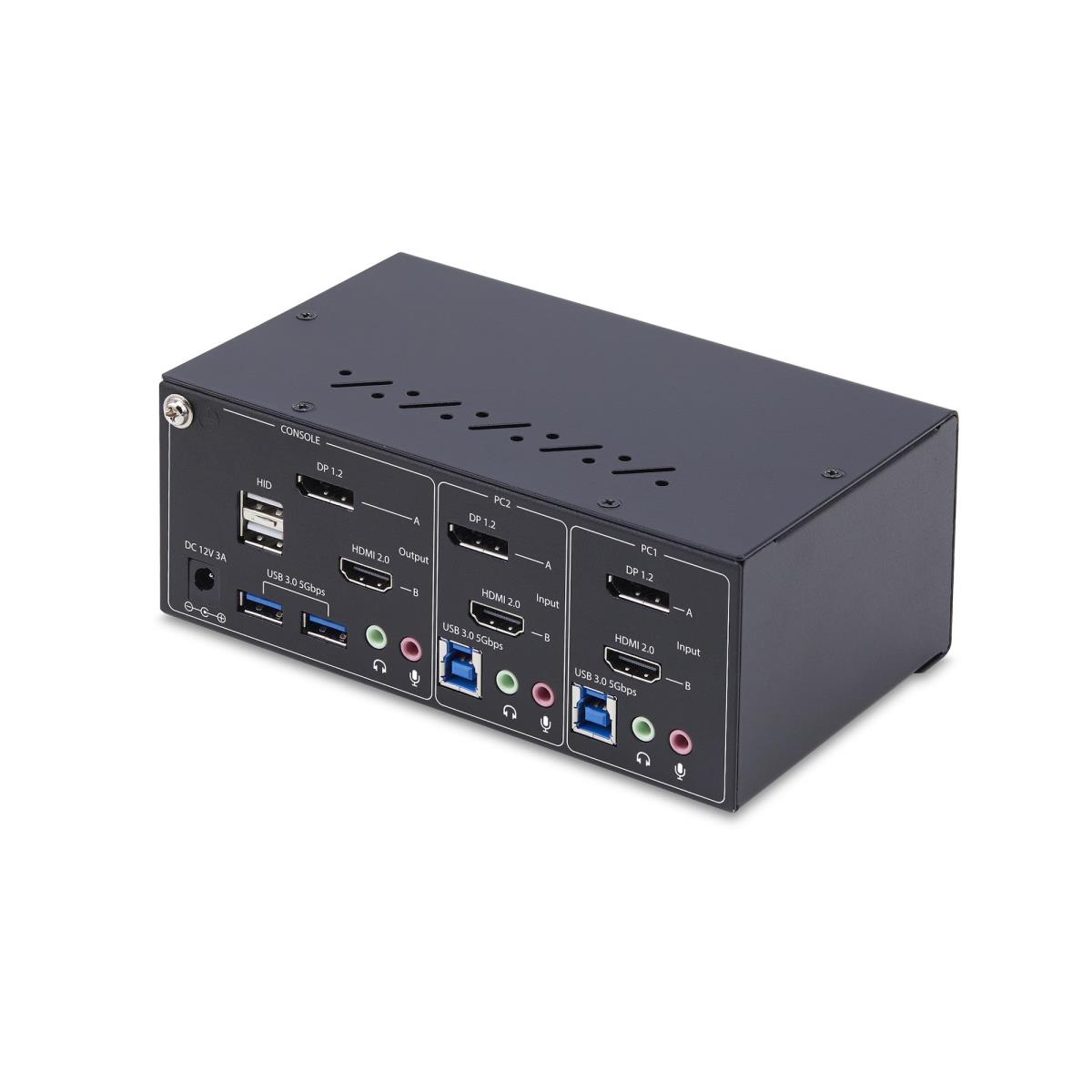

Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI/DisplayPort
HDMI ports quantity
2
HDMI version
2.0
DisplayPorts quantity
2
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2

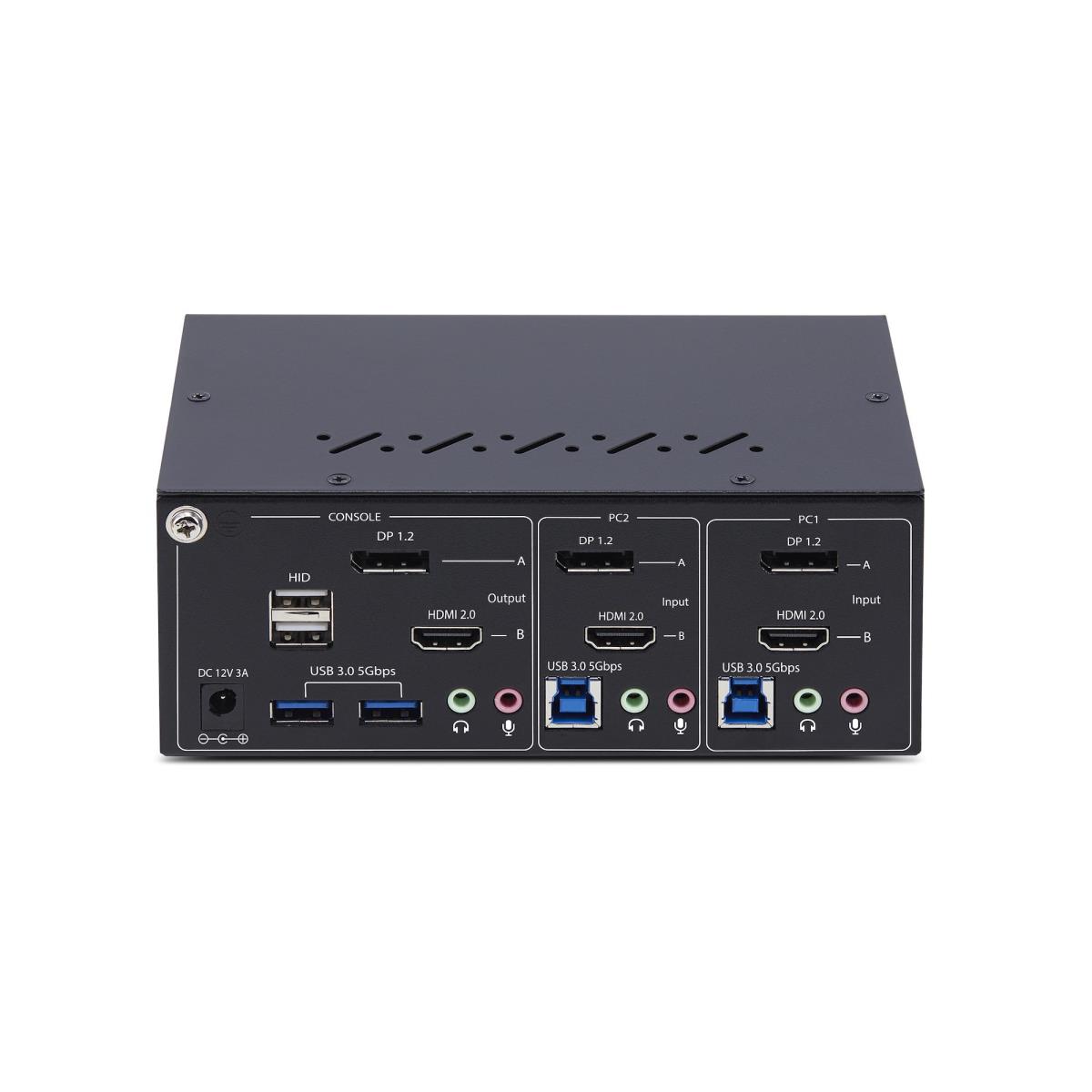

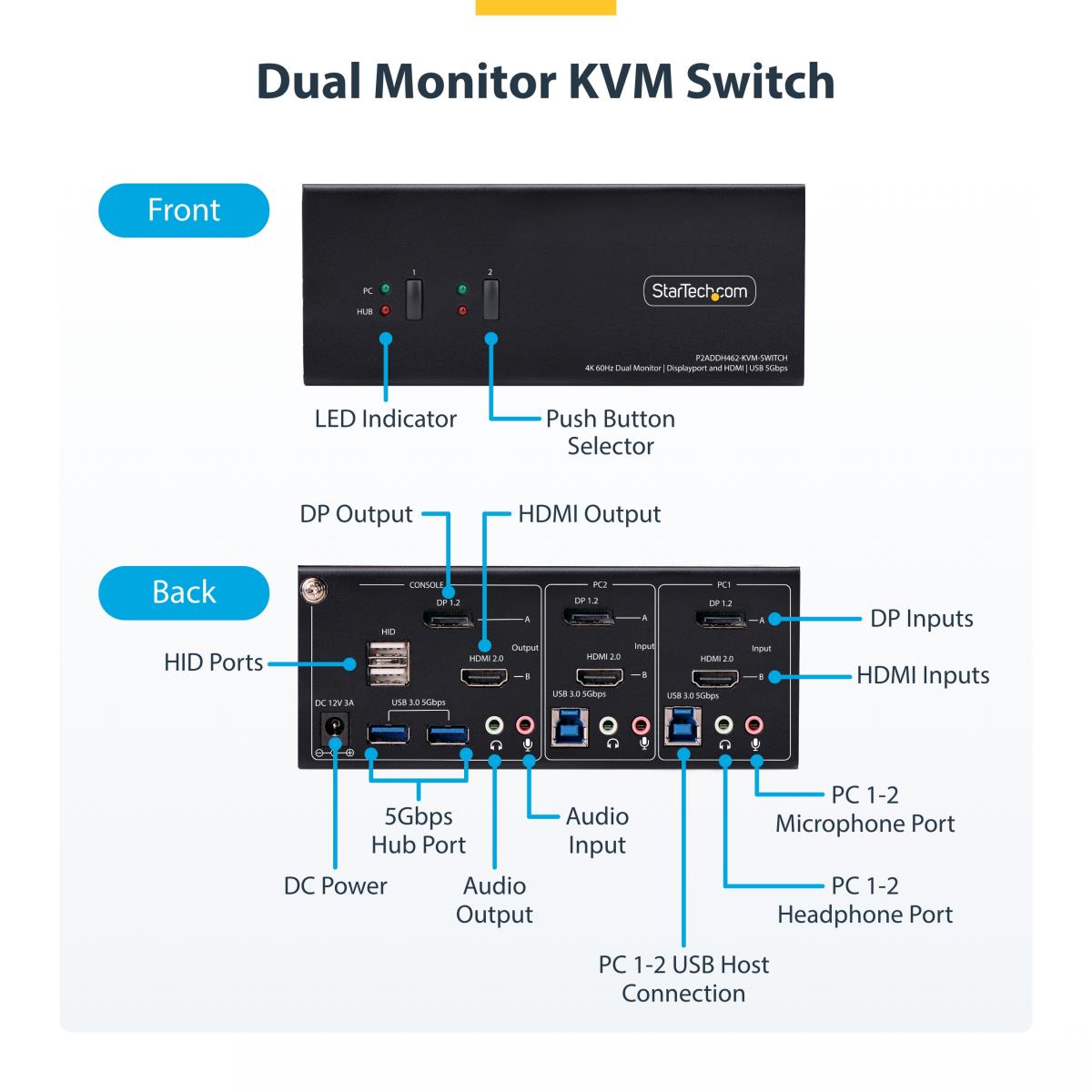

Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity
2
Console DisplayPorts ports quantity
1
Console HDMI ports quantity
1
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Data transfer rate (max)
5 Gbit/s
Audio channels
7.1
Design
Rack mounting
No
Product colour
Black
LED indicators
Yes
Mean time between failures (MTBF)
138390 h
Display
Built-in display
No
Power
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%

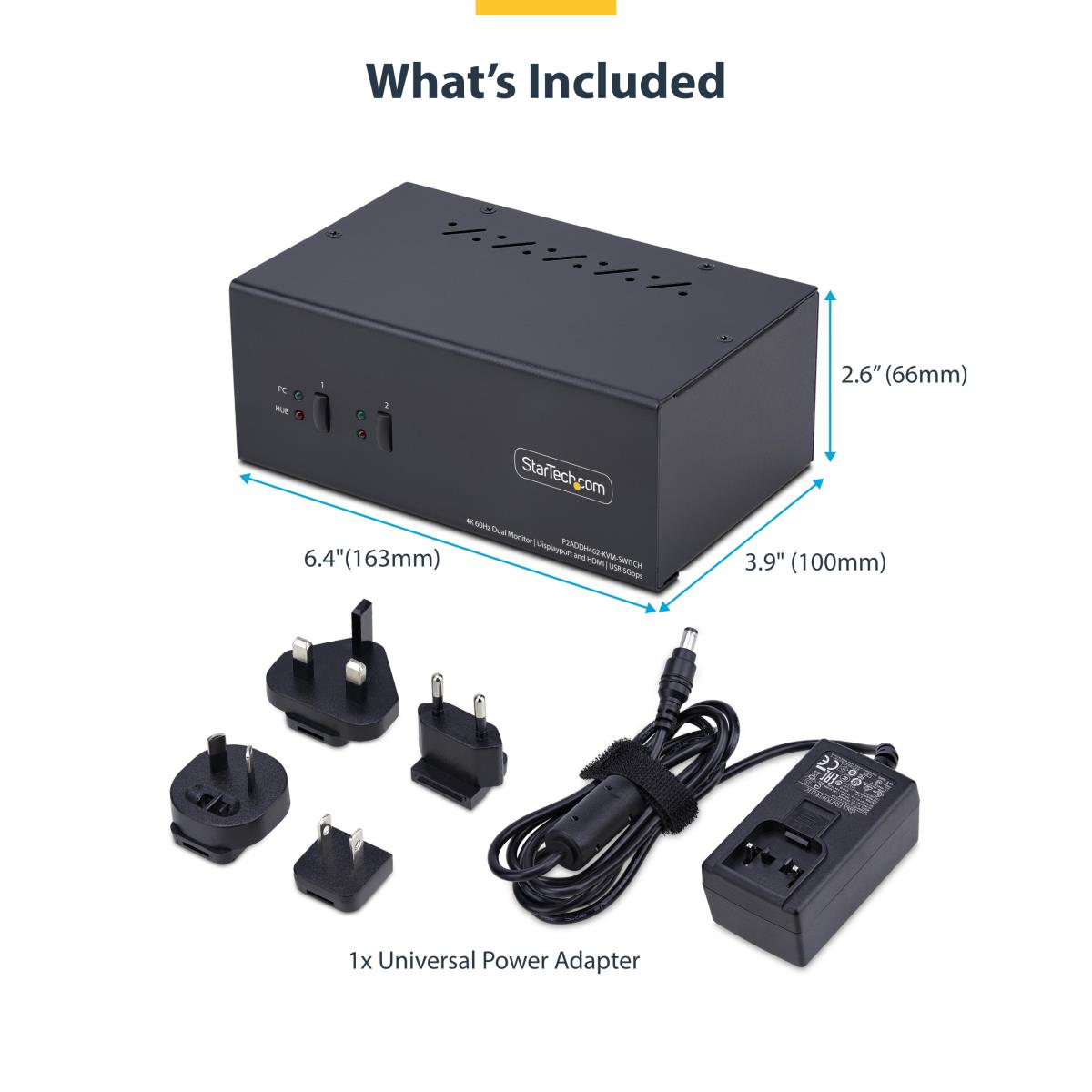

Weight & dimensions
Width
100 mm
Depth
163 mm
Height
66 mm
Weight
750 g
Packaging data
Package width
332 mm
Package depth
162 mm
Package height
128 mm
Package weight
128 g
Packaging content
Quick installation guide
Yes
Other features
IP control
No
Logistics data
Master (outer) case width
513 mm
Master (outer) case length
352 mm
Master (outer) case height
301 mm
Products per master (outer) case
6 pc(s)
Information
| Part Number: | P2ADDH462-KVM-SWITCH |
