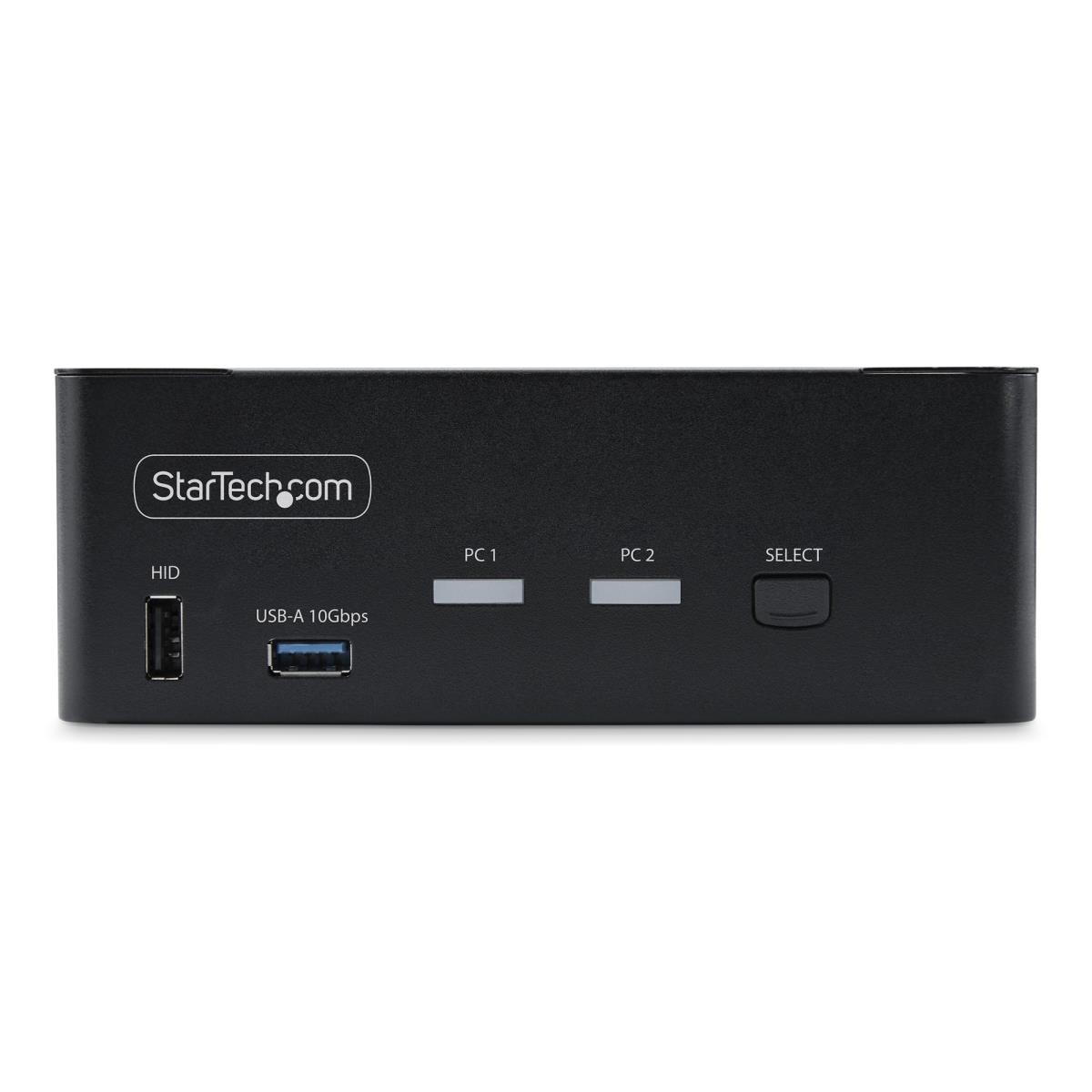

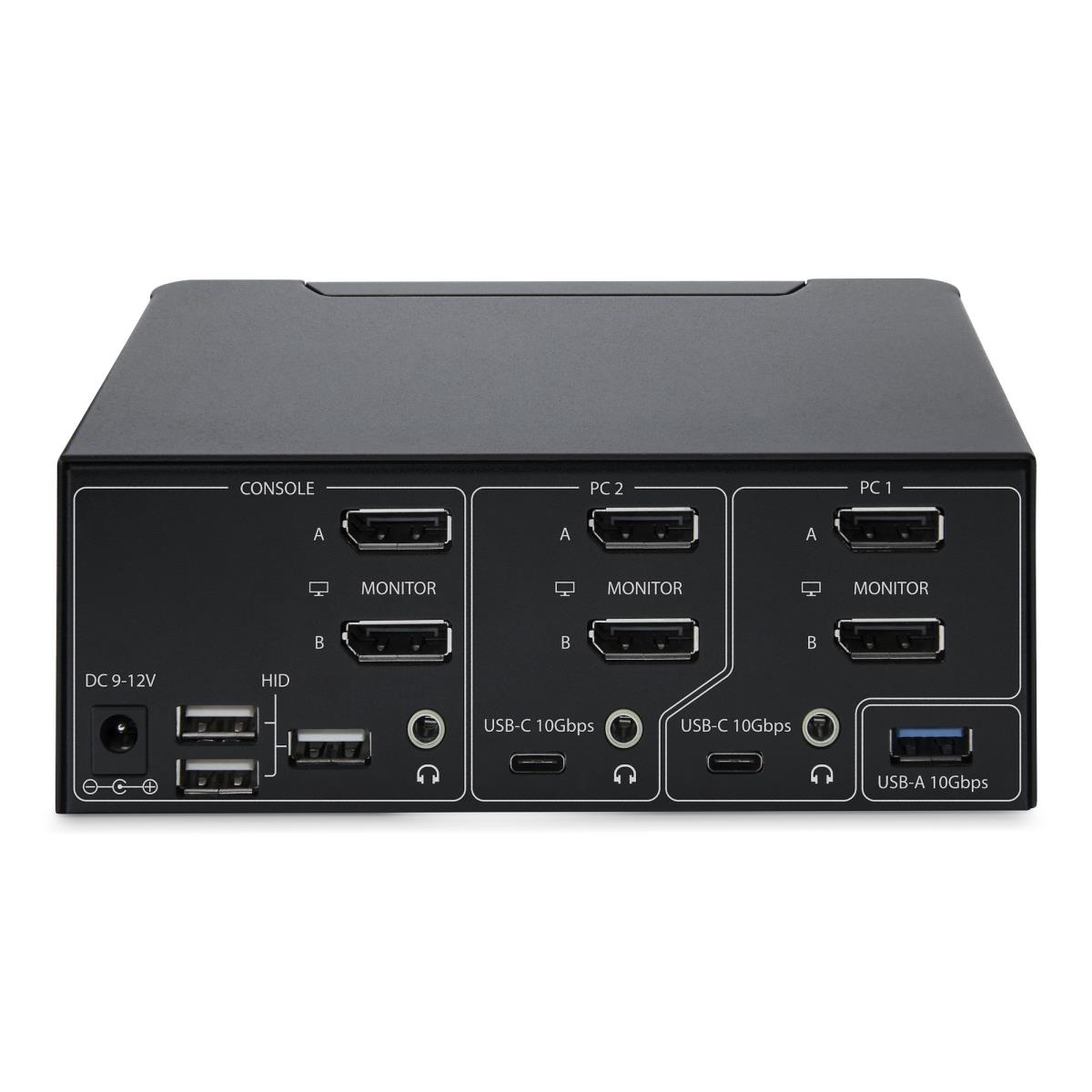

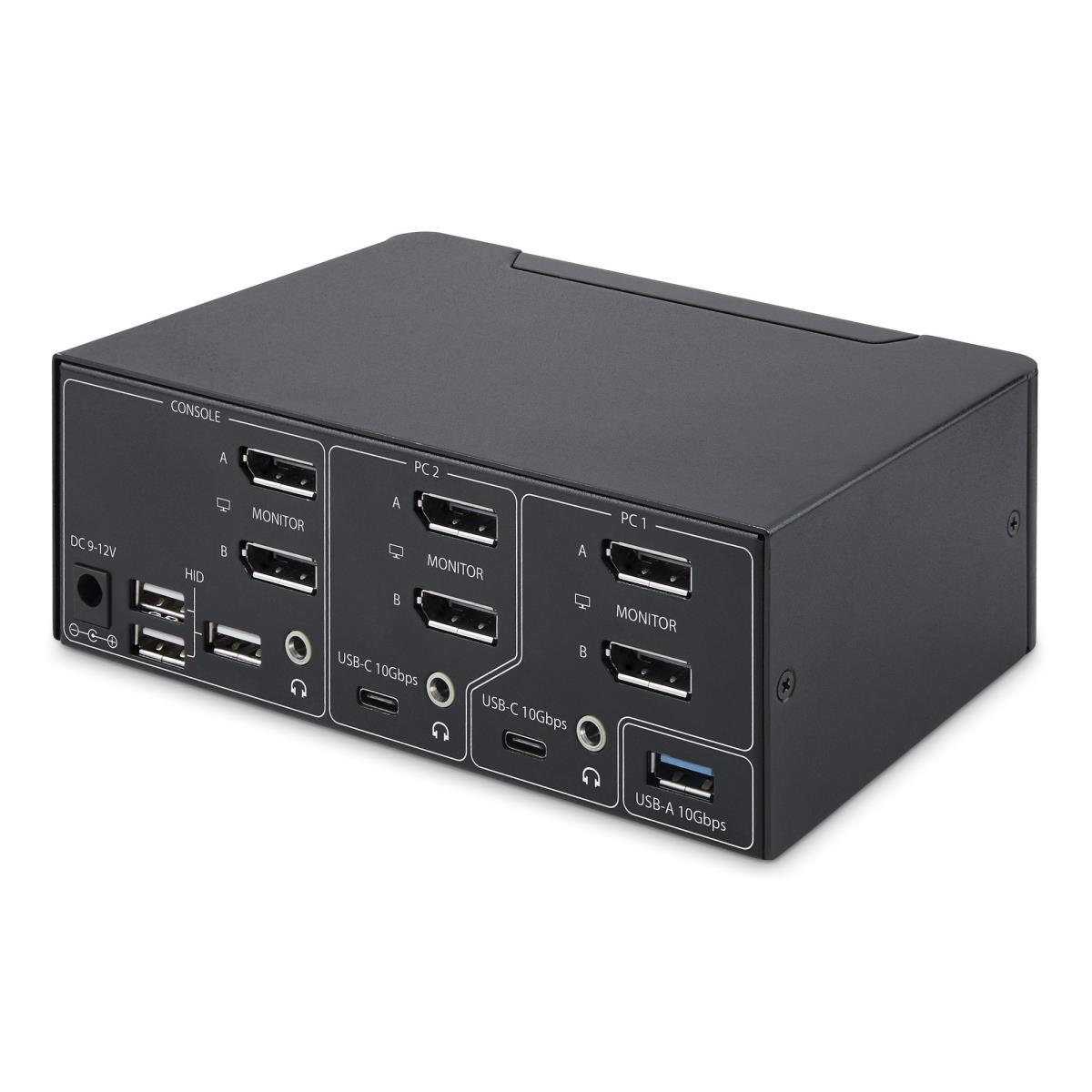

STARTECH.COM KVM Switch - 2-port Dp 1.4 Dual-monitor DisplayPort KVM

STARTECH.COM KVM Switch - 2-port Dp 1.4 Dual-monitor DisplayPort KVM

£439.09 (incl. VAT)

Qty:

Add to basket

Part Number:	P2CDD143-KVM-SWITCH
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.

Dual-8K 60Hz Displays & USB 10Gbps Hub Ports

This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.

Fast Switching with USB Emulation

USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.

Switching Options

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

The StarTech.com Advantage

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

Number of computers controlled 2

Keyboard port type USB

Mouse port type USB

Video port type DisplayPort

DisplayPorts quantity 4

DisplayPort version 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

Console ports 3.5mm headphone, DisplayPort, USB A

Console USB ports quantity 3

Console DisplayPorts ports quantity 2

USB hub Yes

USB 2.0 ports quantity 1

Audio connections Yes

Headphone outputs 3

DC-in jack Yes

Performance

Maximum refresh rate 144 Hz

HD type 8K Ultra HD

Maximum resolution 7680 x 4320 pixels

Data transfer rate (max) 10 Gbit/s

Scan interval 3,8,15,30 s

High Dynamic Range (HDR) supported Yes

Number of users 1 user(s)

Chipset Genesys Logic - GL3590

Number of displays supported 2

Design

Rack mounting No

Product colour Black

Housing material Metal

LED indicators Yes

Push button Yes

Hot keys Yes

Mean time between failures (MTBF) 168000 h

Display

Built-in display No

On Screen Display (OSD) No

Power

Input voltage 100 - 240 V

Input current 1 A

Output voltage 12 V

Output current 3 A

Power consumption (typical) 36 W

Power plug type Type M

Compatible power plug types AU, EU, UK, US

Sustainability

Compliance certificates RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -10 - 60 °C

Operating relative humidity (H-H) 0 - 80%

Weight & dimensions

Width 100 mm

Depth 160 mm

Height 60 mm

Weight 800 g

Packaging data

Package width 238 mm

Package depth 184 mm

Package height 89 mm

Package weight 1.4 kg

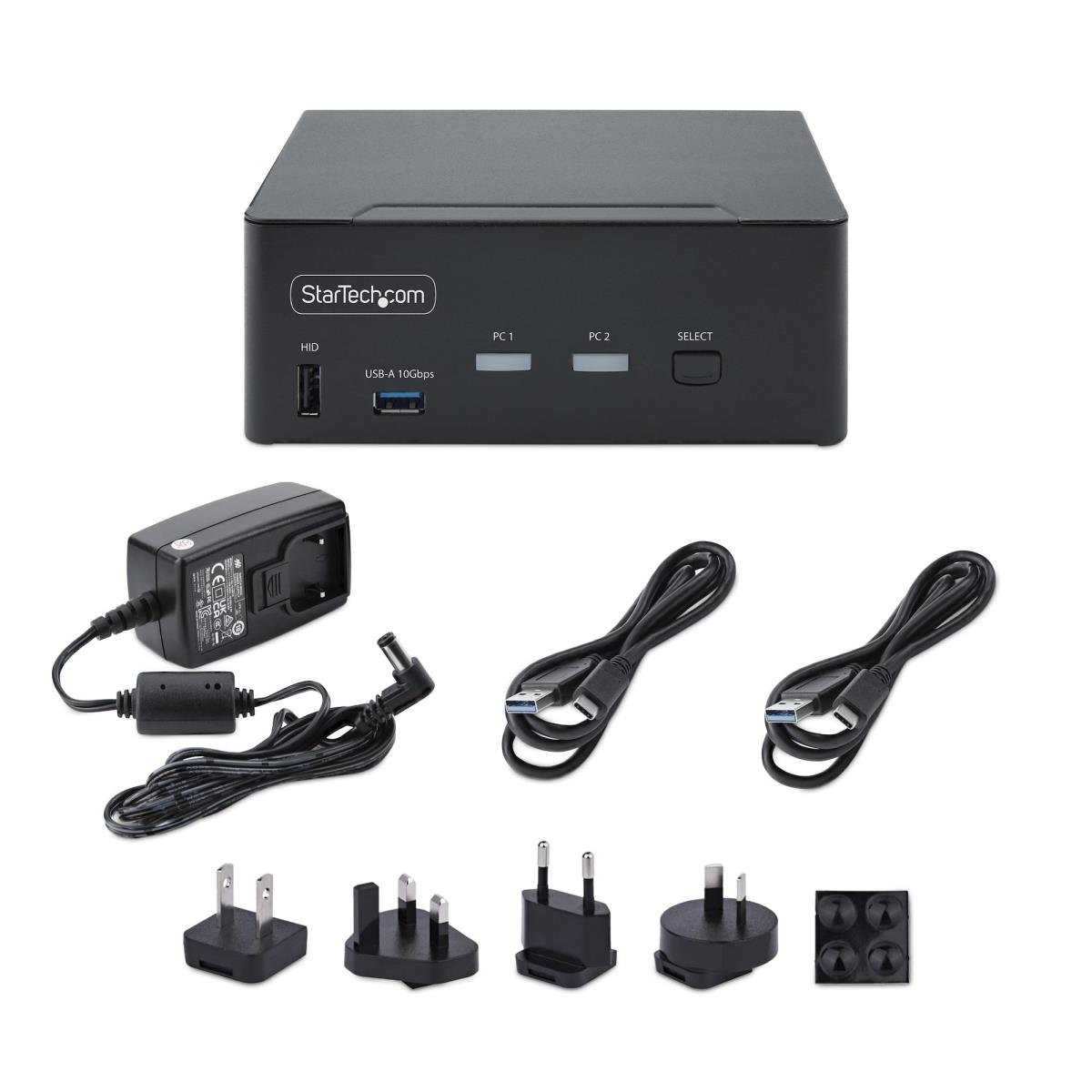

Packaging content

Cables included USB Type-A to USB Type-C

Quick installation guide Yes

Rubber feet Yes

Other features

IP control No

Logistics data

Master (outer) case width 260 mm

Master (outer) case length 395 mm

Master (outer) case height 300 mm

Products per master (outer) case 6 pc(s)
