Introduction

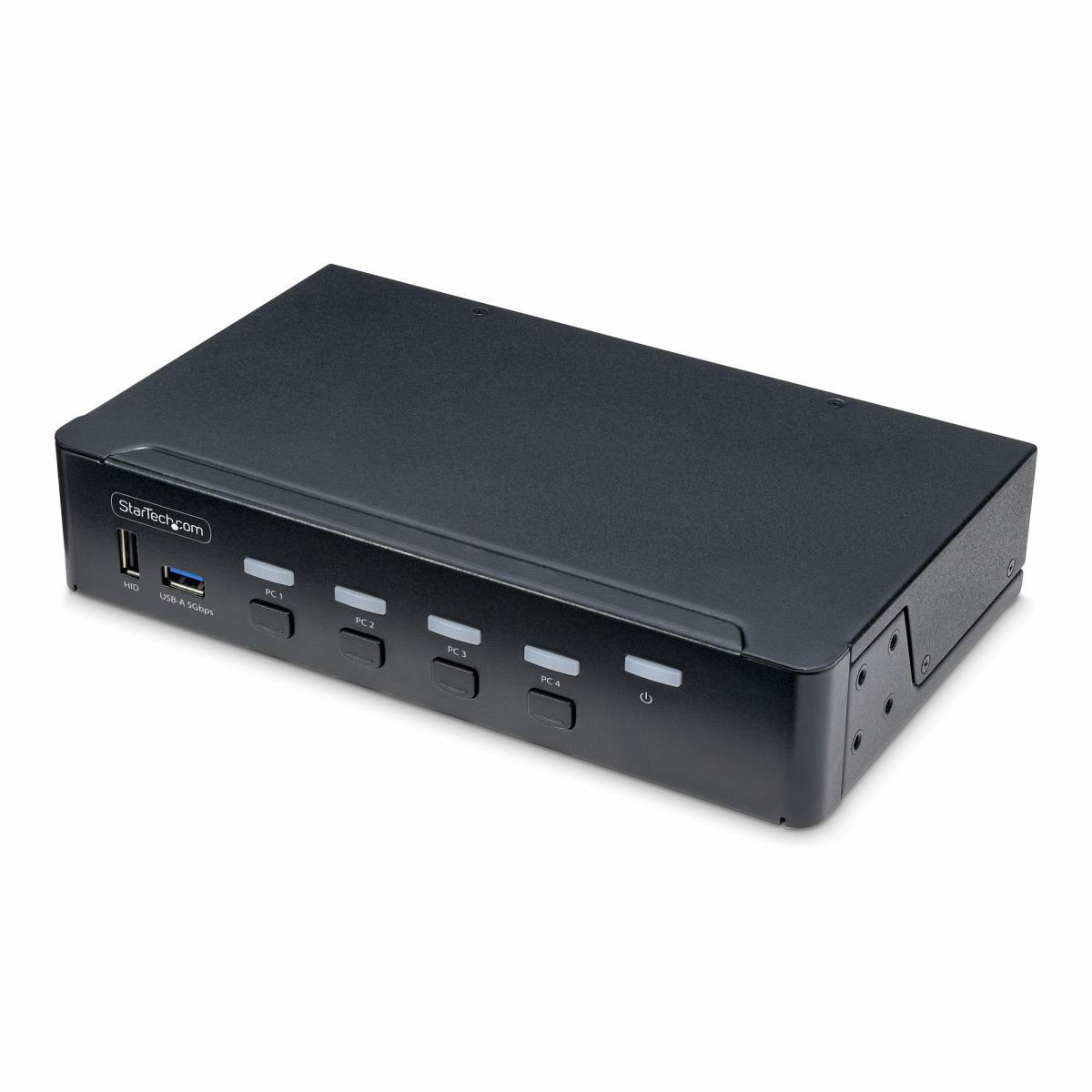

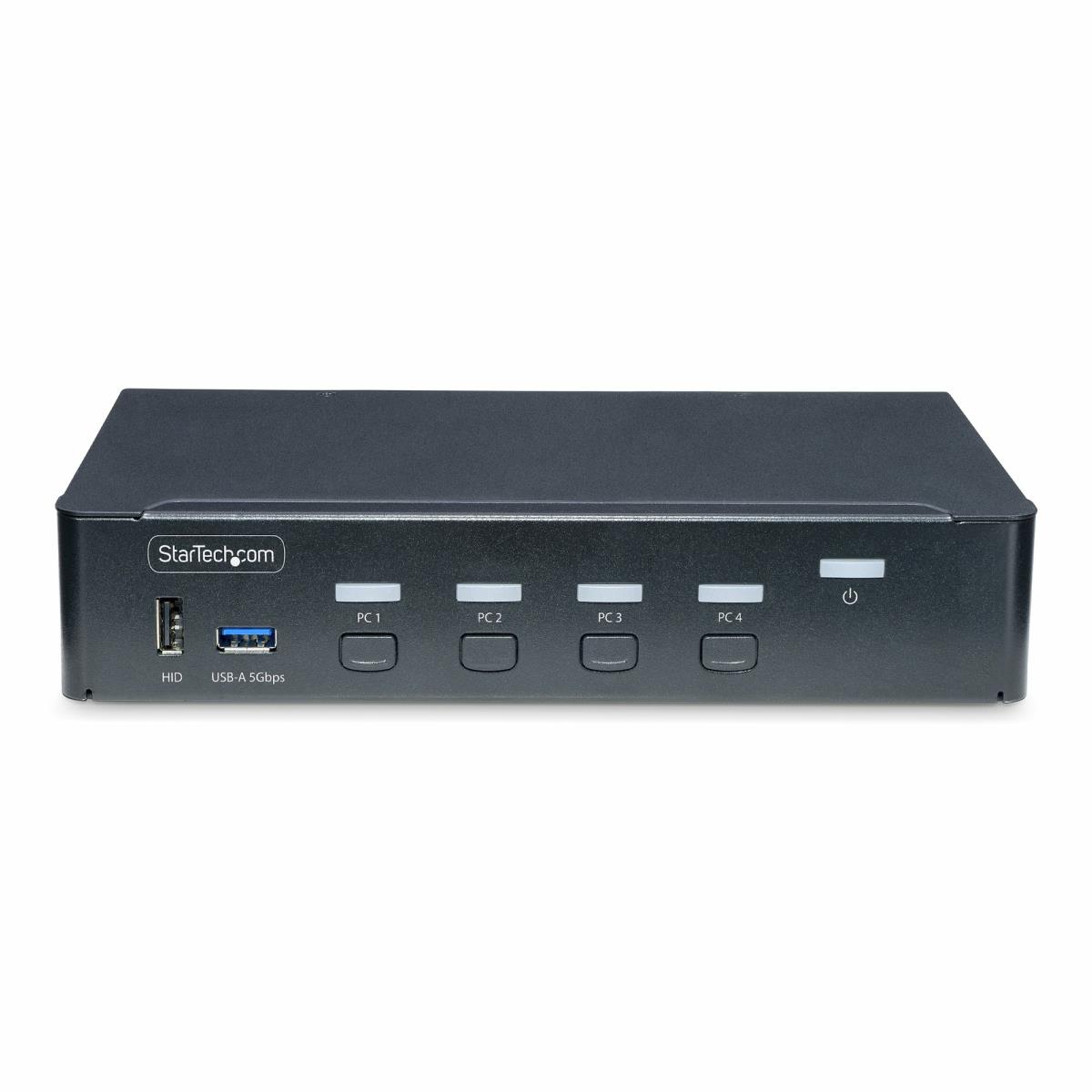

Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computersThis DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.High-Resolution 4K 60Hz VideoThis KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.Customizable SwitchingThis universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.Universal CompatibilityThe TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.Reliable PerformanceThe rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.The StarTech.com Advantage
Ports & interfaces
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
4
DisplayPort version
1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4

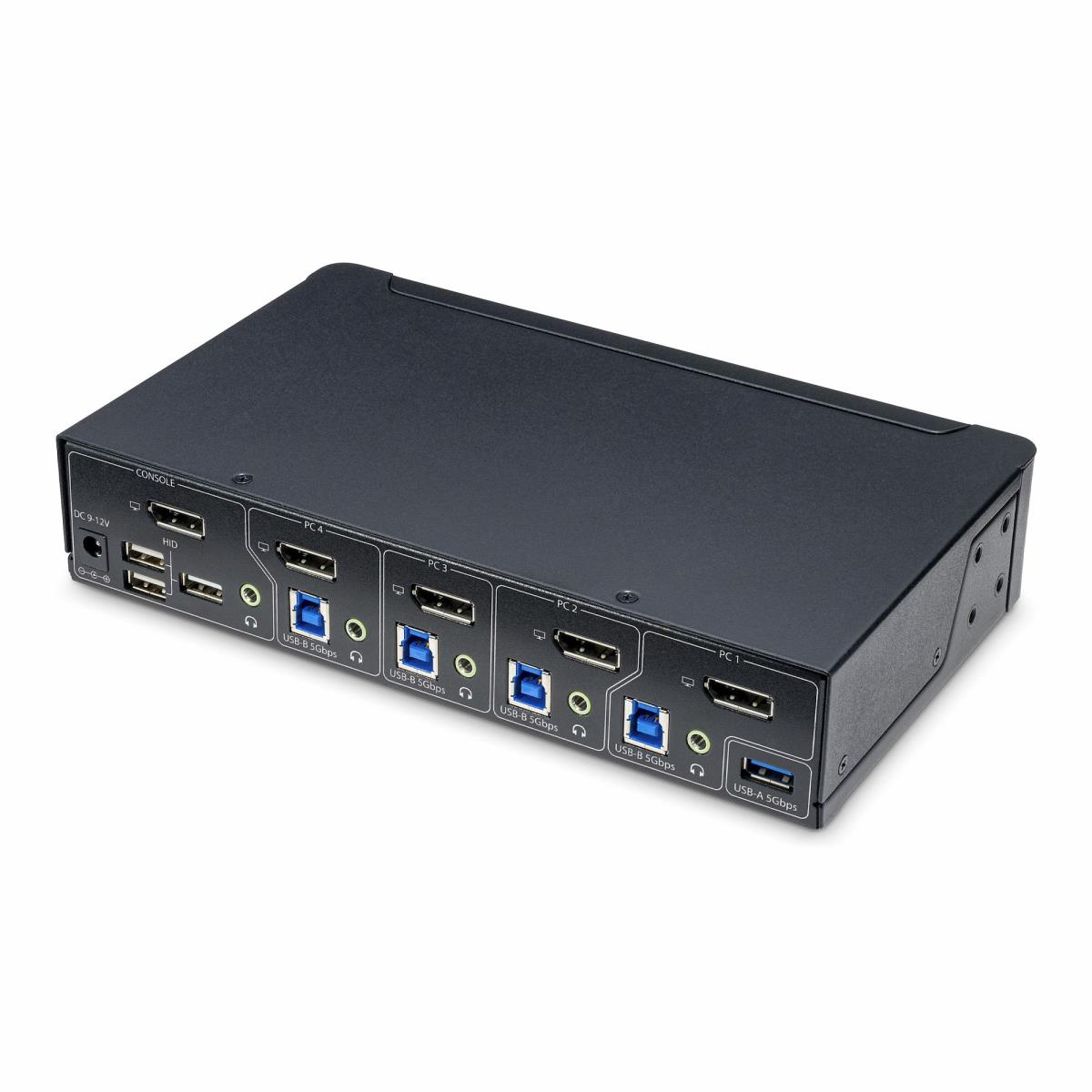

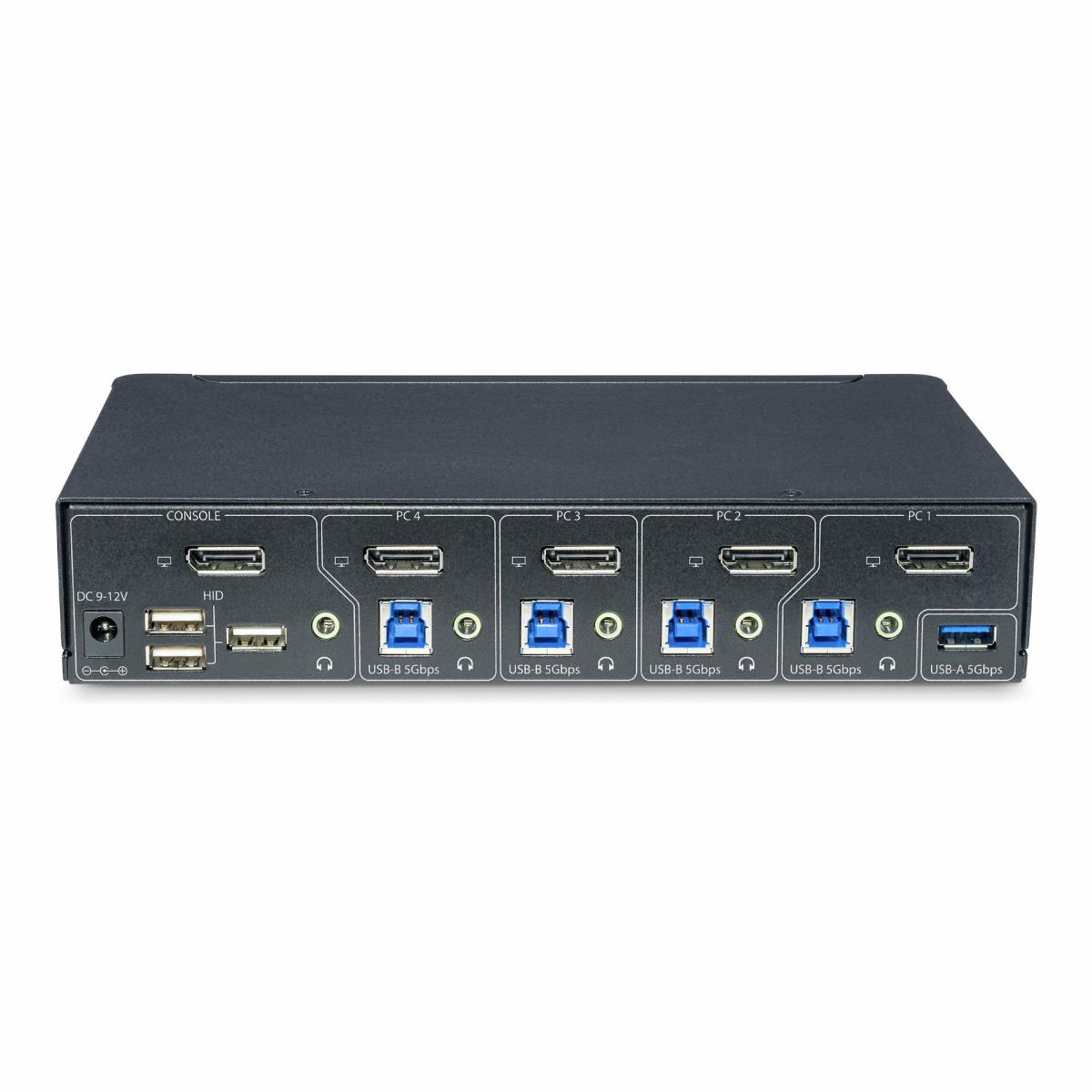

Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
4
Console DisplayPorts ports quantity
1
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
4
DC-in jack
Yes
Performance
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Data transfer rate (max)
5 Gbit/s
Scan interval
3,8,15,30 s
HDCP
Yes
Plug and Play
Yes
Chipset
GL3523
Audio channels
2.0
HDCP version
1.4
Design

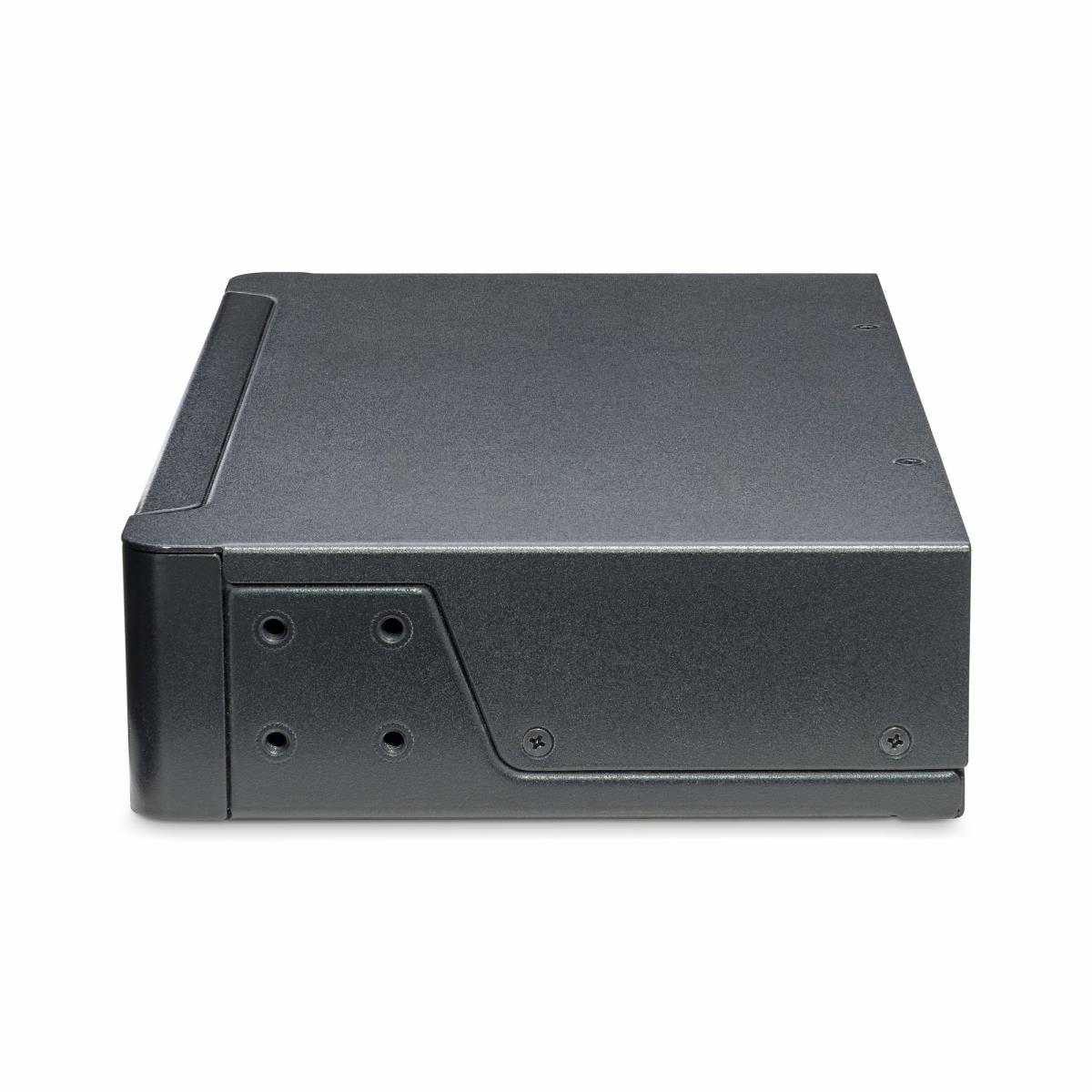

Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
130000 h
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Power source
DC
AC input voltage
100 - 240 V
DC input voltage
12 V
Input current
1 A
Output current
3 A
Power consumption (typical)
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
130 mm
Depth
220 mm
Height
44 mm
Weight
1 kg
Packaging data
Package width
212 mm
Package depth
410 mm
Package height
87 mm
Package weight
1.2 kg

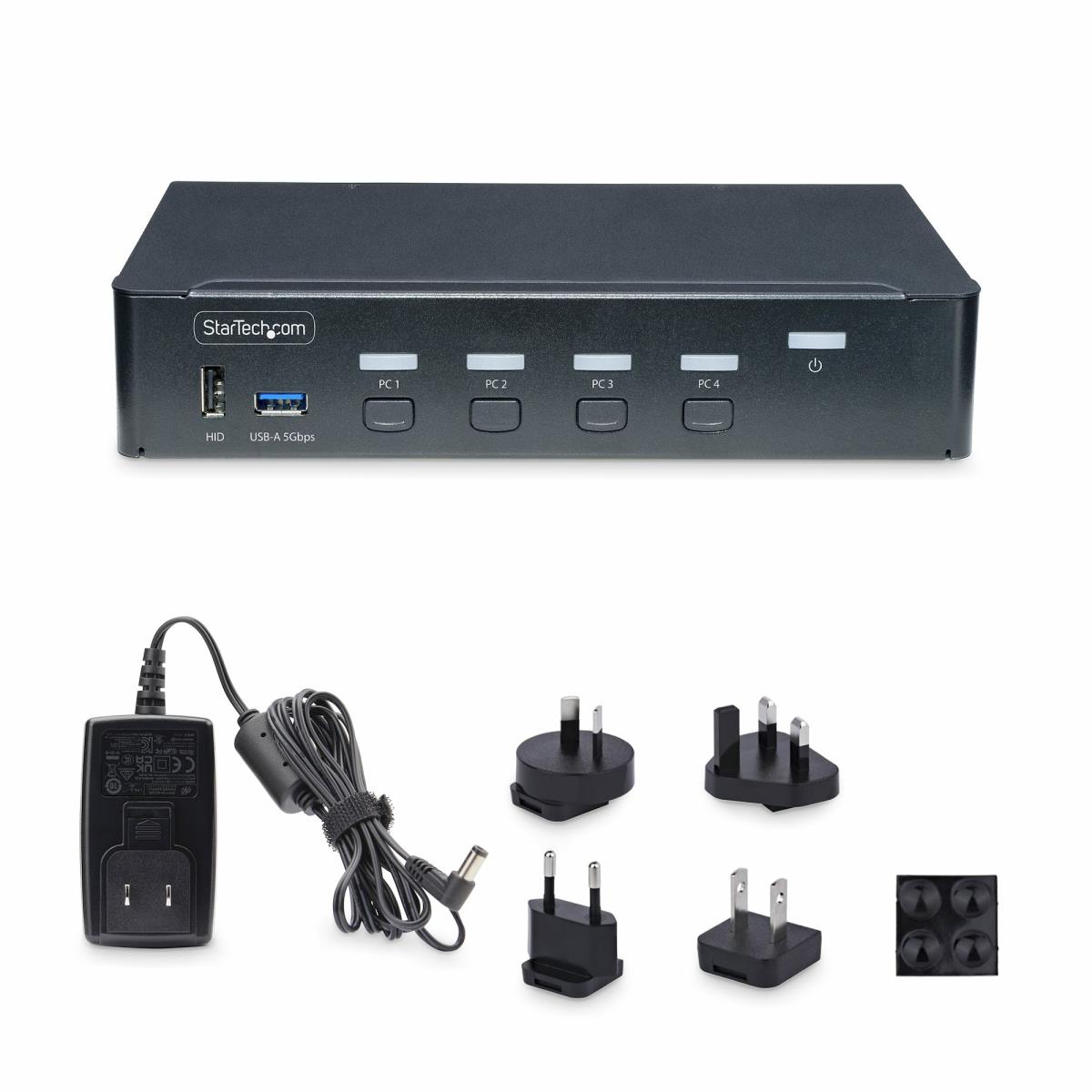

Packaging content
Quick installation guide
Yes
Rubber feet
Yes
Logistics data
Master (outer) case width
545 mm
Master (outer) case length
433 mm
Master (outer) case height
258 mm
Products per master (outer) case
6 pc(s)
Other features
Display resolution at frequency
3840x2160 @ 60hz
3840x2160 @ 30hz
2560x1600 @ 60hz
2560x1600 @ 30hz
2560x1440 @ 60hz
2048x1536 @ 60hz
2048x1536 @ 30hz
1920x1440 @ 60hz
1920x1200 @ 60hz
1920x1080 @ 60hz
1680x1050 @ 60hz
1600x1200 @ 60hz
1600x1024 @ 60hz
1600x900 @ 60hz
1440x1080 @ 60hz
1366x768 @ 60hz
1360x768 @ 60hz
1280x1024 @ 60hz
1280x960 @ 60hz
1280x800 @ 60hz
1280x768 @ 60hz
1280x720 @ 60hz
1176x664 @ 60hz
1152x864 @ 60hz
1024x768 @ 60hz
800x600 @ 60hz
Colour depth
10 bit
IP control
No
Technical details
Compliance certificates
RoHS, Trade Agreements Act (TAA)
