Introduction

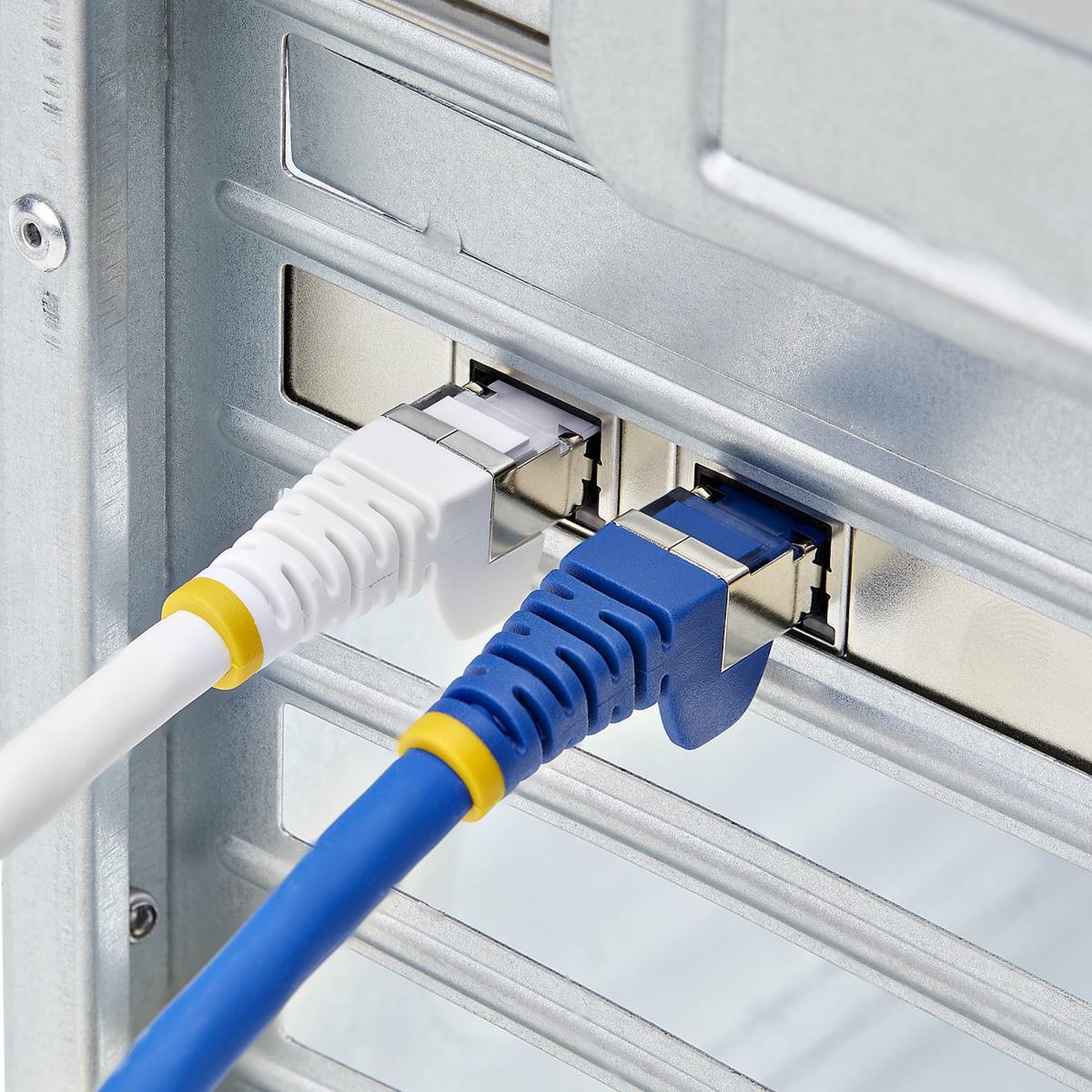

Add two 10 Gigabit Ethernet ports to a PC via copper cable using an available PCIe slot.
This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.
Versatile and Cost-Effective
Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
High-Performance Connectivity

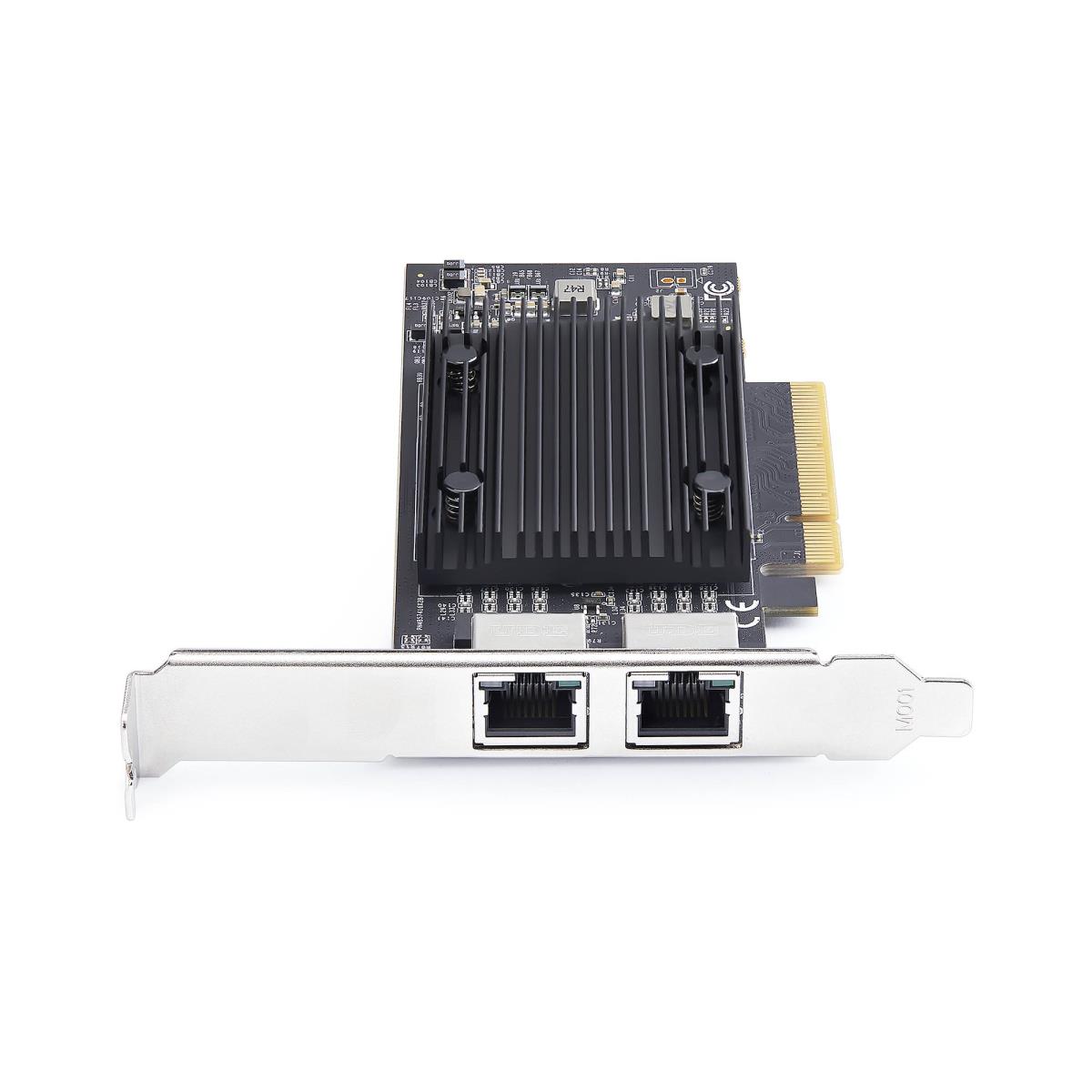

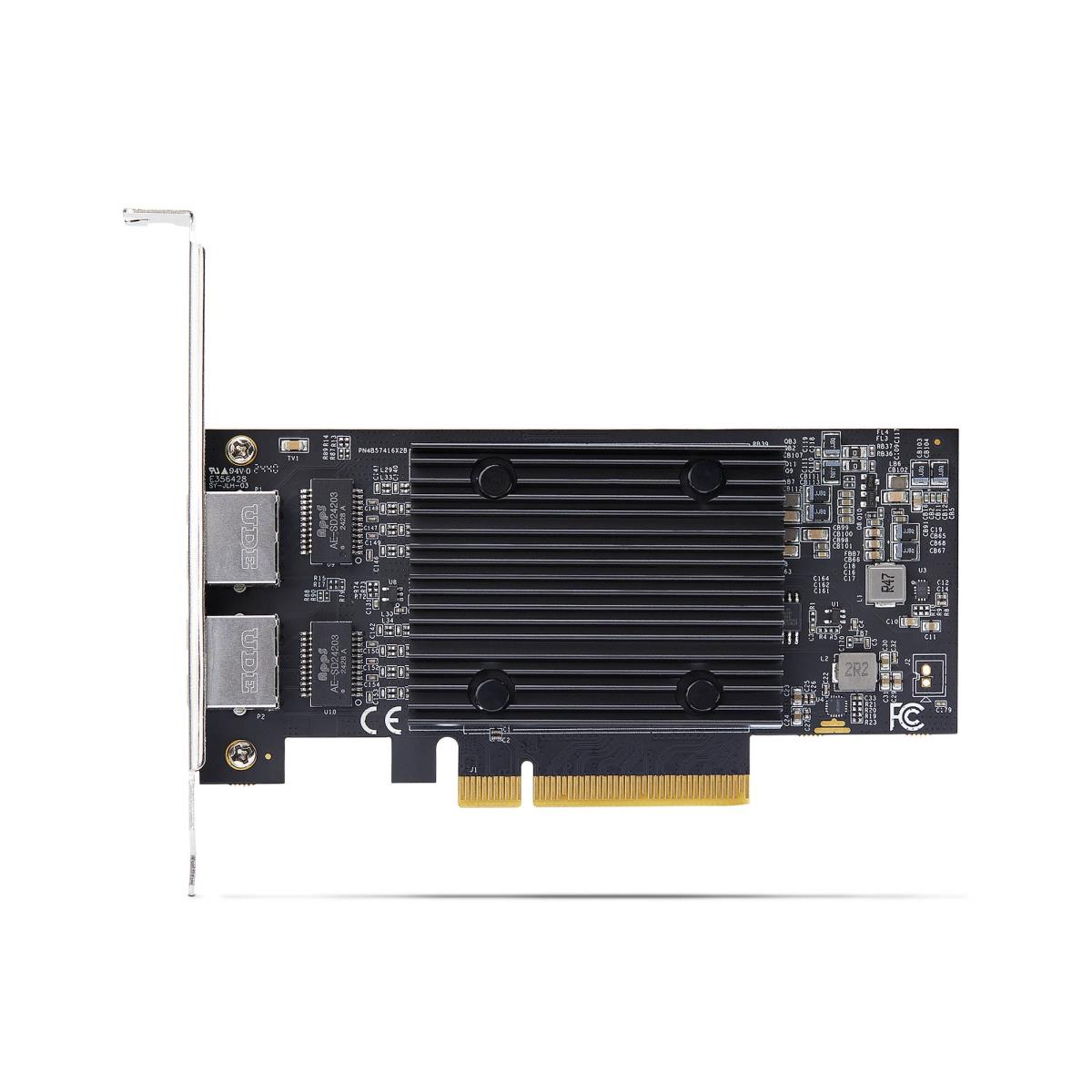

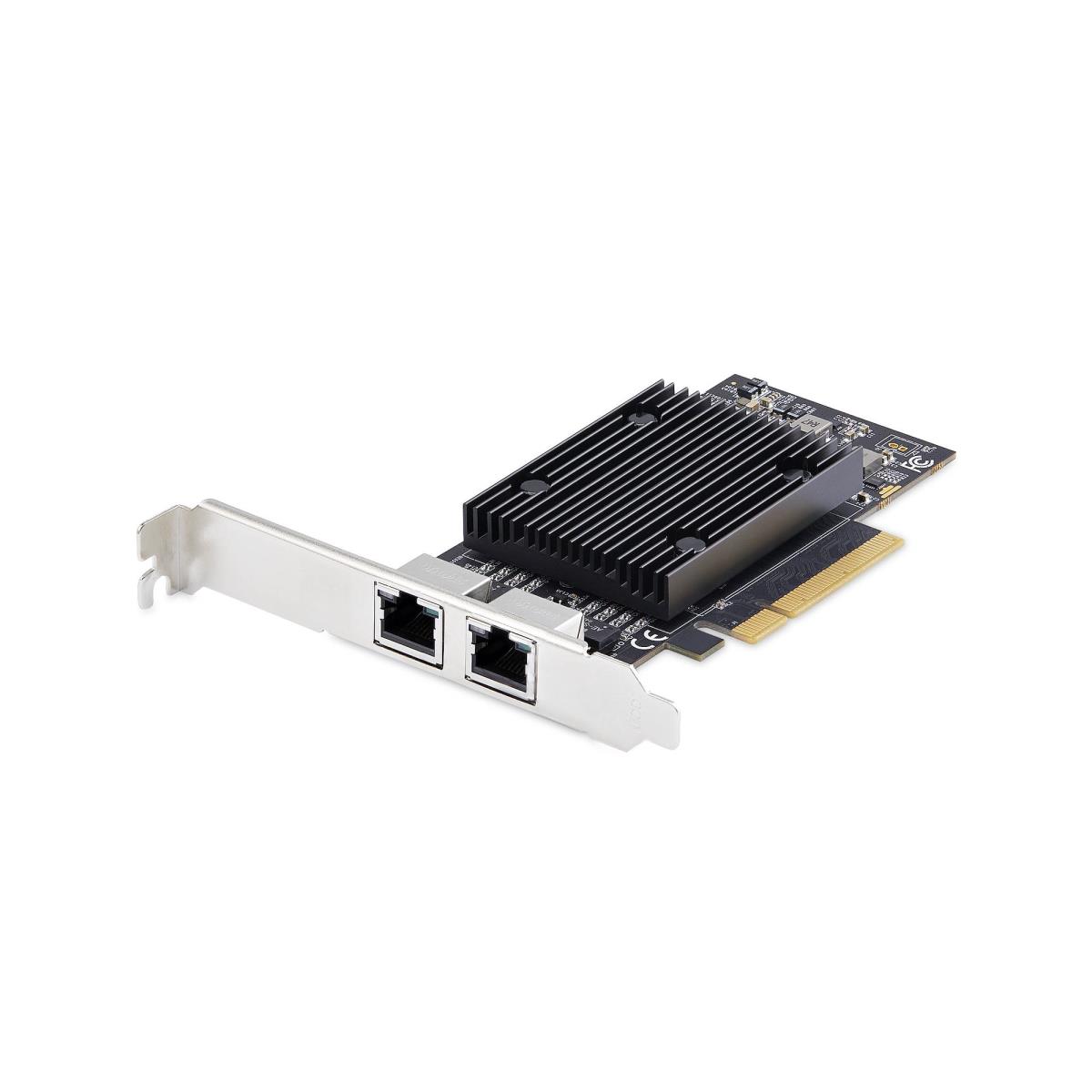

This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.
Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy Installation

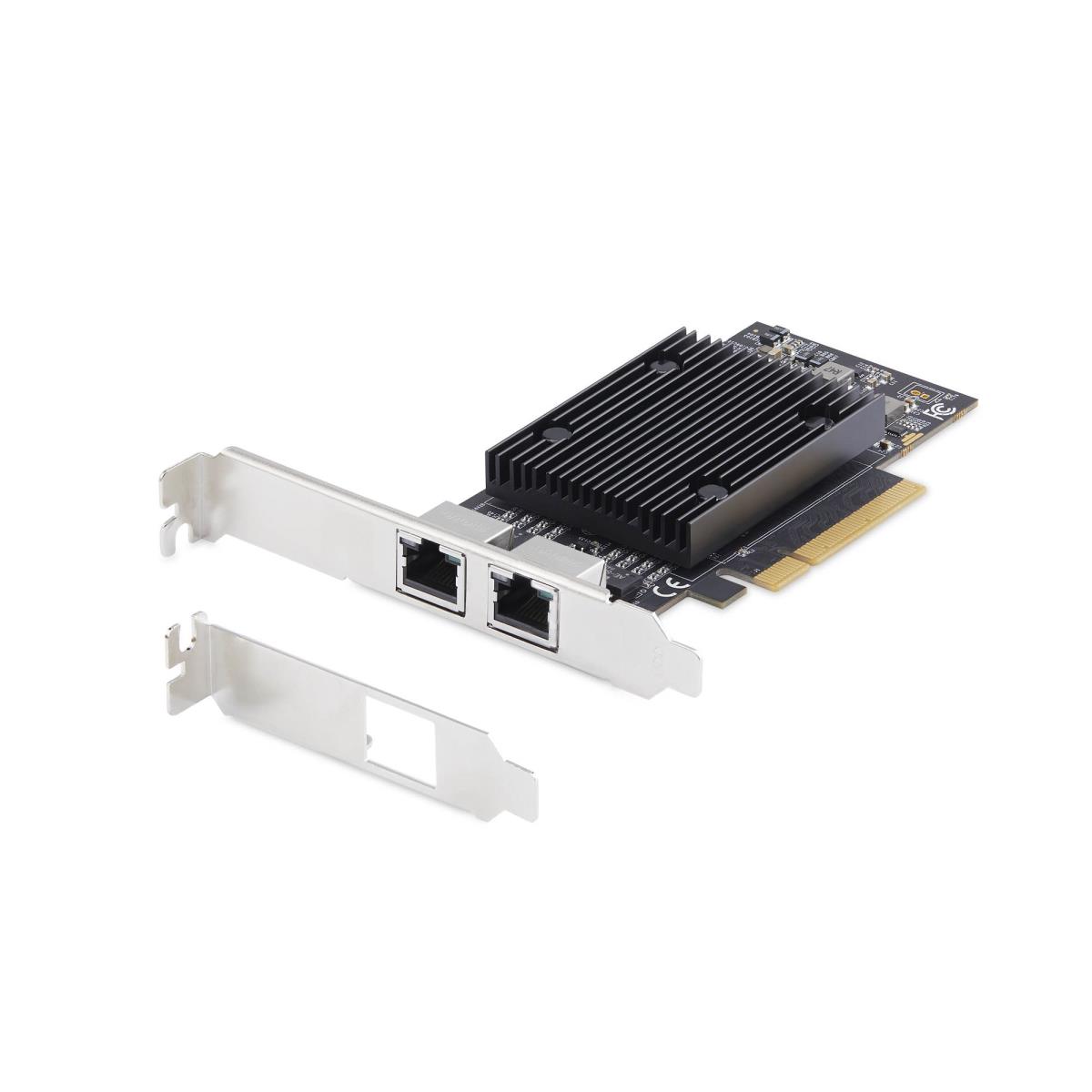

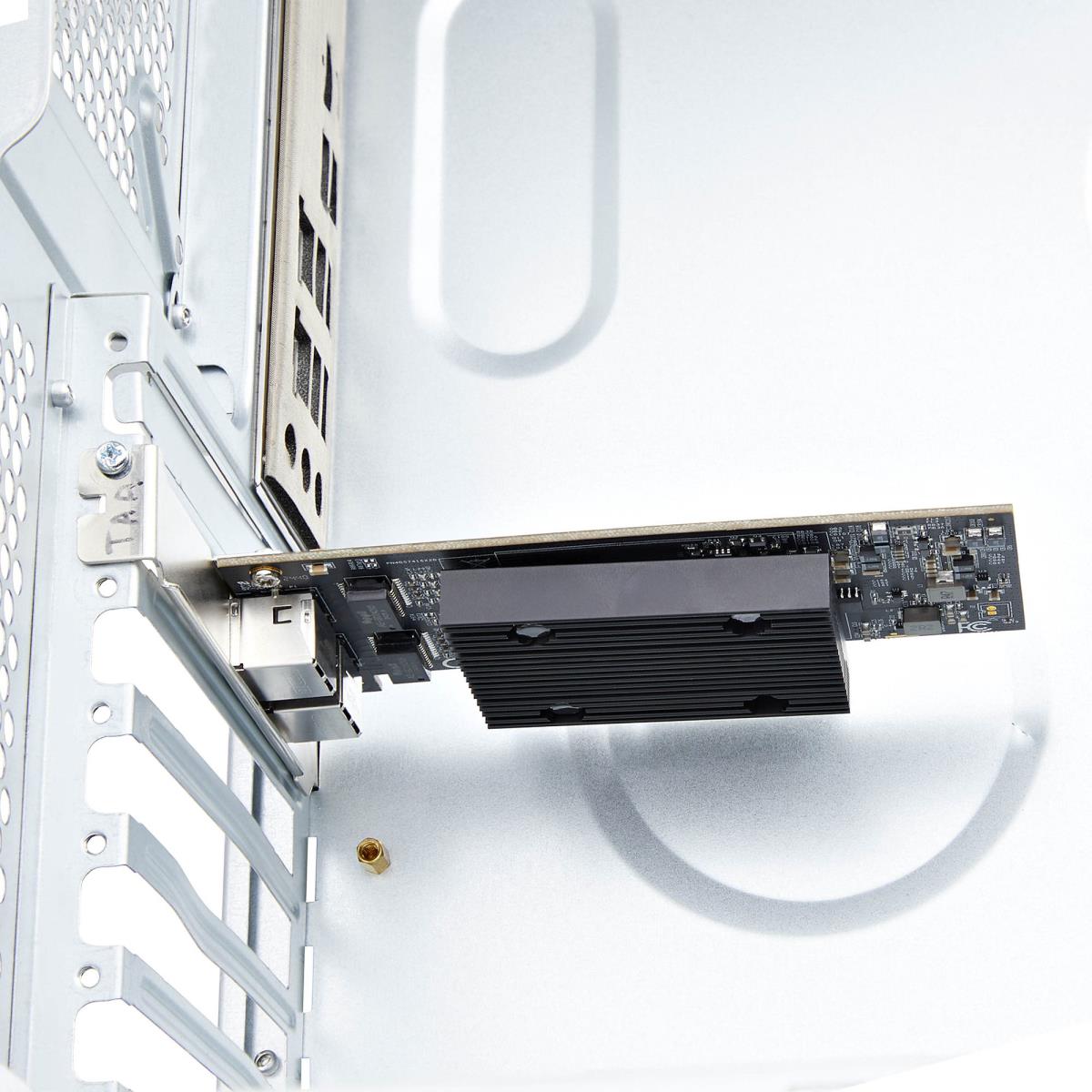

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
PCI version
2.0
Network
Maximum data transfer rate
20000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.3ad
Ethernet LAN
Yes
Auto MDIX IEEE
Yes
Full duplex
Yes
Jumbo frames support
Yes
Auto-negotiation
Yes
Jumbo frames
9000
VLAN tagging
Yes
Link aggregation
Yes
Design
Component for
PC
Product colour
Black
Internal
Yes
Chipset
Broadcom BCM57416
LED indicators
Activity, Status
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
121 mm
Depth
146.5 mm
Height
22 mm
Weight
122 g
Packaging data
Package width
170 mm
Package depth
142 mm
Package height
30 mm
Package weight
130 g
Packaging content
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width
605 mm
Master (outer) case length
385 mm
Master (outer) case height
325 mm
Products per master (outer) case
80 pc(s)
