Introduction

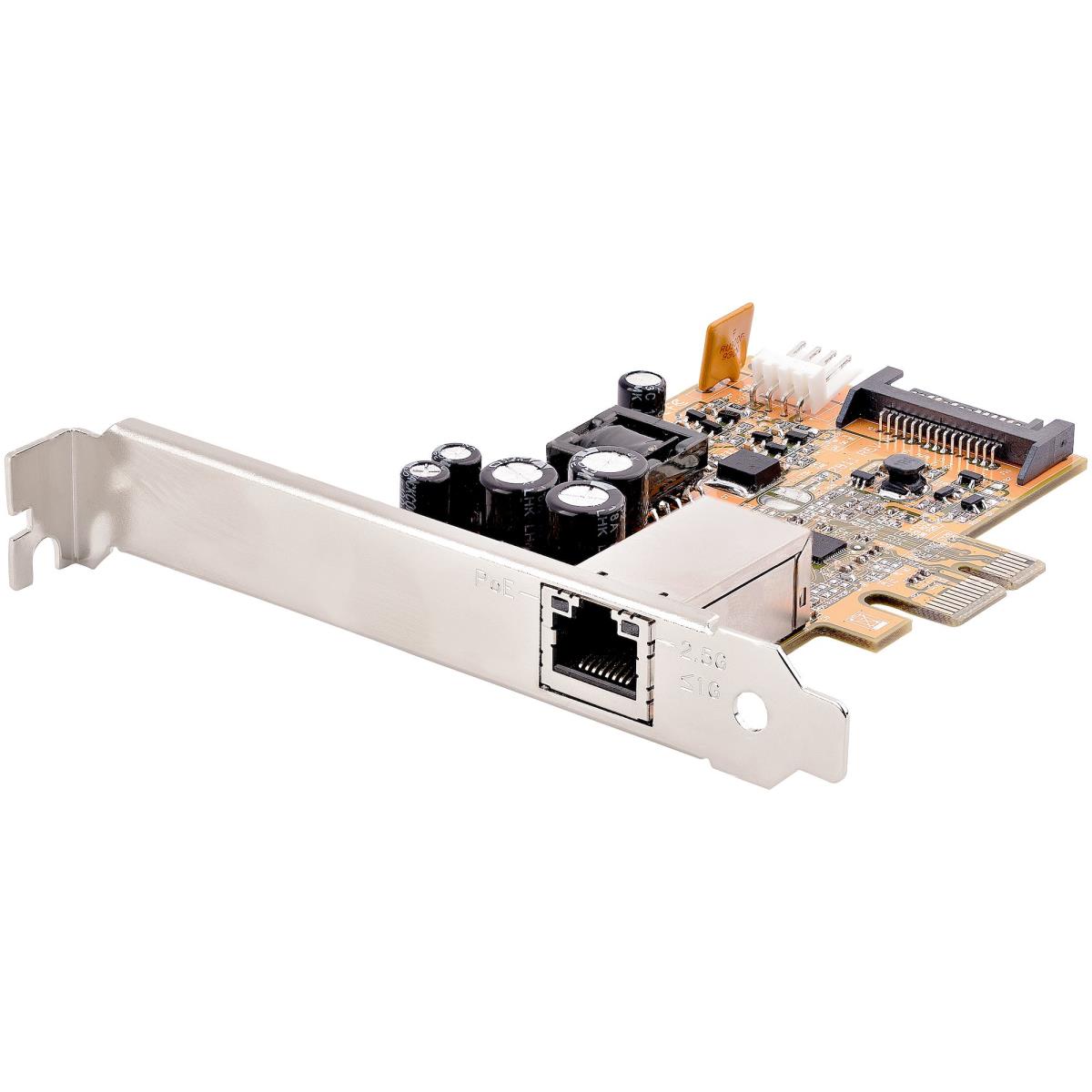

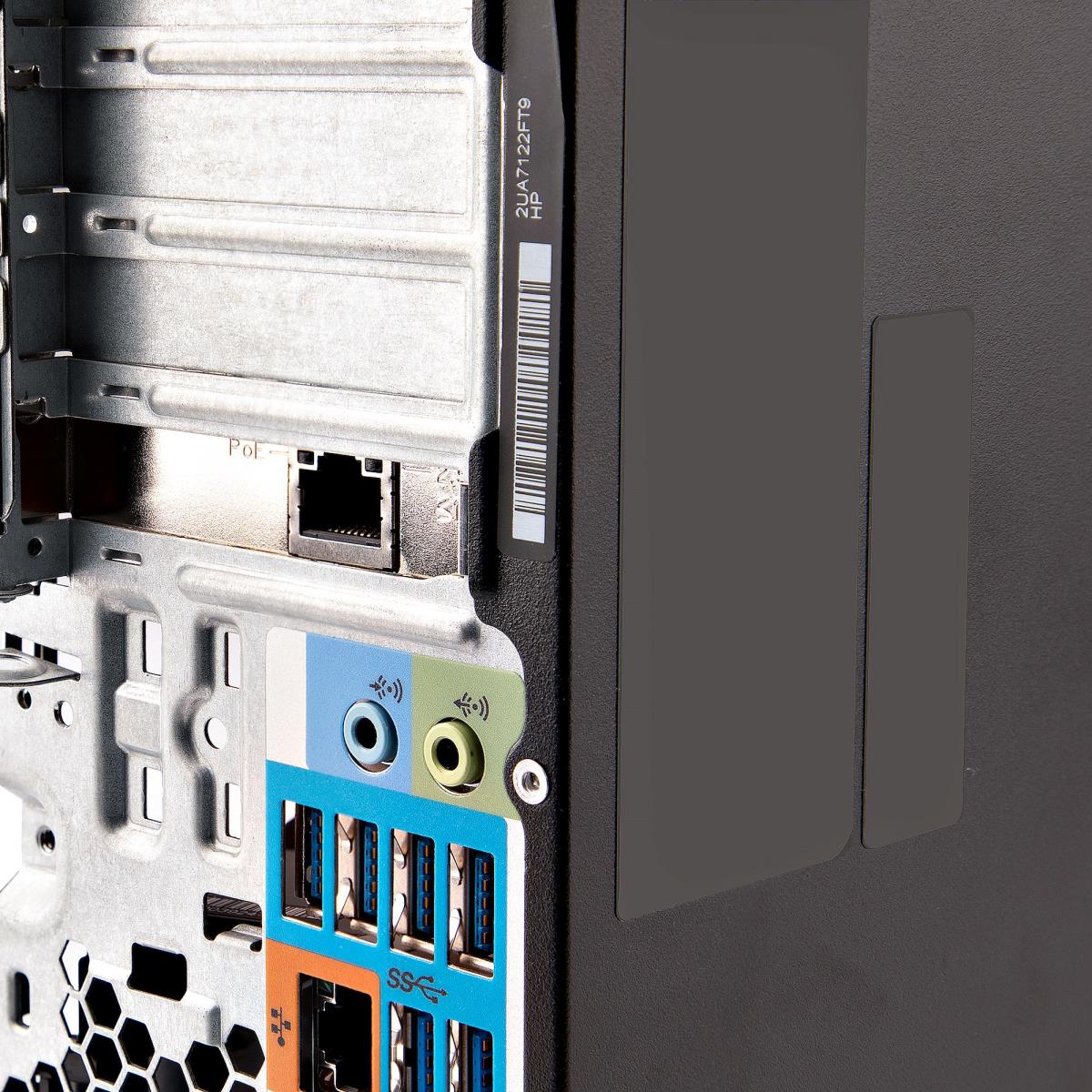

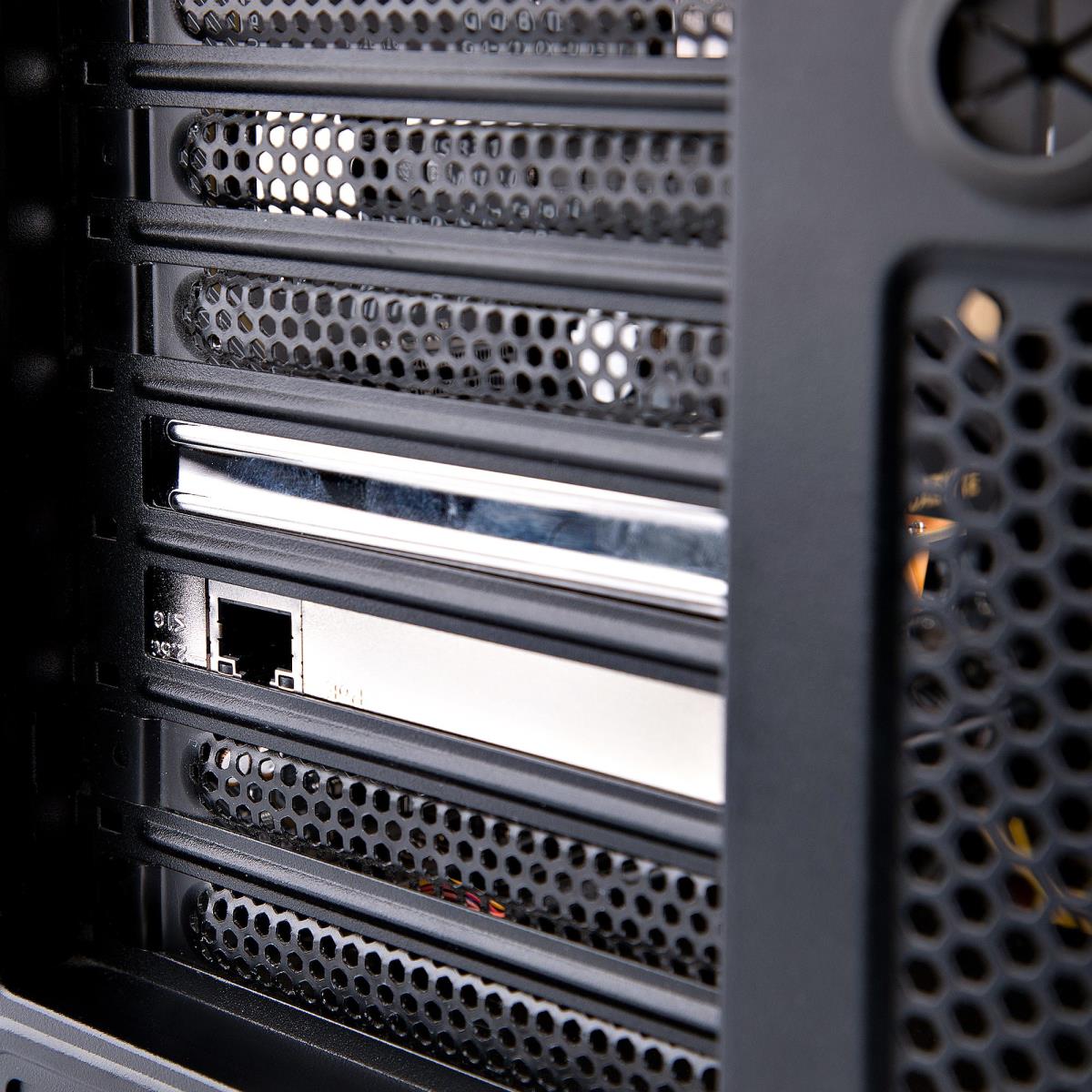

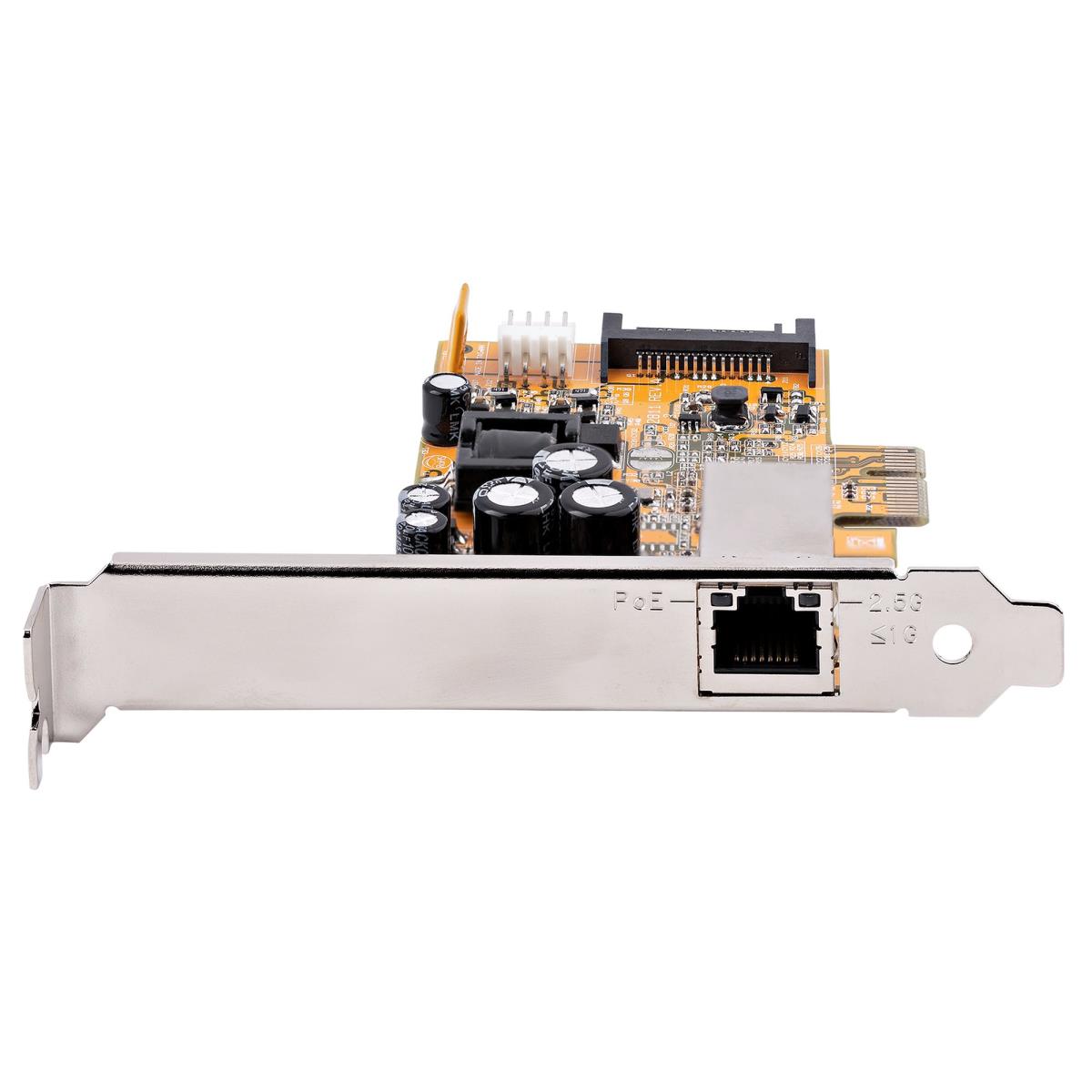

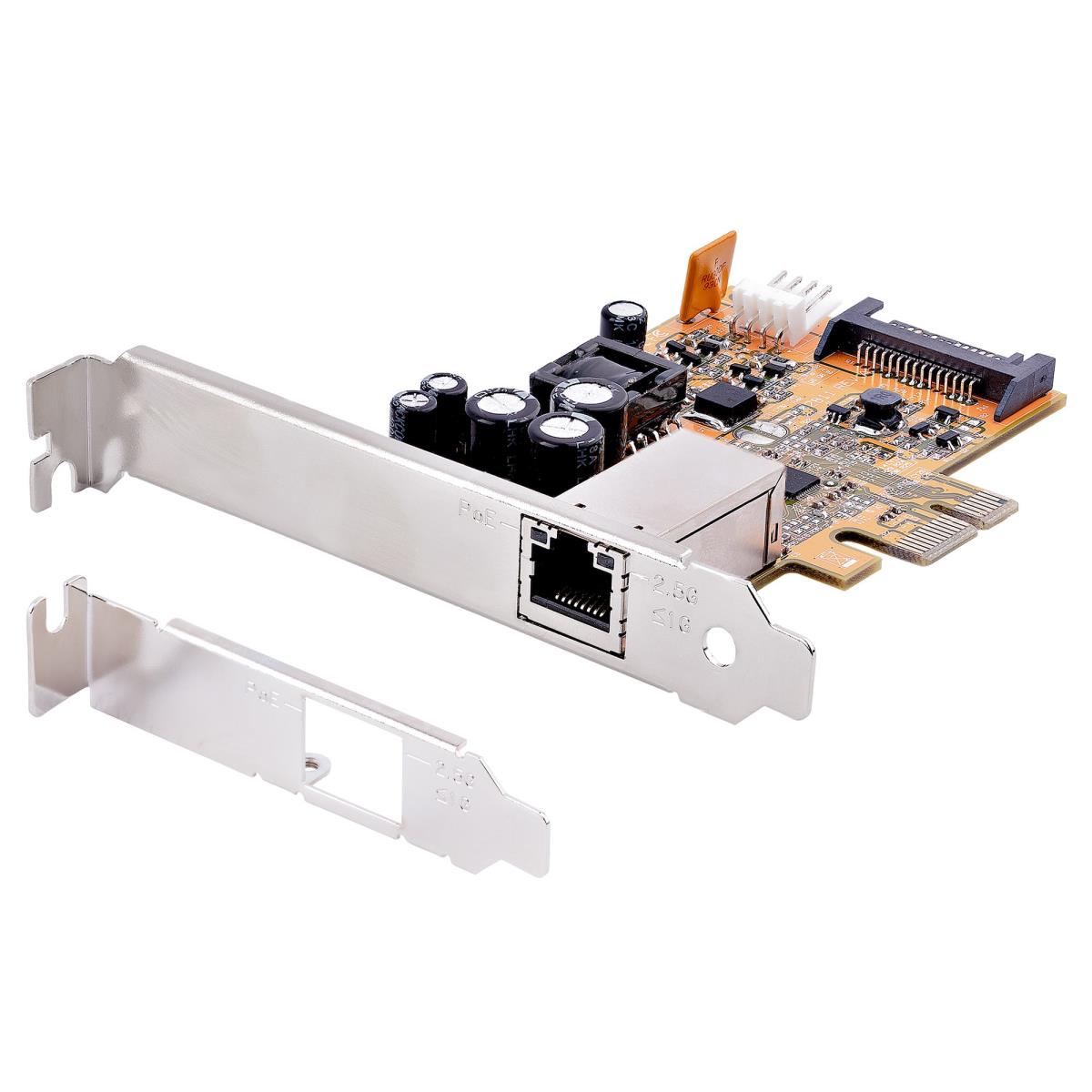

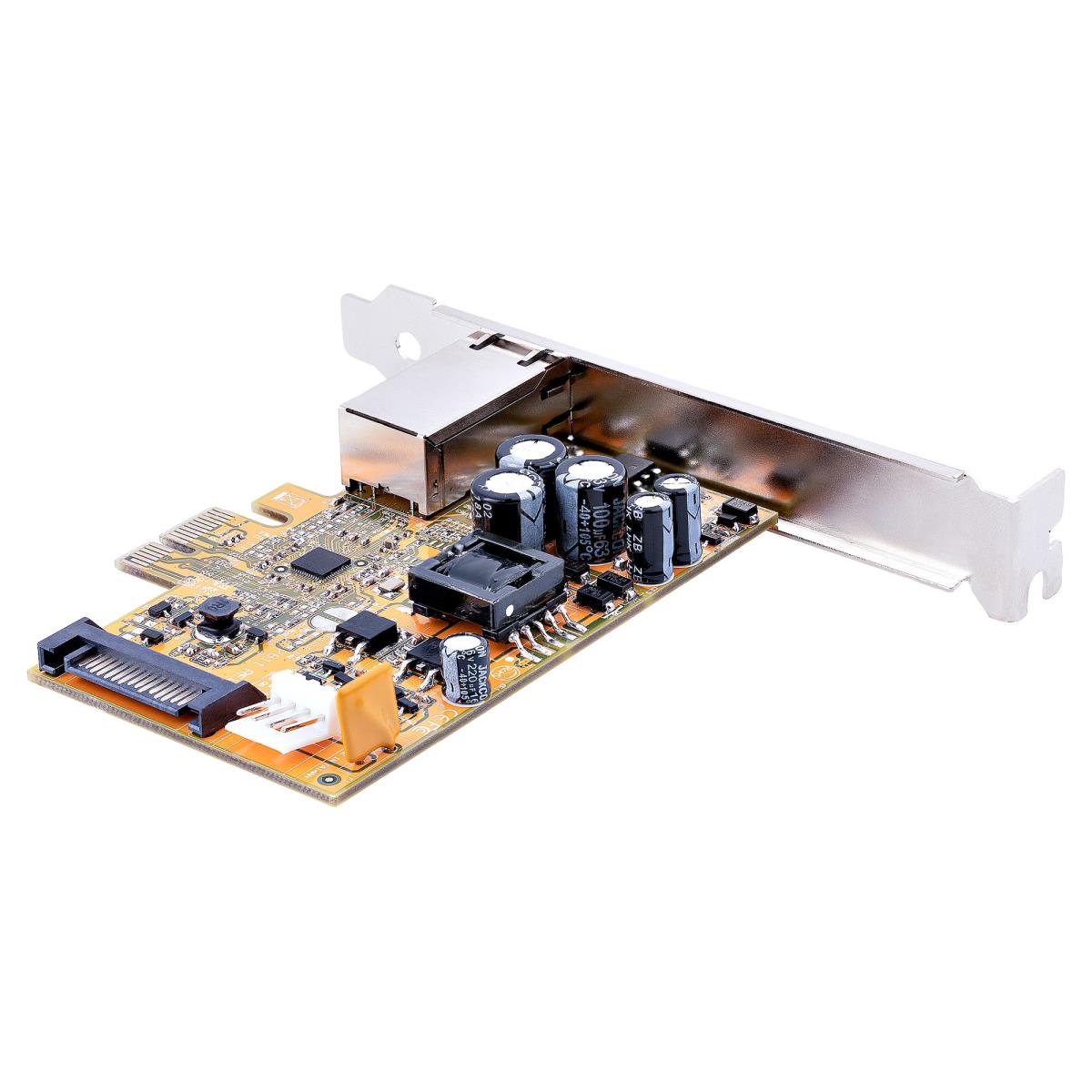

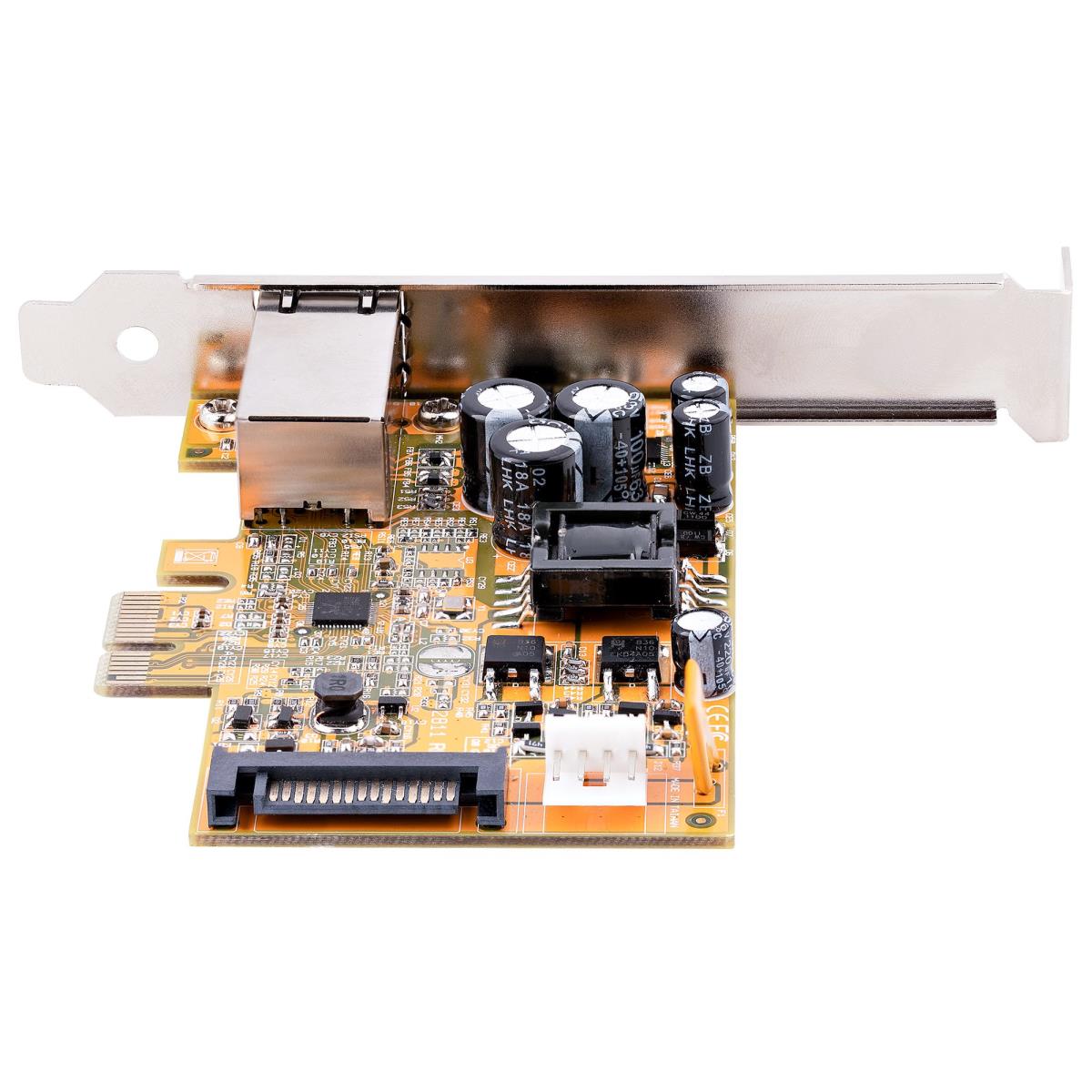

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-TThe Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.Versatile Network PoE CardThe PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.Enhance Existing HardwareThe network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
Power over Ethernet (PoE) ports quantity
1
PCI version
2.1
PCI Card form factor
Full-height (low-profile)
Network
Maximum data transfer rate
2500 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
16000
VLAN tagging
Y
Maximum operating distance
100 m
Design
Component for
PC/Server
Internal
Y
Chipset
Realtek RTL8125B
LED indicators
Y
Power
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Sustainability
Sustainability compliance
Y
Sustainability certificates
CE, RoHS
Weight & dimensions
Width
63 mm
Depth
95 mm
Height
15 mm
Weight
220 g
Packaging data
Package width
207 mm
Package depth
144 mm
Package height
38 mm
Package weight
220 g
Packaging content
Mounting brackets included
Y
Quick installation guide
Y
Logistics data
Master (outer) case width
530 mm
Master (outer) case length
440 mm
Master (outer) case height
340 mm
Products per master (outer) case
50 pc(s)
Technical details
Compliance certificates
CE, RoHS
