Introduction

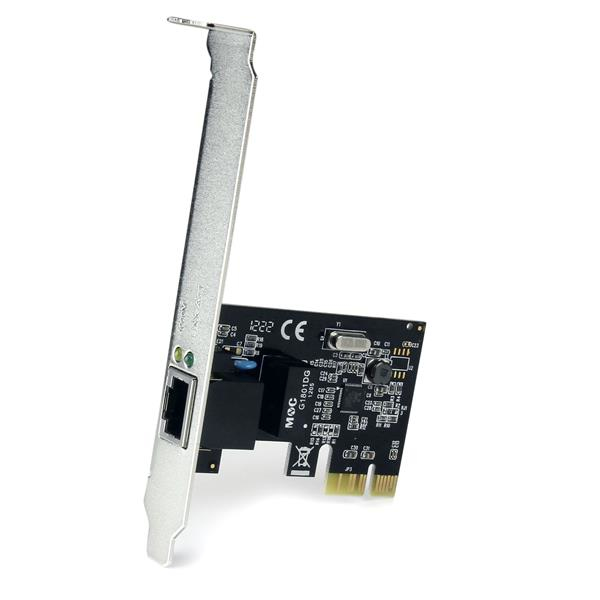

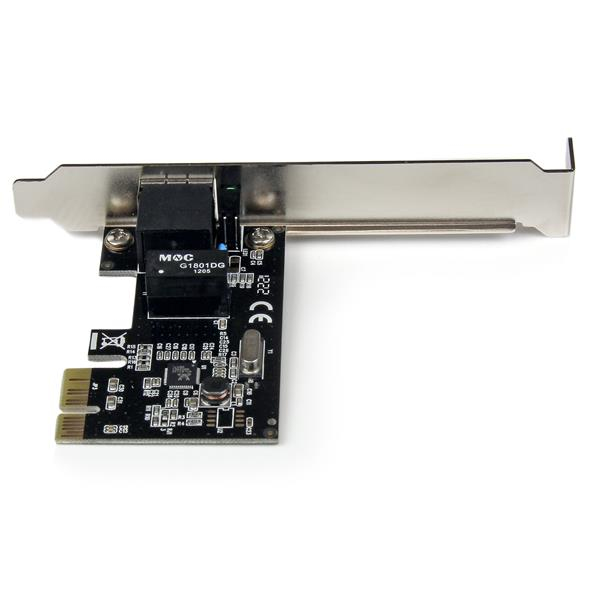

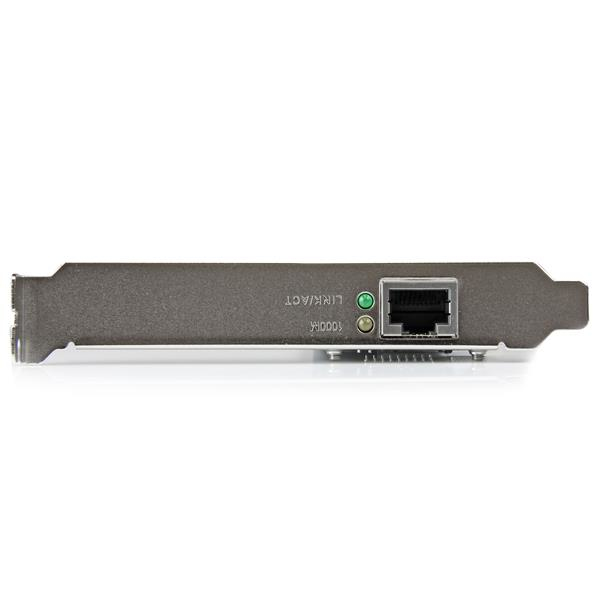

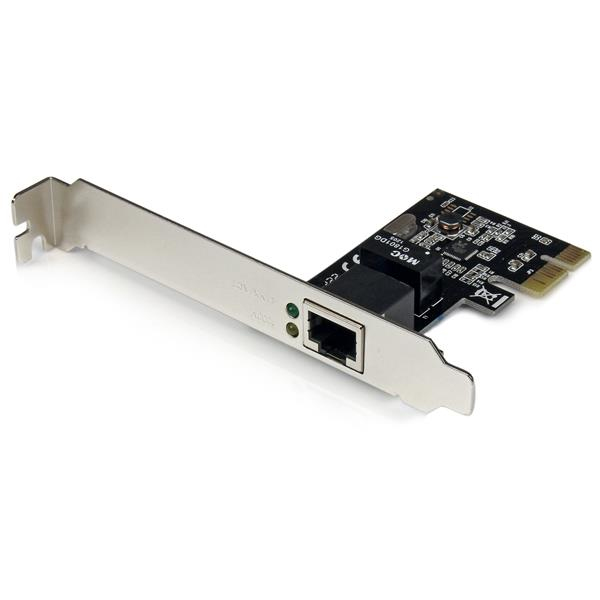

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
Other features
Harmonized System (HS) code
85176990
Supported data transfer rates
10/100/1000 Mbit/s
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wi-Fi
N
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
9000
Supported network protocols
CSMA/CD
Design
Internal
Y
Chipset
Realtek RTL8111E
LED indicators
Activity, Link
Mean time between failures (MTBF)
376212 h
Certification
CE, FCC
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
0 - 100 °C
Operating relative humidity (H-H)
10 - 90%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
120.3 mm
Depth
67.9 mm
Height
18 mm
Weight
40 g
Packaging data
Drivers included
Y
Low-profile bracket
Y
Package width
142 mm
Package depth
171 mm
Package height
32 mm
Package weight
126 g
Packaging content
