Introduction

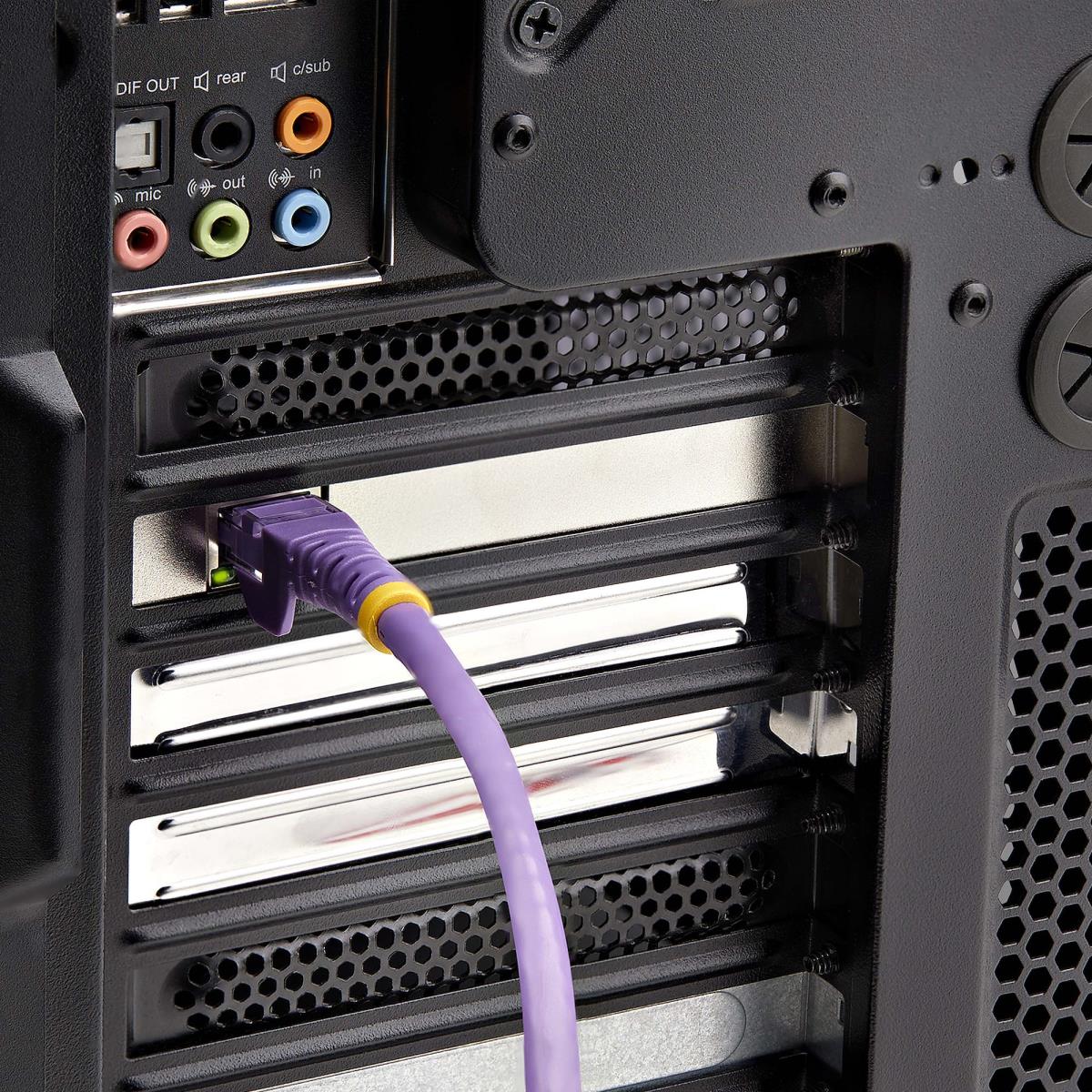

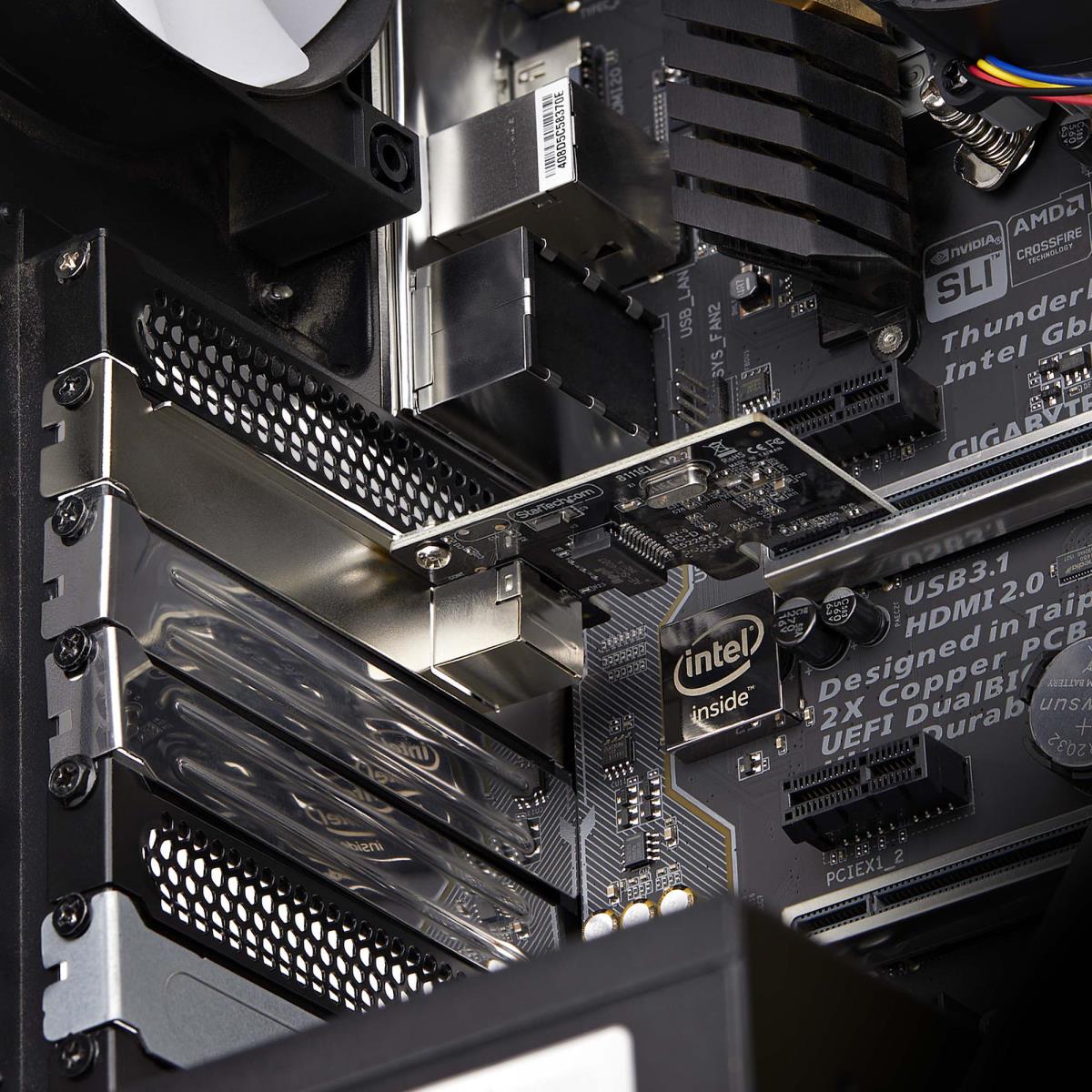

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

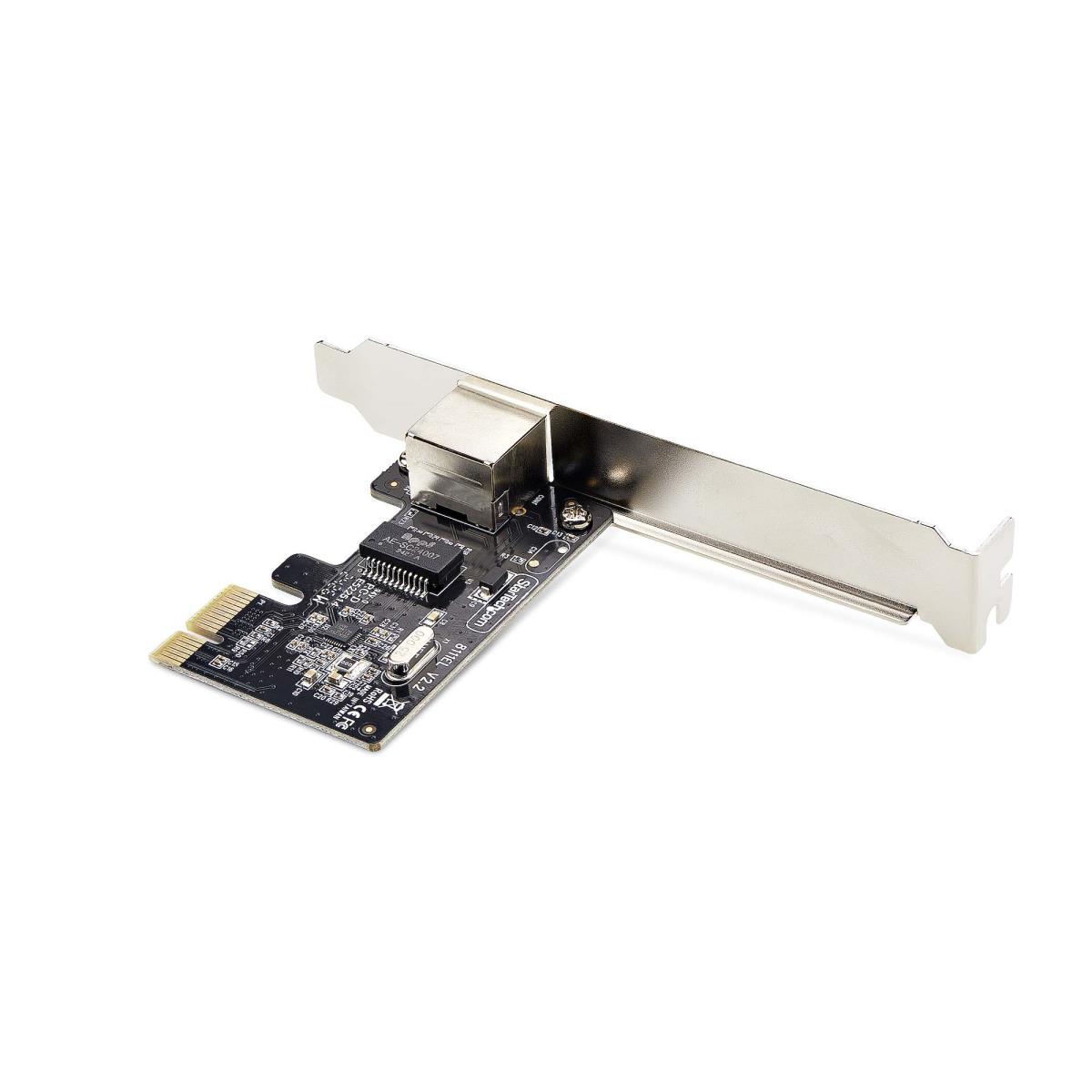

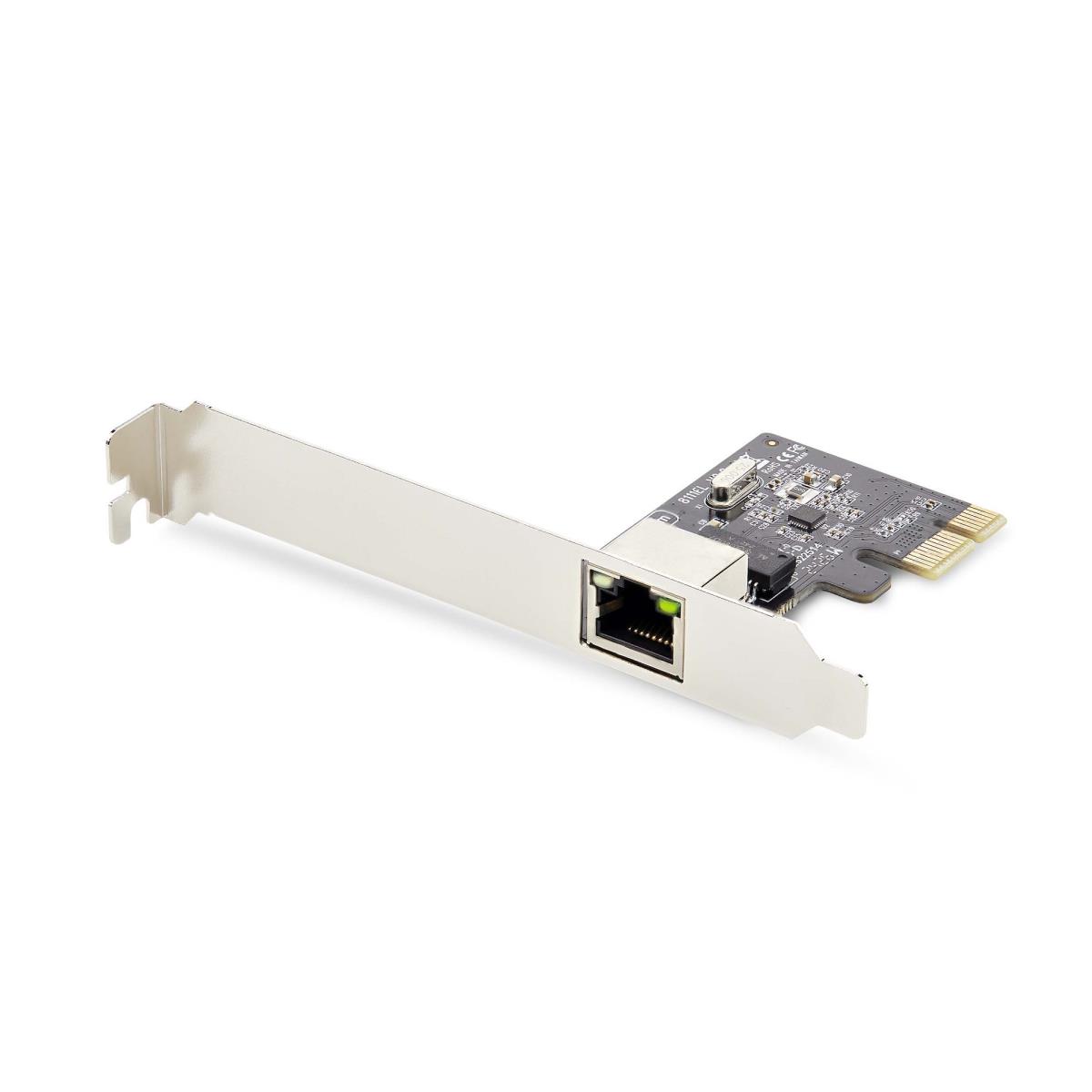

This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management

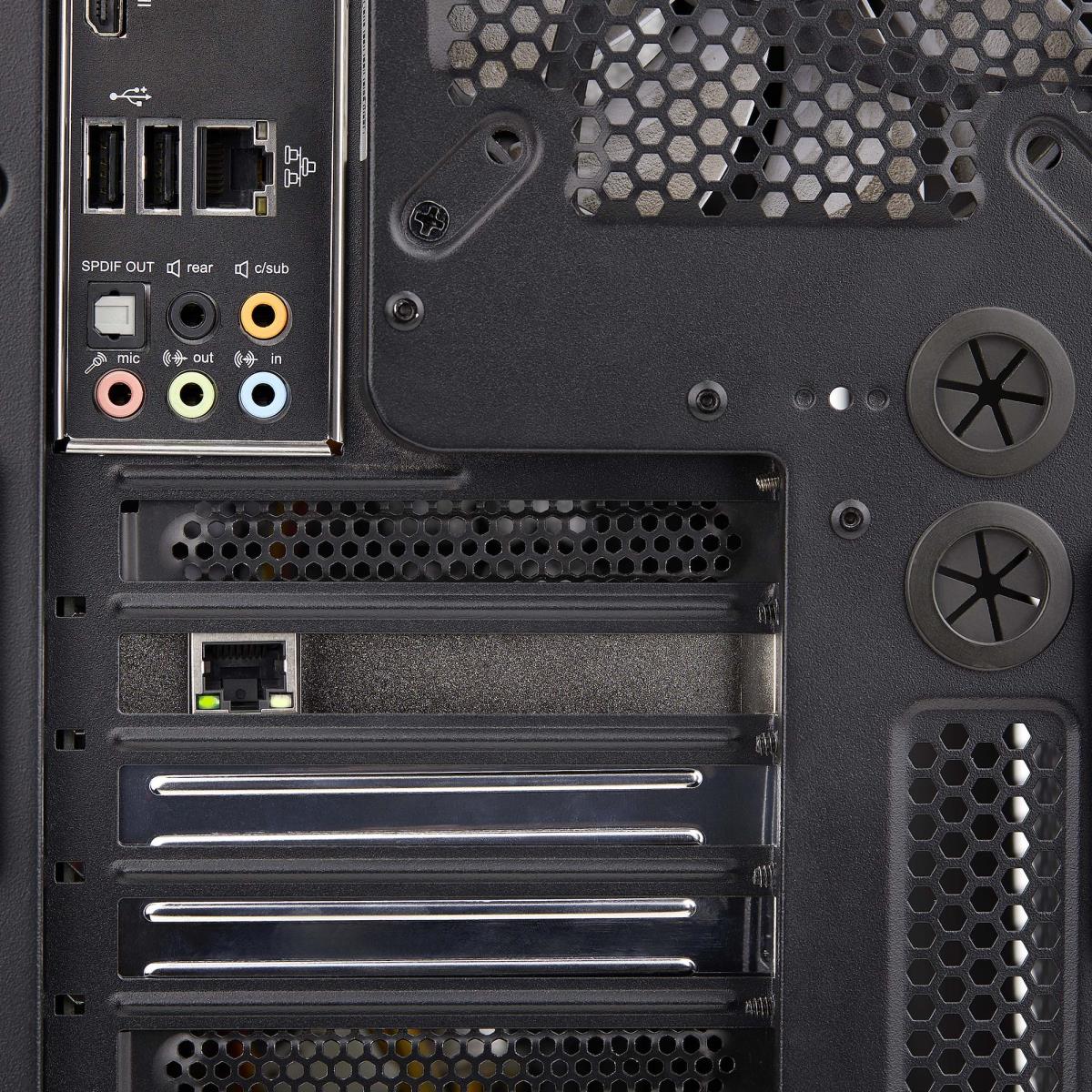

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.
Universal Fit

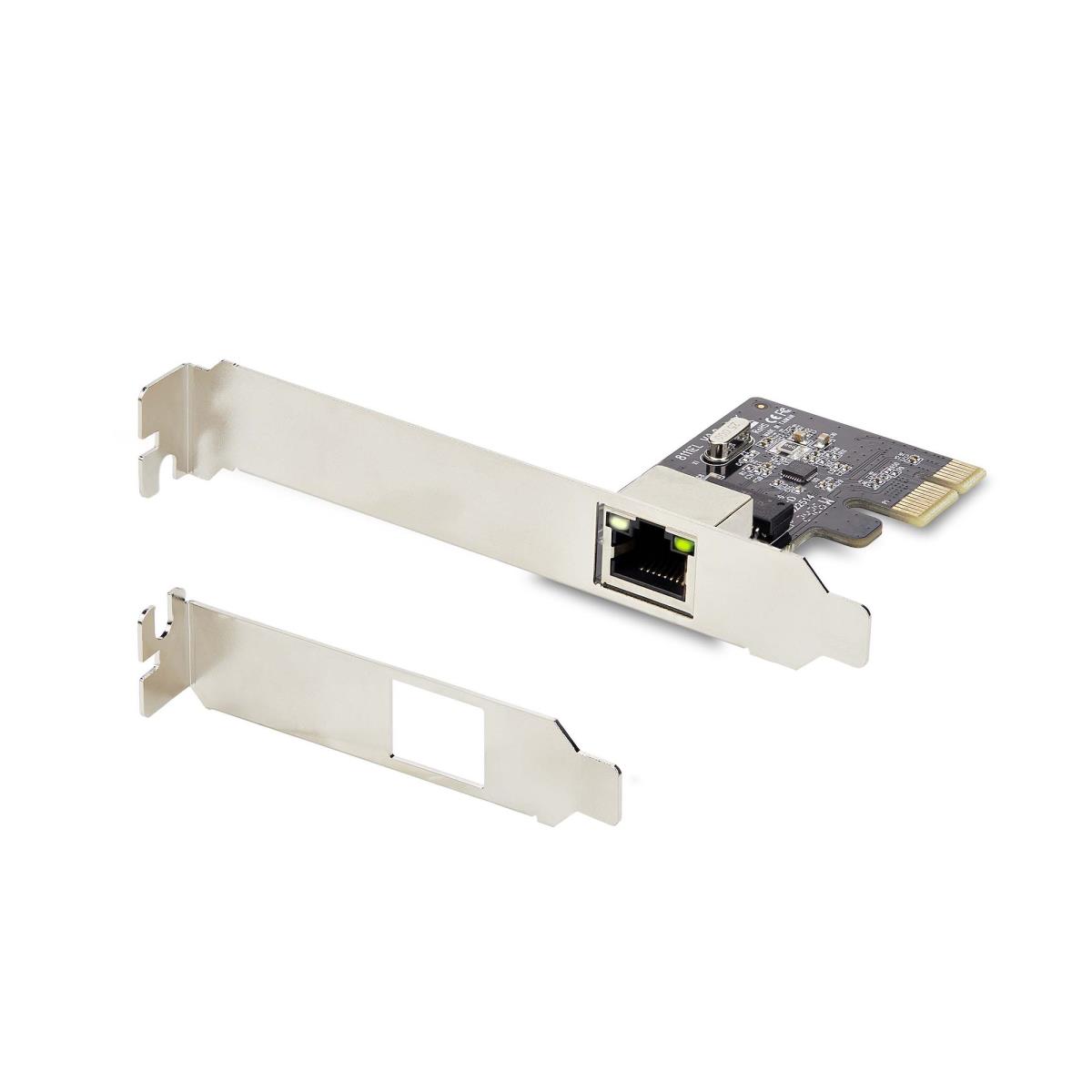

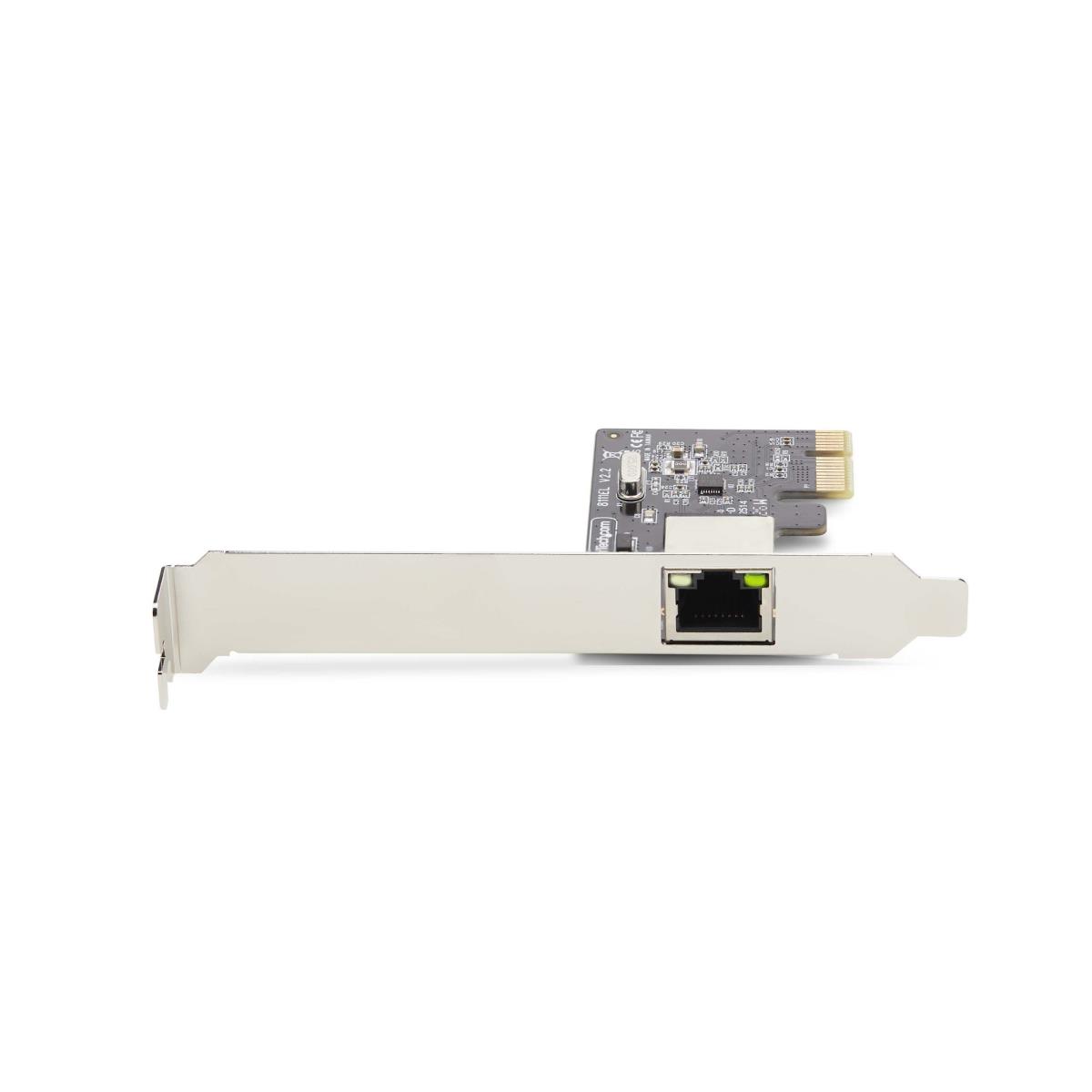

The PCI Express NIC includes a pre-installed standard-profile bracket for full-sized desktops and servers, as well as a low-profile bracket for compatibility with small form-factor computers.
The StarTech.com Advantage
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
PCI Card form factor
Full-height (low-profile)
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready
Yes
Jumbo frames support
Yes
Auto-negotiation
Yes
Jumbo frames
9000
VLAN support
Yes
Design
Component for
PC/Server
Product colour
Black
Internal
Yes
Chipset

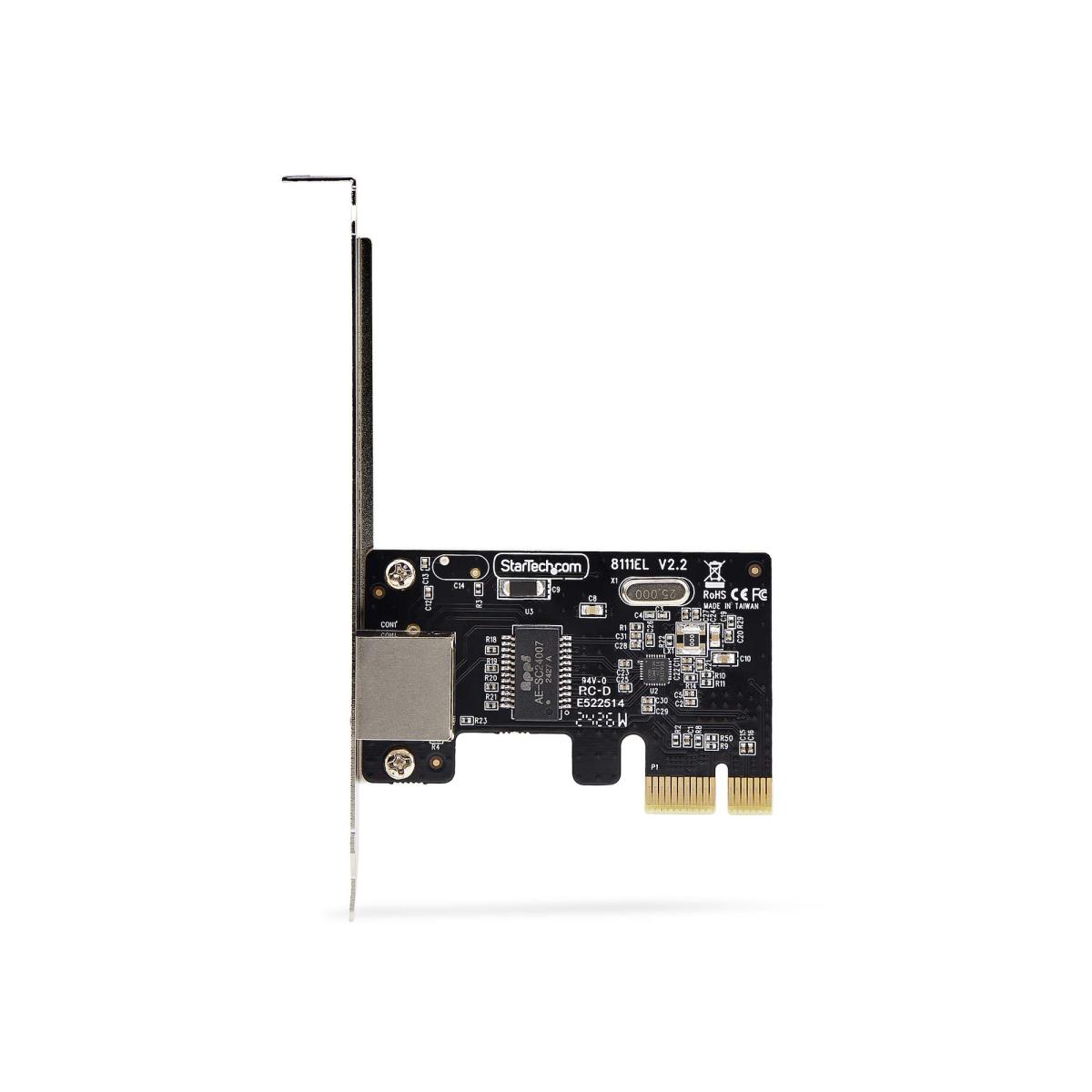

Realtek RTL8111H
LED indicators
Activity, Link
System requirements
Windows operating systems supported
Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2016, Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T)
5 - 70 °C
Storage temperature (T-T)
0 - 80 °C
Operating relative humidity (H-H)
10 - 80%
Weight & dimensions
Packaging data
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
100.5 g
Logistics data
Master (outer) case width
685 mm
Master (outer) case length
345 mm
Master (outer) case height
306 mm
Products per master (outer) case
75 pc(s)
