Introduction

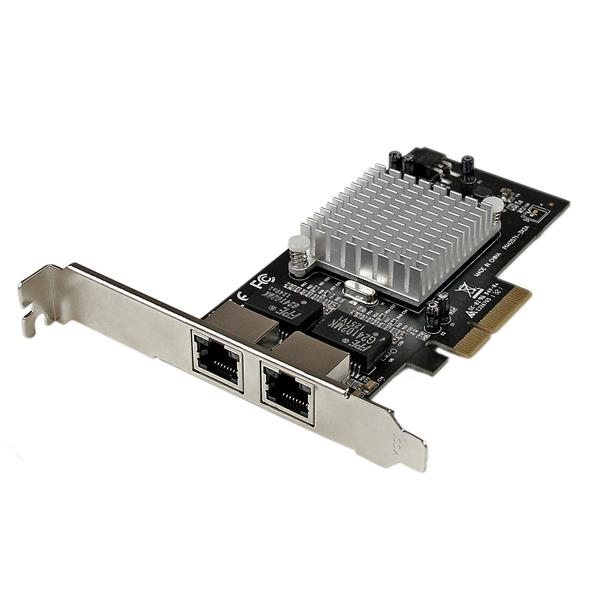

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Logistics data
Master (outer) case width
318 mm
Master (outer) case length
590 mm
Master (outer) case height
364 mm
Products per master (outer) case
80 pc(s)
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
2
PCI version
2.1
Other features
Harmonized System (HS) code
85176990
Power LED
Y
Link/Act LED
Y
Network
Maximum data transfer rate
2000 Mbit/s
Networking standards
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
9000
VLAN tagging
Y
LAN controller
Intel® I350-AM2
Design
Component for
Server
Product colour
Aluminium, Black
Internal
Y
Chipset
Intel - I350-AM2
LED indicators
Activity, Link
Mean time between failures (MTBF)
432400 h
Certification
CE, FCC, REACH
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
19 mm
Depth
67 mm
Height
121 mm
Weight
80 g
Packaging data
Drivers included
Y
Low-profile bracket
Y
Package width
172 mm
Package depth
144 mm
Package height
29 mm
Package weight
165 g
Packaging content
