Introduction
Add 7 external, USB 3.0 ports to a computer from a single USB connection. The ST7300USB3B USB 3.0 Hub lets you add seven external USB 3.0 ports to a computer from a single USB 3.0 host connection.
Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.0 specifications and is backward compatible with USB 2.0 and 1.x devices.
Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.
The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

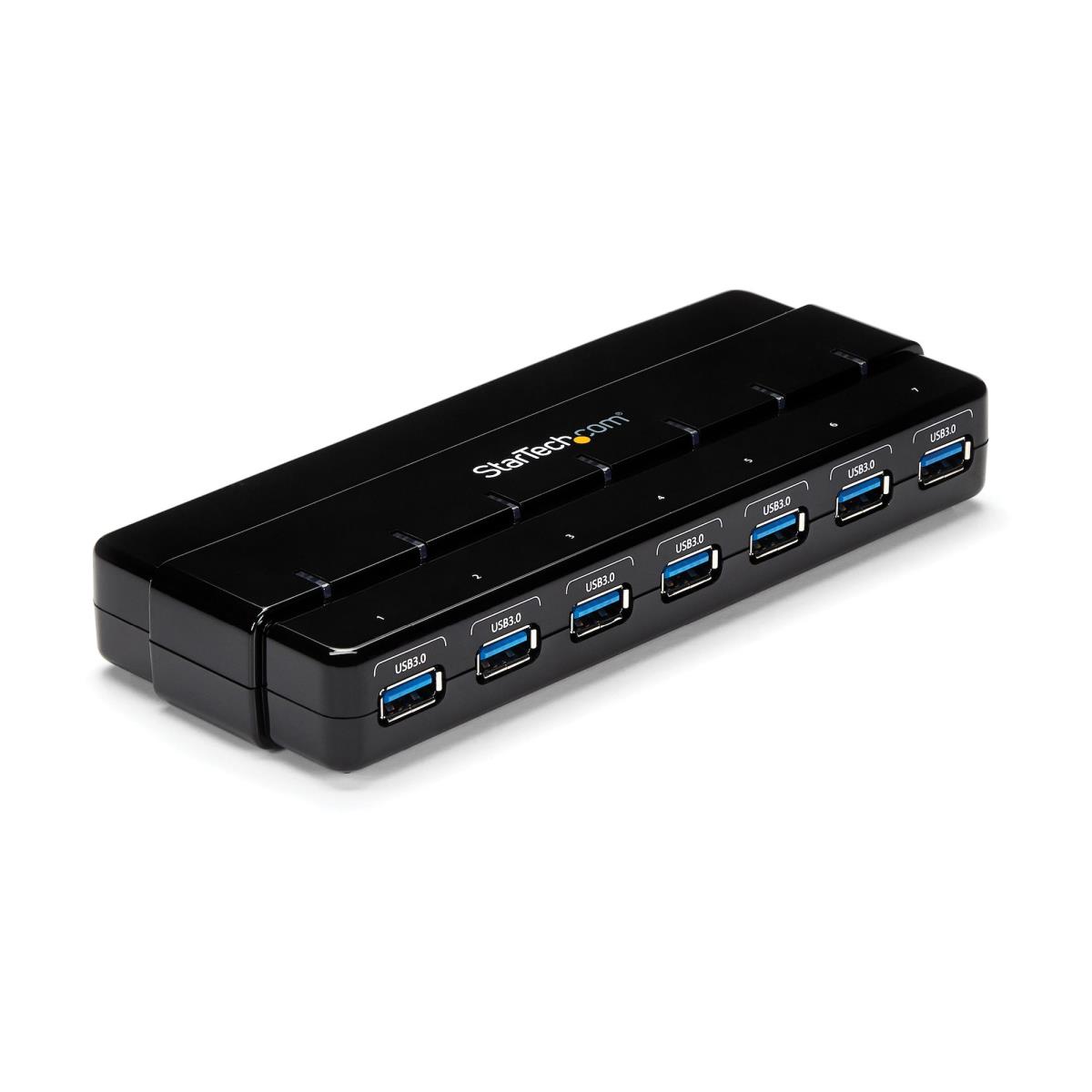

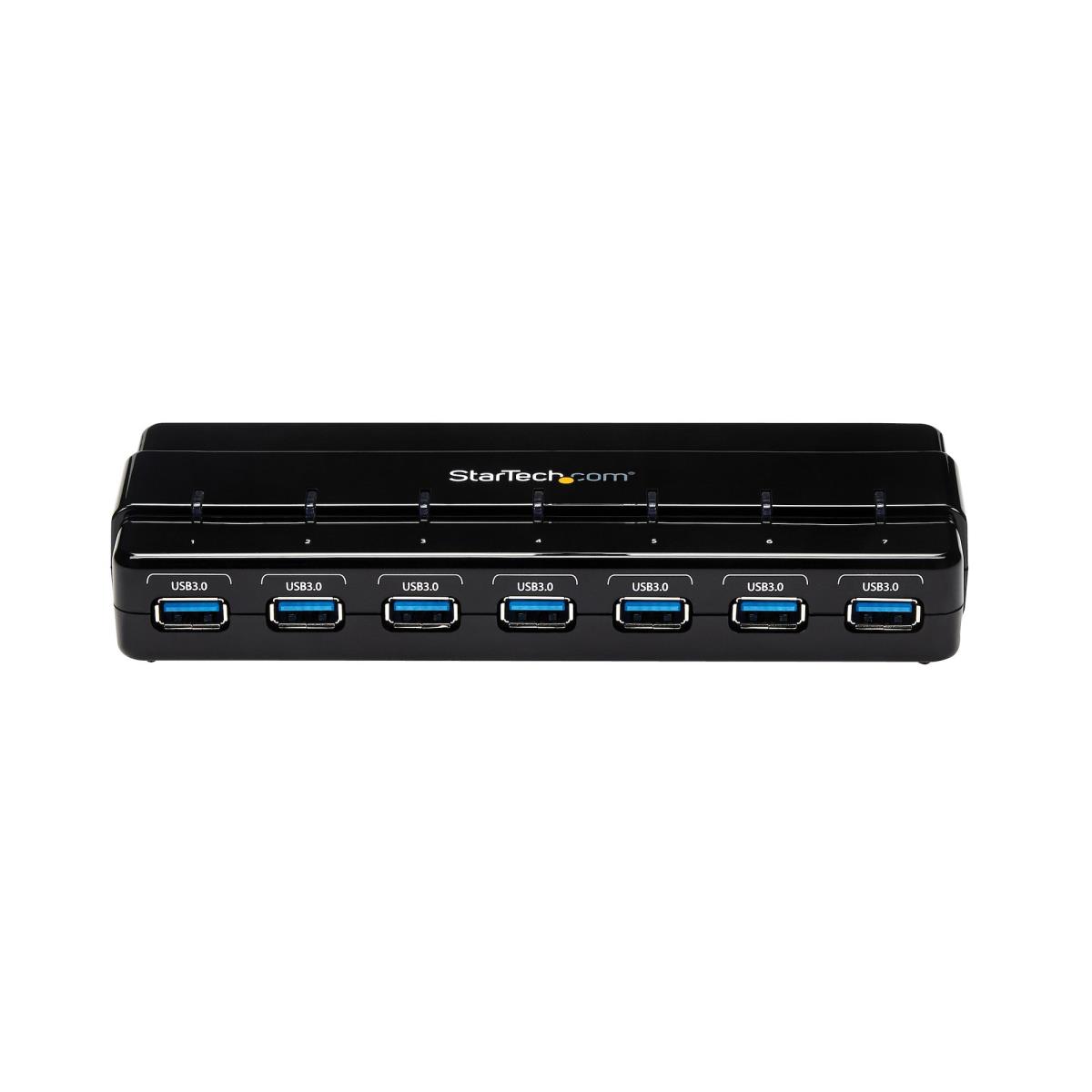

- Easily connect and disconnect USB 3.0 devices with accessible one-sided port orientation
- Connect up to seven USB 3.0/2.0/1.x devices simultaneously at their respective maximum speeds
Ports & interfaces
DC-in jack
Yes
Host interface

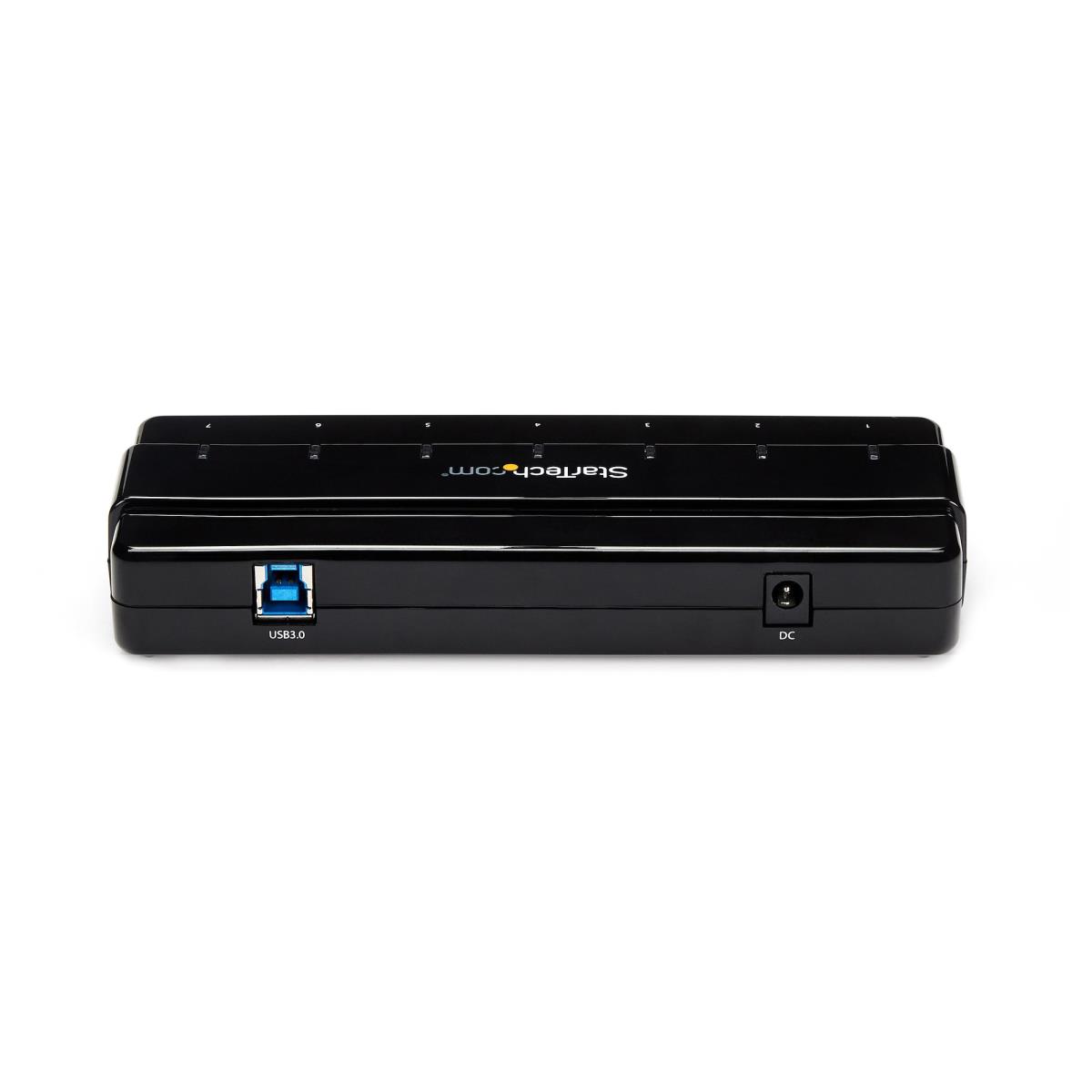

USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
Ports quantity
7
Power
Power supply type
DC
Input voltage
100 - 240 V
Input current
1.3 A
AC input frequency
50 - 60 Hz
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Sustainability
Sustainability compliance
Yes
Performance
Mean time between failures (MTBF)
43977.72 h
Harmonized System (HS) code
84719000
Logistics data
Master (outer) case width
437 mm
Master (outer) case length
334 mm
Master (outer) case height
328 mm
Products per master (outer) case
20 pc(s)
Features
Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
Plastic
LED indicators
Y
Technical details
Compliance certificates
CE, RoHS
System requirements
Windows operating systems supported
Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Weight & dimensions
Width
70 mm
Depth
172 mm
Height
23 mm
Weight
148 g
Packaging data
Package width
148 mm
Package depth
209 mm
Package height
63 mm
Package weight
556 g

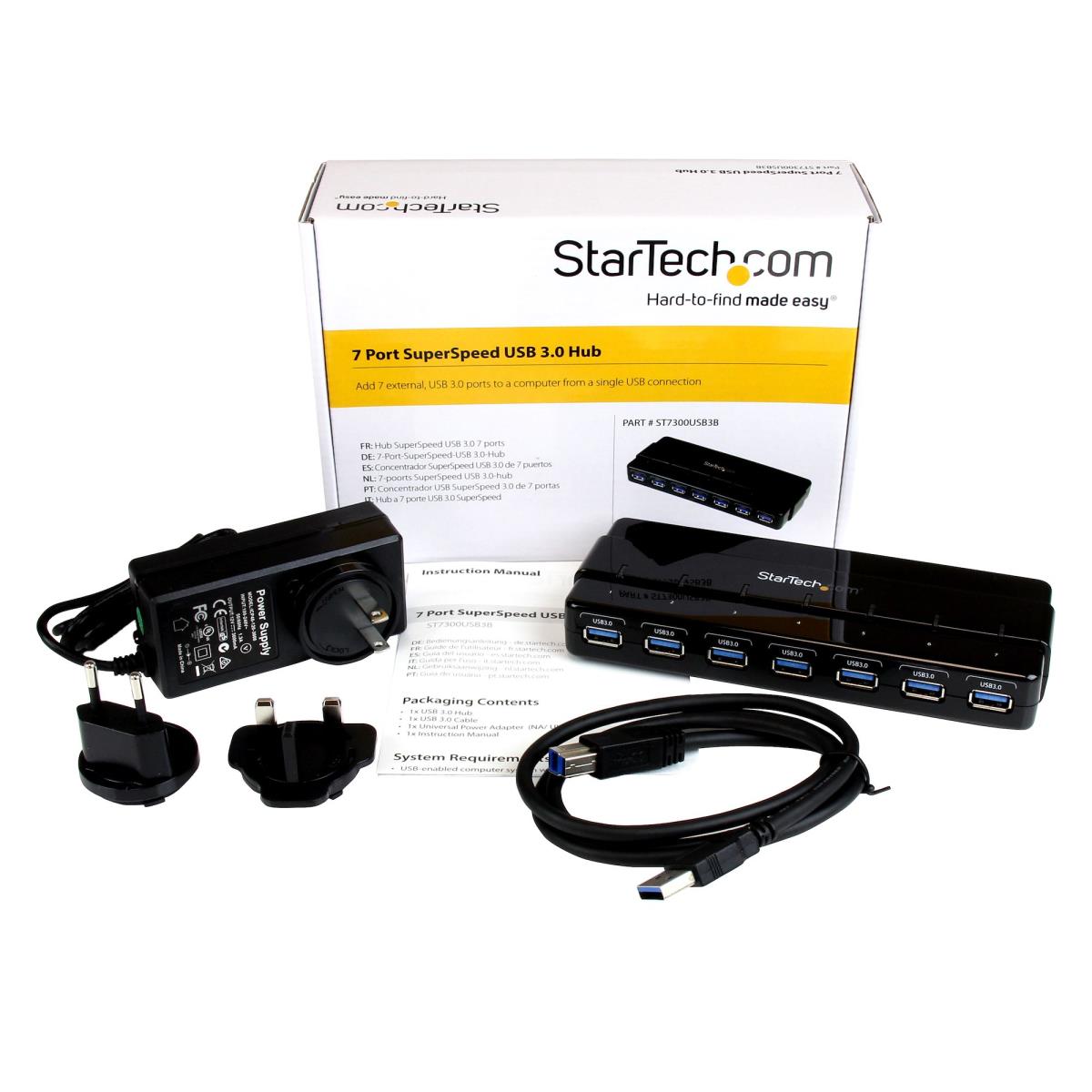

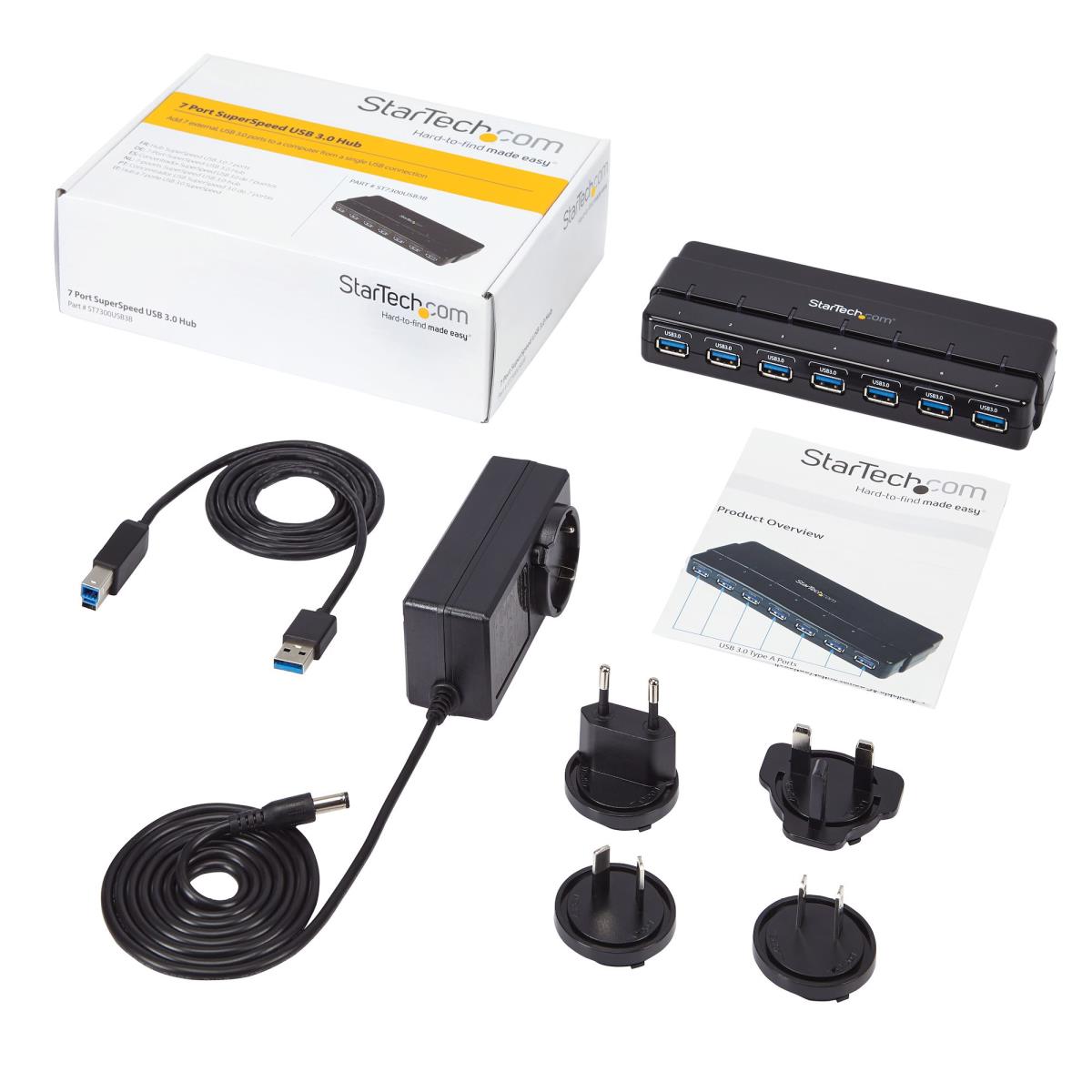

Packaging content
AC adapter included
Y
Included power plug types
AU,EU,NA,UK
Cables included
USB
Manual
Y
Operational conditions
Operating temperature (T-T)
-2 - 52 °C
Storage temperature (T-T)
-20 - 56 °C
Operating relative humidity (H-H)
5 - 95%
