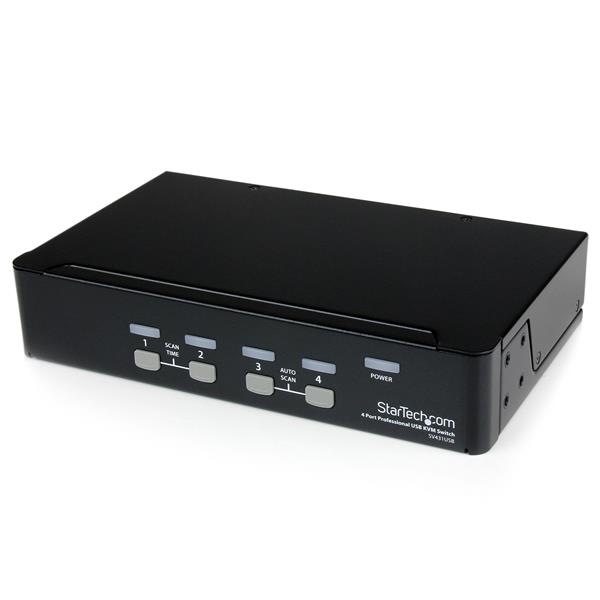

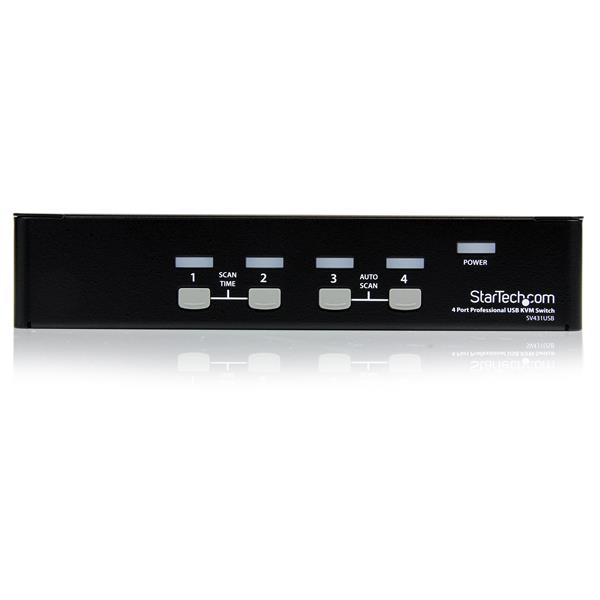

STARTECH.COM KVM Switch With Hub 4 Port Professional Vga USB

£86.40

Part Number: SV431USB
Delivery: 1 - 2 days

Product Details

Introduction

Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Logistics data

Master (outer) case width 455 mm
Master (outer) case length 415 mm
Master (outer) case height 330 mm
Products per master (outer) case 12 pc(s)
Harmonized System (HS) code 85176200

Sustainability

Compliance certificates RoHS

Ports & interfaces

Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type VGA

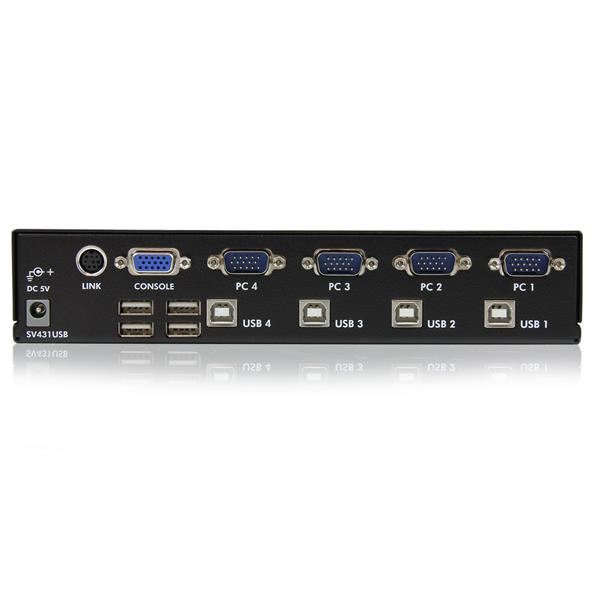

Console ports USB A,VGA (D-Sub)
Console USB ports quantity 4
Audio connections N
DC-in jack Y

Performance

Maximum resolution 1920 x 1440 pixels
Scan interval 3,8,15,30 s
Daisy chain N
Number of users 1 user(s)

Design

Rack mounting Y
Rack capacity 1U
Product colour Black
Housing material Steel
Maximum cable length 5 m
Hot keys N
Mean time between failures (MTBF) 82506 h
Certification CE, FCC, REACH, TAA, cUR

Display

Built-in display N
On Screen Display (OSD) N

Power

AC input voltage 110-240 V
Input current 0.4 A
Output voltage 5 V
Output current 2 A
Power plug type Type N

Weight & dimensions

Width 130 mm
Depth 220 mm
Height 44 mm
Weight 988 g

Packaging data

Package width 196 mm
Package depth 295 mm
Package height 72 mm
Package weight 1.3 kg

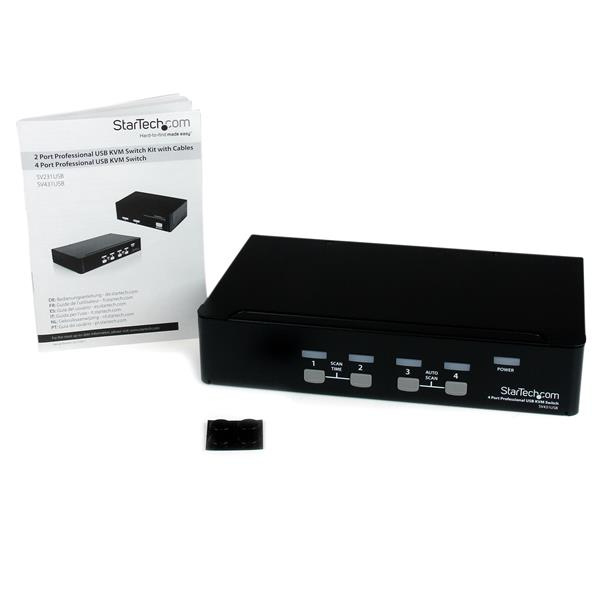

Packaging content

Manual Y
Rubber feet Y

Other features

IP control N

Technical details

Sustainability certificates RoHS

Information

Part Number: SV431USB
