Product Details
Introduction

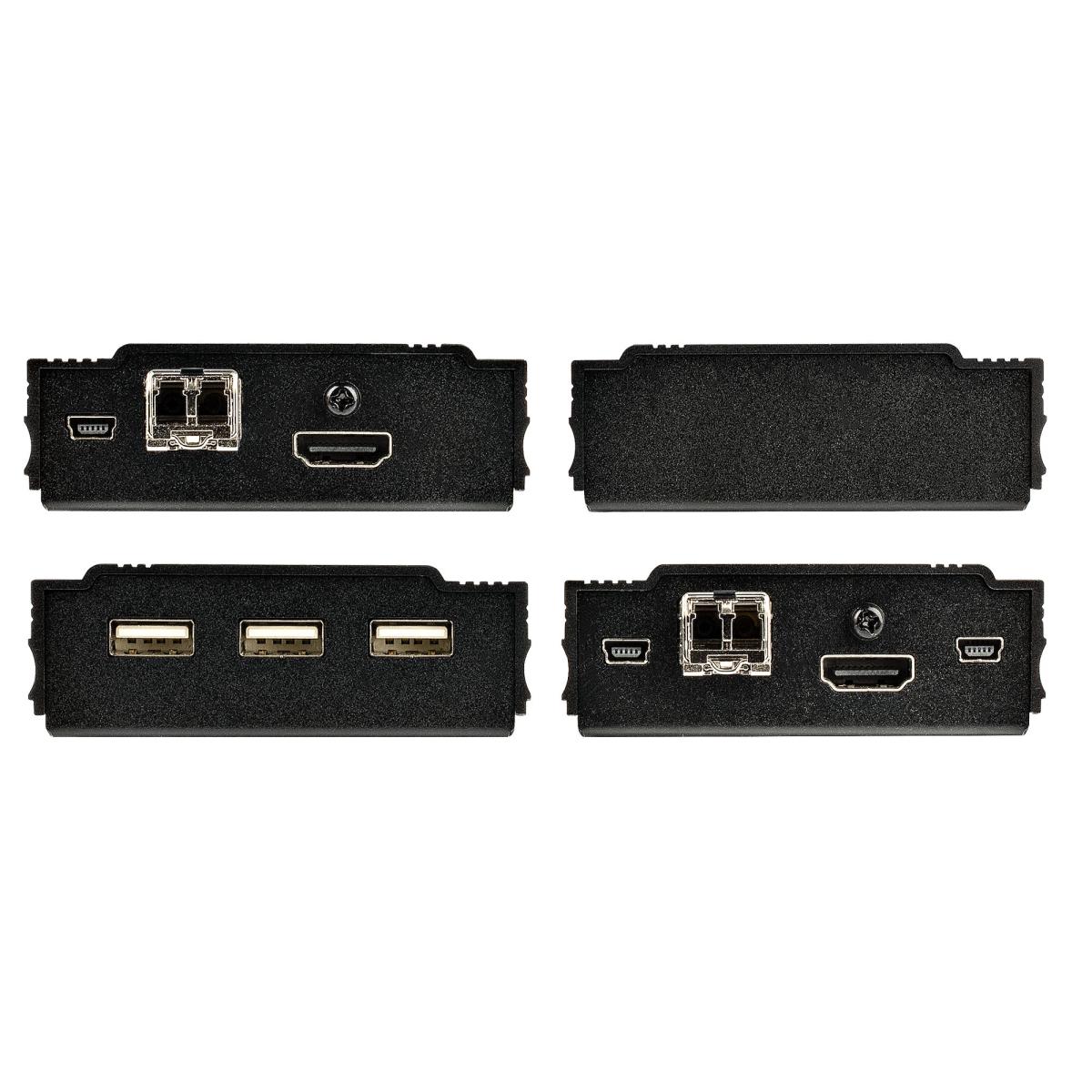

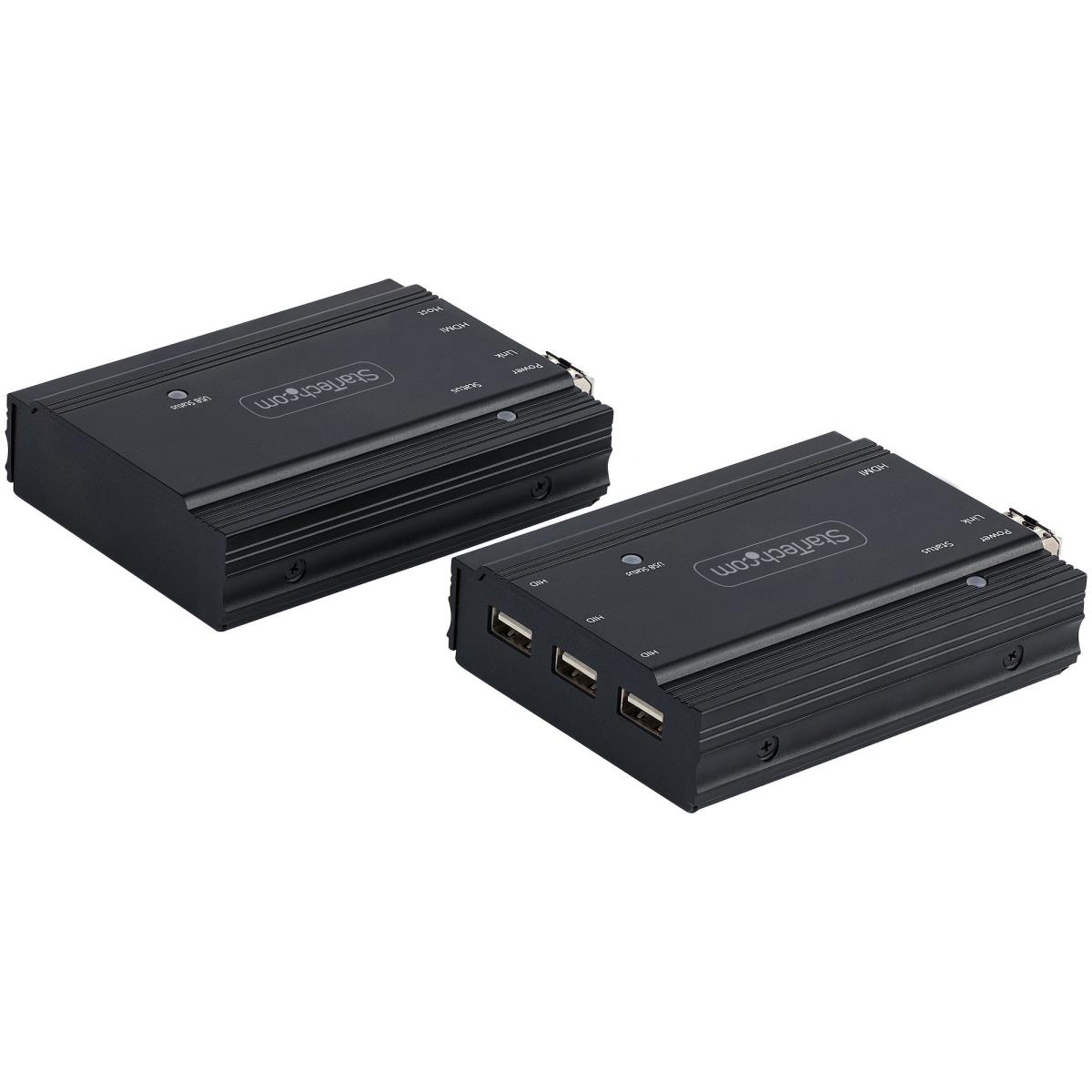

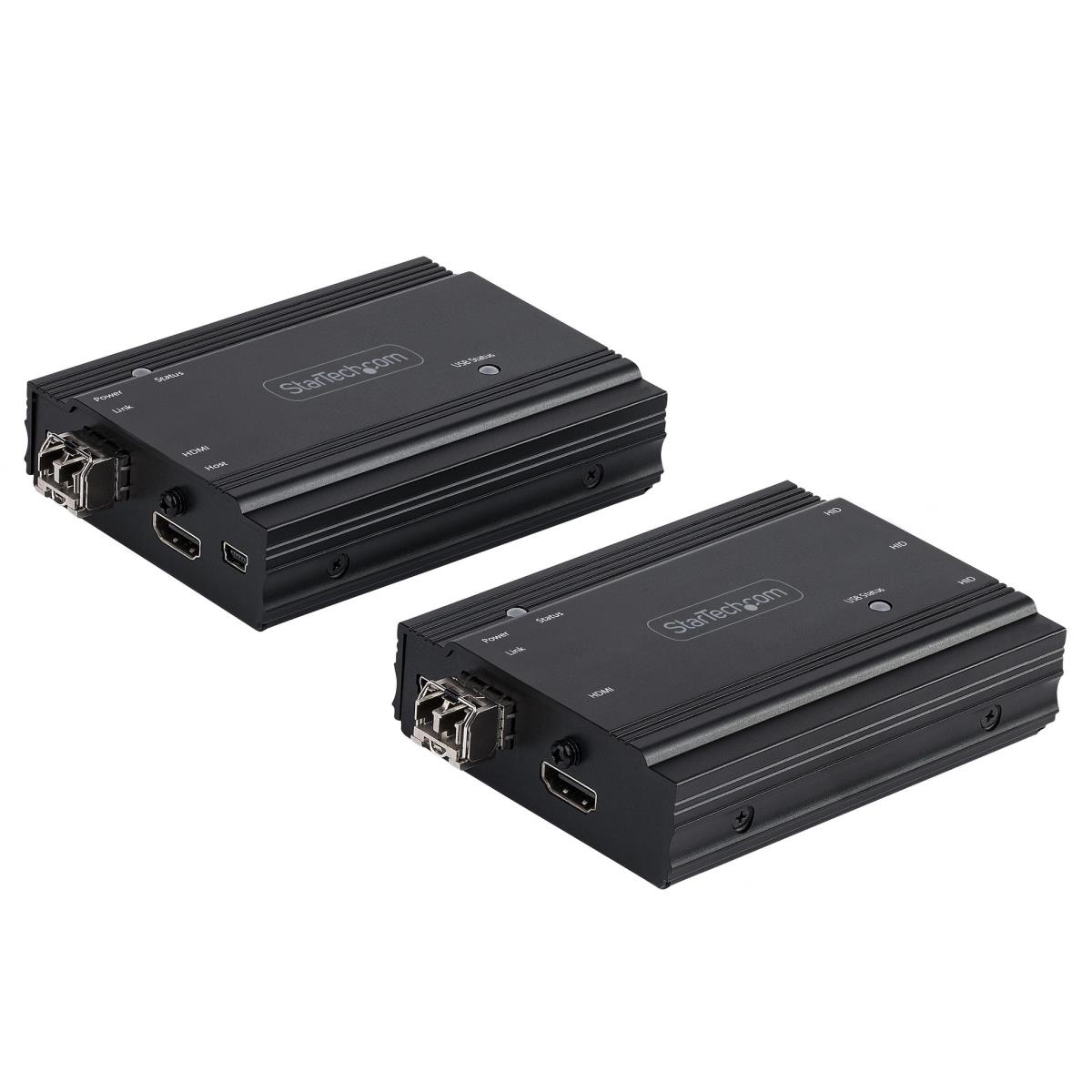

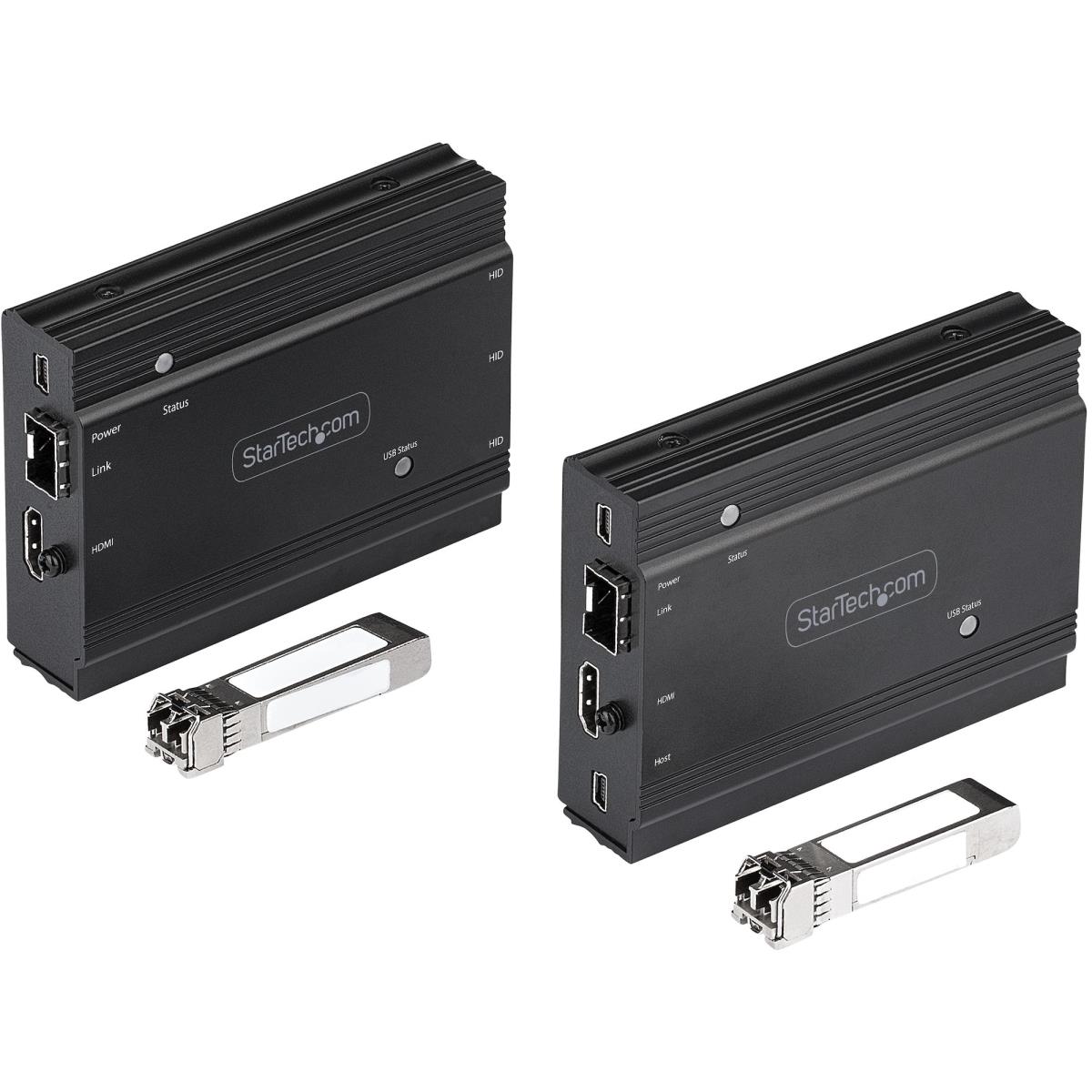

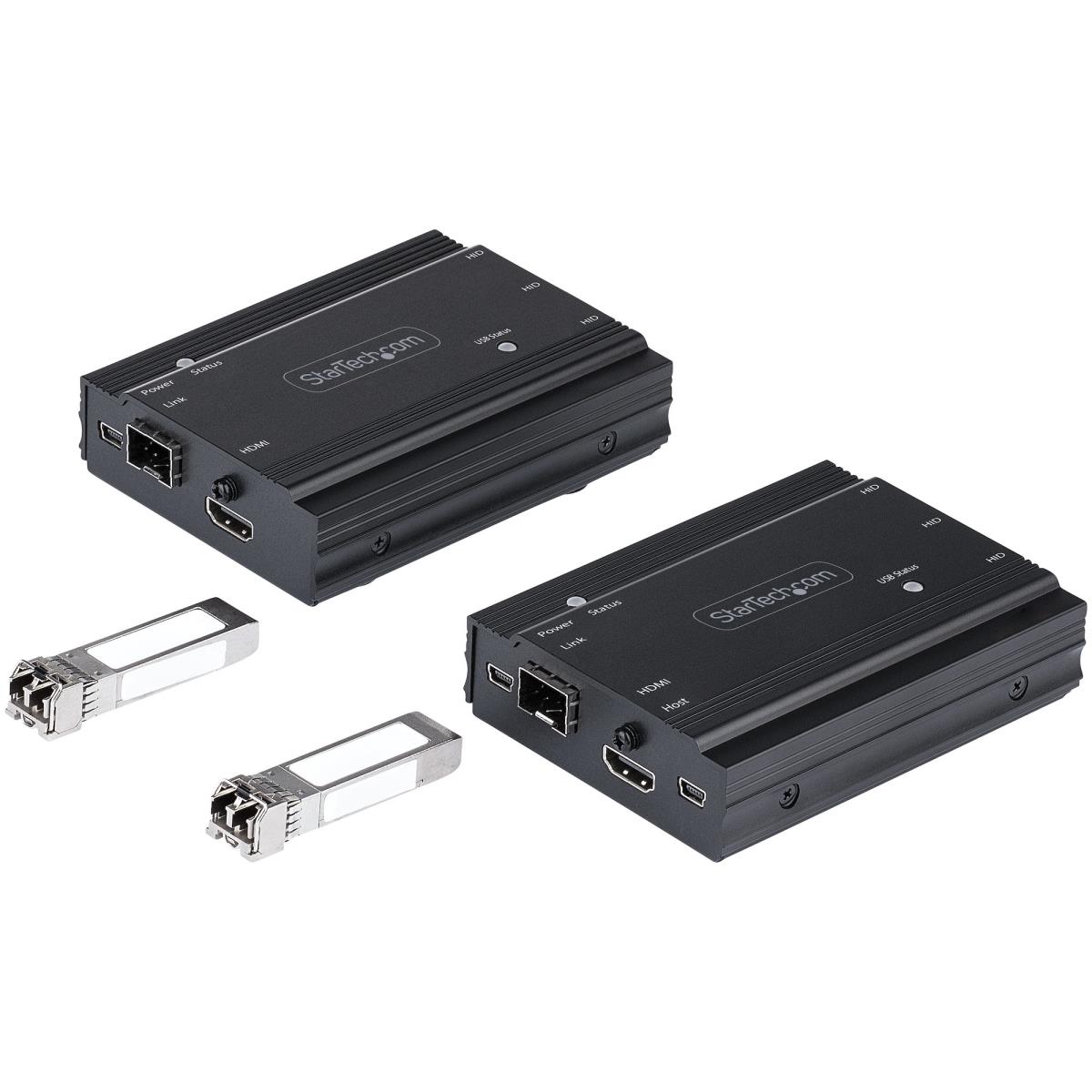

HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) IncludedThe StarTech.com Advantage
Technical details
Weight
500 g
Compliance certificates
CE, RoHS
Harmonized System (HS) code
84733080
Sustainability certificates
CE, RoHS
Features
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
500 m
Rack mounting
N
Maximum digital resolution
3840 x 2160 pixels
Maximum refresh rate
60 Hz
On Screen Display (OSD)
N
Product colour
Black
Material
Metal
USB 1.1 ports quantity
3
LED indicators
Power, Status
Transmitter
Transmitter video port type
HDMI
Number of displays supported
1
Receiver
Receiver local video port type
HDMI
Power
AC input voltage
100 - 240 V
Input current
0.3 A
AC adapter output voltage
5 V
AC adapter output current
2 A
Power consumption (transmitter) (max)
10 W
Power consumption (receiver) (max)
10 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Transmitter width
7.5 cm
Transmitter depth
10 cm
Transmitter height
2.8 cm
Transmitter weight
450 g
Receiver width
7.5 cm
Receiver depth
10 cm
Receiver height
2.8 cm
Receiver weight
450 g
Packaging data
Package width
180 mm
Package depth
310 mm
Package height
75 mm
Package weight
140 g

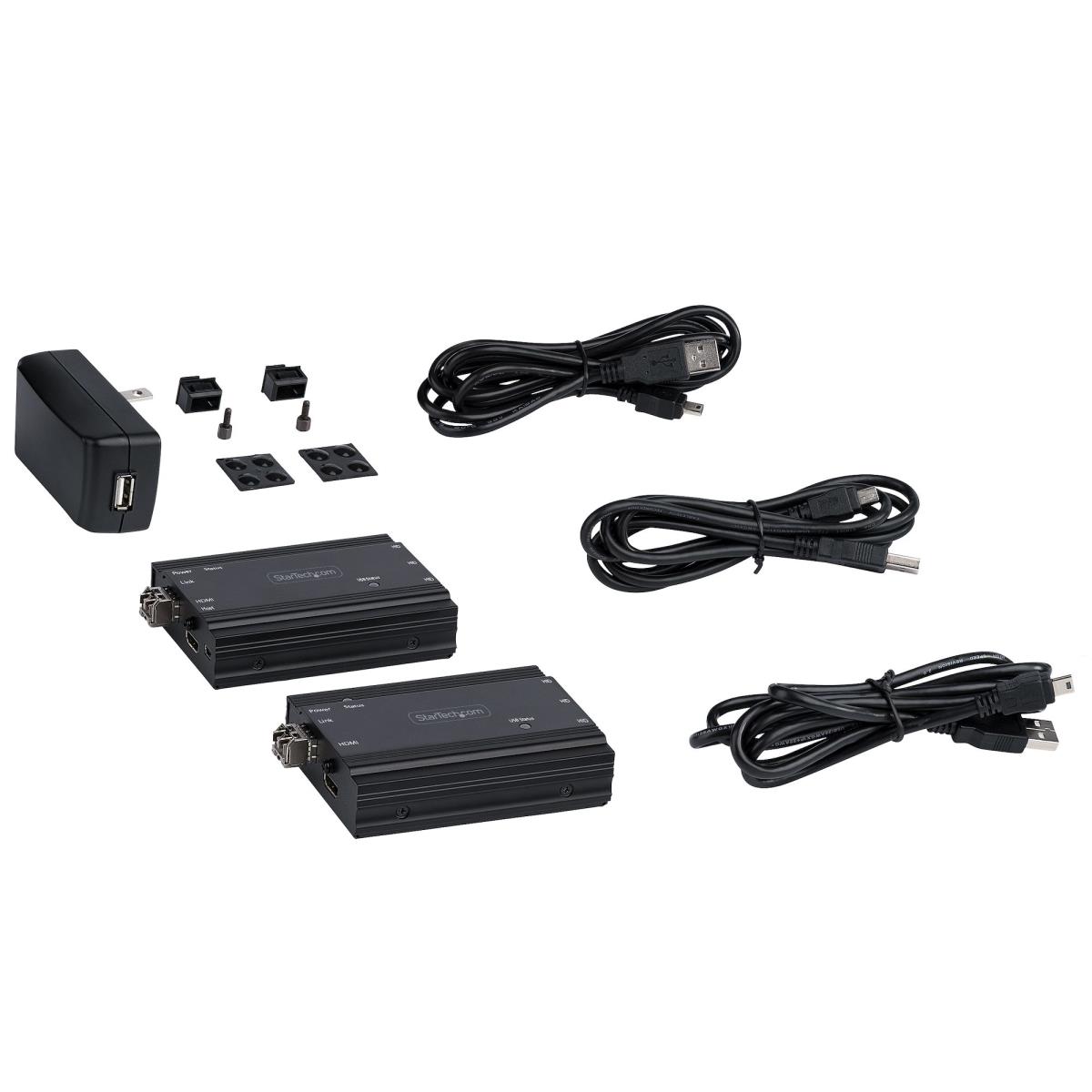

Packaging content
AC adapter included
Y
Cables included
Mini-USB
Quick installation guide
Y
Logistics data
Master (outer) case width
405 mm
Master (outer) case length
330 mm
Master (outer) case height
265 mm
Products per master (outer) case
6 pc(s)
Information
| Part Number: | SV565FXHD4KU |
