STARTECH.COM KVM Switch Kit 8 Port USB Rack Mount With Osd And Cables 1u

£349.72

Part Number: SV831DUSBUK
Delivery: 1 - 2 days

Product Details

Introduction

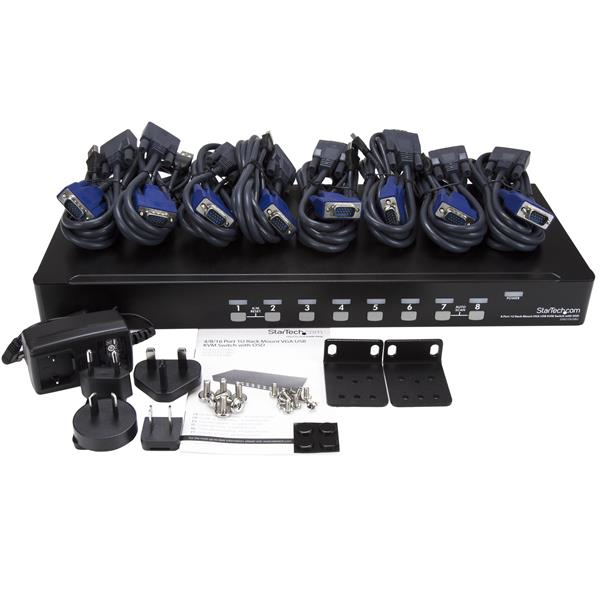

The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.

The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.

A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment

Logistics data

Master (outer) case width 614 mm
Master (outer) case length 290 mm
Master (outer) case height 413 mm
Products per master (outer) case 3 pc(s)
Harmonized System (HS) code 85176200

Sustainability

Compliance certificates RoHS

Ports & interfaces

Number of computers controlled 8
Keyboard port type USB
Mouse port type USB
Video port type VGA
VGA (D-Sub) ports quantity 9
Console ports USB A,VGA (D-Sub)
Console USB ports quantity 2
USB 2.0 ports quantity 2
USB connector type USB Type-A
DC-in jack Y

Performance

Maximum resolution 1920 x 1440 pixels
Maximum analog resolution 1920 x 1440 pixels
Plug and Play Y
Daisy chain Y

Design

Rack mounting Y
Rack capacity 1U
Product colour Black
Housing material Steel
Cascadable Y
LED indicators Power
Hot keys Y
Certification CE, FCC, TAA, REACH

Display

On Screen Display (OSD) Y

Power

AC input voltage 100 - 240 V
Output voltage 12 V
Output current 1 A
Power consumption (typical) 12 W
External power adapter Y
Compatible power plug types AU,EU,UK,US

Operational conditions

Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%

Weight & dimensions

Width 435 mm
Depth 180 mm
Height 45 mm
Weight 2.2 kg

Packaging data

Package width 262 mm
Package depth 606 mm
Package height 121 mm
Package weight 4.7 kg

Packaging content

Cables included KVM
Manual Y
AC adapter included Y
Rack mount kit Y

Other features

Audio support N
IP control N

Technical details

Sustainability certificates RoHS

Information

Part Number: SV831DUSBUK
