Introduction
Use the USB Type-C port on your laptop to add a Gigabit Ethernet port and a USB 3.1 Gen 1 (type-A) port
Now, you can easily connect to a Gigabit network through the USB-C or Thunderbolt 3 port on your laptop or desktop computer, and add connectivity for an additional USB (Type-A) peripheral device. It's a great companion for your MacBook, Chromebook Pixel, Dell XPS 12, Dell Latitude 12 7000 Series 2-in-1 or other devices.
Powerful Gigabit network connections
The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1 (5 Gbps). You can quickly access very large files over the network at Gigabit speed.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS and Windows 8.1, and supports Mac OSX (10.10) with driver installation.
Trouble-free connections through USB-Type-C

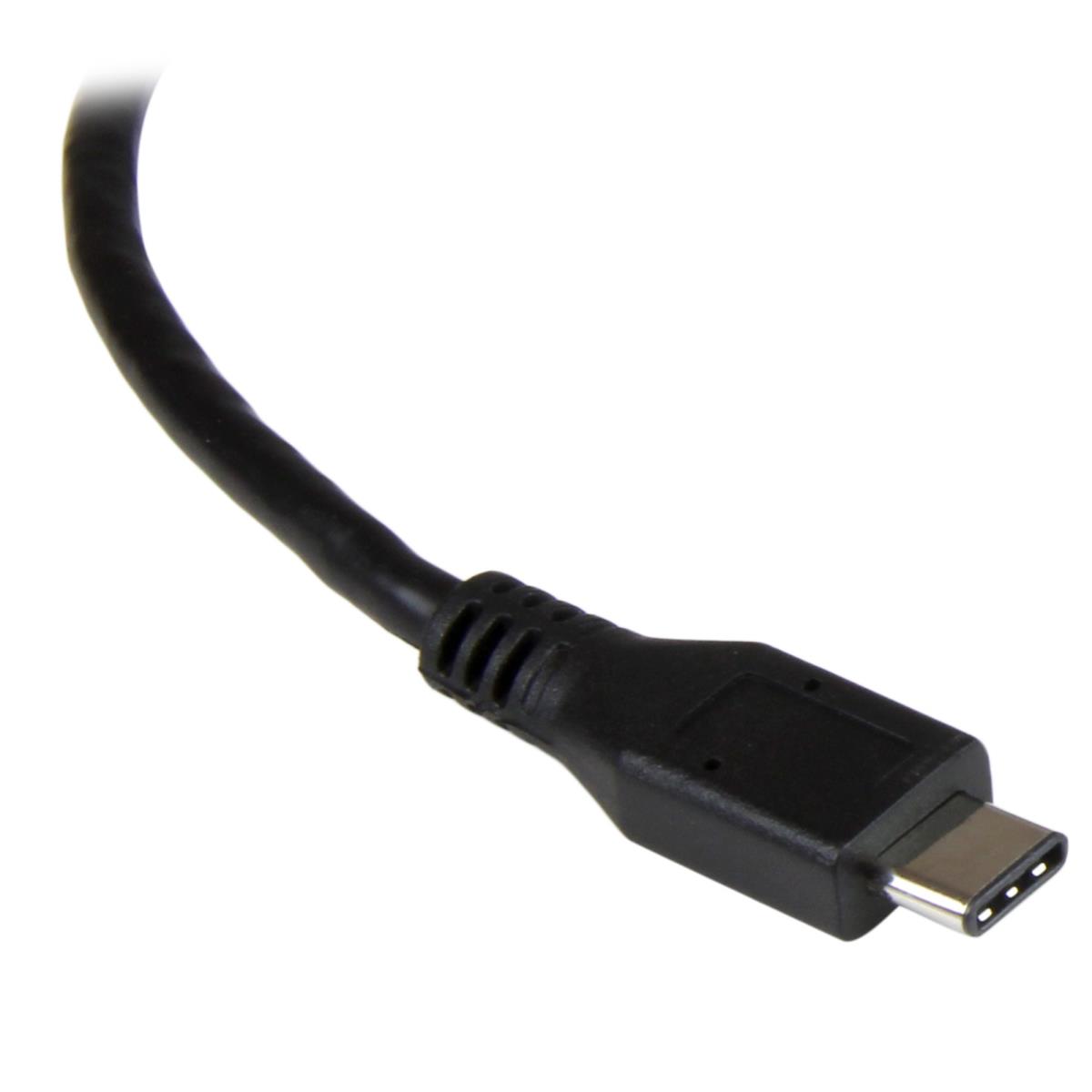

The USB-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.
With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel. The network adapter is bus-powered which makes it easy to connect when you're on the go.

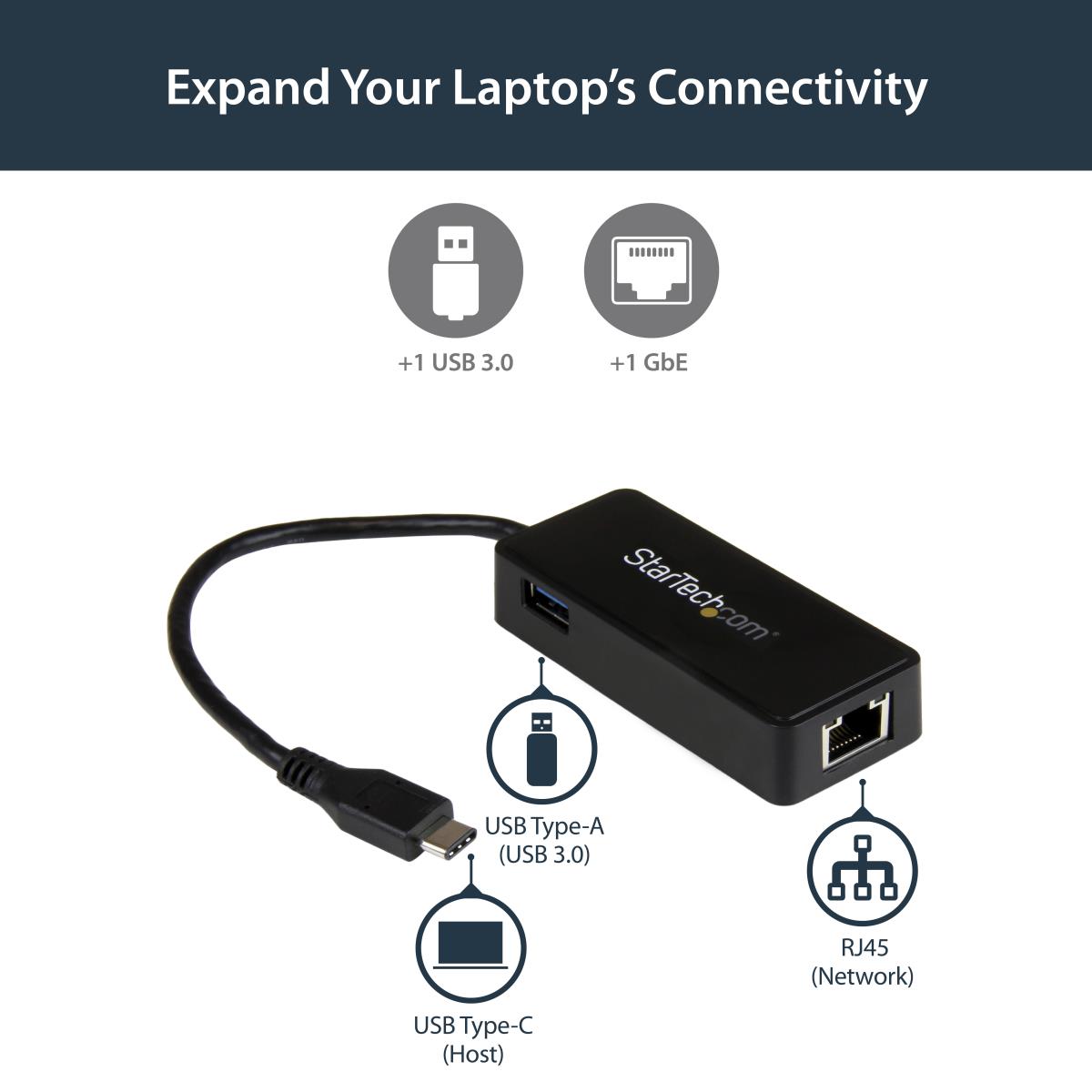

Additional connectivity with an extra USB 3.1 port
Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.
The US1GC301AU is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Add a Gigabit Ethernet network connection to your computer through a USB Type-C port
- Works with the newest MacBook, Chromebook Pixeland other laptop and desktop computers with a USB-C port
- Thunderbolt 3 port compatible
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
595 mm
Master (outer) case length
316 mm
Master (outer) case height
373 mm
Products per master (outer) case
80 pc(s)
Technical details
Compliance certificates
CE, RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
USB
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
1
USB version
3.2 Gen 2 (3.1 Gen 2)
USB pass-through
Y
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
4000
VLAN tagging
Y
Design
Product colour
Black
Internal
N
Chipset
ASIX - AX88179, VIA/VLI - VL812
LED indicators
Activity, Link
Certification
CE, FCC
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
5 - 80%

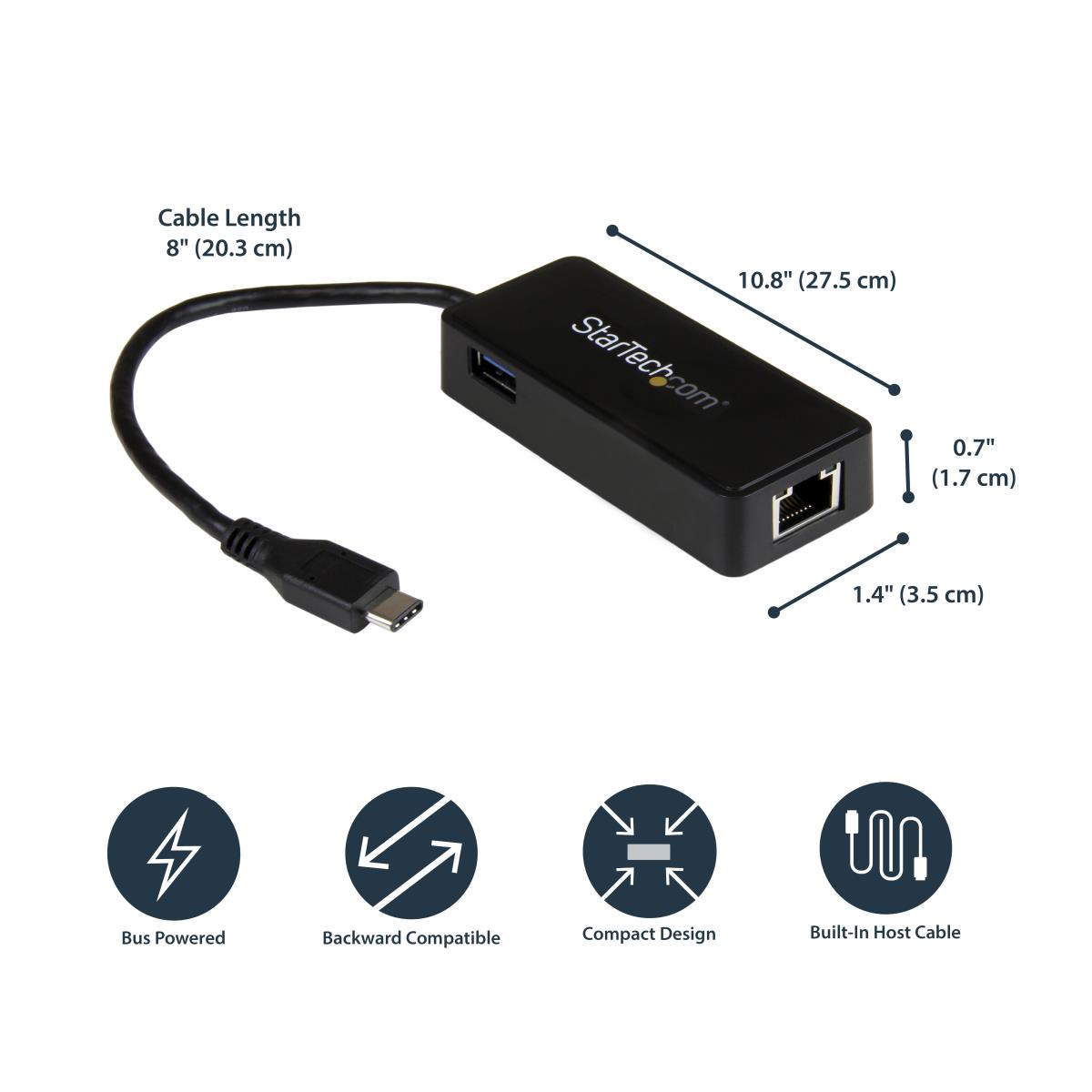

Weight & dimensions
Width
35 mm
Depth
275 mm
Height
17 mm
Weight
38 g
Packaging data
Package width
143 mm
Package depth
170 mm
Package height
30 mm
Package weight
92 g
