Introduction
Now, you can add wired network access through the USB-CT or ThunderboltT 3 port on your laptop or desktop computer, and connect to your USB 3.0 (Type A) devices with ease. This Gigabit Ethernet network adapter gives you access to two reliable GbE ports, and without having to install drivers. It's a great companion for your MacBook, Chromebook PixelT, DellT XPST 12, Dell LatitudeT 12 7000 Series 2-in-1 or another device that has a USB Type-CT port.
Powerful Gigabit network connections
The network adapter leverages the 5Gbps speed of USB 3.0 (also known as USB 3.1 Gen 1) to deliver the full bandwidth of your Gigabit network connection, without bottlenecks. This saves you time by making it easier to access very large files over your network at Gigabit speed.
For added versatility, the network adapter supports a range of convenient features, such as Wake-On-LAN, VLAN Tagging, Crossover Detection and Auto-Correction (Auto MDIX), Checksum Offload (IPv4, IPv6, TCP, UDP), and Large Send Offload.

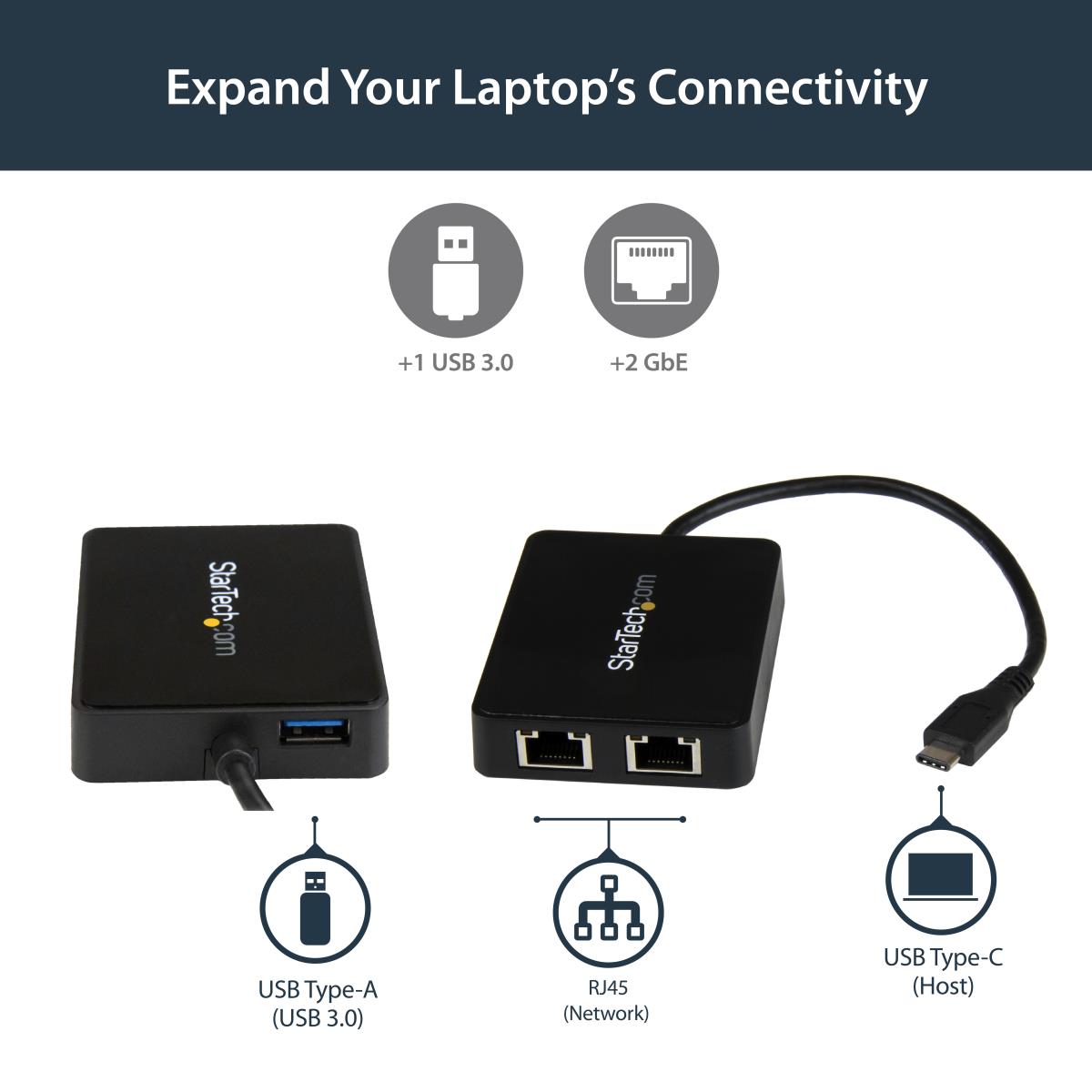

Add connectivity to your USB devices
Some computers with USB Type-C only offer one USB-C port for external connectivity, which will not connect with your existing USB Type-A devices. This Gigabit adapter features an integrated USB 3.0 Type-A port, so while the adapter is connected to your computer to provide network access, you can also connect to USB peripherals that need a USB Type-A connector. The network adapter is also backward compatible with USB 2.0 systems.
Native driver support makes installation easy
Get up and running quickly. The network adapter provides native driver support to ensure a quick setup. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset offers native driver support in Chrome OST and Windows® 8.1, and supports Mac OSX (10.10) with driver installation.

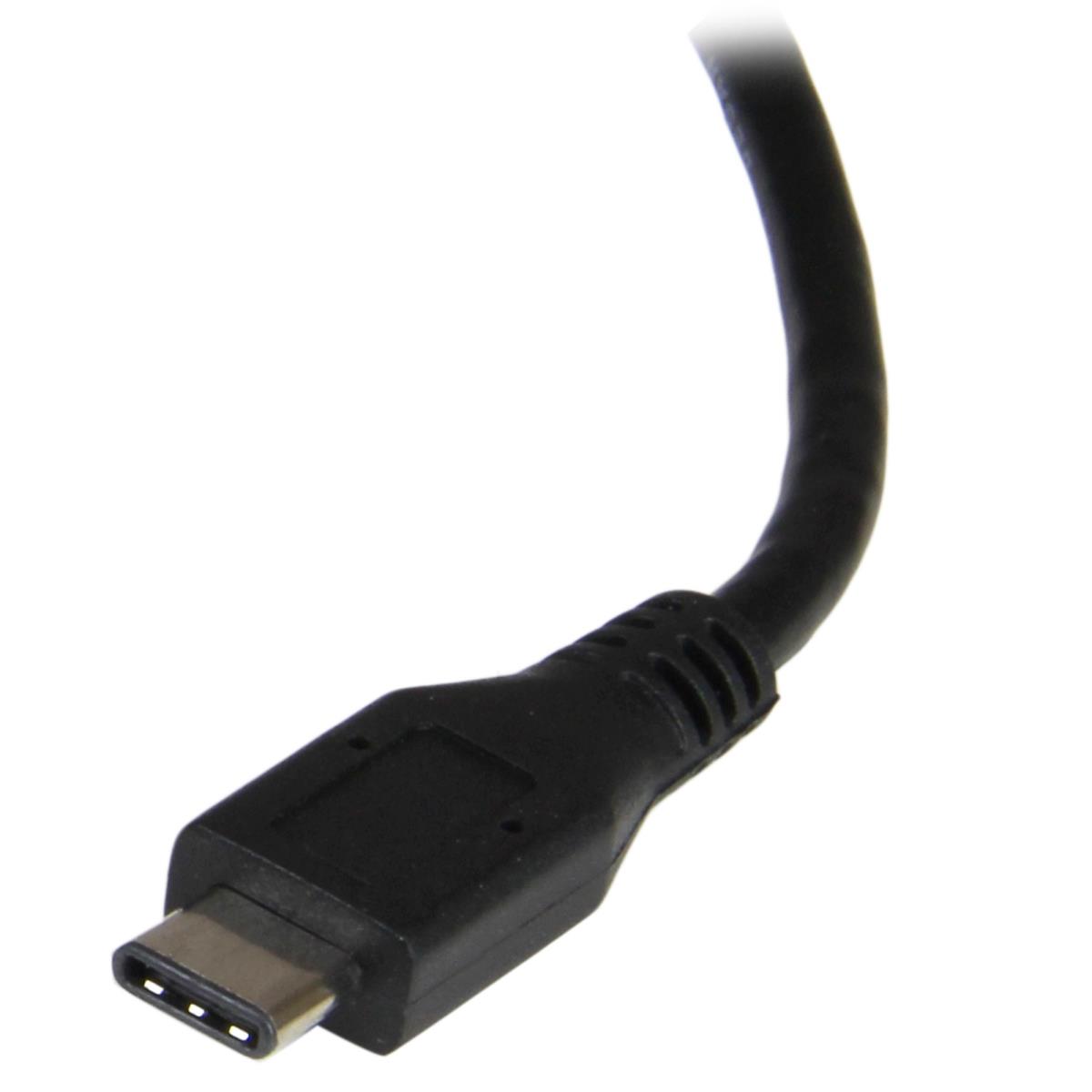

Trouble-free connections through USB-Type-C
The USB Type-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug, so you can connect to your devices with either side facing up. You can insert the cable the right way every time, without frustration or the risk of port damage.
The US1GC301AU2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
451 mm
Master (outer) case length
382 mm
Master (outer) case height
329 mm
Products per master (outer) case
40 pc(s)
Technical details
Compliance certificates
CE, RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
RJ-45
Interface
USB
Ethernet LAN (RJ-45) ports
2
USB ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
1
USB version
3.2 Gen 1 (3.1 Gen 1)
USB pass-through
Y
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Cable length
0.1 m
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
4000
Design
Product colour
Black
Internal
N
Chipset
VIA VL812 + ASIX AX88179
LED indicators
Activity, Link
Certification
CE, FCC
Power
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
60 mm
Depth
75 mm
Height
16 mm
Weight
54 g
Packaging data
Package width
172 mm
Package depth
144 mm
Package height
30 mm
Package weight
100 g
