Introduction

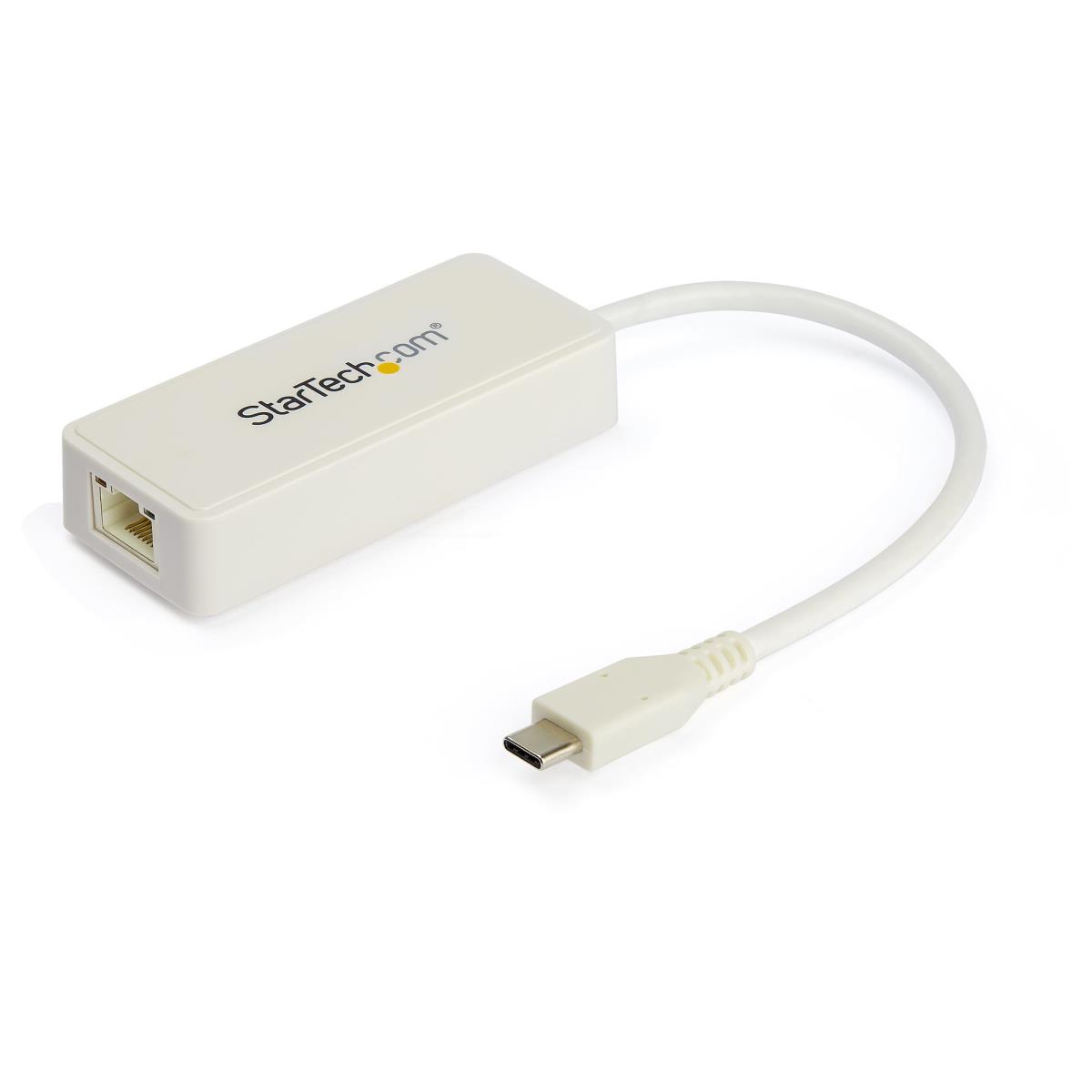

USB-C to Network Adapter | 10/100/1000Mbps | Thunderbolt 3 Compatible | RJ45
This USB-C Ethernet adapter connects you to a Gigabit network through the USB-C or Thunderbolt 3 port on your laptop or desktop computer and adds connectivity for an additional USB (Type-A) peripheral device. It's a great companion for your MacBook, Chromebook or Windows laptop with an available USB-C port.
Powerful Gigabit Network Connections
The USB-C network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1. You can quickly access very large files over the network at Gigabit speed.
Native Driver Support Makes Installation Easy
Get up and running quickly. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset provides native driver support in Chrome OS, Windows, and macOS.
Trouble-Free Connections Through USB-Type-C

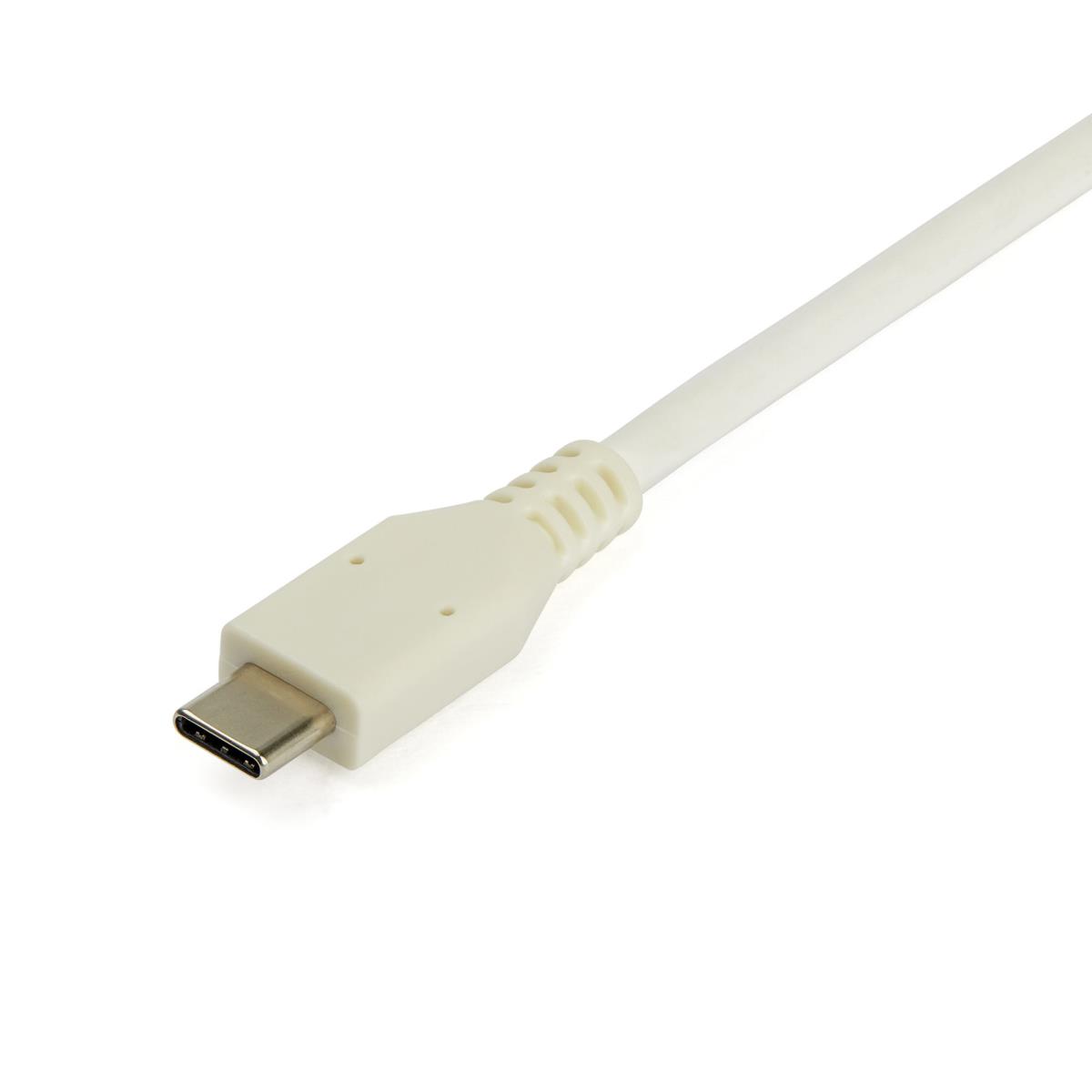

The USB-C connector is smaller and easier to use than previous USB connectors. It's a reversible plug so you can connect to your devices with either side facing up, without frustration or the risk of port damage.
With a compact design, this USB-C network adapter is as portable as your laptop, perfect for ultra-portable devices that have a USB-C port, such as the MacBook and Chromebook Pixel. The network adapter is bus-powered which makes it easy to connect when you're on the go.
Additional Connectivity With an Extra USB 3.1 port

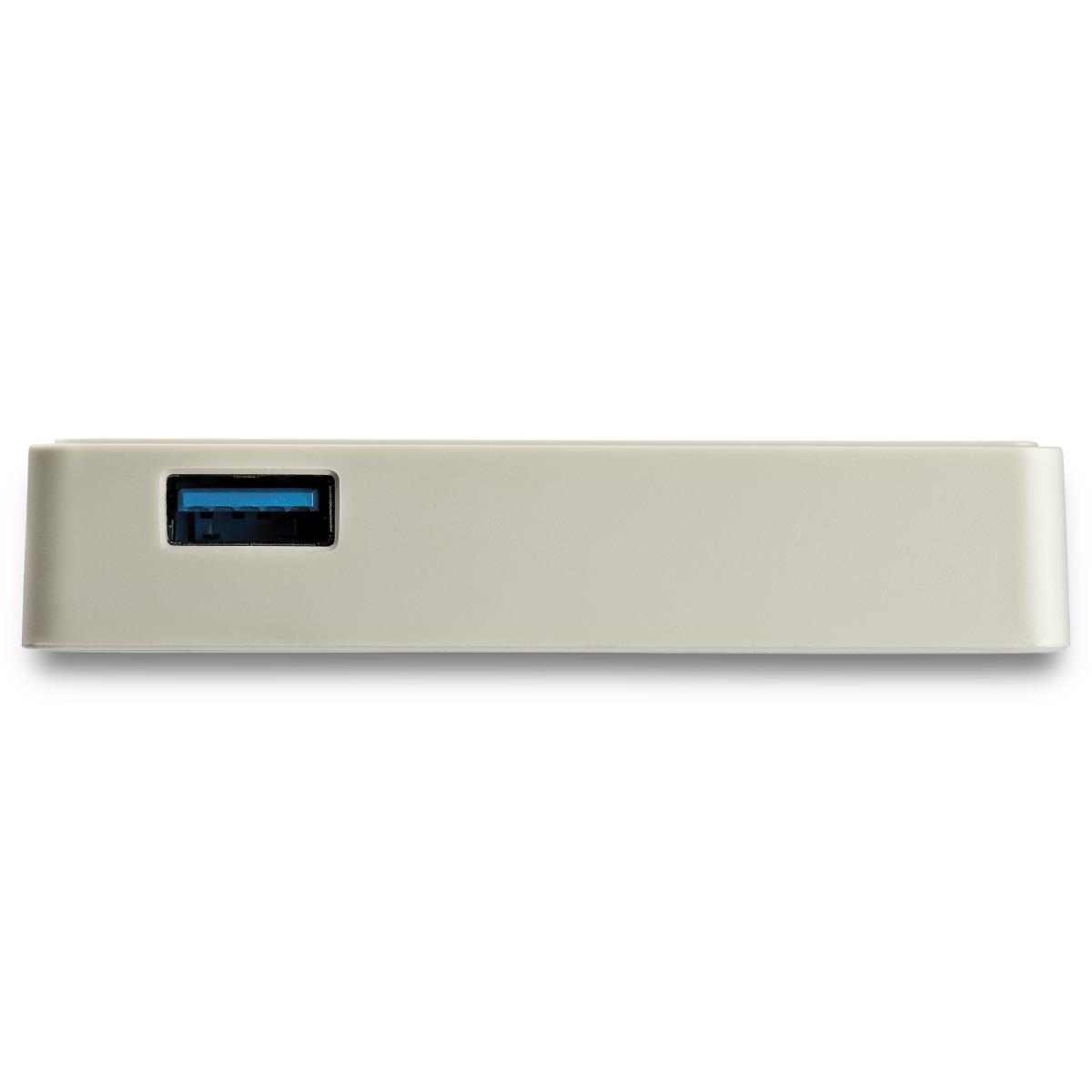

Some computers with USB Type-C only offer one port for external connectivity. This Ethernet adapter features a built-in USB Type-A port, giving you the freedom to attach an additional peripheral device, such as a USB mouse.
The US1GC301AUW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- SECURE WIRED CONNECTIVITY: Portable USB C to Gigabit Ethernet Adapter allows you to connect to GbE Network from USB-C/Thunderbolt 3 Laptop incl. MacBook/MacBook Pro, Surface/Surface Book, & Chromebook
- EXTRA USB 3.0/3.1 PORT: USB-C to Ethernet and USB Adapter adds a RJ45 Ethernet Port for wired LAN access and an additional open USB Type-A Port for connecting another peripheral device
- USB-C or TB3
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Technical details
Compliance certificates
CE, RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
USB Type-C
Interface
Ethernet

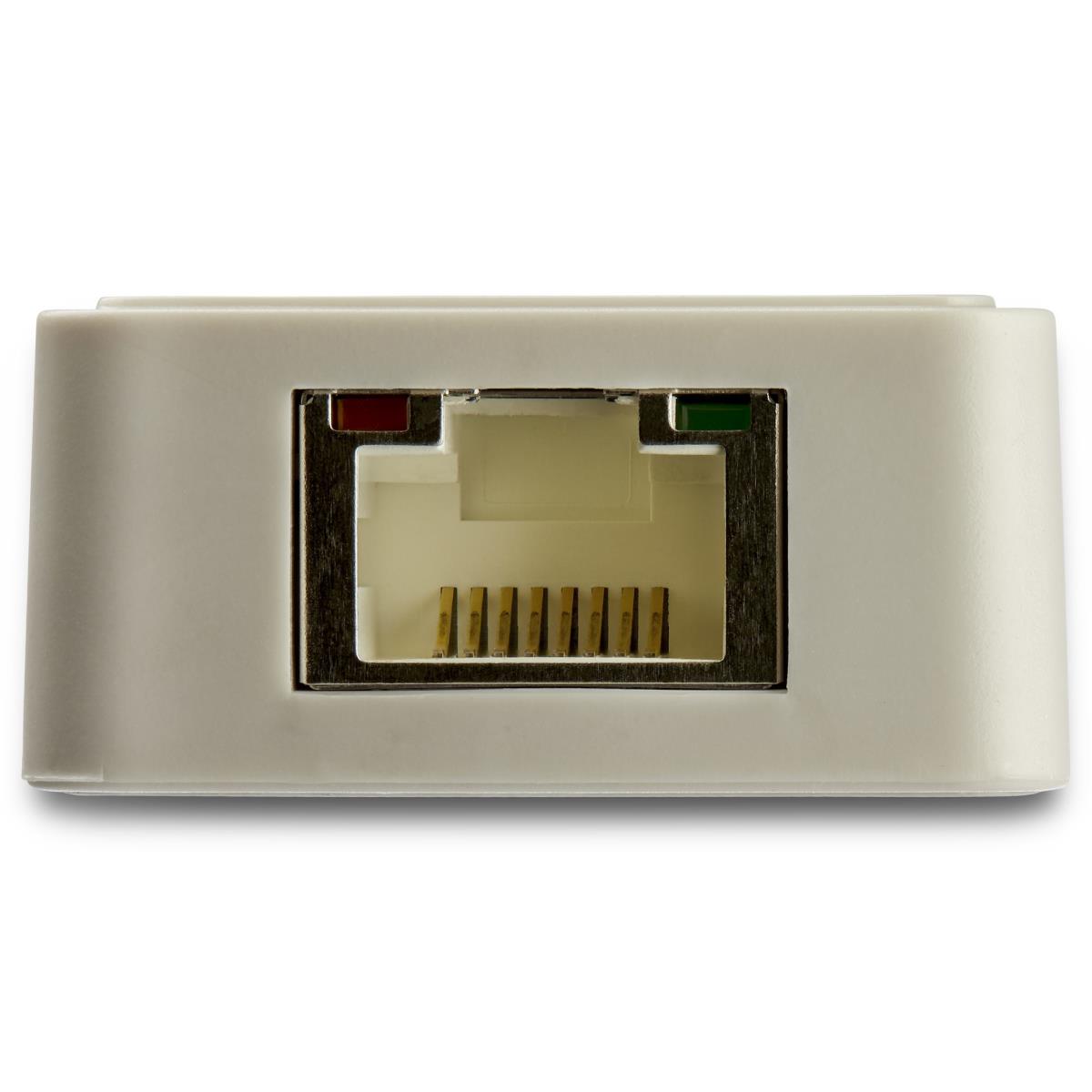

Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
USB version
3.2 Gen 1 (3.1 Gen 1)
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Cable length
0.203 m
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
9000
VLAN tagging
Y
Design
Component for
PC/notebook
Product colour
White
Internal
N
Chipset
Realtek RTL8153, VLI VL817
LED indicators
Y
Certification
CE, FCC, REACH
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
5 - 80%
Weight & dimensions
Width
35 mm
Depth
275 mm
Height
17 mm
Weight
38 g
Packaging data
Package width
143 mm
Package depth
170 mm
Package height
30 mm
Package weight
100 g
Logistics data
Master (outer) case width
322 mm
Master (outer) case length
586 mm
Master (outer) case height
365 mm
Products per master (outer) case
80 pc(s)
