Product Details
Introduction
USB-C Network Adapter | 10/100/1000Mbps | ThunderboltT 3 Compatible | RJ45The StarTech.com Advantage
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
USB
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
USB version
3.2 Gen 1 (3.1 Gen 1)
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Y
Auto MDIX IEEE
Y
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
9000
VLAN tagging
Y
Design
Product colour
Black
Internal
N
Chipset
Realtek - RTL8153
Certification
CE, FCC, REACH
Power
USB powered
Y
System requirements
Windows operating systems supported
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions

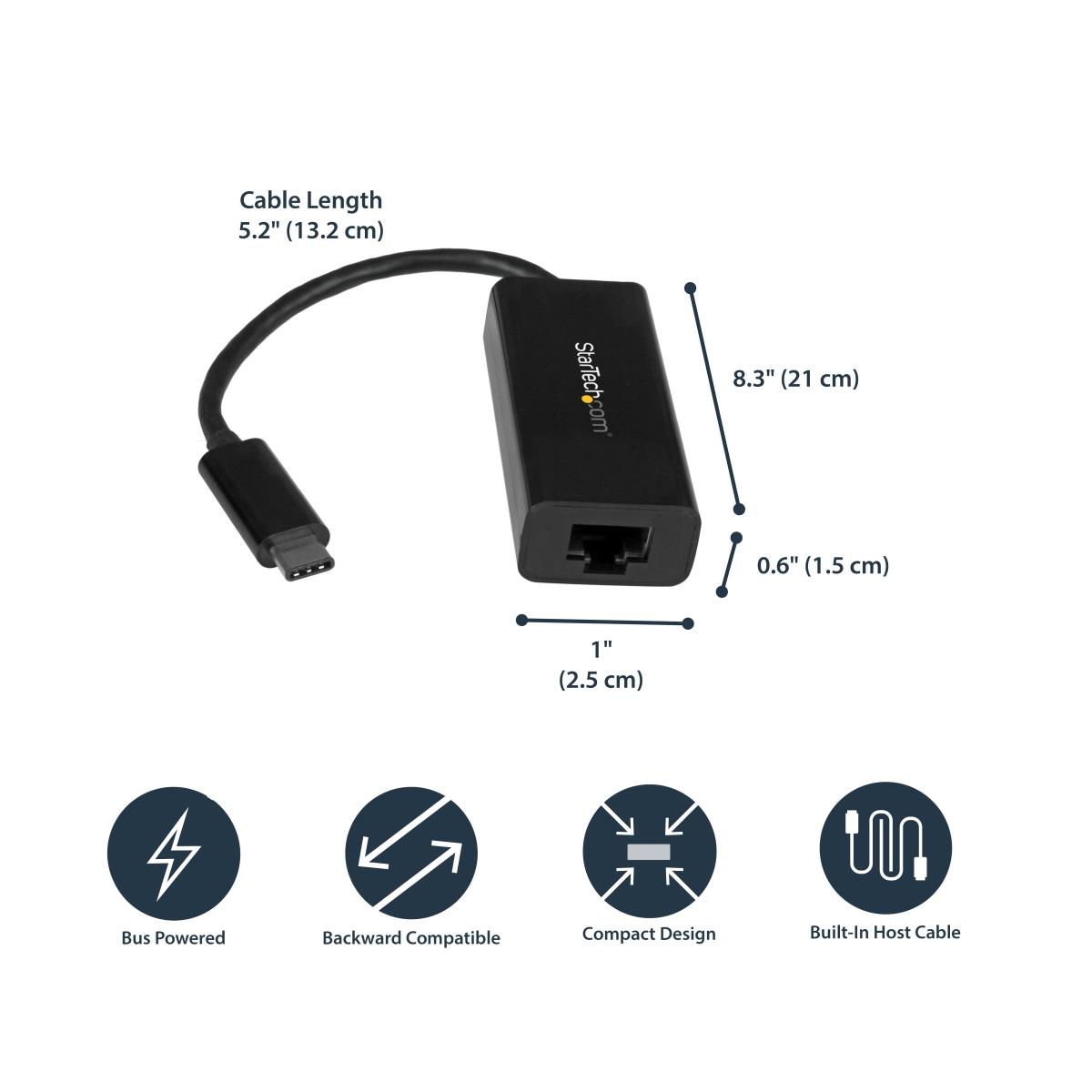

Width
25 mm
Depth
210 mm
Height
15 mm
Weight
22 g
Packaging data
Package width
171 mm
Package depth
145 mm
Package height
30 mm
Package weight
100 g
Logistics data
Master (outer) case width
339 mm
Master (outer) case length
526 mm
Master (outer) case height
313 mm
Products per master (outer) case
60 pc(s)
Information
| Part Number: | US1GC30B |
