Introduction

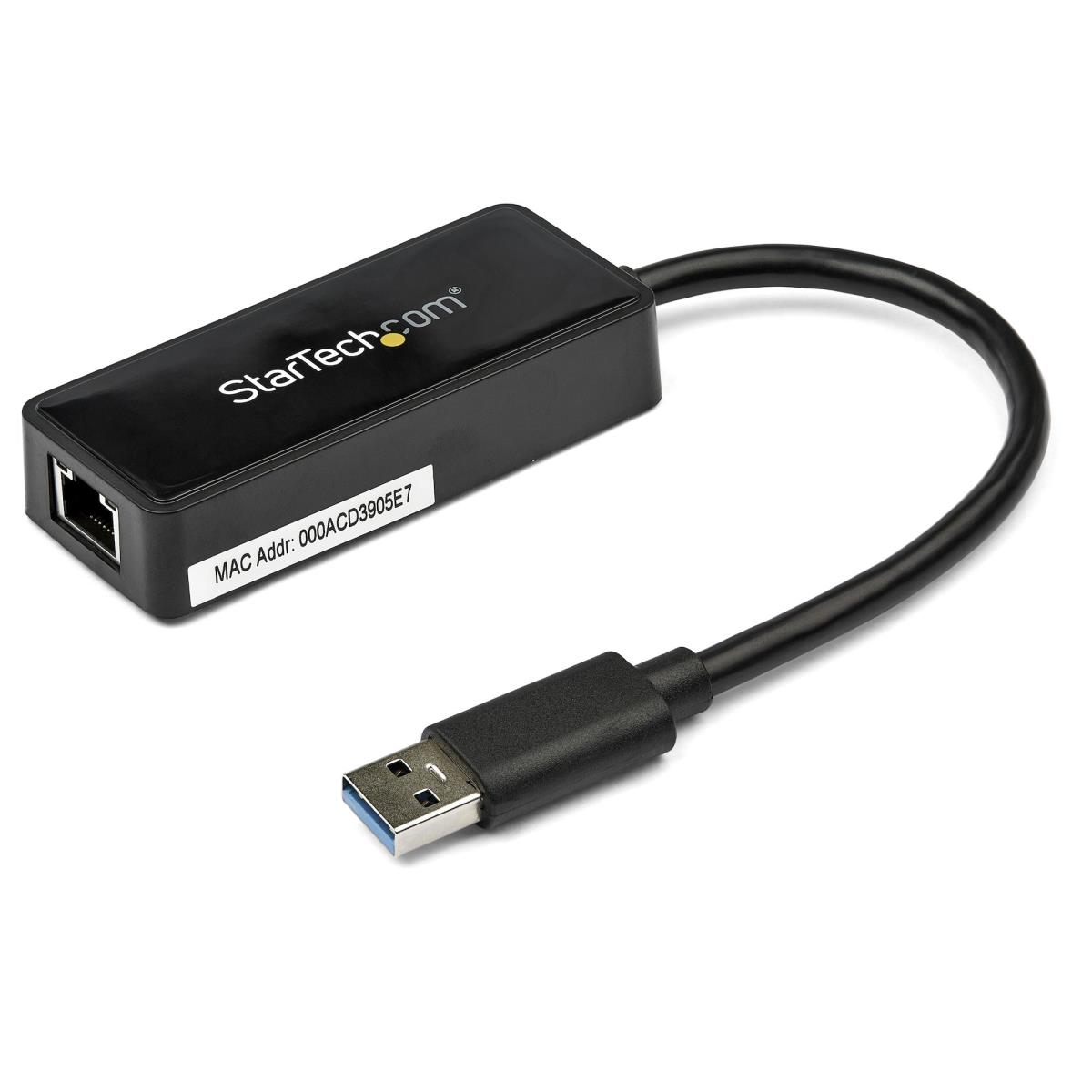

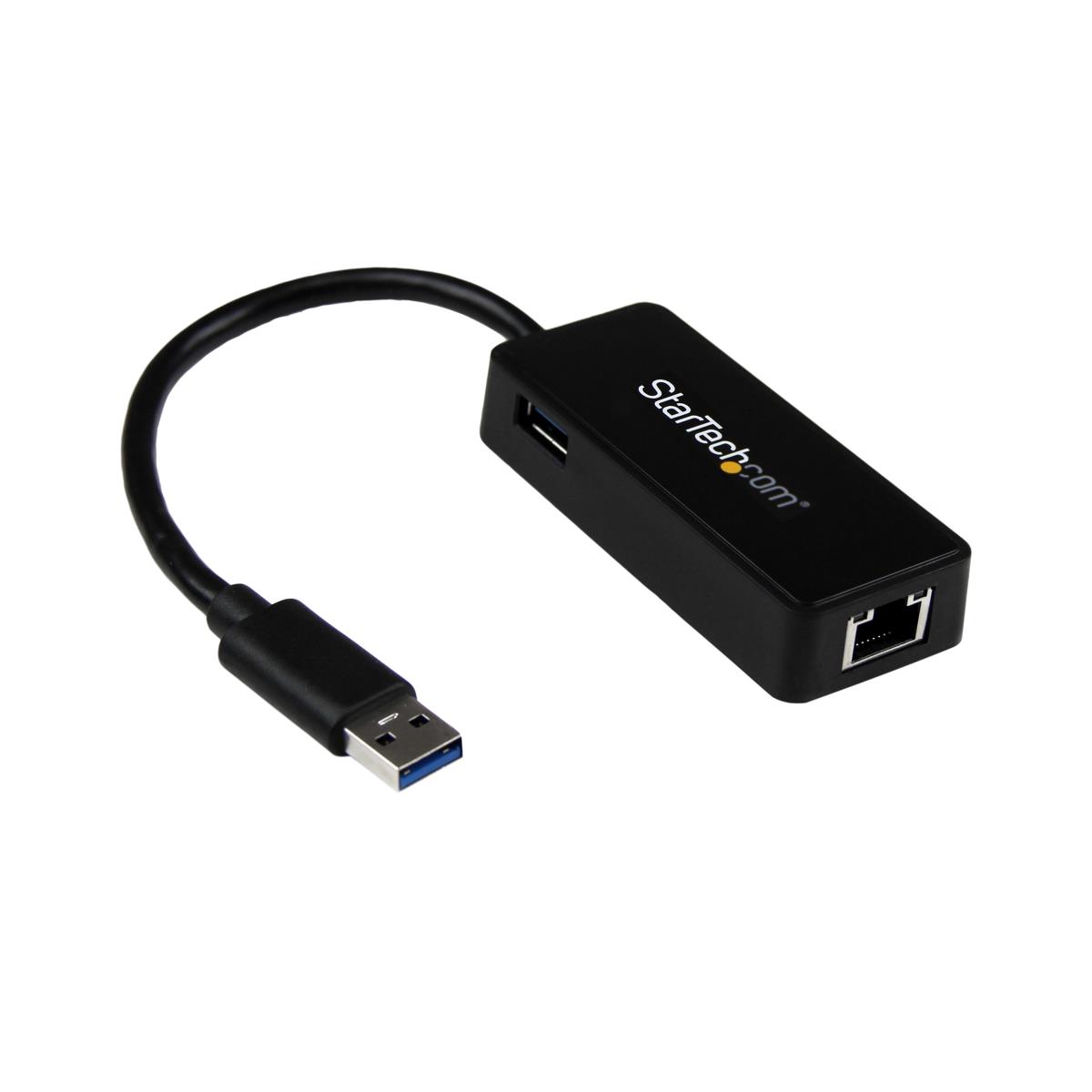

The USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your laptop or UltrabookT computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards. The network adapter is the ideal laptop accessory for your Microsoft SurfaceT Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.
An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).
The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.
The StarTech.com Advantage
- Full Gigabit bandwidth support through a USB 3.0 host connection

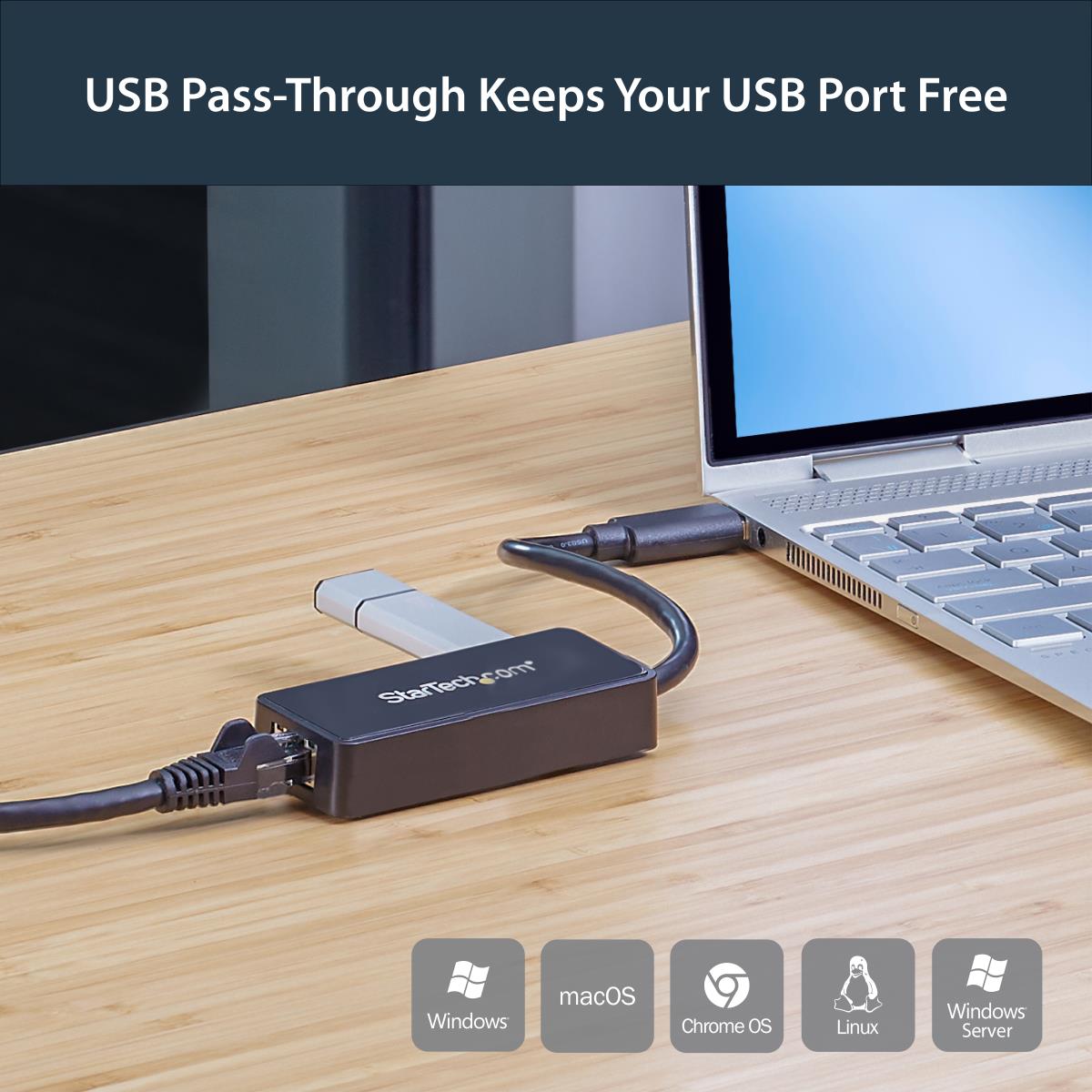

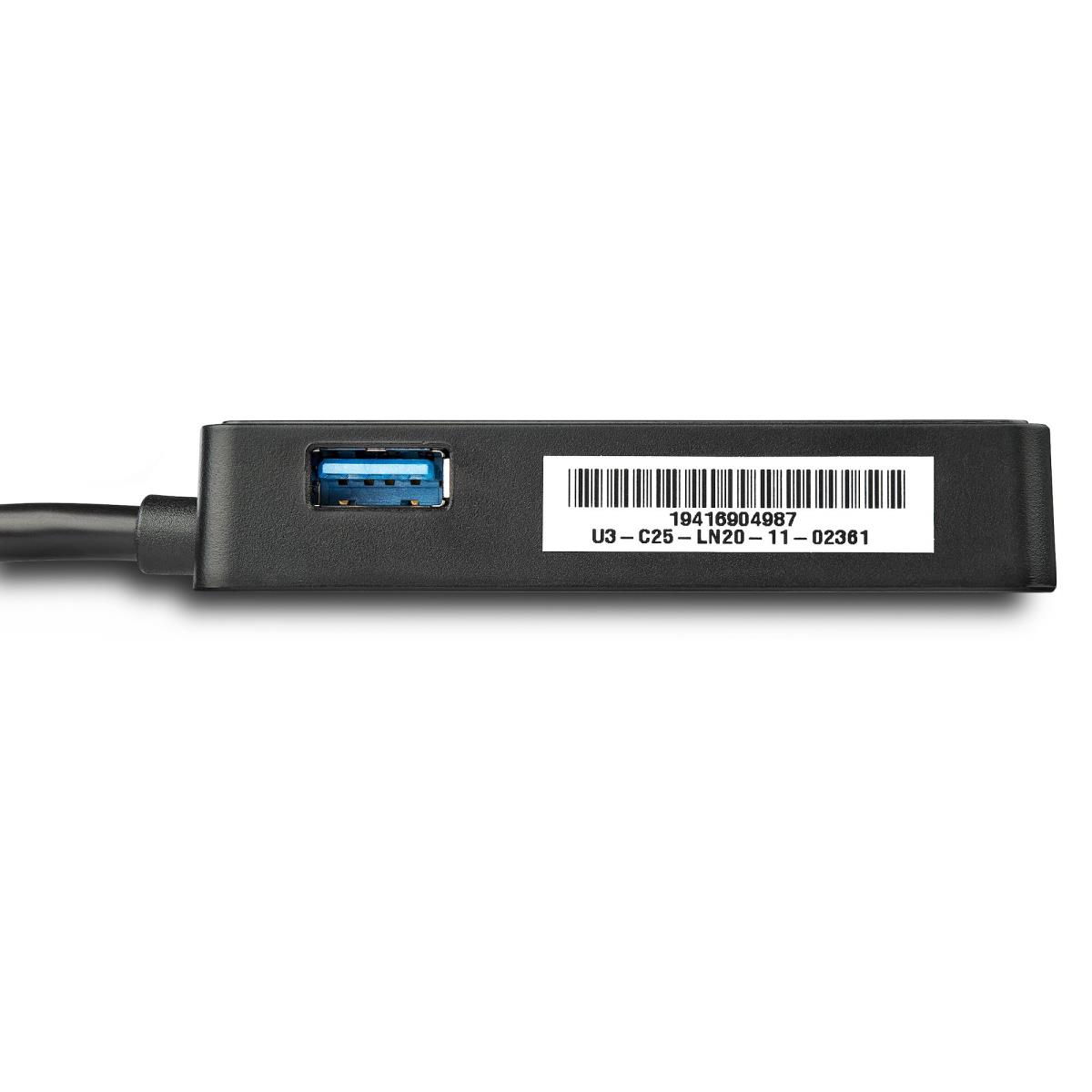

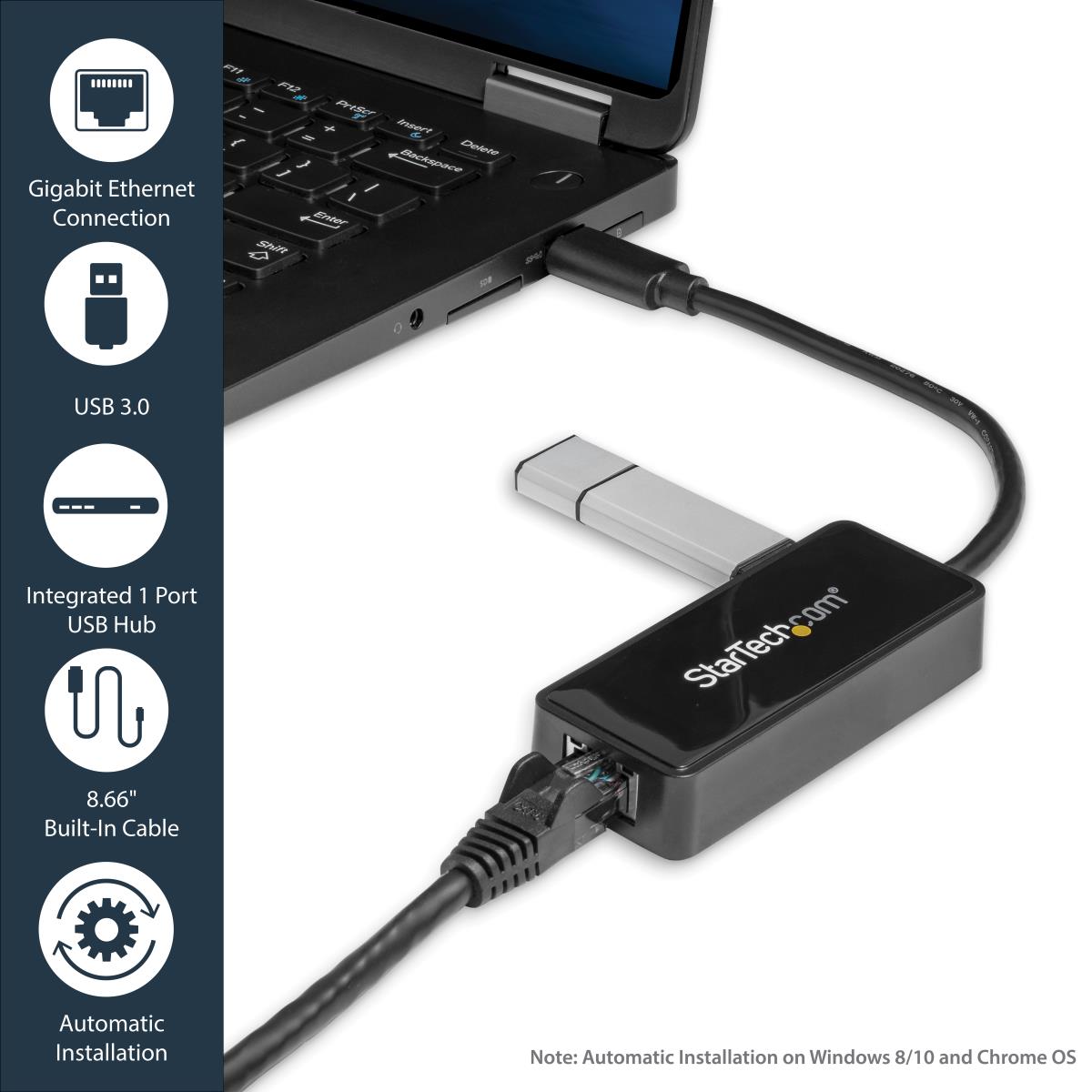

- Conserve available USB 3.0 ports with USB pass-through
- Take the adapter anywhere with a portable, USB-powered design
Technical details
Compliance certificates
CE, RoHS
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
4000
VLAN tagging
Y
Maximum operating distance
100 m
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
592 mm
Master (outer) case height
360 mm
Products per master (outer) case
80 pc(s)
Ports & interfaces
Connectivity technology
Wired
Host interface
USB
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
USB version
3.2 Gen 1 (3.1 Gen 1)
Other features
Harmonized System (HS) code
85176990
USB data transfer rates
5000 Mbit/s
Design
Product colour
Black
Internal
N
Chipset
ASIX - AX88179, VIA - VL811
Plug and Play
Y

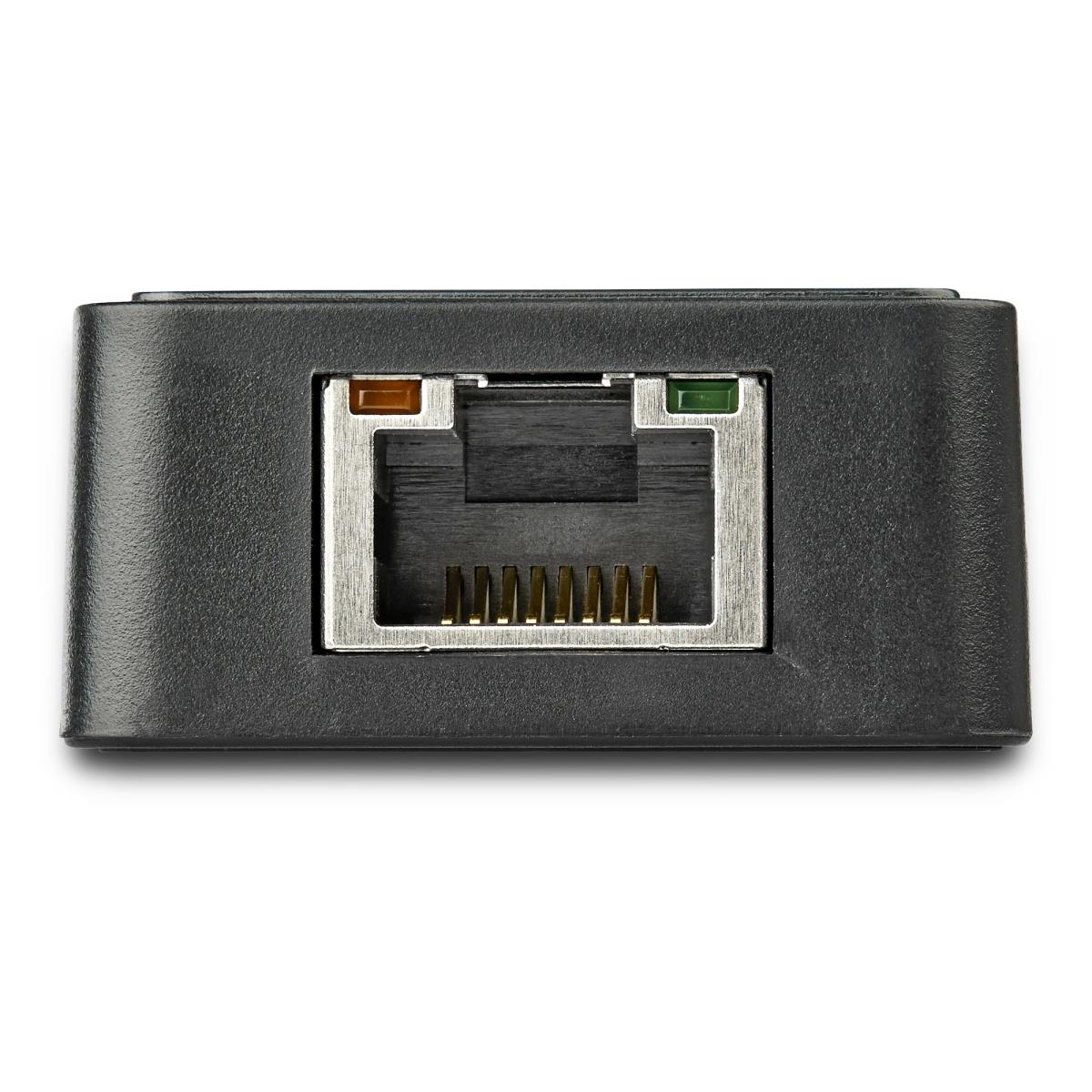

LED indicators
Activity, Link
Certification
CE, FCC, REACH
Power
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%

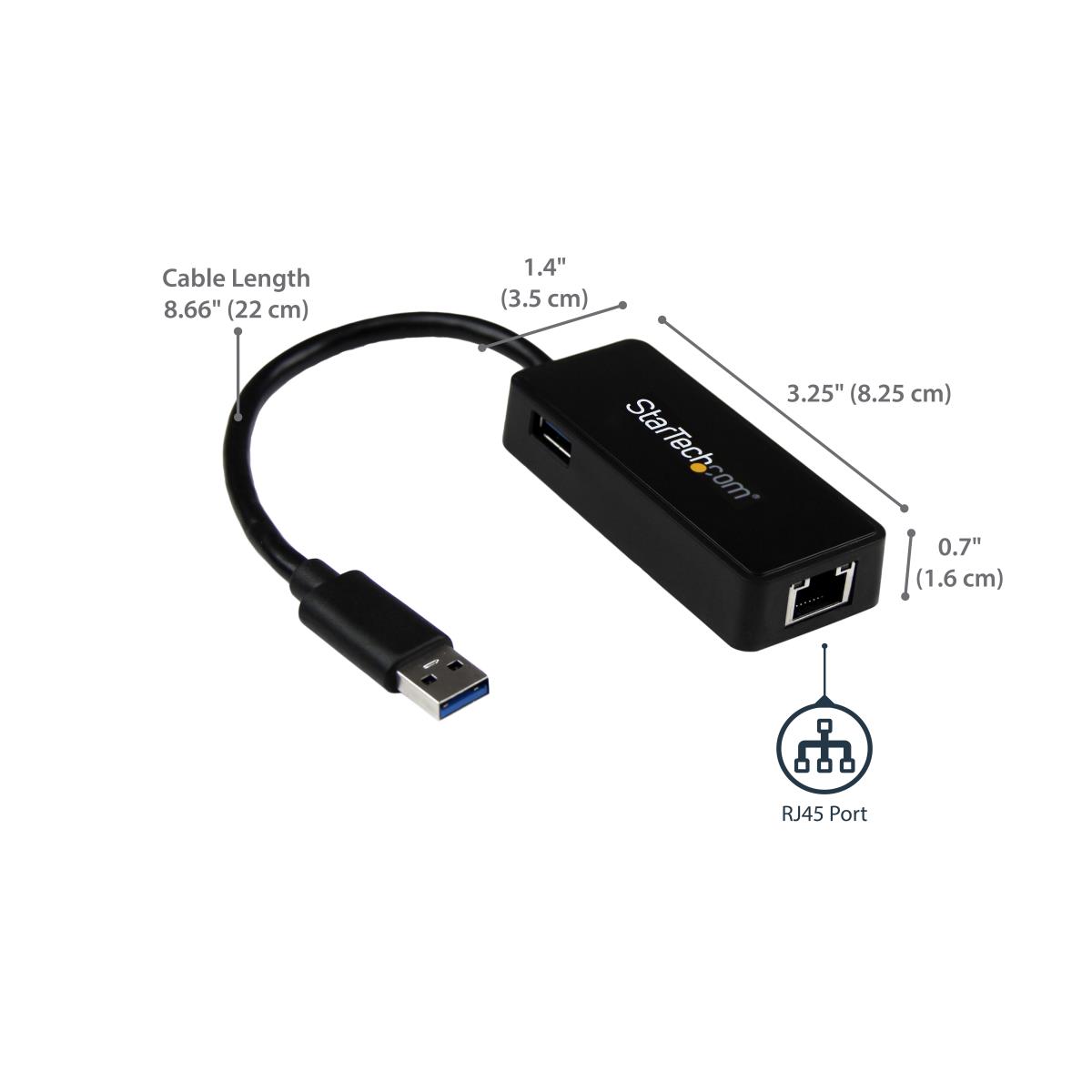

Weight & dimensions
Width
35 mm
Depth
126 mm
Height
17 mm
Weight
44 g
Packaging data
Drivers included
Y
Package width
172 mm
Package depth
145 mm
Package height
30 mm
Package weight
132 g

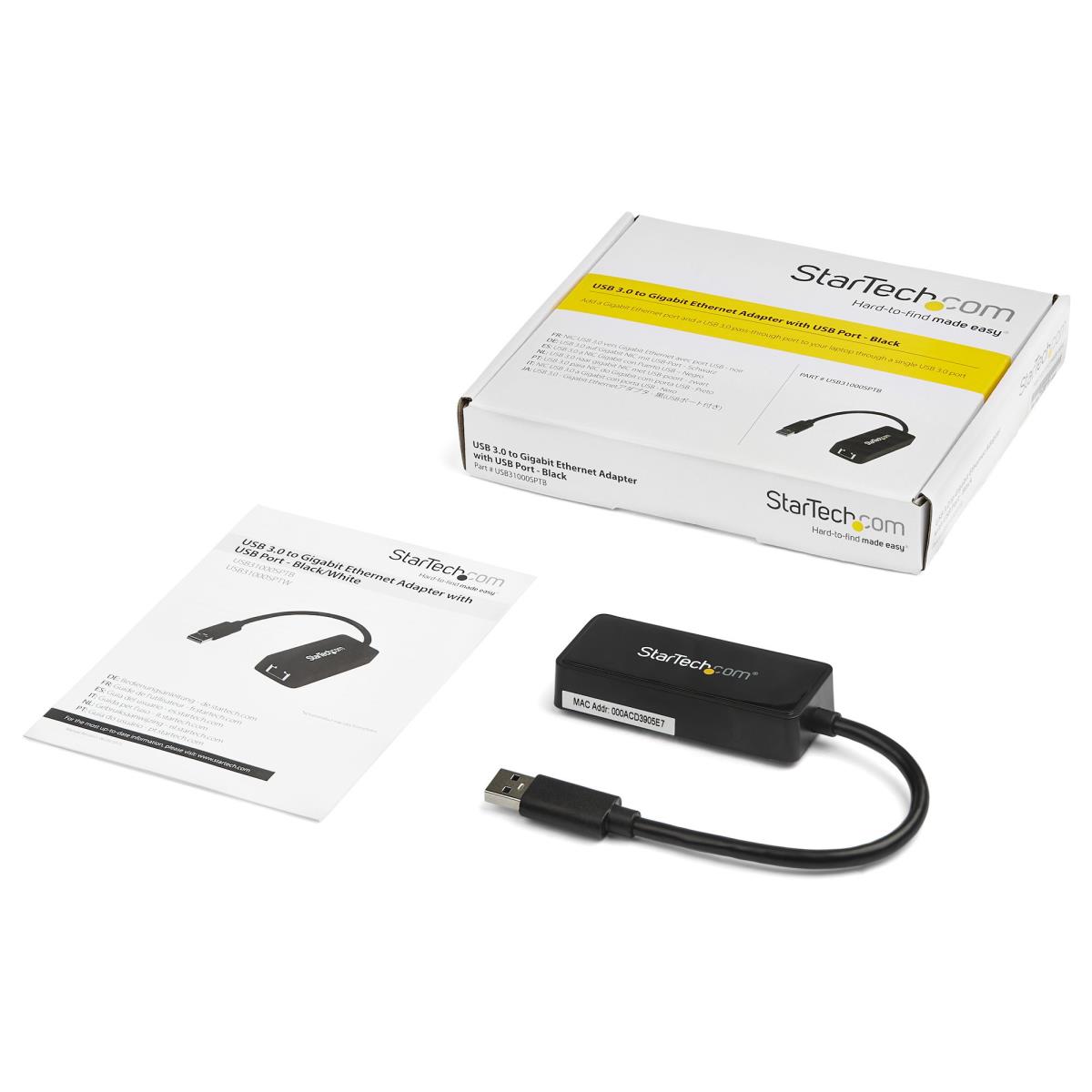

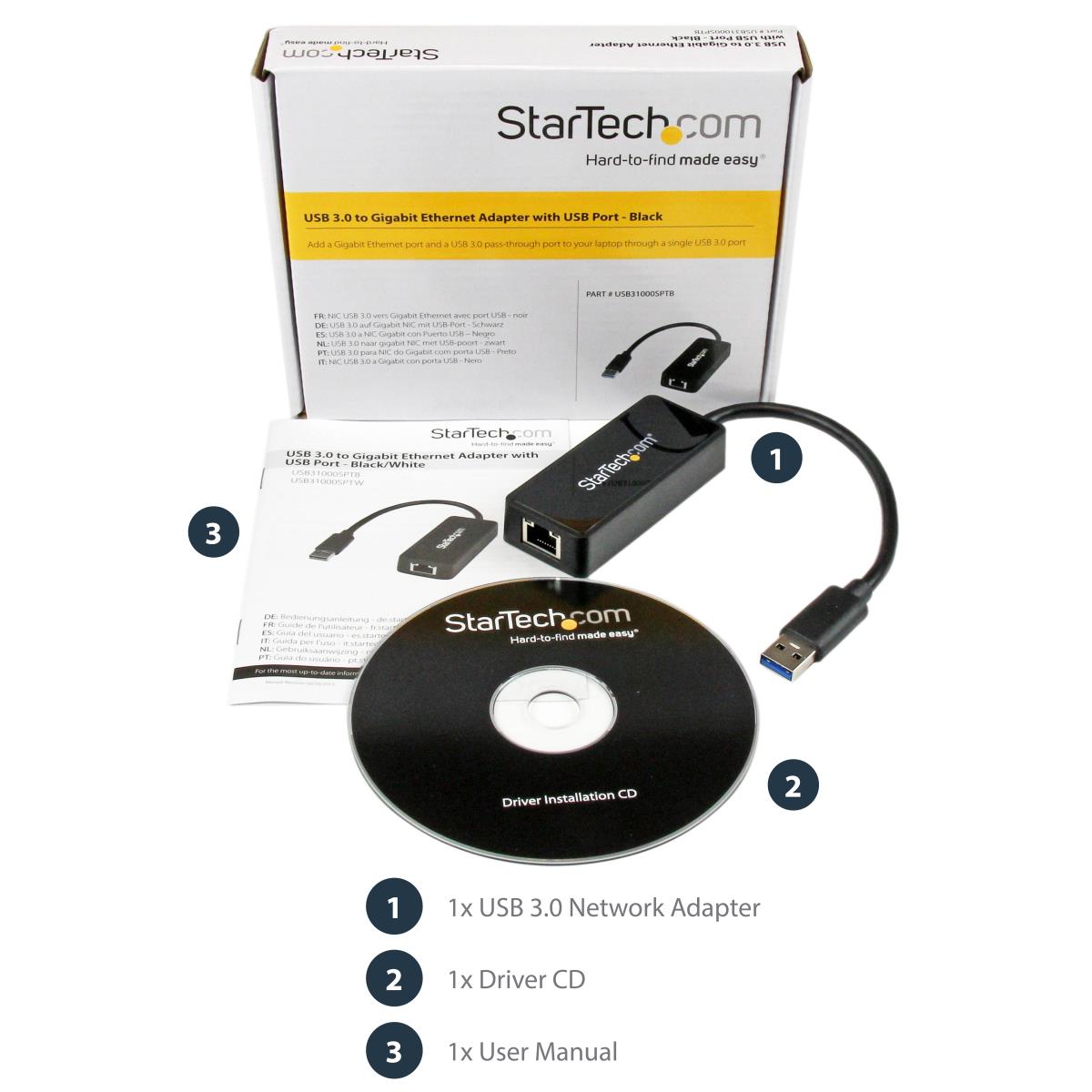

Packaging content
