Introduction

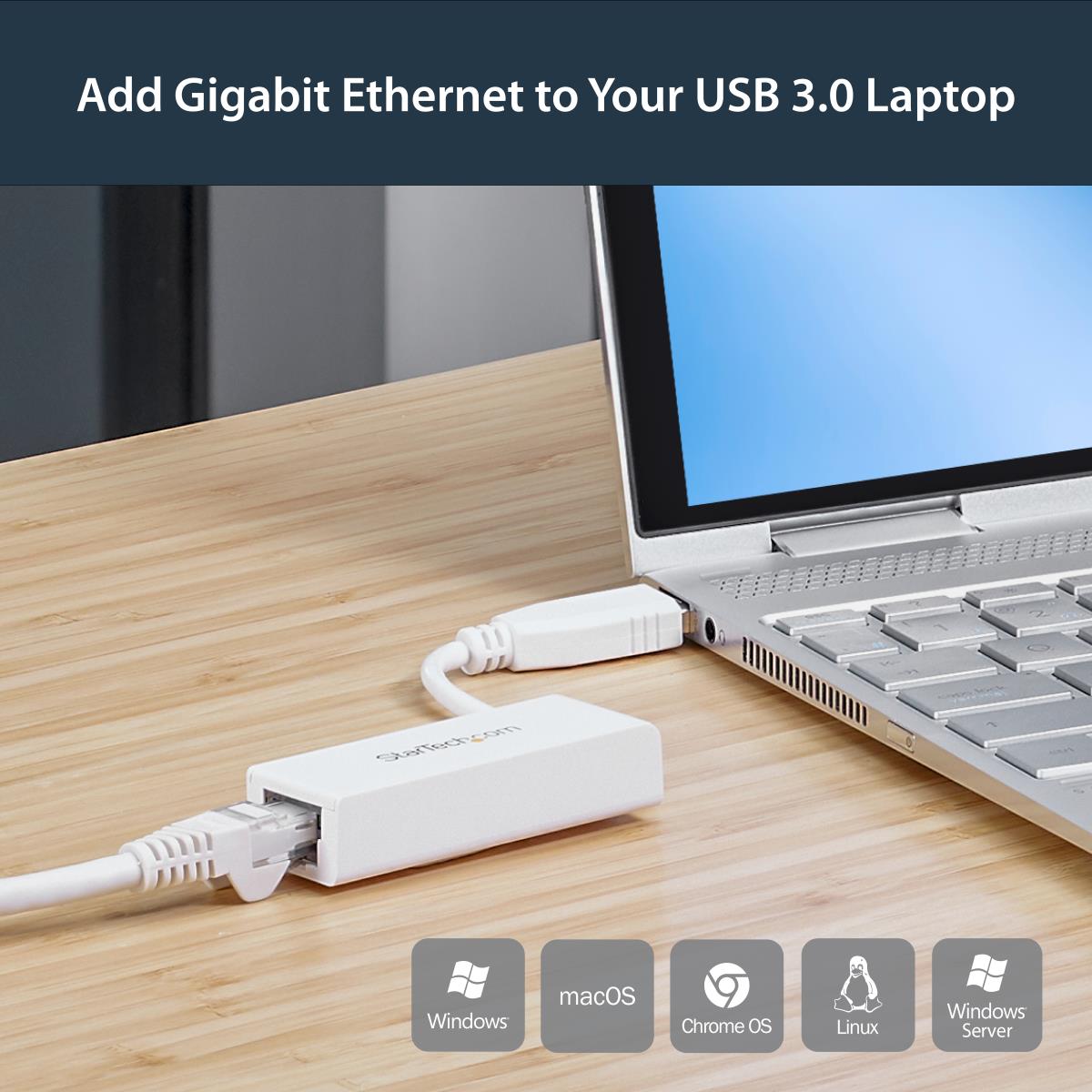

Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port

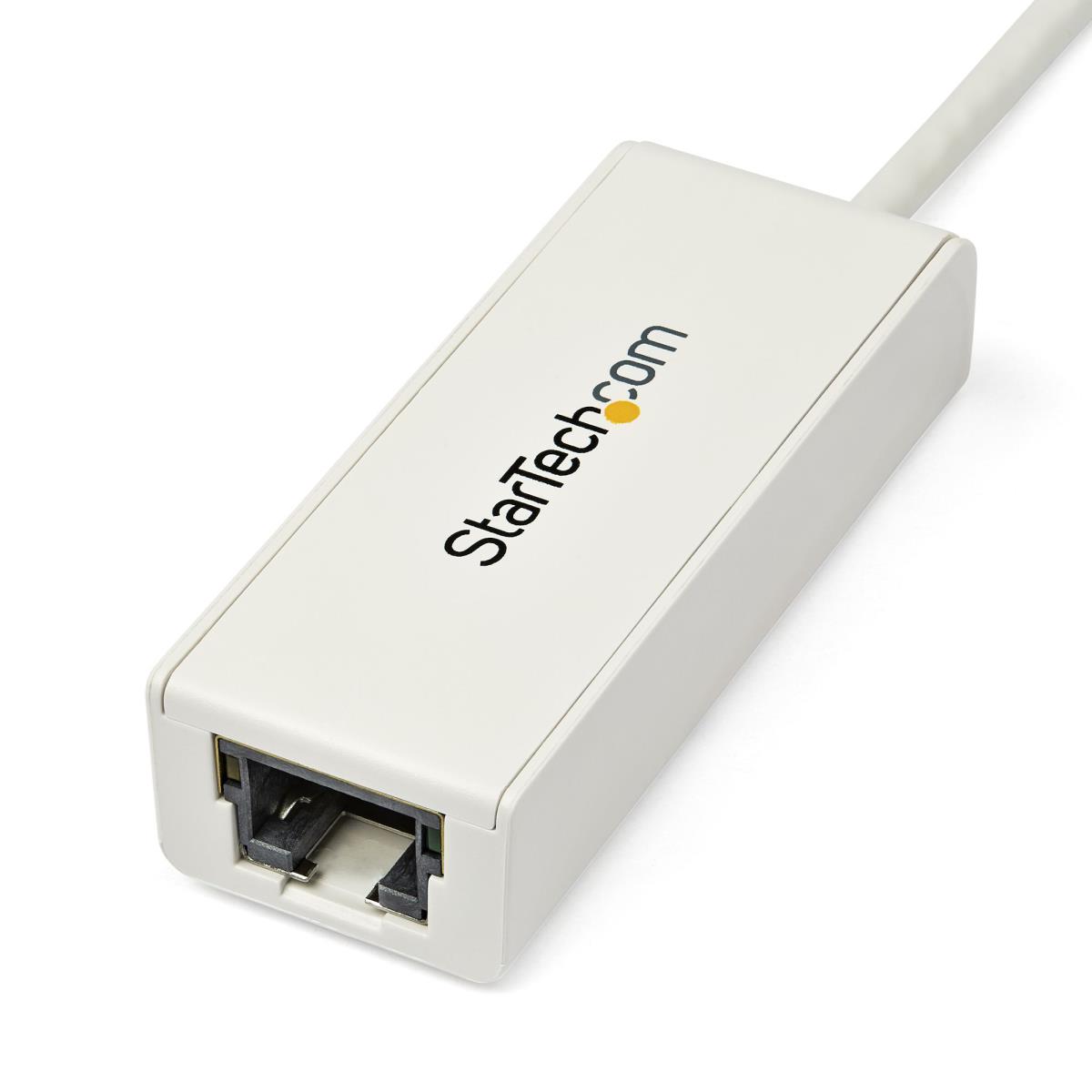

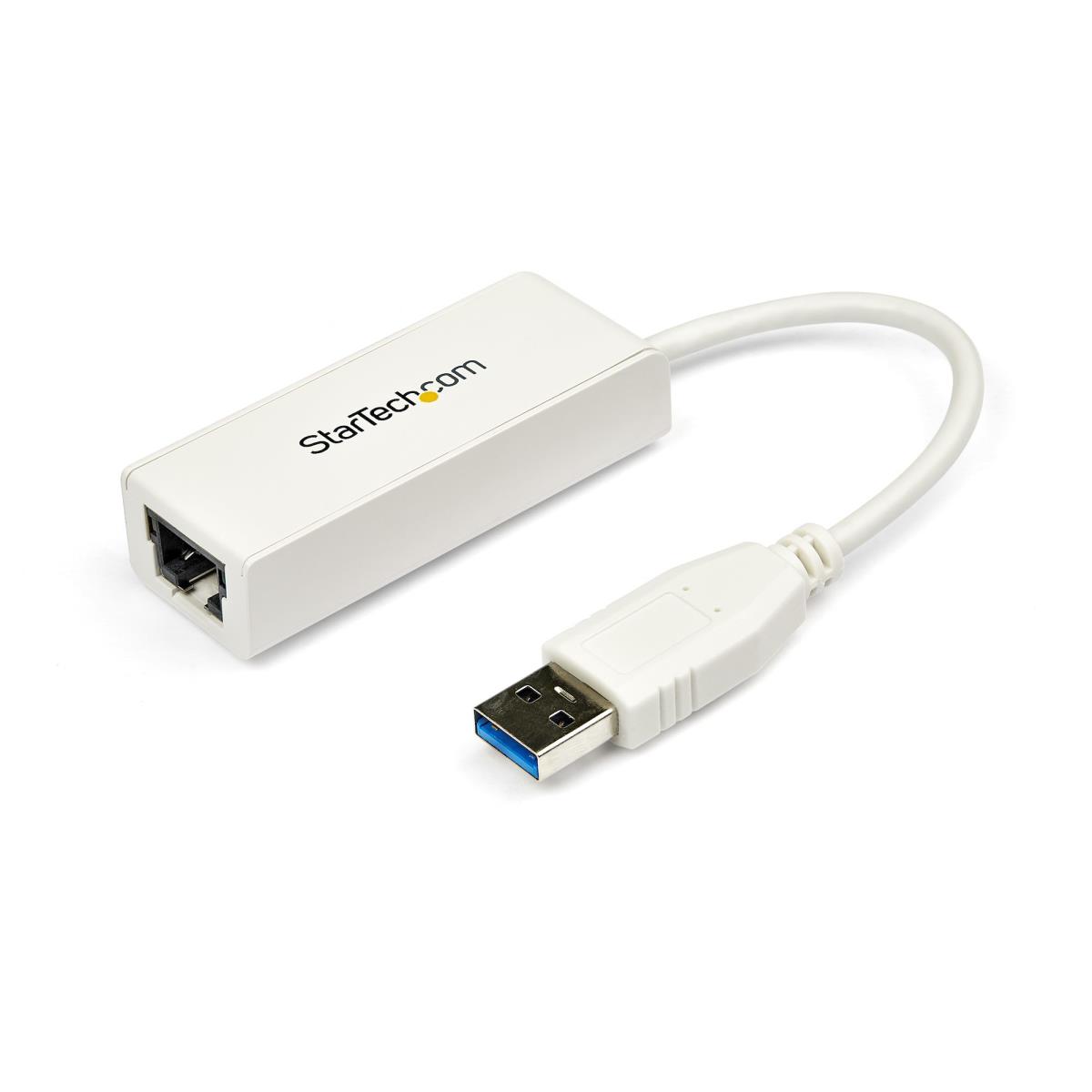

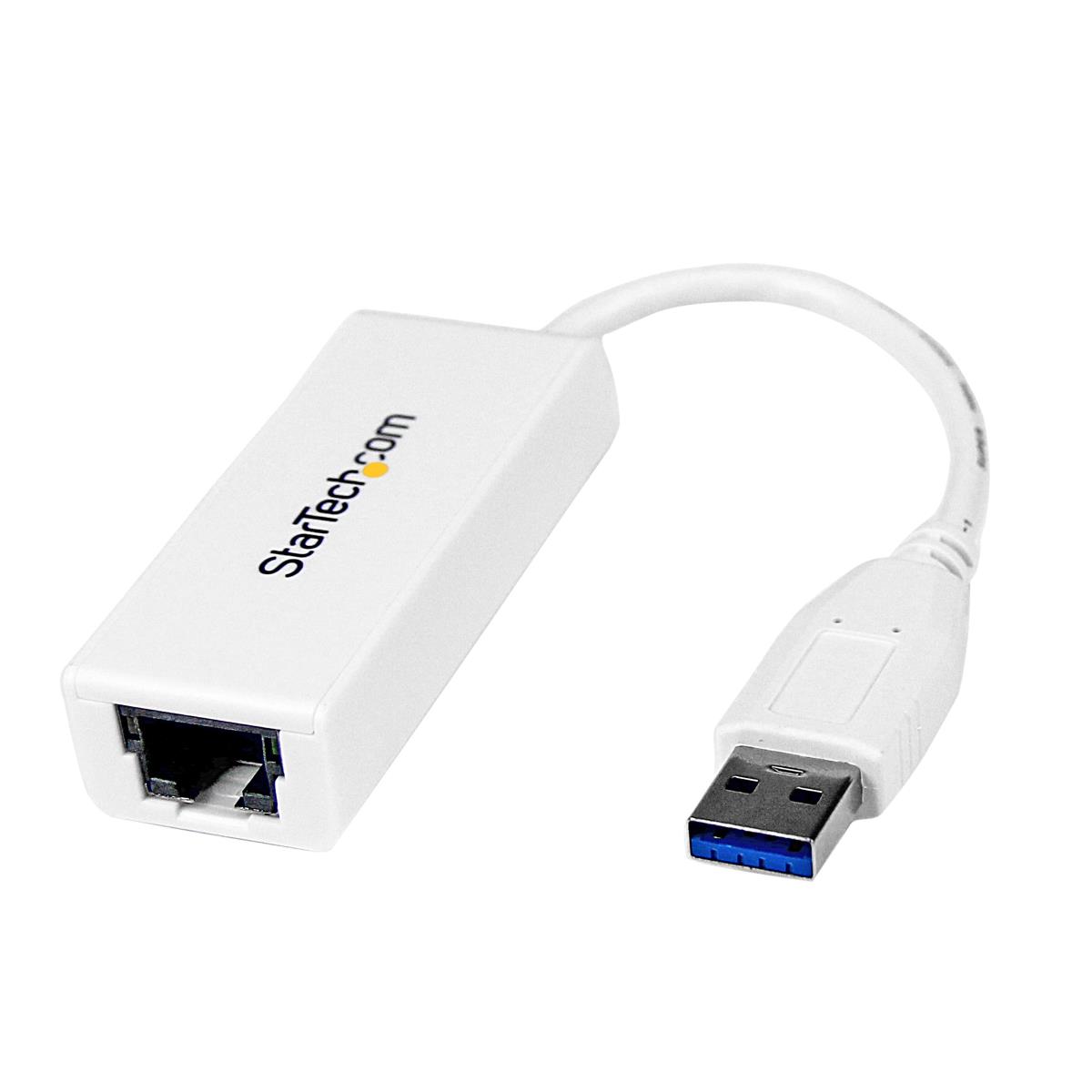

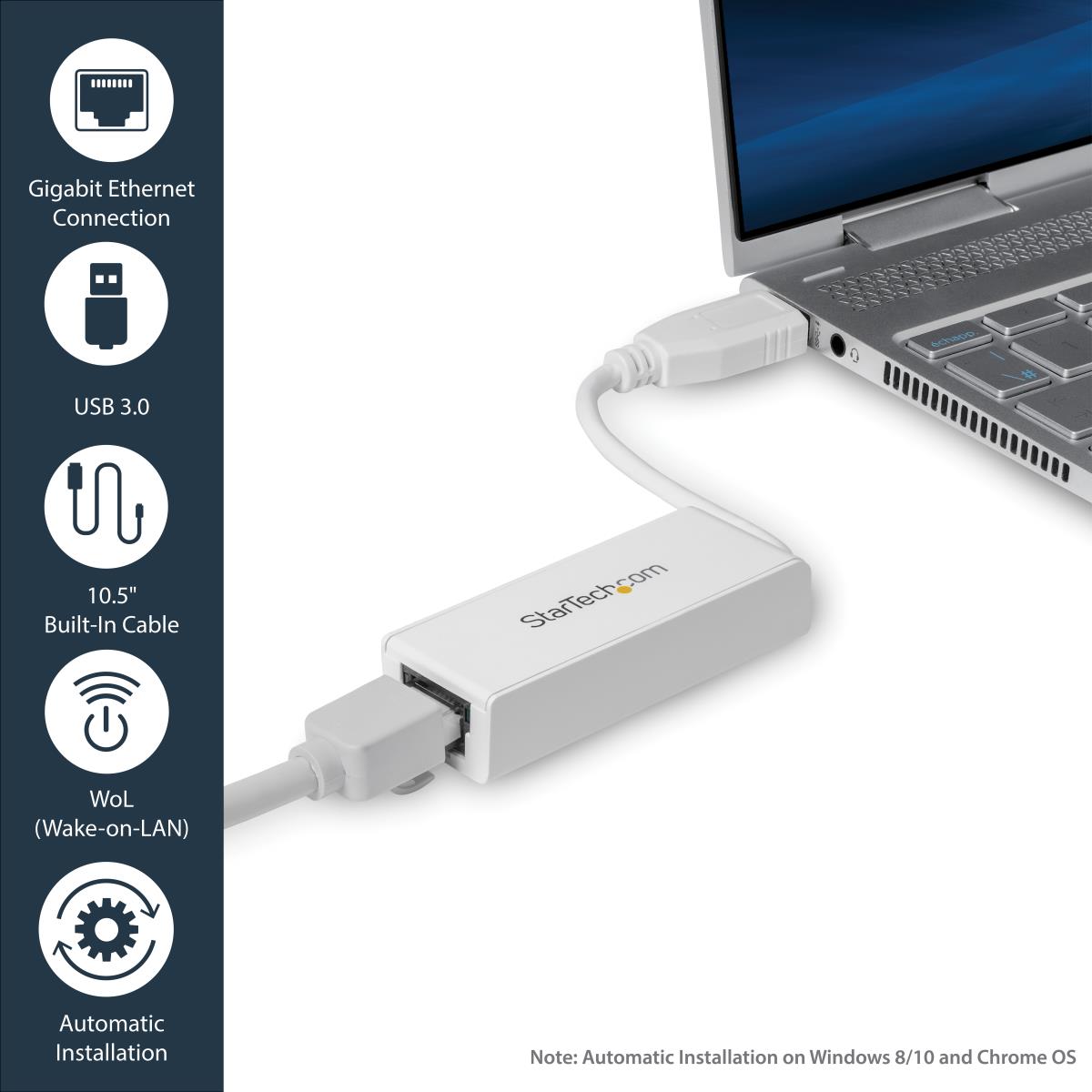

The USB31000SW USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.
This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers versatile Gigabit network performance for home and business users alike.
The USB31000SW USB 3.0 Gigabit adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Full Gigabit bandwidth support, through a USB 3.0 host connection
- Highly portable design, with no need for an external power adapter
- Added flexibility near the RJ45 port through Dongle-style design
Technical details
Compliance certificates
CE, RoHS
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
457 mm
Master (outer) case length
351 mm
Master (outer) case height
167 mm
Products per master (outer) case
20 pc(s)
Ports & interfaces
Connectivity technology
Wired

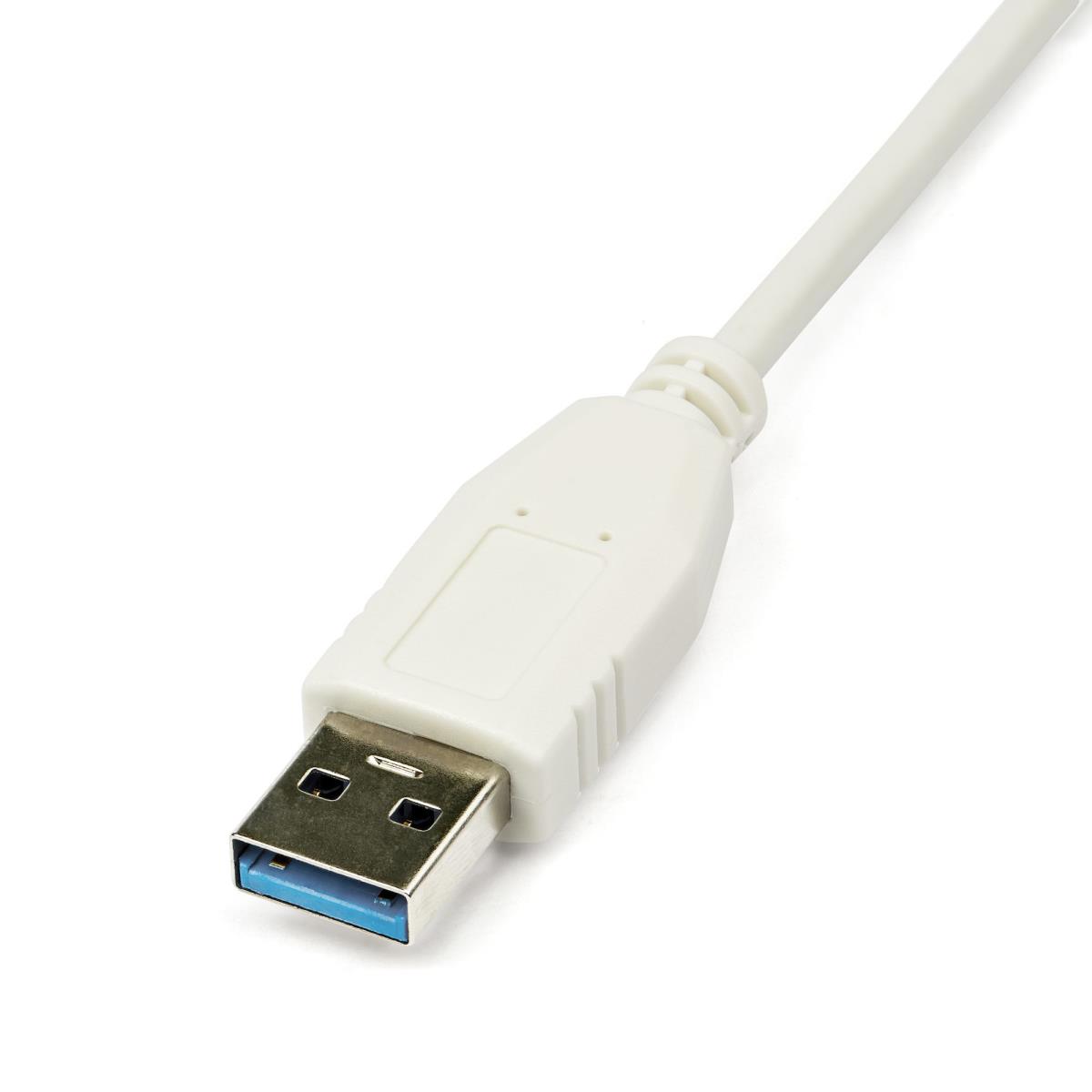

Host interface
USB
Interface
Ethernet

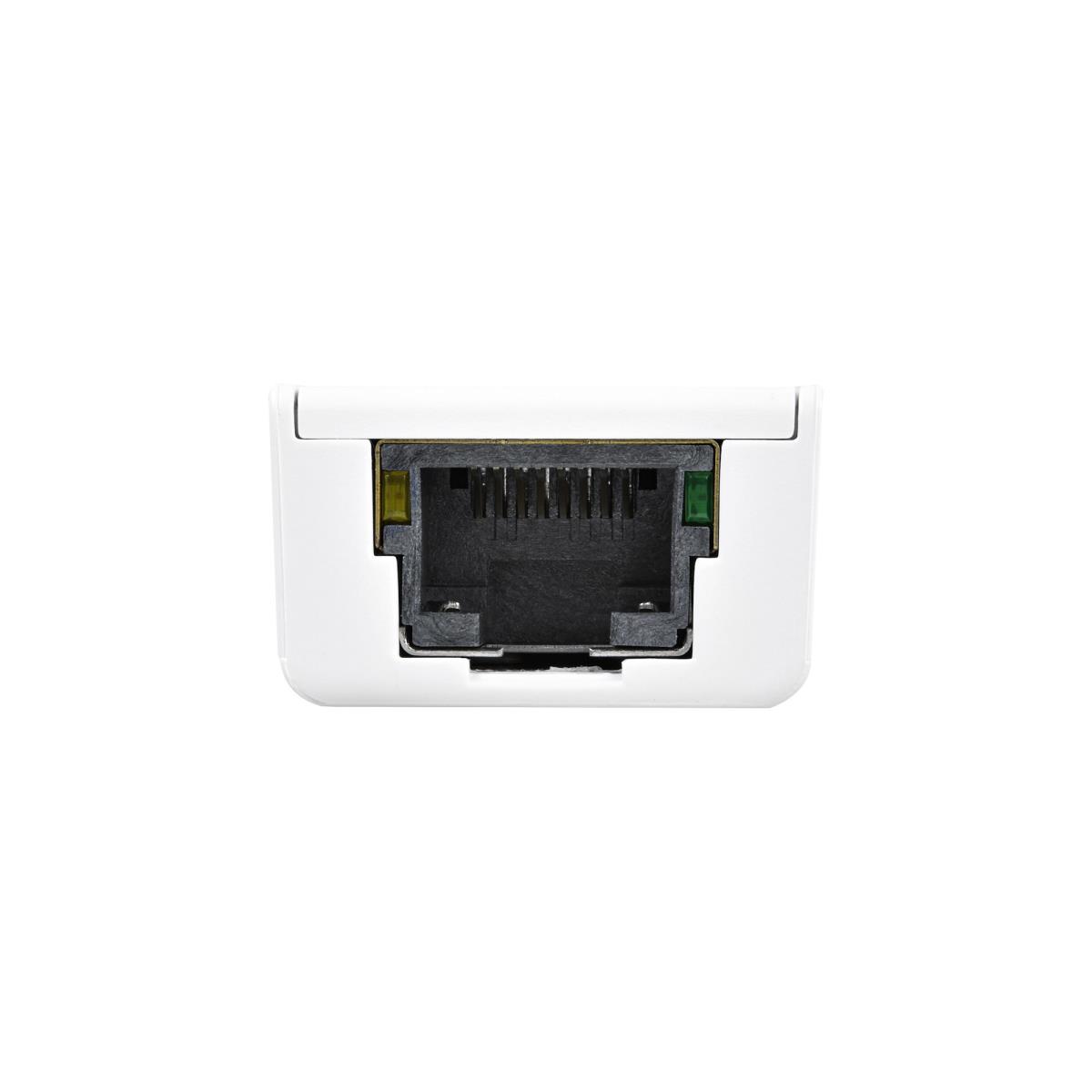

Ethernet LAN (RJ-45) ports
1
USB version
3.2 Gen 1 (3.1 Gen 1)
Other features
Harmonized System (HS) code
85176990
Housing material
Plastic
Network
Maximum data transfer rate
5000 Mbit/s
Networking standards
IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u
Ethernet LAN
Y
Ethernet interface type
Gigabit Ethernet

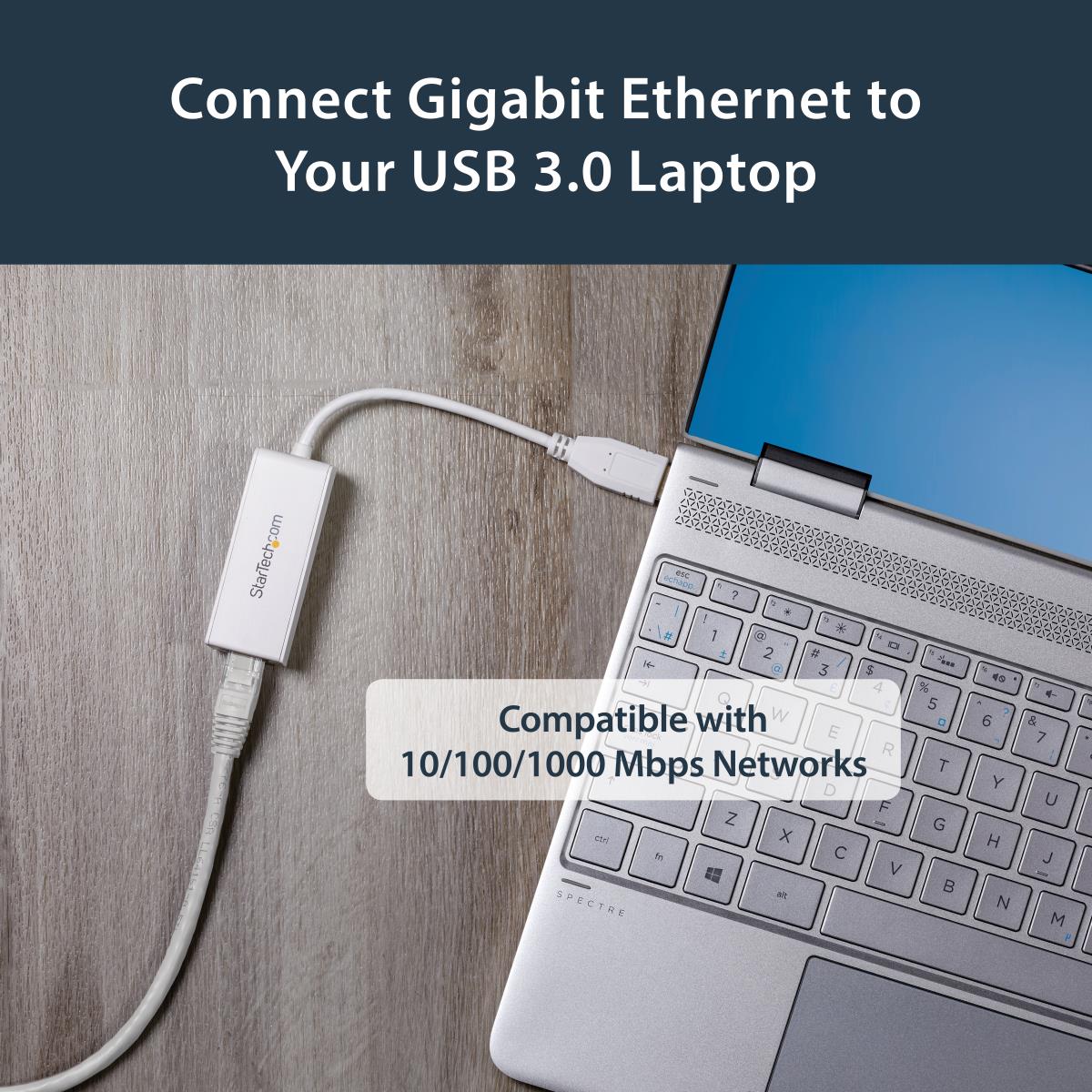

Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Full duplex
Y
Jumbo frames support
Y
Jumbo frames
4000
VLAN tagging
Y
Maximum operating distance
100 m
Design
Component for
PC/notebook
Product colour
White
Internal
N
Chipset
ASIX - AX88179
LED indicators
Y
Certification
CE, FCC, TAA, REACH
System requirements
Compatible operating systems
Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8(32/64-bit)
Mac OS 10.6/ 10.7/ 10.8
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

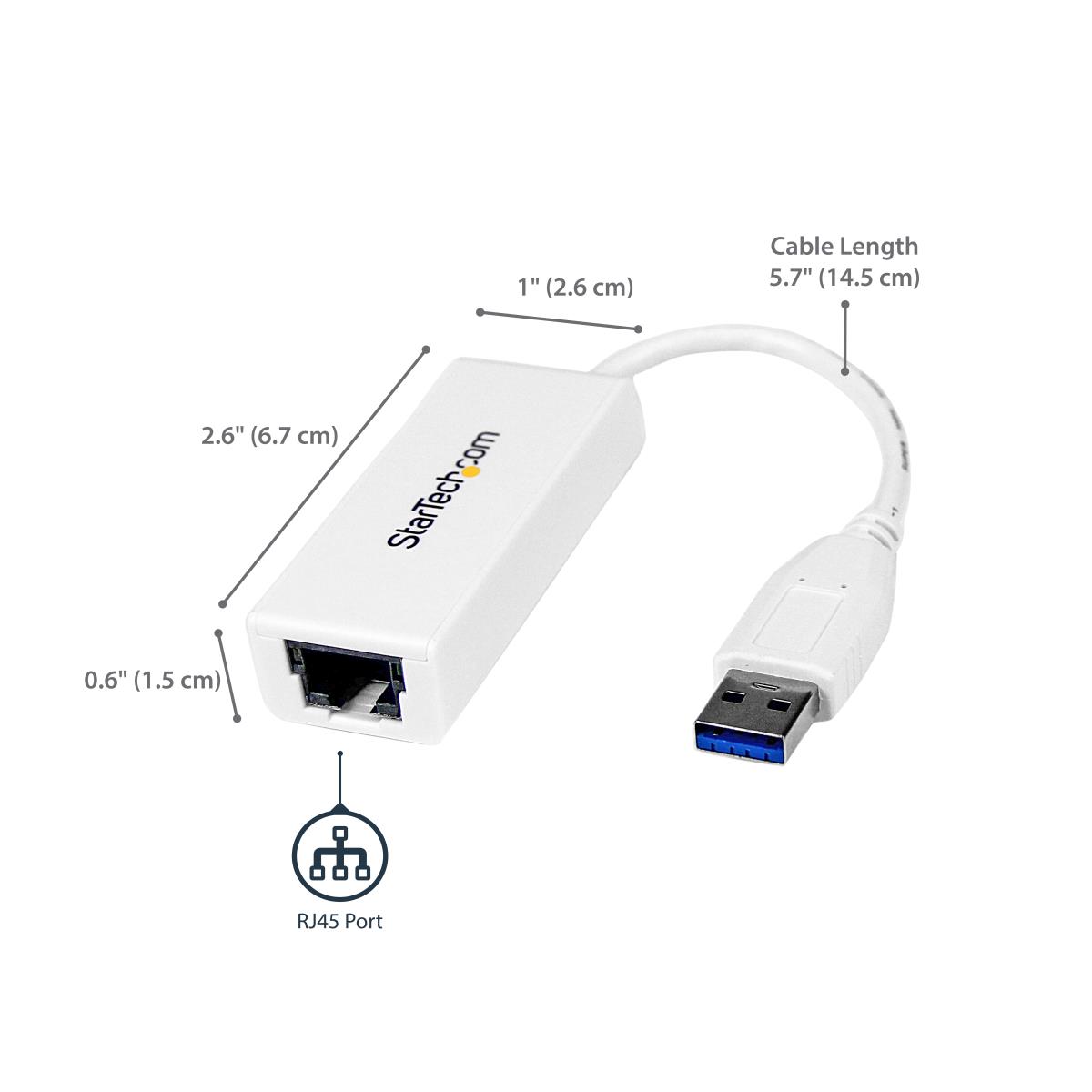

Weight & dimensions
Width
26 mm
Depth
210 mm
Height
16 mm
Weight
27 g
Packaging data
Drivers included
Y
Package width
162 mm
Package depth
133 mm
Package height
45 mm
Package weight
119 g

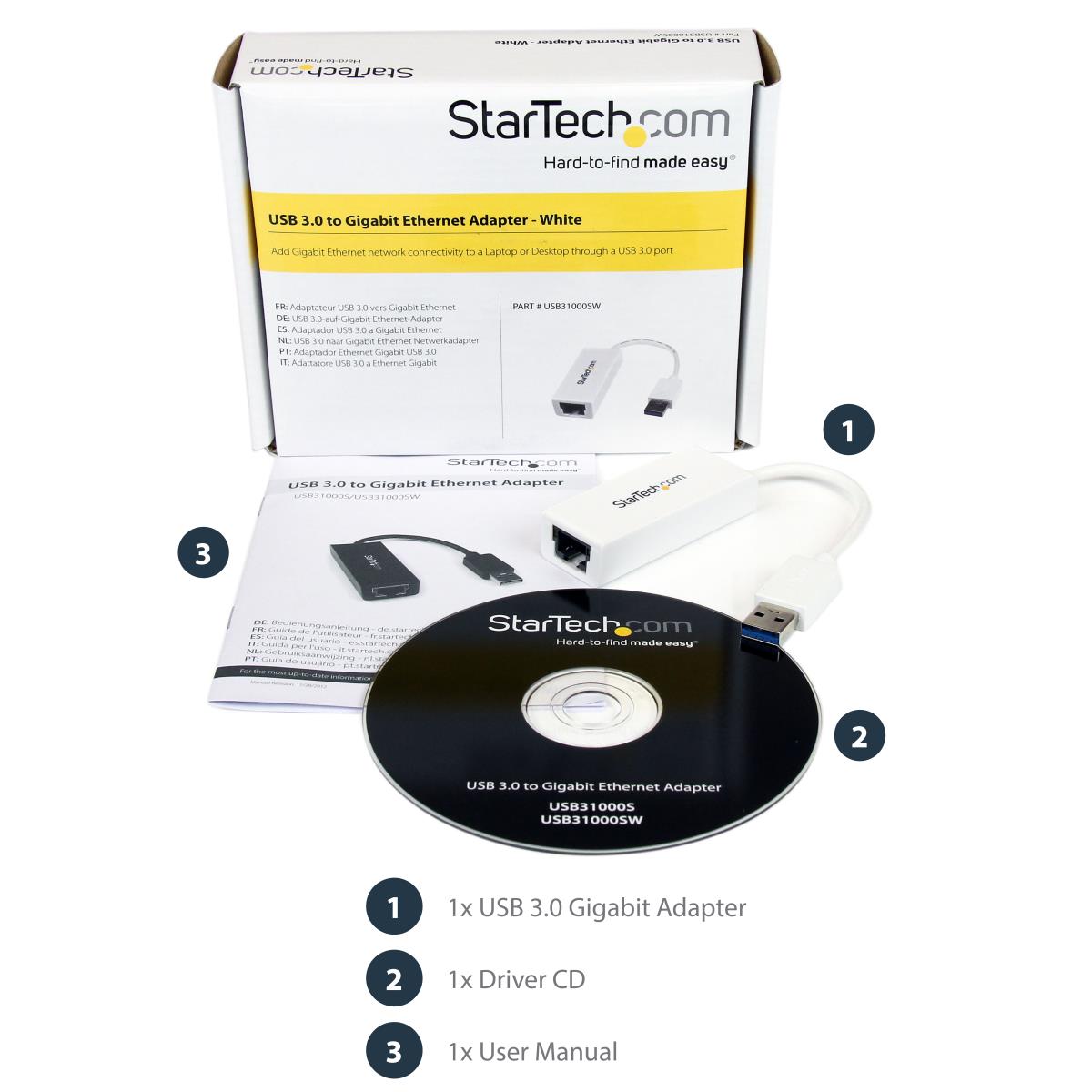

Packaging content
