Introduction
Laptop Docking Station | Mac & Windows | DVI to VGA Adapter | Vertical

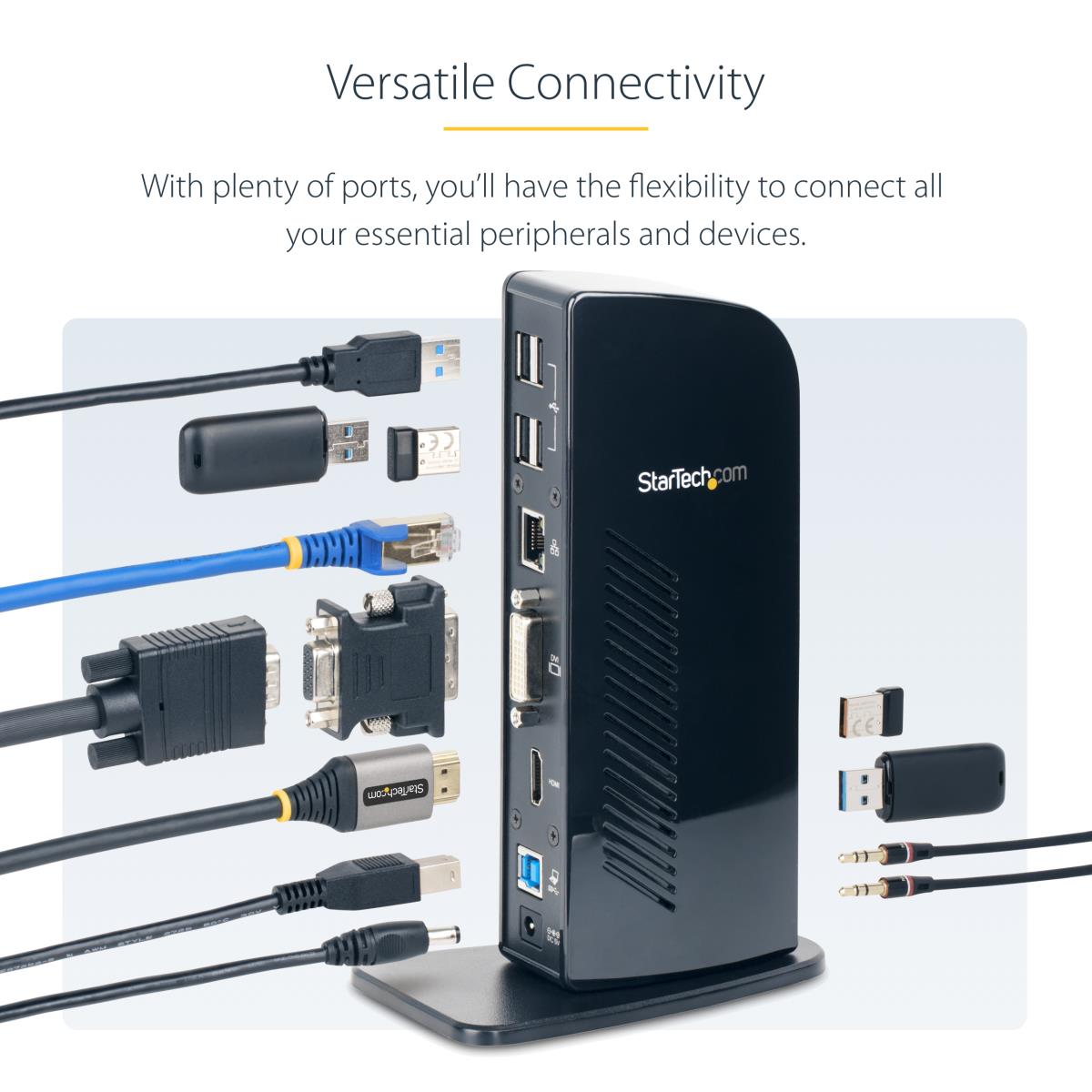

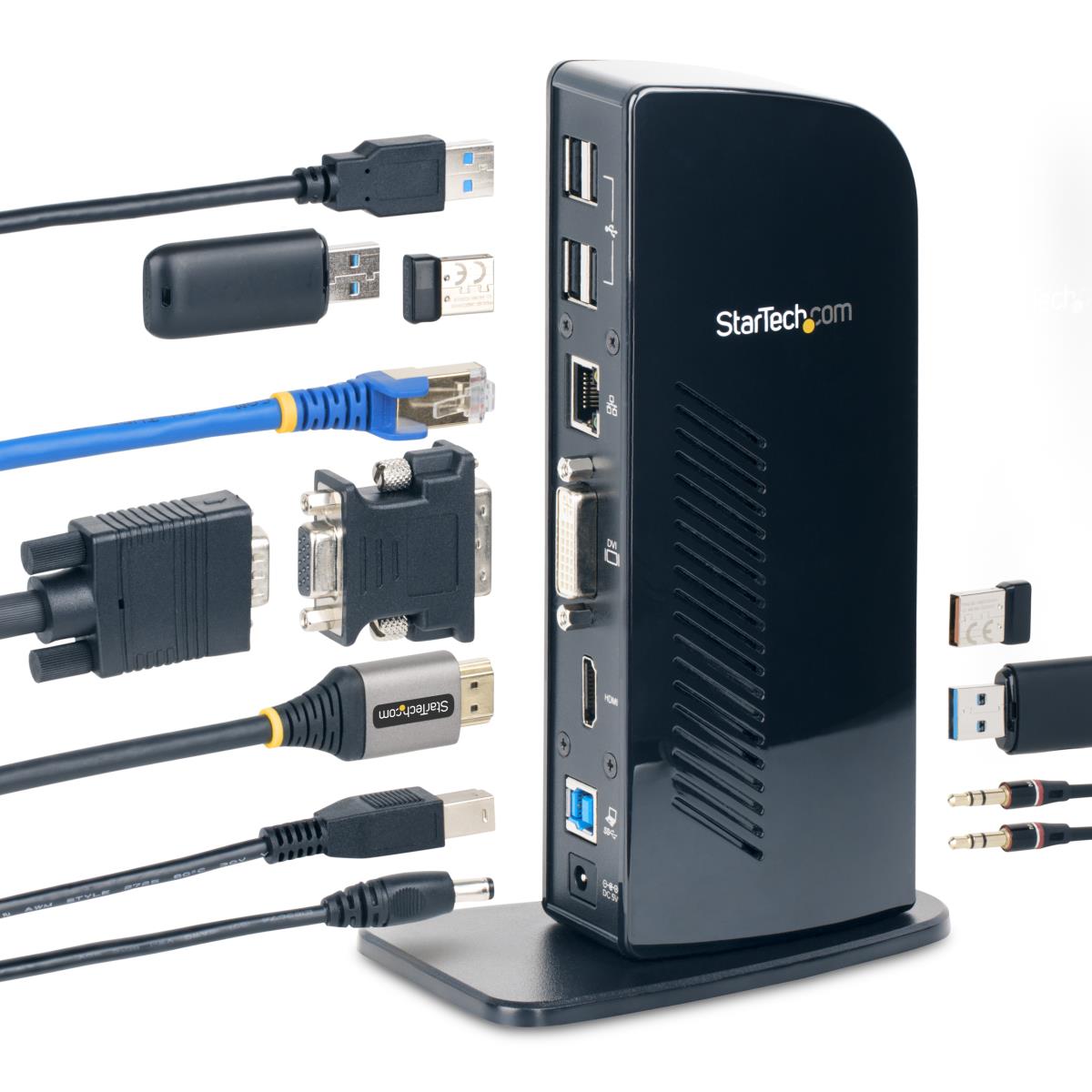

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability

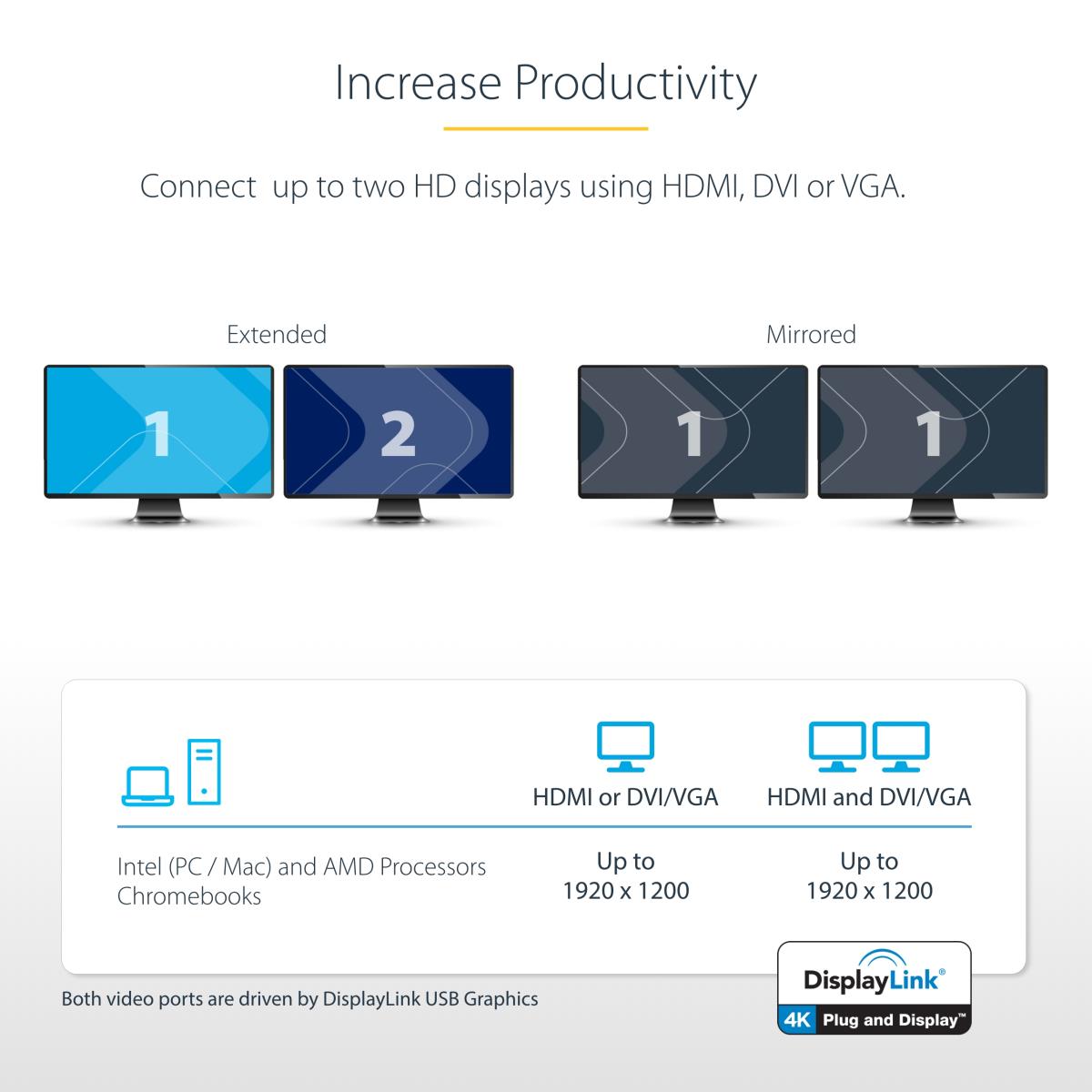

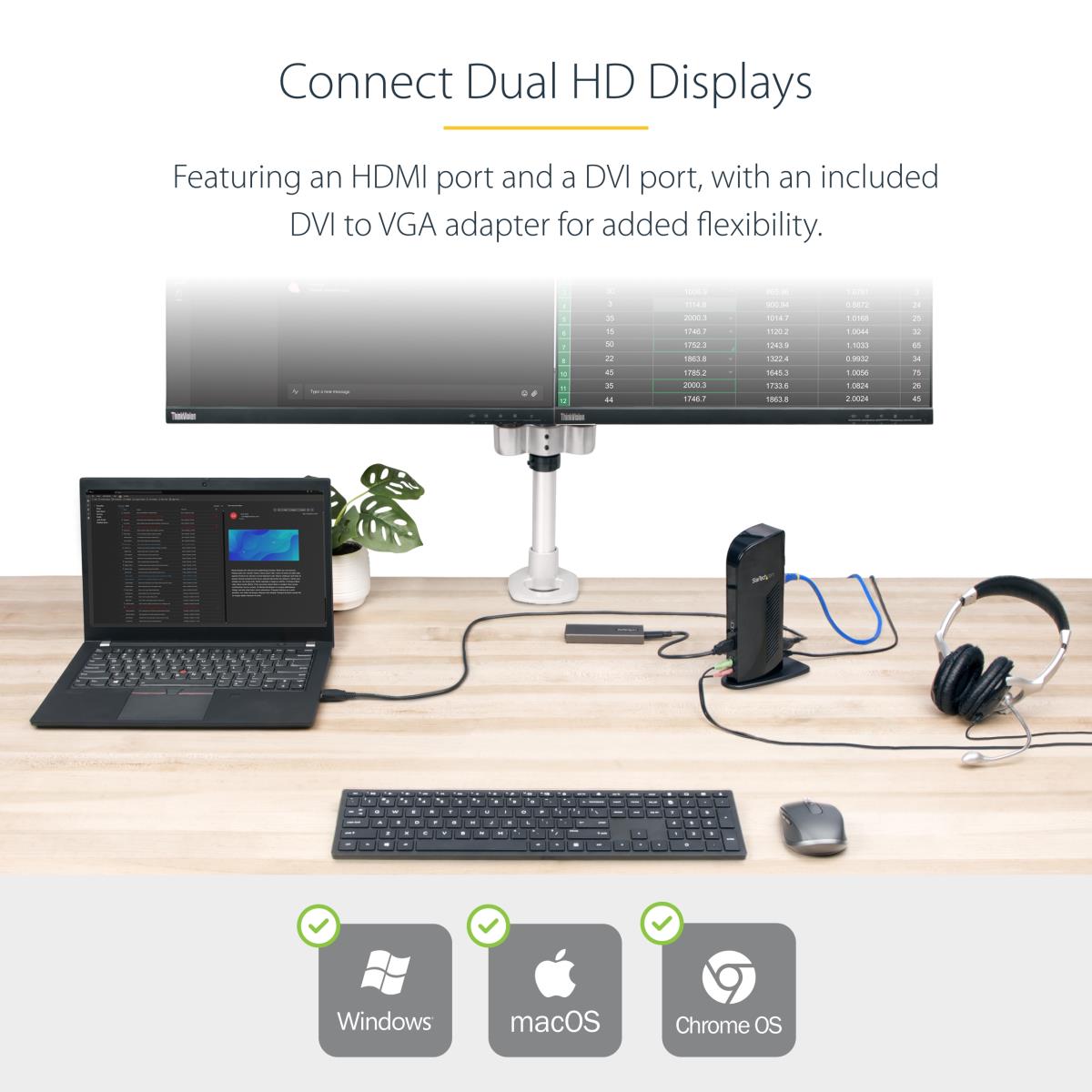

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub

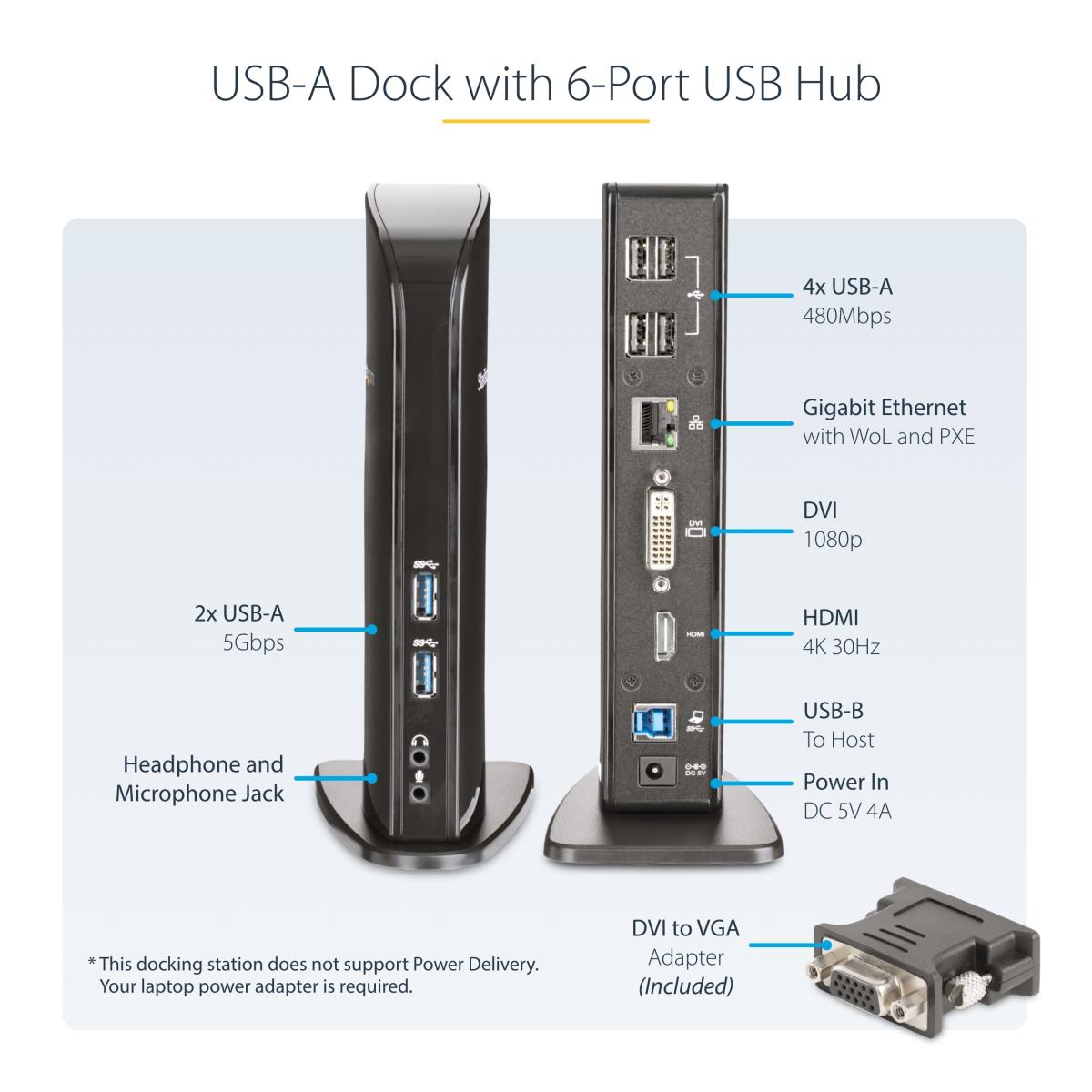

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.

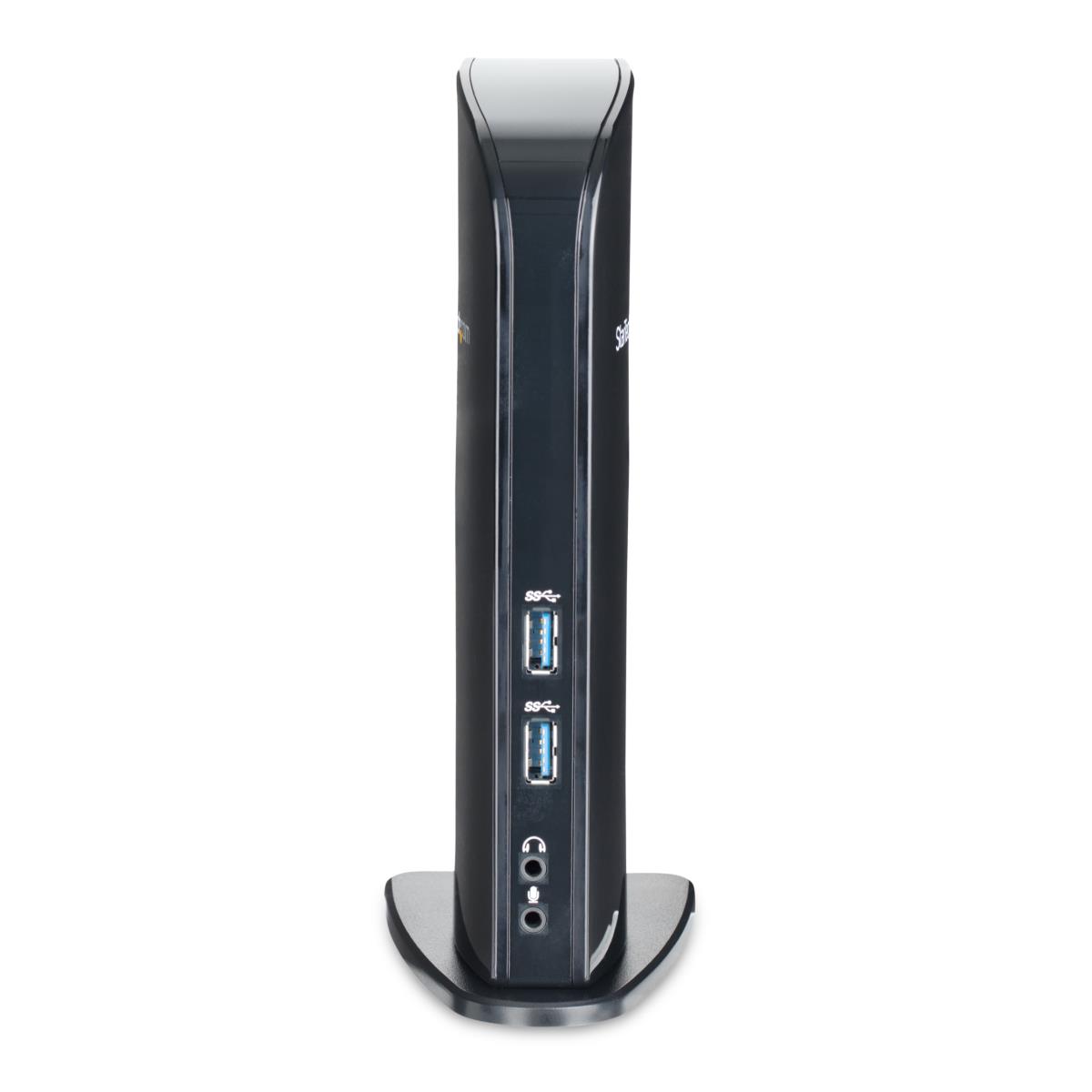

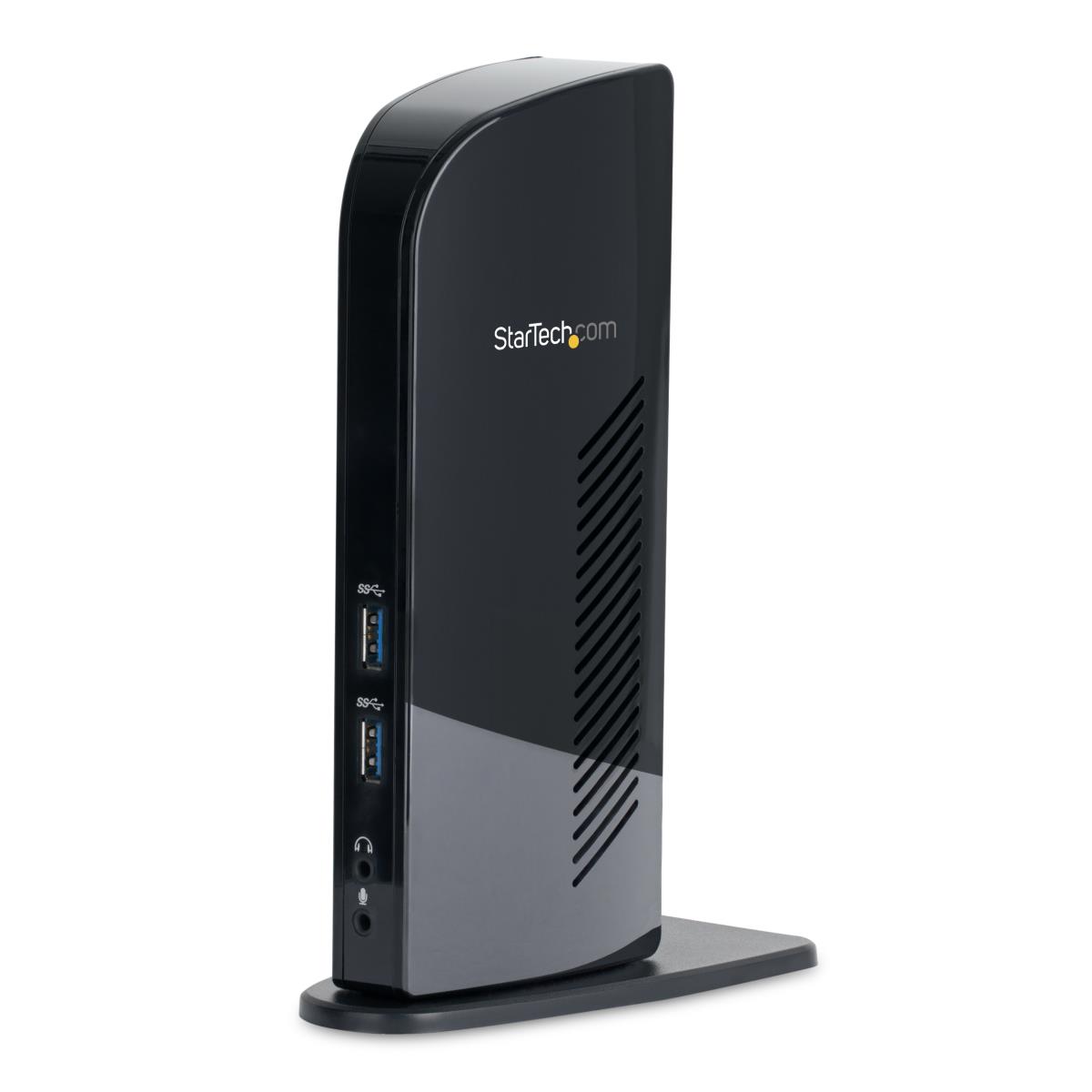

Versatile Design

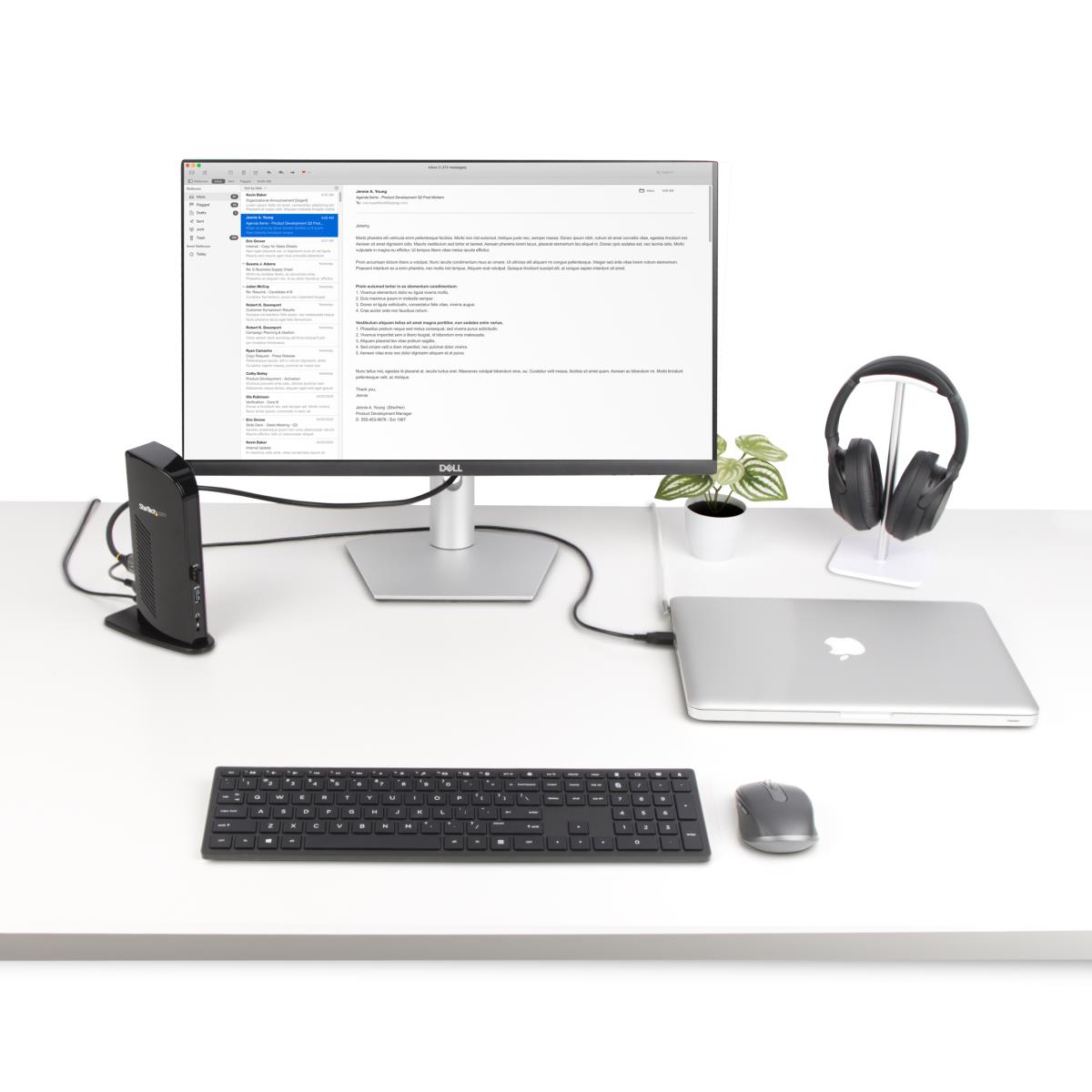

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com's laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage

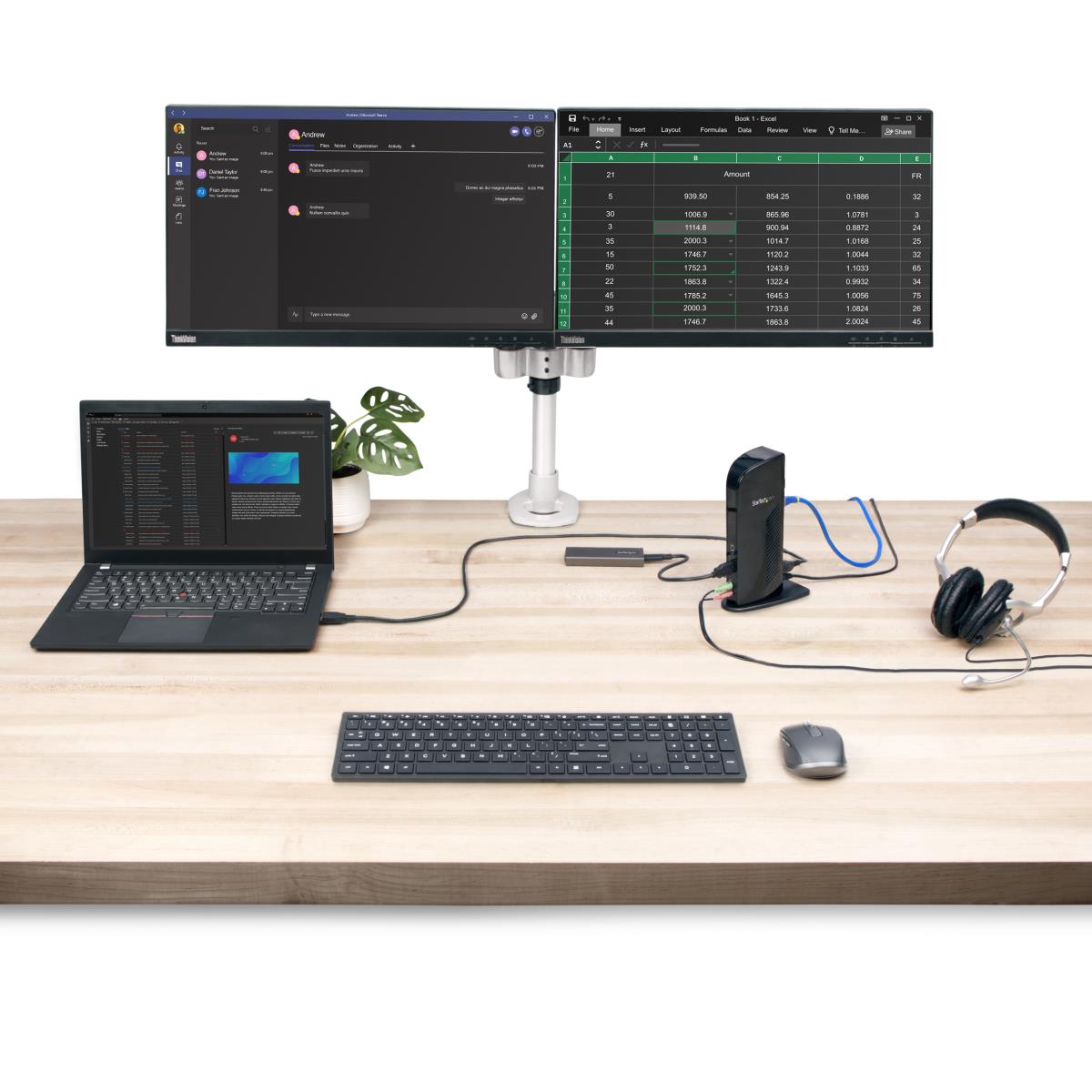

- Flexible video output to extend or mirror your desktop at up to 1920x1200, with HDMI and DVI ports, plus included DVI to VGA adapter
- USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
- The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
300 mm
Master (outer) case length
400 mm
Master (outer) case height
360 mm

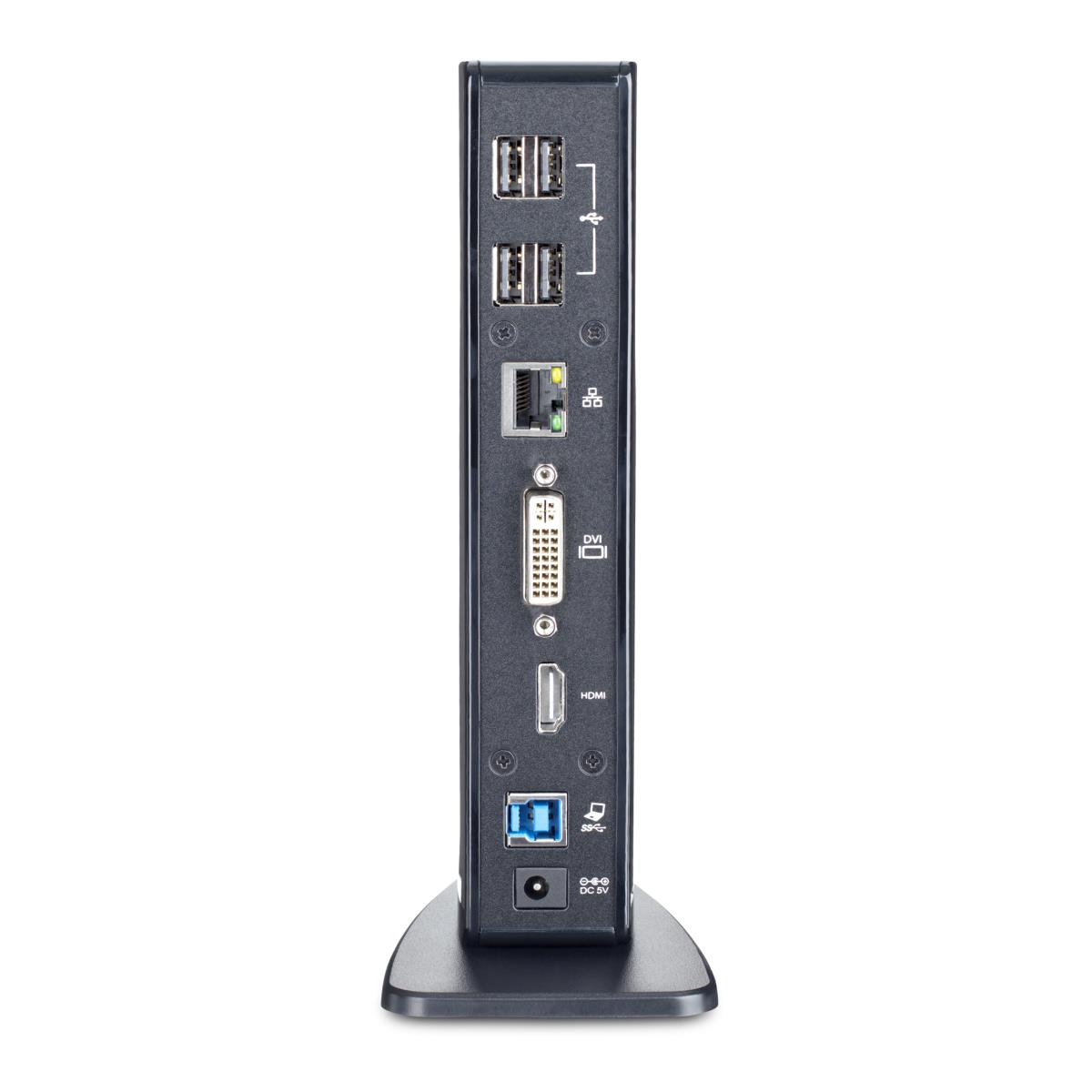

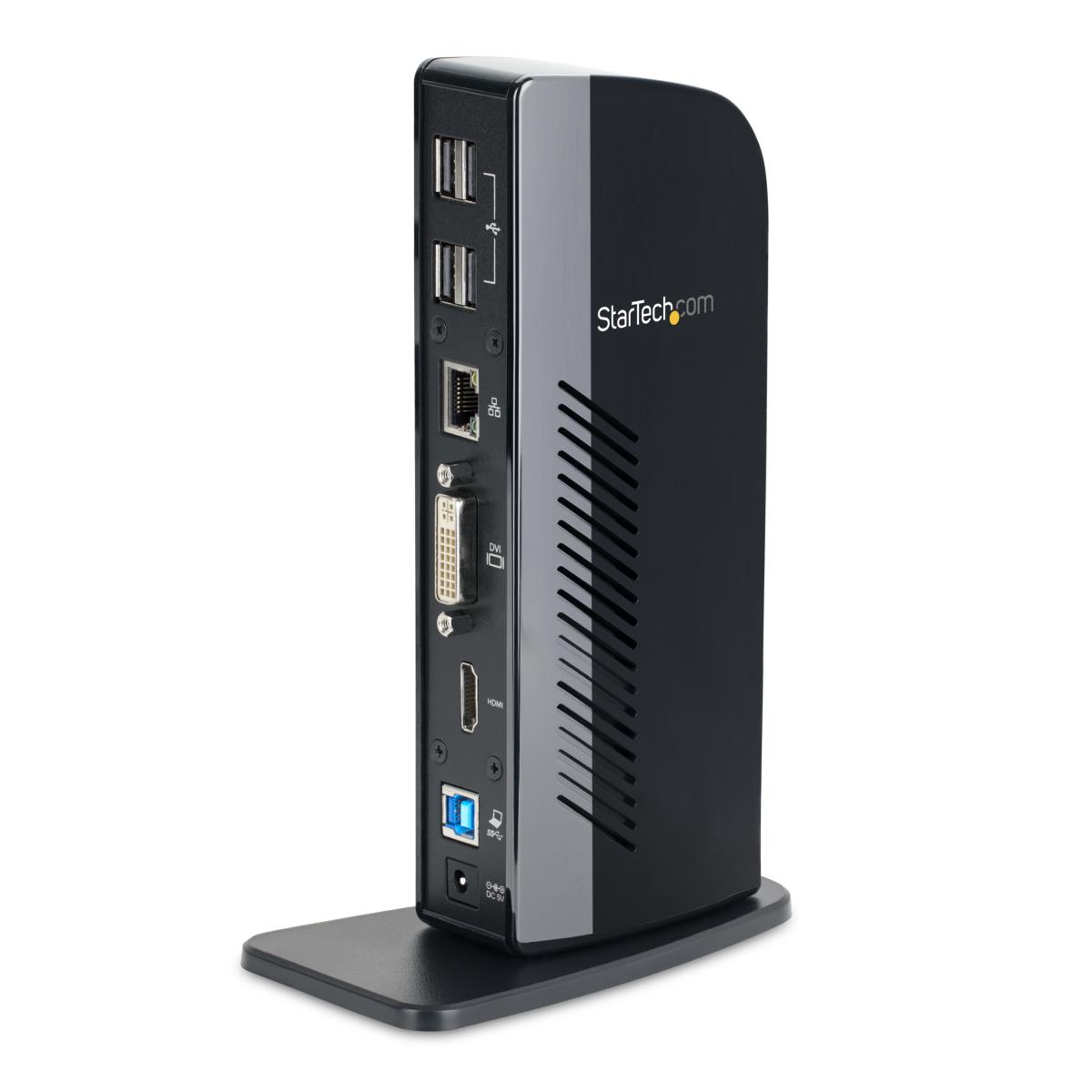

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
DVI-I ports quantity
1
Microphone in
Y
Combo headphone/mic port
N
Headphone outputs
1
Headphone connectivity
3.5 mm
USB connector type
USB Type-A
DC-in jack
Y
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
Y
Full duplex
Y
Performance
Card reader integrated
N
Data transfer rate
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
Product colour
Black
LED indicators
Power, USB
Housing material
Plastic
Brand compatibility
Any brand
Certification
CE, FCC
Power
AC input voltage
100 - 240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
20 W
Power plug type
Type C
Compatible power plug types
AU, EU, JP, UK, US
Software
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Professional
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Other operating systems supported
Chrome
Operational conditions
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
70 mm
Depth
125 mm
Height
195 mm
Weight
370 g
Packaging data
Package width
190 mm
Package depth
273 mm
Package height
109 mm
Package weight
900 g

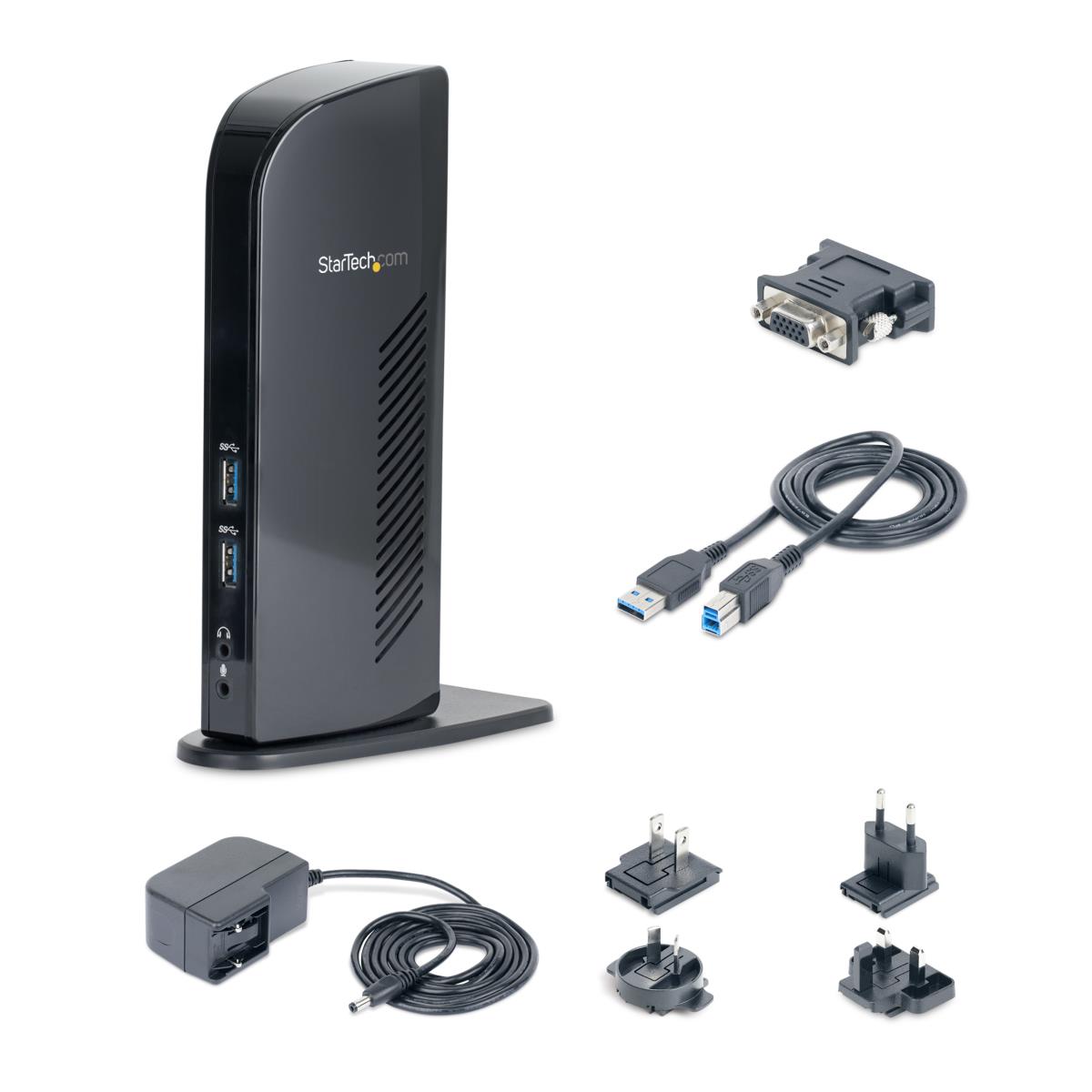

Packaging content
Cables included
USB
AC adapter included
Y
Manual
Y
Drivers included
Y

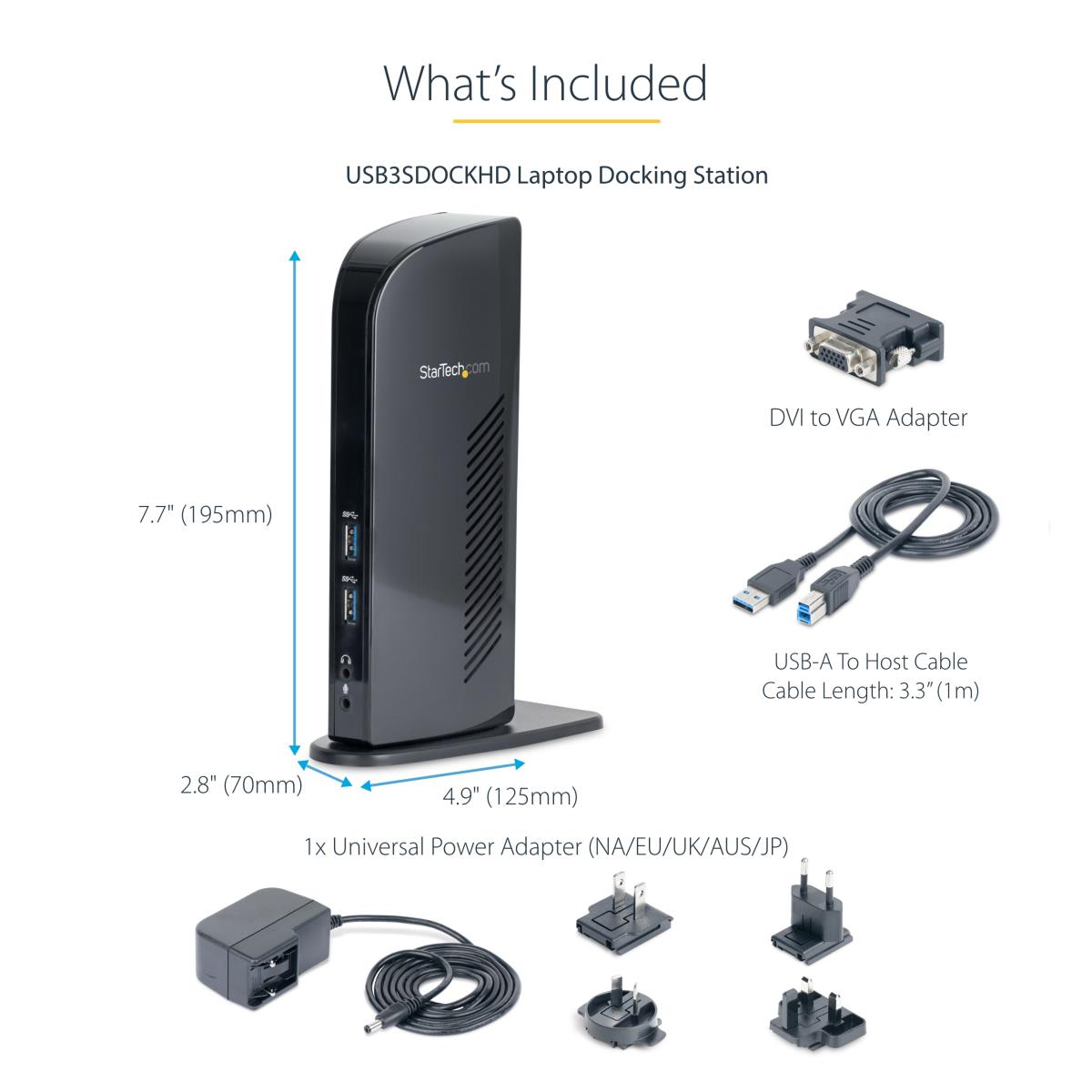

Interface adapters included
DVI-I male - VGA female
Other features
Minimum system requirements
CPU: i3 Dual core 2.8GHz +
RAM: 2GB +
Chipset
DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Number of microphone inputs
1
