Product Details
Introduction

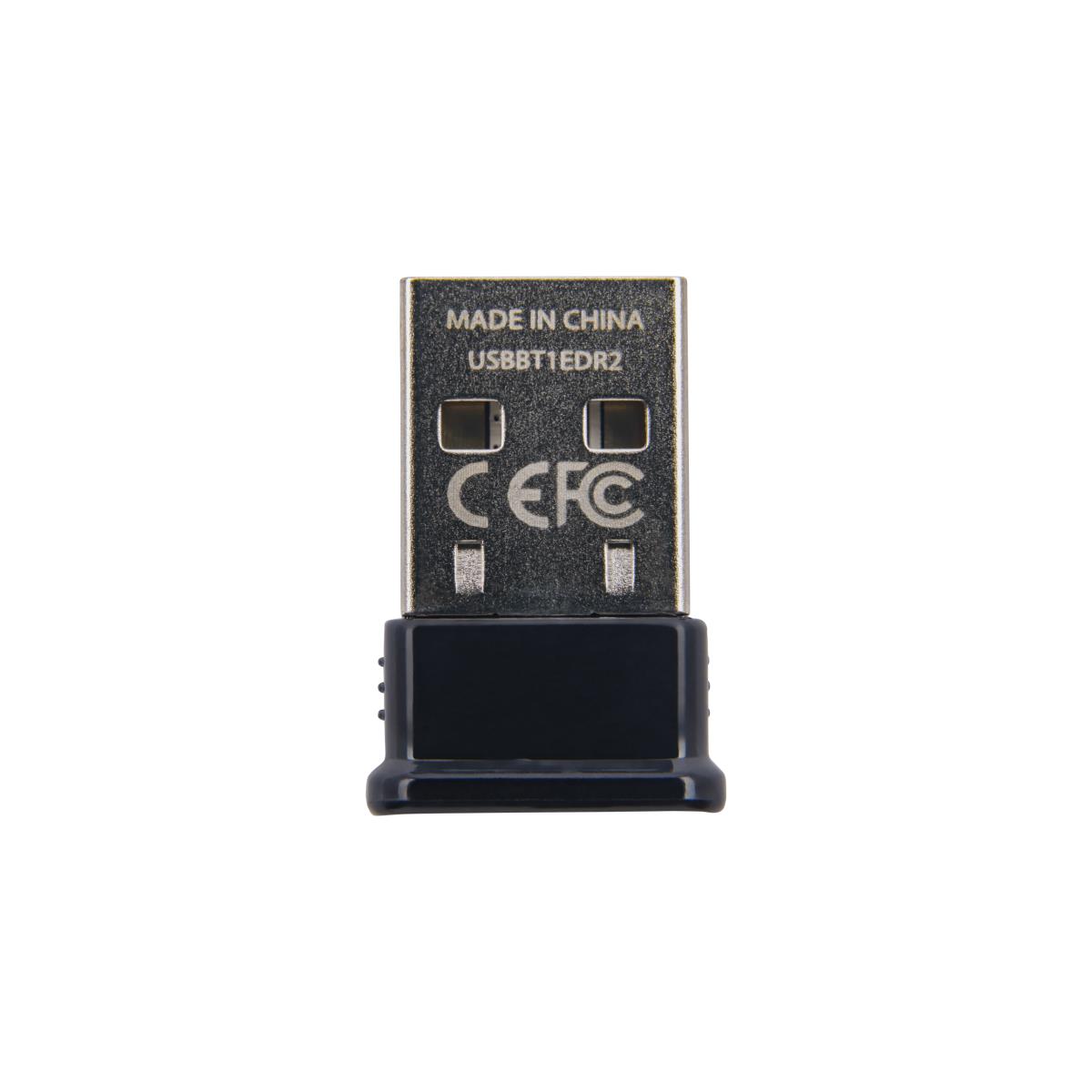

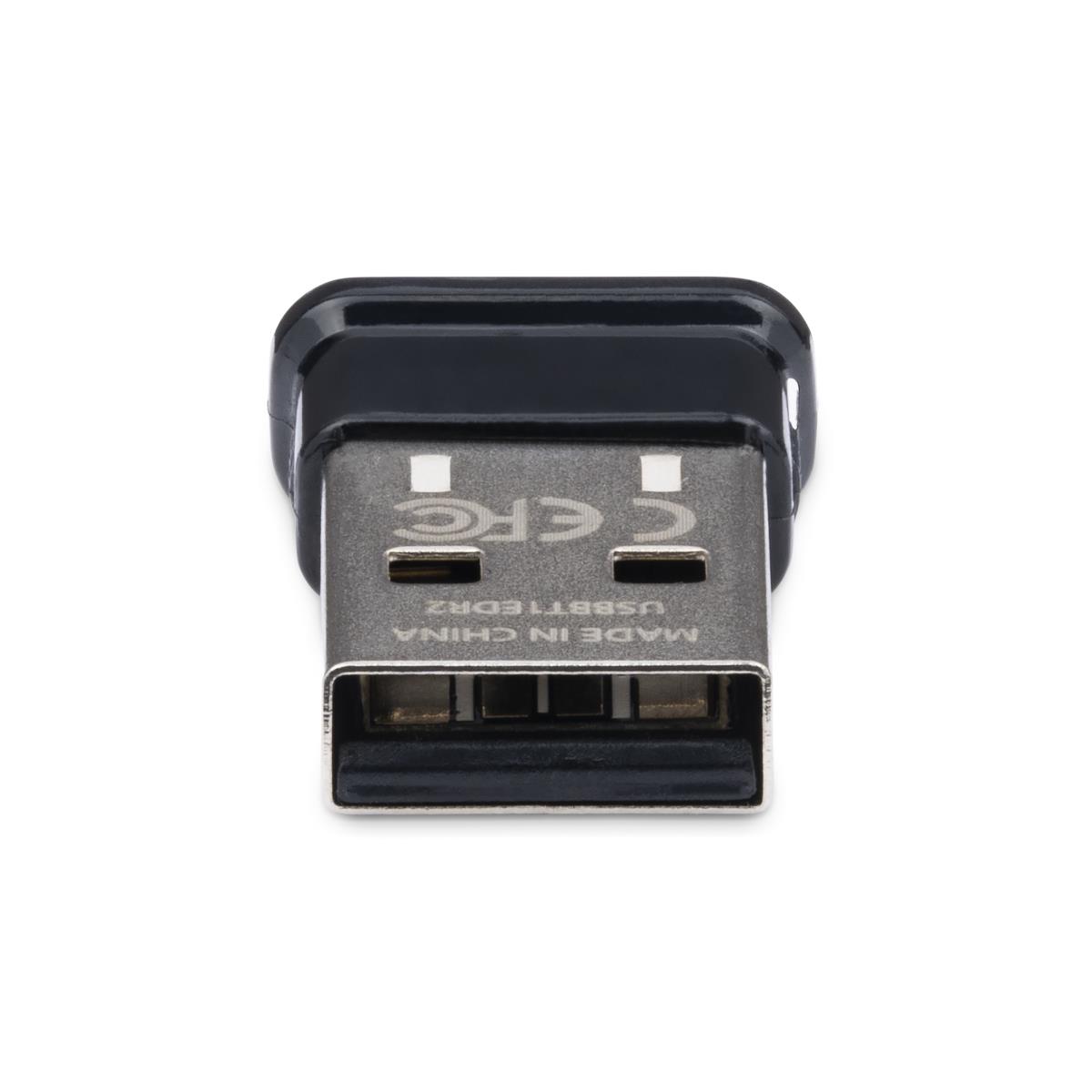

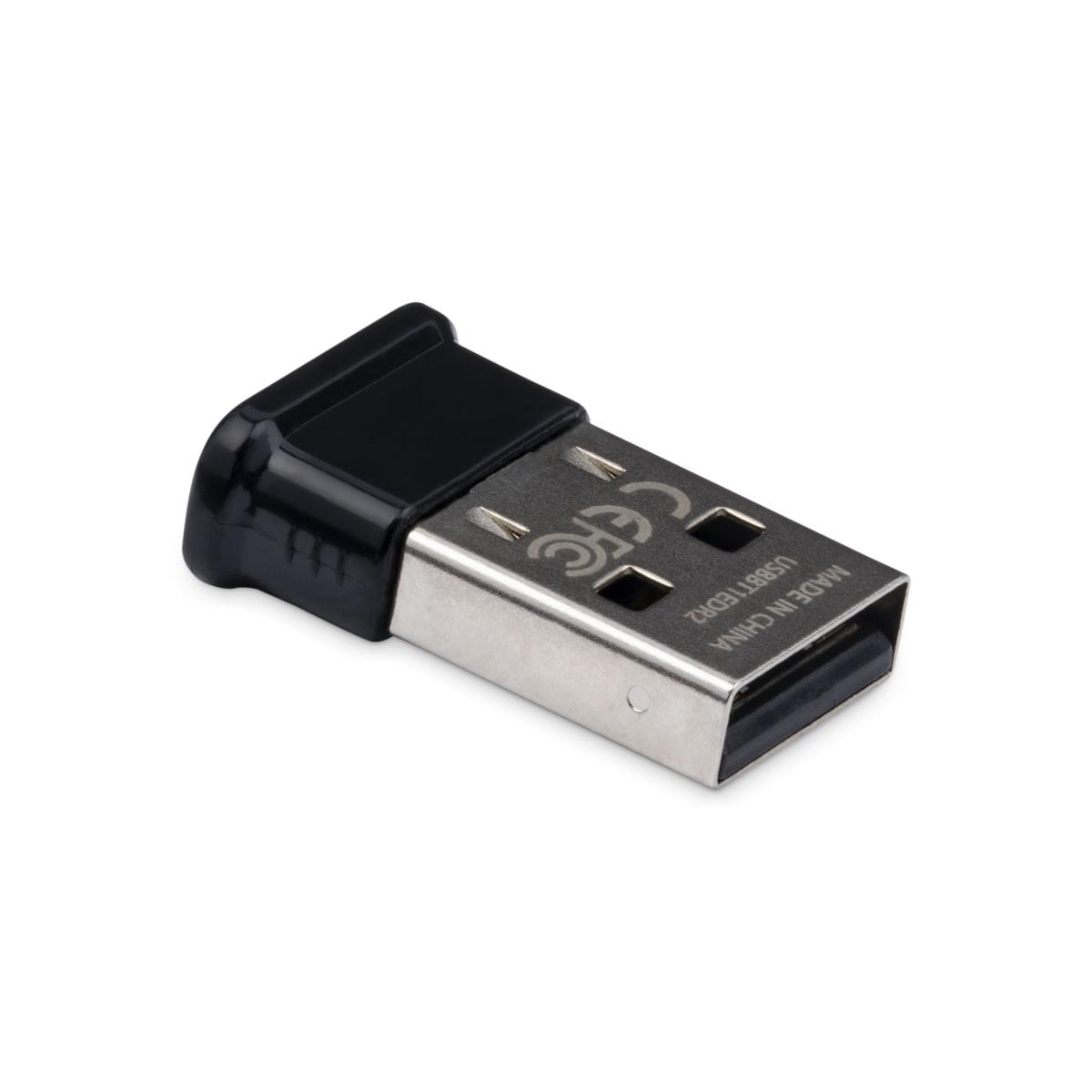

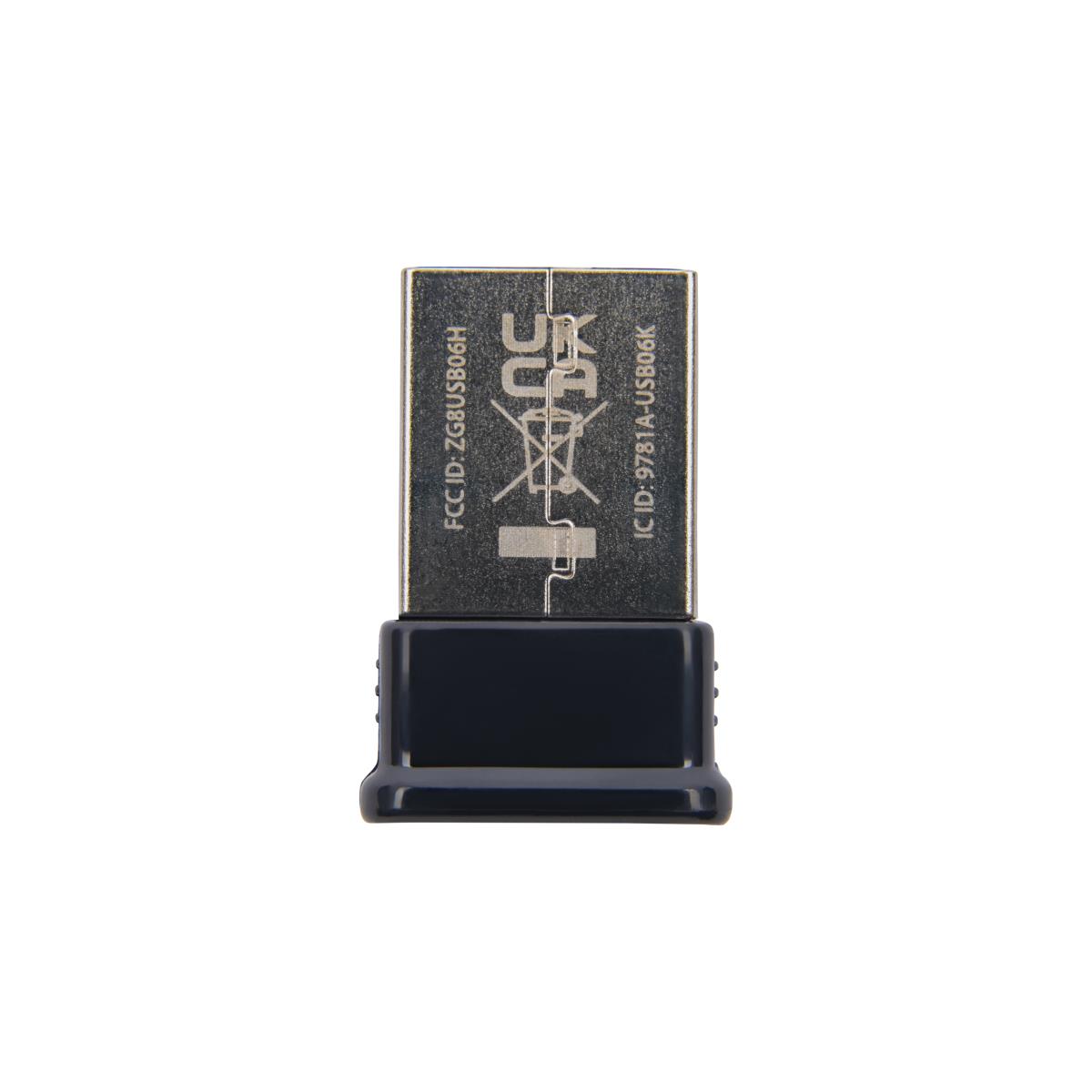

The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Logistics data
Master (outer) case width
308 mm
Master (outer) case length
492 mm
Master (outer) case height
378 mm
Products per master (outer) case
60 pc(s)
Ports & interfaces
Connectivity technology
Wireless
Host interface
USB
Interface
Bluetooth
Other features
Harmonized System (HS) code
85176990
Network
Maximum data transfer rate
3 Mbit/s
Wi-Fi band
Single-band (2.4 GHz)
Modulation
DQPSK
Maximum operating distance
100 m
Bluetooth version
2.1+EDR
Design
Product colour
Black
Internal
N
Chipset
CSR BC0401PC08
LED indicators
Power
Certification
RoHS, CE, FCC
Power
Power consumption (typical)
1 W
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016
Operational conditions
Operating temperature (T-T)
10 - 50 °C
Storage temperature (T-T)
-25 - 85 °C
Operating relative humidity (H-H)
0 - 75%
Weight & dimensions
Width
9.7 mm
Depth
20 mm
Height
6 mm
Weight
2 g
Packaging data
Package width
142 mm
Package depth
172 mm
Package height
33 mm
Package weight
75 g
Information
| Part Number: | USBBT1EDR2 |
