Product Details
Introduction

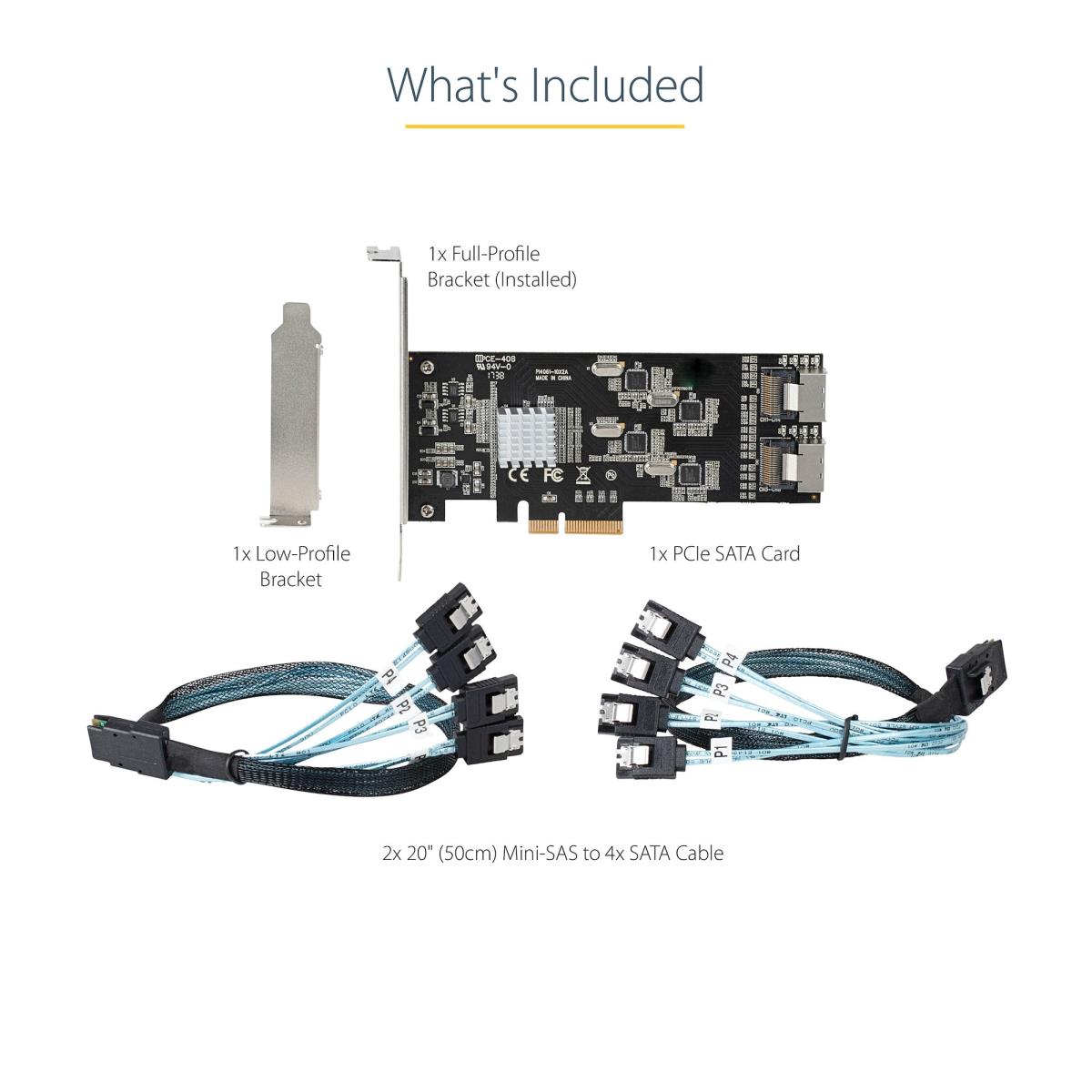

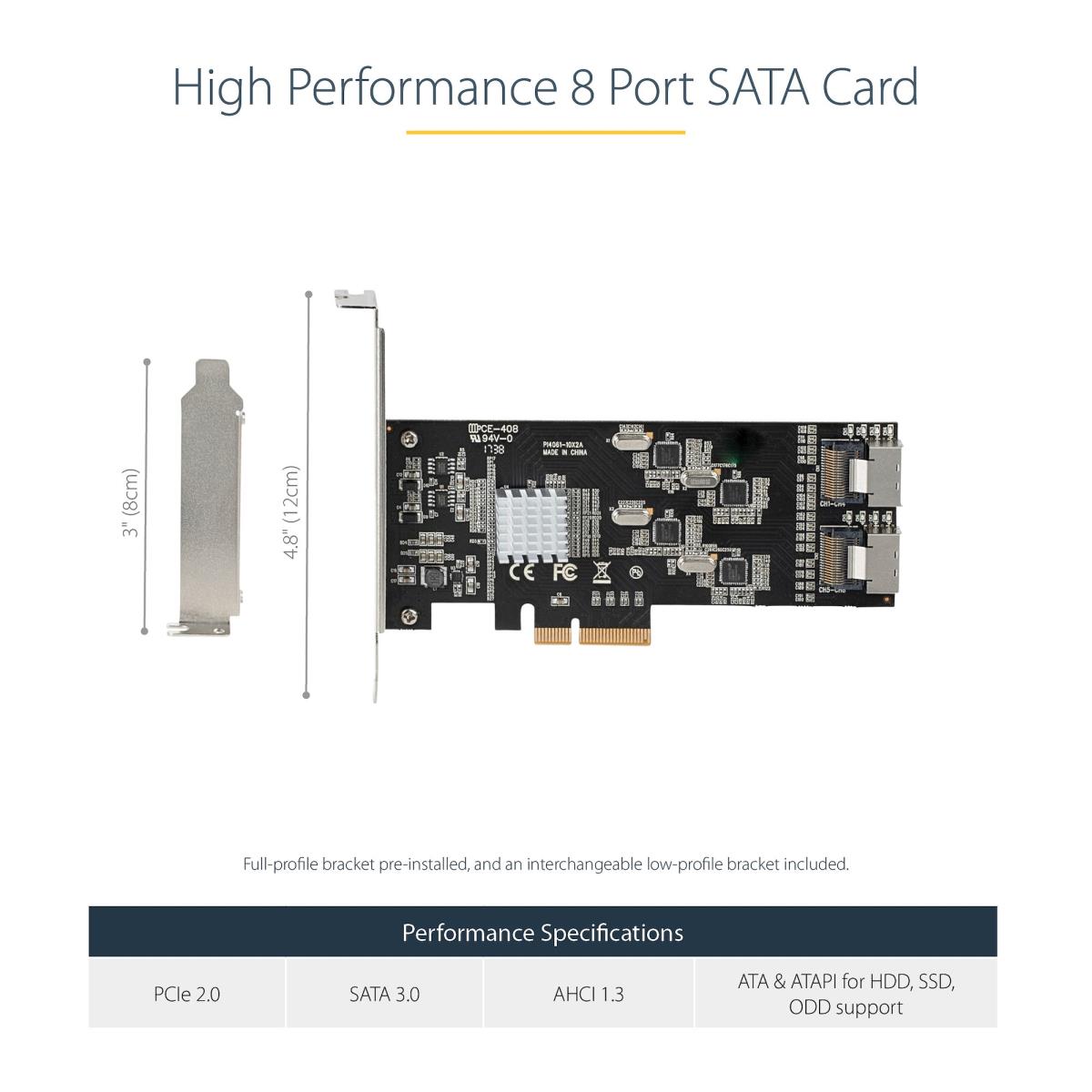

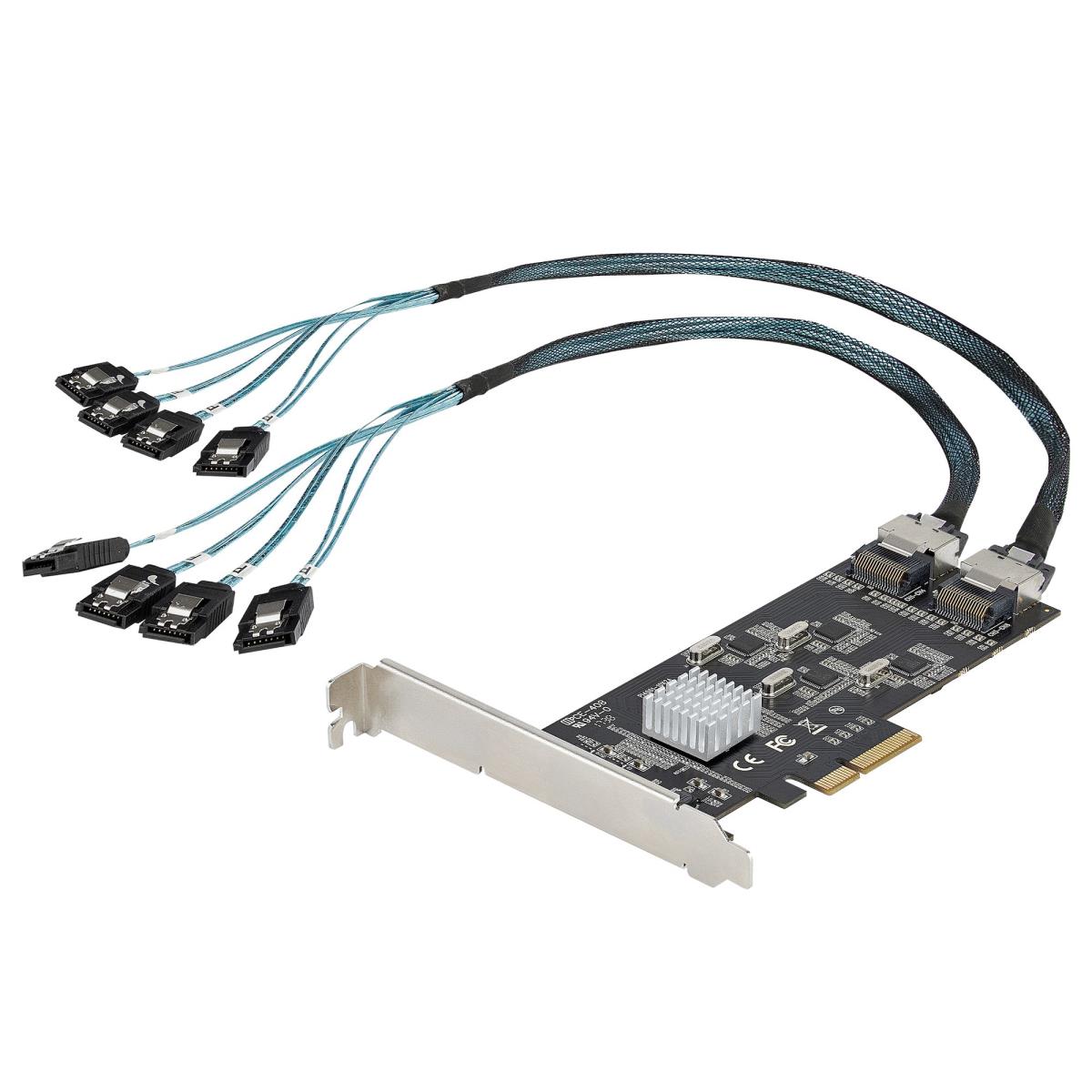

SATA III (6Gbps) | PCI Express Gen 2 | PCIe x4 Slot | 2x Mini-SAS Connectors | 2x Mini-SAS to 4x-SATA Cables IncludedThe StarTech.com Advantage
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Features
Harmonized System (HS) code
84733020
Chipset

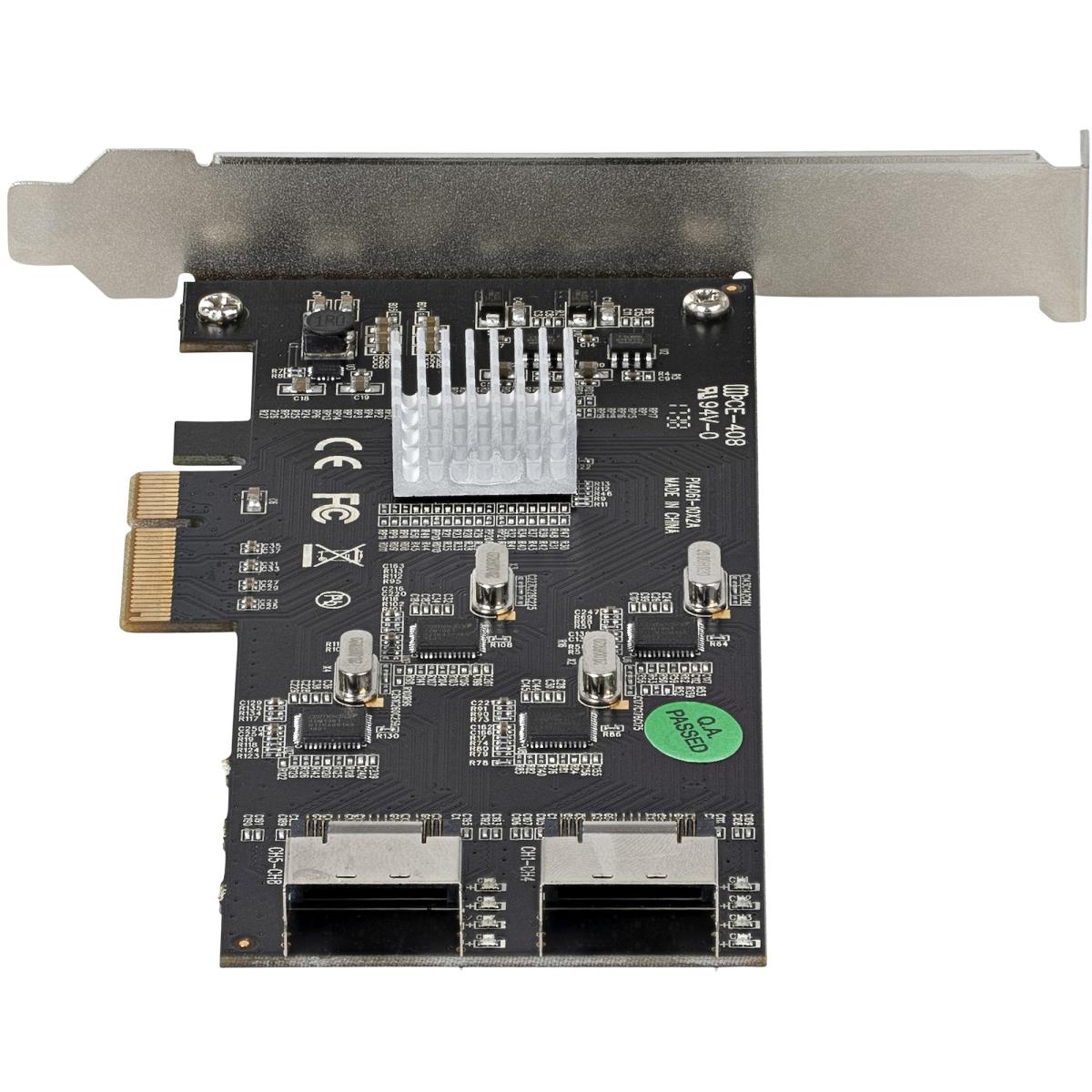

Pericom - PI7C9X2G608GP, ASMedia - ASM1061
Data transfer rate (max)
6 Gbit/s
S.M.A.R.T. support
Y
TRIM support
Y
Ports & interfaces
Host interface
PCIe
Output interface
Mini-SAS
Expansion card standard
PCI 2.0
SATA revision
3.0
External mini-SAS ports
2
Port multiplier
Y
Design
Internal
Y
Product colour
Black
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
System requirements

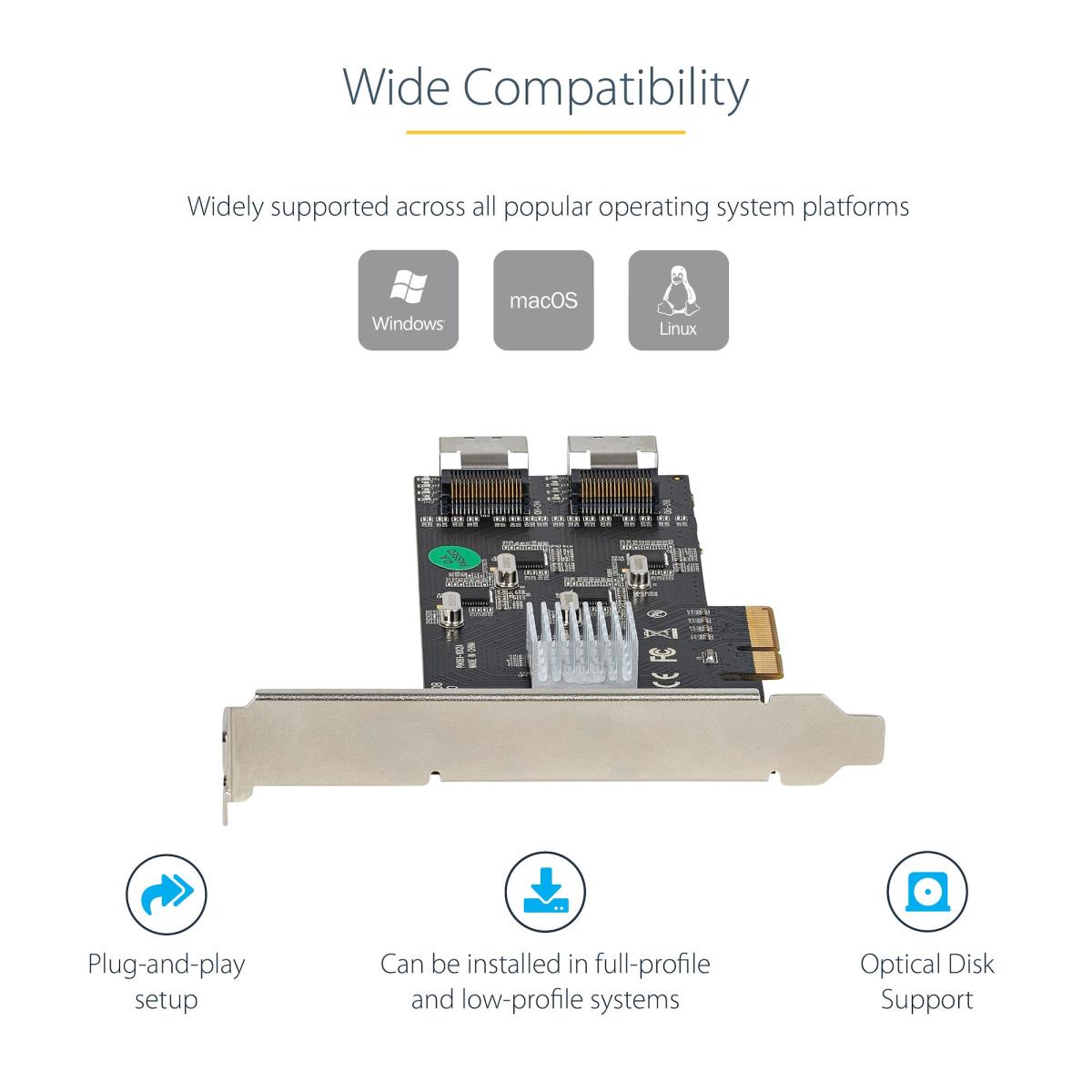

Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big Sur
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019

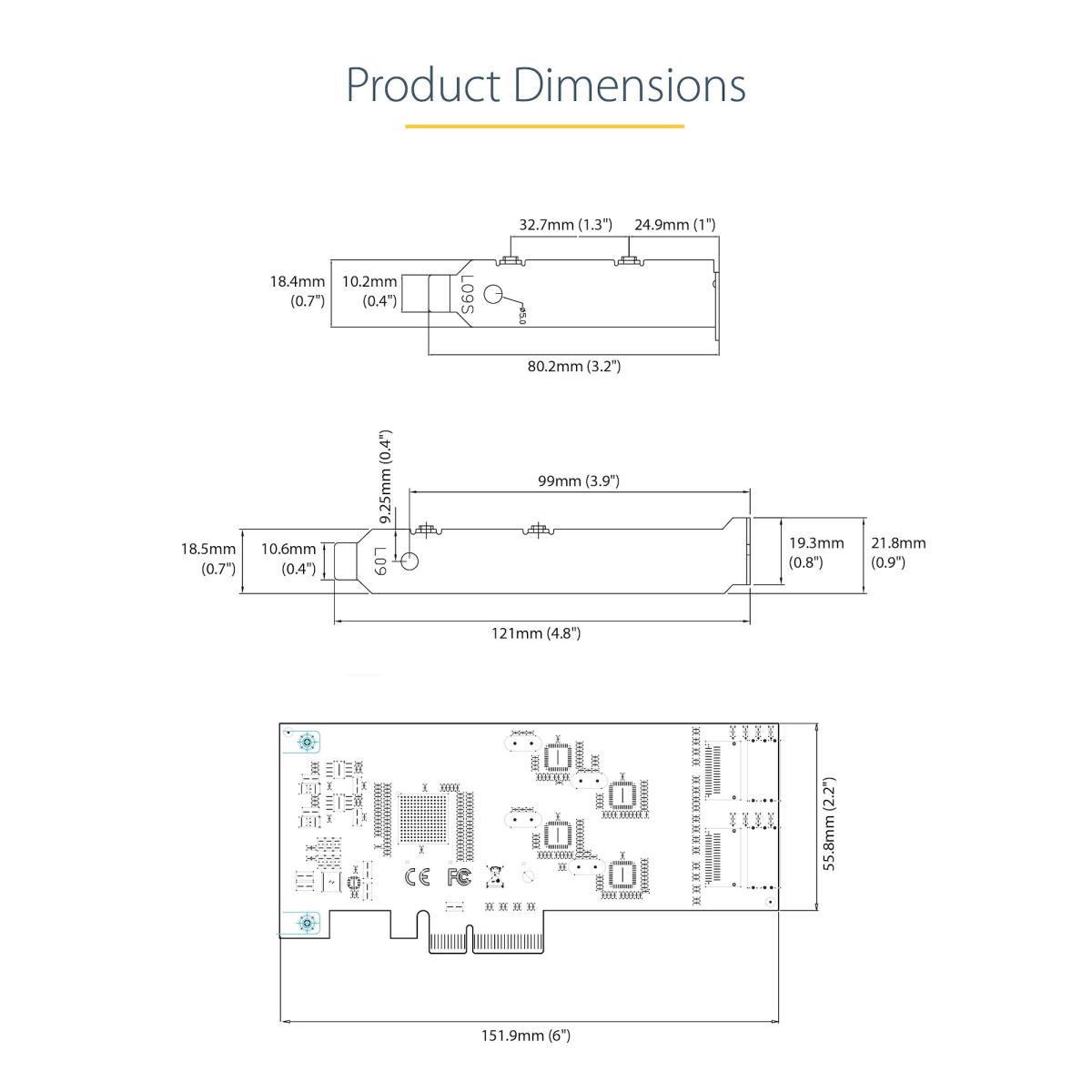

Weight & dimensions
Width
68.6 mm
Depth
150 mm
Height
14.6 mm
Weight
75 g
Packaging data

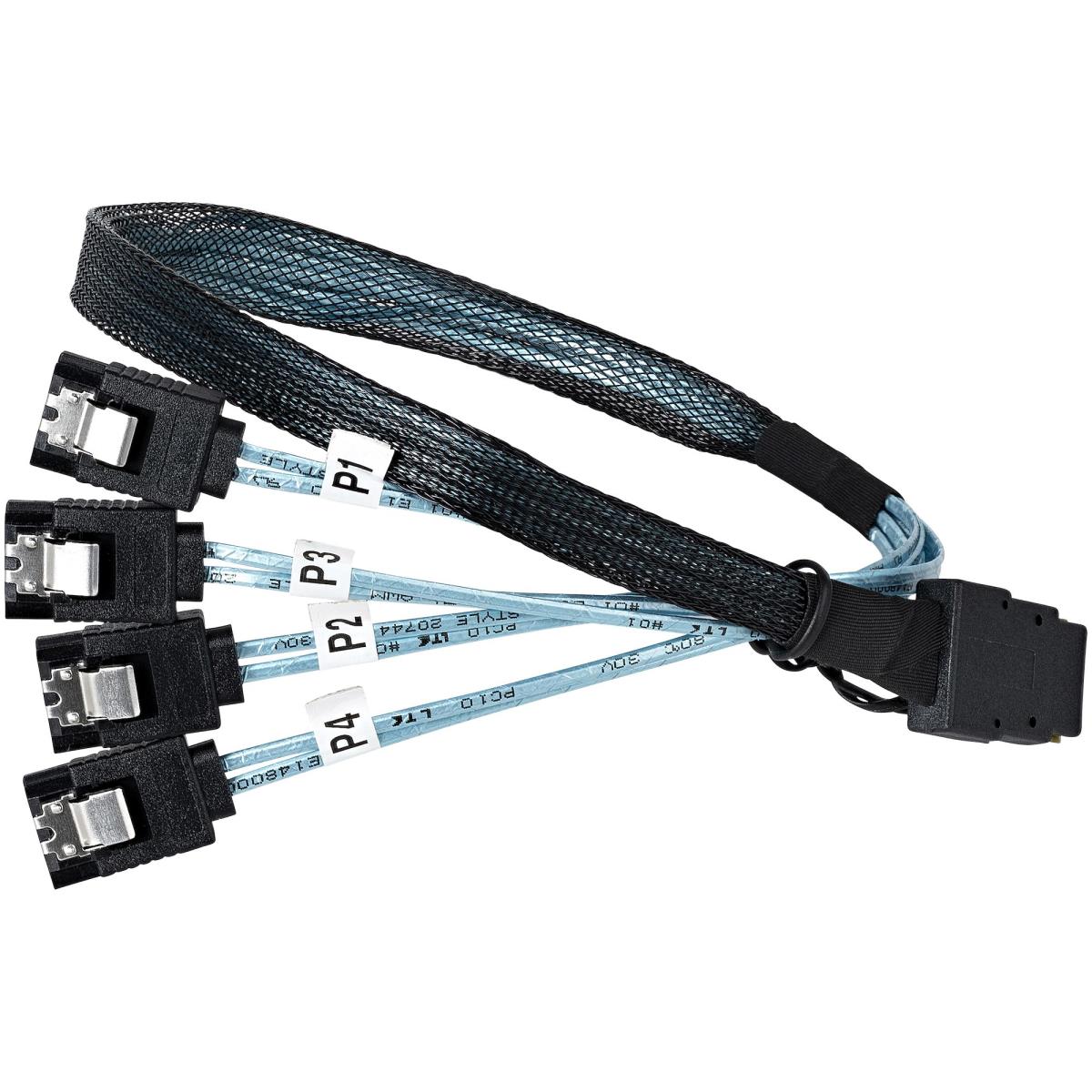

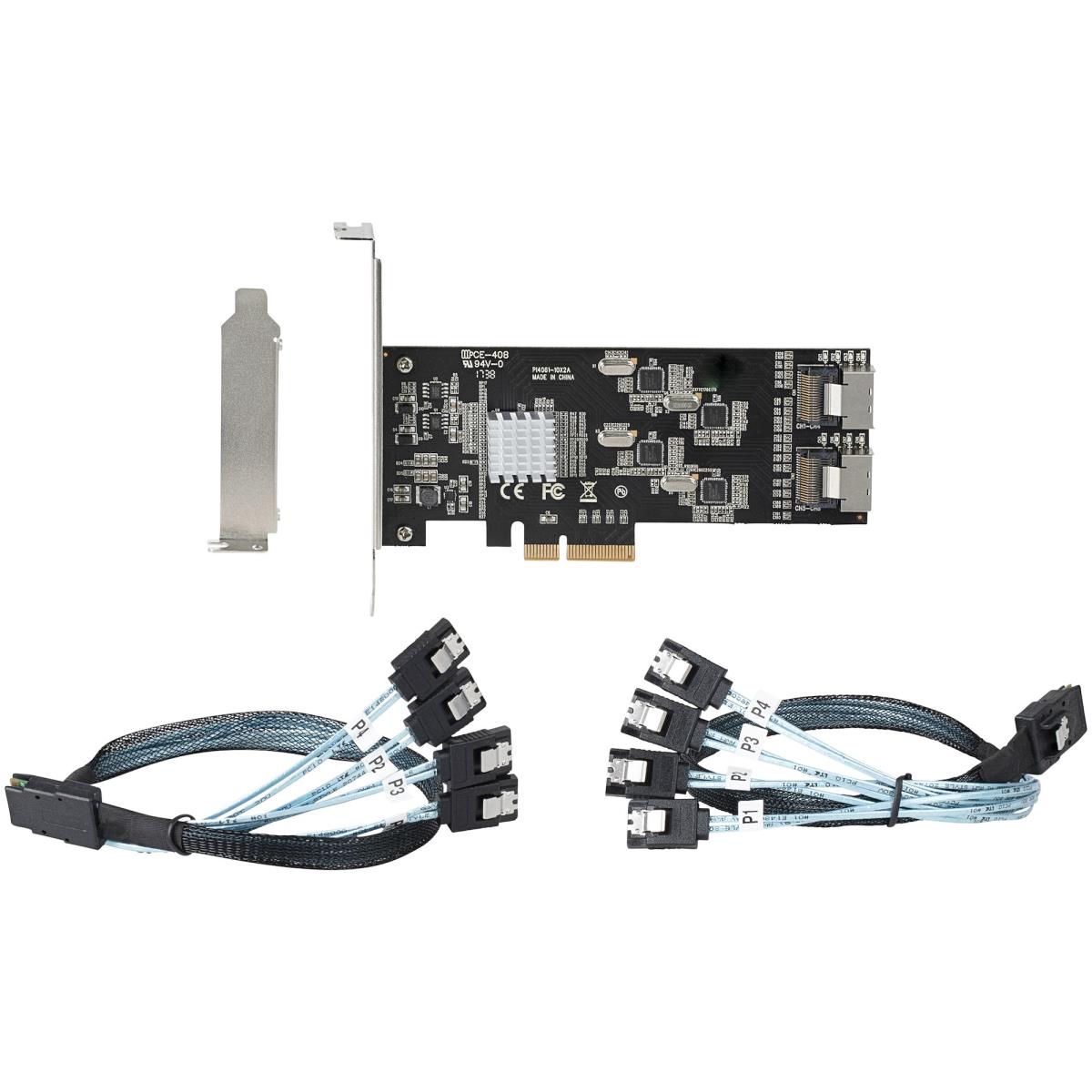

Cables included
SATA
Mounting brackets included
Y
Quick installation guide
Y
Package width
230 mm
Package depth
155 mm
Package height
55 mm
Package weight
81 g
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
610 mm
Master (outer) case length
510 mm
Master (outer) case height
380 mm
Information
| Part Number: | 8P6G-PCIE-SATA-CARD |
