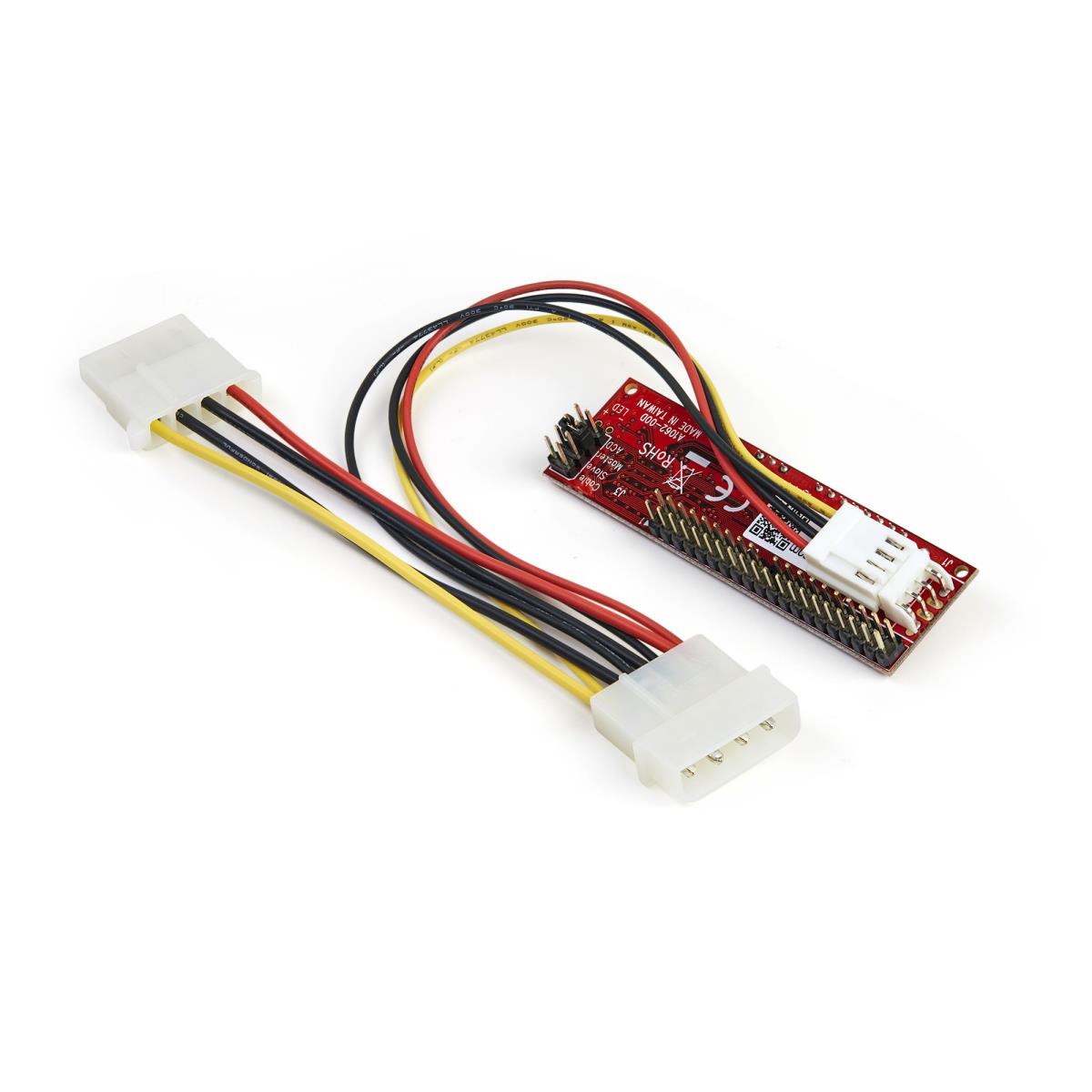

STARTECH.COM Ide Pata To SATA Adapter Converter For HDD/SSD/odd 40-pin

£14.35

Part Number: IDE2SAT2
Delivery: 1 - 2 days

Product Details

Introduction

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep  your existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.

The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

The StarTech.com Advantage

- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical support

Logistics data

Products per master (outer) case 60 pc(s)
Master (outer) case width 380 mm
Master (outer) case length 496 mm
Master (outer) case height 321 mm

Technical details

Compliance certificates RoHS
Sustainability certificates RoHS

Features

Harmonized System (HS) code 84733020

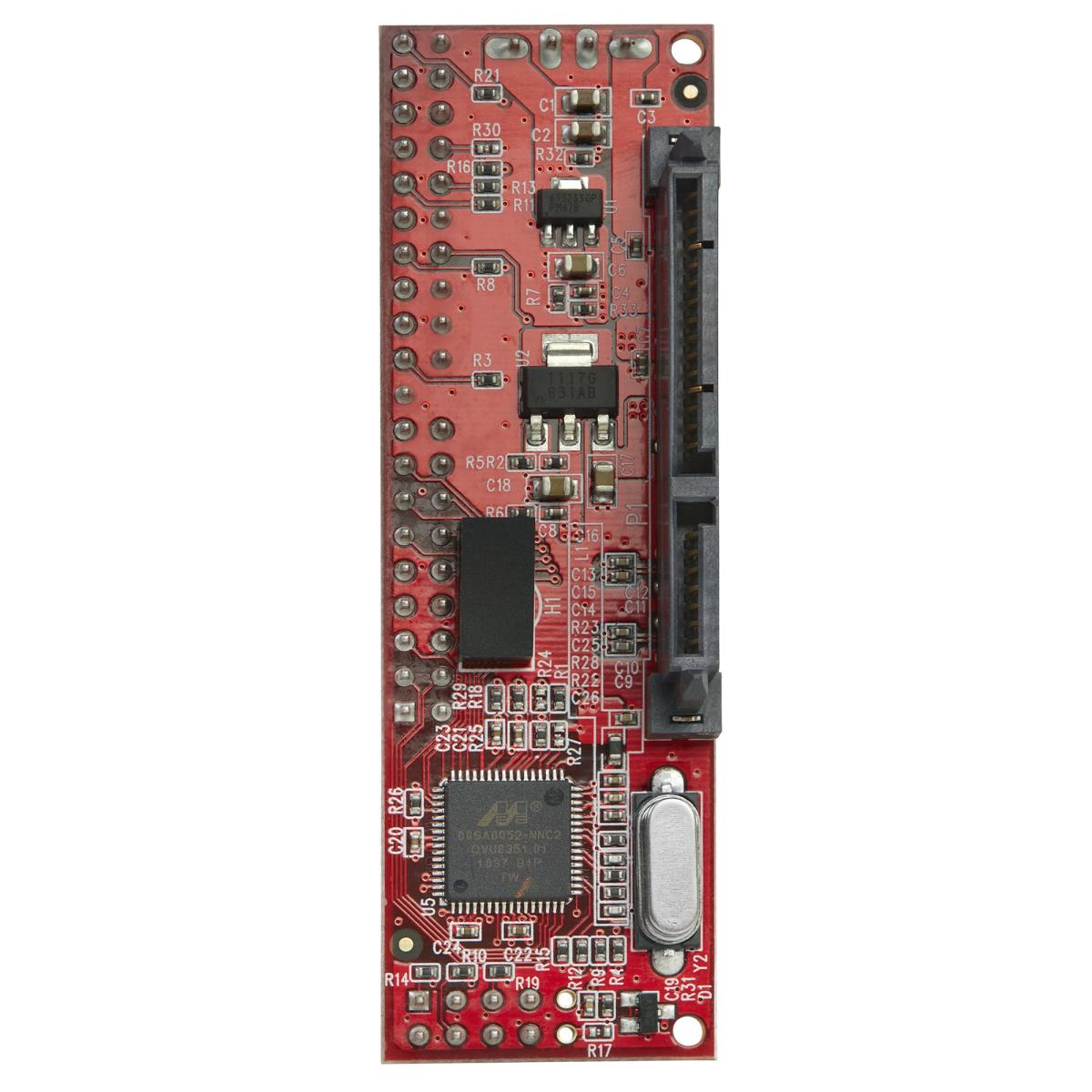

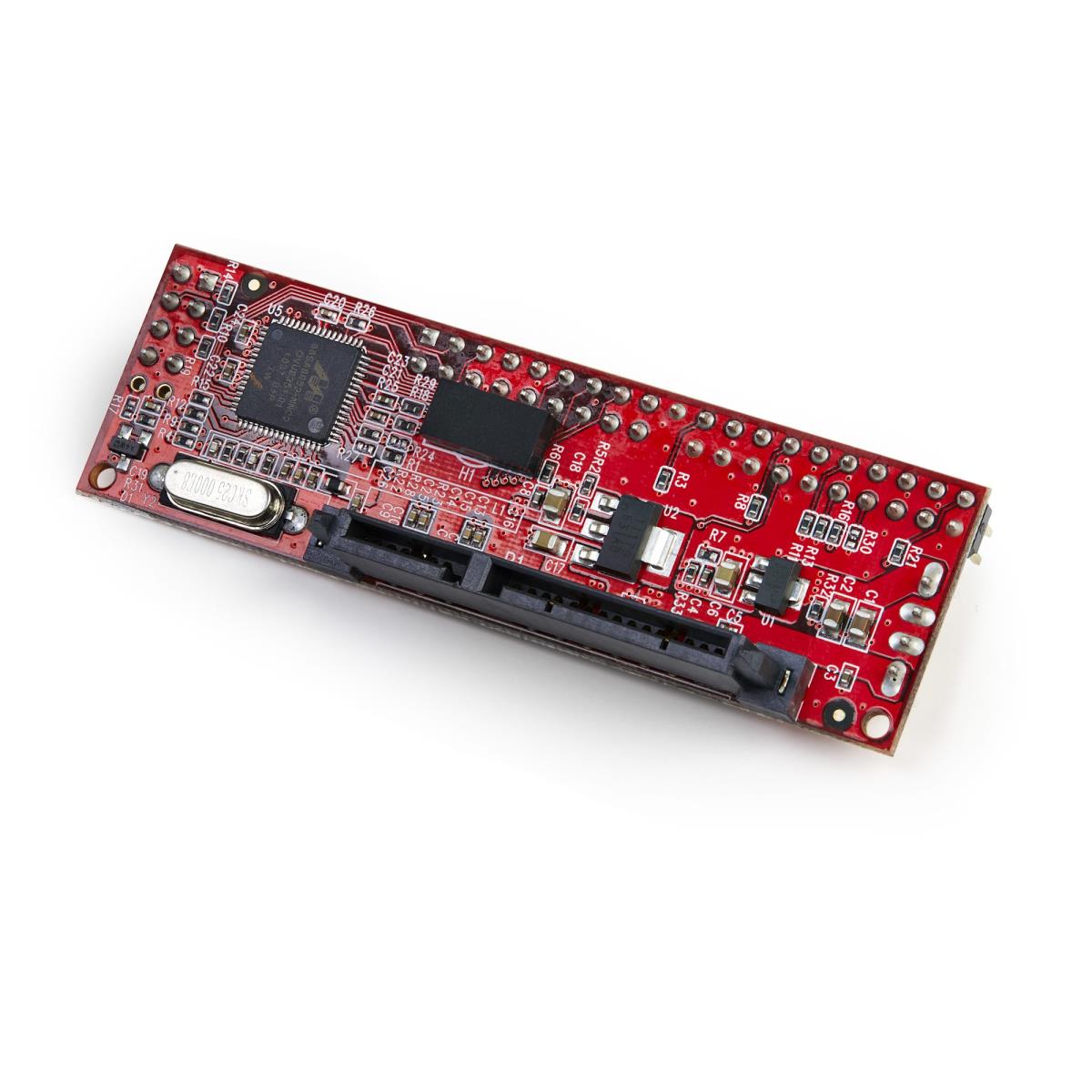

Chipset Marvell - 88SA8052
Data transfer rate (max) 0.133 Gbit/s
Logical block addressing (LBA) support 48 bit

Ports & interfaces

Host interface IDE
Output interface SATA
Connector(s) 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)

Design

Internal Y
Product colour Red
Certification FCC, CE, TAA, REACH

Operational conditions

Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 80 °C
Operating relative humidity (H-H) 15 - 90%

Weight & dimensions

Width 20 mm
Depth 75.5 mm
Height 23 mm
Weight 29 g

Packaging data

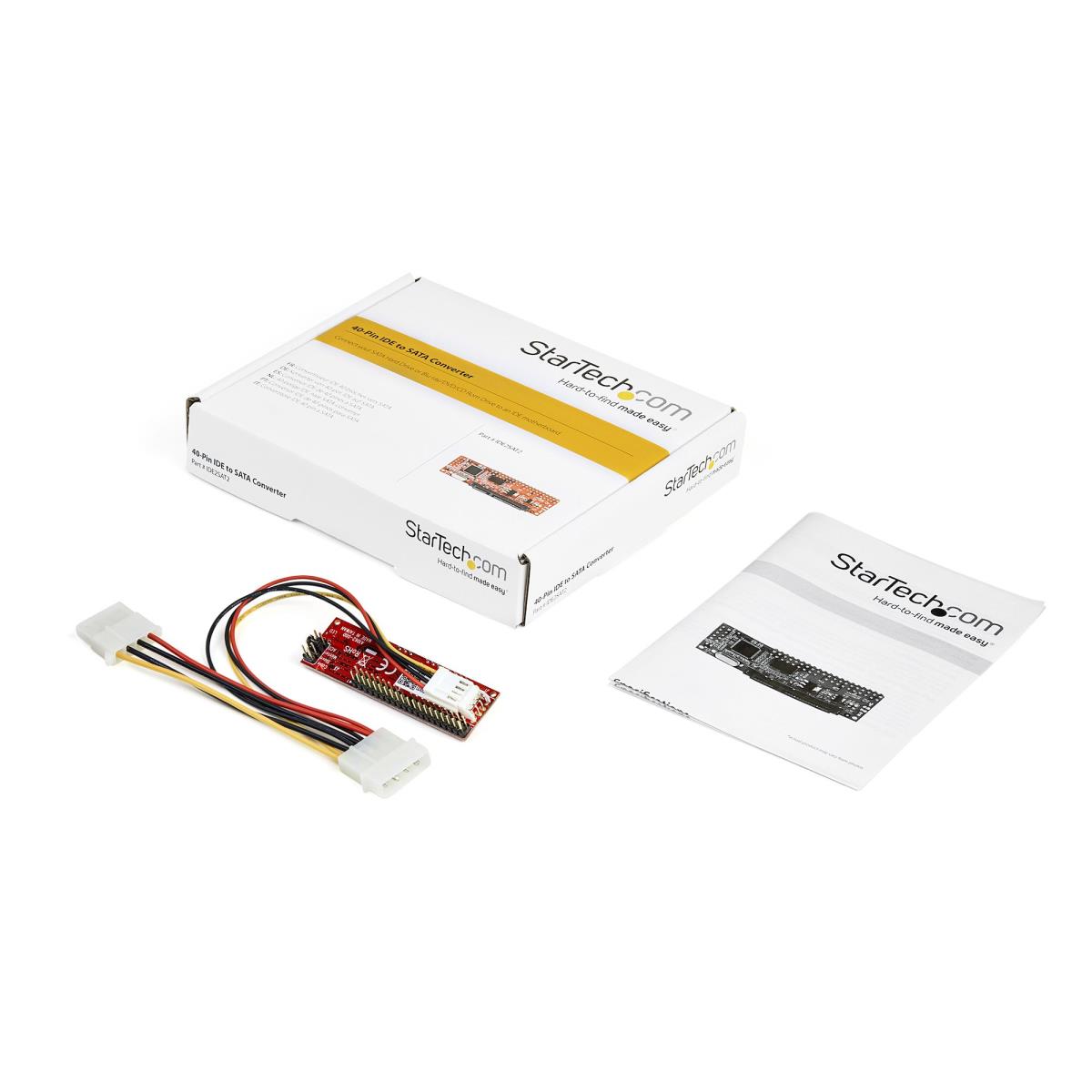

Manual Y
Package width 175 mm
Package depth 145 mm
Package height 33 mm
Package weight 89 g

Other features

Material Plastic, Steel

Information

Part Number: IDE2SAT2
