Product Details
Introduction

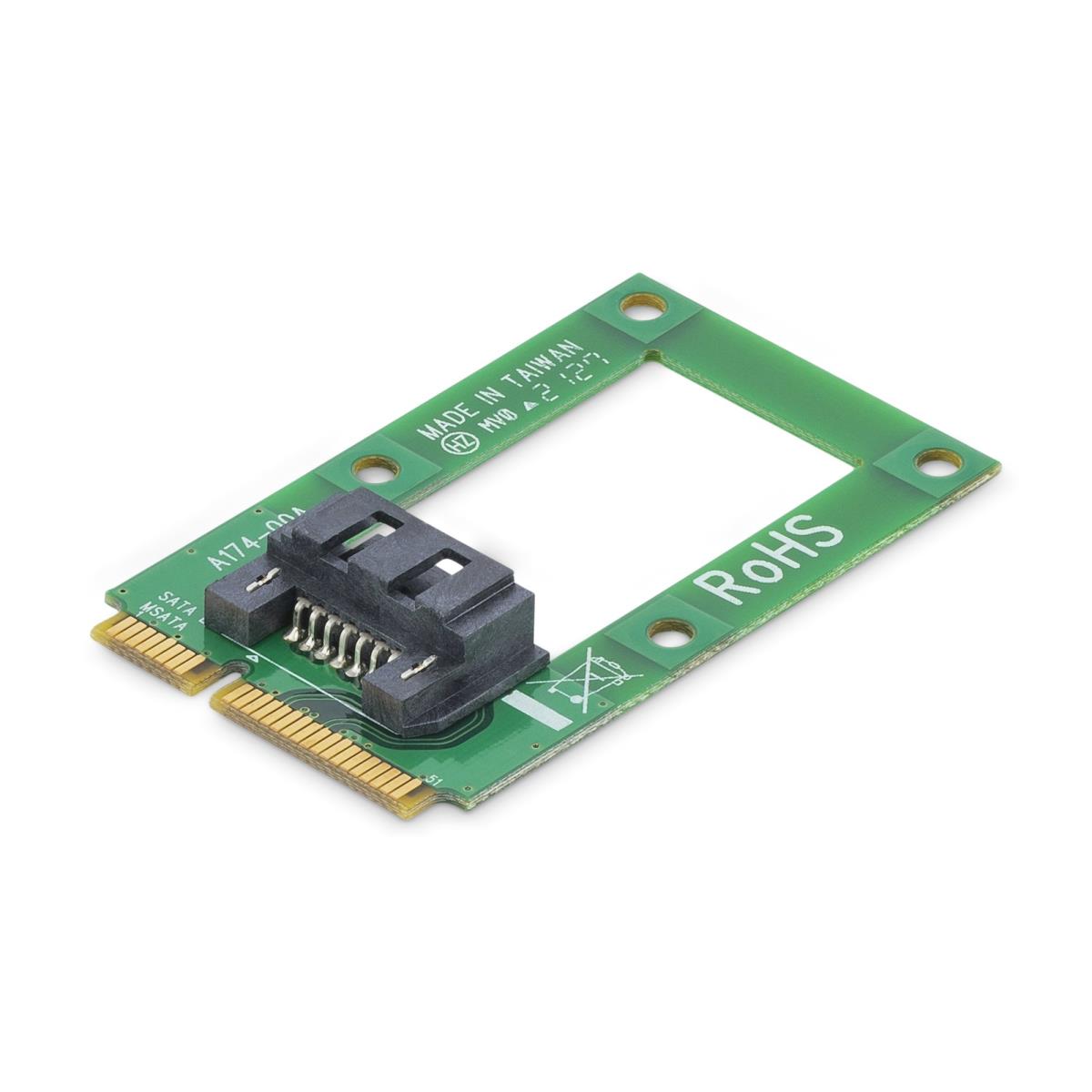

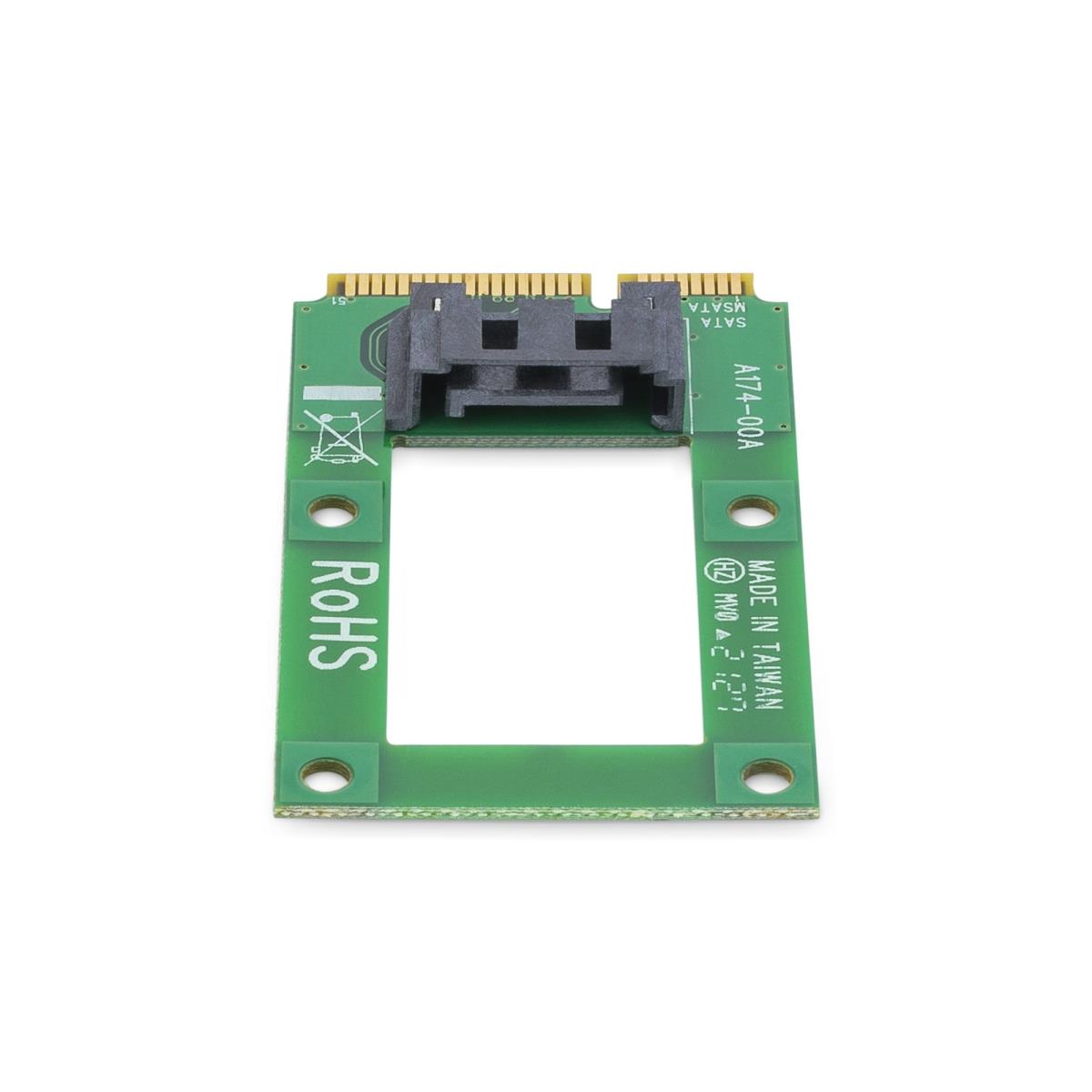

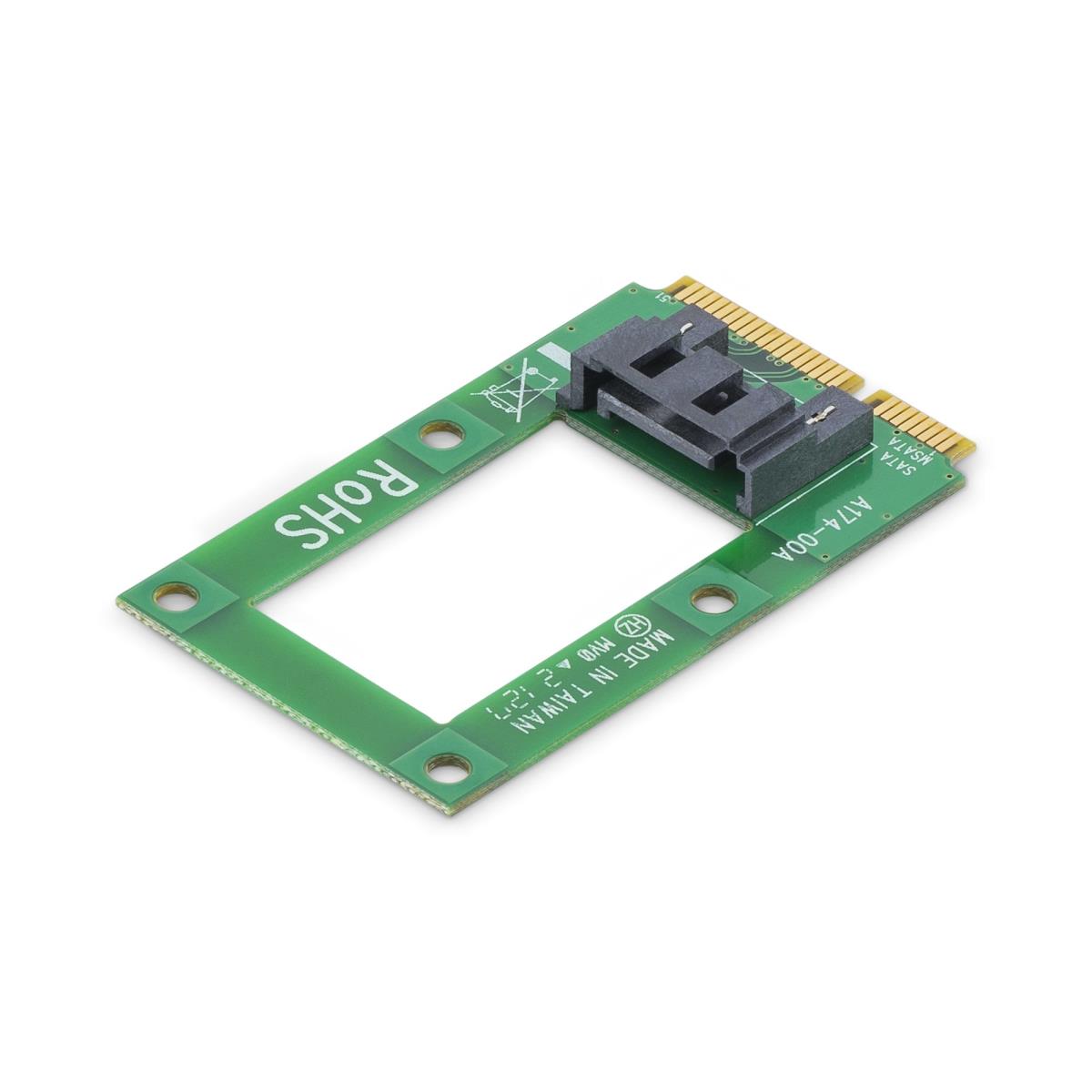

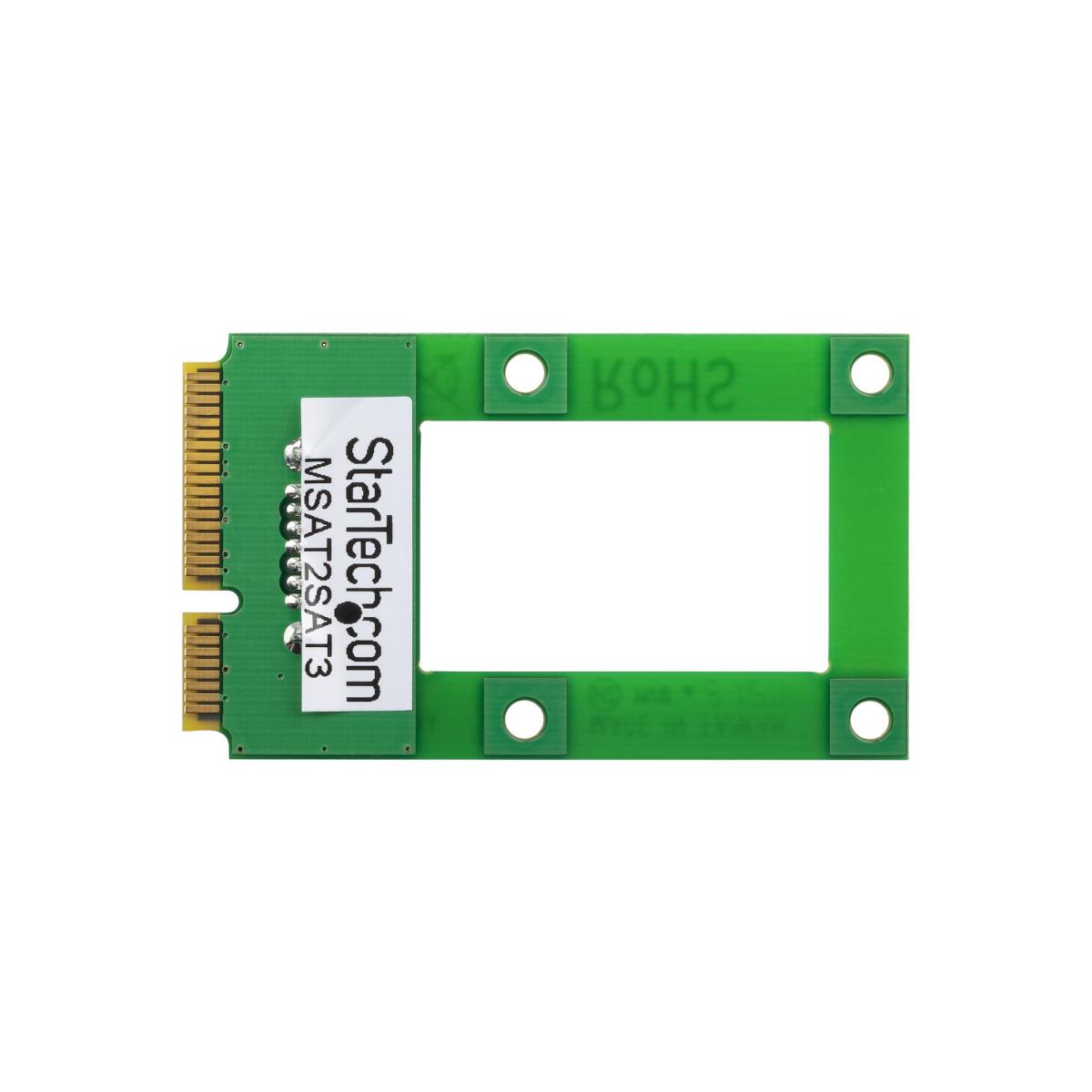

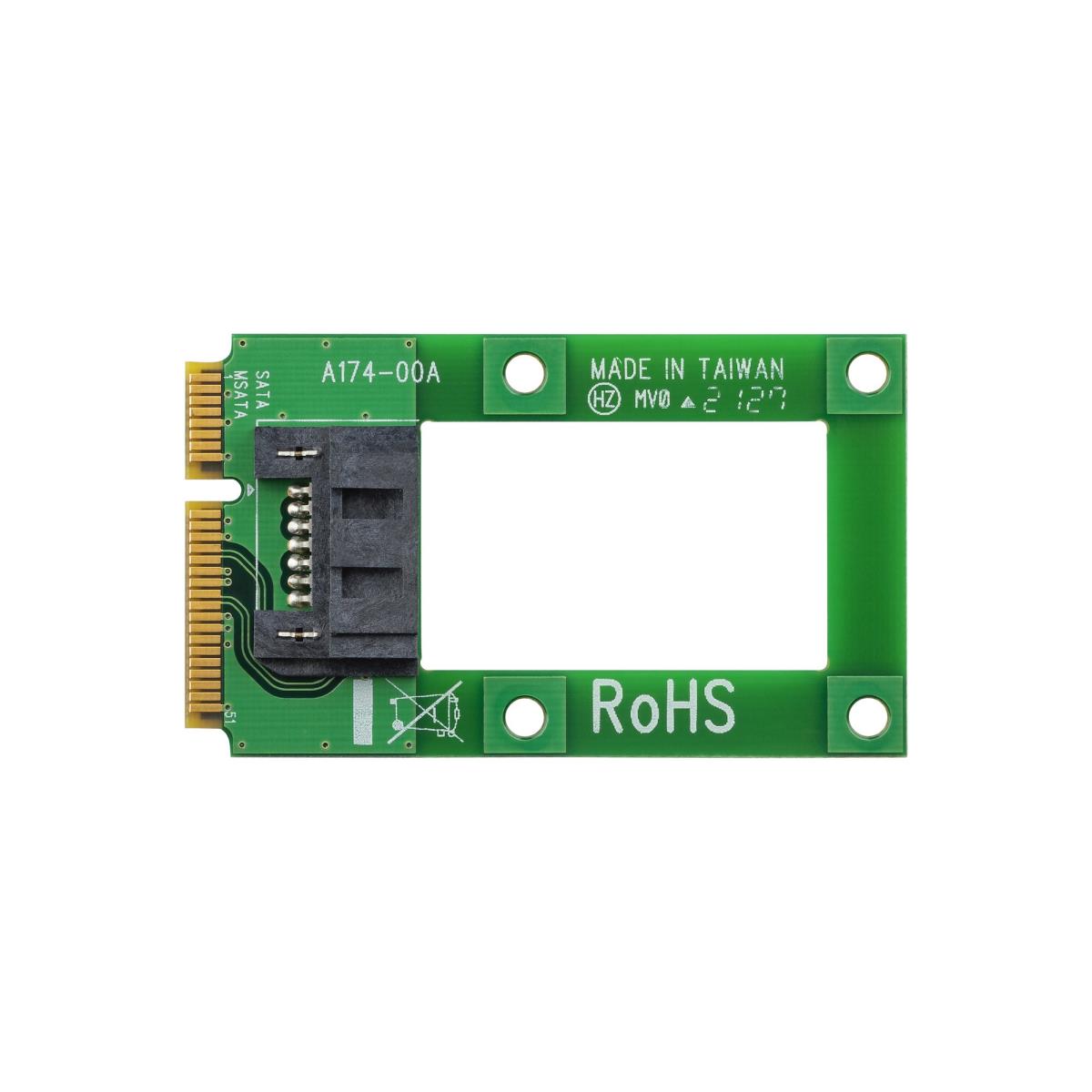

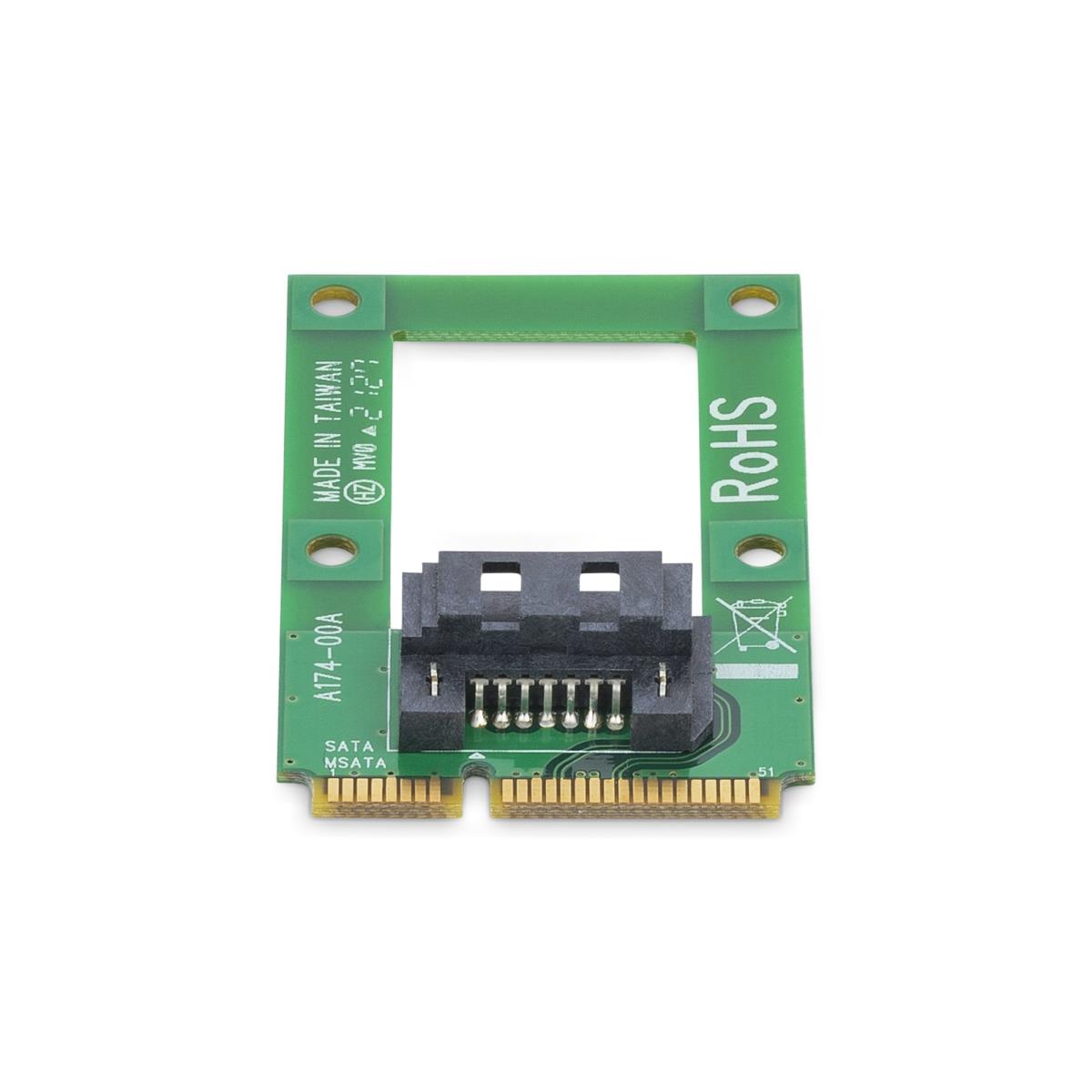

The MSAT2SAT3 mSATA to SATA adapter enables you to connect a standard SATA drive to an available mSATA port.
The adapter improves system capacity by enabling an mSATA port to host a larger SATA hard drive (tested up to 4TB). For guaranteed compatibility and performance the adapter is compliant with SATA I/II/III revisions, allowing for transfer speeds up to 6Gb per second.
The MSAT2SAT3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve system capacity by connecting a larger SATA hard drive to an mSATA host controller
Packaging data
Screws included
Yes
User guide
Y
Package width
125 mm
Package depth
225 mm
Package height
10 mm
Package weight
15 g
Logistics data
Products per master (outer) case
100 pc(s)
Master (outer) case width
292 mm
Master (outer) case length
686 mm
Master (outer) case height
218 mm
Technical details
Compliance certificates
CE, RoHS
Sustainability certificates
RoHS
Features
Harmonized System (HS) code
84733020
Data transfer rate (max)
6 Gbit/s
Ports & interfaces
Host interface
mSATA
Output interface
SATA
SATA revision
3.0
Design
Internal
Y
Product colour
Green
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
15 - 90%
Weight & dimensions
Width
30 mm
Depth
51 mm
Height
8 mm
Weight
4 g
Information
| Part Number: | MSAT2SAT3 |
