Introduction

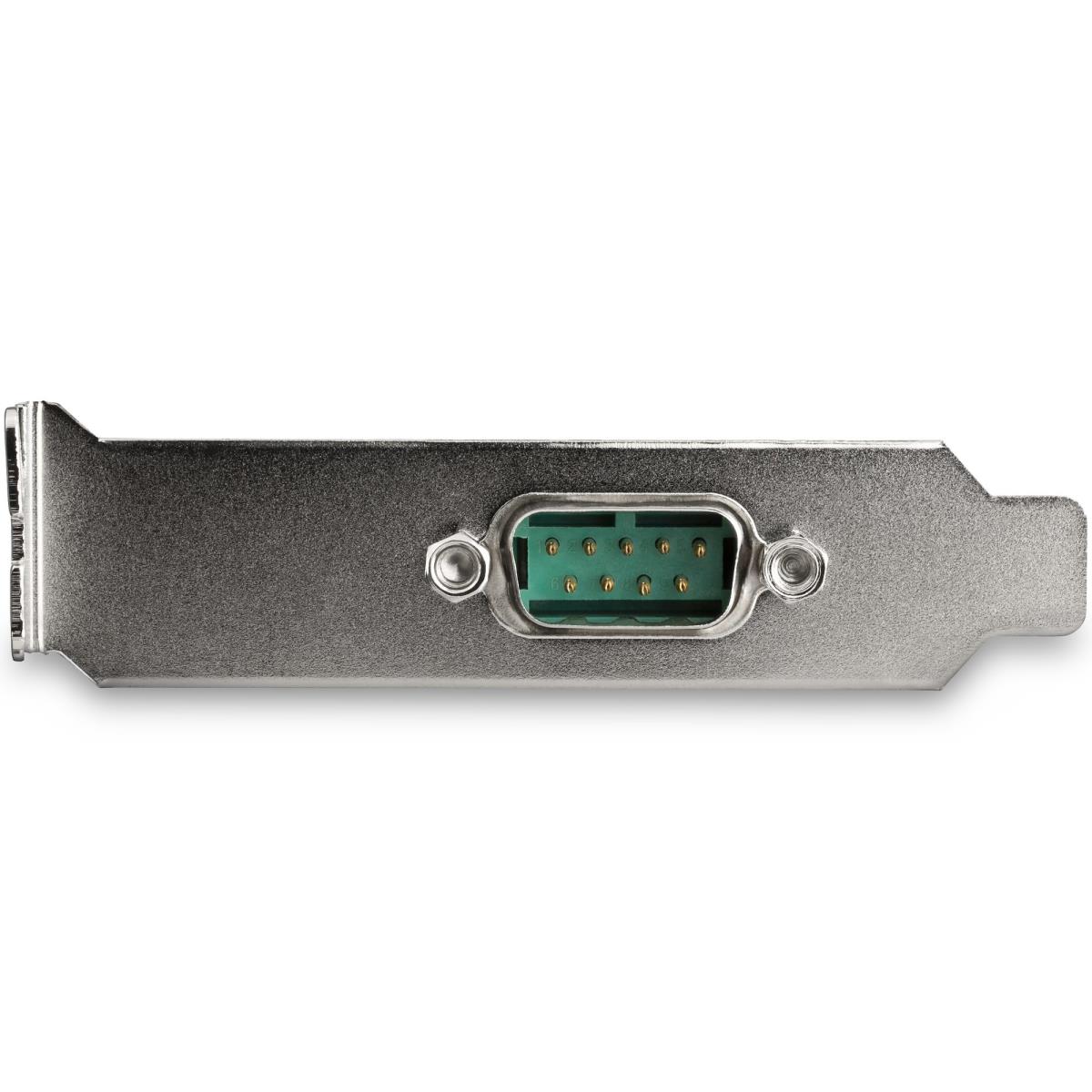

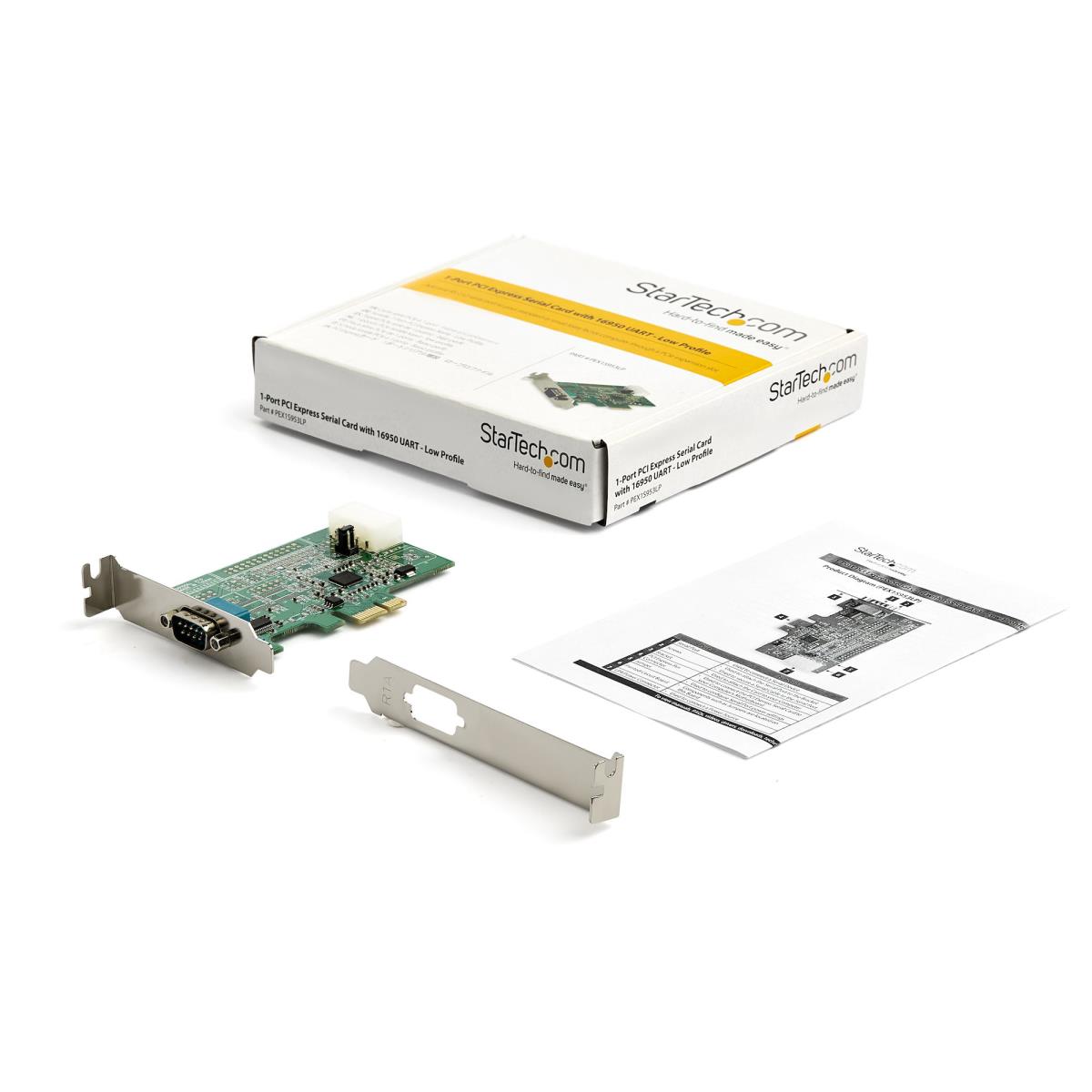

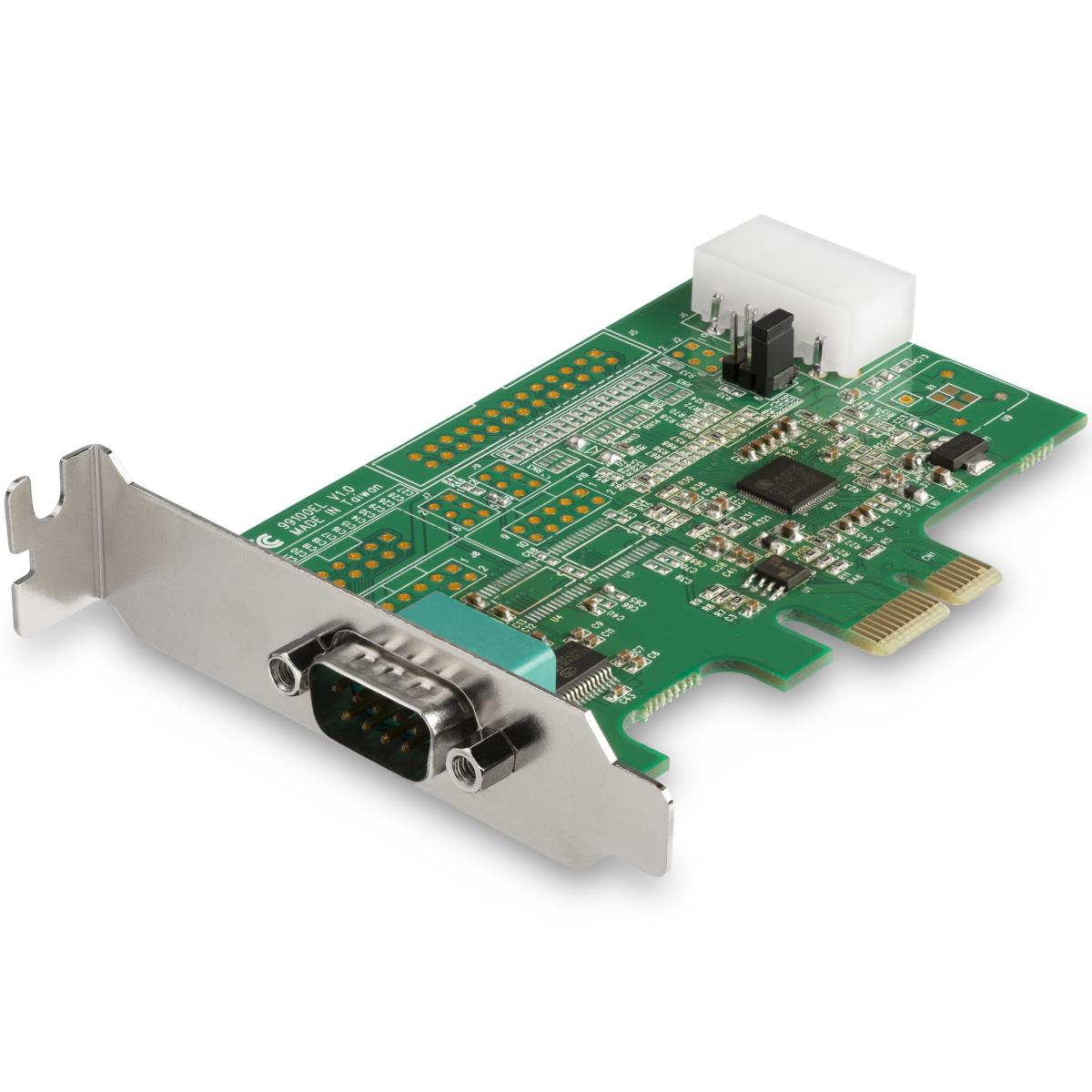

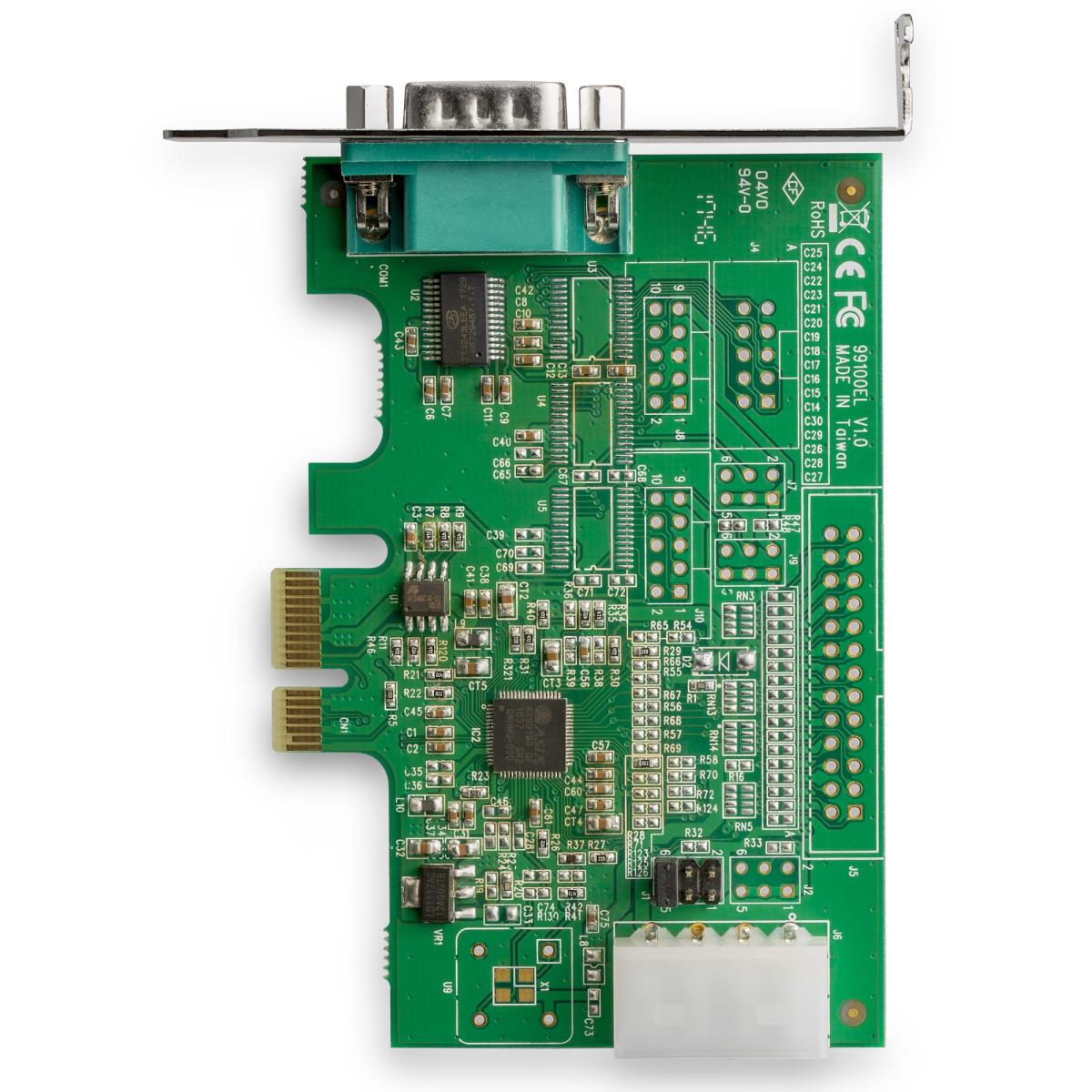

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® CompatibleThis RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.Experience Optimal TechnologyThis PCIe to serial adapter supports the following features:• Compatible with industry standard 16950 UART• Supports max baud rate of up-to 921.4Kbps• Provides 5/12V power output on Pin 9 when external power is connected• 128-byte depth FIFO per transmitter and receiver• Supports 9, 8, 7, 6, 5 data bits• Asix AX99100 chipset• PCI Express 1.1 compliantPEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, RoHS
Sustainability certificates
RoHS
Features
Harmonized System (HS) code
84733020
Chipset
Asix AX99100
Baud rate
921.4 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5,6,7,8,9
Stop bits
1,1.5,2
Flow control support
Y
Parity bit
Even, Mark, N, Odd, Space
Flow Control type
N, RTS/CTS, XON/XOFF
Ports & interfaces
Host interface
PCIe
Output interface
Serial
Expansion card standard
PCIe 1.1
Serial ports quantity
1
Serial interface type
RS-232

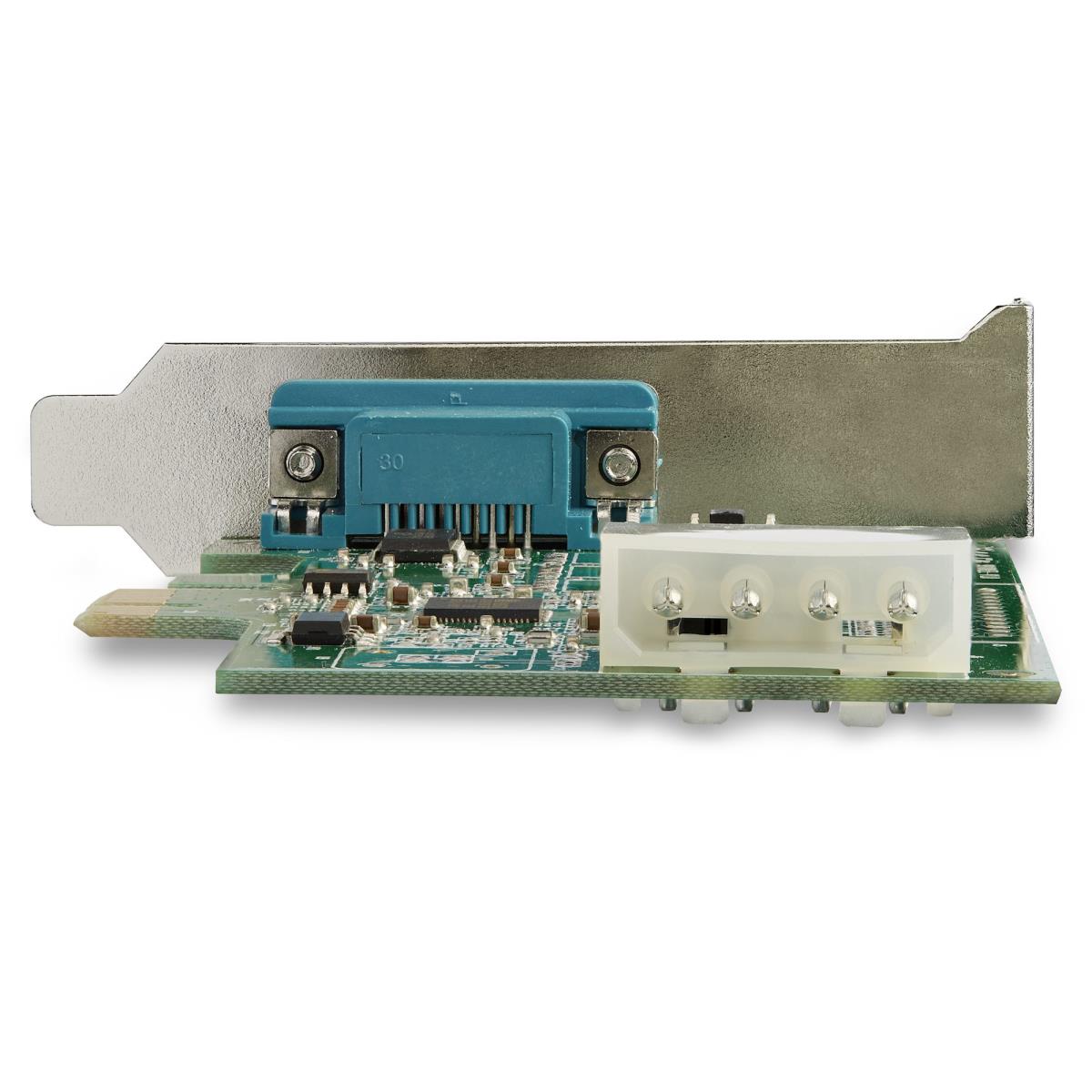

Peripheral (Molex) power connectors (4-pin)
1
Design
Internal
Y
Product colour
Green
Mean time between failures (MTBF)
277385 h
Certification
CE, FCC, Microsoft WHQL
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
20 - 80%
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supported
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Weight & dimensions
Width
67 mm
Depth
98 mm
Height
150 mm
Weight
44 g
Packaging data
Quantity
1
Mounting brackets included
Y
Manual
Y
Package width
142 mm
Package depth
170 mm
Package height
30 mm
Package weight
112 g
Logistics data
Products per master (outer) case
75 pc(s)
Master (outer) case width
360 mm
Master (outer) case length
685 mm
Master (outer) case height
315 mm
