Introduction
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

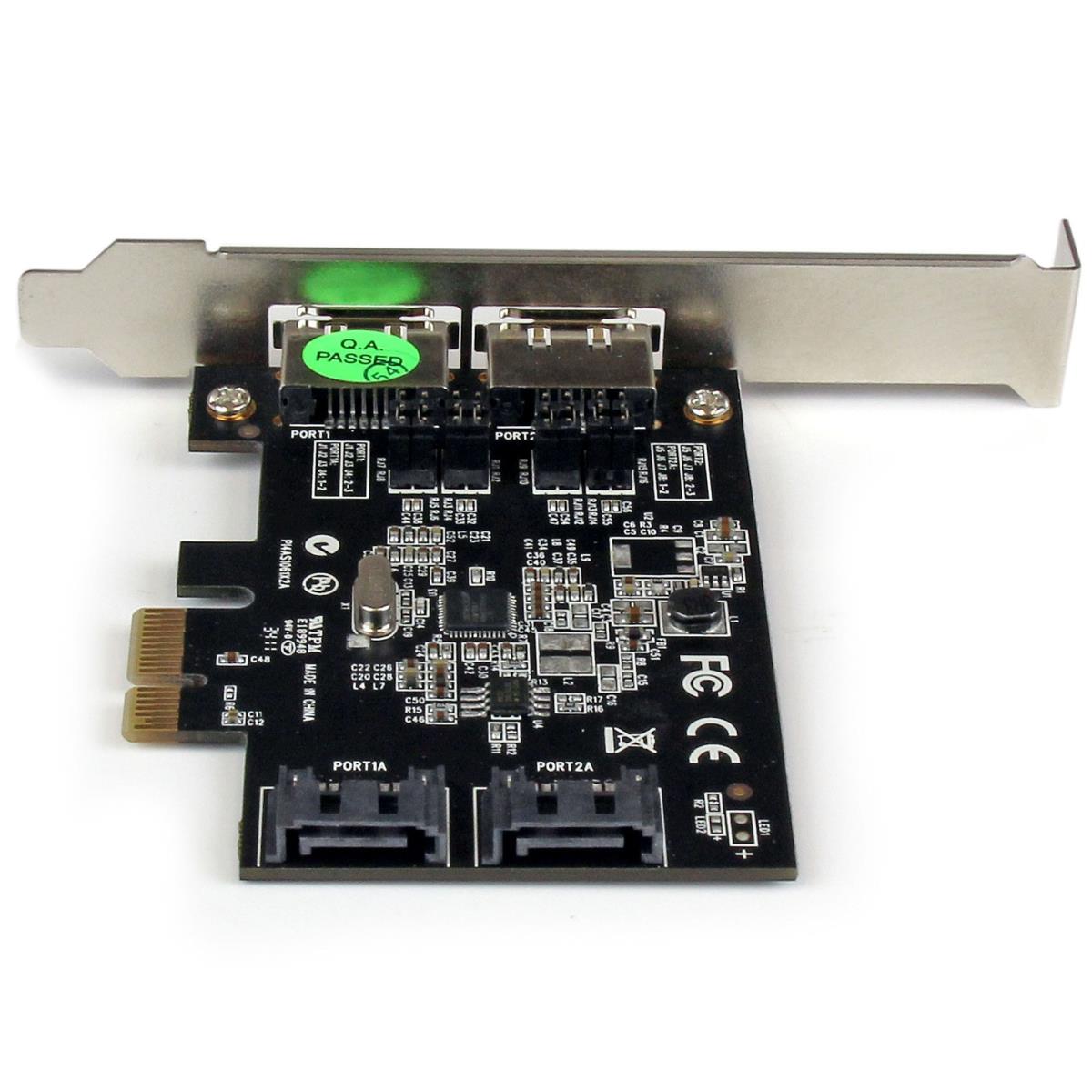

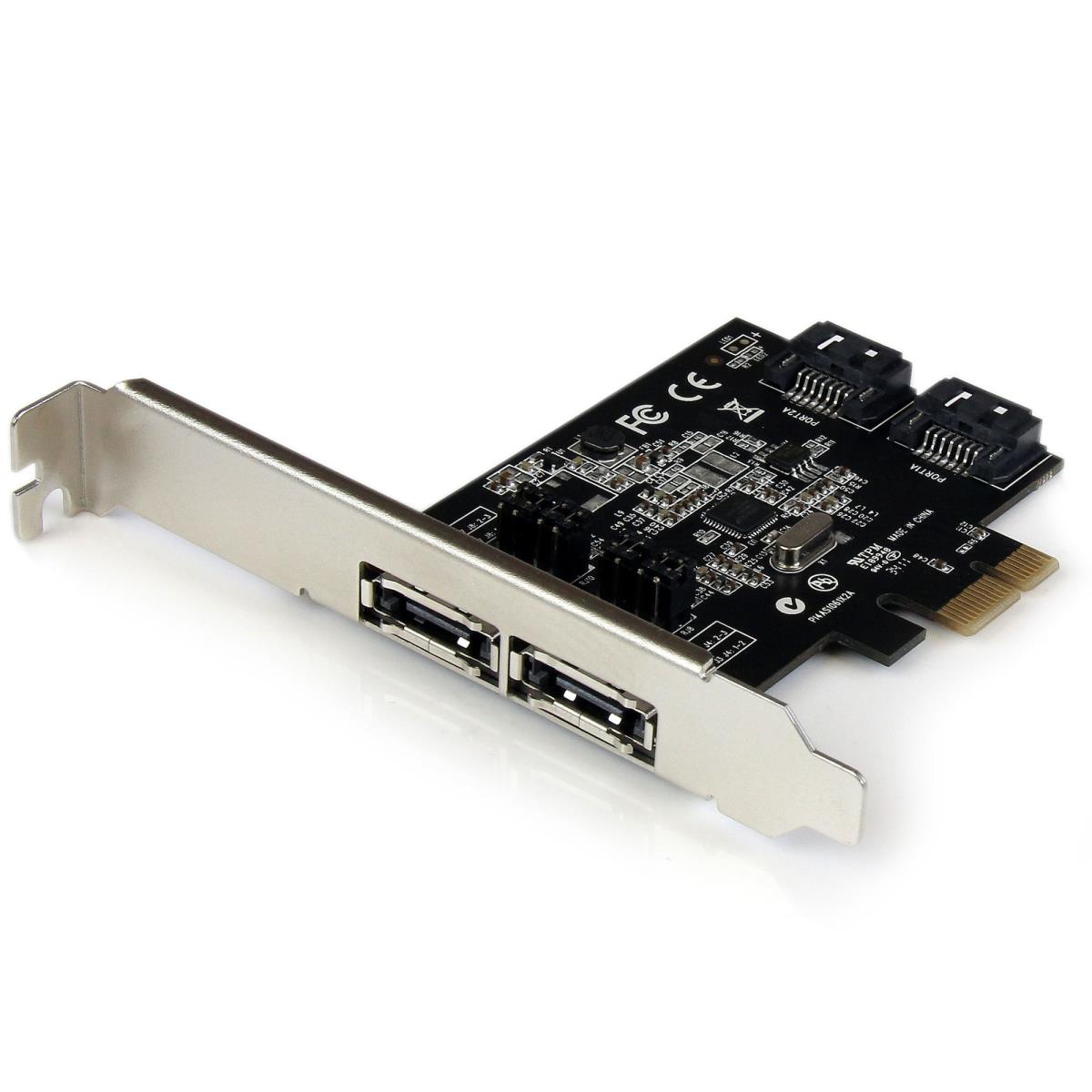

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The StarTech.com Advantage

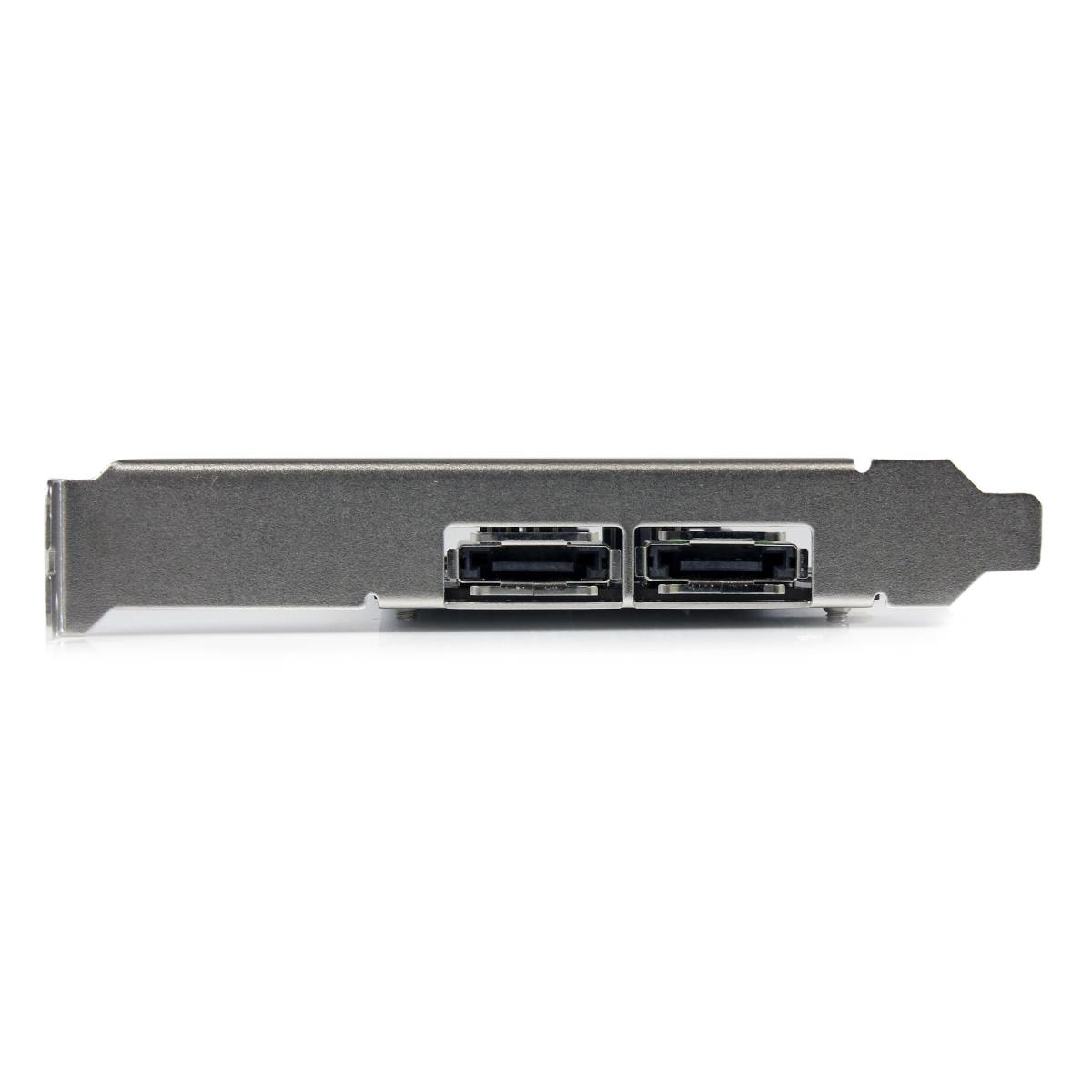

- This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external (eSATA) ports as needed
- This versatile add-in card offers SATA III connectivity (6Gbps), while remaining backward compatible with SATA I (1.5Gbps) and II (3Gbps) device connections, which helps eliminate the expense of having to upgrade drives
- Includes both a full and low profile/half-height bracket for installation into any size of desktop computer
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
451 mm
Master (outer) case length
379 mm
Master (outer) case height
325 mm
Features
Harmonized System (HS) code
84733020
Chipset
ASMedia - ASM1061
Logical block addressing (LBA) support
48 bit
Native Command Queuing (NCQ)
Y
Ports & interfaces
Host interface
PCIe
Output interface
SATA
SATA revision
3.0
eSATA ports quantity
2
Internal SATA ports quantity
2
Port multiplier
Y
Design
Internal
Y
Certification
CE, FCC, REACH
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%
System requirements
Windows operating systems supported
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Weight & dimensions
Width
92 mm
Depth
121 mm
Height
20 mm
Weight
48 g
Packaging data
Quantity
1
Cables included
SATA
Mounting brackets included
Y
Drivers included
Y
Manual
Y
Package width
173 mm
Package depth
144 mm
Package height
30 mm
Package weight
152 g
