Introduction
Deploy a docking station that can be updated, monitored, and managed remotely by IT teams

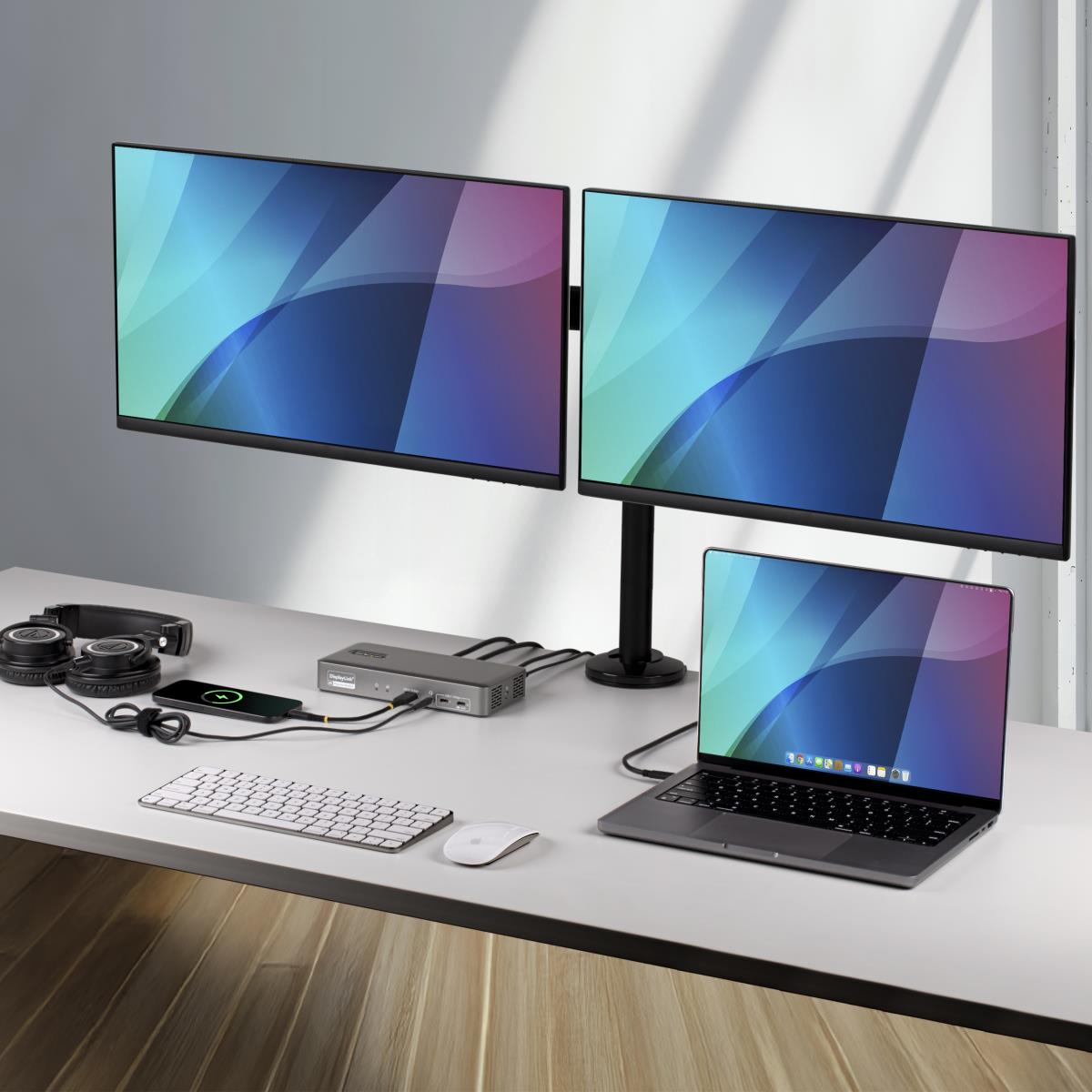

Manage, standardize, and deploy docking stations at scale while providing a consistent user experiences across any environment. Smart Dock Manager software gives IT teams real-time visibility and control, enabling faster issue identification and response times. Push firmware updates, monitor connection status, and track port usage across deployments. Disable unused ports and pull detailed activity logs to reduce risk in shared or secure environments, while maintaining centralized asset management for tighter oversight without manual checks. DisplayLink-enabled HDMI or DisplayPort outputs deliver reliable dual-monitor support across varied monitor hardware. Compatibility for Windows, macOS, Linux, and ChromeOS lets IT teams deploy one dock model across mixed laptop fleets, simplifying procurement and reducing support complexity. Flexible installer options (INF, EXE, MSI) support both manual setup and automated rollouts, helping IT teams deploy hardware quickly and reduce onboarding time. Gigabit Ethernet, seven USB ports, and 96W power delivery keep users connected and charged in hot desk setups, minimizing downtime and ensuring consistent workspace performance. This dock features a housing made from 75% post-consumer recycled (PCR) plastic and ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

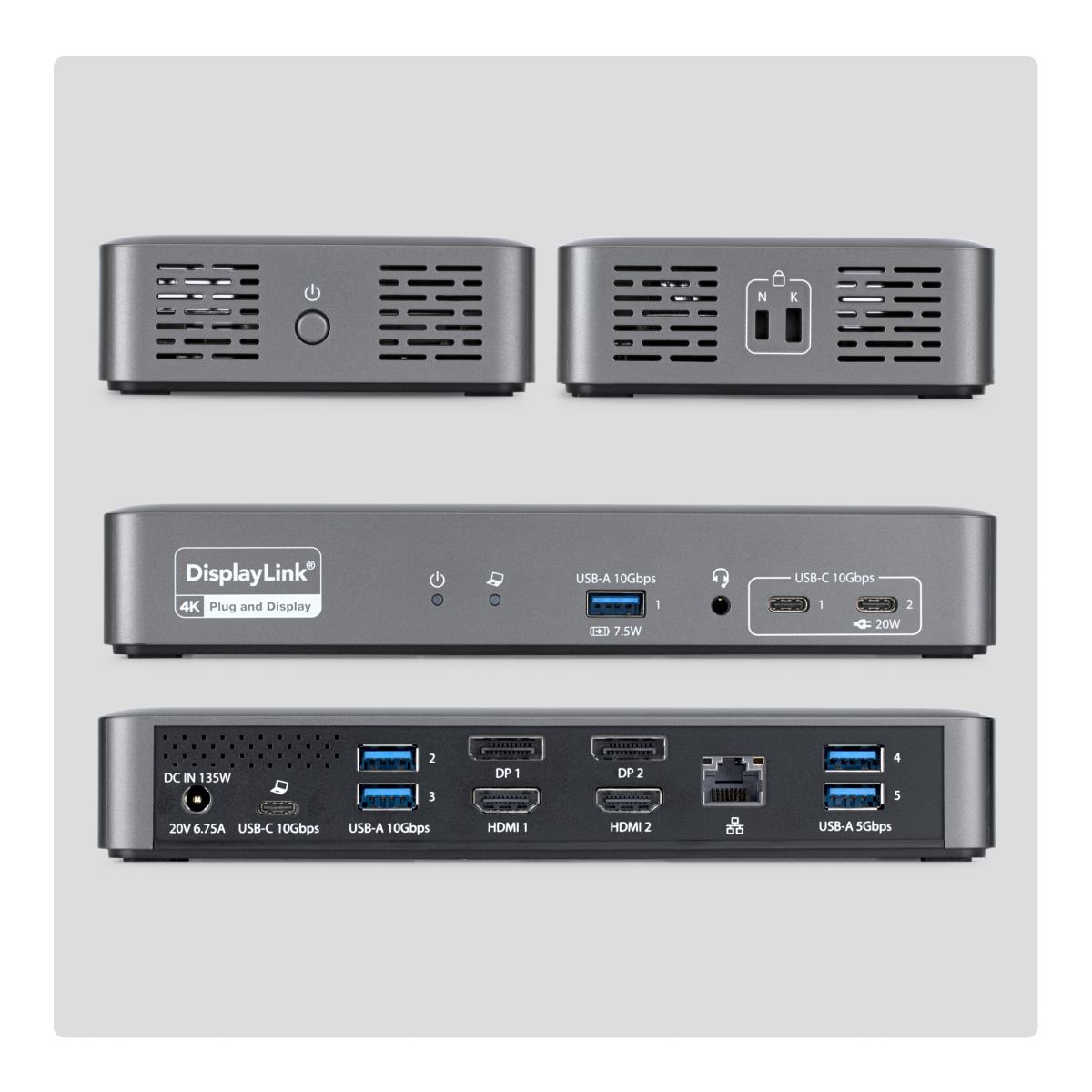

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
96 W
HDMI ports quantity
2
DisplayPorts quantity
2
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Performance
Card reader integrated
No
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
2
Cable lock slot
Yes
Cable lock slot type
Nano, Kensington
Product colour
Grey
On/off switch
Yes
LED indicators
Yes
UASP support
Yes
Housing material
Plastic
Mean time between failures (MTBF)
10000 h
Power
AC input voltage
100 - 240 V
Input current
1.9 A
Output voltage
20 V
Output current
6.75 A
Power consumption (max)
135 W
Compatible power plug types
EU
Software
Windows operating systems supported
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported
Mac OS X 15.0 Sequoia, Mac OS X 14.0 Sonoma, Mac OS 26 Tahoe, Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur, Mac OS X 11.1 Big Sur, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Linux operating systems supported
Yes
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
95 mm
Depth
202 mm
Height
32 mm
Weight
360 g
Packaging data
Quantity per pack
1 pc(s)
Package width
140 mm
Package depth
255 mm
Package height
90 mm
Package weight
1.1 kg
Packaging content
Cables included
USB Type-C
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC)
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
287 mm
Master (outer) case length
470 mm
Master (outer) case height
270 mm
Other features
Chipset
DisplayLink - DL-6950, VIA Labs - VL108, VIA Labs - VL822, VIA Labs - VL817, VIA Labs - VL122, Realtek - RTL8153B
