Introduction
Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS
This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.

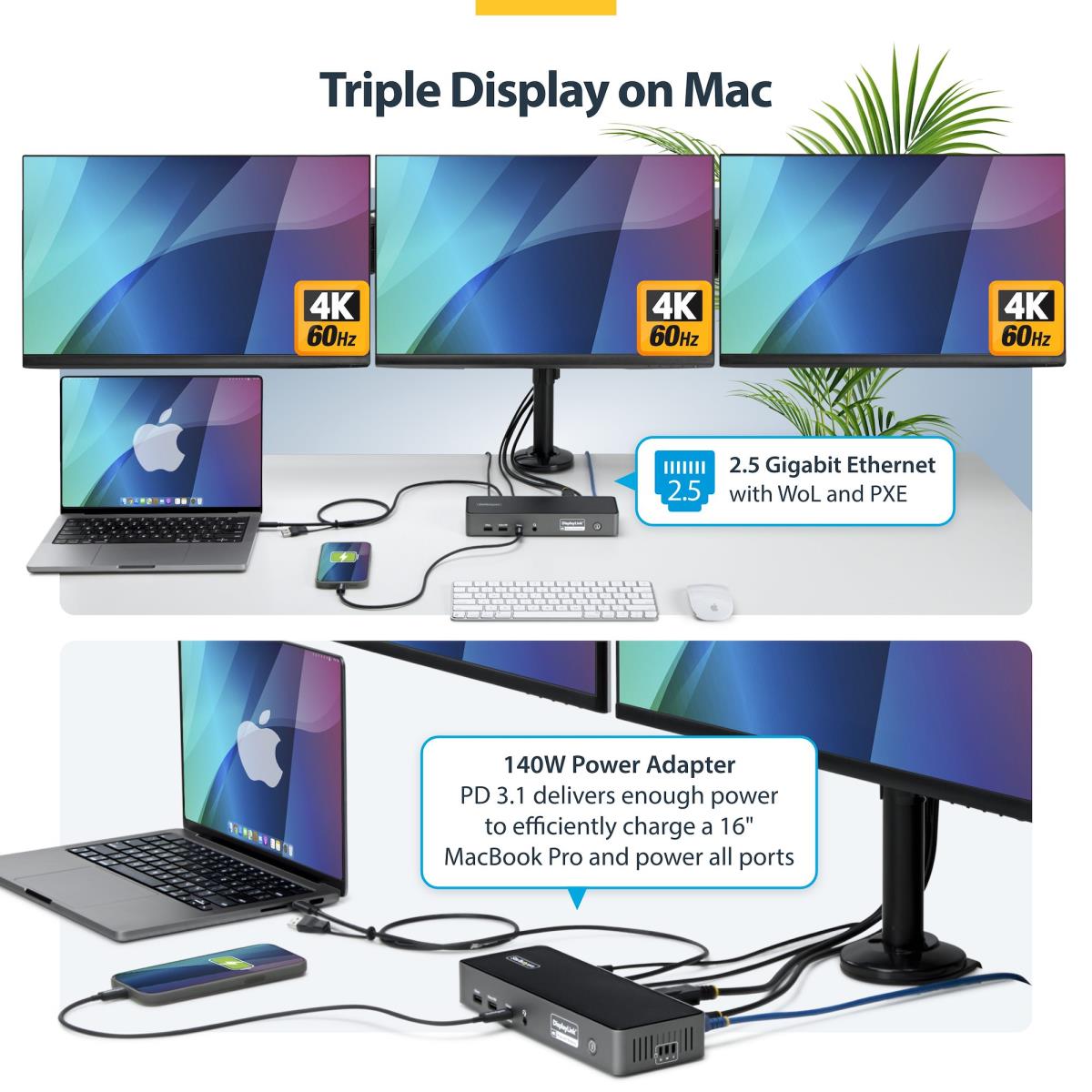

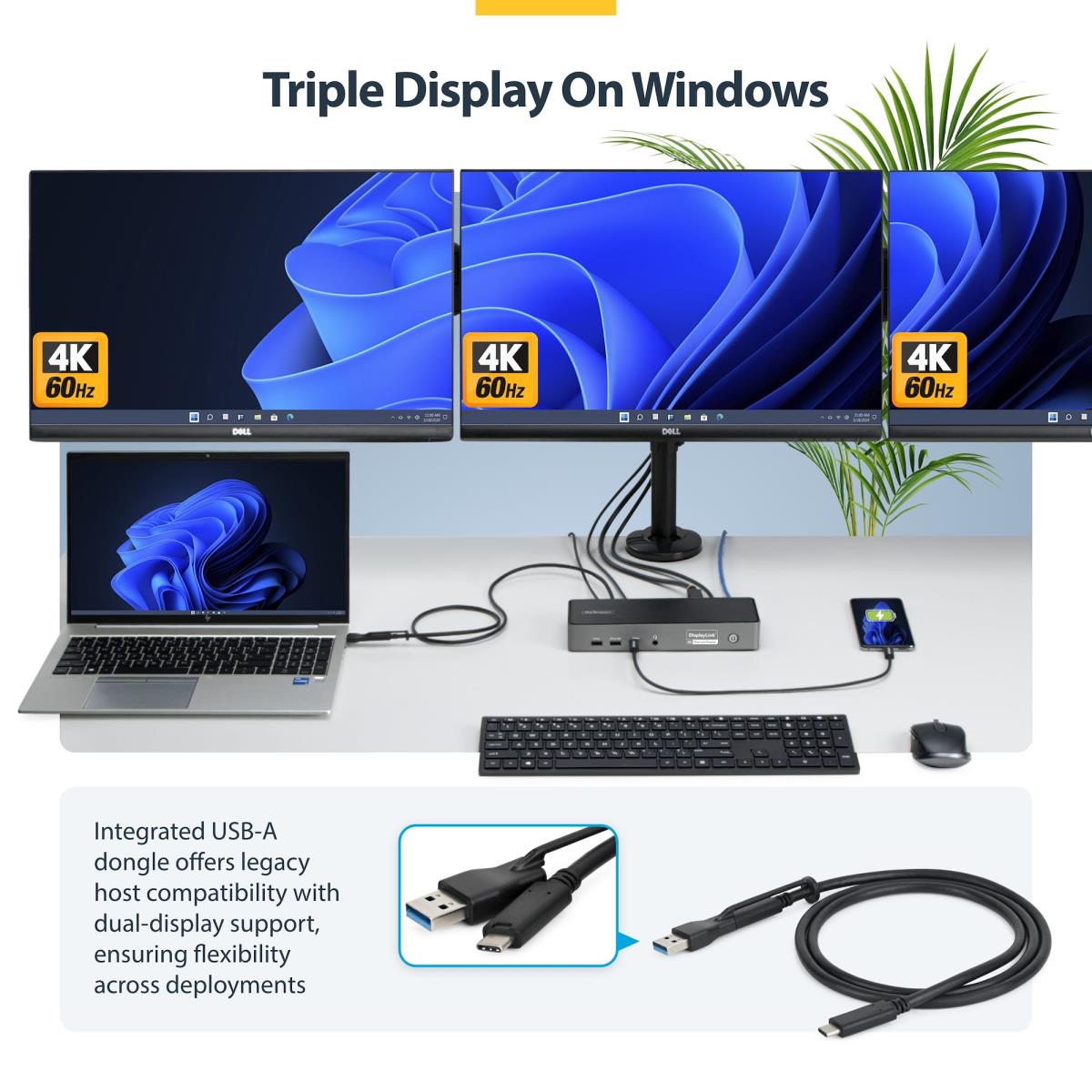

Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.

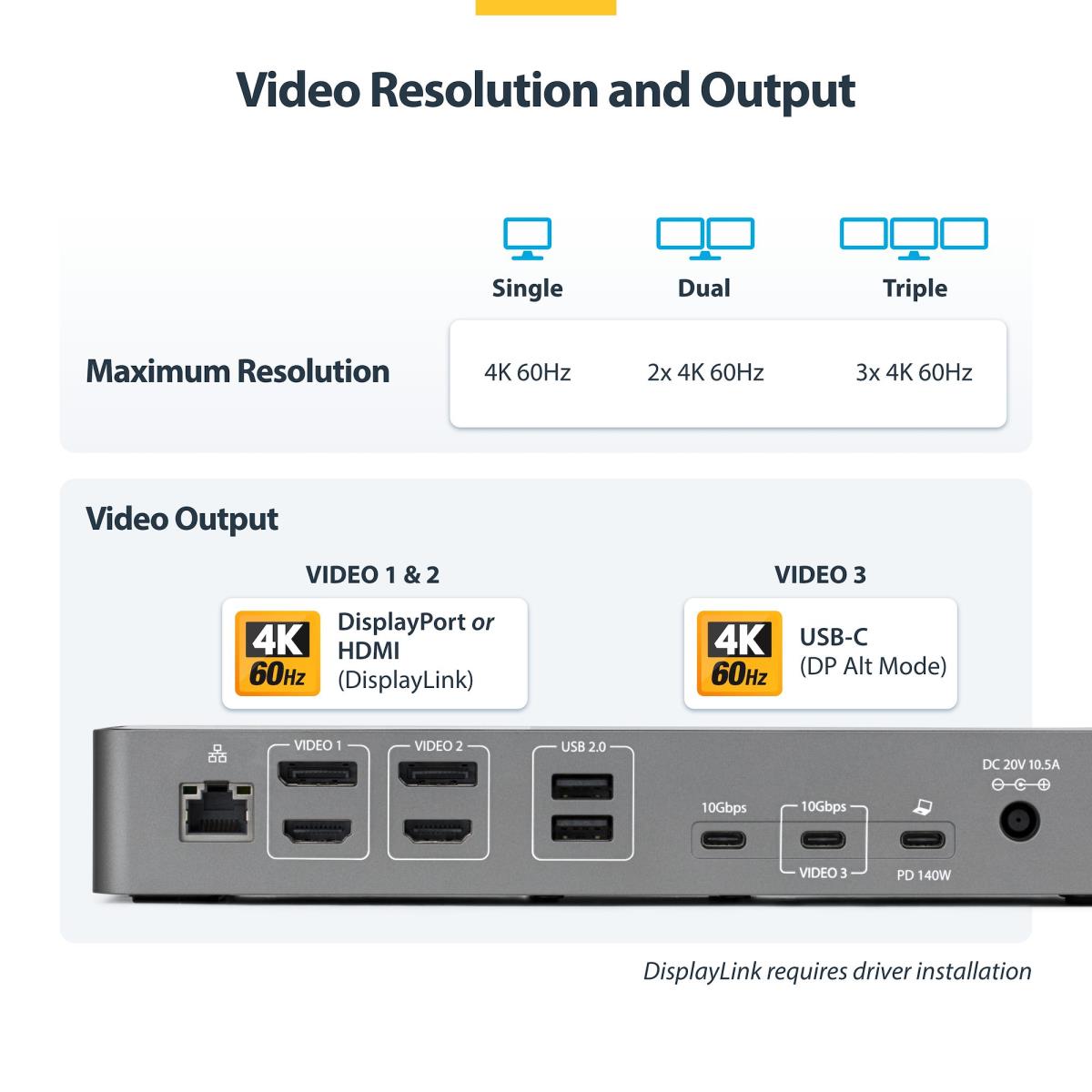

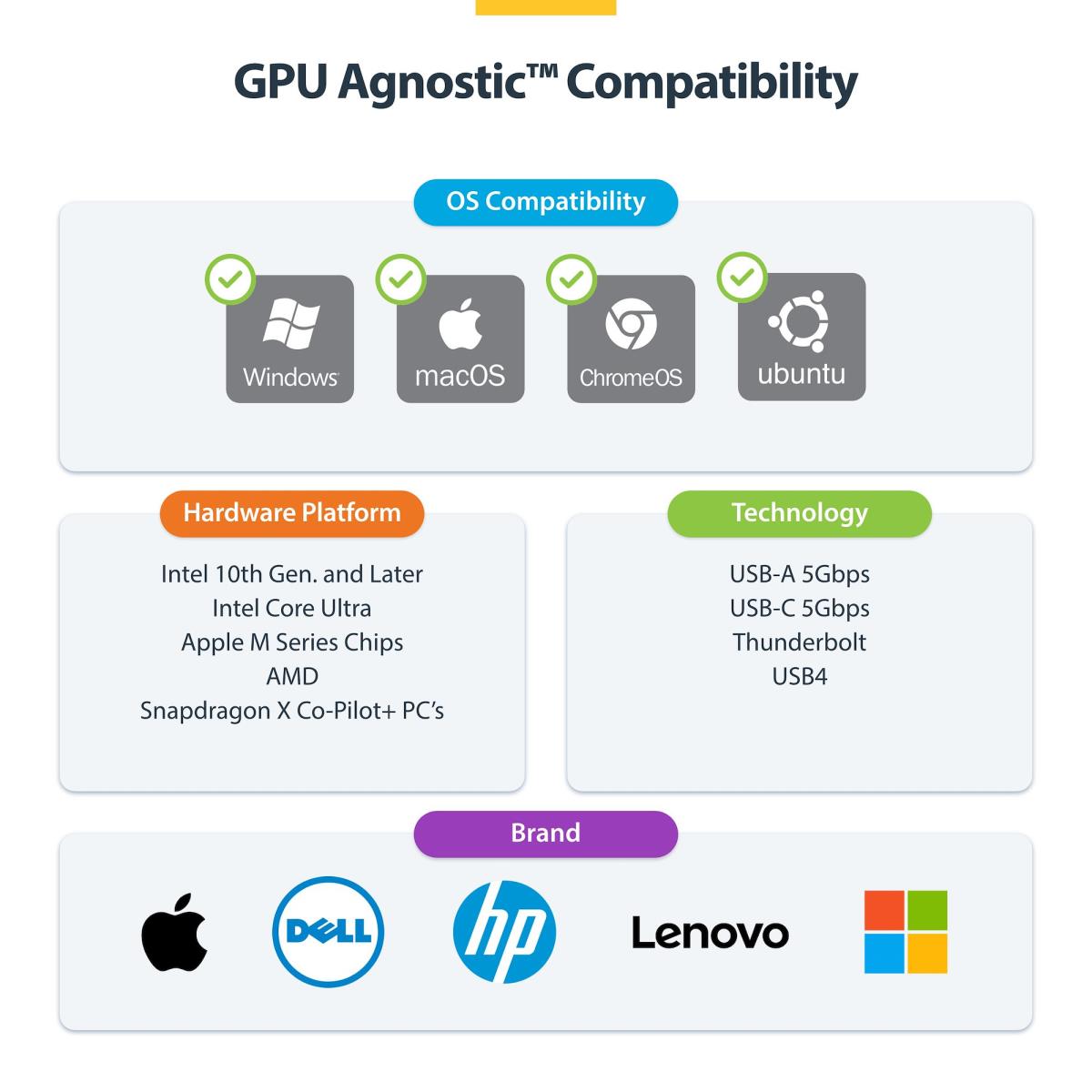

GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security

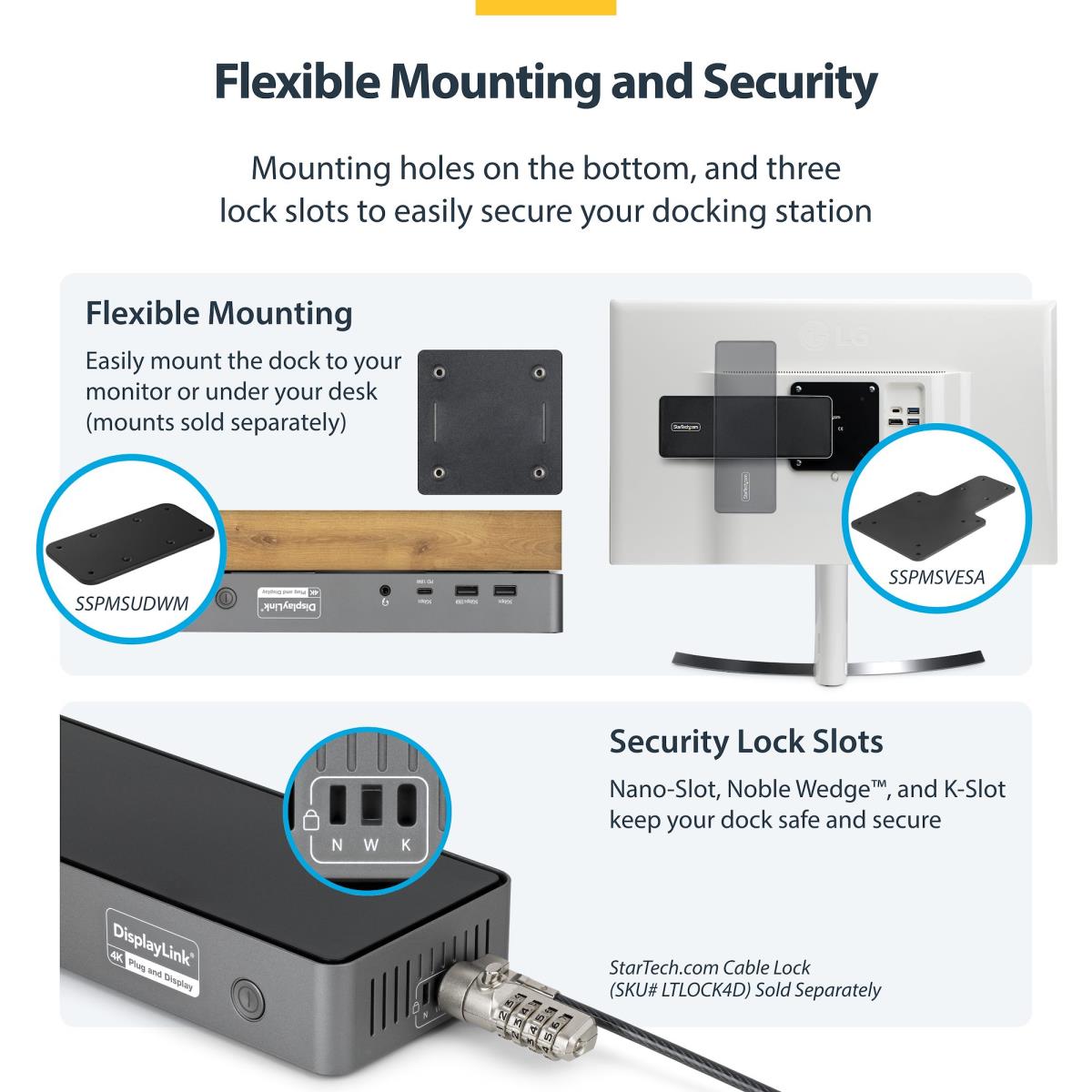

The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

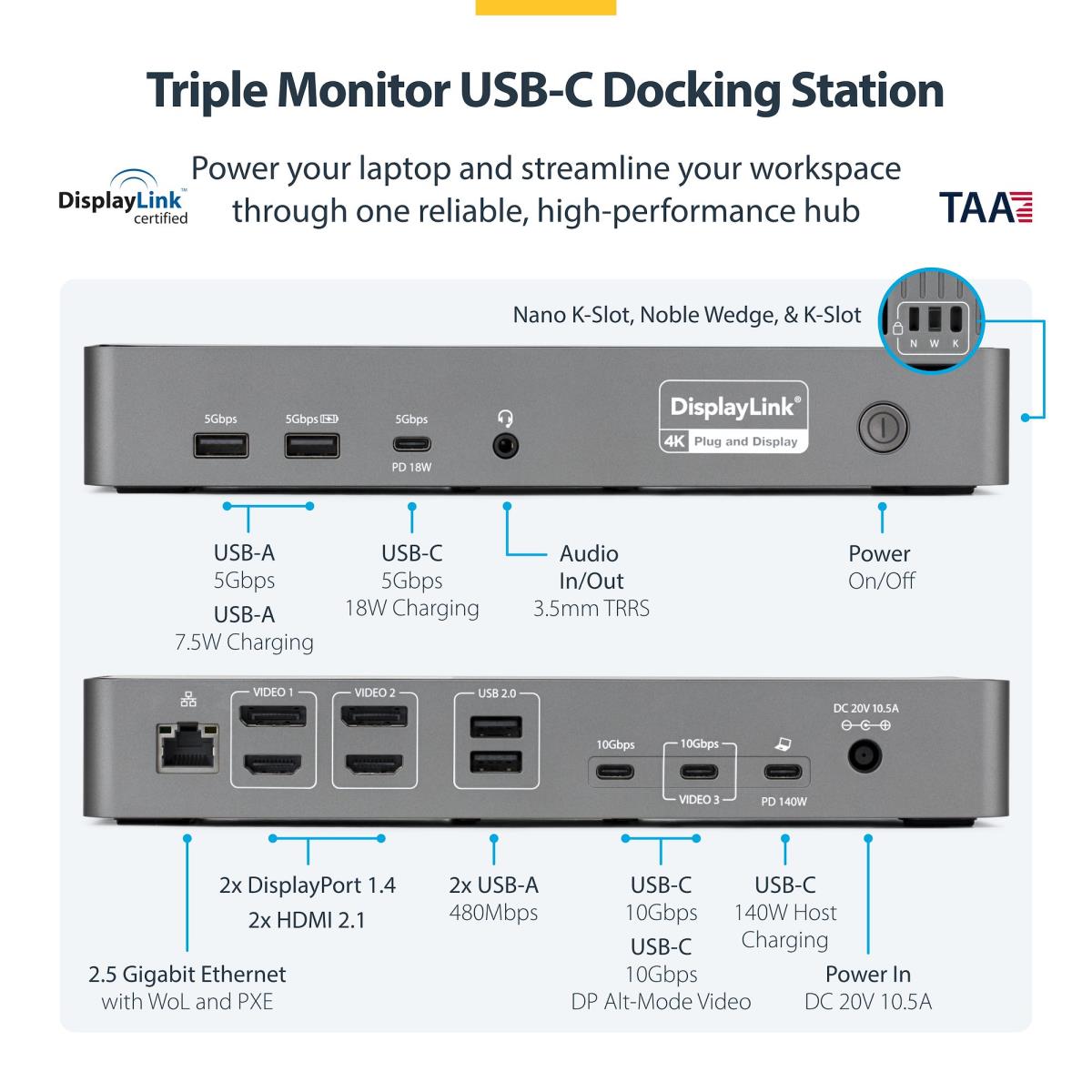

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
HDMI ports quantity
2
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Combo headphone/mic port
Yes
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Yes
USB Type-C DisplayPort Alternate Mode
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wake-on-LAN ready
Yes
Full duplex
Yes
Performance
Card reader integrated
No
Data transfer rate
10 Gbit/s
HD type
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
3
Cable lock slot
Yes
Cable lock slot type
Kensington, Nano, Wedge
Product colour
Grey
On/off switch
Yes
UASP support
Yes
Power
Power source type
DC
AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
20 V
Output current
10.5 A
Power consumption (max)
210 W
Power plug type
Type M
Compatible power plug types
EU, UK
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported
Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported
Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 24.04 LTS
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Packaging data
Package width
169 mm
Package depth
251 mm
Package height
90 mm
Package weight
1.2 kg

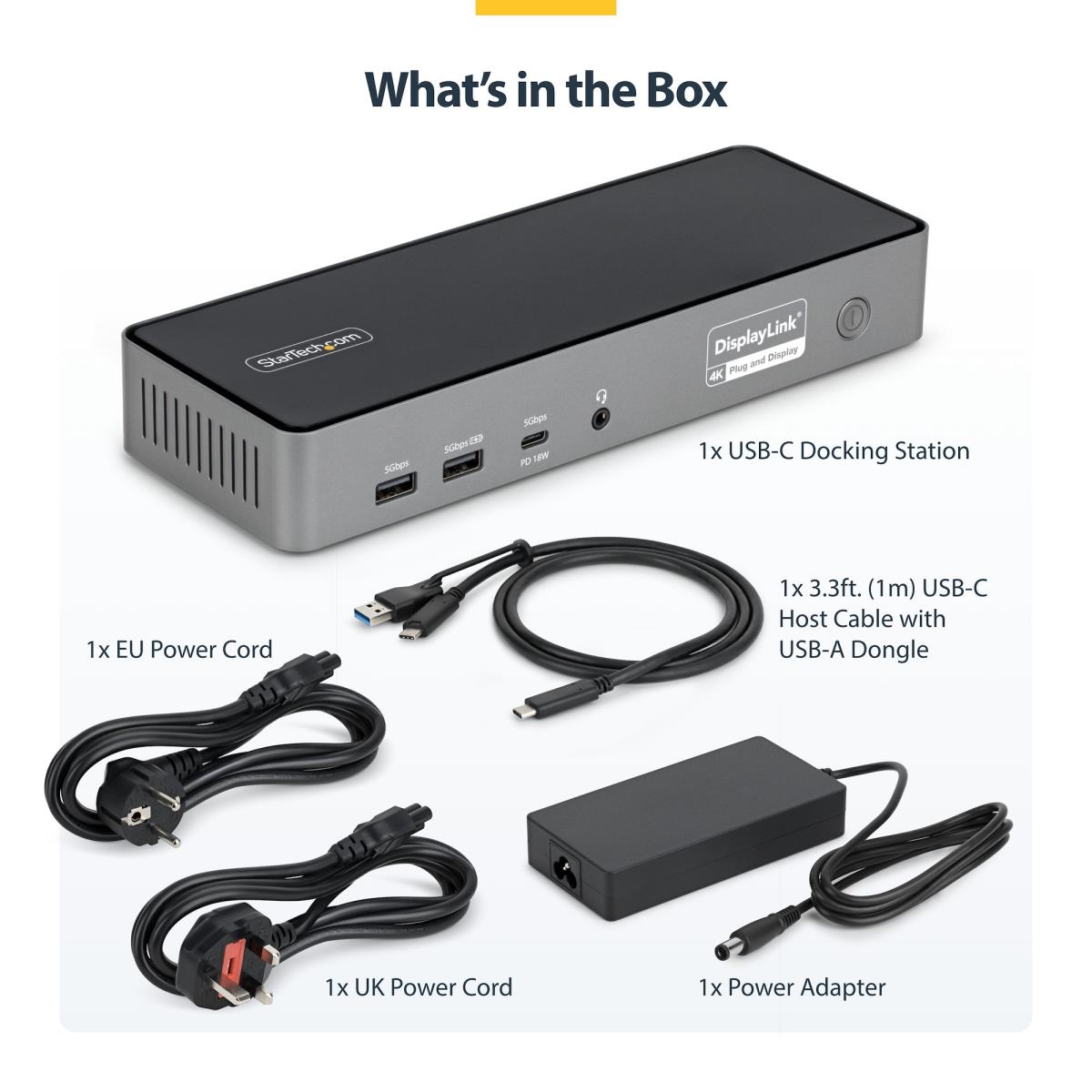

Packaging content
Cables included
AC, USB Type-C
AC adapter included
Yes
User guide
Yes
Technical details
Compliance certificates
Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
315 mm
Master (outer) case length
395 mm
Master (outer) case height
300 mm
Other features
Chipset
DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B
