Product Details

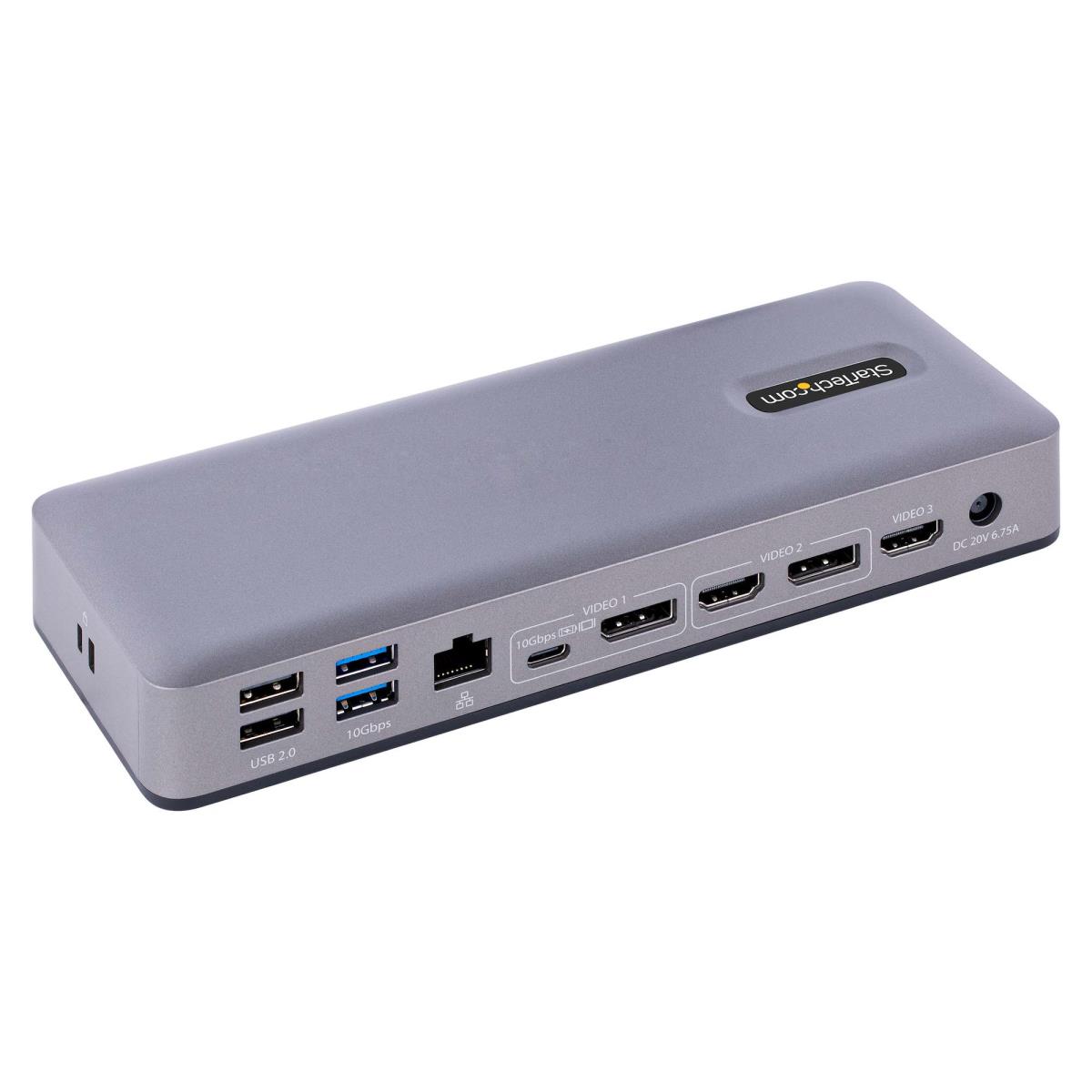

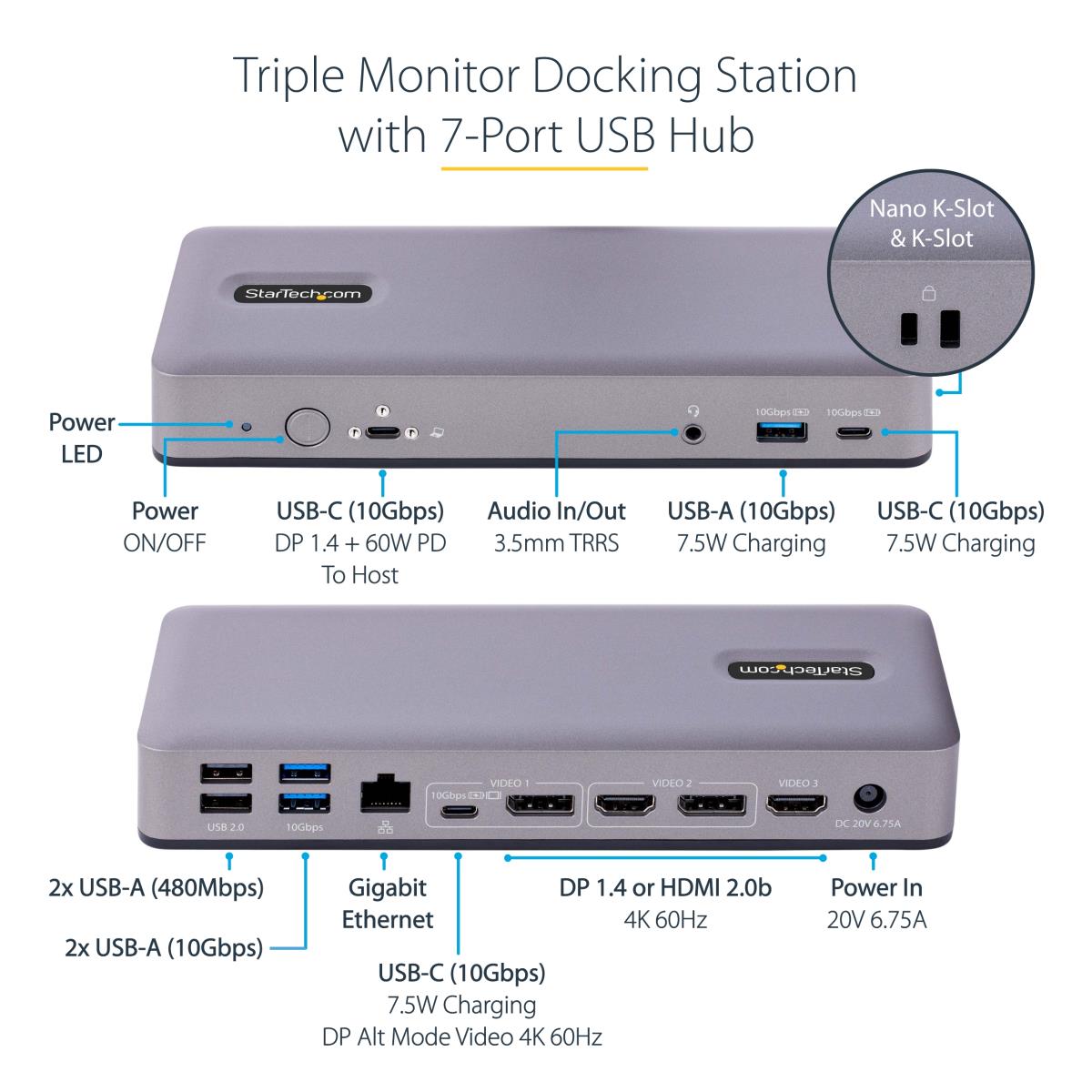

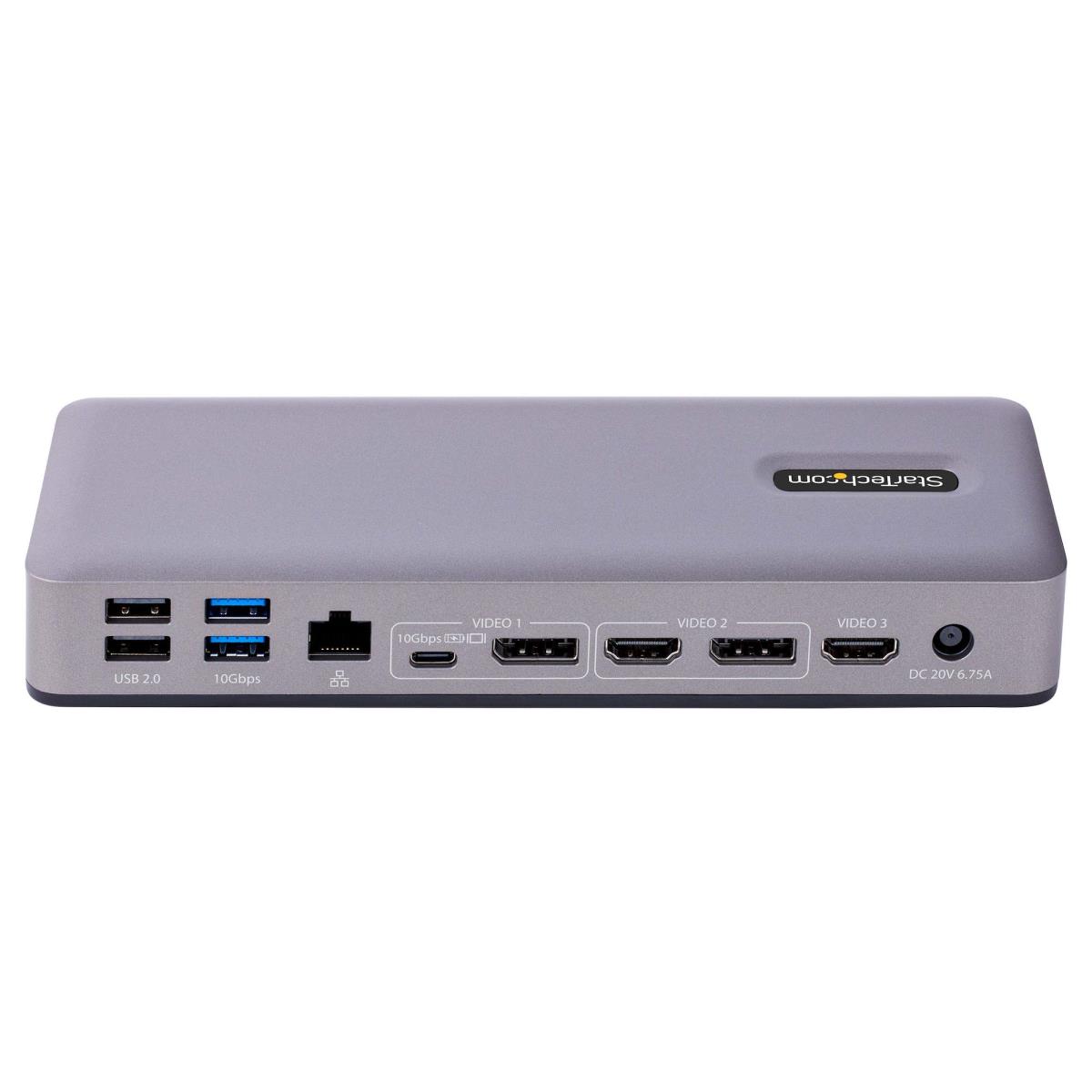

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB Power Delivery
Y
USB Power Delivery revision
3.0
USB Power Delivery up to
60 W
HDMI ports quantity
2
HDMI version
2.0b
DisplayPorts quantity
2
DisplayPort version
1.4
Combo headphone/mic port
Y
Headphone outputs
1
Headphone connectivity
3.5 mm
USB Type-C DisplayPort Alternate Mode
Y
DC-in jack
Yes
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Data transfer rate
10 Gbit/s

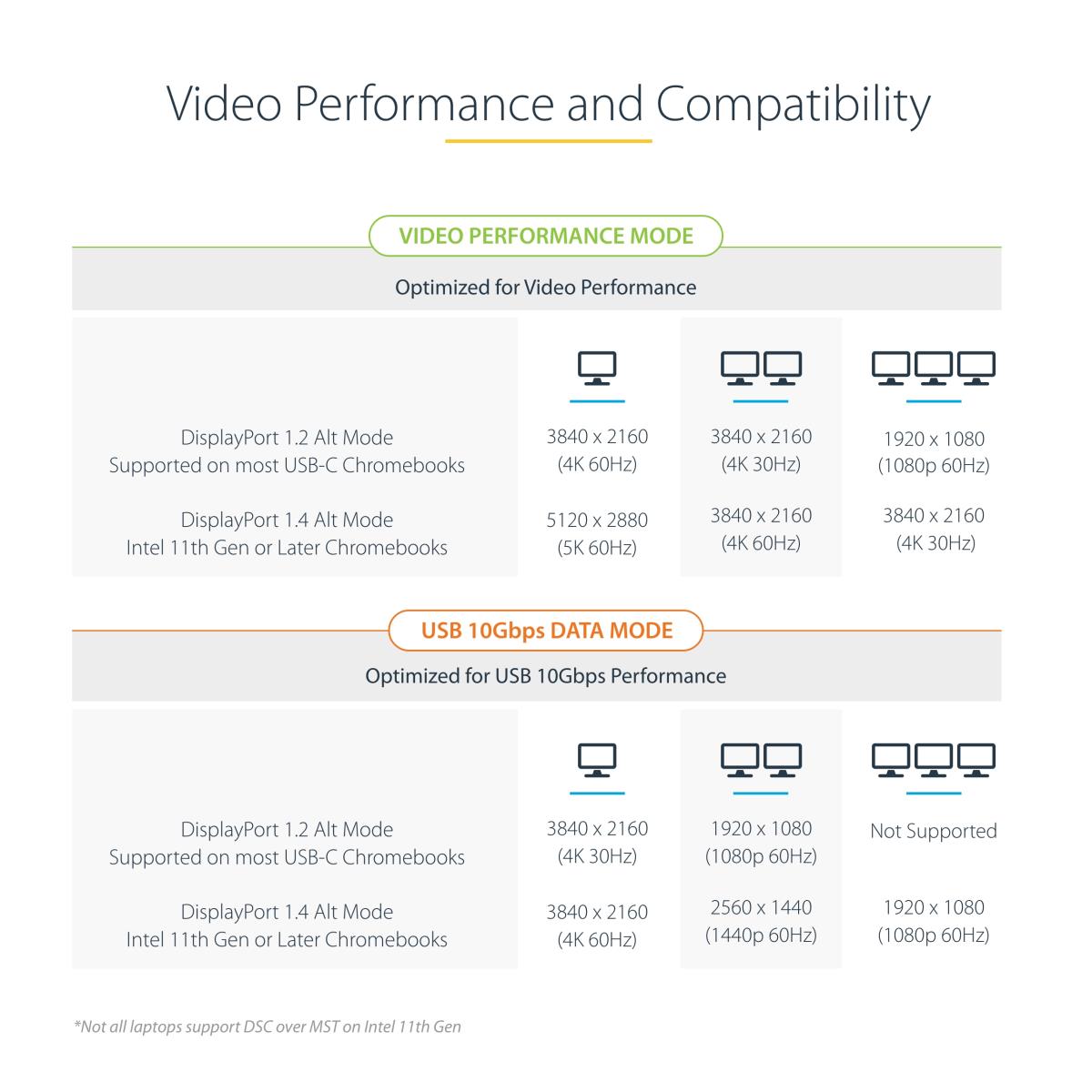

HD type
5K Ultra HD
Maximum digital resolution
5120 x 2880 pixels
Maximum refresh rate
60 Hz

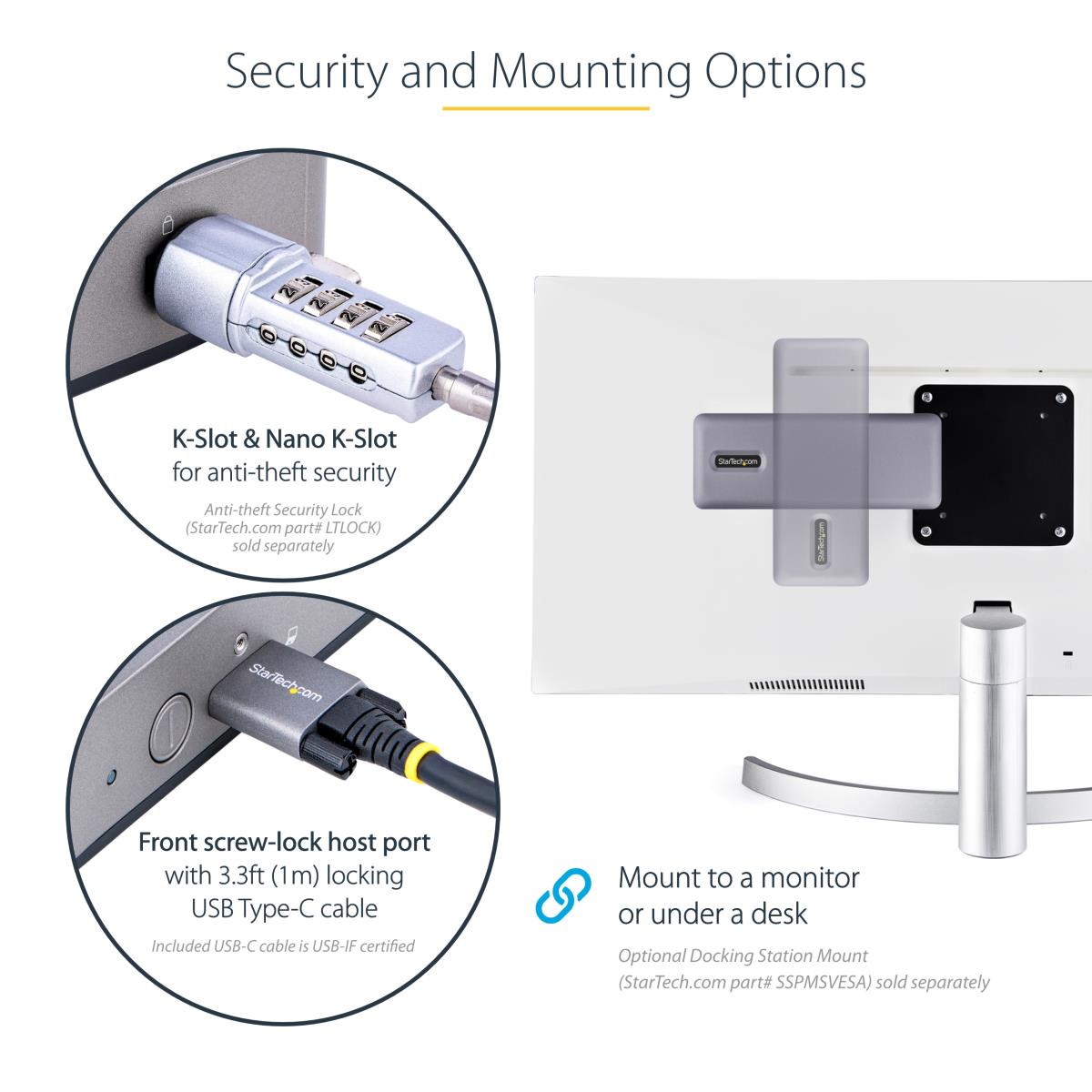

Cable lock slot
Y
Cable lock slot type
Kensington
LED indicators
Network, Power
Card reader integrated
No
Power
AC input voltage
100 - 240 V
Input current
2.37 A
Output voltage
20 V
Output current
6.75 A
Power consumption (typical)
135 W
Compatible power plug types
EU, UK
Wireless charging
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Sustainability
Sustainability compliance
Y
Sustainability certificates
CE, RoHS

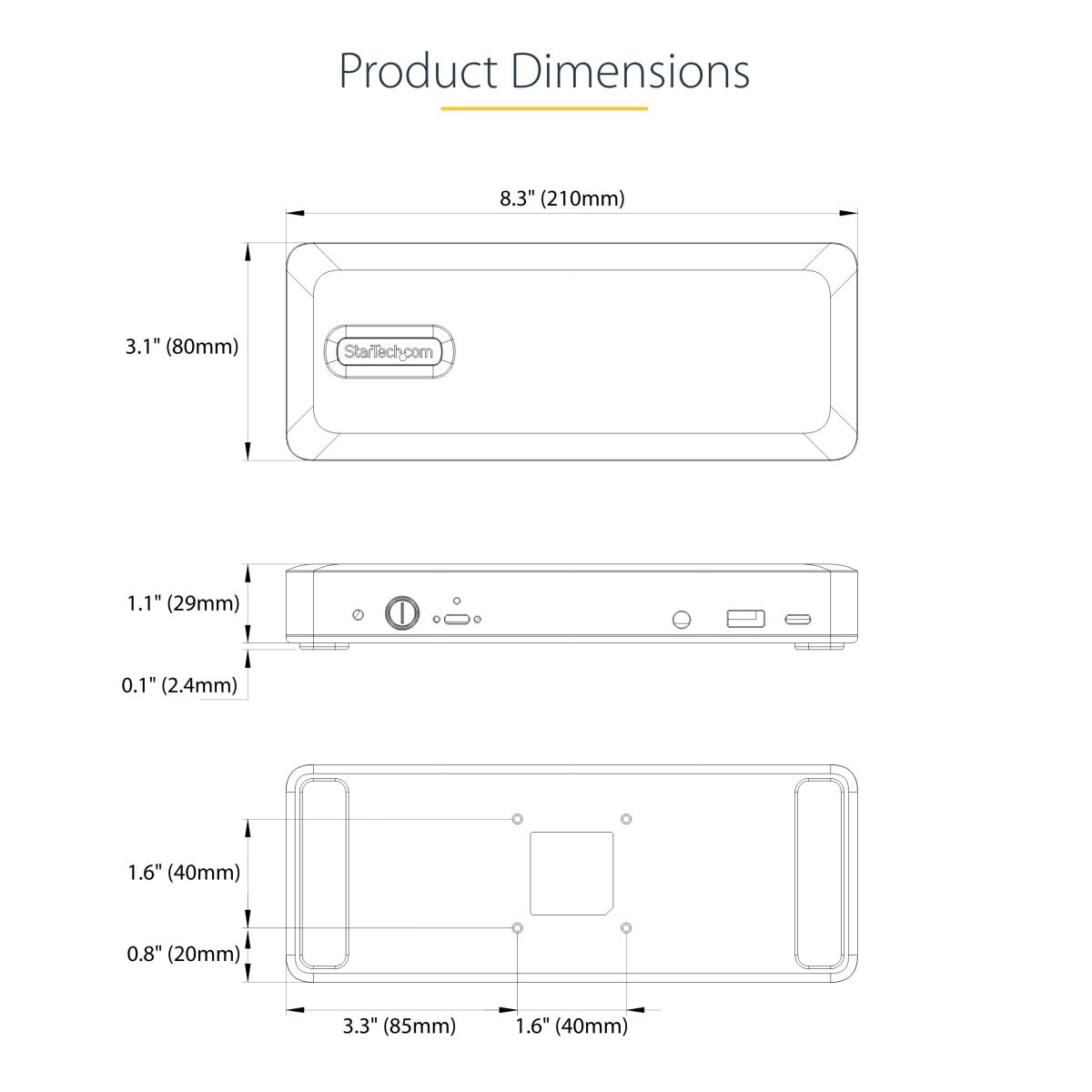

Weight & dimensions
Width
80 mm
Depth
210 mm
Height
32 mm

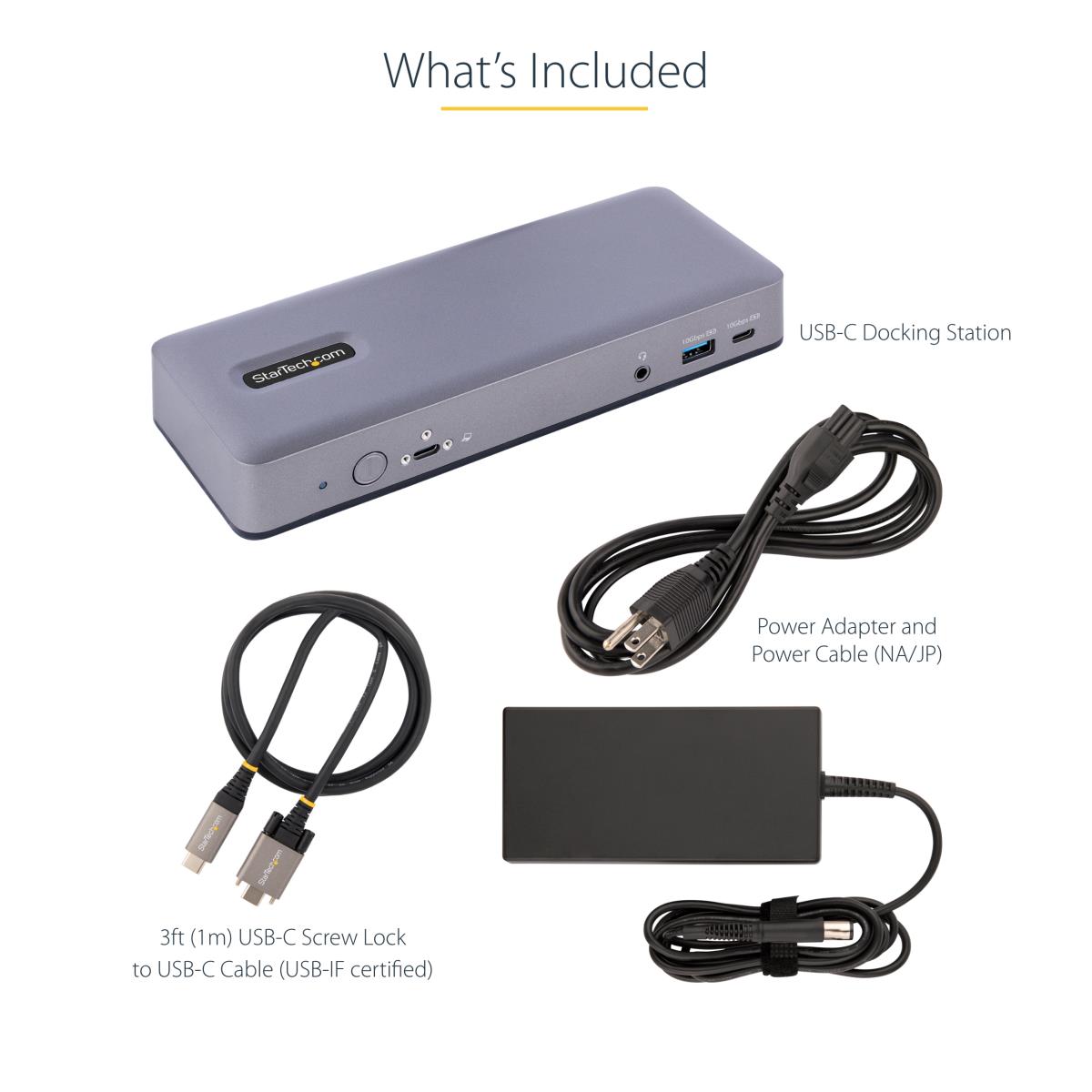

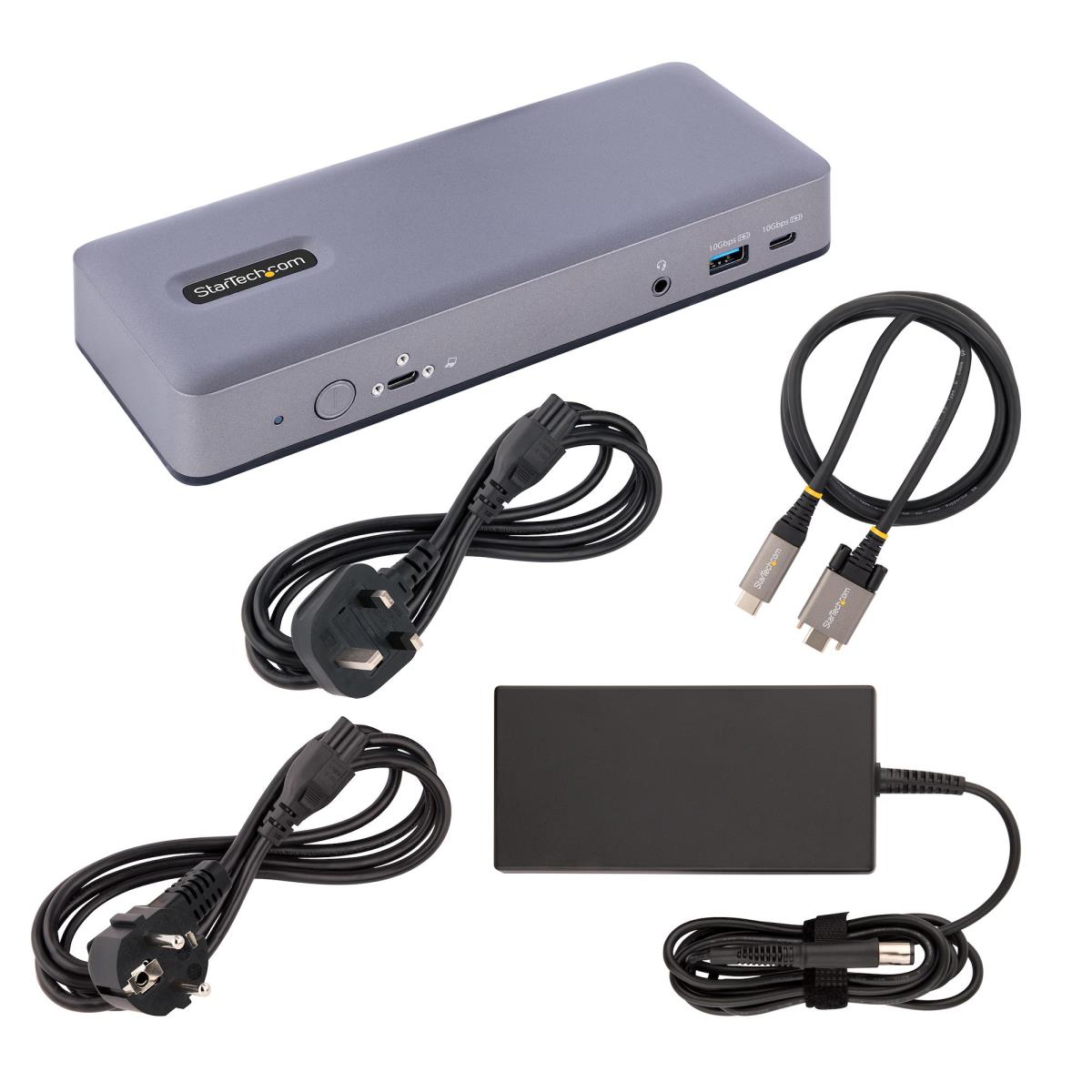

Packaging content
Cables included
USB Type-C to USB Type-C
AC adapter included
Y
Quick start guide
Y
Other features
Chipset
Synaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B
Packaging data
Package width
147 mm
Package depth
297 mm
Package height
90 mm
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
310 mm
Master (outer) case length
480 mm
Master (outer) case height
314 mm
Technical details
Compliance certificates
CE, RoHS
Information
| Part Number: | DK31C3MNCRUE |
