Product Details
Introduction

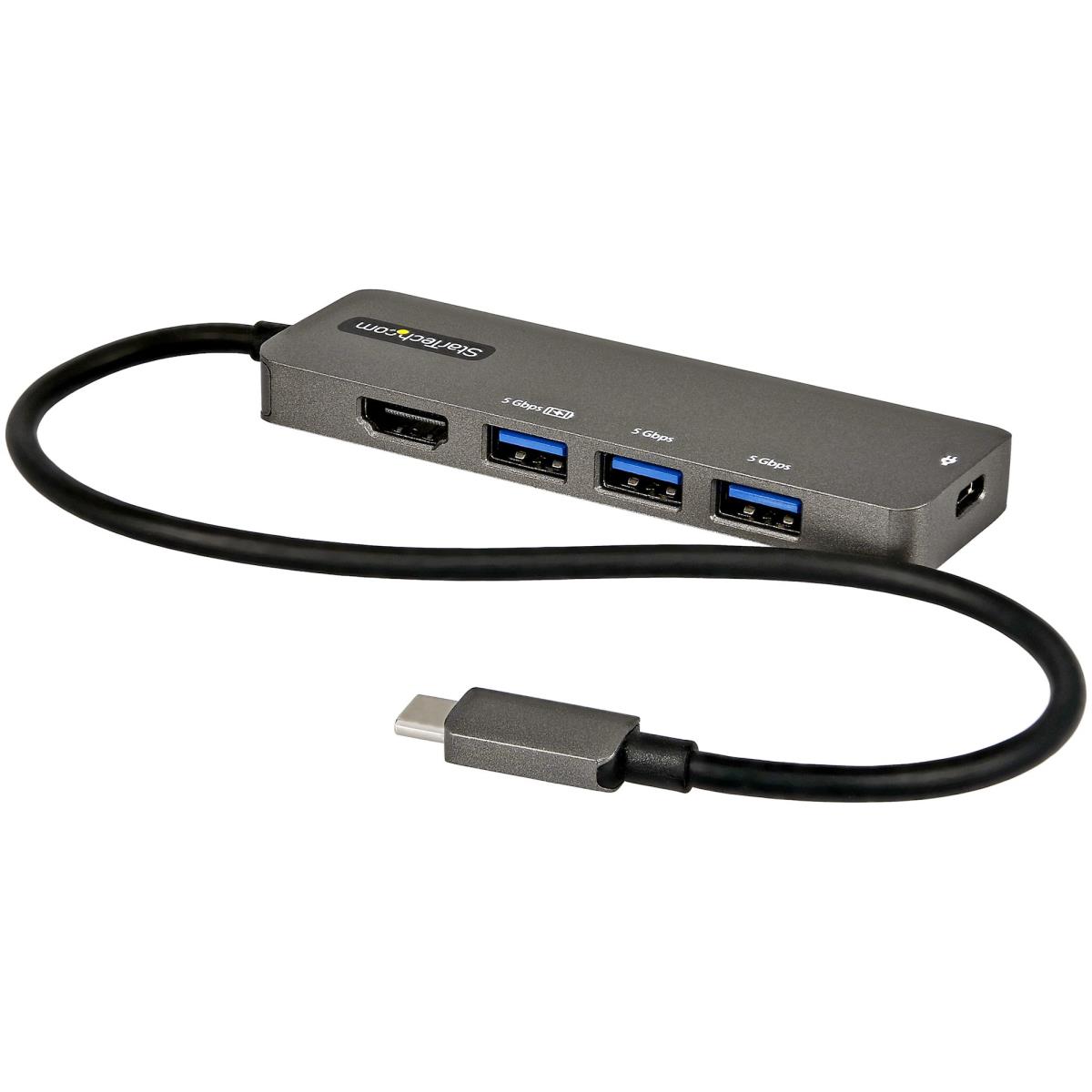

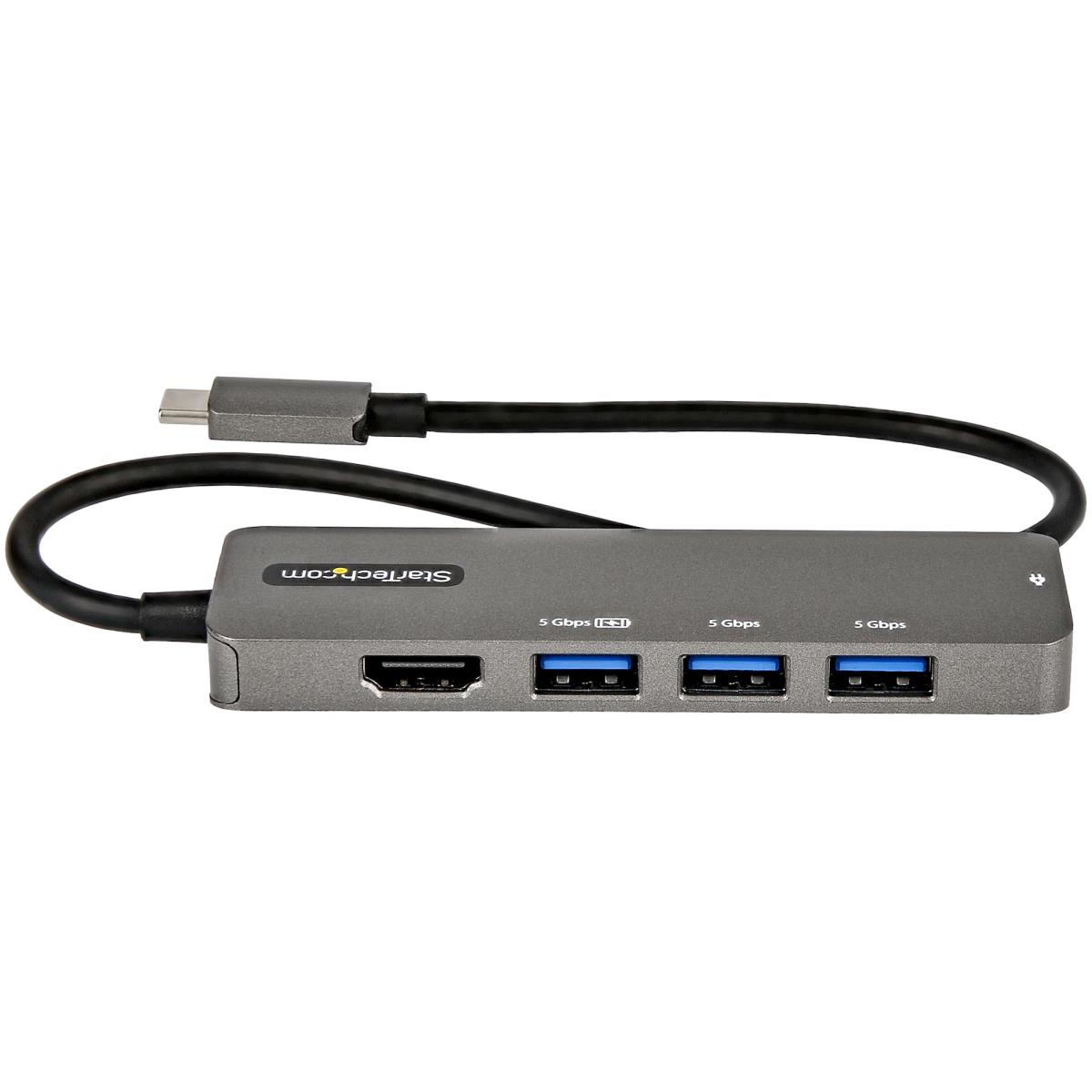

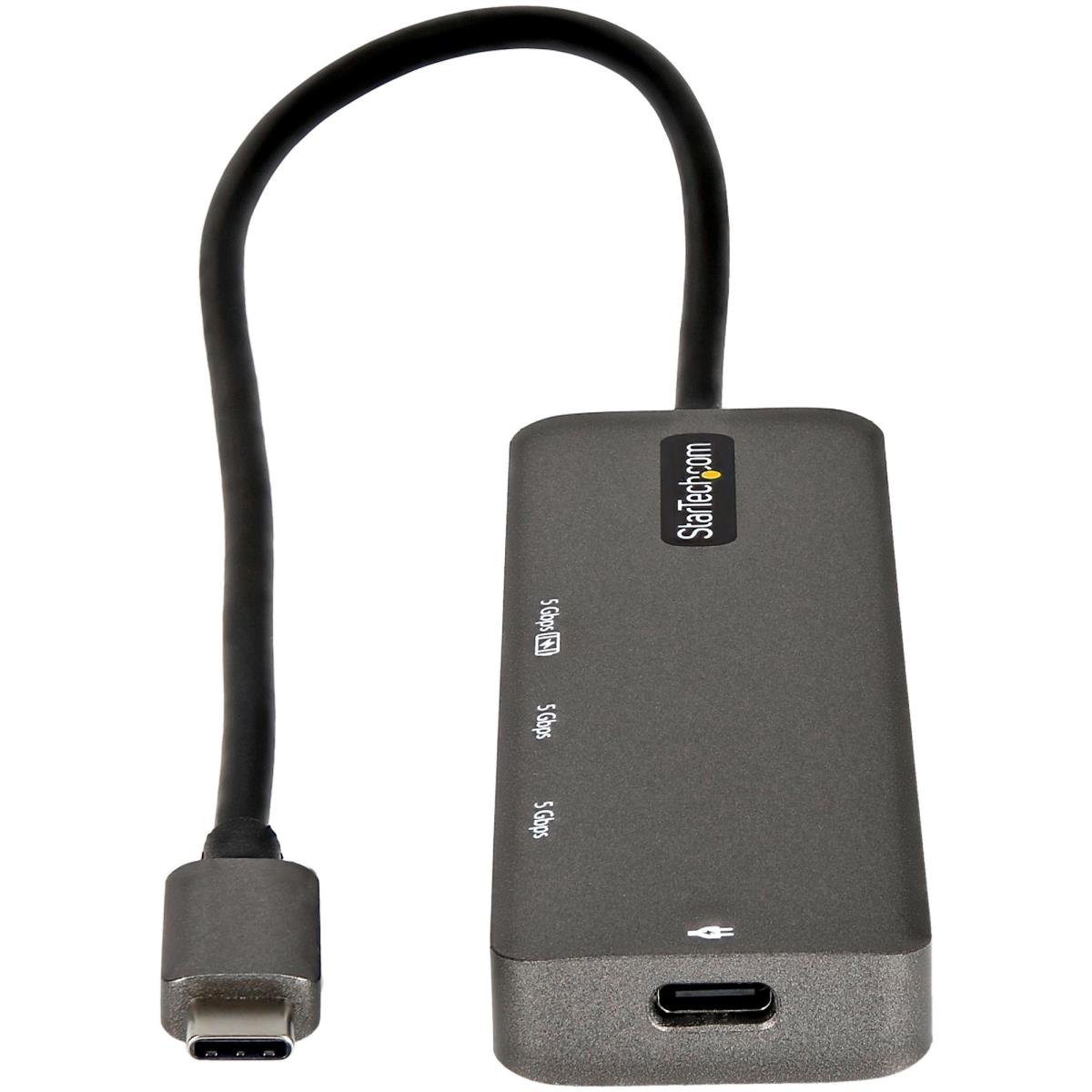

USB-C Multiport Adapter | 4k 60Hz HDMI 2.0b | 100W Power Delivery Passthrough | 4-Port USB HubThe StarTech.com Advantage

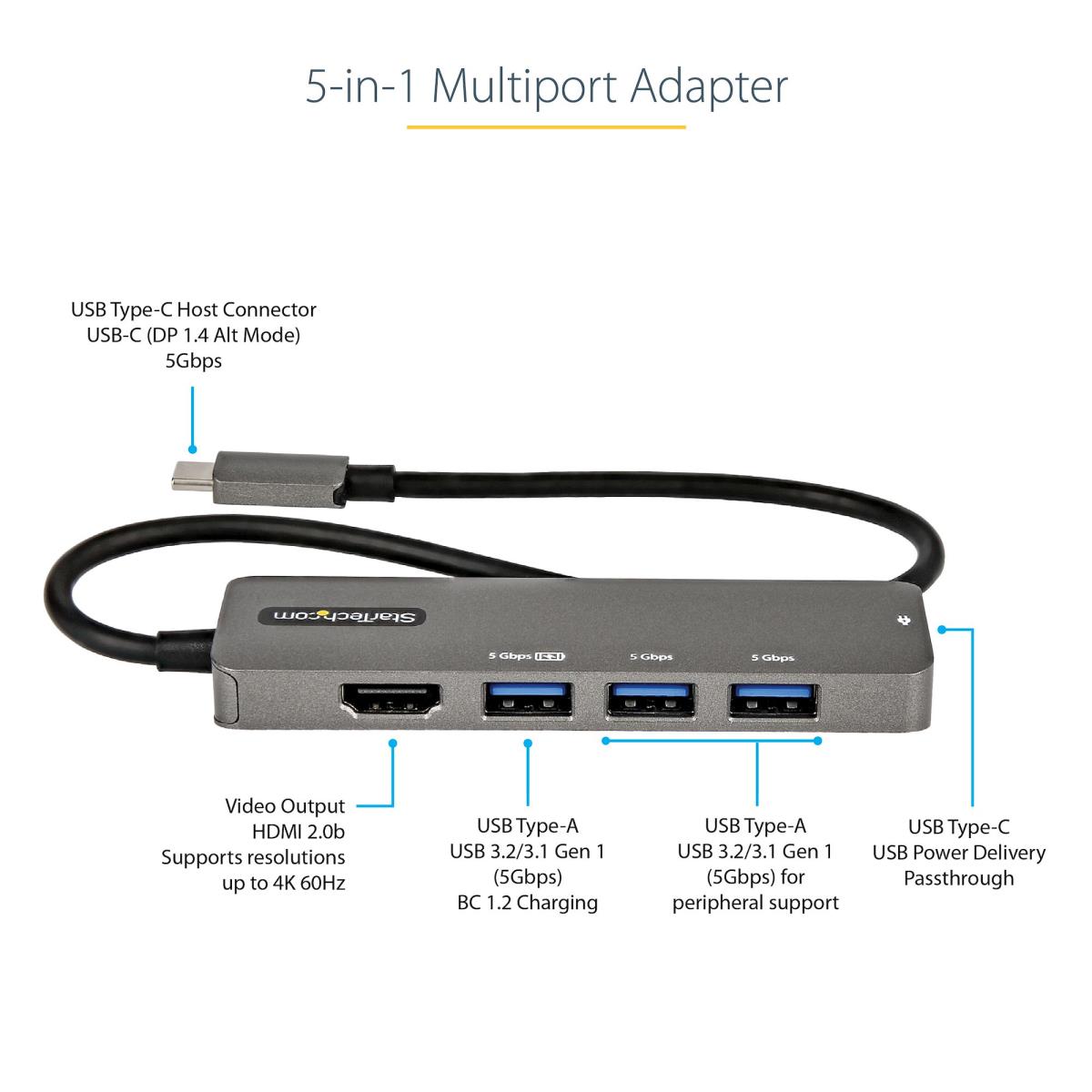

Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB Power Delivery
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
1
HDMI version
2.0b
DC-in jack
No
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
HDMI ports quantity
1
HDMI version
2.0b
Maximum resolution (HDMI)
3840 x 2160 pixels
Ports quantity
4
Network
Ethernet LAN data rates
10,100,1000,2000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000,2000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Full duplex
Y
Auto MDI/MDI-X
Y
UASP support
Y
Performance
Card reader integrated
No
HD type
4K Ultra HD
Number of displays supported
1
Product colour
Black, Grey
Hub interfaces
HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
UASP support
Yes
Housing material
Plastic
Power
Wireless charging
No
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

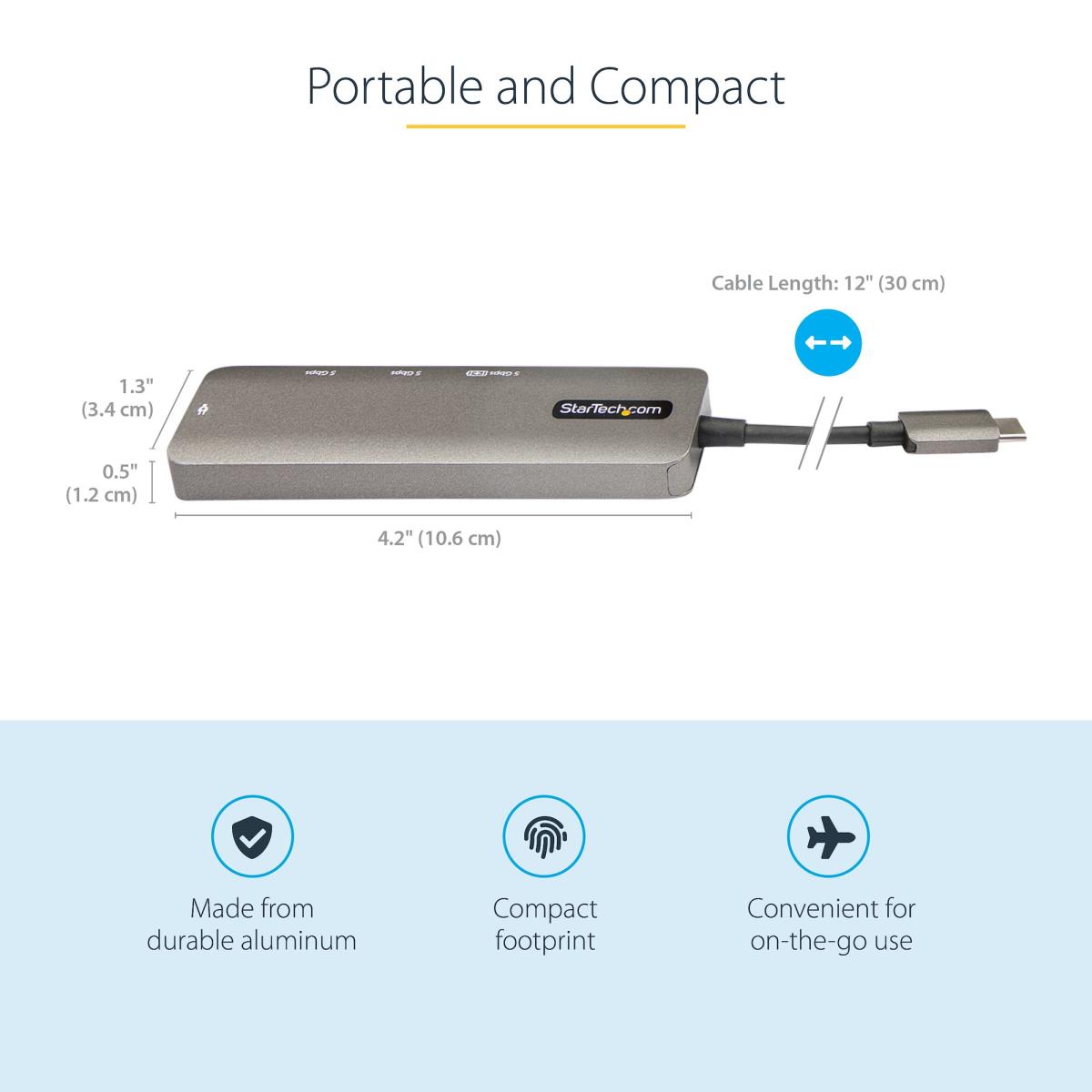

Weight & dimensions
Weight
61 g
Packaging data
Package width
174 mm
Package depth
142 mm
Package height
32 mm
Package weight
126 g
Package width
174 mm
Package depth
142 mm
Package height
32 mm
Package weight
126 g
Logistics data
Products per master (outer) case
30 pc(s)
Master (outer) case width
340 mm
Master (outer) case length
535 mm
Master (outer) case height
315 mm
Harmonized System (HS) code
84719000
Master (outer) case width
340 mm
Master (outer) case length
535 mm
Master (outer) case height
315 mm
Products per master (outer) case
30 pc(s)
Other features
Cable length
0.3 m
Mac compatibility
Y
Features
Data transfer rate
5000 Mbit/s
Product colour
Black, Grey
Housing material
Plastic
USB Power Delivery
Y
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HD type
4K Ultra HD
Number of displays supported
1
Cable length
0.3 m
Technical details
Compliance certificates
CE, RoHS
Sustainability certificates
CE, RoHS
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Other operating systems supported
Chrome
Information
| Part Number: | DKT30CHPD3 |
