STARTECH.COM USB C Multiport Adapter - 4k Hdmi/pd/USB

£22.49

Part Number: DKT30CHSDPD
Delivery: 1 - 2 days

Product Details

Introduction

USB Type-C Multiport Adapter | 4K @ 30Hz HDMI | 2x USB-A | SD & MicroSD Card Reader | 100W Power Delivery Passthrough

This USB-C multiport adapter with HDMI® turns your MacBook Pro, Dell XPS, or other USB-C™ laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.2 Gen 2 Type-A (10Gbps) ports, and a USB Type-C™ port (power/data), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

Enhance Productivity

The portable docking station connects your laptop to a 4K 30Hz HDMI monitor (3840 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

Connect Your Devices

The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports one and a USB-C port (shared power/data) to connect your latest and legacy USB devices.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.

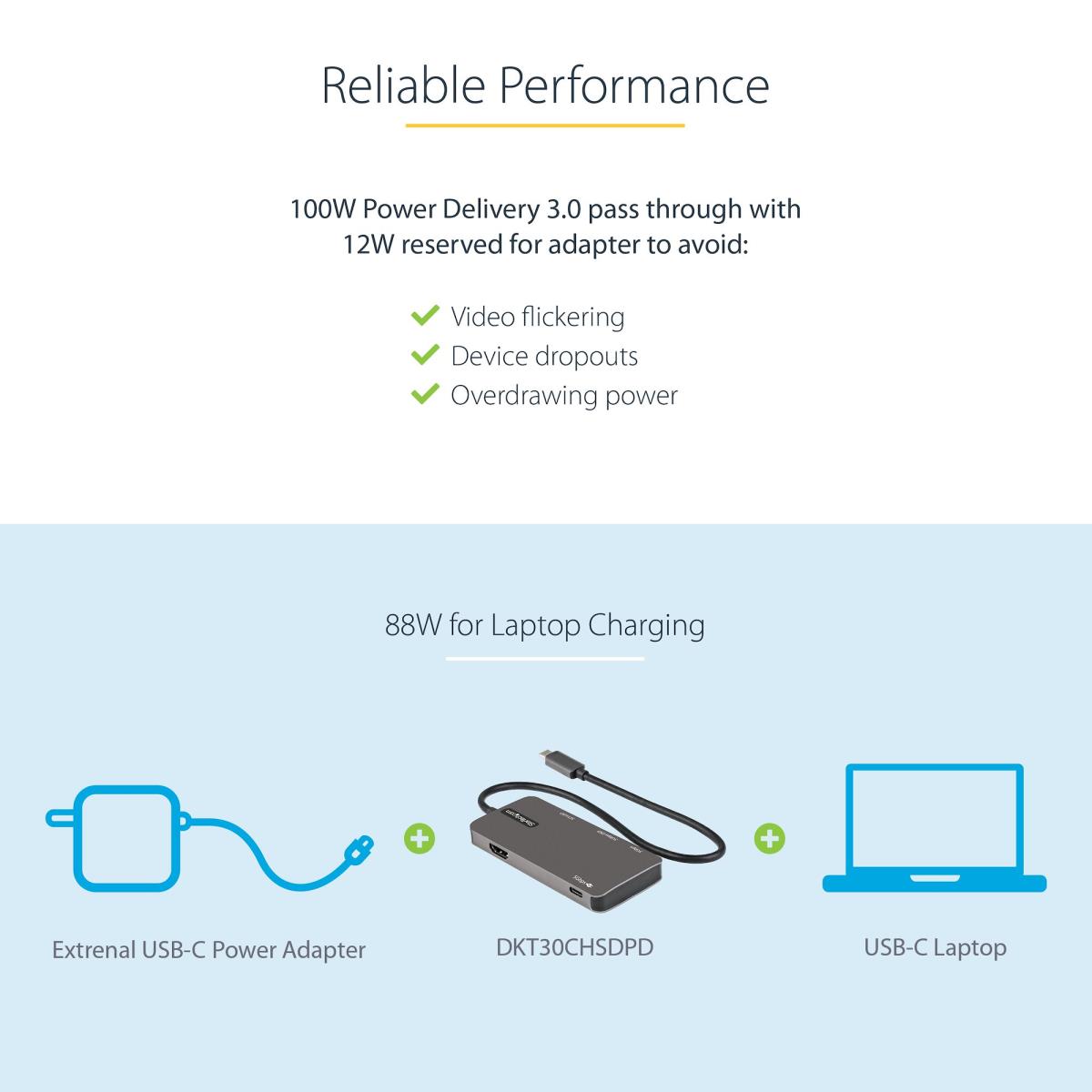

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

The DKT30CHSDPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

The StarTech.com Advantage

Technical details

Harmonized System (HS) code 84733020
Compliance certificates CE, RoHS

Ports & interfaces

Connectivity technology Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery Y
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDMI ports quantity 1
Microphone in N

Network

Ethernet LAN N

Performance

Card reader integrated Y
Compatible memory cards MMC, MicroSD (TransFlash), SD
Data transfer rate 5 Gbit/s
Maximum digital resolution 3440 x 1440 pixels
Maximum refresh rate 60 Hz
Product colour Grey

Power

Power source type USB
Power consumption (typical) 12 W

Software

Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac operating systems supported Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Mobile operating systems supported Android, iPadOS
Other operating systems supported Chrome

Operational conditions

Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -10 - 55 °C
Operating relative humidity (H-H) 5 - 90%

Sustainability

Sustainability certificates CE, RoHS

Weight & dimensions

Width 310 mm
Depth 52 mm
Height 14 mm
Weight 98 g

Packaging data

Package width 145 mm
Package depth 175 mm
Package height 30 mm
Package weight 134 g

Packaging content

Quick start guide Y

Logistics data

Products per master (outer) case 60 pc(s)
Master (outer) case width 330 mm
Master (outer) case length 530 mm
Master (outer) case height 310 mm

Other features

Cable length 0.3 m
Chipset Fresco Logic - FL7102, Parade - PS176, Fresco Logic - FL5001, ALCORMICR - AU84612

Information

Part Number: DKT30CHSDPD
