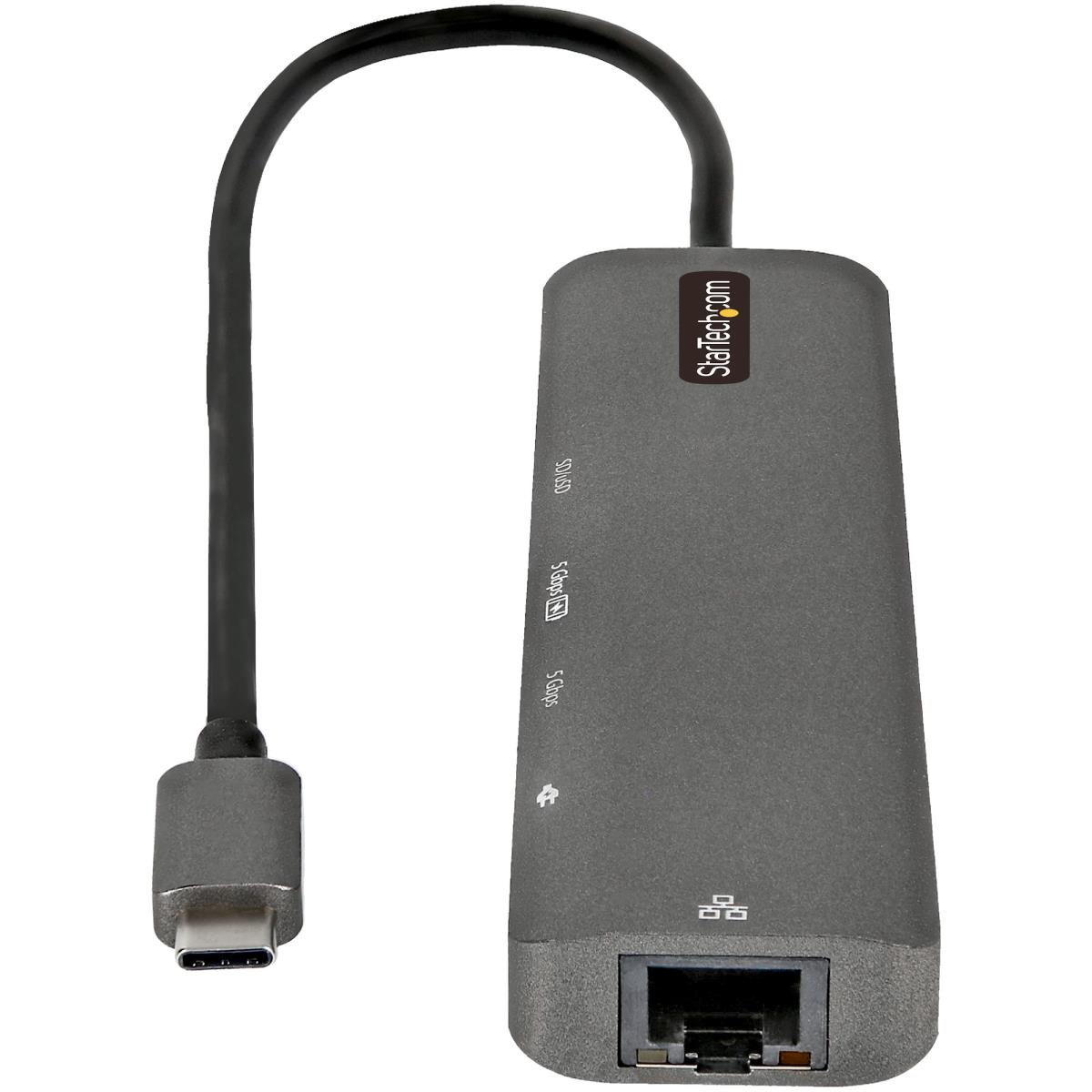

Product Details
Technical details
Harmonized System (HS) code
84733020
Compliance certificates
CE, RoHS

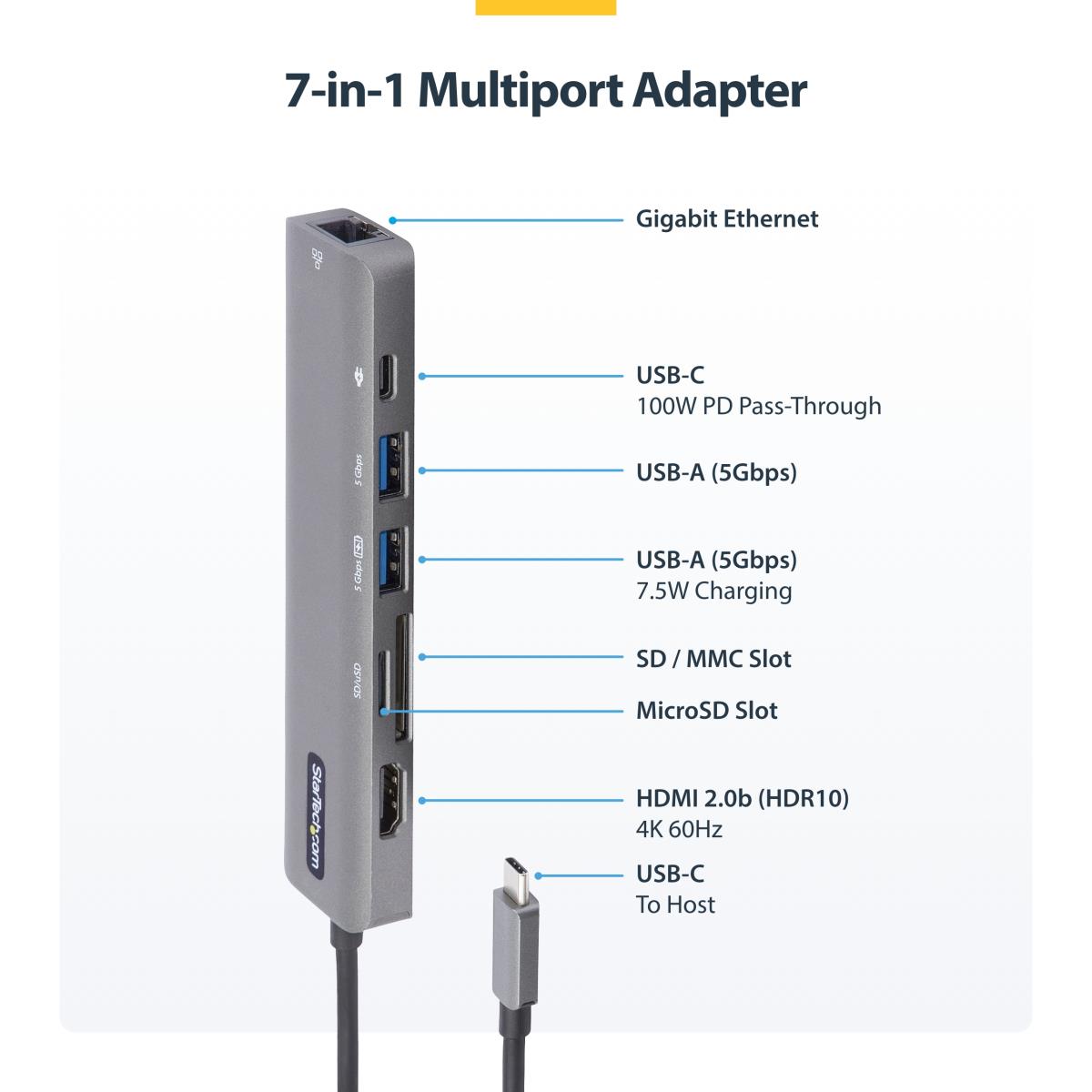

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

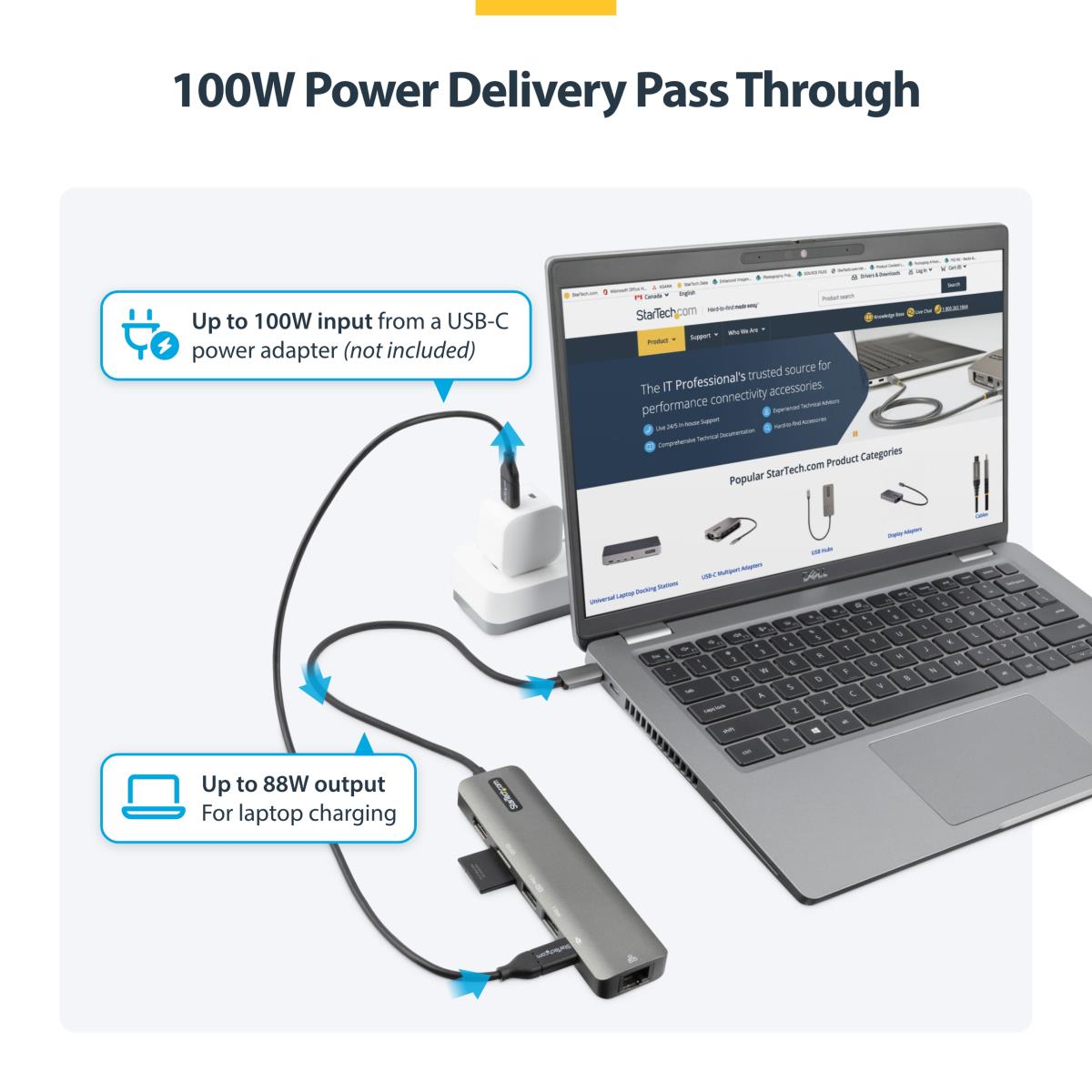

USB Power Delivery
Y
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
1
HDMI version
2.0b
Microphone in
N
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Performance
Card reader integrated
Y
Compatible memory cards
MMC, MicroSD (TransFlash), SD
Data transfer rate
5 Gbit/s
HD type
4K Ultra HD
Maximum refresh rate
60 Hz
Product colour
Black, Grey
Power
Power consumption (max)
12 W
Software
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Mobile operating systems supported
Android, iPadOS
Other operating systems supported
Chrome
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
5 - 90%
Sustainability
Sustainability certificates
CE, RoHS
Weight & dimensions
Width
352 mm
Depth
34 mm
Height
14 mm
Weight
99 g
Packaging data
Package width
100 mm
Package depth
180 mm
Package height
20 mm
Package weight
180 g
Packaging content
Quick start guide
Y
Logistics data
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
330 mm
Master (outer) case height
230 mm
Other features
Chipset
VIA Labs - VL102, VIA Labs - VL817, Parade - PS186, Realek - RTL8153, Genysis Logic - GL3224
Information
| Part Number: | DKT30CHSDPD1 |
