STARTECH.COM USB-c Vga Multiport Adapter - Power Delivery (60w) - USB 3.0 - Gbe

£39.65

Part Number: DKT30CVAGPD
Delivery: 1 - 2 days

Product Details

Introduction

Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 device

Expand the connectivity of your USB-C laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows and Chrome OS compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).

Connect to a VGA monitor to give presentations

This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.

Create a portable workstation

Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.

Fast and easy setup

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.

The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

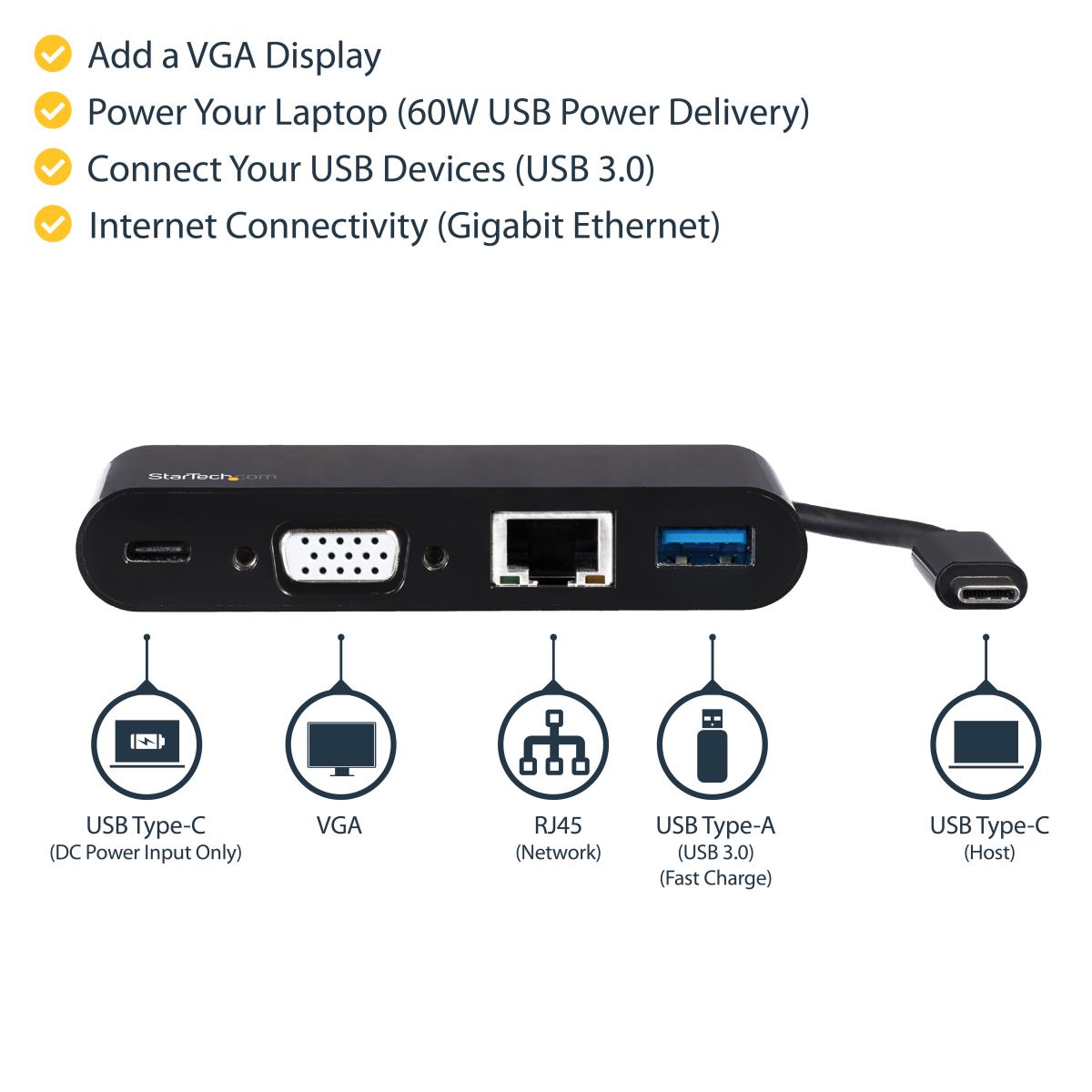

- Add VGA video output through the USB-C port of your laptop (Mac, Windows, Chrome OS compatible)
- Power the multiport adapter and your laptop at the same time, by connecting a compatible USB-C power adapter to the USB-C charge port
- Connect a USB device or fast-charge your smartphone with the USB 3.0 (USB-A) port

Ports & interfaces

DC-in jack No
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery Y
USB Power Delivery up to 60 W
VGA (D-Sub) ports quantity 1
Microphone in N

Power

Wireless charging No
Power source type USB

Logistics data

Products per master (outer) case 60 pc(s)
Master (outer) case width 330 mm
Master (outer) case length 530 mm
Master (outer) case height 310 mm

Technical details

Compliance certificates RoHS
Harmonized System (HS) code 84733020

Network

Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X Y
Full duplex Y
10G support N

Performance

Card reader integrated N
Data transfer rate 5 Gbit/s
Maximum digital resolution 1920 x 1200 pixels
Product colour Black
UASP support Y
Housing material Plastic
Certification CE, FCC, REACH

Software

Windows operating systems supported Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibility Y
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported Chrome

Operational conditions

Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 80 °C
Operating relative humidity (H-H) 10 - 85%

Sustainability

Sustainability certificates RoHS

Weight & dimensions

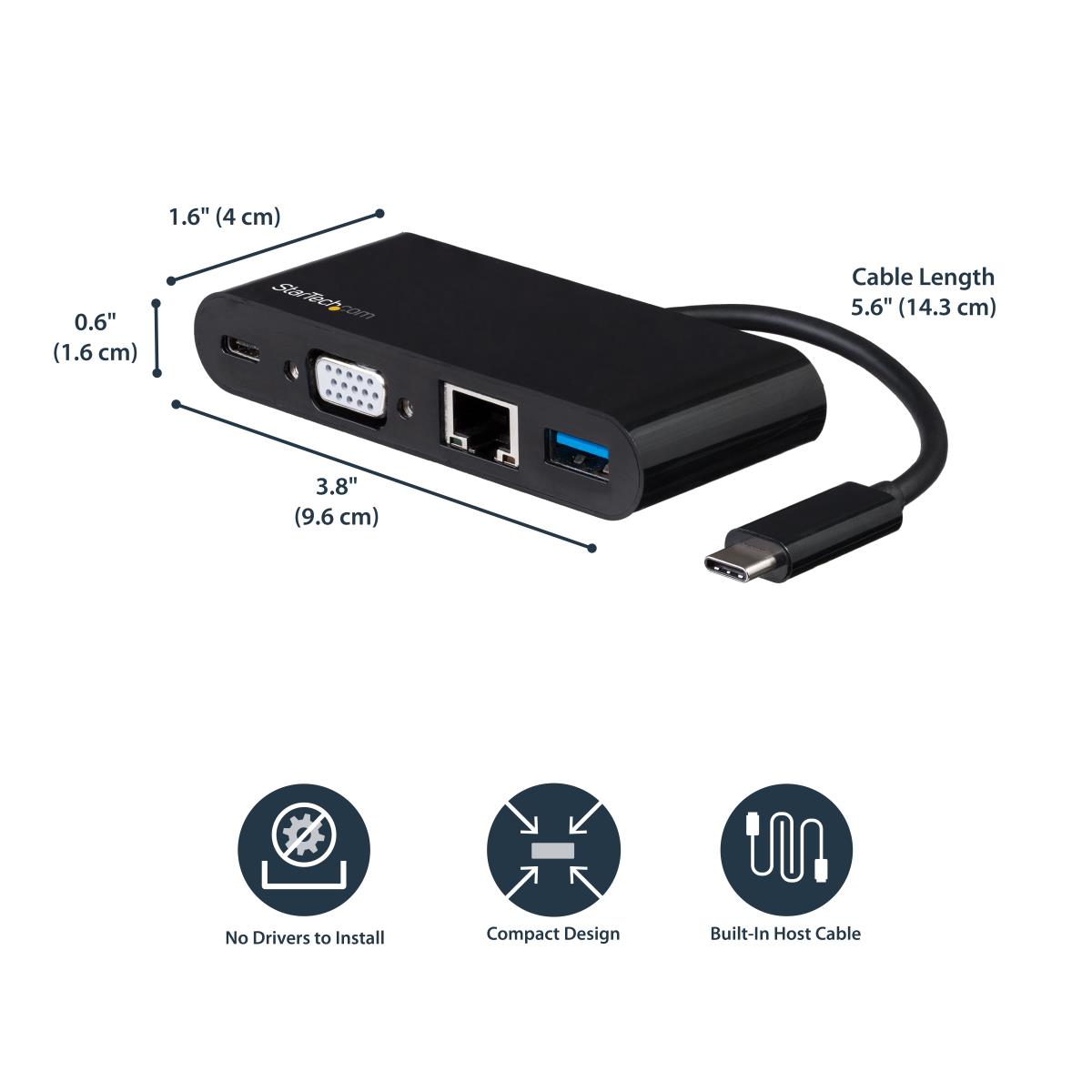

Width 40 mm
Depth 96 mm
Height 16 mm
Weight 49 g

Packaging data

Package width 140 mm
Package depth 172 mm
Package height 30 mm
Package weight 125 g

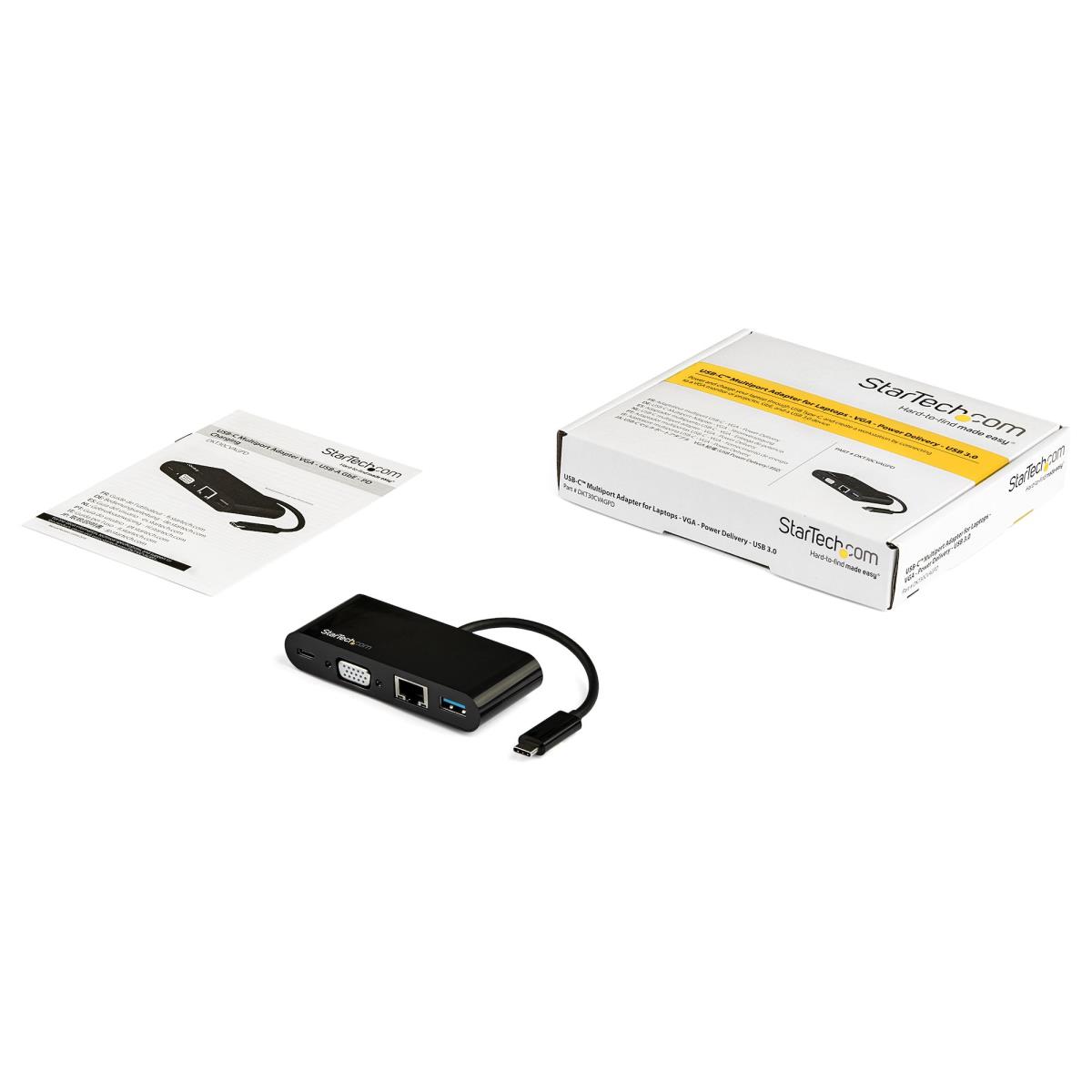

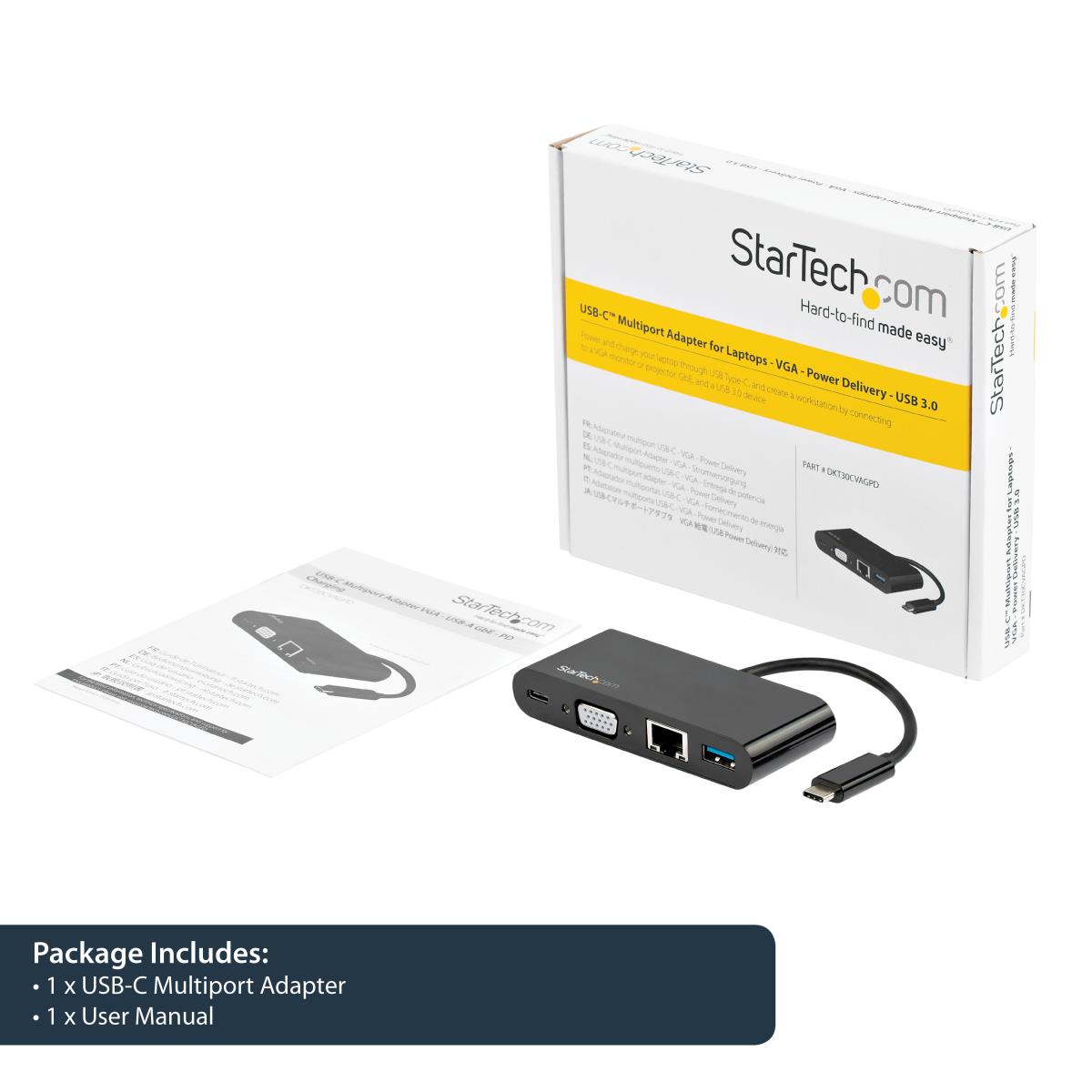

Packaging content

Manual Y

Other features

Cable length 0.143 m
Chipset VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153

Information

Part Number: DKT30CVAGPD
