Product Details
Introduction
Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking PortsThe StarTech.com Advantage
Ports & interfaces
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Ports quantity
4
Terminal block port
Y
DC-in jack
Y
Features
Data transfer rate
10000 Mbit/s
Product colour
Black
Housing material
Metal
LED indicators
Power, USB
Network
UASP support
Y
Technical details
Compliance certificates
CE, RoHS
Sustainability certificates
CE, RoHS
Power
Power consumption (typical)
36 W
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Performance
Harmonized System (HS) code
84719000
Weight & dimensions
Width
59.6 mm
Depth
152 mm
Height
23.5 mm
Weight
280 g
Packaging data
Package width
290 mm
Package depth
190 mm
Package height
67 mm
Package weight
1.3 kg

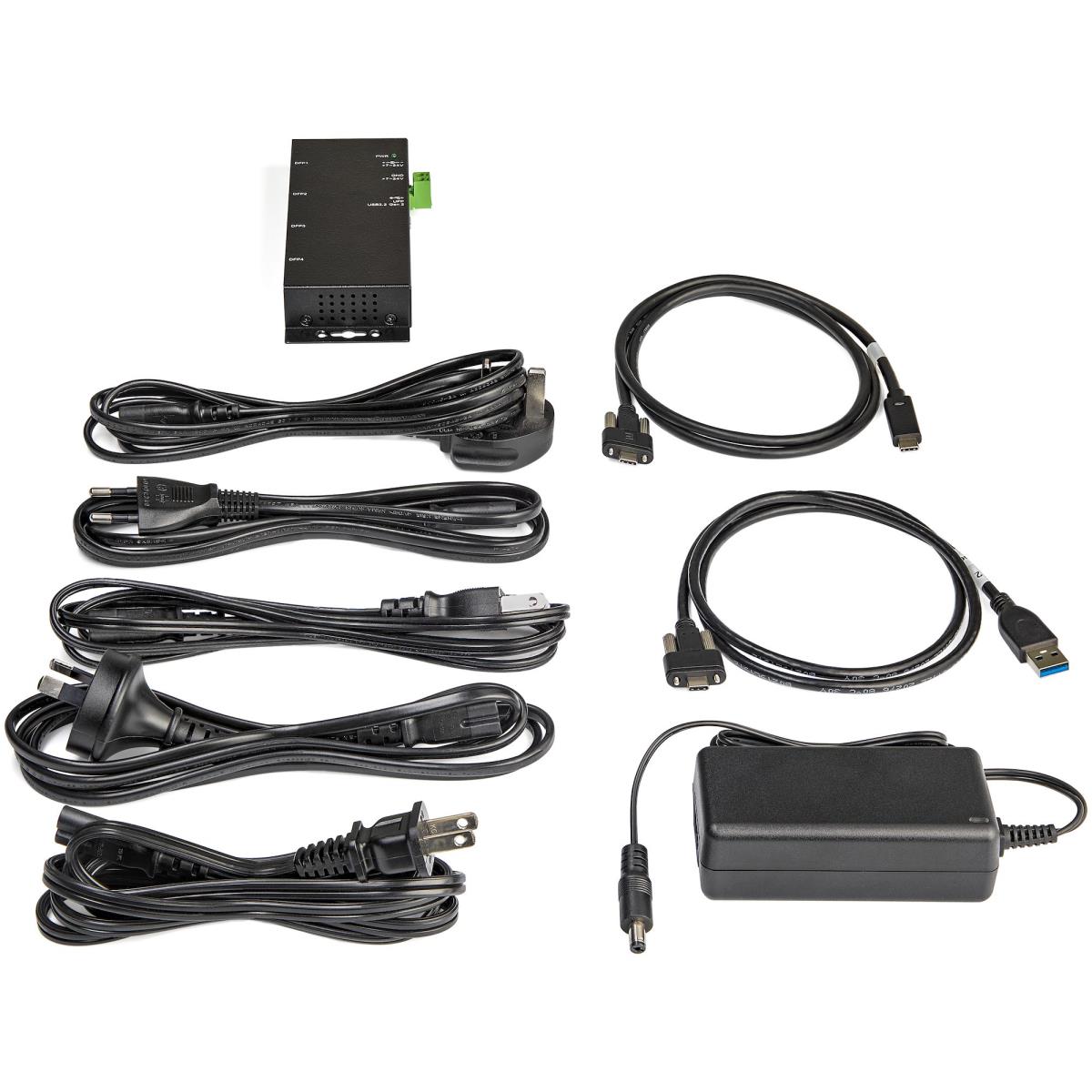

Packaging content
AC adapter included
Y
Included power plug types
ANZ, EU, JP, NA, UK
Cables included
USB Type-A to USB Type-C
Manual
Y
Terminal block included
Y
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Logistics data
Master (outer) case width
515 mm
Master (outer) case length
390 mm
Master (outer) case height
313 mm
Products per master (outer) case
14 pc(s)
Other features
Chipset
VIA/VLI - VL822
Information
| Part Number: | HB31C2A2CME |
