Product Details
Introduction

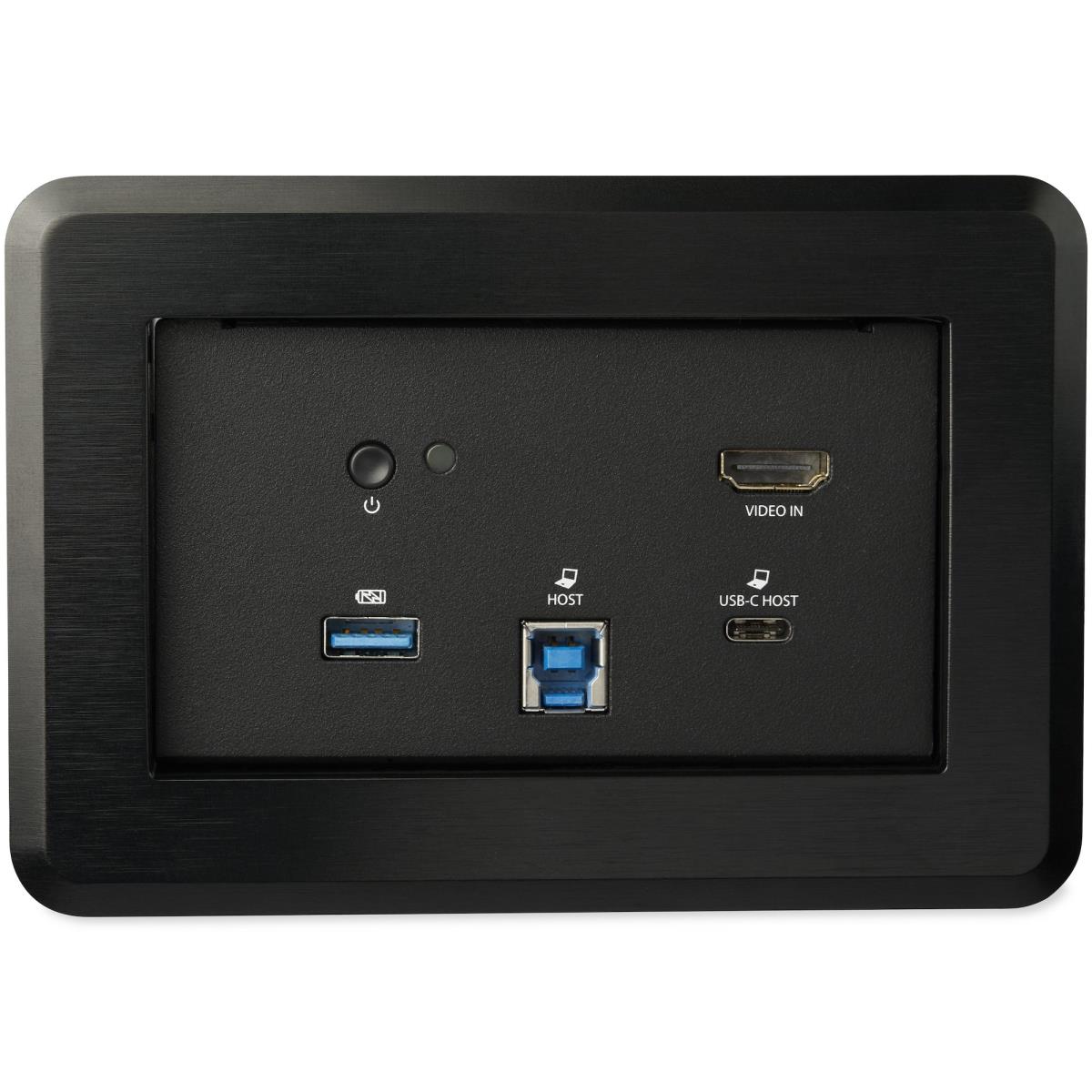

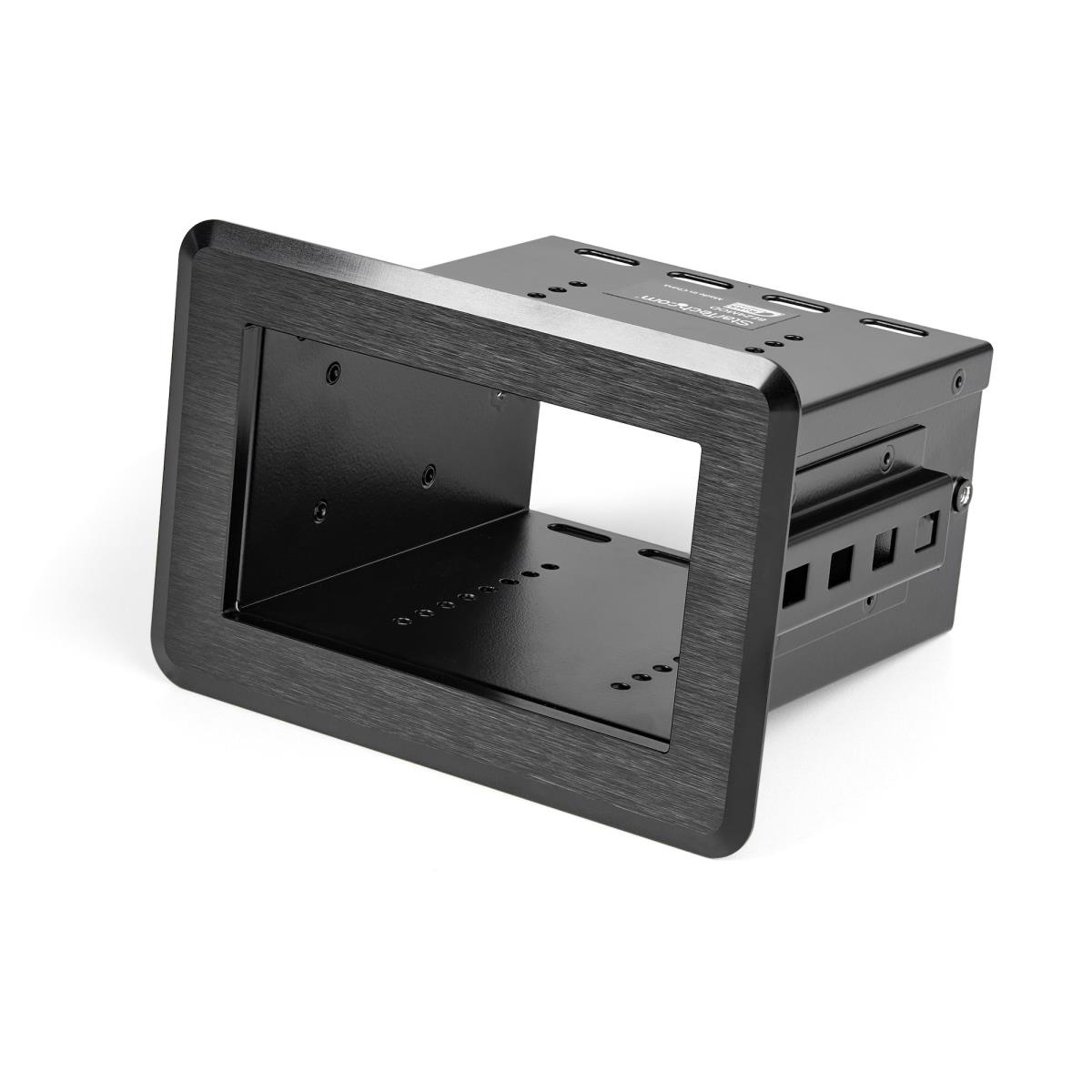

Conference Room Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power DeliveryThe StarTech.com Advantage
Video
Maximum resolution
3840 x 2160 pixels
Maximum refresh rate
30 Hz
Technical details
Compliance certificates
CE, RoHS
Sustainability certificates
CE, RoHS
Network
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
Y
Full duplex
Y
Data transfer rate (max)
5 Gbit/s
Features
Product colour
Black
Housing material
Aluminium
LED indicators
Power
Chipset
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
Operating systems supported
Windows 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14 - 10.15, 11.0
Chrome OS v55+
Ports & interfaces
HDMI input ports quantity
2
HDMI output ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Audio input
1
Audio output
1
Ethernet LAN (RJ-45) ports
1
UASP support
Y
DC-in jack
Y
Power
Input current
2 A
AC adapter input voltage
100 - 240 V
AC adapter output voltage
20 V
AC adapter output current
6 A
Power plug type
Type N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
145 mm
Depth
100 mm
Height
115 mm
Weight
1.1 kg
Package width
190 mm
Package depth
192 mm
Package height
134 mm
Package weight
3 kg
Logistics data
Master (outer) case width
190 mm
Master (outer) case length
192 mm
Master (outer) case height
134 mm
Products per master (outer) case
1 pc(s)
Information
| Part Number: | KITBZDOCK |
