Laptop Docking Station | Mac & Windows | DVI to VGA & HDMI Adapters | 2x Charge Ports
This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

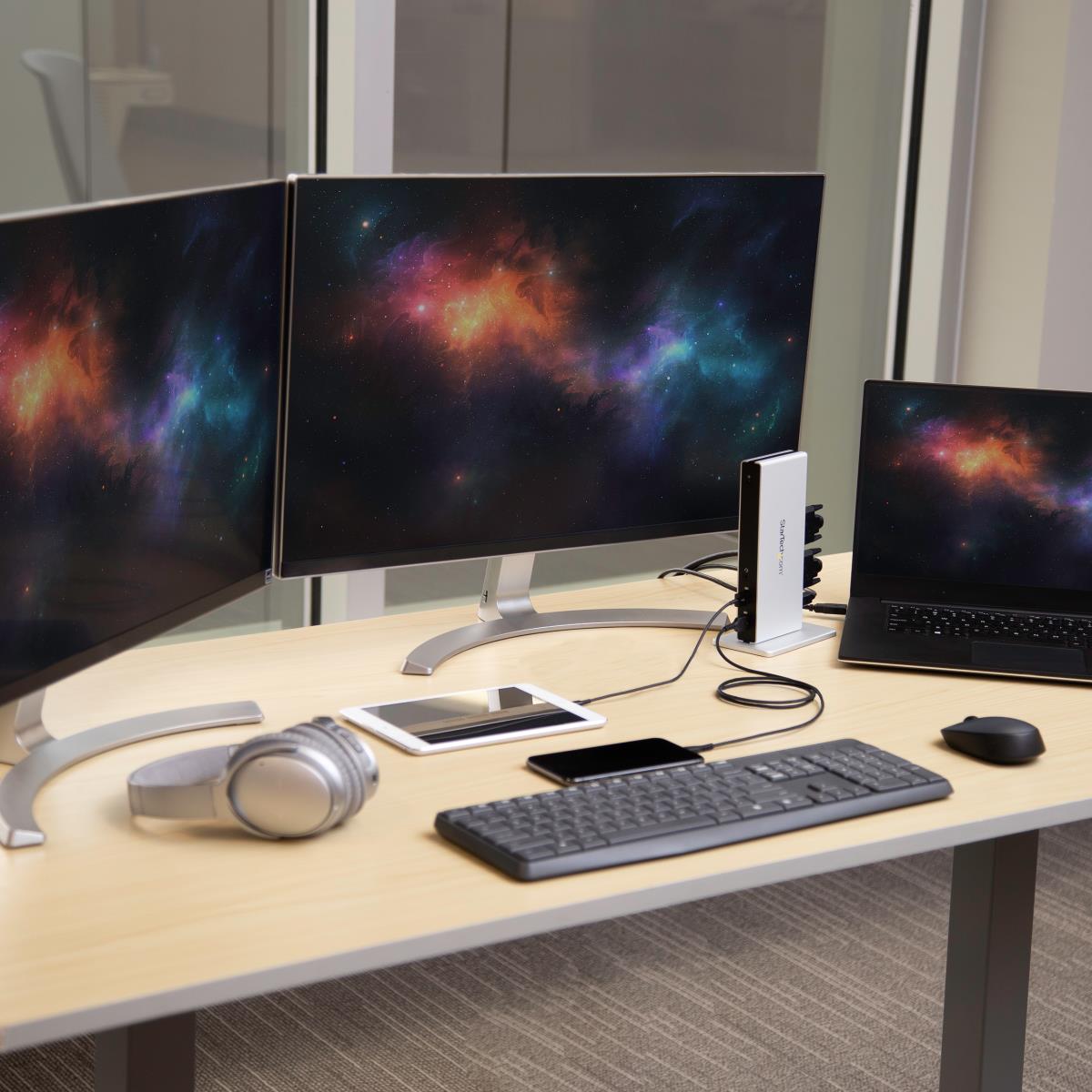

Display Flexibility

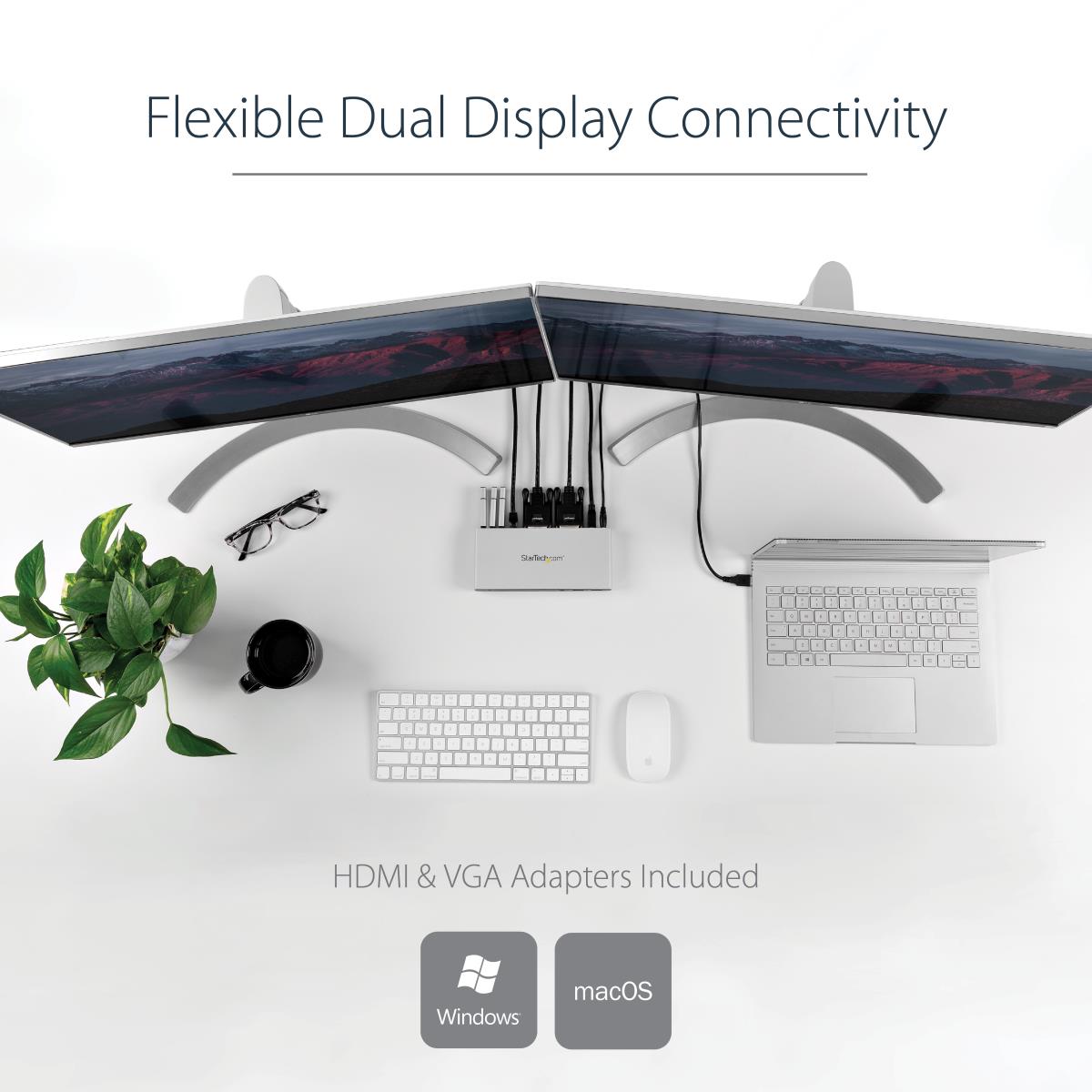

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

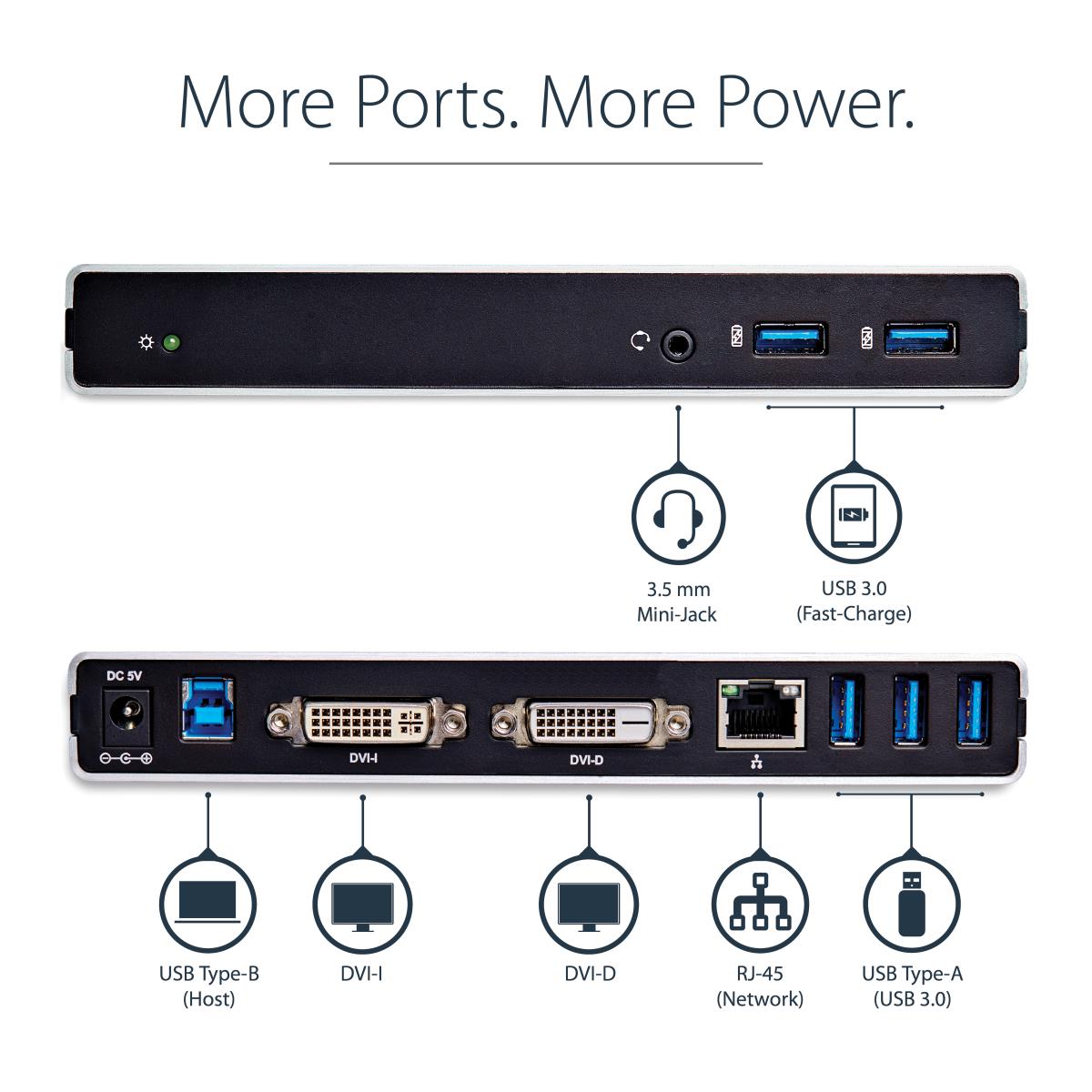

Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you'll have all the connections you need.

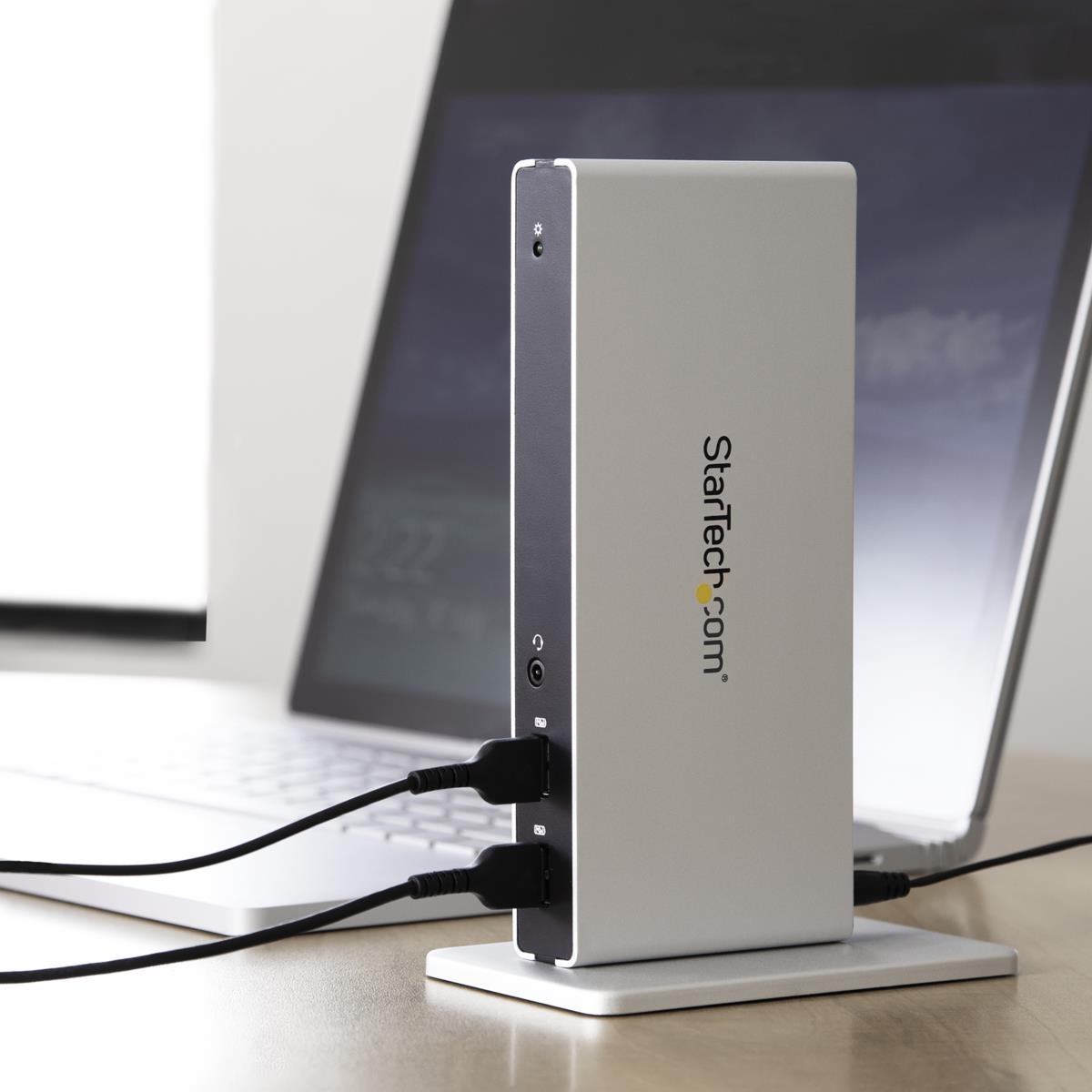

Save Desktop Space

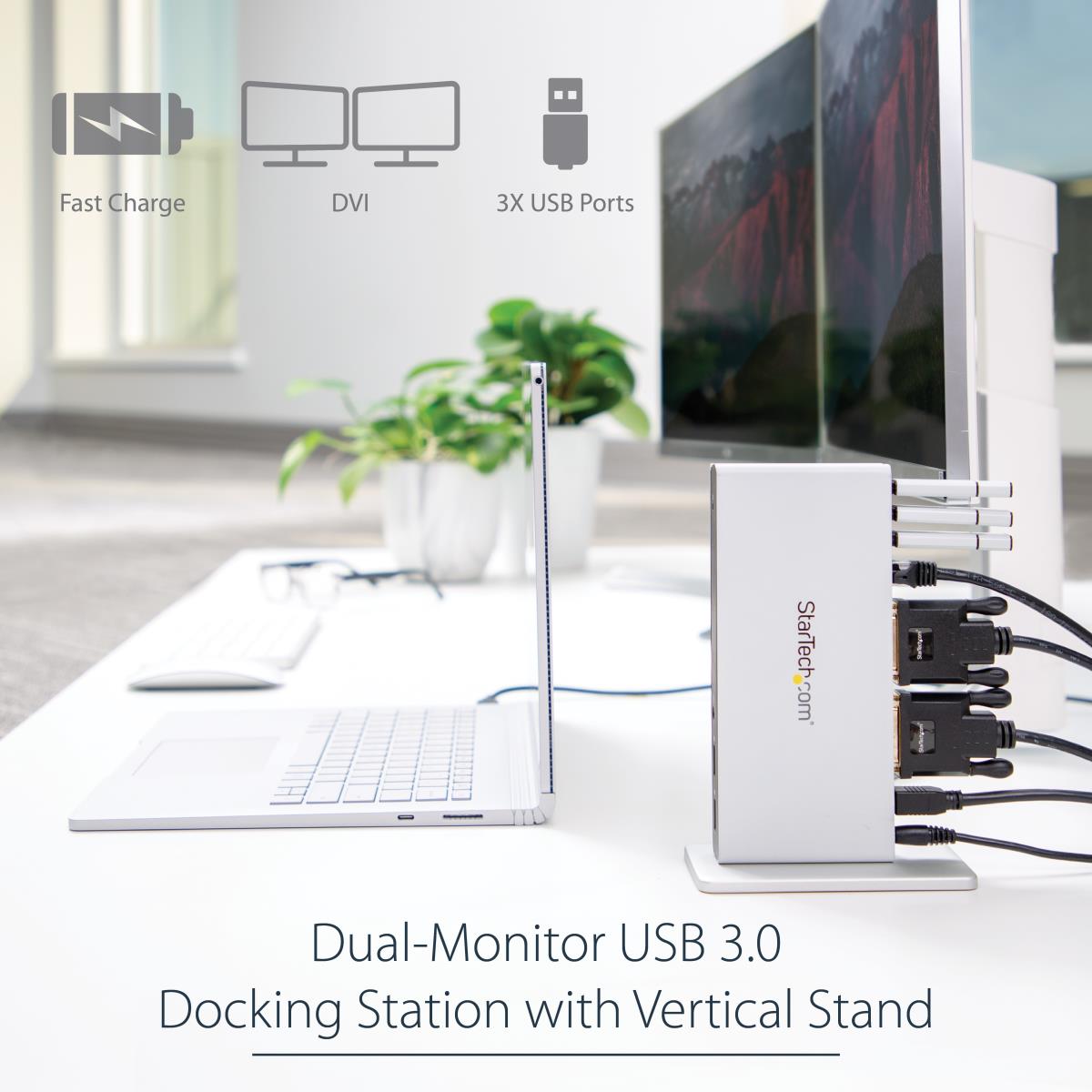

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
- Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
- Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733020
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
357 mm
Master (outer) case length
415 mm
Master (outer) case height
251 mm

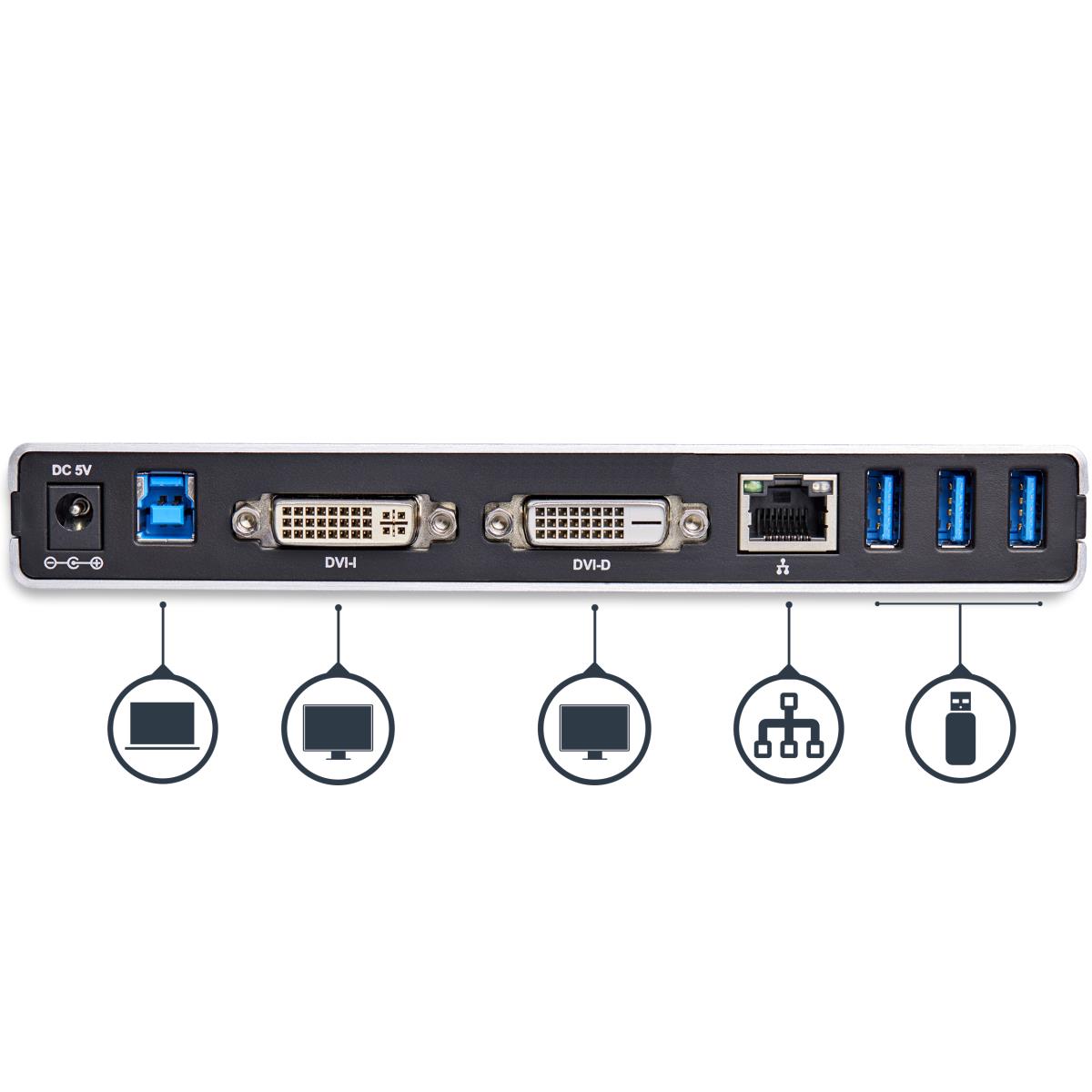

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
DVI-I ports quantity
1
DVI-D ports quantity
1
Combo headphone/mic port
Y
Headphone outputs
1
Headphone connectivity
3.5 mm
DC-in jack
Y
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Y
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
Y
Full duplex
Y
Performance
Card reader integrated
N
Data transfer rate
5 Gbit/s
Maximum analog resolution
2048 x 1152 pixels
Product colour
Black, Silver
LED indicators
Power
Charging function
Y
UASP support
Y
Rubber feet
Y
Housing material
Aluminium, Plastic
Brand compatibility
Any brand
Certification
CE, FCC, REACH
Power
Power source type
AC
AC input voltage
100-240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
20 W
Power plug type
Type M
Compatible power plug types
AU,EU,UK,US
Software
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibility
Y
Mac operating systems supported
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
Other operating systems supported
Chrome
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Sustainability
Sustainability certificates
RoHS

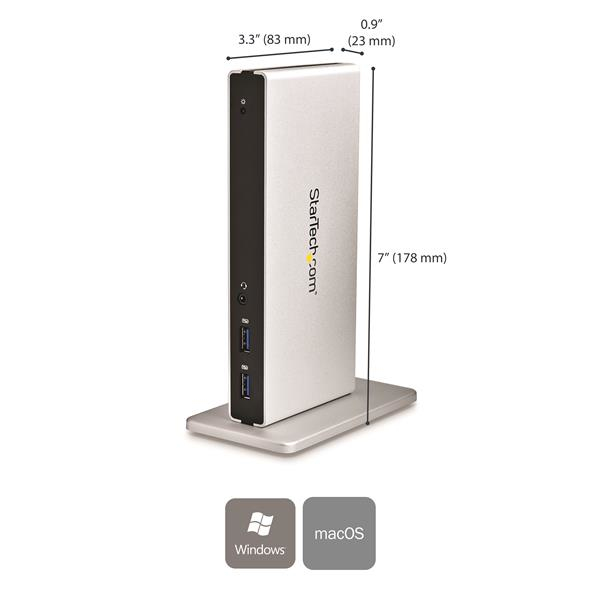

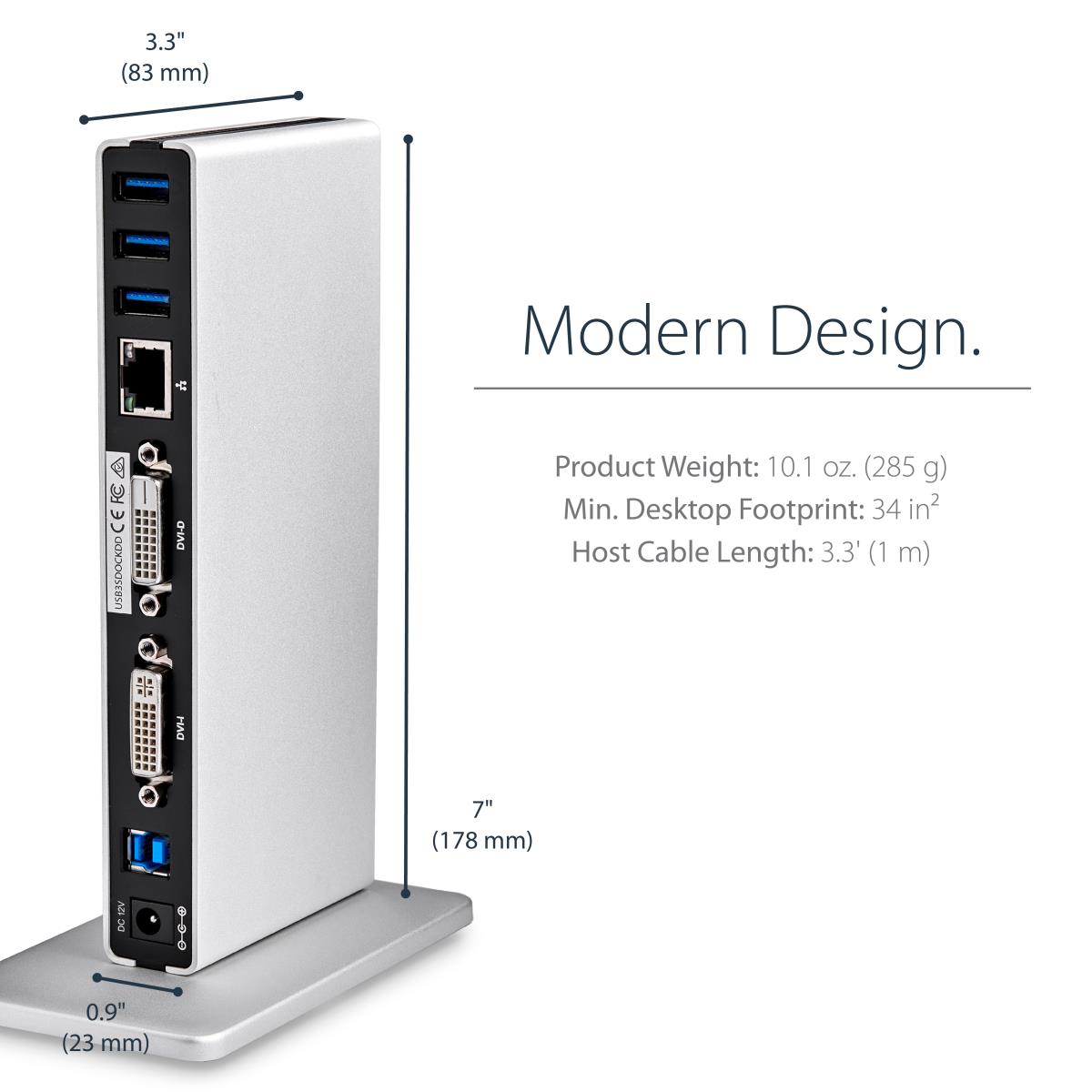

Weight & dimensions
Width
23 mm
Depth
83 mm
Height
178 mm
Weight
285 g
Packaging data
Package width
255 mm
Package depth
186 mm
Package height
95 mm
Package weight
1.02 kg

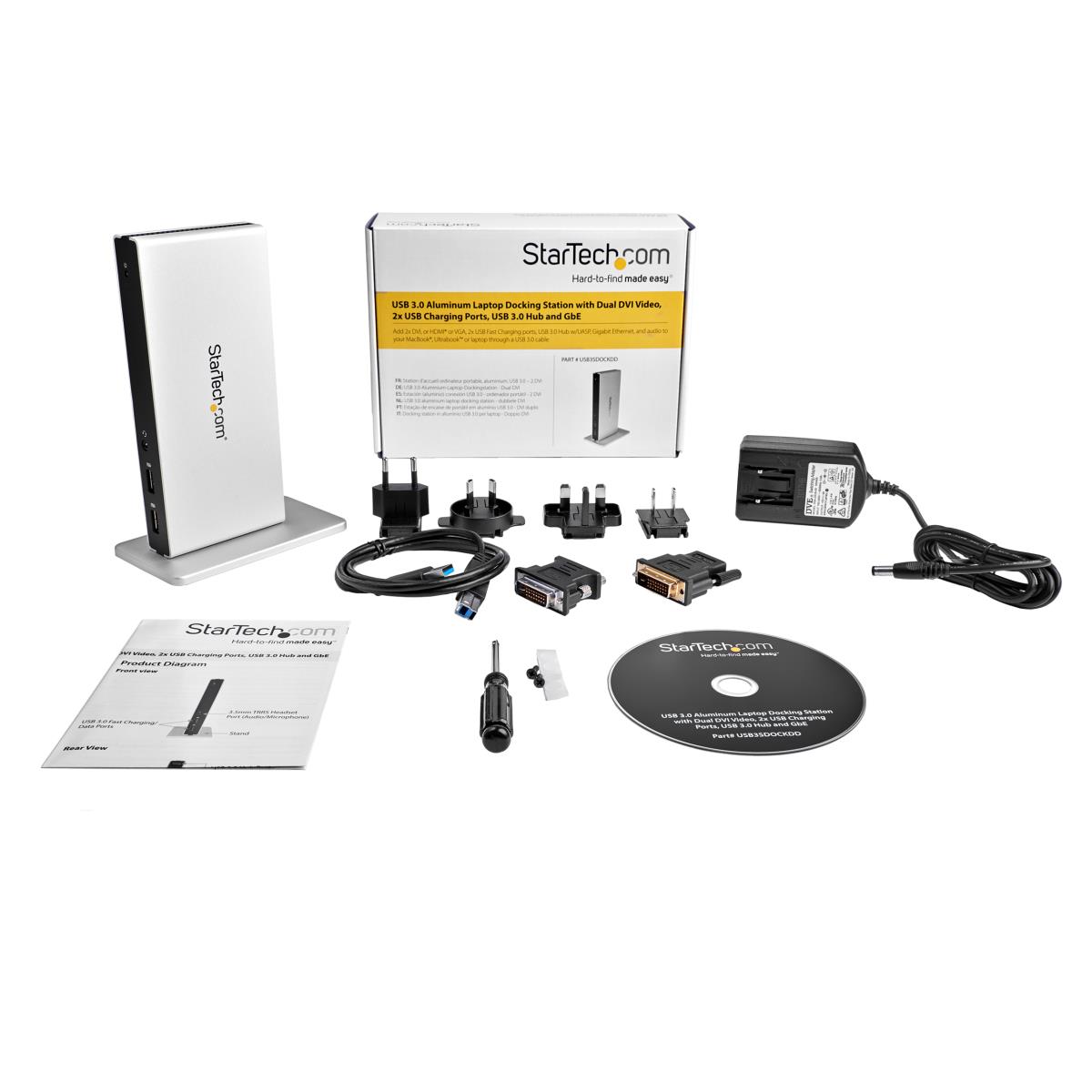

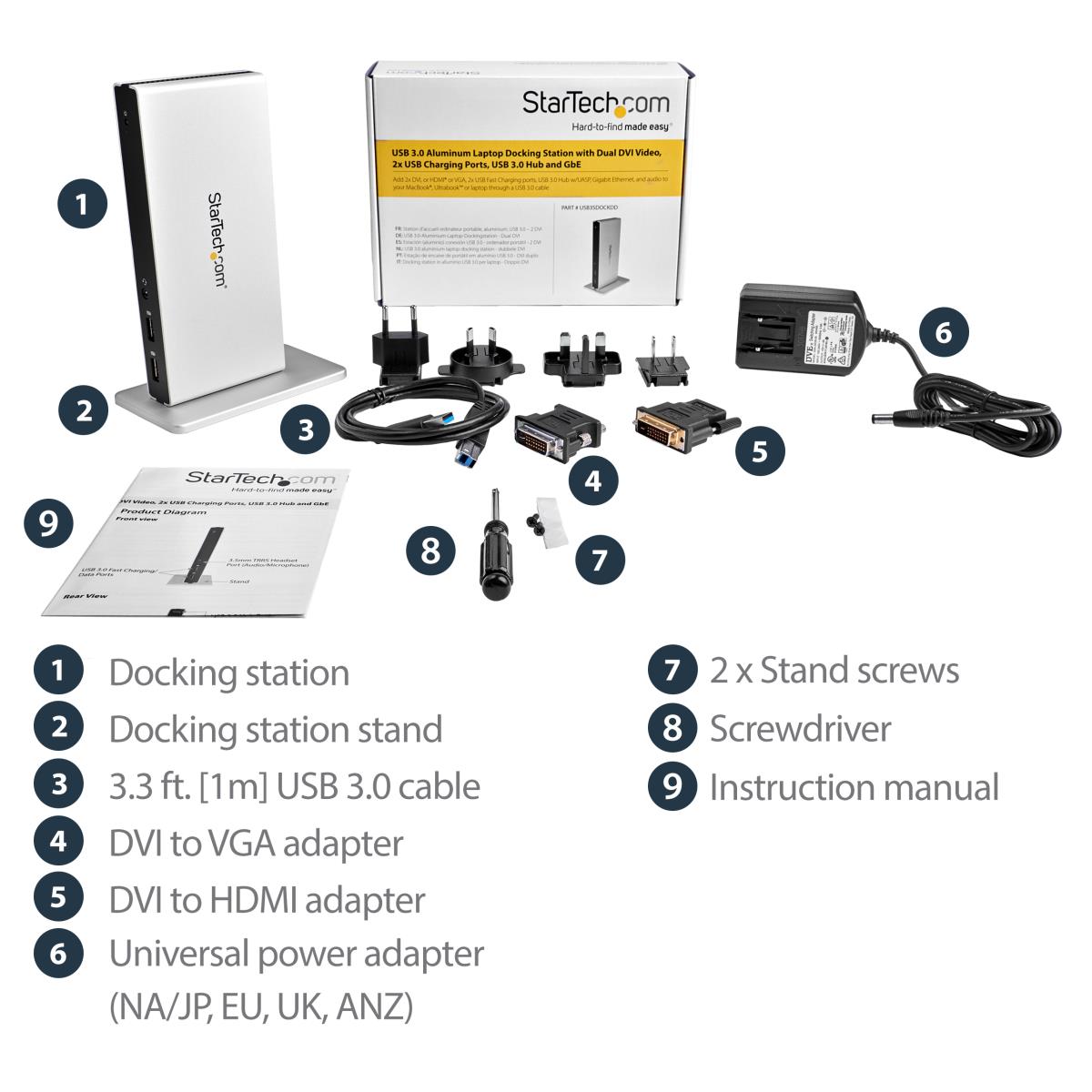

Packaging content
Cables included
USB
AC adapter included
Y
Manual
Y
Drivers included
Y
Stand included
Y
Interface adapters included
DVI-I male - HDMI female, DVI-I male - VGA female
Other features
Cable length
1 m
Chipset
DisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates
12,480,5000 Mbit/s
